Deep Learning - Long Short-Term Memory (LSTM)

Back

• Deep Learning - Long Short-Term Memory (LSTM)
  • Long Short-Term Memory (LSTM)
  • Architecture of LSTM Networks

---

Long Short-Term Memory (LSTM)

• Long Short-Term Memory (LSTM):

  • an advanced recurrent neural network (RNN) design that was developed to better accurately reflect chronological sequences and related brief relationships.

• Applications:

  • Text Generation
  • Image Processing
  • Speech and Handwriting Recognition
  • Music Generation
  • Language Translation

• Disadvantages

  • Training Time and Resource Intensiveness
  • Complex Cell Structure:
  • Overfitting and Dropout Execution
  • Sensitivity to Random Initialization
  • Limited Long-Term Memory

---

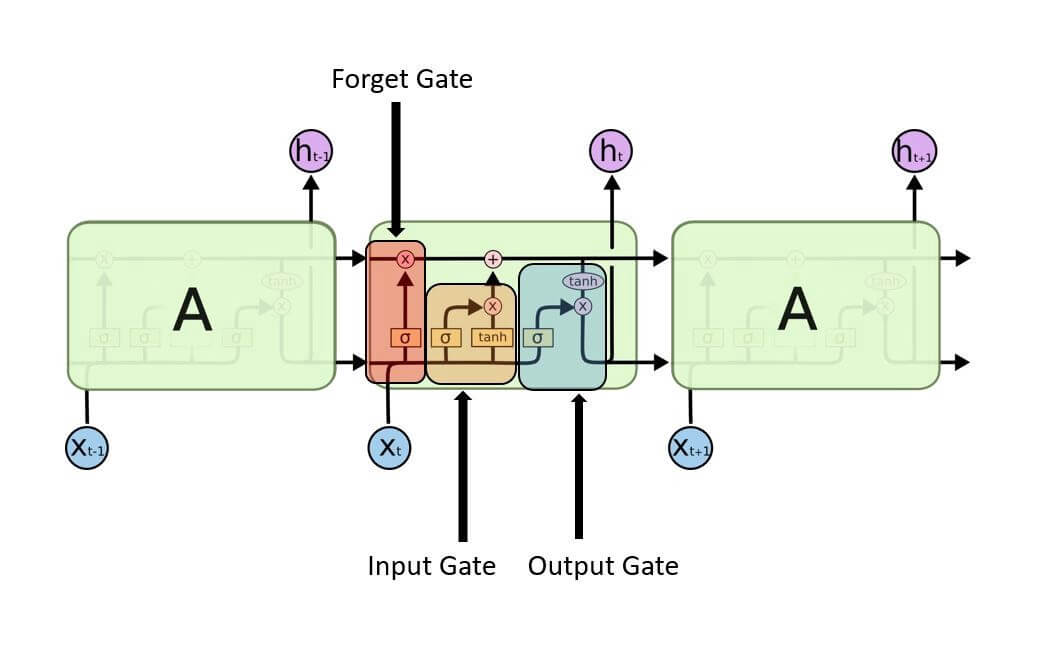

Architecture of LSTM Networks

---

• Forget gate: decide forget

  • The output determines the percentage of the Longe-Term Menory to be remembered.
  • A sigmoid function decides it.
    • It looks at 监控 2 个
      • the previous state (ht-1) 前状态
      • and the content input (Xt) 内容输入
    • outputs a number between 0(omit this) and 1(keep this) for each number in the cell state Ct-1

---

• Input gate:

  • create a New Long-Term Memory
  • Sigmoid function:
    • decides which values to let through 0 or 1.
    • determine the % of Potential Long-Term memory to add to the Long-Term Memory
  • tanh function
    • gives weightage to the values which are passed, deciding their level of importance ranging from -1 to 1.
    • combines the Short-Term Memory and the Input
    • Create a Potential Long-Term Memory

• Output gate

  • The input and the memory of the block are used to decide the output.
    • Sigmoid function decides which values to let through 0 or 1.
      • determine % of a Potential memory
    • And tanh function gives weightage to the values which are passed, deciding their level of importance ranging from -1 to 1 and multiplied with an output of sigmoid.
      • create a Potential Short-Term memory
    • determines the present hidden state that will be passed to the next LSTM unit.

---

• vs RNN

• Hidden Layer Structure

  • the hidden layer of LSTM is the gated unit or cell.
  • 4 layers that work with each other to create the output of the cell, as well as the cell’s state.
    • Both of these are transferred to the next layer.

• Gating Mechanisms

  • 3 logistic sigmoid gates and 2 Tanh layer.
    • Gates were added to restrict the information that goes through cells.
      • They decide which portion of the data is required in the next cell and which parts must be eliminated.
    • The output will typically fall in the range of 0-1
      • 0 is a reference to “reject all’
      • 1 means “include all.”
    • Each LSTM cell is equipped with three inputs and two outputs

• Activation Functions:

  • 3 sigmoid activation functions (0,1)
  • 2 hyperbolic tangent activation functions (-1,1)

---
