PyTorch - Tensor

Back

• PyTorch - Tensor
  • Tensor
    • Lab: Create Tensor
    • Lab: Creating one-dimensional Tensor
  • Vector Operations
    • Mathematical Operations
    • Dot Product and linspace
  • Plot
  • Two-dimensional
    • Tensors Multiplication
  • Three Dimensional Tensor

---

Tensor

• tensor

  • represents a (possibly multi-dimensional) array of numerical values. 数组
  • = ndarray in NumPy library

• scalar:

  • a zero-dimensional tensor

• vector:

  • a tensor with one axis.
  • 1D-Tensor
    • has only one row

• matrix / metrics:

  • a tensor with two axes.

• cube:

  • 3d- tensor

• cube vector:

  • 4d-tensor.

• kth order tensor:

  • a tensor with k > 2 axes

---

Import torch
arr = [[3, 4], [8, 5]]
pytensor = torch.Tensor(arr)
print(pytensor)

---

Lab: Create Tensor

import torch
# -------- Create Tensor from an array

arr = [[3, 4], [8, 5]]
pytensor = torch.Tensor(arr)
print(pytensor)
# tensor([[3., 4.],
#         [8., 5.]])

# -------- Create Tensor with all one
# ones(size): Returns a tensor filled with the scalar value 1,
#     size: shape of the output tensor
ones_t = torch.ones((3, 2))
print(ones_t)
# tensor([[1., 1.],
#         [1., 1.],
#         [1., 1.]])

# -------- Create Tensor with the random number
# rand(size): Returns a tensor filled with random numbers
torch.manual_seed(0)        # Set the seed for generating random numbers
#     size: shape of the output tensor
rand_t = torch.rand(size=(2, 2))
print(rand_t)
# tensor([[0.8823, 0.9150],
#         [0.3829, 0.9593],
#         [0.3904, 0.6009]])


# -------- Create a Tensor from numpy array
# from_numpy(ndarray): Creates a Tensor from a numpy.ndarray.
import torch
import numpy as np
a=np.array([1,2,3,4,5,6])
tensorcon=torch.from_numpy(a)
print(tensorcon)            # tensor([1, 2, 3, 4, 5, 6], dtype=torch.int32)
print(tensorcon.type())     # torch.IntTensor

print(t)
# tensor([1, 2, 3], dtype=torch.int32)

---

Lab: Creating one-dimensional Tensor

import torch
n = torch.tensor([1, 2, 3, 4])
print(n)
# tensor([1, 2, 3, 4])


# Accessing of Tensor's elements
print(n[2])     # tensor(3)
print(n[0:2])   # tensor([1, 2])
print(n[0:])    # tensor([1, 2, 3, 4])
print(n[-1])    # tensor(4)

print(n[2:-1])   # tensor([3])

# Creating of Floating Point Tensor
n=torch.FloatTensor([1,2,3,4,5,6,7])
print(n)    # tensor([1., 2., 3., 4., 5., 6., 7.])


# tensor info
print(n.dtype)      # torch.float32
print(n.size())     # torch.Size([7])

# change view
n.view(7, 1)
# tensor([[1.],
#         [2.],
#         [3.],
#         [4.],
#         [5.],
#         [6.],
#         [7.]])

---

Vector Operations

Mathematical Operations

import torch
A = torch.tensor([1, 2, 3])
B = torch.tensor([4, 5, 6])
print(A*2)  # tensor([2, 4, 6])
print(A-2)  # tensor([-1,  0,  1])
print(A*2)  # tensor([2, 4, 6])
print(A/2)  # tensor([0.5000, 1.0000, 1.5000])
print(A^2)  # tensor([3, 0, 1])

print(A+B)  # tensor([5, 7, 9])
print(A-B)  # tensor([-3, -3, -3])
print(A*B)  # tensor([ 4, 10, 18])
print(B/A)  # tensor([4.0000, 2.5000, 2.0000])

---

Dot Product and linspace

• dot(): Computes the dot product of two 1D tensors.

import torch
t1 = torch.tensor([1, 2, 3])
t2 = torch.tensor([4, 5, 6])
DotProduct = torch.dot(t1, t2)
print(DotProduct)   # tensor(32)

---

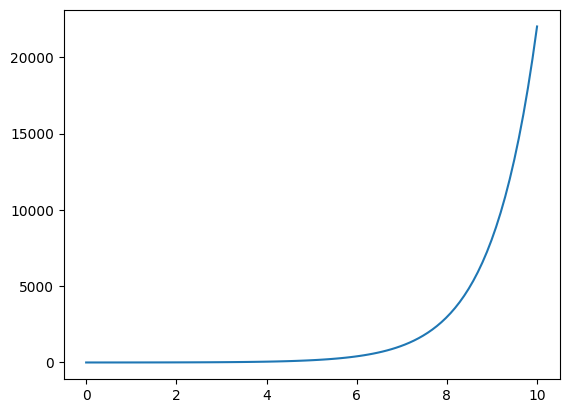

Plot

import torch
import numpy as np
import matplotlib.pyplot as plt
x = torch.linspace(0, 10, 100)
y = torch.exp(x)
plt.plot(x.numpy(), y.numpy())
plt.show()

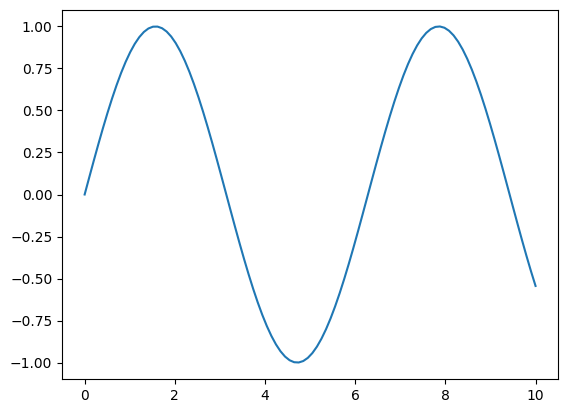

import torch
import numpy as np
import matplotlib.pyplot as plt
x = torch.linspace(0, 10, 100)
y = torch.sin(x)
plt.plot(x.numpy(), y.numpy())
plt.show()

---

Two-dimensional

# Two-dimensional

import torch
# arange(start=0, end, step=1): Returns a 1-D tensor
x = torch.arange(0, 9)      # [0,8]
print(x)
# tensor([0, 1, 2, 3, 4, 5, 6, 7, 8])

# view(*shape): reshape
y = x.view(3, 3)
print(y)
# tensor([[0, 1, 2],
#         [3, 4, 5],
#         [6, 7, 8]])

# dim(): Returns the number of dimensions
print(x.dim())      # 1
print(y.dim())      # 2

# access
print(y[0, 2])      # tensor(2)

---

Tensors Multiplication

import torch
mat_a = torch.tensor([1, 3, 5, 7, 9, 2, 4, 6, 8])
mat_a = mat_a.view(3, 3)
print(mat_a)
# tensor([[1, 3, 5],
#         [7, 9, 2],
#         [4, 6, 8]])


mat_b = torch.tensor([1, 3, 5, 7, 9, 2, 4, 6, 8])
mat_b = mat_b.view(3, 3)
print(mat_b)
# tensor([[1, 3, 5],
#         [7, 9, 2],
#         [4, 6, 8]])


# matmul(input): Matrix product of two tensors.
torch.matmul(mat_a, mat_b)
# tensor([[ 42,  60,  51],
#         [ 78, 114,  69],
#         [ 78, 114,  96]])

---

Three Dimensional Tensor

import torch
x = torch.arange(18)
print(x)
# tensor([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17])

y = x.view(3, 2, 3)
print(y)
# tensor([[[ 0,  1,  2],
#          [ 3,  4,  5]],

#         [[ 6,  7,  8],
#          [ 9, 10, 11]],

#         [[12, 13, 14],
#          [15, 16, 17]]])

print(y[1, 1, 1])       # tensor(10)
print(y[1, 0:2, 0:3])
# tensor([[6,  7,  8],
#         [9, 10, 11]])

---
