AWS - AWS Architecting

Back

• AWS - AWS Architecting
  • Well Architected Framework - General Guiding Principles
  • AWS Cloud Best Practices – Design Principles
  • Well Architected Framework
    • 1. Operational Excellence
      • AWS Services
    • 2. Security
      • AWS Services
    • 3. Reliability
      • AWS Services
    • 4. Performance Efficiency
      • AWS Services
    • 5. Cost Optimization
      • AWS Services
    • 6. Sustainability
      • AWS Services
  • AWS Well-Architected Tool
  • AWS Cloud Adoption Framework (AWS CAF) - digital transformation planning
    • Business Capabilities 必考
    • Technical Capabilities 必考
    • Cloud transformation value chain
    • Transformation Domains 必考
  • AWS Right Sizing - guid, start small, lowest possible cost

---

Well Architected Framework - General Guiding Principles

• Stop guessing your capacity needs
• Test systems at production scale
• Automate to make architectural experimentation easier
• Allow for evolutionary architectures
• Design based on changing requirements
• Drive architectures using data
• Improve through game days
• Simulate applications for flash sale days

---

AWS Cloud Best Practices – Design Principles

• Scalability: vertical & horizontal
• Disposable Resources: servers should be disposable & easily configured
• Automation: Serverless, Infrastructure as a Service, Auto Scaling…
• Loose Coupling:
  • Monolith are applications that do more and more over time, become bigger
  • Break it down into smaller, loosely coupled components
• A change or a failure in one component should not cascade to other components
• Services, not Servers:
  • Don’t use just EC2
  • Use managed services, databases, serverless, etc !

---

Well Architected Framework

• 6 Pillars

  • 1. Operational Excellence
  • 1. Security
  • 1. Reliability
  • 1. Performance Efficiency
  • 1. Cost Optimization
  • 1. Sustainability

• They are not something to balance, or trade-offs, they’re a synergy

---

1. Operational Excellence

• Includes the ability to run and monitor systems to deliver business value and to continually improve supporting processes and procedures

• Design Principles

  • Perform operations as code
    • Infrastructure as code
  • Annotate documentation
    • Automate the creation of annotated documentation after every build
  • Make frequent, small, reversible changes
    • So that in case of any failure, you can reverse it
  • Refine operations procedures frequently And ensure that team members are familiar with it
  • Anticipate failure
  • Learn from all operational failures

AWS Services

• Prepare

  • AWS CloudFormation
  • AWS Config

• Operate

  • AWS CloudFormation
  • AWS Config
  • AWS CloudTrail
  • Amazon CloudWatch
  • AWS X-Ray

• Evolve

  • AWS CloudFormation
  • AWS CodeCommit
  • AWS CodeBuild
  • AWS CodeDeploy
  • AWS CodePipeline

---

2. Security

• Includes the ability to protect information, systems, and assets while delivering business value through risk assessments and mitigation strategies

• Design Principles

  • Implement a strong identity foundation
    • Centralize privilege management and reduce (or even eliminate) reliance on long-term credentials
    • Principle of least privilege
    • IAM
  • Enable traceability
    • Integrate logs and metrics with systems to automatically respond and take action
  • Apply security at all layers
    • Like edge network, VPC, subnet, load balancer, every instance, operating system, and application
  • Automate security best practices
  • Protect data in transit and at rest
    • Encryption, tokenization, and access control
  • Keep people away from data
    • Reduce or eliminate the need for direct access or manual processing of data
  • Prepare for security events
    • Run incident response simulations and use tools with automation to increase your speed for detection, investigation, and recovery
  • Shared Responsibility Model

AWS Services

• Identity and Access Management

  • IAM
  • AWS-STS
  • MFA token
  • AWS Organizations

• Detective Controls

  • AWS Config
  • AWS CloudTrail
  • Amazon CloudWatch

• Infrastructure Protection

  • Amazon CloudFront
  • Amazon VPC
  • AWS Shield
  • AWS WAF
  • Amazon Inspector

• Data Protection:

  • KMS
  • S3
  • Elastic Load Balancing (ELB)
  • Amazon EBS
  • Amazon RDS

• Incident Response

  • IAM
  • AWS CloudFormation
  • Amazon CloudWatch Events

---

3. Reliability

• Ability of a system to recover from infrastructure or service disruptions, dynamically acquire computing resources to meet demand, and mitigate disruptions such as misconfigurations or transient network issues

• Design Principles

  • Test recovery procedures
    • Use automation to simulate different failures or to recreate scenarios that led to failures before
  • Automatically recover from failure
    • Anticipate and remediate failures before they occur
  • Scale horizontally to increase aggregate system availability
    • Distribute requests across multiple, smaller resources to ensure that they don’t share a common point of failure
  • Stop guessing capacity
    • Maintain the optimal level to satisfy demand without over or under provisioning
    • Use Auto Scaling
  • Manage change in automation
    • Use automation to make changes to infrastructure

AWS Services

• Foundations

  • IAM
  • Amazon VPC
  • AWS Quotas
  • AWS Trusted Advisor

• Change Management

  • AWS Auto Scaling
  • Amazon CloudWatch
  • AWS CloudTrail
  • AWS Config

• Failure Management

  • Backups
  • AWS CloudFormation
  • Amazon S3
  • Amazon S3
  • Glacier
  • Amazon Route 53

---

4. Performance Efficiency

• Includes the ability to use computing resources efficiently to meet system requirements, and to maintain that efficiency as demand changes and technologies evolve

• Design Principles

  • Democratize advanced technologies
    • Advance technologies become services and hence you can focus more on product development
  • Go global in minutes
    • Easy deployment in multiple regions
  • Use serverless architectures
    • Avoid burden of managing servers
  • Experiment more often
    • Easy to carry out comparative testing
  • Mechanical sympathy
    • Be aware of all AWS services

---

AWS Services

• Selection

  • AWS Auto Scaling
  • Amazon Elastic Block Store (EBS)
  • Amazon Simple Storage Service (S3)
  • AWS Lambda Amazon RDS

• Review

  • AWS CloudFormation

• Monitoring

  • Amazon CloudWatch
  • AWS Lambda

• Tradeoffs

  • Amazon RDS
  • Amazon ElastiCache
  • AWS Snowball
  • Amazon CloudFront

---

5. Cost Optimization

• Includes the ability to run systems to deliver business value at the lowest price point

• Design Principles

  • Adopt a consumption mode
    • Pay only for what you use
  • Measure overall efficiency
    • Use CloudWatch
  • Stop spending money on data center operations
    • AWS does the infrastructure part and enables customer to focus on organization projects
  • Analyze and attribute expenditure
    • Accurate identification of system usage and costs, helps measure return on investment (ROI) - Make sure to use tags
  • Use managed and application level services to reduce cost of ownership
    • As managed services operate at cloud scale, they can offer a lower cost per transaction or service

AWS Services

• Expenditure Awareness

  • AWS Cost and Usage Report
  • AWS Cost Explorer
  • AWS Budgets
  • Reserved Instance Reporting

• Cost-Effective Resources

  • Spot instance
  • Reserved instance
  • Amazon S3 Glacier

• Matching supply and demand

  • AWS Auto Scaling
  • AWS Lambda

• Optimizing Over Time

  • AWS Trusted Advisor
  • AWS Cost and Usage Report

---

6. Sustainability

• The sustainability pillar focuses on minimizing the environmental impacts of running cloud workloads.

• Design Principles

  • Understand your impact
    • establish performance indicators, evaluate improvements
  • Establish sustainability goals
    • Set long-term goals for each workload, model return on investment (ROI)
  • Maximize utilization
    • Right size each workload to maximize the energy efficiency of the underlying hardware and minimize idle resources.
  • Anticipate and adopt new, more efficient hardware and software offerings and design for flexibility to adopt new technologies over time.
  • Use managed services
    • Shared services reduce the amount of infrastructure; Managed services help automate sustainability best practices as moving infrequent accessed data to cold storage and adjusting compute capacity.
  • Reduce the downstream impact of your cloud workloads
    • Reduce the amount of energy or resources required to use your services and reduce the need for your customers to upgrade their devices

AWS Services

• EC2 Auto Scaling, Serverless Offering (Lambda, Fargate)
• Cost Explorer, AWS Graviton 2, EC2 T instances, @Spot Instances
• EFS-IA, Amazon S3 Glacier, EBS Cold HDD volumes
• S3 Lifecycle Configurations, S3 Intelligent Tiering
• Amazon Data Lifecycle Manager
• Read Local, Write Global: RDS Read Replicas, Aurora Global DB, DynamoDB Global Table, CloudFront

---

AWS Well-Architected Tool

• Free tool to review your architectures against the 6 pillars Well-Architected Framework and adopt architectural best practices
• How does it work?
  • Select your workload and answer questions
  • Review your answers against the 6 pillars
  • Obtain advice: get videos and documentations, generate a report, see the results in a dashboard

---

AWS Cloud Adoption Framework (AWS CAF) - digital transformation planning

• Helps you build and then execute a comprehensive plan for your digital transformation through innovative use of AWS
• Created by AWS Professionals by taking advantage of AWS Best Practices and lessons learned from 1000s of customers
• AWS CAF identifies specific organizational capabilities that underpin successful cloud transformations
• AWS CAF groups its capabilities in six perspectives:
  • Business, People, Governance, Platform, Security, and Operations

Business Capabilities 必考

• Business Perspective helps ensure that your cloud investments accelerate your digital transformation ambitions and business outcomes.
• People Perspective serves as a bridge between technology and business, accelerating the cloud journey to help organizations more rapidly evolve to a culture of continuous growth, learning, and where change becomes business-as-normal, with focus on culture, organizational structure, leadership, and workforce.
• Governance Perspective helps you orchestrate your cloud initiatives while maximizing organizational benefits and minimizing transformationrelated risks.

Technical Capabilities 必考

• Platform Perspective helps you build an enterprise-grade, scalable, hybrid cloud platform; modernize existing workloads; and implement new cloud-native solutions.
• Security Perspective helps you achieve the confidentiality, integrity, and availability of your data and cloud workloads.
• Operations Perspective helps ensure that your cloud services are delivered at a level that meets the needs of your business.

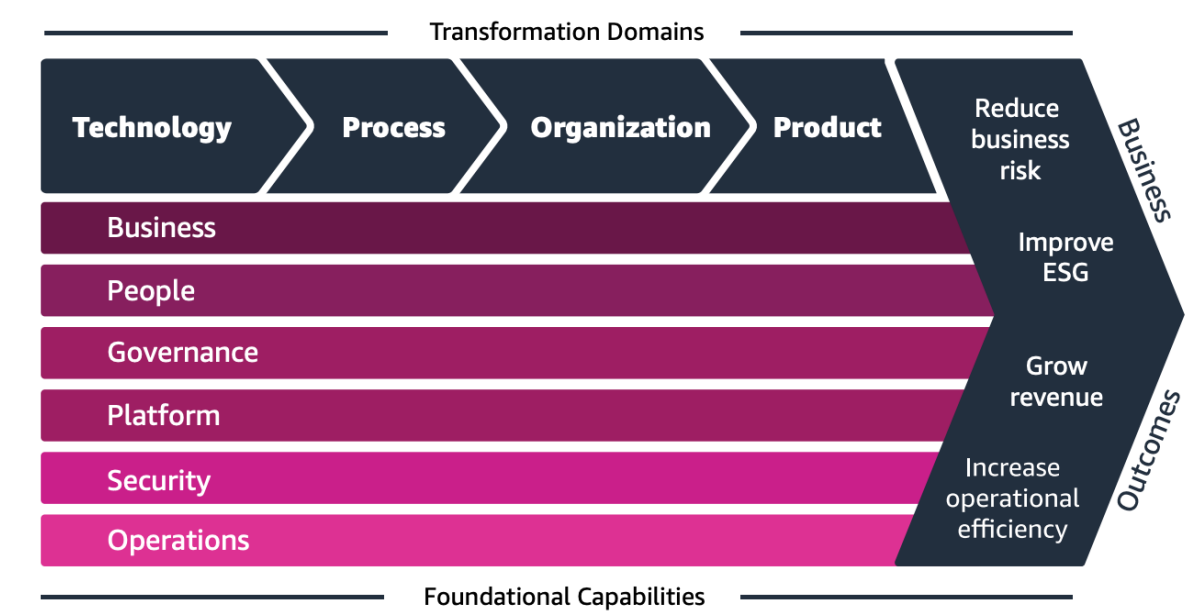

Cloud transformation value chain

Transformation Domains 必考

• Technology
  • using the cloud to migrate and modernize legacy infrastructure, applications, data and analytics platforms…
• Process
  • digitizing, automating, and optimizing your business operations
  • leveraging new data and analytics platforms to create actionable insights
  • using machine learning (ML) to improve your customer service experience…
• Organization
  • Reimagining your operating model
  • Organizing your teams around products and value streams
  • Leveraging agile methods to rapidly iterate and evolve
• Product
  • reimagining your business model by creating new value propositions (products & services) and revenue models

---

AWS Right Sizing - guid, start small, lowest possible cost

• EC2 has many instance types, but choosing the most powerful instance type isn’t the best choice, because the cloud is elastic
• Right sizing is the process of matching instance types and sizes to your workload performance and capacity requirements at the lowest possible cost
• Scaling up is easy so always start small
• It’s also the process of looking at deployed instances and identifying opportunities to eliminate or downsize without compromising capacity or other requirements, which results in lower costs
• It’s important to Right Size…
  • before a Cloud Migration
  • continuously after the cloud onboarding process (requirements change over time)
• CloudWatch, Cost Explorer, Trusted Advisor, 3rd party tools can help

---
