AWS - Identity

Back

• AWS - Identity
  • Zero Trust Model
    • Zero Trust on AWS
    • Intelligent Zero Trust on AWS: with Third Party.
    • Identity Providers(IdPs)
  • Technologies
    • Directory Service
    • Single-Sign-On (SSO)
    • LDAP
    • Multi-Factor-Authenication
    • Security Keys - u2f security key
  • Principle of Least Privilege (PoLP)
  • AWS IAM
    • IAM Policy
    • AWS Account Root User
    • AWS IAM Identity Center - SSO
    • Access Keys
    • IAM Security Tools
    • IAM Access Analyzer - Access outside, Zone of Trust
    • IAM Guidelines \& Best Practices
    • Shared Responsibility Model for IAM
    • AWS Directory Services - Microsoft AD, on-premise
    • AWS IAM Identity Center - SSO
    • AWS STS (SecurityToken Service) - temporary, limited-privileges credentials
    • Amazon Cognito (simplified) - app user, db
  • IAM – Summary

---

Zero Trust Model

• Network-Centric: Old-Way

  • Traditional security focused on firewalls and VPNs
    • Since there were few employees or workstations outside the office or they were in specific remote offices.

• Identity-Centric: New-Way

  • We have identity based security controls like MFA, or providing provisional access based on the level of risk from where, when,and what a user wants to access.
  • Since Bring-your-own-device, remote workstations is much more common, we cannot trust if the employee is a secure location.

• Primary Security Perimeter

  • The primary or new security perimeter defines the first line of defense and its security controls that protect a company’s cloud resources and assets.

• Zero Trust Model

  • operates on the principle of trust no one, verify everything.

• In the Zero Trust Model, Identity becomes the primary security perimeter.

• Identity-Centric does not replace but arguments network-centric security.

---

Zero Trust on AWS

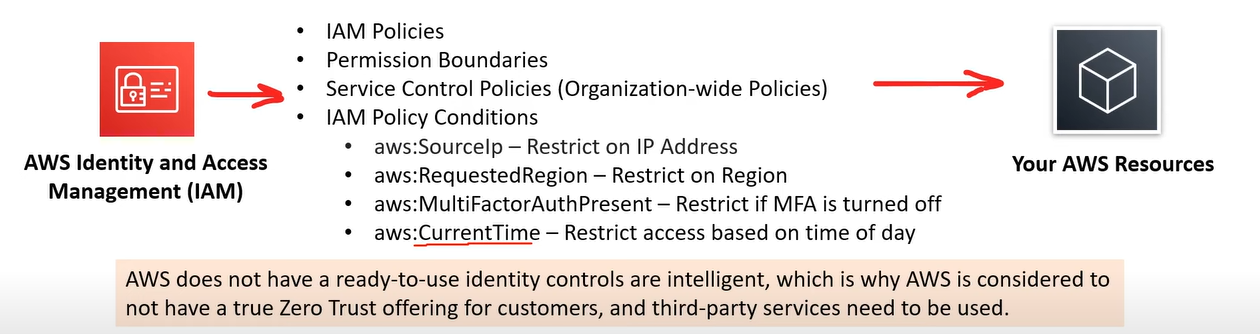

• Identity Security Controls
  • user can implement on AWS to meet the Zero Trust.

• AWS does not have a ready-to-use identity controls are intelligent, which is why AWS is considered to not have a true Zero Trust offering for customers, and third-party services need to be used.

• A collection of AES services can be setup to intelligent-ish detection concerns but requires expert knowledge.

---

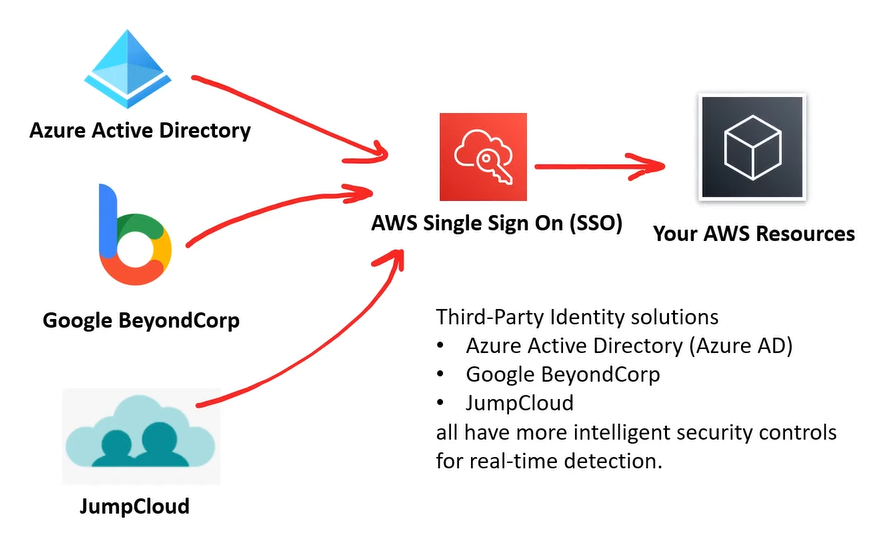

Intelligent Zero Trust on AWS: with Third Party.

• AWS does technically implement a Zero Trust Model but does not allow for intelligent identity security controls.

• 要实现智能, 需要使用第三方.

---

Identity Providers(IdPs)

• Identity Provider (IdP)

  • a system entity that creates, maintains, and manages identity information for principals and also provides authentication services to applications with a federation or distributed network.

• Federated identity

  • a method of linking a user’s identity across multiple separate identity management systems.

• A trusted provider of user identity lets user use authenticate to access other services.

• Identity Providers: Facebook, Amazon, Google, Twitter, Github, LinkedIn.

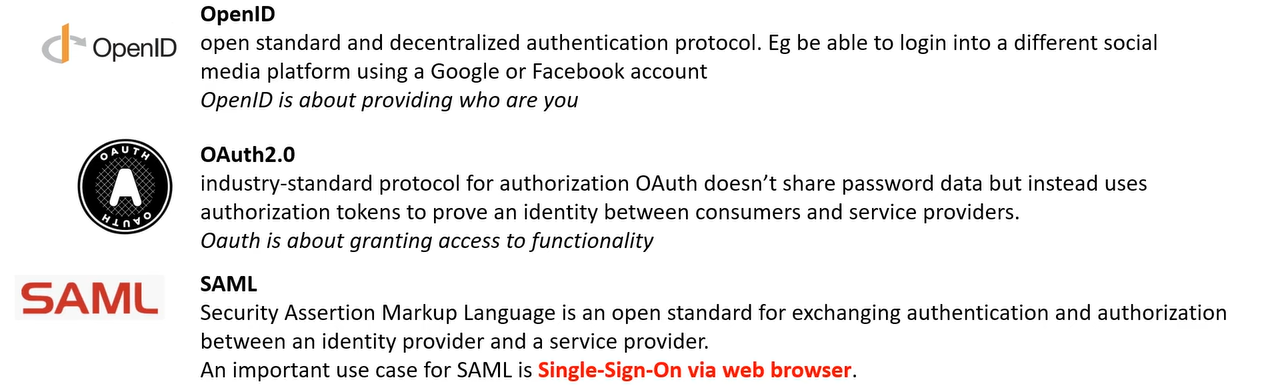

• Protocol



---

Technologies

Directory Service

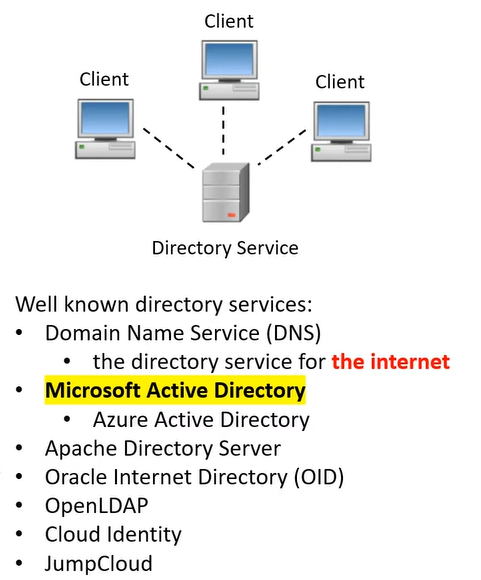

• Directory Service

  • maps the names of network resource to their network address.
  • shared information infrastructure for locating, managing, adminstering, and organizing resources.
    • Each resource on the network is considered an object by the directory server.
    • Information about a particular resource is stored as collection of attributes associated with that resource or object.

• A direcotry service is a critical component of a network operating system.

• directory server (name server)

  • a server which provides a directory service.

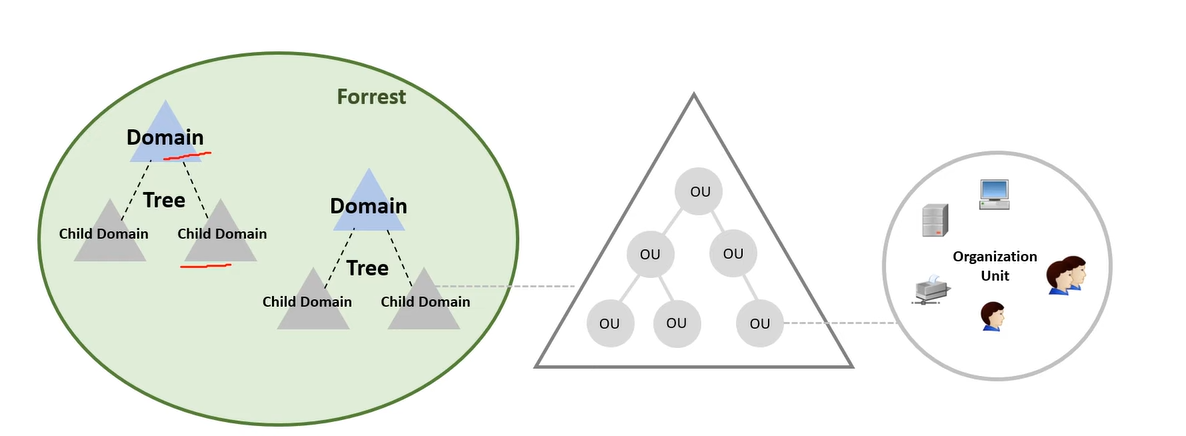

• Active Directory - Windows

  • Used by windows.(了解即可)



---

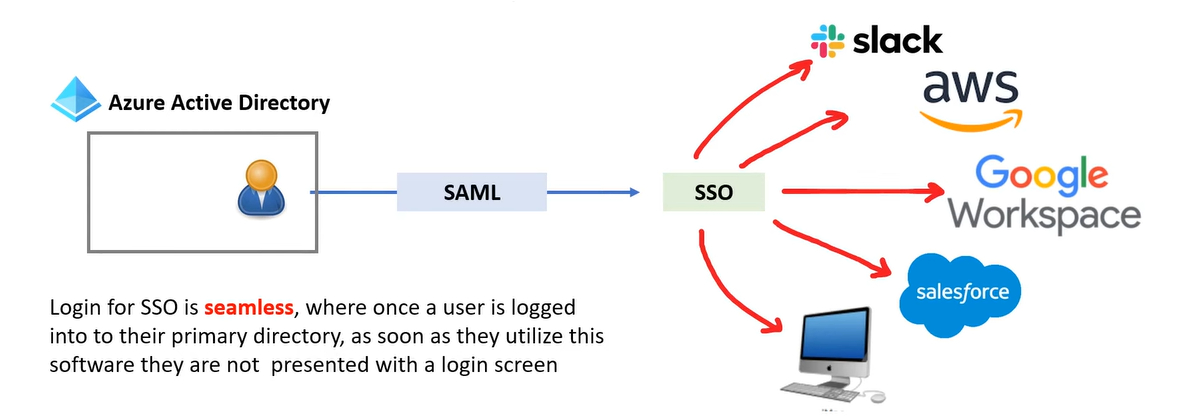

Single-Sign-On (SSO)

• Single-Sign-On (SSO)

  • an authentication scheme that allows a user to log in with a single ID and password to different systems and software.

• Exmaple: Active Directory



---

LDAP

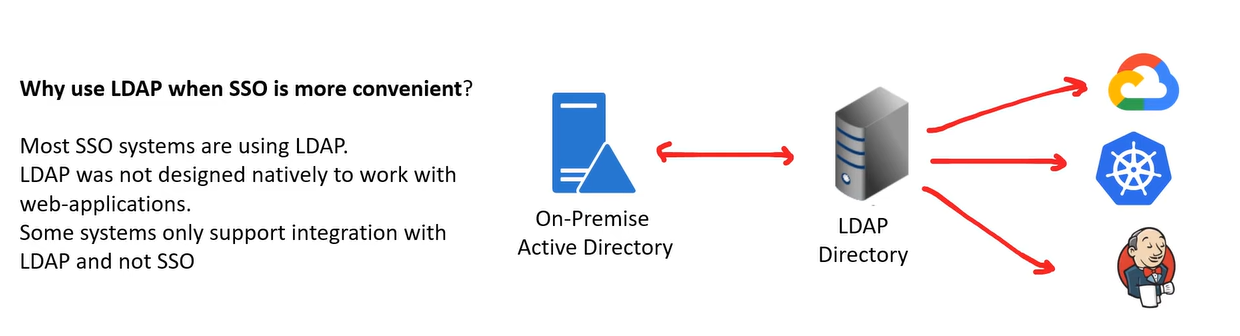

• Lightweight Directory Access Protocol (LDAP)

  • an open, vendor-neutral, industry standard application protocol for accessing and maintaining distributed directory information services over an internet Protocol netowork.
  • common use of LDAP is to provide a central place to store usernames and password.
• LDAP enables for SSO.

• SSO allows users to single ID and password, but they have to enter it in every time they want to login.



---

Multi-Factor-Authenication

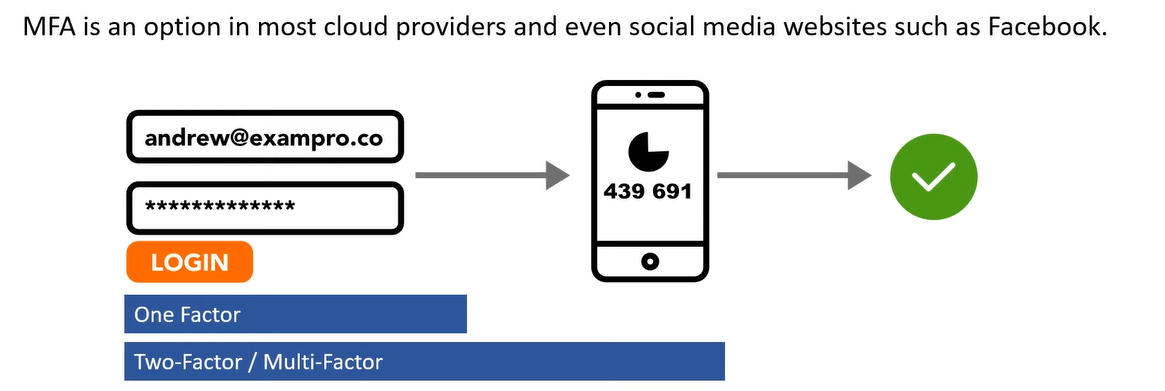

• Multi-Factor Authenication (MFA)

  • a security control where after user fill in username/email and password, user have to use a second device such as a phone to confirm that its logging in.

• MFA protects against people who have stolen user’s password.

---

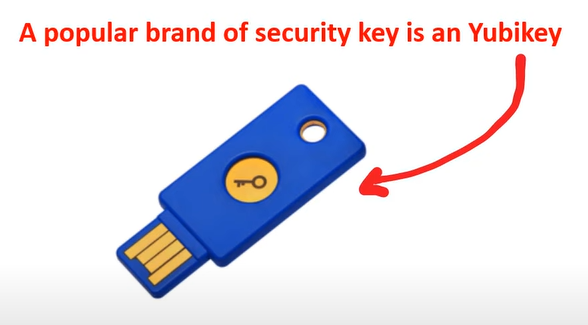

Security Keys - u2f security key

• Security Keys

  • a secondary device used as second step in authentication process to gain access to a device, workstation, or application.

• A security key can resemble a memory stick which will generate an autofill a security token.

---

Principle of Least Privilege (PoLP)

• Principle of Least Privilege (PoLP)

  • the computer security concept of providing a user, role, or application the least amount of permissions to perform a operation or action.

• Just-Enough-Access (JEA)

  • permitting only the exact actions for the identity to perform a task

• Just-In-Time (JIT)

  • permitting the smallest length of duration an identity can use permissions.

• Risk-based adaptive policies

  • Each attempt to access a resource generate a risk score of how likely the request is to be from a compromised source.
  • The risk score could be based on many factors. e.g. device, user location, IP address what service is being accessed and when.

• AWS at the time of this recording does not have Risk-based adaptative policies built into IAM.

---

AWS IAM

• AWS Identity and Access Management (IAM)

  • user can create and manage AWS users and groups, and permissions to allow and deny access to AWS resources.

• IAM Policies

  • JSON documents which grant permissions for a specific user, group, or role to access services.
  • Policies are attached to IAM Identities.

• IAM Permission

  • The API action that can or cannot be performed.
  • are represented in the IAM Policy document.

• IAM Identities

  • IAM Users

    • End users who log into the console or interact with AWS resources programmatically or via clicking UI interfaces.

  • IAM Groups

    • Group up users who all share permission levels of the group.

  • IAM Roles

    • Roles grant AWS resources permissions to specific AWS API actions.
    • Associate policies to Role and assign it to an AWS resource.
    • Some AWS service will need to perform actions on user’s behalf To do so, permissions are need to be assigned to AWS services with IAM Roles
      • • Common roles:
        • EC2 Instance Roles
        • Lambda Function Roles
        • Roles for CloudFormation

• 总结:

  • user 是用户, 其 permission 是用户的 action 权限;
  • role 可以是 AWS Servcie, 其其 permission 是该服务的 action 权限.
    • 例如将 role 赋权给 EC2 服务,则该服务有 action 的权限.

---

IAM Policy

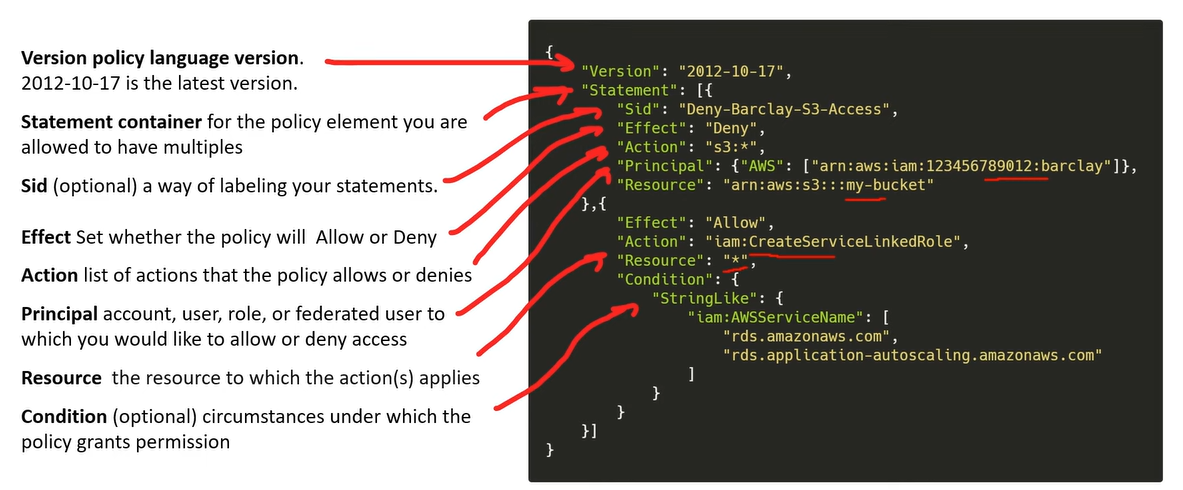

• IAM Policy
  • are written in JSON,
  • contains the permission which determin what API actions are allowed or denied.

---

AWS Account Root User

• AWS Account

  • the account which holds all user’s AWS resources

• Root User

  • a special user who is created at the time of AWS account creation

  • a special account with full access that cannot be deleted.

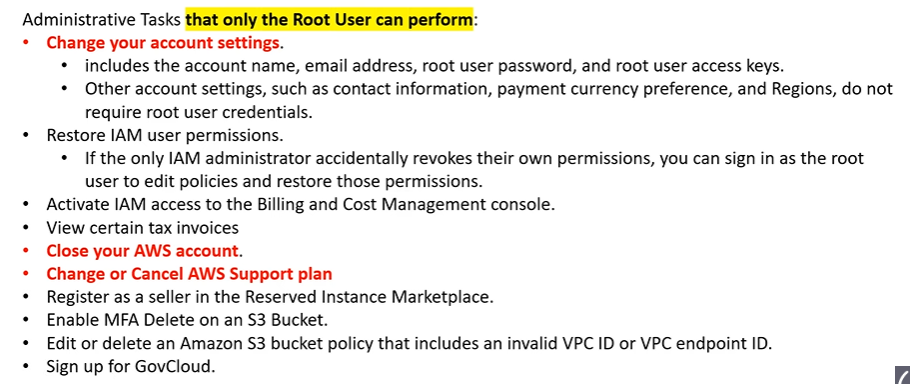

  • Administrative Task



• Root user privileges

  • Root user = Account Owner (created when the account is created)
  • Has complete access to all AWS services and resources
  • Lock away your AWS account root user access keys!

  • Do not use the root account for everyday tasks, even administrative tasks

  • Actions that can be performed only by the root user:
    • Register as a seller in the Reserved Instance Marketplace
    • View certain tax invoices
    • Change or cancel your AWS Support plan
    • Change account settings (account name, email address, root user password, root user access keys)
    • Restore IAM user permissions
    • Configure an Amazon S3 bucket to enable MFA
    • Edit or delete an Amazon S3 bucket policy that includes an invalid VPC ID or VPC endpoint ID
    • Sign up for GovCloud
    • Close your AWS account

• User

  • a user for common tasks that is assigned permissions.

  	Root User	Regular User
  Login	Email + pwd	Account ID/Alias + PWD
  Delete	Cannot be deleted	Can
  Permissions	Full, cannot be limited	Can be denied
  Number	One per AWS acount	Many
  Task	Specialized tasks	Daily or common tasks
  Access Keys	Never use	Recommended
  MFA	Strongly recommended	Recommended

---

AWS IAM Identity Center - SSO

• IAM Identity Center

  • successor to AWS Single Sign-On
  • helps users securely create or connect your workforce identities and manage their access centrally across AWS accounts and applications.
  • is the recommended approach for workforce authentication and authorization on AWS for organizations of any size and type.

---

Access Keys

• Access Keys

  • a key and secret required to have programmatic access to AWS resources when interacting with the AWS API outside of the AWS Management Console.
  • An Access Key is commonly referred to as AWS Credentials
• Never share user’s access keys
• Never commit access keys to a codebase
• An user can have two active Access Keys
• An user can deactivate Access Keys.
• Access Keys have whatever access a user has to AWS resources.

• Create Access Key

---

IAM Security Tools

• IAM Credentials Report (account-level)

  • a report that lists all your account’s users and the status of their various credentials
  • 应用: 检查账号的安全状况

• IAM Access Advisor (user-level)

  • Access advisor shows the service permissions granted to a user and when those services were last accessed.
  • You can use this information to revise your policies.
  • 应用: 列出授权, 然后适用 Principle of Least Privilege

---

IAM Access Analyzer - Access outside, Zone of Trust

• Find out which resources are shared externally
  • S3 Buckets
  • IAM Roles
  • KMS Keys
  • Lambda Functions and Layers
  • SQS queues
  • Secrets Manager Secrets
• Define Zone of Trust = AWS Account or AWS Organization
• Access outside zone of trusts => findings

---

IAM Guidelines & Best Practices

• Don’t use the root account except for AWS account setup
• One physical user = One AWS user
• Assign users to groups and assign permissions to groups
• Create a strong password policy
• Use and enforce the use of Multi Factor Authentication (MFA)
• Create and use Roles for giving permissions to AWS services
• Use Access Keys for Programmatic Access (CLI / SDK)
• Audit permissions of your account using IAM Credentials Report & IAM Access Advisor
• Never share IAM users & Access Keys

---

Shared Responsibility Model for IAM

• AWS

  • Infrastructure (global network security)
  • Configuration and vulnerability analysis
  • Compliance validation

• User

  • Users, Groups, Roles, Policies management and monitoring
  • Enable MFA on all accounts
  • Rotate all your keys often
  • Use IAM tools to apply appropriate permissions
  • Analyze access patterns & review permissions

---

AWS Directory Services - Microsoft AD, on-premise

• AWS Managed Microsoft AD
  • Create your own AD in AWS, manage users locally, supports MFA
  • Establish “trust” connections with your on-premise AD
• AD Connector
  • Directory Gateway (proxy) to redirect to on-premise AD, supports MFA
  • Users are managed on the on-premise AD
• Simple AD
  • AD-compatible managed directory on AWS
  • Cannot be joined with on-premise AD

---

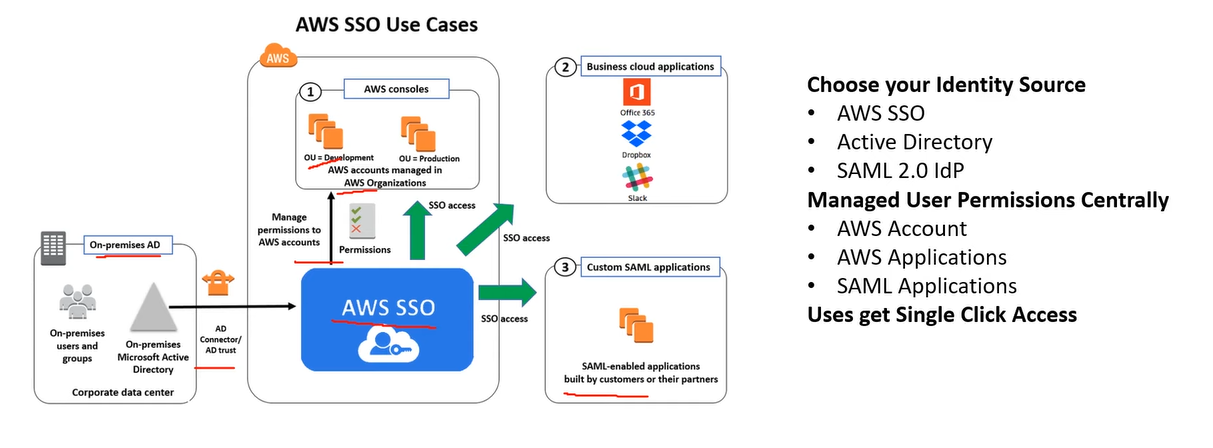

AWS IAM Identity Center - SSO

• (successor to AWS Single Sign-On)

• One login (single sign-on) for all your

  • AWS accounts in AWS Organizations
  • Business cloud applications (e.g., Salesforce, Box, Microsoft 365, …)
  • SAML2.0-enabled applications
  • EC2 Windows Instances
• Identity providers
  • Built-in identity store in IAM Identity Center
  • 3rd party: Active Directory (AD), OneLogin, Okta…

---

AWS STS (SecurityToken Service) - temporary, limited-privileges credentials

• Enables you to create temporary, limited-privileges credentials to access your AWS resources
• Short-term credentials: you configure expiration period
• Use cases
  • Identity federation: manage user identities in external systems, and provide them with STS tokens to access AWS resources
  • IAM Roles for cross/same account access
  • IAM Roles for Amazon EC2: provide temporary credentials for EC2 instances to access AWS resources

---

Amazon Cognito (simplified) - app user, db

• Identity for your Web and Mobile applications users (potentially millions)
• Instead of creating them an IAM user, you create a user in Cognito

---

IAM – Summary

• Users:
  • mapped to a physical user, has a password for AWS Console
• Groups:
  • contains users only
• Policies:
  • JSON document that outlines permissions for users or groups
• Roles:
  • for EC2 instances or AWS services
• Security:
  • MFA + Password Policy
• Access Keys:
  • access AWS using the CLI or SDK

• Audit:

  • IAM Credential Reports & IAM Access Advisor
• AWS CLI:
  • manage your AWS services using the command-line

• AWS SDK:

  • manage your AWS services using a programming language
• IAM
  • Identity and Access Management inside your AWS account
  • For users that you trust and belong to your company
• Organizations
  • manage multiple AWS accounts
• Directory Services
  • integrate Microsoft Active Directory in AWS
• IAM Identity Center
  • one login for multiple AWS accounts & applications
• Security Token Service (STS)
  • temporary, limited-privileges credentials to access AWS resources
• Cognito
  • create a database of users for your mobile & web applications

---

TOP
