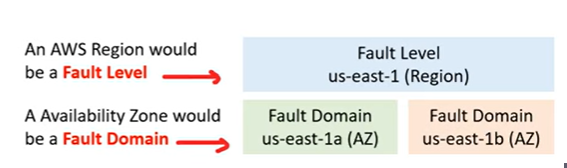

  • Fault Tolenrance
  • Data Residency

---

Global Application

• global application
  • an application deployed in multiple geographies

• On AWS: this could be Regions and / or Edge Locations

• Advantages
  • Decreased Latency
    • Latency is the time it takes for a network packet to reach a server
    • It takes time for a packet from Asia to reach the US
    • Deploy your applications closer to your users to decrease latency, better experience
  • Disaster Recovery (DR)
    • If an AWS region goes down (earthquake, storms, power shutdown, politics)…
    • You can fail-over to another region and have your application still working
    • A DR plan is important to increase the availability of your application
  • Attack protection: distributed global infrastructure is harder to attack

---

Regional vs Global Services

• Regional Services

  • AWS scopes AWS Management Console on a selected Region.
  • It will determine where an AWS service will be launched and what will be seen in a console.
  • do not explicitly set the Region for a service at the time of creation.

• Global Services

  • some AWS Services operate across multiple regions and the region will be fixed to “Global”
  • e.g.:
    • Amazon S3 (a single region must be explicitly chosen, such as S3 bucket)
    • CloudFront (a group of regions to be chosen, such as CloudFront Distribution)
    • Route53
    • IAM (has no concept of region)

---

Global Applications Architecture

	Availability	Global Latency	Difficulty
Single Region, Single AZ	Low	High	Low
Single Region, Multi AZ	High	High	Medium
Multi Region, Active-Passive	High	Read: Low, Write: High	Medium
Multi Region, Active-Active	High	Read: High, Write: High	Hight

---

Global Services

Route 53 - DNS

• Route53 is a Managed DNS (Domain Name System)

• DNS is a collection of rules and records which helps clients understand how to reach a server through URLs.

• Feature
  • Domain Registration,
  • DNS,
  • Health Checks,
  • Routing Policy

Routing Policies

• SIMPLE ROUTING POLICY: No health checks, 唯一检查健康
• WEIGHTED ROUTING POLICY: 按权重
• LATENCY ROUTING POLICY: find the closest
• FAILOVER ROUTING POLICY: Disaster Recovery

---

CloudFront - CDN, DDoS

• CloudFront uses Edge Location to cache content, and therefore bring more of your content closer to your viewers to improve read performance.

• Content Delivery Network (CDN)
• Improves read performance, content is cached at the edge
• Improves users experience
• 216 Point of Presence globally (edge locations)

• DDoS protection (because worldwide), integration with Shield, AWS Web Application Firewall

• Origins

  • S3 bucket

    • For distributing files and caching them at the edge
    • Enhanced security with CloudFront Origin Access Control (OAC) + S3 policy
    • OAC is replacing Origin Access Identity (OAI)
    • CloudFront can be used as an ingress (to upload files to S3)

  • Custom Origin (HTTP)

    • Application Load Balancer
    • EC2 instance
    • S3 website (must first enable the bucket as a** static S3 website)**
    • Any HTTP backend you want

---

CloudFront vs S3 Cross Region Replication

• CloudFront:

  • Global Edge network
  • Files are cached for a TTL (maybe a day)
  • Great for static content that must be available everywhere

• S3 Cross Region Replication:

  • Must be setup for each region you want replication to happen
  • Files are updated in near real-time
  • Read only
  • Great for dynamic content that needs to be available at low-latency in few regions

---

S3 Transfer Acceleration - upload S3

• Increase transfer speed by transferring file to an AWS edge location which will forward the data to the S3 bucket in the target region

---

Global Accelerator - performance, short-cut

• Improve global application availability and performance using the AWS global network
• Leverage the AWS internal network to optimize the route to your application (60% improvement)
• 2 Anycast IP are created for your application and traffic is sent through Edge Locations
• The Edge locations send the traffic to your application

AWS Global Accelerator vs CloudFront

• They both use the AWS global network and its edge locations around the world

• Both services integrate with AWS Shield for DDoS protection.

• CloudFront – Content Delivery Network

  • Improves performance for your cacheable content (such as images and videos)
  • Content is served at the edge
• Global Accelerator
  • No caching, proxying packets at the edge to applications running in one or more AWS Regions.
  • Improves performance for a wide range of applications over TCP or UDP
  • Good for HTTP use cases that require static IP addresses
  • Good for HTTP use cases that required deterministic, fast regional failover

---

AWS Global Infrastructure

• Global Infrastructure;

  • globally distributed hardware and datacenters that are physically network together to act as one large resource for the end customer.

• made up of resources:

  • Launched Regions
  • Availability Zones
  • Direct Connection Locations
  • Point of Presence
  • Local Zone
  • Wavelength Zones

• AWS Global Infrastructure: https://aws.amazon.com/about-aws/global-infrastructure/

---

Region

• Region:

  • geographically distinct locations consiting of one or more Availability Zone.
  • For deploying applications and infrastructure

• Featrues:

  • Each region generally has three Availability Zones. (Some new users are limited to two. eg. US-West)
  • Not all AWS Services are available in all regions.
  • The cost of AWS services vary per region.
  • New services almost always become available first in US-EAST
  • All billing information appears in US-EAST-1(North Virginia)

• Factors to be considered to choose a region

  • Regulatory Compliance that this region meet
  • Cost of AWS services
  • Avaliable AWS services
  • distance or latency to end-users

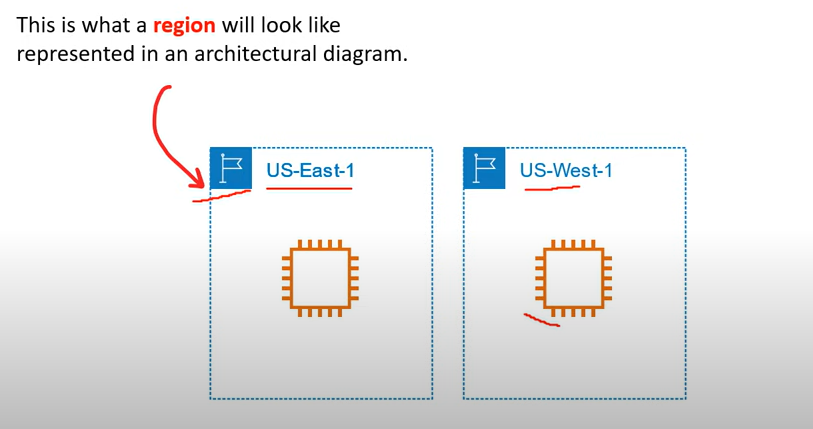

• Diagram: 使用小旗子标记



---

Availability Zones

• Availability Zones:

  • a physical location made up of one or more detacenter.
  • A region generally contains 3 AZ.

• Datacenter:

  • A secured building that contains hundreds of thousand of computers.
  • Datacenters within a region will be isolated from each other, but close enough to provide low-latency.

• It is a common practice to run workloads in at least 3 AZs to ensure services remain available in case one or two datecenters fail.

• Identifier:represented by a Region Code, followed by a letter.

  • e.g.: us-east-1a

• A subnet is associated with an AZ.

  • When launching a resource, users never choose an AZ, but a subnet which is associate to the AZ.

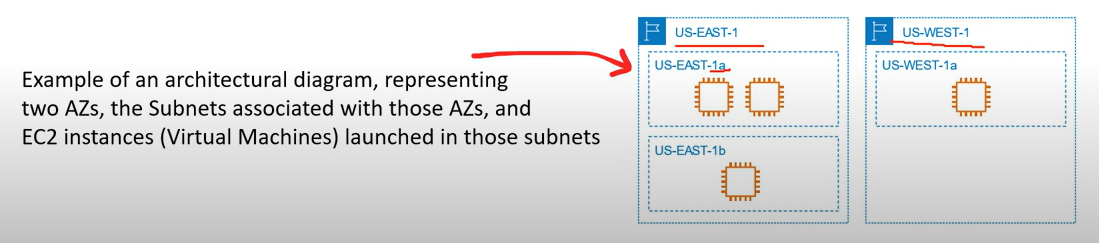

• Diagram: 虚线方框

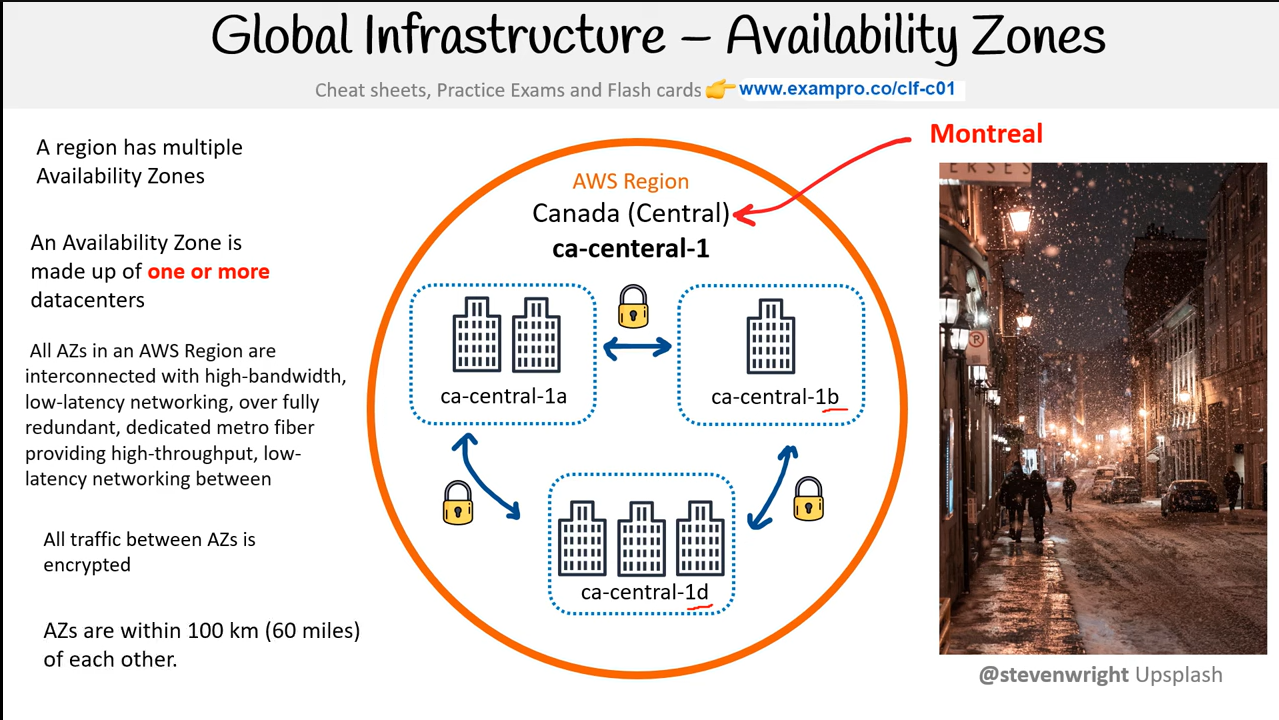

• Region and Zone

---

Edge Locations / Point of Presence (Pop)

• Point of Presence (Pop):

  • for content delivery as close as possible to users
  • an intermediate location between as AWS Region and the end user, and this location could be a datacenter or collection of hardware.
  • For AWS, a point of presence is a data center owned by AWS or a trusted partner that is utilized by AWS Services related for content delivery or expediated upload.

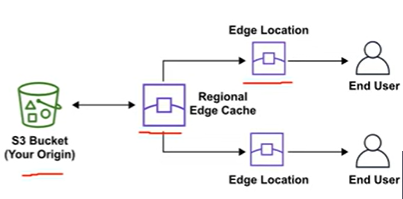

  • POP resources are Edge Locations and Regional Edge Caches.

• Edge Locations:

  • datacenters that hold cached(copy) on the most popular files(e.g. web pages, images and videos) so that the delivery of distance to the end users are reduce.

• Regional Edge Location

  • datacenters that hold much larger caches of less-popular files to reduce a full round trip and also to reduce the cost of transfer fees.

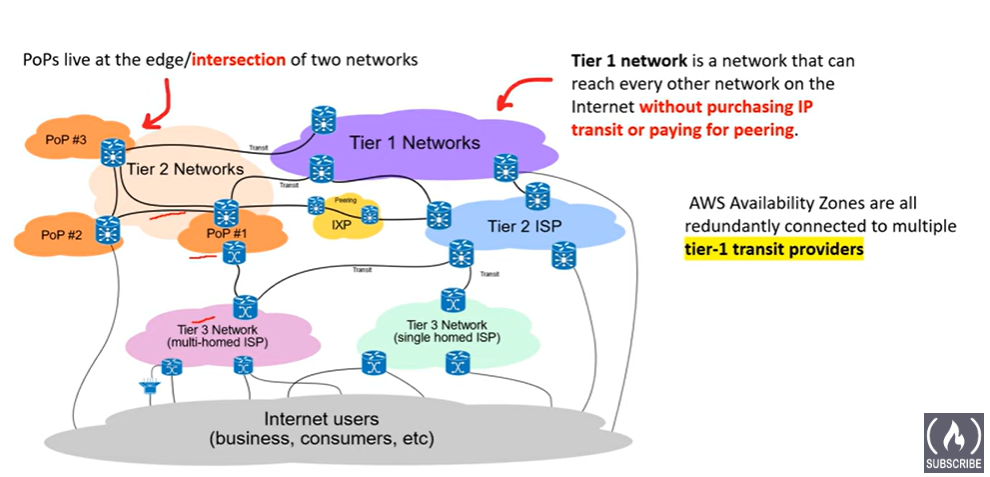

• Tier 1 Network

  • a network that can reach every other network on the interest without purchasing IP transit or paying for peering.
  • AWS AZ are all redundantly connected to multiple tier-1 transit providers.

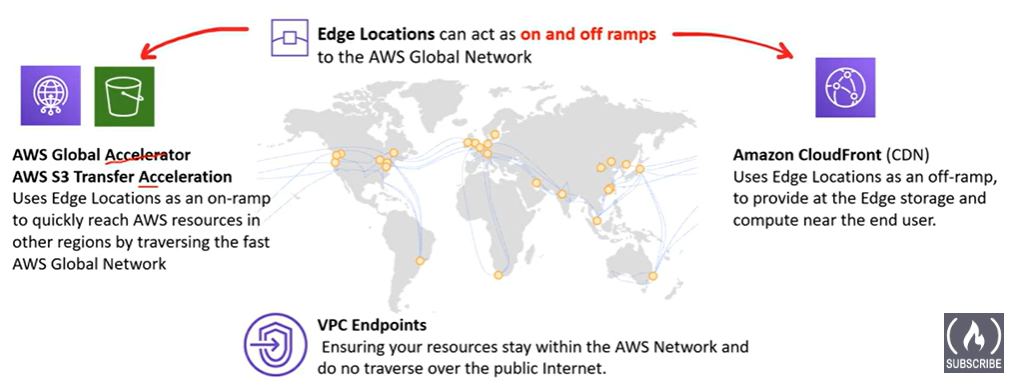

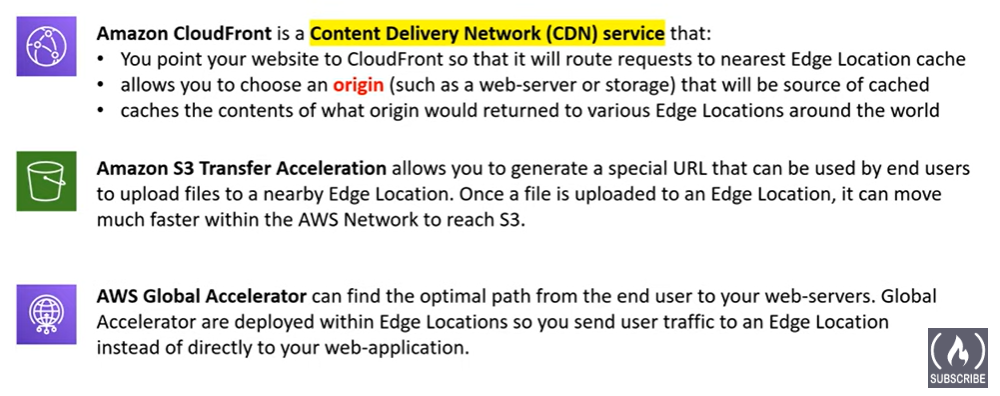

• AWS services using POP for content delivery or expediated upload.

---

Local Zones

• Local Zone:

  • datacenters located very close to a densely populated area to provide single-digit millisecond low latency performance for that area.

• Purpose of Local Zone

  • support highly-demanding applications sensitive to latencies

• Example: Los Angeles, California

  • the first Local Zone to be deployed.
  • It is logical extension of the US-West Region
  • The identifier looks like: us-west-2-lax-1a
  • Only specific AWS Service have been made available.
• Places AWS compute, storage, database, and other selected AWS services closer to end users to run latency-sensitive applications
• Extend your VPC to more locations – “Extension of an AWS Region”
• Compatible with EC2, RDS, ECS, EBS, ElastiCache, Direct Connect …
• Example:
  • AWS Region: N. Virginia (us-east-1)
  • AWS Local Zones: Boston, Chicago, Dallas, Houston, Miami, …

---

Wavelength Zones

• AWS Wavelength Zones

  • allows for edge-computing on 5G networks.
  • Applications will have ultra-low latency being as close as possible to the users.
  • User creates a Subnet tied to a Wavelength Zone and then can launch Virtual Machine(VMs) to the edge of the targeted 5G Networks.
• WaveLength Zones are infrastructure deployments embedded within the telecommunications providers’ datacenters at the edge of the 5G networks
• Brings AWS services to the edge of the 5G networks
• Example: EC2, EBS, VPC…
• Ultra-low latency applications through 5G networks
• Traffic doesn’t leave the Communication Service Provider’s (CSP) network
• High-bandwidth and secure connection to the parent AWS Region
• No additional charges or service agreements
• Use cases:
  • Smart Cities, ML-assisted diagnostics, Connected Vehicles, Interactive Live Video Streams, AR/VR, Real-time Gaming, …

---

AWS Ground Station

• AWS Ground Station:

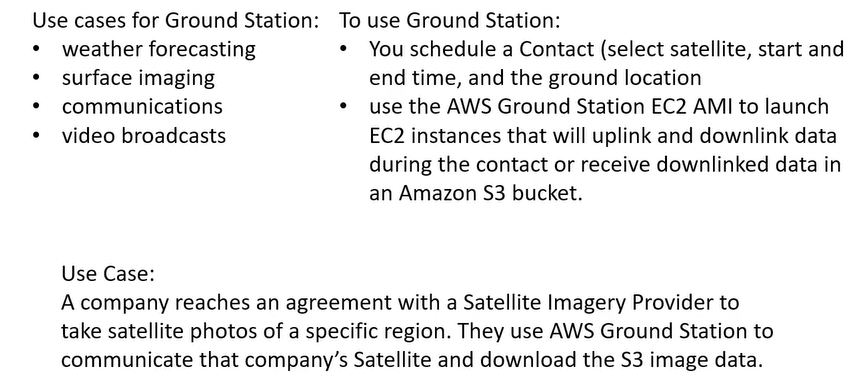

  • a fully managed service that lets user control satellite communication.

• Use case:

---

AWS Outposts - rack of servers, hybrid

• AWS Outposts:

  • a fully managed service that offers the same AWS infracture, AWS servicess, APIs, and tools to virtually any datacenter, co-location space, or on-premises facility for a truly consistent hybrid exprience.
  • is rack of servers running AWS Infrastructure on users’ physical location.

• Hybrid Cloud:

  • businesses that keep an on-premises infrastructure alongside a cloud infrastructure

• Therefore, two ways of dealing with IT systems:

  • One for the AWS cloud (using the AWS console, CLI, and AWS APIs)
  • One for their on-premises infrastructure

• AWS Outposts are “server racks” that offers the same AWS infrastructure, services, APIs & tools to build your own applications on-premises just as in the cloud

• AWS will setup and manage “Outposts Racks” within your on-premises infrastructure and you can start leveraging AWS services on-premises

• Responsibility

  • You are responsible for the Outposts Rack physical security

• Benefits:

  • Low-latency access to on-premises systems
  • Local data processing
  • Data residency
  • Easier migration from on-premises to the cloud
  • Fully managed service
  • Some services that work on Outposts

---

Global Network

• AWS Global Network:

  • represent the interconnections between AWS Global Infrastructure.
  • aka, the backbone of AWS
  • a private expressway, where things can move very fast between datacenters.

• Example services regarding to the Global Network:



---

Direct Connection Locations - Connection on-premise and AWS

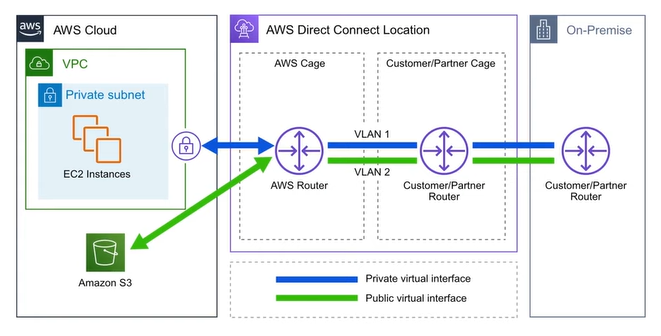

• AWS Direct Connect:

  • a private/dedicated connection between users’ datacenter, office, co-location and AWS.

• Advantages:

  • helps reduce netork costs and increase bandwidth throughtput. (greate for high traffic networks)
  • provides a more consistent network experience than a typical internet-based connection.(reliable and secure)



• Direct Connect Locations are trusted partnered datacenters that you can establish a dedicated high speed, low-latenecy connection from your on-premise to AWS.

• Users would use the AWS Direct Connect service to order and establish a connection.

---

AWS Government

• Public Sector:

  • include pulic goods and governmental services such as military, law enforcement, infrastructure, public transit, public education, health care, and the government.
  • AWS can be utilized by public sector or organizations developing cloud workloads for the public sector.

• AWS achieves this by meeting regulatory compliance programs along with specific governmence and security controls.

• Federal Risk and Authorization Management Program (FedRAMP)

  • a US government-wide program that provides a standardized approach to security assessment, authorization, and continuous monitoring for cloud products and services.

• GovCloud:

  • special regions for US regulation.
  • A Cloud Service Provider (CSP) generally will offer an isolated region to run FedRAMP workloads.

• AWS GovCloud Regions

  • allow customers to host sensitive Controlled Unclassfied Information and other type of regulated workloads.

---

AWS China

• AWS China is the AWS cloud offerings in Mainland China.
  • is completely isolate from AWS Global
  • domain: amazonaws.cn
  • users need have a Chinese Business License (ICP license)
  • Not all services are available. e.g.: Route53
  • not need to traverse the Great Firewall.

---

Fault Tolenrance

总体意思:

1. Region 将相互分离是 fault level
2. AZ 分离, 是 fault domain,即 Failure Zone
3. 多 AZ 的 APP 更好保障.

• Terminology:

  • fault domain:
    • a section of a network that is vulnerable to damage if a critical device or system fails.
    • The purpose of a fault domain is that if a failure occurs it will not cascade outside that domain, limiting the damage possible.
    • Fault domains can be nested inside fault domains.
    • scope of a fault domain is up to Cloud Service Provider(CSPs) to define the boundaries. It could be:
      • specific servers in a rack
      • an entire rack in a datacenter
      • an entire room in a datacenter
      • the entire data center building

• Fault level:

  • a collection of fault domains.



• Each Amazon Region is designed to be completely isolated from the other Amazon Regions.
  • This achieves the greatest possible fault tolerance and stability.
• Each Availability Zone is isolated, but the Availability Zones in a Region are connected through low-latency links.

• Each Availability Zone is designed as an independent failure zone.

  • A Failure Zone is AWS describing a Fault Domain.

• Failure Zone:

  • Availabilty Zones are physically separated within a typical metropolitan region and are located in lower risk flood plains.
  • descrete uninterruptible power supply (UPS) and onsite backup generation facilities.
  • data centers located in different Availability Zones are designed to be supplied by independent substations to reduce the risk of an event on the power grid impacting more than one Availability Zone.
  • Availability Zones are all redundantly connected to multiple tier-1 transit providers.
• Multi-AZ for Hight Avaliability
  • if an application is partitioned across AZs, companies are better isolated and protected from issues such as power outages lightning strikes, tornadoes, earthquake and more.

---

Data Residency

• Data Residency:

  • the physical or geographic location of where an organization or cloud resources reside.

• Compliance Boundaries:

  • A regulatory compliance (legal requirement) by a government or organization that describes where data and cloud resources are allowed to reside.

• Data Sovereignty:

  • jurisdictional control or legal authority that can be asserted over data because it’s physical location is within jurisdictional boundaries.

• For workloads that need to meet compliance boundaries strictly defining the data residency of data and cloud resources in AWS can be used:

  • AWS Outposts
    • physical rack of servers that user can put in user’s data center.
    • User’s data will reside whenever the Outpost Pysically resides.
  • AWS Config:
    • a Policy as Code service.
    • User can create rules to continuous check AWS resources configuration. If rules deviate from userss expectations users are alerted or AWS Config can in some cases auto-remediate.
  • IAM Policies:
    • can be explicitly deny access to specific AWS regions. A Service Control Policy (SCP) are permissions applied organization wide.

---

TOP
