AWS - Application Integration

Application Integration
- the process of letting two independent applications to communicate and work with each other, commonly facilitated by an intermediate system.
When we start deploying multiple applications, they will inevitably need to communicate with one another
There are two patterns of application communication
- Synchronous communications (application to application)
  - Synchronous between applications can be problematic if there are sudden spikes of traffic
- Asynchronous / Event based (application to queue to application)
  - it’s better to decouple your applications:
    - using SQS: queue model
    - using SNS: pub/sub model
    - using Kinesis: real-time data streaming model
The common system or design pattern utilized for Application Integration are:
- Queueing
- Streaming
- Pub/Sub
- API Gateways
- State Machine
- Event Bus

Messaging System
- Used to provide asynchronous communication and decouple processes via message/events from a sender and receiver (producer and consumer)
Queueing System
- a message system that generally will delete messages once they are consumed.
- Simple communication.
- Not Real-time.
- Have to pull. Not reactive.

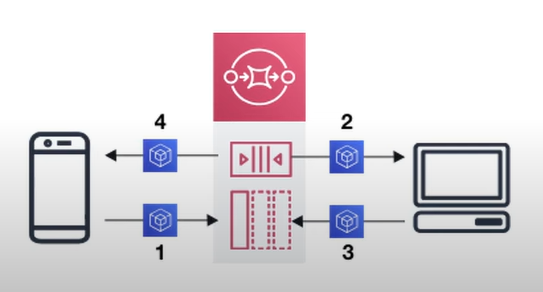

Simple Queueing Service (SQS)
- Fully managed queueing service that enables user to decouple and scale microservices, distributed system, and serverless applications.
- Use Case:
  - User need to queue up transaction emails to be sent. e.e. Signup, Reset Password
Oldest AWS offering (over 10 years old)
Fully managed service (~serverless), use to decouple applications
Scales from 1 message per second to 10,000s per second
Default retention of messages: 4 days, maximum of 14 days
No limit to how many messages can be in the queue
Messages are deleted after they’re read by consumers
Low latency (<10 ms on publish and receive)
Consumers share the work to read messages & scale horizontally
uses a pull-based system.

sqs

Pub/Sub
- Publish-Subscribe pattern commonly implement in messaging systems.
- In a pub/sub system the sender of message (publishers) do not send their messages directly to receivers.
- Publishers send messages to an event bus that categorizes the messages into groups.
- Subscribers subscribe to these groups.
- Whenever new messages appear within subscribers subscription the messages are immediately delivered to subscribers.
Publishers have no knowledge of who their subscribers are.
Subscribers do not pull for messages.
Messages are immediately pushed to subscribers.
Messages and events are interchangable terms in pub/sub.
Use Case:
- a real-time chat system.
- a web-hook system.

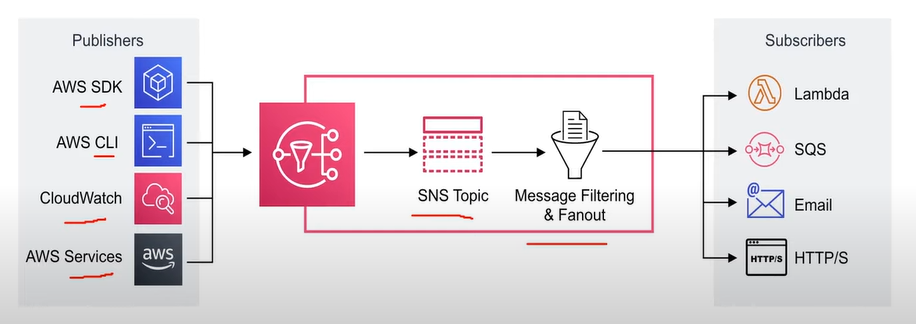

Simple Notification Service (SNS)
- a highly available, durable, secure, fully managed pub/sub messaging service that enables user to decouple miscroservices, distributed system, and serverless applications.
  - push-based system
The “event publishers” only sends message to one SNS topic
As many “event subscribers” as we want to listen to the SNS topic notifications
Each subscriber to the topic will get all the messages
Up to 12,500,000 subscriptions per topic, 100,000 topics limit

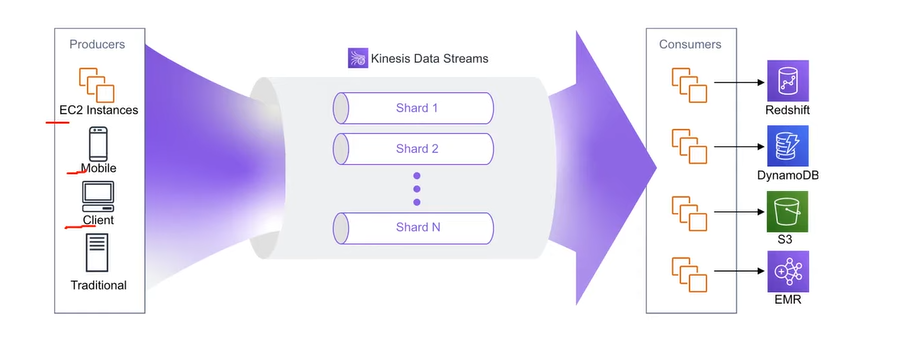

Streaming
- Multiple consumers can react to event (messages)
- Events live in the stream for long periods of time, so complex operations can be applied.
- Real-time.
Amazon Kinesis
- the AWS fully managed solution for collecting, processing, and analyzing streaming data in the cloud.
Managed service to collect, process, and analyze real-time streaming data at any scale
Too detailed for the Cloud Practitioner exam but good to know:
- Kinesis Data Streams: low latency streaming to ingest data at scale from hundreds of thousands of sources
- Kinesis Video Streams: monitor real-time video streams for analytics or ML
- Kinesis Data Analytics: perform real-time analytics on streams using SQL
- Kinesis Data Firehose: load streams into S3, Redshift, ElasticSearch, etc…

SQS, SNS are “cloud-native” services: proprietary protocols from AWS
Traditional applications running from on-premises may use open protocols such as: MQTT, AMQP, STOMP, Openwire, WSS
When migrating to the cloud, instead of re-engineering the application to use SQS and SNS, we can use Amazon MQ
Amazon MQ is a managed message broker service for RabbitMQ and ActiveMQ.
Amazon MQ doesn’t “scale” as much as SQS / SNS
Amazon MQ runs on servers, can run in Multi-AZ with failover
Amazon MQ has both queue feature (~SQS) and topic features (~SNS)

State Machine
- an abstract model which decides how one state moves to another based on a series of conditions.
- Think of a state machine like a flow chart.

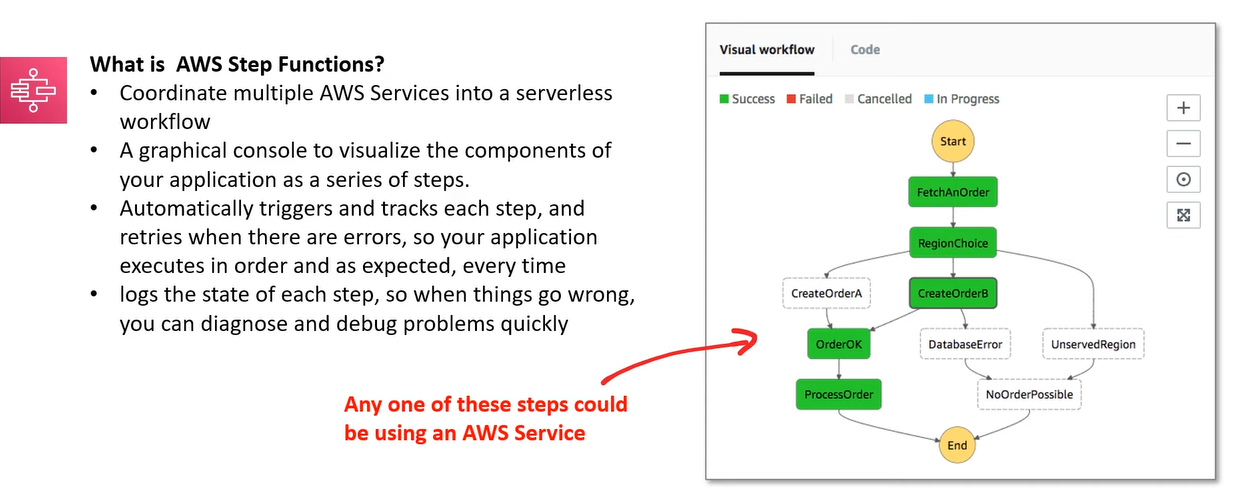

AWS Step Functions

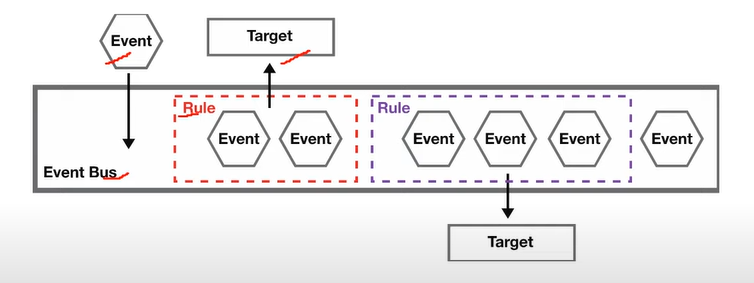

Event Bus
- receives events from a source and routes events to a target based on rules.

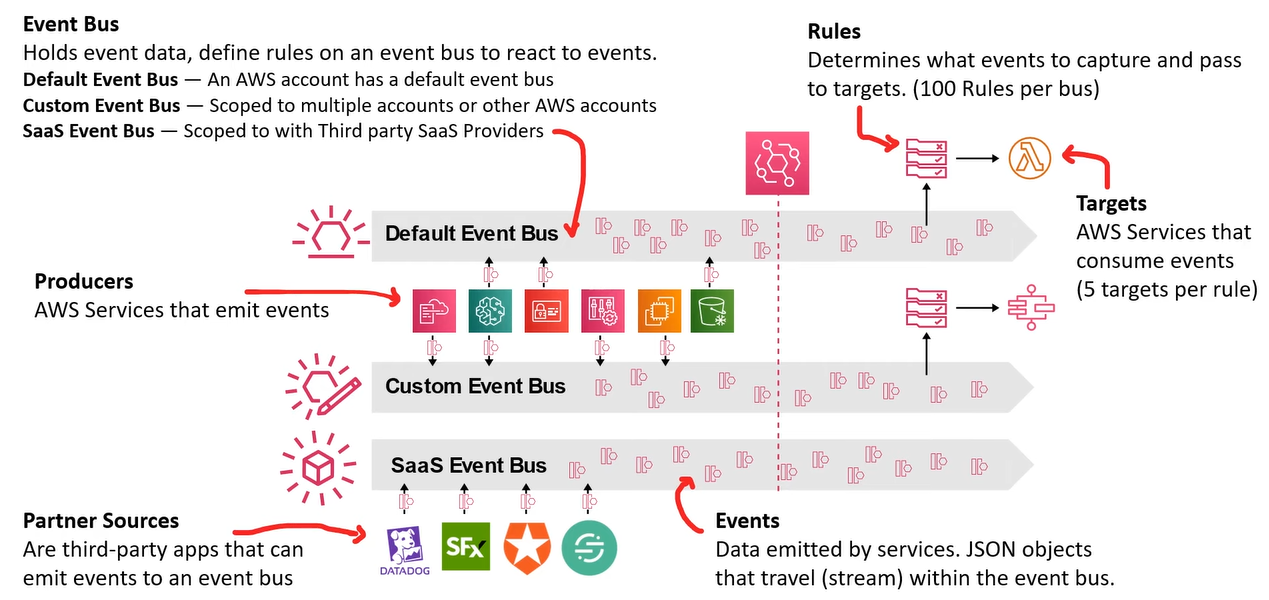

Amazon EventBridge (formerly CloudWatch Events)
- Schedule: Cron jobs (scheduled scripts)
- Event Pattern: Event rules to react to a service doing something
- Trigger Lambda functions, send SQS/SNS messages…
- a serverless event but service that is used for application integration by streaming real-time data to applications.
- formerly called Amazon CloudWatch Events.
Schema Registry: model event schema
You can archive events (all/filter) sent to an event bus (indefinitely or set period)
- Ability to replay archived events
Event Bus
- Default Event Bus: AWS Services
- Partner Event Bus: AWS SaaS Partners
- Custom Event Bus: Custom Apps
Example:
- IAM Root User Sign in Event -> SNS Topic with Email Notifica

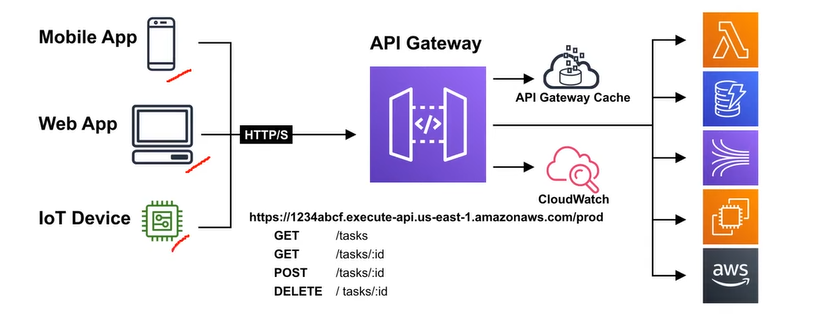

API Gateway
- a program that sits between a single-entry point and multiple backends.
- allows to throttle, logging, routing logic or formatting of the request and resonse.
Amazon API Gateway
- a solution for creating secure APIs in cloud environment at any scale.
- Create APIs that act as a front door for applications to access data, business logic, or functionality from back-end services.

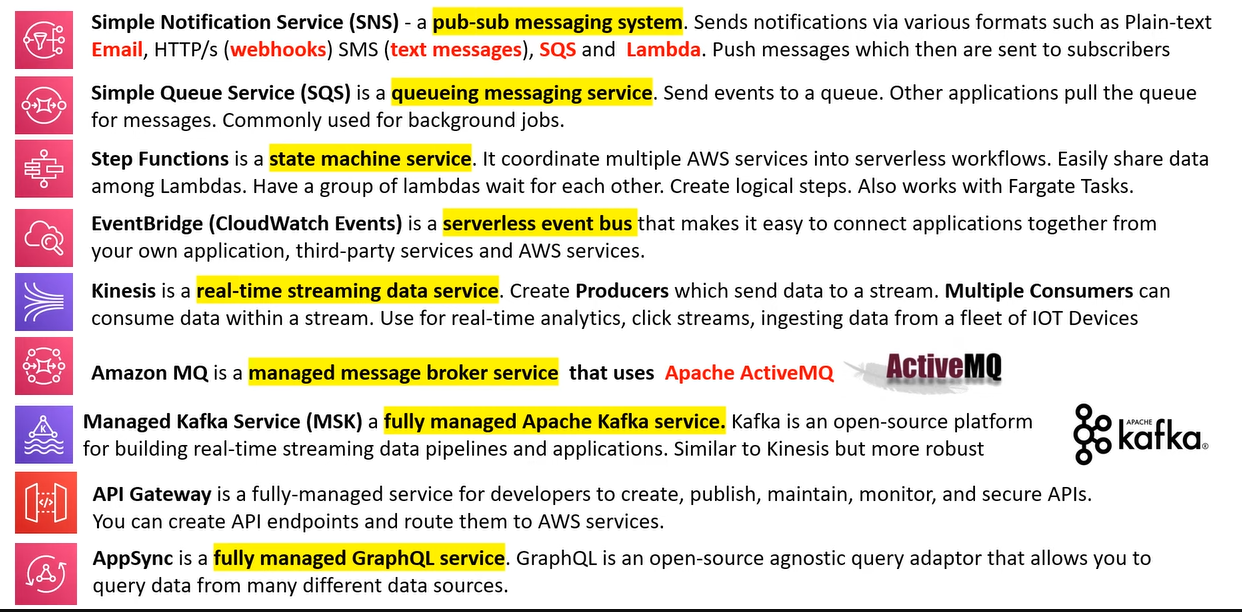

Integration Services

SQS:
- Queue service in AWS
- Multiple Producers, messages are kept up to 14 days
- Multiple Consumers share the read and delete messages when done
- Used to decouple applications in AWS
SNS:
- Notification service in AWS
- Subscribers: Email, Lambda, SQS, HTTP, Mobile…
- Multiple Subscribers, send all messages to all of them
- No message retention
Kinesis:
- real-time data streaming, persistence and analysis
Amazon MQ:
- managed message broker for ActiveMQ and RabbitMQ in the cloud (MQTT, AMQP.. protocols)
