AWS - Cloud Monitoring

Back

• AWS - Cloud Monitoring
  • CloudTrail - audit, API
  • Health Dashboard - Service History -status of AWS services,rss
  • Health Dashboard –Your Account - impact
  • CloudWatch Metrics
  • CloudWatch Alarms
  • CloudWatch Logs
    • CloudWatch Logs for EC2 - Hibrid
    • CloudWatch Logs Insights - analyze
  • CodeGuru - ML, code reviews, recommendations
    • Amazon CodeGuru Reviewer - ML, code debug
    • Amazon CodeGuru Profiler - runtime behavior, hybrid
  • X-Ray - log analysis, Debugging for distributed
  • Summary

---

CloudTrail - audit, API

• AWS CloudTrail

  • a service that enables governance, compliance, operational auditing, and risk auditing of AWS account.
  • CloudTrail is enabled by default!

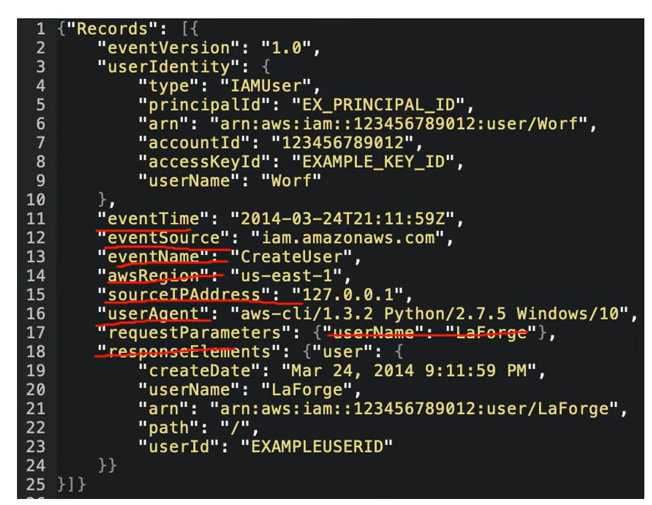

  • used to monitor API calls and Actions made on an AWS account.
    • Where: Source IP Address
    • When: EventTime
    • Who: User, UserAgent
    • What: Region, Resource, Action



• Can put logs from CloudTrail into CloudWatch Logs or S3

• If a resource is deleted in AWS, investigate CloudTrail first!

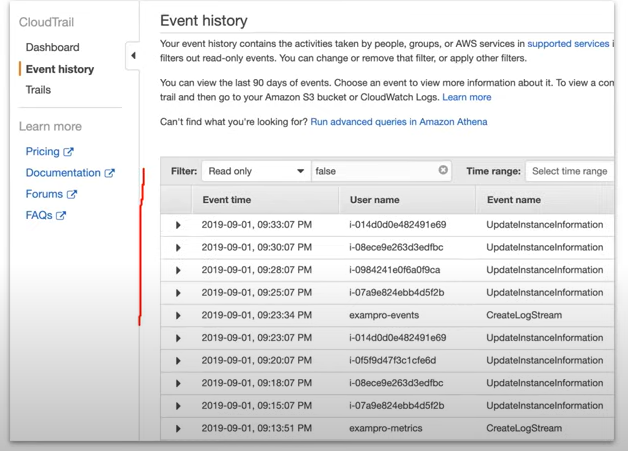

• CloudTrail is already logging by default and will collect logs for last 90 days via Event History.

• If user needs more than 90 days, user need to create a Trail.

• A trail can be applied to All Regions (default) or a single Region.

  • Trails are output to S3 and have to use Amazon Athena(Analyze).



---

Health Dashboard - Service History -status of AWS services,rss

• Shows all regions, all services health
• Shows historical information for each day
• Has an RSS feed you can subscribe to
• Previously called AWS Service Health Dashboard

---

Health Dashboard –Your Account - impact

• Previously called AWS Personal Health Dashboard (PHD)
• AWS Account Health Dashboard provides alerts and remediation guidance when AWS is experiencing events that may impact you.
• While the Service Health Dashboard displays the general status of AWS services, Account Health Dashboard gives you a personalized view into the performance and availability of the AWS services underlying your AWS resources.
• The dashboard displays relevant and timely information to help you manage events in progress and provides proactive notification to help you plan for scheduled activities.

• Can aggregate data from an entire AWS Organization

• Global service
• Shows how AWS outages directly impact you & your AWS resources
• Alert, remediation, proactive, scheduled activities

---

CloudWatch Metrics

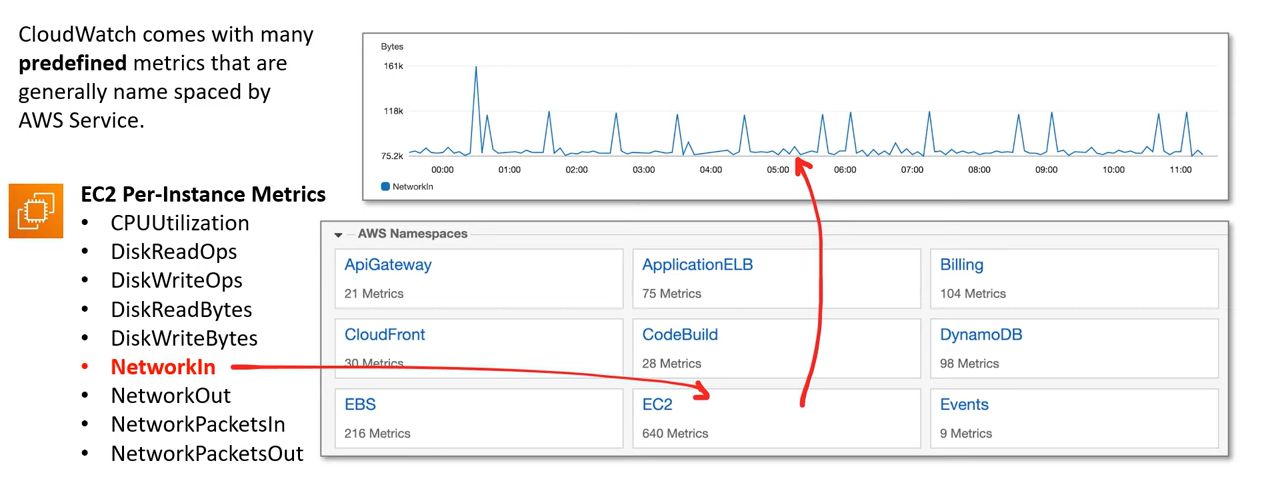

• Metric

  • a variable to monitor (CPUUtilization, NetworkIn…)
  • Metrics have timestamps

• CloudWatch Metric

  • CloudWatch provides metrics for every services in AWS
  • represents a time-ordered set of data points.
  • Its a variable that is monitored over time.

• Can create CloudWatch dashboards of metrics

• Important Metrics

  • EC2 instances:
    • CPU Utilization, Status Checks, Network (not RAM)
    • Default metrics every 5 minutes
    • Option for Detailed Monitoring ($$$): metrics every 1 minute
  • EBS volumes: Disk Read/Writes
  • S3 buckets: BucketSizeBytes, NumberOfObjects, AllRequests
  • Billing:Total Estimated Charge (only in us-east-1)
  • Service Limits: how much you’ve been using a service API
  • Custom metrics: push your own metrics



---

CloudWatch Alarms

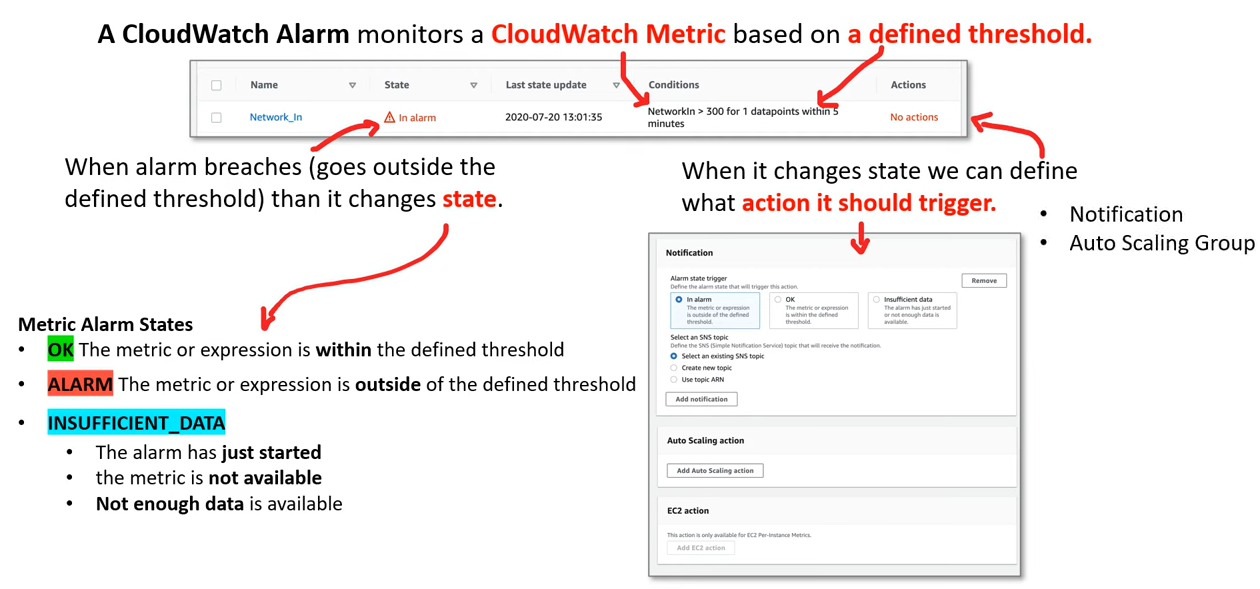

• CloudWatch Alarm

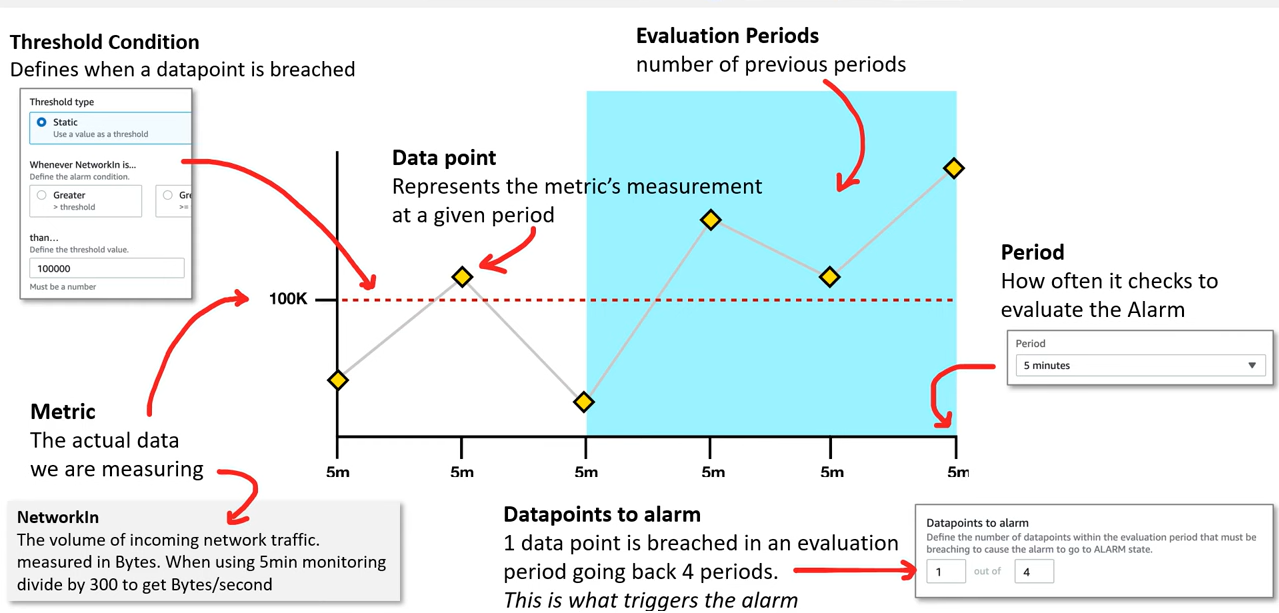

  • monitor a CloudWatch Metric based on a defined threshold.
• Alarms are used to trigger notifications for any metric
• Alarms actions…
  • Auto Scaling: increase or decrease EC2 instances “desired” count
  • EC2 Actions: stop, terminate, reboot or recover an EC2 instance
  • SNS notifications: send a notification into an SNS topic
• Various options (sampling, %, max, min, etc…)
• Can choose the period on which to evaluate an alarm
• Example: create a billing alarm on the CloudWatch Billing metric

• Alarm States: OK. INSUFFICIENT_DATA, ALARM





---

CloudWatch Logs

• CloudWatch Logs can collect log from:
  • Elastic Beanstalk: collection of logs from application
  • ECS: collection from containers
  • AWS Lambda: collection from function logs
  • CloudTrail based on filter
  • CloudWatch log agents: on EC2 machines or on-premises servers
  • Route53: Log DNS queries
• Enables real-time monitoring of logs

• Adjustable CloudWatch Logs retention

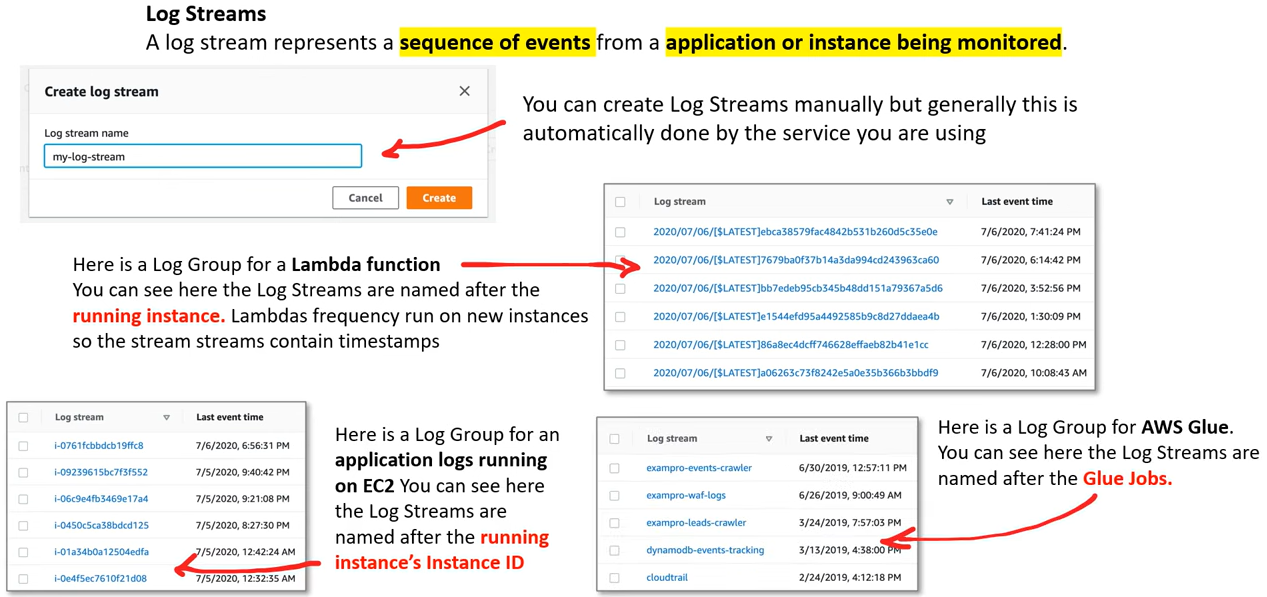

• Log Streams

  • A log stream represents a sequence of events from an application or instance being monitored.

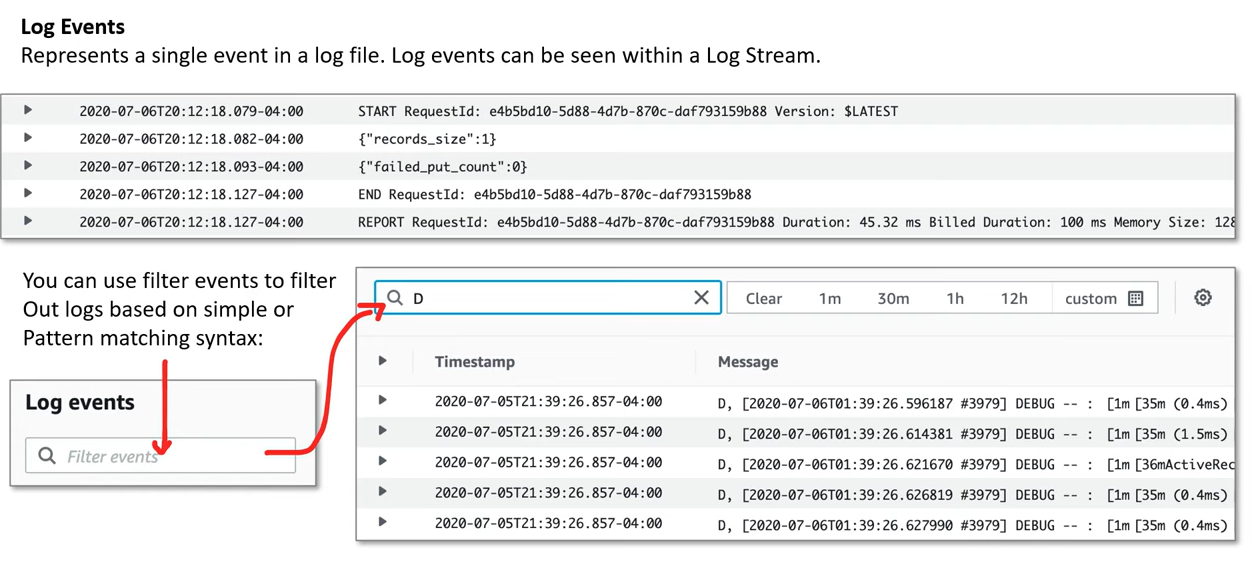

• Log Events

  • represents a single event in a log file. Log events can be seen within a Log Stream.



---

CloudWatch Logs for EC2 - Hibrid

• By default, no logs from your EC2 instance will go to CloudWatch
• You need to run a CloudWatch agent on EC2 to push the log files you want
• Make sure IAM permissions are correct
• The CloudWatch log agent can be setup on-premises too

---

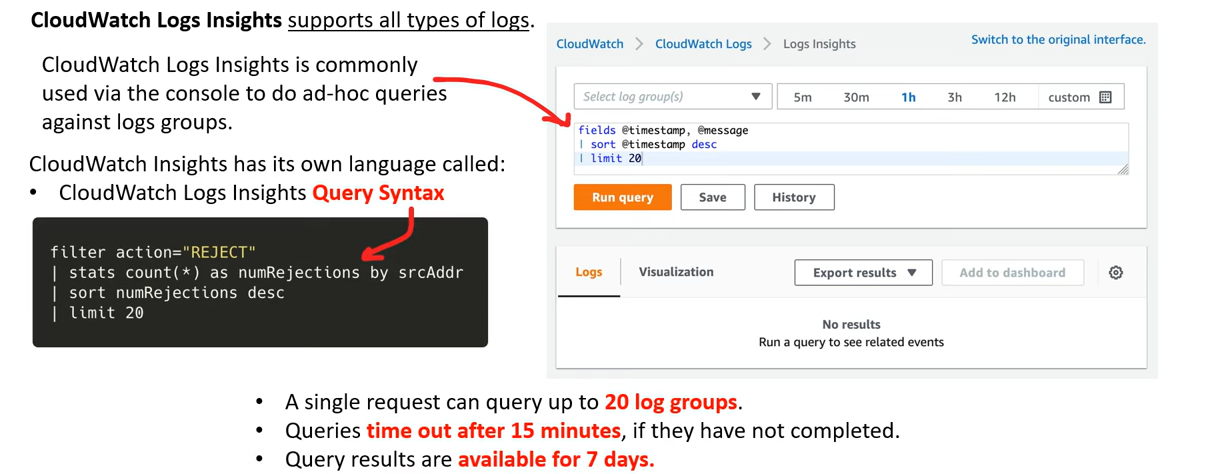

CloudWatch Logs Insights - analyze

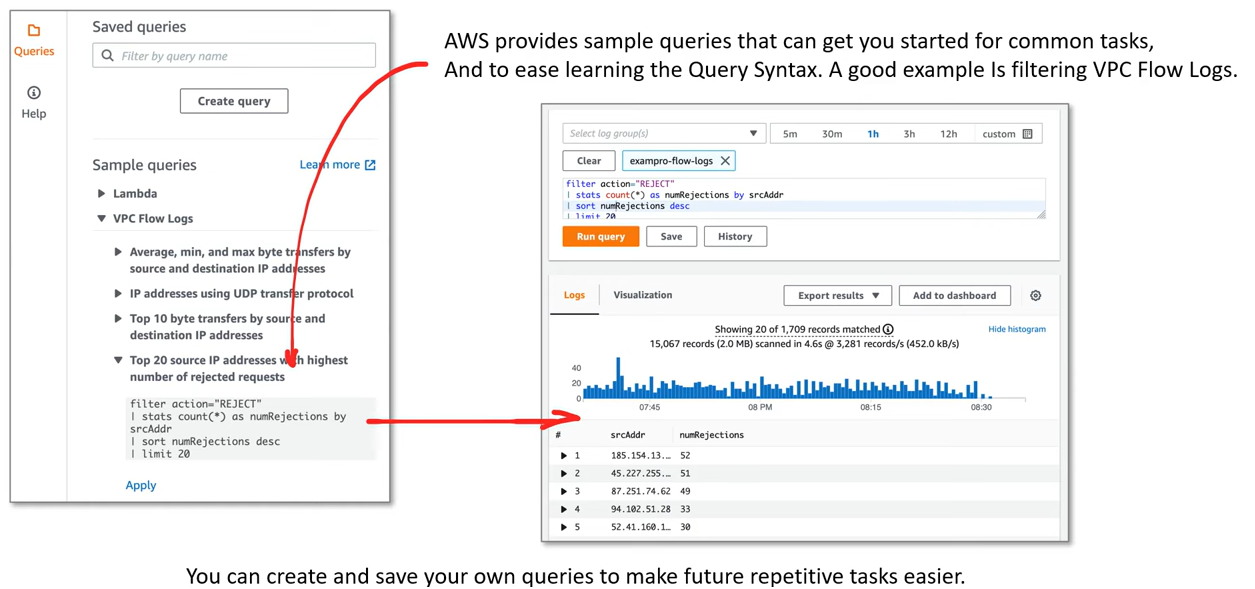

• CloudWatch Logs Insights

  • enable to interactively search and analyze CloudWatch log data.

• Advantages

  • more robust filtering then using the simple filter events in a Log Stream.
  • Less burdensome then having to export logs to S3 and analyze them via Athena.

---

CodeGuru - ML, code reviews, recommendations

• An ML-powered service for automated code reviews and application performance recommendations
• Provides two functionalities
• CodeGuru Reviewer: automated code reviews for static code analysis (development)
• CodeGuru Profiler: visibility/recommendations about application performance during runtime (production)

Amazon CodeGuru Reviewer - ML, code debug

• Identify critical issues, security vulnerabilities, and hard-to-find bugs
• Example: common coding best practices, resource leaks, security detection, input validation
• Uses Machine Learning and automated reasoning
• Hard-learned lessons across millions of code reviews on 1000s of open-source and Amazon repositories
• Supports Java and Python
• Integrates with GitHub, Bitbucket, and AWS CodeCommit

Amazon CodeGuru Profiler - runtime behavior, hybrid

• Helps understand the runtime behavior of your application
• Example: identify if your application is consuming excessive CPU capacity on a logging routine
• Features:
  • Identify and remove code inefficiencies
  • Improve application performance (e.g., reduce CPU utilization)
  • Decrease compute costs
  • Provides heap summary (identify which objects using up memory)
  • Anomaly Detection
• Support applications running on AWS or on-premise
• Minimal overhead on application

---

X-Ray - log analysis, Debugging for distributed

• Debugging in Production, the good old way:
  • Test locally
  • Add log statements everywhere
  • Re-deploy in production
• Log formats differ across applications and log analysis is hard.
• Debugging: one big monolith “easy”, distributed services “hard”
• No common views of your entire architecture

• Visual analysis of our applications

• advantages
  • Troubleshooting performance (bottlenecks)
  • Understand dependencies in a microservice architecture
  • Pinpoint service issues
  • Review request behavior
  • Find errors and exceptions
  • Are we meeting time SLA?
  • Where I am throttled?
  • Identify users that are impacted

---

Summary

• CloudTrail: audit API calls made within your AWS account

  • CloudTrail Insights: automated analysis of your CloudTrail Events
• AWS Health Dashboard: status of all AWS services across all regions

• AWS Account Health Dashboard: AWS events that impact your infrastructure

• CloudWatch:

  • Metrics: monitor the performance of AWS services and billing metrics
  • Alarms: automate notification, perform EC2 action, notify to SNS based on metric
  • Logs: collect log files from EC2 instances, servers, Lambda functions…
  • Events (or EventBridge): react to events in AWS, or trigger a rule on a schedule

• Amazon CodeGuru: automated code reviews and application performance recommendations

• X-Ray: trace requests made through your distributed applications

---
