AWS - Networking

Back

• AWS - Networking
  • Networking
    • IP
    • VPC \& Subnets
    • Internet Gateway \& NAT Gateways: access Internet
    • Network ACL \& Security Groups: security
  • AWS Network Technology
    • VPC Flow Logs: Logging
    • VPC Peering - Connect VPCs, not transitive
    • VPC Endpoints - VPC access AWS services
    • AWS PrivateLink (VPC Endpoint Services) - VPC access 3rd party VPC
    • Site to Site VPN \& Direct Connect - on-premises access AWS
    • Client VPN - computer openvpn access VPC -> On-permisses
    • Transit Gateway - connect thousands
  • Summary

---

Networking

---

IP

• IP Addresses in AWS

• IPv4

  • Internet Protocol version 4 (4.3 Billion Addresses)
  • Public IPv4 – can be used on the Internet
    • EC2 instance gets a new a public IP address every time you stop then start it (default)
  • Private IPv4
    • fixed for EC2 Instances even if you start/stop them
    • can be used on private networks (LAN) such as internal AWS networking (e.g., 192.168.1.1)

• IPv6

  • Internet Protocol version 6 (3.4 × 10!” Addresses)
  • Every IP address is public (no private range)
• Elastic IP
  • allows you to attach a fixed public IPv4 address to EC2 instance
  • Note: has ongoing cost if not attached to EC2 instance or if the EC2 instance is stopped 占有即收费, 即使不使用

---

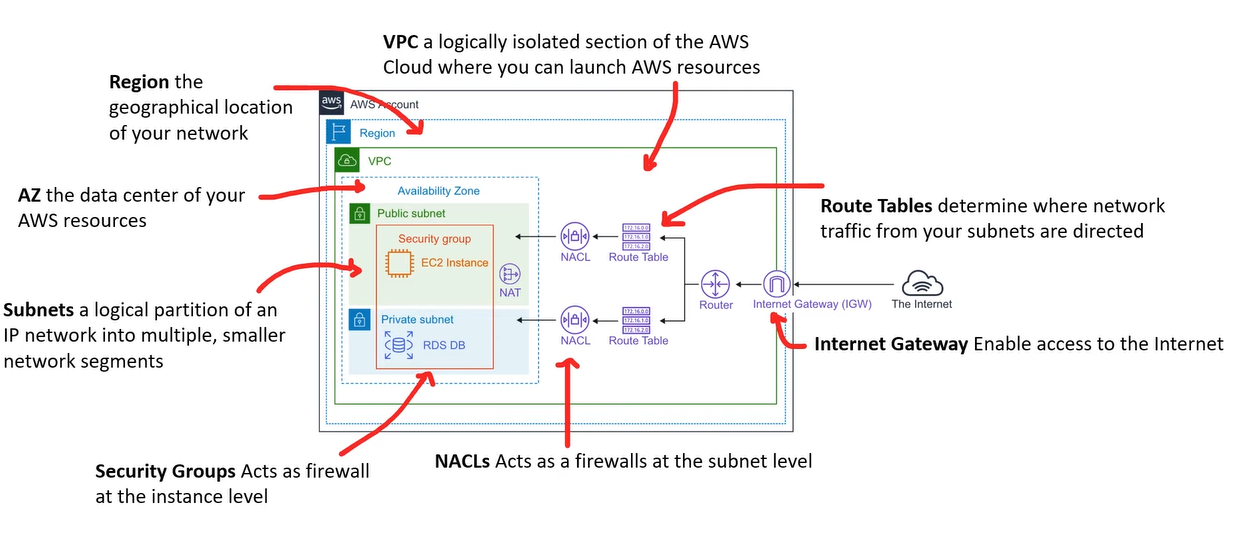

VPC & Subnets

• Virtual Private Cloud (VPC)

  • private network to deploy your esources (regional resource)

  • a logically isolated section of the AWS Network where users launch AWS resources.
  • User chooses a range of IPs using CIDR Range.

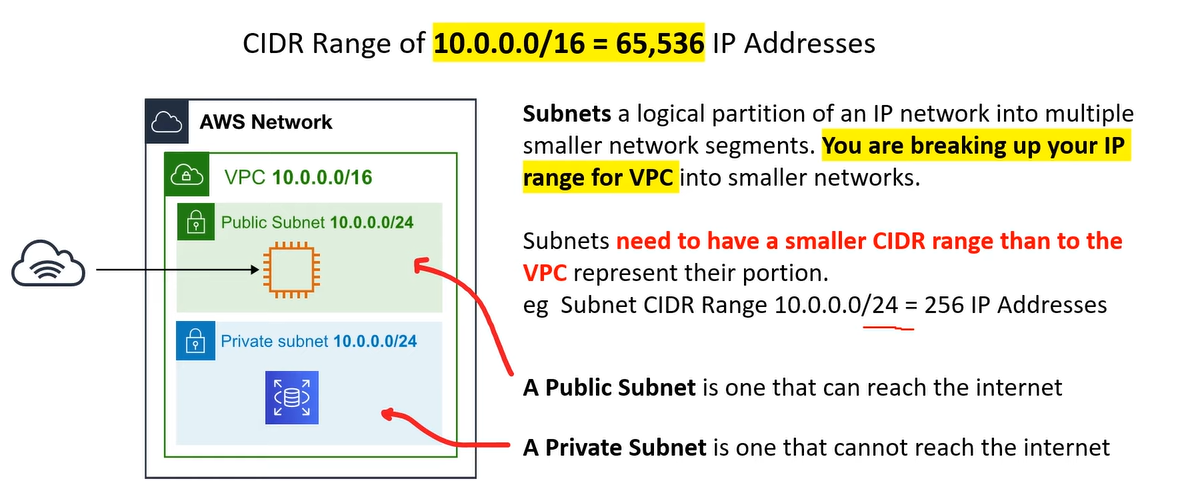

• Subnets

  • break up a logical partition of an IP network into multiple smaller network segments.
  • allow you to partition your network inside your VPC(Availability Zone resource)
  • 不同 AZ 不同子网可以构成一个 VPC, 达到 high availability

• public subnet

  • a subnet that is accessible from the internet

• private subnet

  • a subnet that is not accessible from the internet

• Route Tables

  • used to define access to the internet and between subnets

---

Internet Gateway & NAT Gateways: access Internet

• Internet Gateways

  • helps our VPC instances connect with the internet
  • Public Subnets have a route to the internet gateway.

• NAT Gateways (AWS-managed) & NAT Instances (self-managed) allow your instances in your Private Subnets to access the internet while remaining private

---

Network ACL & Security Groups: security

• Network Access Control List(Network ACL / NACL)

  • A firewall which controls traffic from and to subnet
  • Can have ALLOW and DENY rules
  • Are attached at the Subnet level
  • Rules only include IP addresses
  • Return traffic must be explicitly allowed by rules, not stateful
  • eg.Block a specific IP address known for abuse

• Security Groups

  • A firewall that controls traffic to and from an ENI / an EC2 Instance
  • Can have only ALLOW rules
  • Are attached at the Instance level
  • Rules include IP addresses and other security groups
  • Return traffic is automatically allowed, regardless of any rules, stateful
  • eg. allow an EC2 instance access on port 22 for SSH
  • eg. user cannot block a single IP address.

---

AWS Network Technology

VPC Flow Logs: Logging

• Capture information about IP traffic going into your interfaces:

  • VPC Flow Logs
  • Subnet Flow Logs
  • Elastic Network Interface Flow Logs

• Helps to monitor & troubleshoot connectivity issues.

  • Example:
    • Subnets to internet
    • Subnets to subnets
    • Internet to subnets

• Captures network information from AWS managed interfaces too

  • Elastic Load Balancers,
  • ElastiCache,
  • RDS,
  • Aurora,
  • etc…

• VPC Flow logs data can go to S3, CloudWatch Logs, and Kinesis Data Firehose

---

VPC Peering - Connect VPCs, not transitive

• Connect two VPC, privately using AWS’ network
• Make them behave as if they were in the same network
• Must not have overlapping CIDR (IP address range)
• VPC Peering connection is not transitive (must be established for each VPC that need to communicate with one another)

---

VPC Endpoints - VPC access AWS services

• Endpoints
  • allow you to connect to AWS Services using a private network instead of the public www network

• This gives you enhanced security and lower latency to access AWS services

• Types:
  • VPC Endpoint Gateway: S3 & DynamoDB
  • VPC Endpoint Interface: the rest

---

AWS PrivateLink (VPC Endpoint Services) - VPC access 3rd party VPC

• Most secure & scalable way to expose a service to 1000s of VPCs
• Does not require VPC peering, internet gateway, NAT, route tables…
• Requires a Network Load Balancer (Service VPC) and Elastic Network Interface (Customer VPC)

---

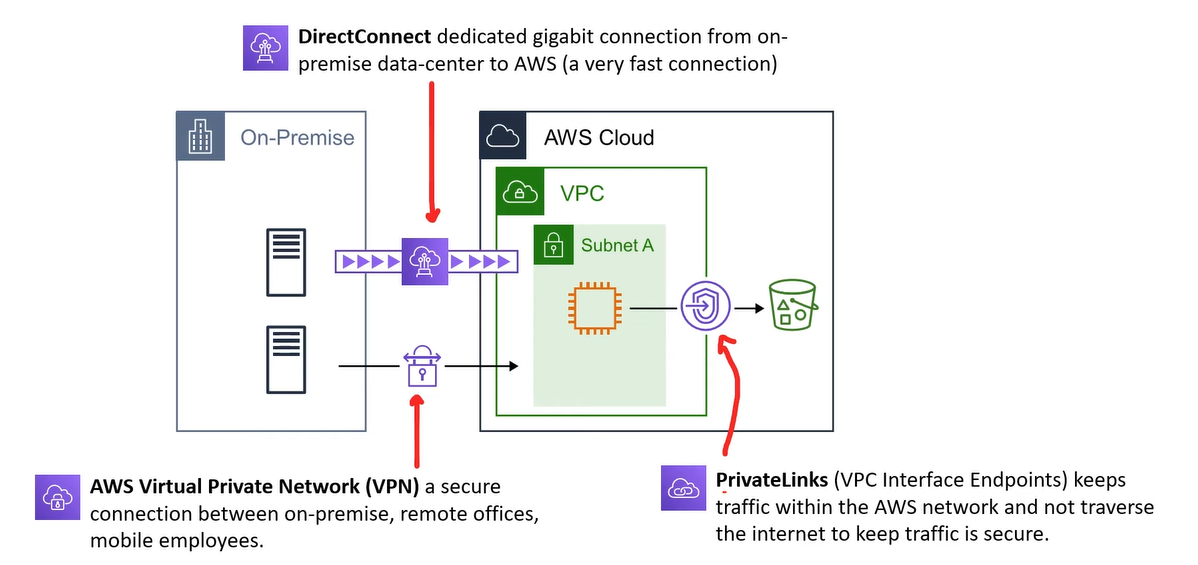

Site to Site VPN & Direct Connect - on-premises access AWS

• Internet Protocol Security (IPsec)

  • a secure network protocol suite that authenticates and encrypts the packets of data to provide secure encrypted communication between two computers over an Internet Protocol network.
  • Used in AWS VPN

• AWS Virtual Private Network (VPN)

  • allow to establish a secure and private tunnel from user’s network or device to the AWS global network.

• Site to Site VPN

  • Connect an on-premises VPN to AWS
  • The connection is automatically encrypted

  • Goes over the public internet

  • On-premises: must use a Customer Gateway (CGW)
  • AWS: must use a Virtual Private Gateway (VGW)

• Direct Connect (DX)

  • Establish a physical connection between on-premises and AWS
  • The connection is private, secure and fast
  • Goes over a private network
  • Takes at least a month to establish



---

Client VPN - computer openvpn access VPC -> On-permisses

• Connect from your computer using OpenVPN to your private network in AWS and on-premises
• Allow you to connect to your EC2 instances over a private IP (just as if you were in the private VPC network)
• Goes over public Internet

Computer with AWS Client VPN (OpenVPN) -> Internet WWW -> AWS VPC -> Site-to-Site VPN -> On-Premises Data Center

---

Transit Gateway - connect thousands

• For having transitive peering between thousands of VPC and on-premises, hub-and-spoke (star) connection
• One single Gateway to provide this functionality
• Works with Direct Connect Gateway, VPN connections

---

Summary

• VPC
  • Virtual Private Cloud

• Subnets

  • Tied to an AZ, network partition of the VPC

• Internet Gateway

  • at the VPC level, provide Internet Access

• NAT Gateway / Instances

  • give internet access to private subnets

• NACL

  • Stateless, subnet rules for inbound and outbound

• Security Groups

  • Stateful, operate at the EC2 instance level or ENI

• VPC Peering

  • Connect two VPC with non overlapping IP ranges, nontransitive

• Elastic IP

  • fixed public IPv4, ongoing cost if not in-use

• VPC Endpoints

  • Provide private access to AWS Services within VPC

• PrivateLink

  • Privately connect to a service in a 3rd party VPC

• VPC Flow Logs

  • network traffic logs

• Site to Site VPN

  • VPN over public internet between on-premises DC and AWS

• Client VPN

  • OpenVPN connection from your computer into your VPC

• Direct Connect

  • direct private connection to AWS

• Transit Gateway

  • Connect thousands of VPC and on-premises networks together

---
