AWS - Security

Back

• AWS - Security
  • AWS Shared Responsibility Model
    • Example, for RDS
    • Example, for S3
  • Distributed Denial of Service (DDos)
    • AWS Services
    • AWS Shield - DDoS, network+transport layer
    • AWS Web Application Firewall (WAF) - DDoS, App layer
  • Penetration Testing on AWS Cloud
  • Encryption - Confidentiality
    • Terminology
    • Symmetric Encryption vs Asymmetric Encryption
    • Hashing and Salting
    • Encryption In-Transit and At-Rest
    • Digital Signatures and Signing
  • Access Keys - Encryption
    • Hardware Security Module
    • Types of Customer Master Keys: CMK
    • AWS Key Management Service (KMS) - Encryption keys, software, AWS mange
    • AWS CloudHSM - Encryption keys, hardware, user managed
    • AWS Certificate Manager (ACM) - Free, HTTPS, SSL/TLS Certificates
    • AWS Secrets Manager - store secrets, rotation of secrets, RDS
  • Intrusion Detection System / Intrusion Protection System (IDS/IPS)
    • Amazon Guard Duty - Malicious Activity, Intelligent, ml, SNS, CryptoCurrency
  • Hardening
    • AWS Inspect - Assessments, EC2(SSM), Container Img, Lambda
  • Others
    • AWS Macie - S3, data security\&privacy, PII, ml
    • AWS Security Hub - Central dashboards, account(s), +compliance
    • Amazon Detective - investigates root cause, ml, unified visualizations
    • AWS Abuse - abusive use
  • Security Principle: Confidentiality, Integrity, and Availability (CIA) triad
  • Summary: Security

---

AWS Shared Responsibility Model

• AWS responsibility - Security of the Cloud

  • Protecting infrastructure (hardware, software, facilities, and networking) that runs all the AWS services
  • Managed services like S3, DynamoDB, RDS, etc.

• Customer responsibility - Security in the Cloud

  • For EC2 instance, customer is responsible for management of the guest OS (including security patches and updates), firewall & network configuration, IAM
  • Encrypting application data

• Shared controls:

  • Patch Management, Configuration Management, Awareness & Training

---

Example, for RDS

• AWS responsibility:

  • Manage the underlying EC2 instance, disable SSH access
  • Automated DB patching
  • Automated OS patching
  • Audit the underlying instance and disks & guarantee it functions

• Your responsibility:

  • Check the ports / IP / security group inbound rules in DB’s SG
  • In-database user creation and permissions
  • Creating a database with or without public access
  • Ensure parameter groups or DB is configured to only allow SSL connections
  • Database encryption setting

---

Example, for S3

• AWS responsibility:

  • Guarantee you get unlimited storage
  • Guarantee you get encryption
  • Ensure separation of the data between different customers
  • Ensure AWS employees can’t access your data

• Your responsibility:

  • Bucket configuration
  • Bucket policy / public setting
  • IAM user and roles
  • Enabling encryption

---

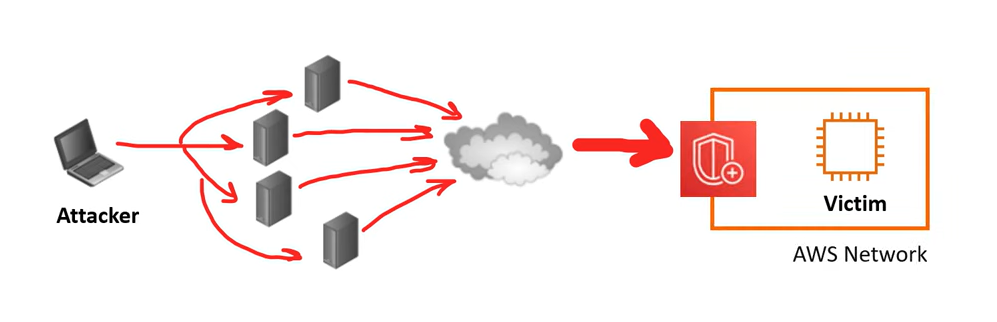

Distributed Denial of Service (DDos)

• Distributed Denial of Service (DDos)
  • A malicious attempt to disrupt normal traffic by flooding a website with large amounts of fake traffic.

AWS Services

• AWS Shield Standard
  • protects against DDOS attack for your website and applications,
  • for all customers at no additional costs
• AWS Shield Advanced
  • 24/7 premium DDoS protection
• AWS WAF
  • Filter specific requests based on rules
• CloudFront and Route 53:
  • Combined with AWS Shield, provides attack mitigation at the edge
  • Availability protection using global edge network
• AWS Auto Scaling
  • Be ready to scale

---

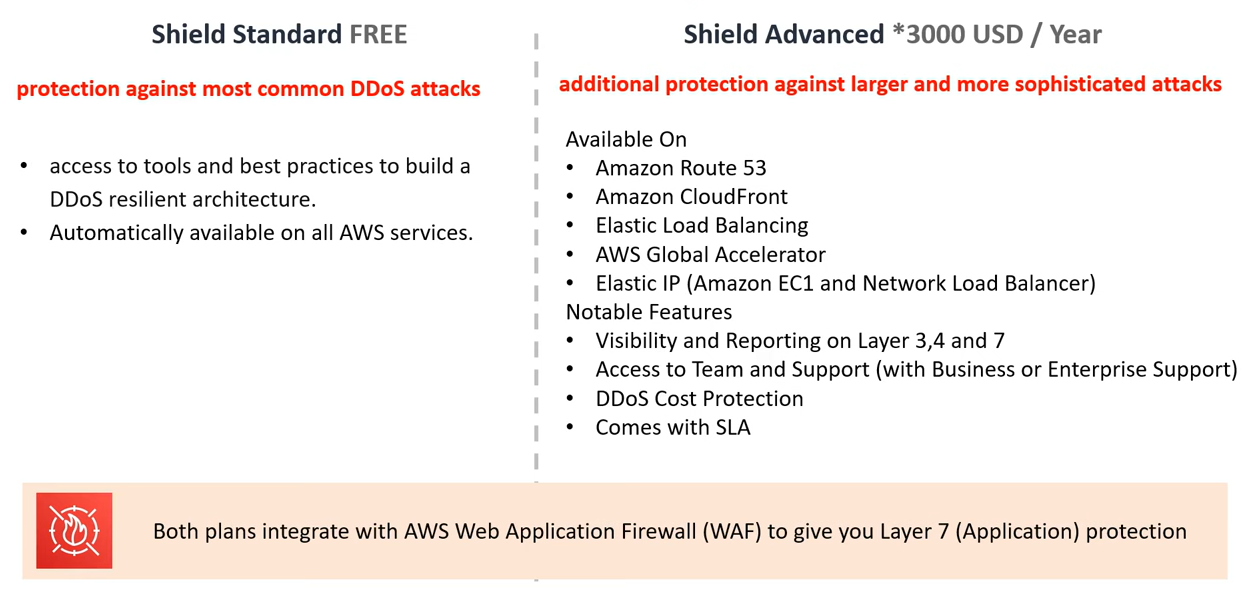

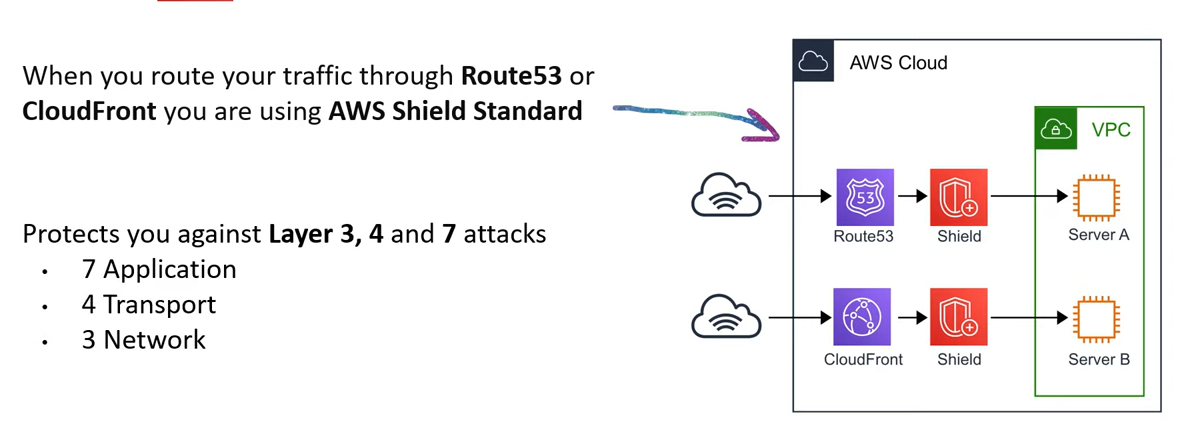

AWS Shield - DDoS, network+transport layer

• AWS Shield

  • a managed DDoS (Distributed Denial of Service) protection service that safeguards application running on AWS.

• AWS Shield Standard:

  • Free service that is activated for every AWS customer
  • Provides protection from attacks such as SYN/UDP Floods, Reflection attacks and other layer 3(network layer)/layer 4(Transport-layer) attacks

• AWS Shield Advanced:

  • Optional DDoS mitigation service ($3,000 per month per organization)
  • Protect against more sophisticated attack on Amazon EC2, Elastic Load Balancing (ELB), Amazon CloudFront, AWS Global Accelerator, and Route 53
  • 24/7 access to AWS DDoS response team (DRP)
  • Protect against higher fees during usage spikes due to DDoS

• Both plans integrate with AWS Web Application Firewall (WAF) to give Layer 7 (Application) protection.

---

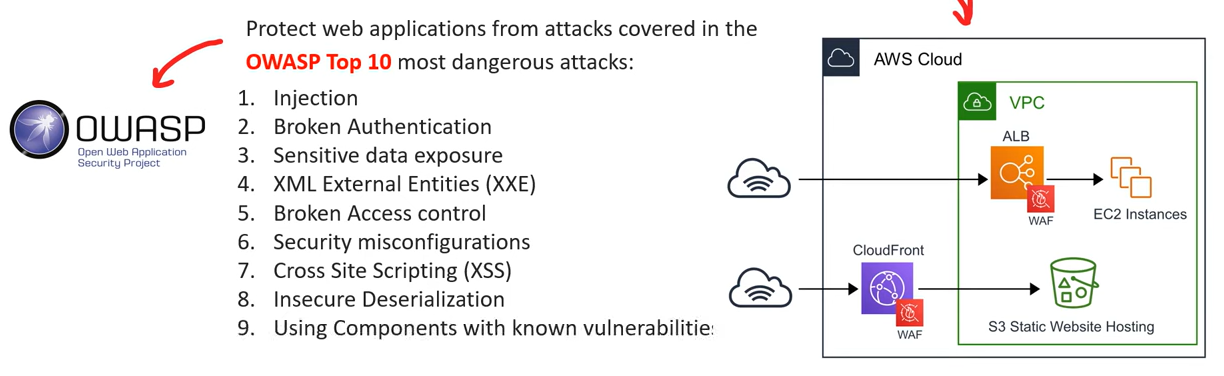

AWS Web Application Firewall (WAF) - DDoS, App layer

• AWS Web Application Firewall (WAF)

  • Protects your web applications from common web exploits (Layer 7 (application layer))

• Write users their own rules to ALLOW or DENY traffic based on the contents of an HTTP requests.

• Can use a ruleset from a trusted AWS Security Partner in the AWS WAF rules Marketplace.

• Layer 7 is HTTP (vs Layer 4 is TCP)

• Deploy on Application Load Balancer, API Gateway, CloudFront

• Define Web ACL (Web Access Control List):

  • Rules can include IP addresses, HTTP headers, HTTP body, or URI strings
  • Protects from common attack - SQL injection and Cross-Site Scripting (XSS)
  • Size constraints, geo-match (block countries)
  • Rate-based rules (to count occurrences of events) – for DDoS protection

---

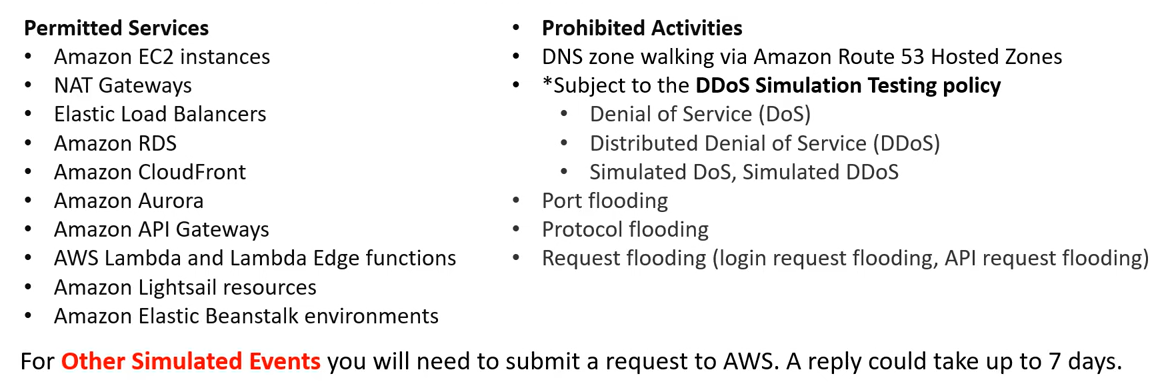

Penetration Testing on AWS Cloud

• Pen Testing

  • An authorized simulated cyberattack on a computer system, performed to evaluate the security of the system.

• Pen Testing is allowed to be performed on AWS.

• AWS customers are welcome to carry out security assessments or penetration tests against their AWS infrastructure without prior approval for 8 services:

  • Amazon EC2 instances, NAT Gateways, and Elastic Load Balancers
  • Amazon RDS
  • Amazon CloudFront
  • Amazon Aurora
  • Amazon API Gateways
  • AWS Lambda and Lambda Edge functions
  • Amazon Lightsail resources
  • Amazon Elastic Beanstalk environments
  • List can increase over time (you won’t be tested on that at the exam)

• Prohibited Activities

  • DNS zone walking via Amazon Route 53 Hosted Zones
  • Denial of Service (DoS), Distributed Denial of Service (DDoS), Simulated DoS, Simulated DDoS
  • Port flooding
  • Protocol flooding
  • Request flooding (login request flooding, API request flooding)

---

Encryption - Confidentiality

Terminology

• Cryptography密码术

  • the pratice and study of techniques for secure communication in the presence of third parties, called adversary
  • the science of concealing messages with a secret code.

• Encryption密码术

  • the process of encoding(scrabbling) information using a key and a cypher 密码算法 to store sensitive data in an unintelligible 费解的 format as a means of protection.
  • An encryption takes in plaintext 明码文本 and produces ciphertext 密文.
  • the way to encrypt and decrypt data.

• Cypher

  • An algorithm that performs encryption or decryption.
  • synonymous with “code”.

• Ciphertext

  • the result of encryption performed on plaintext via an algorithm.

• Crytographic key

  • a variable used in conjunction with an encryption algorithm in order to encrypt or decrypt data.

---

Symmetric Encryption vs Asymmetric Encryption

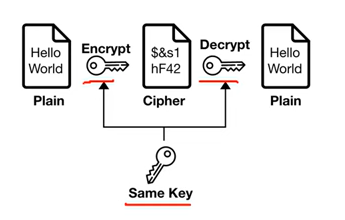

• Symmetric Encryption对称加密

  • The same key is used for encoding and decoding.
  • eg.Advanced Encryption Standard (AES)高级加密标准

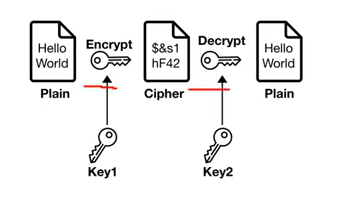

• Asymmetric Encryption

  • Two keys are used. One to encode and one to decode.
  • eg. Rivest-Shamir-Adleman (RSA)



---

Hashing and Salting

• Hashing

  • the process of using a mathematical function to convert input data into a fixed-length output.
  • Hashing can reduce the size of the store value.
  • Hasing is an one-way process and is deterministic.

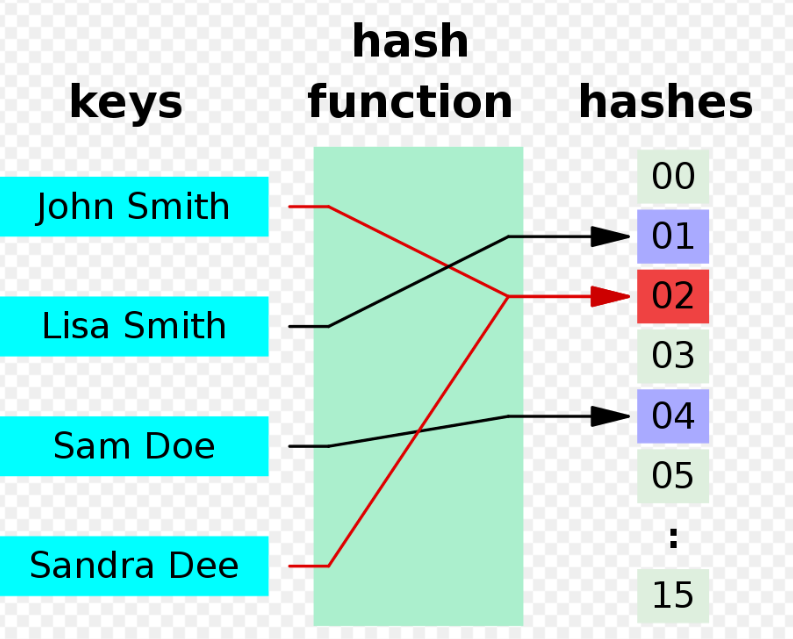

• Hashing function

  • A function that accepts arbitrary size value and maps it to a fixed-size data structure.
  • A deterministic function that always returns the same output for the same input.

• Hashing functions are used to store passwords in database so that a password does not reside in a plaintext format.

  • To authenticate a user, when a user inputs their password, it is hashed and the hash is compared to the store hashed. If they match then the user has successful logged in.

• Popular hashing functions are MD5, SHA256, and Bcrypt.

  • If attacks know what hashing function are used and steal a database, they could enumerated a dictionary of password to detemine the password.

---

• Salting Passowrds
  • A salt is a random string not known to the attacker that the hashing function accepts to mitigate the deterministic nature of hashing functions.

---

Encryption In-Transit and At-Rest

• At rest: data stored or archived on a device
  • On a hard disk, on a RDS instance, in S3 Glacier Deep Archive, etc.

• In transit (in motion): data being moved from one location to another

  • Transfer from on-premises to AWS, EC2 to DynamoDB, etc.
  • Means data transferred on the network

• Encryption In-Transit

  • defends data against potential attackers, after a connection is established and authenticated
  • Data that is secure when moving between locations.
  • Algorithms: TLS, SSL

• Transport Layer Security (TLS)

  • a cryptographic protocol that provides end-to-end security of data sent between applications over the Internet.
  • uses a combination of symmetric and asymmetric cryptography

• Secure Sockets Layers (SSL)

  • a networking protocol designed for securing connections between web clients and web servers over an insecure network.
  • It uses both symmetric and asymmetric cryptography.
  • provides server authentication and client authentication

---

• Encryption At-Rest

  • encryption that is used to help protect data that is stored on a disk (including solid-state drives) or backup media.
  • Data that is secure when residing on storage or within a database.
  • Algorithms: AES, RSA

• On AWS, we leverage encryption keys

---

Digital Signatures and Signing

• Digital Signature

  • a mathematical scheme to verify the authenticity of digital messages or document.

• Digital signature gives users tamper-evidence 防篡改.

• Three algorithms to digital signatures:

  • Key generation, generates a public and private key.
  • Signing, the process of generating a digital signature with a private key and inputted message.
  • Signing Verification, verify the authenticity of the message with a public key.



• SSH uses a public and private key to authorize remote access into a remote machine.

  • eg.Virtual Machine, it is common to use RSA(Asymmetric Encryption).
  • ssh-keygen, a well known command to generate a public and private key.
    • ssh-keygen -t rsa

• Code Signing

  • a process by which the software developer signs the applications and executables before releasing them.
  • by placing a digital signature onto the executable, program, software update or file.

• Code Signing Certificate

  • assesses whether the software that is being downloaded comes directly from the publisher.
  • ensures that the software has not been tempered and the user can safely download it.
  • proves the publisher’s authenticity and code integrity.
  • allows users to trust any upgrades, and all major browsers and operating systems support code signing.

---

Access Keys - Encryption

Hardware Security Module

• Hardware Security Module

  • its a piece of hardware designed to store encrytion keys.
  • HSM hold keys in memory and never write them to disk.

• HSM’s that are multi-tenant are FIPS 140-2 Level 2 Compliant.

  • multiple customers virtually isolated on an HSM
  • AWS KMS

• HSM’s that are single-tenant are FIPS 140-2 Level 3 Compliant.

  • single customer on a dedicated HSM
  • AWS CloudHSM

---

Types of Customer Master Keys: CMK

• Customer Managed CMK:

  • Create, manage and used by the customer, can enable or disable
  • Possibility of rotation policy (new key generated every year, old key preserved)
  • Possibility to bring-your-own-key

• AWS managed CMK:

  • Created, managed and used on the customer’s behalf by AWS
  • Used by AWS services (aws/s3, aws/ebs, aws/redshift)

• AWS owned CMK:

  • Collection of CMKs that an AWS service owns and manages to use in multiple accounts
  • AWS can use those to protect resources in your account (but you can’t view the keys)

• CloudHSM Keys (custom keystore):

  • Keys generated from your own CloudHSM hardware device
  • Cryptographic operations are performed within the CloudHSM cluster

---

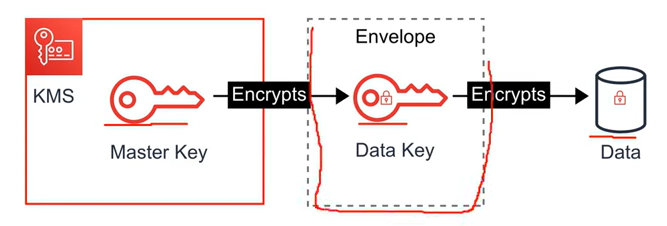

AWS Key Management Service (KMS) - Encryption keys, software, AWS mange

• AWS Key Management Service (KMS)

  • a managed service that makes it easy to create and control the encryption keys used to encrypt data.
• KMS => AWS manages the software for encryption
• Anytime you hear “encryption” for an AWS service, it’s most likely KMS
• KMS = AWS manages the encryption keys for us

• Encryption Opt-in:

  • EBS volumes: encrypt volumes
  • S3 buckets: Server-side encryption of objects
  • Redshift database: encryption of data
  • RDS database: encryption of data
  • EFS drives: encryption of data

• Encryption Automatically enabled:

  • CloudTrail Logs
  • S3 Glacier
  • Storage Gateway
• KMS is a multi-tenant HSM (Hardware Security Module)
• Many AWS services are integrated to use KMS to encrypt data with a simple checkbox.

• KMS uses Envelope Encryption.

• Envelope Encryption
  • When user encrypt data, data is protected but user has to protect encryption key.
  • When user encrypt data key with a master key as an additional layer of security.

---

AWS CloudHSM - Encryption keys, hardware, user managed

• CloudHSM

  • a single-tenant HSM as a service that automates hardware provisioning, software patching, high availability, and backups.

• AWS CloudHSM enables user to generate and use user’s encryption keys on a FIPS 140-2 Level 3 validated hardware.

• CloudHSM => AWS provisions encryption hardware
• Dedicated Hardware (HSM = Hardware Security Module)
• You manage your own encryption keys entirely (not AWS)
• HSM device is tamper resistant, FIPS 140-2 Level 3 compliance

---

AWS Certificate Manager (ACM) - Free, HTTPS, SSL/TLS Certificates

• Let’s you easily provision, manage, and deploy SSL/TLS Certificates
• Used to provide in-flight encryption for websites (HTTPS)
• Supports both public and private TLS certificates
• Free of charge for public TLS certificates
• Automatic TLS certificate renewal
• Integrations with (load TLS certificates on)
  • Elastic Load Balancers
  • CloudFront Distributions
  • APIs on API Gateway

---

AWS Secrets Manager - store secrets, rotation of secrets, RDS

• Newer service, meant for storing secrets
• Capability to force rotation of secrets every X days
• Automate generation of secrets on rotation (uses Lambda)
• Integration with Amazon RDS (MySQL, PostgreSQL, Aurora)
• Secrets are encrypted using KMS
• Mostly meant for RDS integration

---

Intrusion Detection System / Intrusion Protection System (IDS/IPS)

• Intrusion Detection System / Intrusion Protection System (IDS/IPS)

  • A device or software application that monitors a network or systems for malicious activity or policy violations.

---

Amazon Guard Duty - Malicious Activity, Intelligent, ml, SNS, CryptoCurrency

• Amazon Guard Duty

  • Intelligent Threat discovery to protect your AWS Account
  • a threat detection service that continuously monitors for malicious, suspicious activity and unauthorized behavior.
  • It uses Machine Learning to analyze AWS logs:
    • CloudTrail Logs
    • VPC Flow Logs
    • DNS Logs

• it will alert user of findings which user can automate a incident response via CloudWatch Events or with 3rd Party Services.

• Uses Machine Learning algorithms, anomaly detection, 3rd party data
• One click to enable (30 days trial), no need to install software
• Input data includes:
  • CloudTrail Events Logs – unusual API calls, unauthorized deployments
  • CloudTrail Management Events – create VPC subnet, create trail, …
  • CloudTrail S3 Data Events – get object, list objects, delete object, …
  • VPC Flow Logs – unusual internal traffic, unusual IP address
  • DNS Logs – compromised EC2 instances sending encoded data within DNS queries
  • Kubernetes Audit Logs – suspicious activities and potential EKS cluster compromises
• Can setup EventBridge rules to be notified in case of findings
• EventBridge rules can target AWS Lambda or SNS
• Can protect against CryptoCurrency attacks (has a dedicated “finding” for it)

---

Hardening

• Hardening

  • In computer security, hardening is usually the process of securing a system by reducing its surface of vulnerability.
  • is common for Virtual Machines where user runs a collection of security checks, known as a security benchmark.

---

AWS Inspect - Assessments, EC2(SSM), Container Img, Lambda

• AWS Inspector

  • Automated Security Assessments
  • runs a security benchmark against specific EC2 instances.
  • can perform both Network and Host Assessments.
  • can run a variety of security benchmarks.
    • install the AWS agent on EC2 instances.
    • Run an assessment for assessment target.
    • Review findings and remediate security issues.
• For EC2 instances
  • Leveraging the AWS System Manager (SSM) agent
  • Analyze against unintended network accessibility
  • Analyze the running OS against known vulnerabilities
• For Container Images push to Amazon ECR
  • Assessment of Container Images as they are pushed
• For Lambda Functions
  • Identifies software vulnerabilities in function code and package dependencies
  • Assessment of functions as they are deployed
• Reporting & integration with AWS Security Hub

• Send findings to Amazon Event Bridge

• Remember:
  • only for EC2 instances, Container Images & Lambda functions
• Continuous scanning of the infrastructure, only when needed
• Package vulnerabilities (EC2, ECR & Lambda) – database of CVE
• Network reachability (EC2)
• A risk score is associated with all vulnerabilities for prioritization

---

Others

AWS Macie - S3, data security&privacy, PII, ml

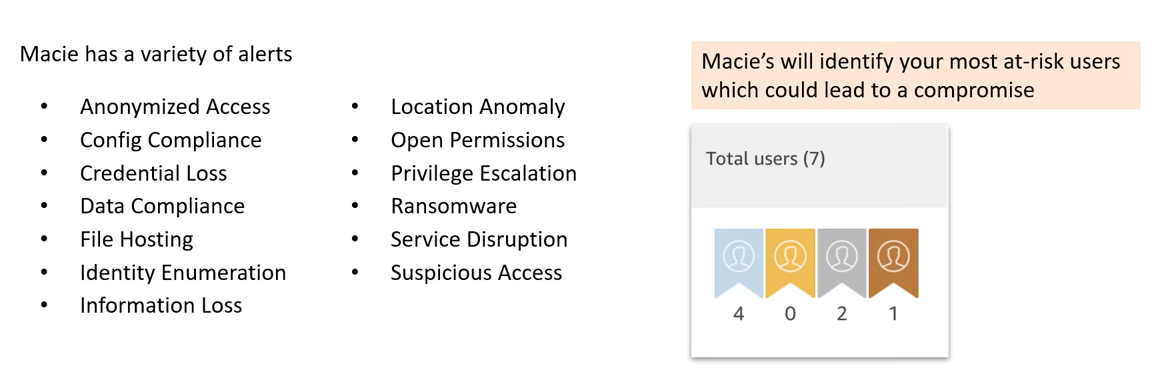

• Macie

  • a fully managed service that continuously monitors S3 data access activity for anomalies, and generates detailed alerts when it detects risk of unquthorized access or inadvertent data leaks.

• Macie works by uses Machine Learning to Analyze CloudTrail logs.

• Amazon Macie is a fully managed data security and data privacy service that uses machine learning and pattern matching to discover and protect your sensitive data in AWS.
• Macie helps identify and alert you to sensitive data, such as personally identifiable information (PII)

---

AWS Security Hub - Central dashboards, account(s), +compliance

• Central security tool to manage security across several AWS accounts and automate security checks
• Integrated dashboards showing current security and compliance status to quickly take actions
• Automatically aggregates alerts in predefined or personal findings formats from various AWS services & AWS partner tools:
  • GuardDuty
  • Inspector
  • Macie
  • IAM Access Analyzer
  • AWS Systems Manager
  • AWS Firewall Manager
  • AWS Partner Network Solutions
  • Must first enable the AWS Config Service

---

Amazon Detective - investigates root cause, ml, unified visualizations

• GuardDuty, Macie, and Security Hub are used to identify potential security issues, or findings
• Sometimes security findings require deeper analysis to isolate the root cause and take action – it’s a complex process
• Amazon Detective analyzes, investigates, and quickly identifies the root cause of security issues or suspicious activities (using ML and graphs)
• Automatically collects and processes events from VPC Flow Logs, CloudTrail, GuardDuty and create a unified view
• Produces visualizations with details and context to get to the root cause

---

AWS Abuse - abusive use

• AWS Trust & Safety

  • a team that specifically deals with abuses occuring on the AWS platform for the following issues:

• Report suspected AWS resources used for abusive or illegal purposes

• Abusive & prohibited behaviors are:

  • Spam – receving undesired emails from AWS-owned IP address, websites & forums spammed by AWS resources
  • Port scanning – sending packets to your ports to discover the unsecured ones
  • DoS or DDoS attacks – AWS-owned IP addresses attempting to overwhlem or crash your servers/softwares
  • Intrusion attempts – logging in on your resources
  • Hosting objectionable or copyrighted content – distributing illegal or copyrighted content without consent
  • Distributing malware – AWS resources distributing softwares to harm computers or machines

• AWS Support does not deal with Abuse tickets. User need to contact abuse@amazonaws.com or fill out the Report Amazon AWS abuse form.

---

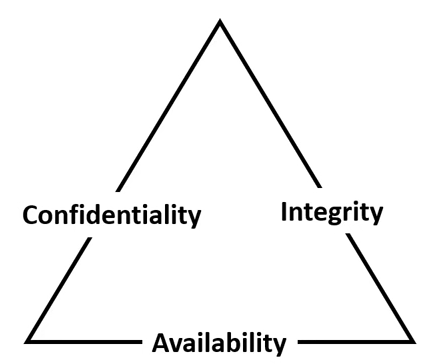

Security Principle: Confidentiality, Integrity, and Availability (CIA) triad

• Confidentiality, Integrity, and Availability (CIA) triad

  • a model describing the foundation to security principle and their trade-off relationship.

• Confidentiality

  • a component of privacy that implements to protect user’s data from unauthorized viewers.
  • In practice, it can be using cryptographic keys to encrypt data, and using keys to encrypt keys.

• Integrity

  • maintaining and assuring the accuracy and completeness of data over its entire lifecycle.
  • In practice, utilizing ACID compliant databases for valid transactions, utilizing tamper-evident or tamper proof Hardware Security Modules (HSM).

• Availability

  • Information needs to be made be available when needed.
  • In practice: High Availability, Migtigating DDoS, Decryption access.

• Vulnerabilities
  • A hole or a weekness in the applications, which can be a design flaw or an implementation bug, that allows an attacker to cause harm to the stakeholders of an application.

---

Summary: Security

• Shared Responsibility on AWS

• DDoS

  • Shield:
    • Automatic DDoS Protection + 24/7 support for advanced
  • WAF:
    • Firewall to filter incoming requests based on rules

• Encryption

  • KMS:
    • Encryption keys managed by AWS
  • CloudHSM:
    • Hardware encryption, we manage encryption keys
  • AWS Certificate Manager:
    • provision, manage, and deploy SSL/TLS Certificates
• Hardening
  • GuardDuty:
    • Find malicious behavior with VPC, DNS & CloudTrail Logs

• EC2

  • Inspector:
    • find software vulnerabilities in EC2, ECR Images, and Lambda functions

• S3

  • Macie:
  • Find sensitive data (ex: PII data) in Amazon S3 buckets

• API

  • CloudTrail:
    • Track API calls made by users within account
• Others
  • AWS Security Hub :
    • gather security findings from multiple AWS accounts
  • Amazon Detective:
    • find the root cause of security issues or suspicious activities
  • AWS Abuse:
    • Report AWS resources used for abusive or illegal purposes

---

TOP
