AWS - EC2 Storage
- AWS - EC2 Storage

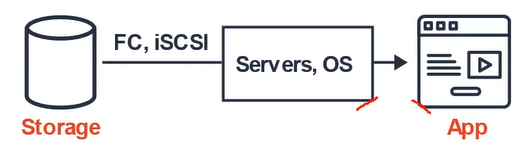

Elastic Block Store (EBS) - EC2
-
Elastic Block Store (EBS)- Block- block-storage service designed for EC2
- EBS used to be accessible to a single EC2 instance only, making it most like your physical hard drive.
- allows your instances to persist data, even after their termination
- Data is spilt into evenly split blocks
- They can only be mounted to one instance at a time (at the CCP level)
- Supports only a single write volume
- They are bound to a specific availability zone
- Directly accessed by the Operation System
- block-storage service designed for EC2
-
Free tier: 30 GB of free EBS storage of type General Purpose (SSD) or Magnetic per month
-
For user who needs a virtual hard drive attached to a VM.
- Analogy: Think of them as a “network USB stick”
- Website: https://aws.amazon.com/ebs/
-
It’s a network drive (i.e. not a physical drive)
- It uses the network to communicate the instance, which means there might be a bit of latency
- It can be detached from an EC2 instance and attached to another one quickly
-
It’s locked to an Availability Zone (AZ)
- An EBS Volume in us-east-1a cannot be attached to us-east-1b 不能跨区接入
- To move a volume across, you first need to snapshot it 能跨区移动
-
Have a provisioned capacity (size in GBs, and IOPS)
- You get billed for all the provisioned capacity
- You can increase the capacity of the drive over time
Delete on Termination attribute
- Controls the EBS behaviour when an EC2 instance terminates
- By default, the root EBS volume is deleted (attribute enabled)
- By default, any other attached EBS volume is not deleted (attribute disabled)
- This can be controlled by the AWS console / AWS CLI 可改变
- Use case: preserve root volume when instance is terminated 可将 root 变为不自动删除
EBS Snapshots
- Make a backup (snapshot) of your EBS volume at a point in time
- Not necessary to detach volume to do snapshot, but recommended
-
Can copy snapshots across AZ or Region
-
EBS Snapshot Archive- Move a Snapshot to an ”archive tier” that is 75% cheaper
- Takes within 24 to 72 hours for restoring the archive
Recycle Binfor EBS Snapshots- Setup rules to retain deleted snapshots so you can recover them after an accidental deletion
- Specify retention (from 1 day to 1 year)
EC2 Instance Store - high-performance, risk, temporary block-level storage
- EBS volumes are network drives with good but “limited” performance
-
If you need a high-performance hardware disk, use
EC2 Instance Store -
EC2 Instance Store- Better I/O performance
- lose their storage if they’re stopped (ephemeral)
- Good for buffer / cache / scratch data / temporary content
- Risk of data loss if hardware fails
- Backups and Replication are your responsibility

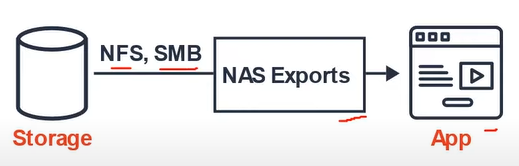

Elastic File System (EFS) - nas,multiple mounted
-
AWS Elastic File System (EFS)- Managed NFS (network file system) that can be mounted on 100s of EC2
- EFS works with Linux EC2 instances in multi-AZ
-
Highly available, scalable, expensive (3x gp2), pay per use, no capacity planning
- EFS can be mounted by multiple EC2 instances, meaning many virtual machines may store files within an EFS instance.
- File is stored with data and metadata
- Multiple connections via a network share
- Supports multiple reads, writing locks the file.
- For users who need a file-share where multiple users or VMs need to access the same drive.
- Website: https://aws.amazon.com/efs/
EFS Infrequent Access (EFS-IA)
EFS Infrequent Access (EFS-IA)- Storage class that is cost-optimized for files not accessed every day
- Up to 92% lower cost compared to EFS Standard
- EFS will automatically move your files to EFS-IA based on the last time they were accessed
- Enable EFS-IA with a Lifecycle Policy
- Example: move files that are not accessed for 60 days to EFS-IA
- Transparent to the applications accessing EFS 不会影响性能,全自动
-

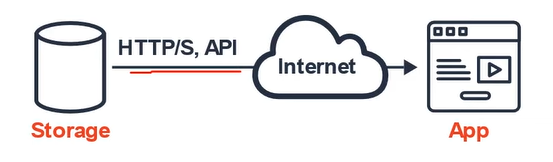

Amazon Simple Storage Service (S3)- Object- can also be accessed by other cloud services
- is ideal for handling large volumes of static data as well as complex queriess.
- Object is stored with data, metadata, and Unique ID
- Scales with limited no file limit or storage limit.
- Supports multiple reads and writes (no locks)
- For users who just want to upload files, and not have to worry about underlying infrastracure. Not Intended for high IOPs.
- Website: https://aws.amazon.com/s3/
Amazon FSx – 3rd party, high-performance
- Launch 3rd party high-performance file systems on AWS
- Fully managed service
- Types
FSx for LustreFSx for Windows File ServerFSx for NetApp ONTAP
Amazon FSx for Windows File Server
- A fully managed, highly reliable, and scalable Windows native shared file system
- Built on Windows File Server
- Supports SMB protocol & Windows NTFS
- Integrated with Microsoft Active Directory
- Can be accessed from AWS or your on-premise infrastructure
Amazon FSx for Lustre
- A fully managed, high-performance, scalable file storage for High Performance Computing (HPC)
- The name Lustre is derived from “Linux” and “cluster”
- Machine Learning, Analytics, Video Processing, Financial Modeling, …
- Scales up to 100s GB/s, millions of IOPS, sub-ms latencies
Shared Responsibility Model
-
AWS
- Infrastructure
- Replication for data for EBS volumes & EFS drives
- Replacing faulty hardware
- Ensuring their employees cannot access your data
-
User
- Setting up backup / snapshot procedures
- Setting up data encryption
- Responsibility of any data on the drives
- Understanding the risk of using EC2 Instance Store
EC2 Instance Storage Summary
EBSvolumes:- network drives attached to** one EC2 instance at a time**
- Mapped to an Availability Zones
- Can use
EBS Snapshotsfor backups / transferring EBS volumes across AZ
AMI: create ready-to-use EC2 instances with our customizationsEC2 Image Builder: automatically build, test and distribute AMIs
EC2 Instance Store:- High performance hardware disk attached to our EC2 instance
- Lost if our instance is stopped / terminated
EFS: network file system, can be attached to 100s of instances in a regionEFS-IA: cost-optimized storage class for infrequent accessed files
FSx: 3rd party high-performance file systemsFSx for Windows: Network File System for Windows serversFSx for Lustre: High Performance Computing Linux file system
