AWS - S3

Back

• AWS - S3
  • S3
    • Security
      • Bucket Policies
      • Bucket settings for Block Public Access
    • Encryption
    • Static Website Hosting
    • Bucket Versioning 版本控制
    • Replication (CRR \& SRR)
    • S3 Storage Classes
    • Durability and Availability
      • Standard – General Purpose
      • Infrequent Access
      • Standard-Infrequent Access (S3 Standard-IA)
      • One Zone-Infrequent Access (S3 One Zone-IA)
      • Glacier Storage Classes
        • Glacier Instant Retrieval
        • Glacier Flexible Retrieval
        • Glacier Deep Archive – for long term storage
      • Intelligent-Tiering
      • S3 Class Comparison
    • Shared Responsibility Model for S3
  • Other Storage
    • AWS Snow Family - Edge Location, migration
      • Data migration
      • Edge computing
      • AWS OpsHub - software
    • Storage Gateway - hybrid
      • hybrid cloud
      • Storage Gateway
  • Summary

---

S3

• Object Storage (Object-based Storage)

  • the data storage architecture that manages data as objects, as opposed to other storage architectures:
    • file system, which manages data as a files and file hierachy
    • block storage, which manages data as blocks within sectors and tracks.

• S3

  • provides user with unlimited storage / ”infinitely scaling” storage

  • users don’t need to think about the underlying infrastructure
  • The S3 console provides an interface for user to upload and access user’s data.

• S3 Use cases

  • Backup and storage
  • Disaster Recovery
  • Archive
  • Hybrid Cloud storage
  • Application hosting
  • Media hosting
  • Data lakes & big data analytics
  • Software delivery
  • Static website

• S3 Object

  • Ojbects contain data, like files.

  • Ojbect may consist of:

    • Key, FULL path of the object

      • s3://my-bucket/my_file.txt
      • s3://my-bucket/my_folder1/another_folder/my_file.txt
      • The key is composed of prefix + object name
      • s3://my-bucket/my_folder1/another_folder/my_file.txt
      • There’s no concept of “directories” within buckets (although the UI will trick you to think otherwise)
      • Just keys with very long names that contain slashes (“/”)

    • Value, the content of the body

      • Max. Object Size is 5TB (5000GB)
      • If uploading more than 5GB, must use “multi-part upload”
    • Metadata, list of text key / value pairs – system or user metadata
    • Tags (Unicode key / value pair – up to 10) – useful for security / lifecycle
    • Version ID (if versioning is enabled)

• S3 Bucket

  • Bucket hold object.
  • Amazon S3 allows people to store objects (files) in “buckets” (directories)
  • Buckets can also have folders which in turn hold objects.
  • S3 is a universal namespace so bucket names must be unique. (across all regions all accounts)
  • Buckets are defined at the region level
    • S3 looks like a global service but buckets are created in a region

• Individual object from 0 Bytes to 5 Terabytes in size.

---

Security

• User-Based

  • IAM Policies – which API calls should be allowed for a specific user from IAM
  • Example:
    • User Access to S3 -IAM permissions
    • EC2 instance access - Use IAM Roles
• Resource-Based
  • Bucket Policies – bucket wide rules from the S3 console - allows cross account
    • Example: Use Bucket Policy
      • Cross-Account Access
      • Public Access
  • Object Access Control List (ACL) – finer grain (can be disabled)
  • Bucket Access Control List (ACL) – less common (can be disabled)
• Note: an IAM principal can access an S3 object if
  • The user IAM permissions ALLOW it OR the resource policy ALLOWS it
  • AND there’s no explicit DENY
• Encryption:
  • encrypt objects in Amazon S3 using encryption keys

---

Bucket Policies

• JSON based policies

  • Resources: buckets and objects
  • Effect: Allow / Deny
  • Actions: Set of API to Allow or Deny
  • Principal: The account or user to apply the policy to

• Use S3 bucket for policy to:

  • Grant public access to the bucket
  • Force objects to be encrypted at upload
  • Grant access to another account (Cross Account)

---

Bucket settings for Block Public Access

• These settings were created to prevent company data leaks
  • If you know your bucket should never be public, leave these on
  • Can be set at the account level

---

Encryption

• Server-Side Encryption

  • Default
  • Server encrypts the file after receiving it

• Client-Side Encryption

  • Encrypts the file Before uploading it

---

Static Website Hosting

• Static Website Hosting
  • S3 can host static websites and have them accessible on the Internet
• The website URL will be (depending on the region)
  • http://bucket-name.s3-website-aws-region.amazonaws.com
  • http://bucket-name.s3-website.aws-region.amazonaws.com
• If you get a 403 Forbidden error, make sure the bucket policy allows public reads!

---

Bucket Versioning 版本控制

• You can version your files in Amazon S3
• It is enabled at the bucket level
• Same key overwrite will change the “version”: 1, 2, 3…. 相同的文件名会覆盖
• It is best practice to version your buckets
  • Protect against unintended deletes (ability to restore a version)
  • Easy roll back to previous version
• Notes:
  • Any file that is not versioned prior to enabling versioning will have version “null”
  • Suspending versioning does not delete the previous versions

---

Replication (CRR & SRR)

• Must enable Versioning in source and destination buckets
• Buckets can be in different AWS accounts
• Copying is asynchronous
• Must give proper IAM permissions to S3
• Cross-Region Replication (CRR)
• Same-Region Replication (SRR)
• Use cases:
  • CRR – compliance, lower latency access, replication across accounts
  • SRR – log aggregation, live replication between production and test accounts
• 效果: 一旦 source 更新, target 自动更新

---

S3 Storage Classes

• S3 Outposts has its own storage clas.

• Lifecycle Rules can be used to define when S3 objects should be transitioned to another storage class or when objects should be deleted after some time.

Durability and Availability

• Durability 耐用性:
  • High durability (99.999999999%, 11 9’s) of objects across multiple AZ
  • If you store 10,000,000 objects with Amazon S3, you can on average expect to incur a loss of a single object once every 10,000 years
  • Same for all storage classes

• Availability:

  • Measures how readily available a service is
  • Example: S3 standard has 99.99% availability = not available 53 minutes a year
  • Varies depending on storage class
• AWS offers a range of S3 storage classes that trade Retrieval Time, Accessibility, and Durability for Cheaper Storage.

Standard – General Purpose

• 99.99% Availability
• default
• Used for frequently accessed data
• Low latency and high throughput
• Sustain 2 concurrent facility failures
  • Replicated across at least three AZs.

• Use Cases:

  • Big Data analytics, mobile & gaming applications, content distribution…

---

Infrequent Access

• For data that is less frequently accessed, but requires rapid access when needed
• Lower cost than S3 Standard

Standard-Infrequent Access (S3 Standard-IA)

• 99.9% Availability
• Use cases: Disaster Recovery, backups

One Zone-Infrequent Access (S3 One Zone-IA)

• High durability (99.999999999%) in a single AZ;
• data lost when AZ is destroyed
• 99.5% Availability

• Use Cases:

  • Storing secondary backup copies of on-premise data, or data you can recreate

---

Glacier Storage Classes

• Low-cost object storage meant for archiving / backup
• Pricing:
  • price for storage + object retrieval cost

Glacier Instant Retrieval

• Millisecond retrieval, great for data accessed once a quarter三个月
• Minimum storage duration of 90 days

Glacier Flexible Retrieval

• Types – free
  • Expedited (1 to 5 minutes),
  • Standard (3 to 5 hours),
  • Bulk (5 to 12 hours)
• Minimum storage duration of 90 days

Glacier Deep Archive – for long term storage

• Types
  • Standard (12 hours),
  • Bulk (48 hours)
• Minimum storage duration of 180 days

• the most cost-effective for archiving data with no retrieval time requirement

Intelligent-Tiering

• Small monthly monitoring and auto-tiering fee
• Moves objects automatically between Access Tiers based on usage

• There are no retrieval charges in S3 Intelligent-Tiering

• Tiers
  • Frequent Access tier (automatic): default tier
  • Infrequent Access tier (automatic): objects not accessed for 30 days
  • Archive Instant Access tier (automatic): objects not accessed for 90 days
  • Archive Access tier (optional): configurable from 90 days to 700+ days
  • Deep Archive Access tier (optional): config. from 180 days to 700+ days

---

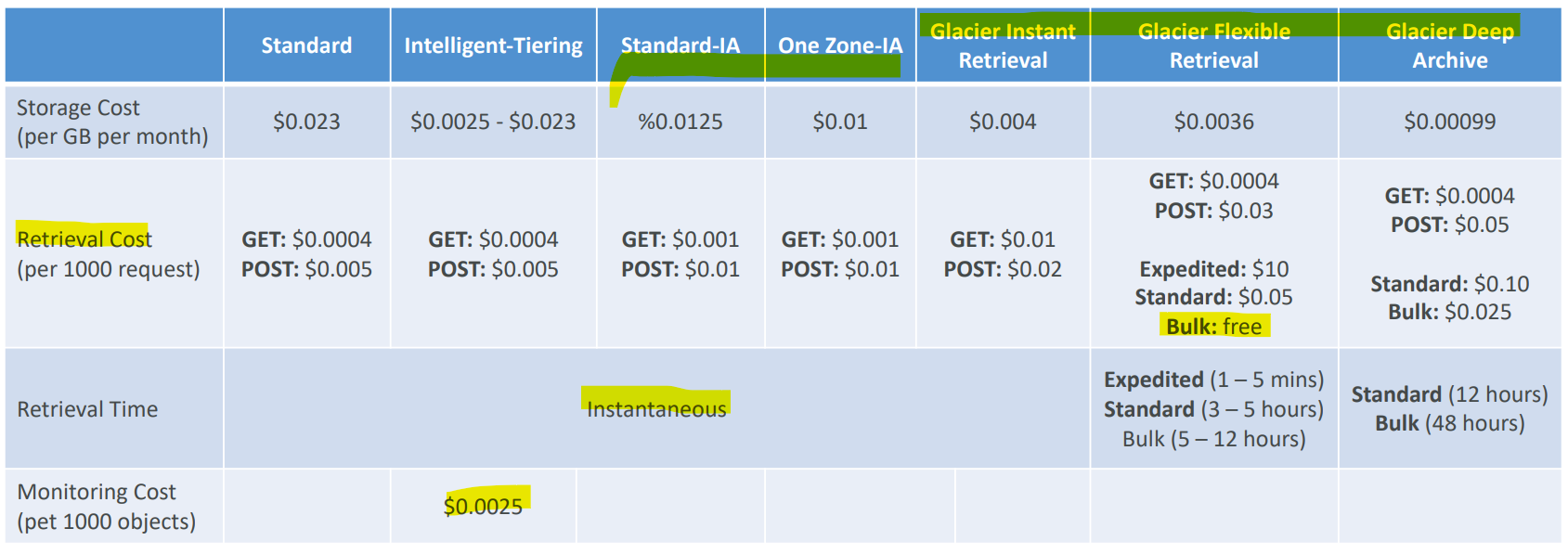

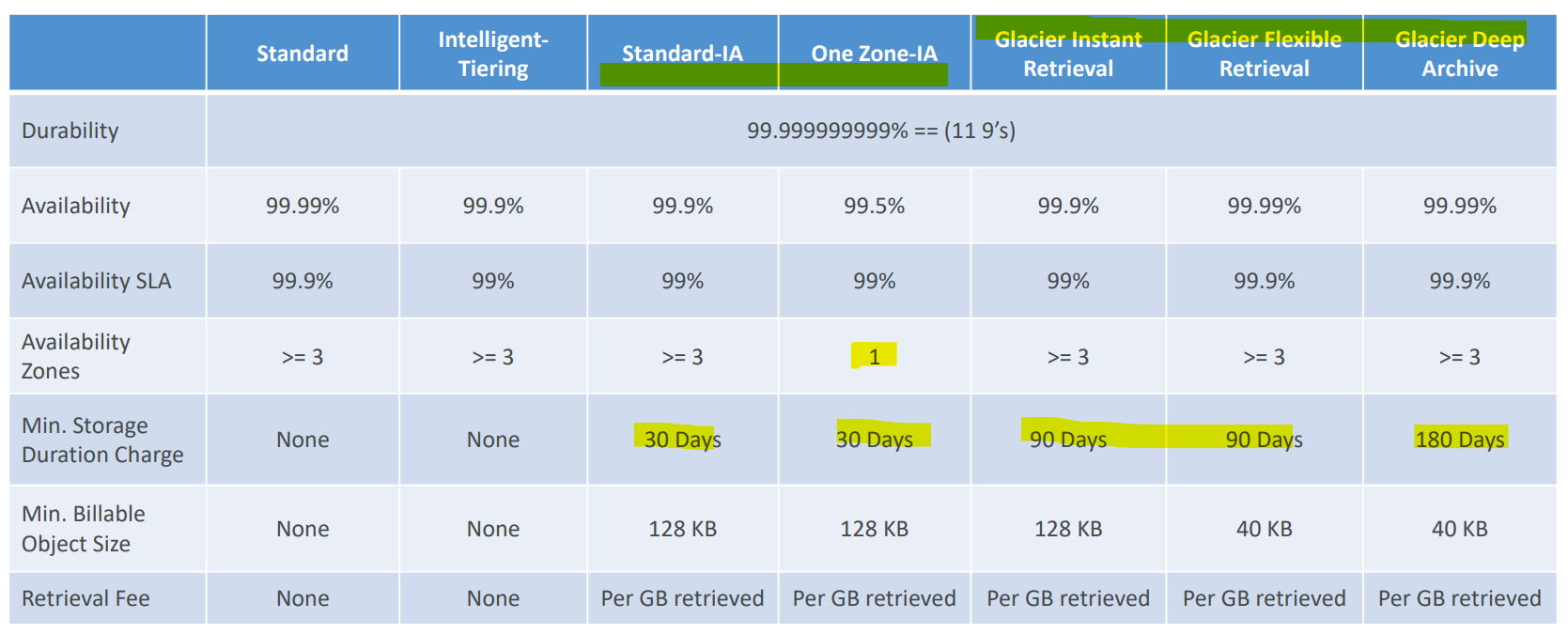

S3 Class Comparison

---

Shared Responsibility Model for S3

• AWS

  • Infrastructure (global security, durability, availability, sustain concurrent loss of data in two facilities)
  • Configuration and vulnerability analysis
  • Compliance validation

• Usres

  • S3 Versioning
  • S3 Bucket Policies
  • S3 Replication Setup
  • Logging and Monitoring
  • S3 Storage Classes
  • Data encryption at rest and in transit

---

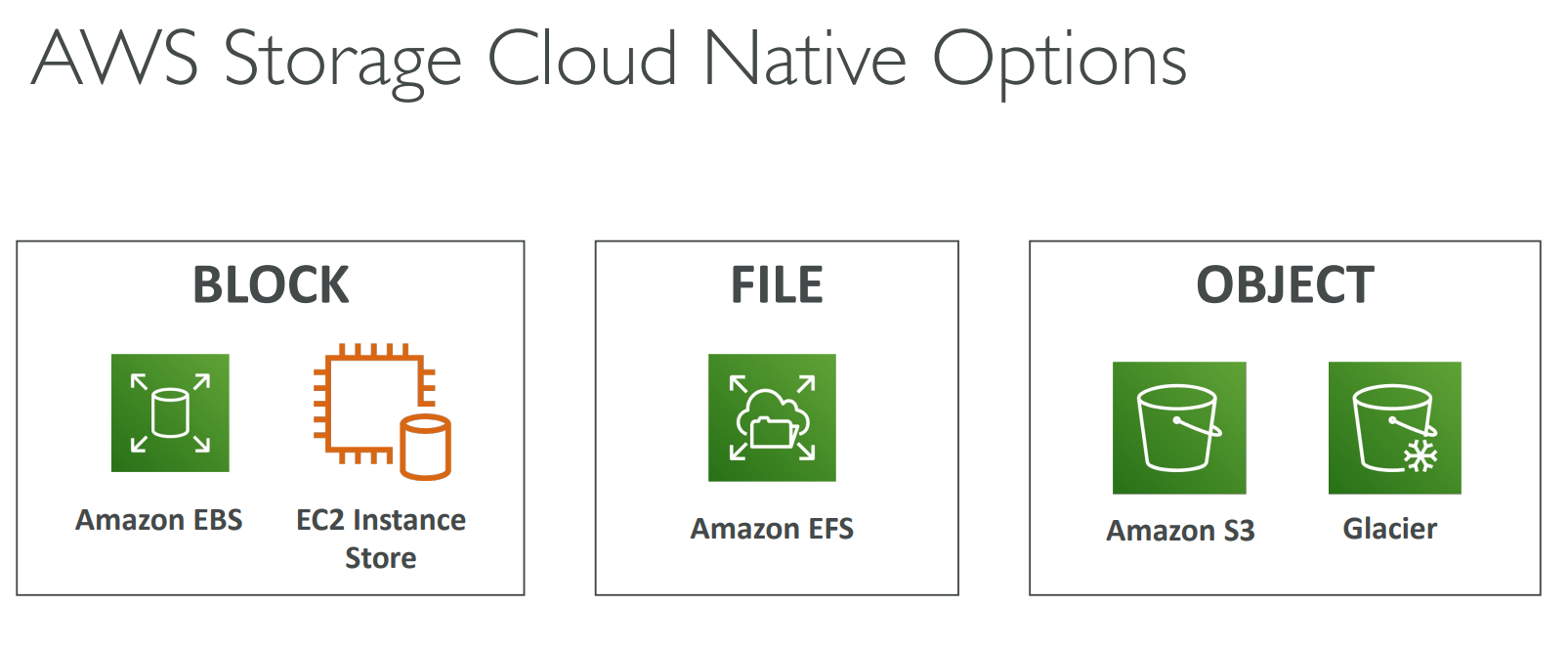

Other Storage

AWS Snow Family - Edge Location, migration

• AWS Snow Family

  • storage and compute devices used to physically move data in or out the cloud when moving data over the internet or private connection it to slow, difficult, or costly.
  • Data is delivered to S3
  • Highly-secure, portable devices to collect and process data at the edge, and migrate data into and out of AWS

• AWS Snow Family: offline devices to perform data migrations

  • If it takes more than a week to transfer over the network, use Snowball devices!

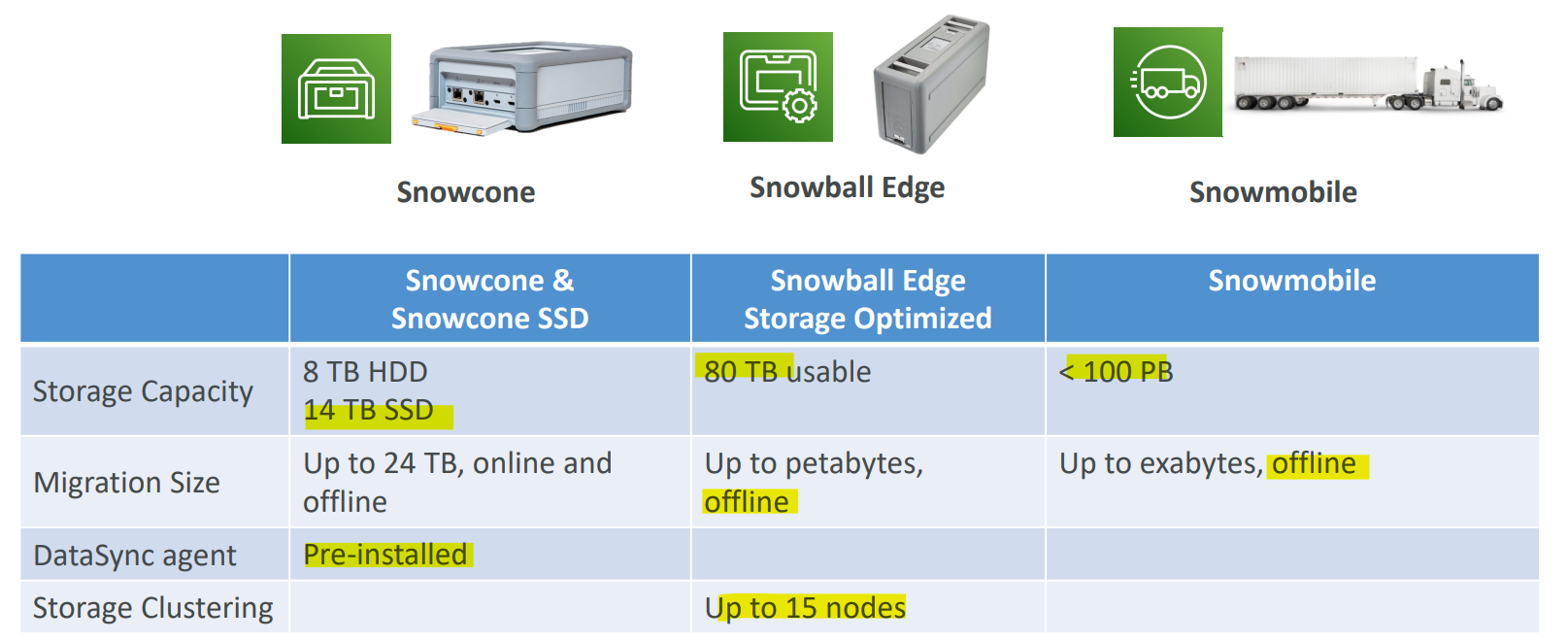

Data migration

• Snowcone

  • two sizes:
    • 8TB of Storage (HHD)
    • 14TB of Storage (SSD)

• Snowball Edge

  • generally two types:
    • Storage Optimized, 80TB
    • Compute Optimized, 39.5TB
    • it’s recommended to use a fleet of Snowballs to move less than 10PBs of data.

• Snowmobile

  • 100PB of storage
  • exabytes 艾字节 1 EB=1,000 PBs=1,000,000 TBs

---

Edge computing

• Snowcone & Snowcone SSD
  • wired or wireless access
  • USB-C power using a cord or the optional battery
• Snowball Edge – Compute Optimized
  • useful for video processing or machine learning
• Snowball Edge – Storage Optimized
  • Object storage clustering available
  • suited for large-scale data migrations (petabytes of data) and recurring transfer workflows, as well as local computing with higher capacity needs.

---

AWS OpsHub - software

• to manage your Snow Family Device

---

Storage Gateway - hybrid

hybrid cloud

• Part of your infrastructure is on-premises
• Part of your infrastructure is on the cloud

• This can be due to

  • Long cloud migrations
  • Security requirements
  • Compliance requirements
  • IT strategy
• Use AWS Storage Gateway to expose the S3 data on-premise

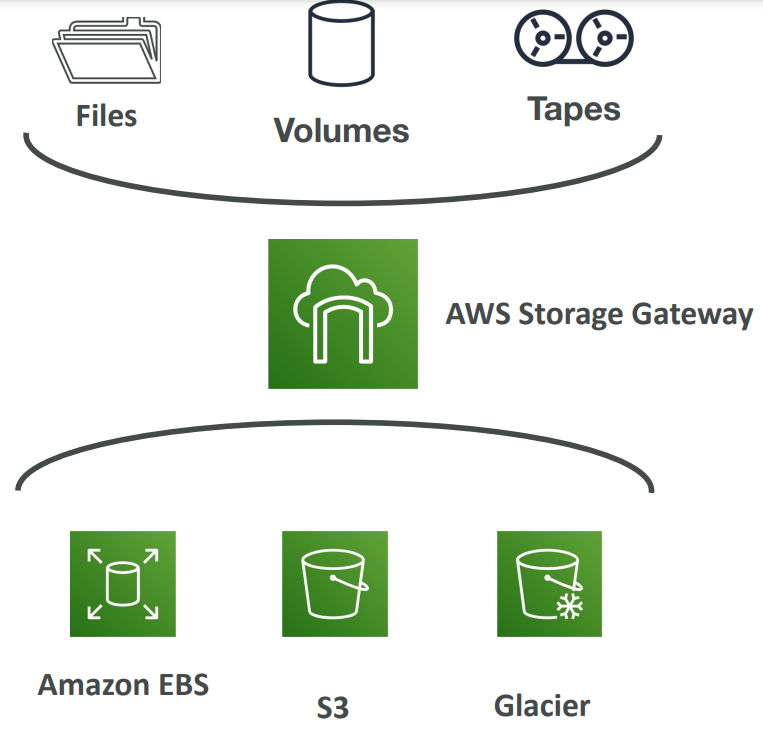

Storage Gateway

• Bridge between on-premise data and cloud data in S3
• Hybrid storage service to allow on- premises to seamlessly use the AWS Cloud
• Use cases:
  • disaster recovery, backup & restore, tiered storage
• Types of Storage Gateway:
  • File Gateway
  • Volume Gateway
  • Tape Gateway

---

Summary

• Buckets vs Objects:
  • global unique name,
  • tied to a region
• S3 security:
  • IAM policy,
  • S3 Bucket Policy (public access),
  • S3 Encryption
• S3 Websites:
  • host a static website on Amazon S3
• S3 Versioning:
  • multiple versions for files,
  • prevent accidental deletes
• S3 Replication:
  • same-region or cross-region,
  • must enable versioning
• S3 Storage Classes:
  • Standard,
    • IA,
    • 1Z-IA,
    • Intelligent,
    • Glacier (Instant, Flexible, Deep)
• Snow Family:
  • import data onto S3 through a physical device,
  • edge computing
  • OpsHub: desktop application to manage Snow Family devices
• Storage Gateway:
  • hybrid solution to extend on-premises storage to S3

---
