Data Engineering Fundamental

Back

Data Engineering Fundamental

Types of Data

Structured
- Data that is organized in a defined manner or schema, typically found in relational databases.
- Characteristics:
  - Easily queryable
  - Organized in rows and columns
  - Has a consistent structure
- e.g.:
  - Database tables
  - CSV files with consistent columns
  - Excel spreadsheets
Unstructured
- Data that doesn’t have a predefined structure or schema.
- Characteristics:
  - Not easily queryable without preprocessing
  - May come in various formats
- e.g.:
  - Text files without a fixed format
  - Videos and audio files
  - Images
  - Emails and word processing documents
Semi-Structured
- Data that is not as organized as structured data but has some level of structure in the form of tags, hierarchies, or other patterns.
- Characteristics:
  - Elements might be tagged or categorized in some way
  - More flexible than structured data but not as chaotic as unstructured data
- e.g.:
  - XML and JSON files
  - Email headers (which have a mix of structured fields like date, subject, etc., and unstructured data in the body)
  - Log files with varied formats

Properties of Data

Volume
- Refers to the amount or size of data that organizations are dealing with at any given time.
- Characteristics:
  - May range from gigabytes to petabytes or even more
  - Challenges in storing, processing, and analyzing high volumes of data
- e.g.:
  - A popular social media platform processing terabytes of data daily from user posts, images, and videos.
  - Retailers collecting years’ worth of transaction data, amounting to several petabytes.
Velocity
- Refers to the speed at which new data is generated, collected, and processed.
- Characteristics:
  - High velocity requires real-time or near-real-time processing capabilities
  - Rapid ingestion and processing can be critical for certain applications
- e.g.:
  - Sensor data from IoT devices streaming readings every millisecond.
  - High-frequency trading systems where milliseconds can make a difference in decision-making.
Variety
- Refers to the different types, structures, and sources of data.
- Characteristics:
  - Data can be structured, semi-structured, or unstructured
  - Data can come from multiple sources and in various formats
- e.g.:
  - A business analyzing data from relational databases (structured), emails(unstructured), and JSON logs (semi-structured).
  - Healthcare systems collecting data from electronic medical records, wearable health devices, and patient feedback forms.

Data Warehouses vs. Data Lakes

Data Warehouse
- A centralized repository optimized for analysis where data from different sources is stored in a structured format.
- Characteristics:
  - Designed for complex queries and analysis
  - Data is cleaned, transformed, and loaded (ETL process)
  - Typically uses a star or snowflake schema
  - Optimized for read-heavy operations
- e.g.:
  - Amazon Redshift
  - Google BigQuery
  - Microsoft Azure SQL Data Warehouse

Data Lake
- A storage repository that holds vast amounts of raw data in its native format, including structured, semi-structured, and unstructured data.
- Characteristics:
  - Can store large volumes of raw data without predefined schema
  - Data is loaded as-is, no need for preprocessing
  - Supports batch, real-time, and stream processing
  - Can be queried for data transformation or exploration purposes
- e.g.:
  - Amazon Simple Storage Service (S3) when used as a data lake
  - Azure Data Lake Storage
  - Hadoop Distributed File System (HDFS)

Comparing the two
Schema:
- Data Warehouse: Schema-on-write (predefined schema before writing data)
  - Extract – Transform – Load (ETL)
- Data Lake: Schema-on-read (schema is defined at the time of reading data)
  - Extract – Load – Transform (ELT)
Data Types:
- Data Warehouse: Primarily structured data
- Data Lake: Both structured and unstructured data
Agility:
- Data Warehouse: Less agile due to predefined schema
- Data Lake: More agile as it accepts raw data without a predefined structure
Processing:
- Data Warehouse: ETL (Extract, Transform, Load)
- Data Lake: ELT (Extract, Load, Transform) or just Load for storage purposes
Cost:
- Data Warehouse: Typically more expensive because of optimizations for complex queries
- Data Lake: Cost-effective storage solutions, but costs can rise when processing large amounts of data

Choosing a Warehouse vs. a Lake
Use a Data Warehouse when:
- You have structured data sources and require fast and complex queries.
- Data integration from different sources is essential.
- Business intelligence and analytics are the primary use cases.
Use a Data Lake when:
- You have a mix of structured, semi-structured, or unstructured data.
- You need a scalable and cost-effective solution to store massive amounts of data.
- Future needs for data are uncertain, and you want flexibility in storage and processing.
- Advanced analytics, machine learning, or data discovery are key goals.
Often, organizations use a combination of both, ingesting raw data into a data lake and then processing and moving refined data into a data warehouse for analysis.

Data Lakehouse
- A hybrid data architecture that combines the best features of data lakes and data warehouses, aiming to provide the performance, reliability, and capabilities of a data warehouse while maintaining the flexibility, scale, and low-cost storage of data lakes.
- Characteristics:
  - Supports both structured and unstructured data.
  - Allows for schema-on-write and schema-on-read.
  - Provides capabilities for both detailed analytics and machine learning tasks.
  - Typically built on top of cloud or distributed architectures.
  - Benefits from technologies like Delta Lake, which bring ACID transactions to big data.
- e.g.:
  - AWS Lake Formation (with S3 and Redshift Spectrum)
  - Delta Lake: An open-source storage layer that brings ACID transactions to Apache Spark and big data workloads.
  - Databricks Lakehouse Platform: A unified platform that combines the capabilities of data lakes and data warehouses.
  - Azure Synapse Analytics: Microsoft’s analytics service that brings together big data and data warehousing.

Data Mesh

Data Mesh
- Coined in 2019; it’s more about governance and organization
- Individual teams own “data products” within a given domain
- These data products serve various “use cases” around the organization
- “Domain-based data management”
- Federated governance with central standards
- Self-service tooling & infrastructure - Data lakes, warehouses, etc. may be part of it
  - But a “data mesh” is more about the “data management paradigm” and not the specific technologies or architectures.

ETL Pipelines

ETL:
- ETL stands for Extract, Transform, Load.
- It’s a process used to move data from source systems into a data warehouse.
Extract:
- Retrieve raw data from source systems, which can be databases, CRMs, flat files, APIs, or other data repositories.
- Ensure data integrity during the extraction phase.
- Can be done in real-time or in batches, depending on requirements.
Transform
- Convert the extracted data into a format suitable for the target data warehouse.
- Can involve various operations such as:
  - Data cleansing (e.g., removing duplicates, fixing errors)
  - Data enrichment (e.g., adding additional data from other sources)
  - Format changes (e.g., date formatting, string manipulation)
  - Aggregations or computations (e.g., calculating totals or averages)
  - Encoding or decoding data
  - Handling missing values
Load:
- Move the transformed data into the target data warehouse or another data repository.
- Can be done in batches (all at once) or in a streaming manner (as data becomes available).
- Ensure that data maintains its integrity during the loading phase.

ETL Pipelines
- set of processes used for ETL
- This process must be automated in some reliable way
- AWS Glue
- Orchestration services
  - EventBridge
  - Amazon Managed Workflows for Apache Airflow [Amazon MWAA]
  - AWS Step Functions
  - Lambda
  - Glue Workflows

Data Sources

JDBC
- Java Database Connectivity
- Platform-independent, due to jvm
- Language-dependent: java
ODBC
- Open Database Connectivity
- Platform-dependent (thx to drivers)
- Language-independent
Raw logs
API’s
Streams

Common Data Formats

CSV
- Comma-Separated Values
- Text-based format that represents data in a tabular form where each line corresponds to a row and values within a row are separated by commas.
- When to Use:
  - For small to medium datasets.
  - For data interchange between systems with different technologies.
  - For human-readable and editable data storage.
  - Importing/Exporting data from databases or spreadsheets.
- Systems:
  - Databases (SQL-based),
  - Excel,
  - Pandas in Python,
  - R,
  - many ETL tools.

JSON
- JavaScript Object Notation
- Lightweight, text-based, and human-readable data interchange format that represents structured or semistructured data based on key-value pairs.
- When to Use:
  - Data interchange between a web server and a web client.
  - Configurations and settings for software applications.
  - Use cases that need a flexible schema or nested data structures.
- Systems:
  - Web browsers,
  - many programming languages (like JavaScript, Python, Java, etc.), RESTful APIs, NoSQL databases (like MongoDB).

Avro
- Binary format that stores both the data and its schema, allowing it to be processed later with different systems without needing the original system’s context.
- When to Use:
  - With big data and real-time processing systems.
  - When schema evolution (changes in data structure) is needed.
  - Efficient serialization for data transport between systems.
- Systems:
  - Apache Kafka,
  - Apache Spark,
  - Apache Flink,
  - Hadoop ecosystem

Parquet
- Columnar storage format optimized for analytics.
- Allows for efficient compression and encoding schemes.
- When to Use:
  - Analyzing large datasets with analytics engines.
  - Use cases where reading specific columns instead of entire records is beneficial.
  - Storing data on distributed systems where I/O operations and storage need optimization.
- Systems:
  - Hadoop ecosystem,
  - Apache Spark,
  - Apache Hive,
  - Apache Impala,
  - Amazon Redshift Spectrum.

Data Modeling

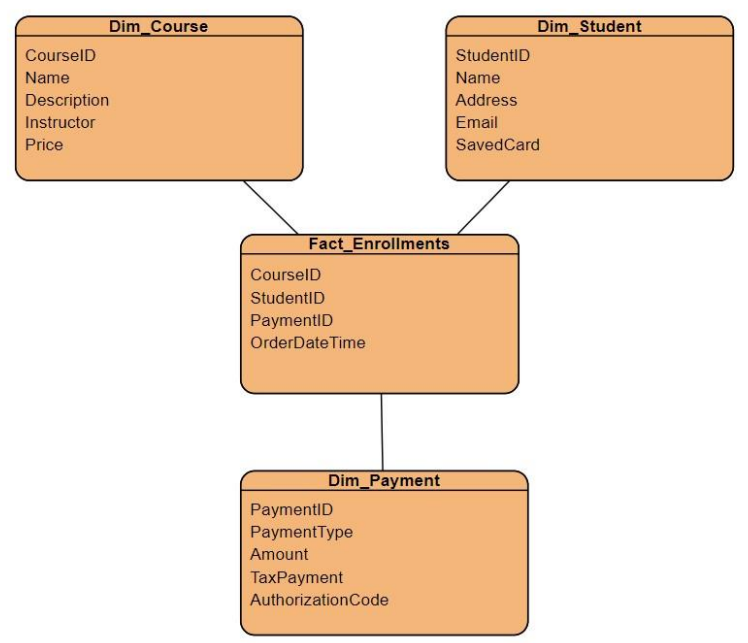

Star schema
- the schema in which data are organized into facts and dimensions.
- Fact tables
  - A fact is an event that is counted or measured, such as a sale or log in.
  - A table in a star schema which contains facts and connected to dimensions.
- Dimensions tables
  - A dimension includes reference data about the fact, such as date, item, or customer.
- Primary / foreign keys:
  - used to connect dimension tables and fact table to minimize the amount of data to be stored.
Entity Relationship Diagram (ERD):

Data Lineage

Data Lineage
- A visual representation that traces the flow and transformation of data through its lifecycle, from its source to its final destination.
Importance:
- Helps in tracking errors back to their source.
- Ensures compliance with regulations.
- Provides a clear understanding of how data is moved, transformed, and consumed within systems.

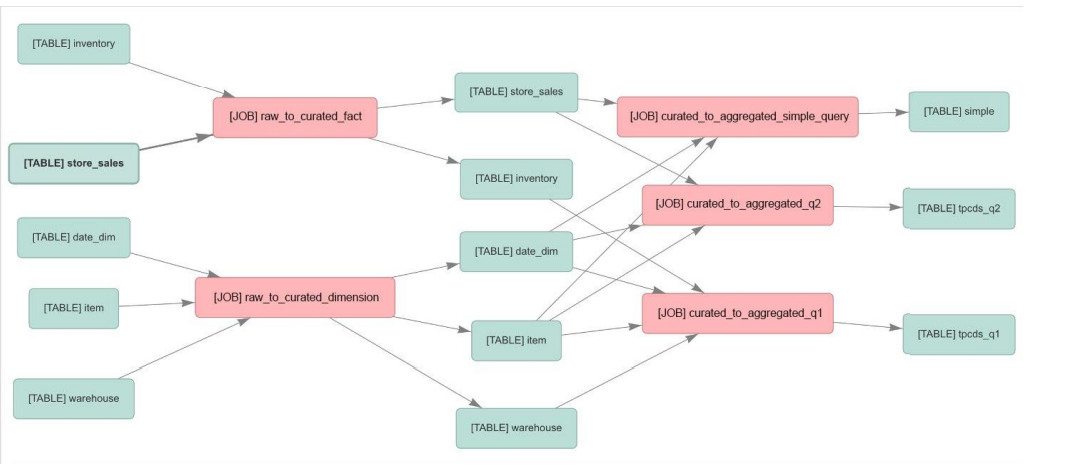

e.g.:

data_lineage

Schema Evolution

Schema Evolution
- The ability to adapt and change the schema of a dataset over time without disrupting existing processes or systems.
Importance:
- Ensures data systems can adapt to changing business requirements.
- Allows for the addition, removal, or modification of columns/fields in a dataset.
- Maintains backward compatibility with older data records.
Glue Schema Registry
- Schema discovery, compatibility, validation, registration…

Database Performance Optimization

Indexing
- Avoid full table scans!
- Enforce data uniqueness and integrity
Partitioning
- Reduce amount of data scanned
- Helps with data lifecycle management
- Enables parallel processing
Compression
- Speed up data transfer, reduce storage & disk reads
- GZIP, LZOP, BZIP2, ZSTD (Redshift examples)
- Various tradeoffs between compression & speed
- Columnar compression
