AWS Storage - Elastic Block Storage
- Elastic Block Storage
- EC2 Instance Store

`Elastic Block Storage`

EBS Volume

An EBS (Elastic Block Store) Volume is a network drive you can attach to your instances while they run
It allows your instances to persist data, even after their termination
They can only be mounted to one instance at a time (at the CCP level)
Multi-attach feature for some EBS (at the SAA level) 多个 EBS 连接到同一个 instance
Analogy:
- Think of them as a “network USB stick”
Free tier:
- 30 GB of free EBS storage of type General Purpose (SSD) or Magnetic per month
It’s a network drive (i.e. not a physical drive)
- It uses the network to communicate the instance, which means there might be a bit of latency
- It can be detached from an EC2 instance and attached to another one quickly
It’s locked to an Availability Zone (AZ)
- An EBS Volume in us-east-1a cannot be attached to us-east-1b
- To move a volume across, you first need to snapshot it
Have a provisioned capacity (size in GBs, and IOPS)
- You get billed for all the provisioned capacity
- You can increase the capacity of the drive over time

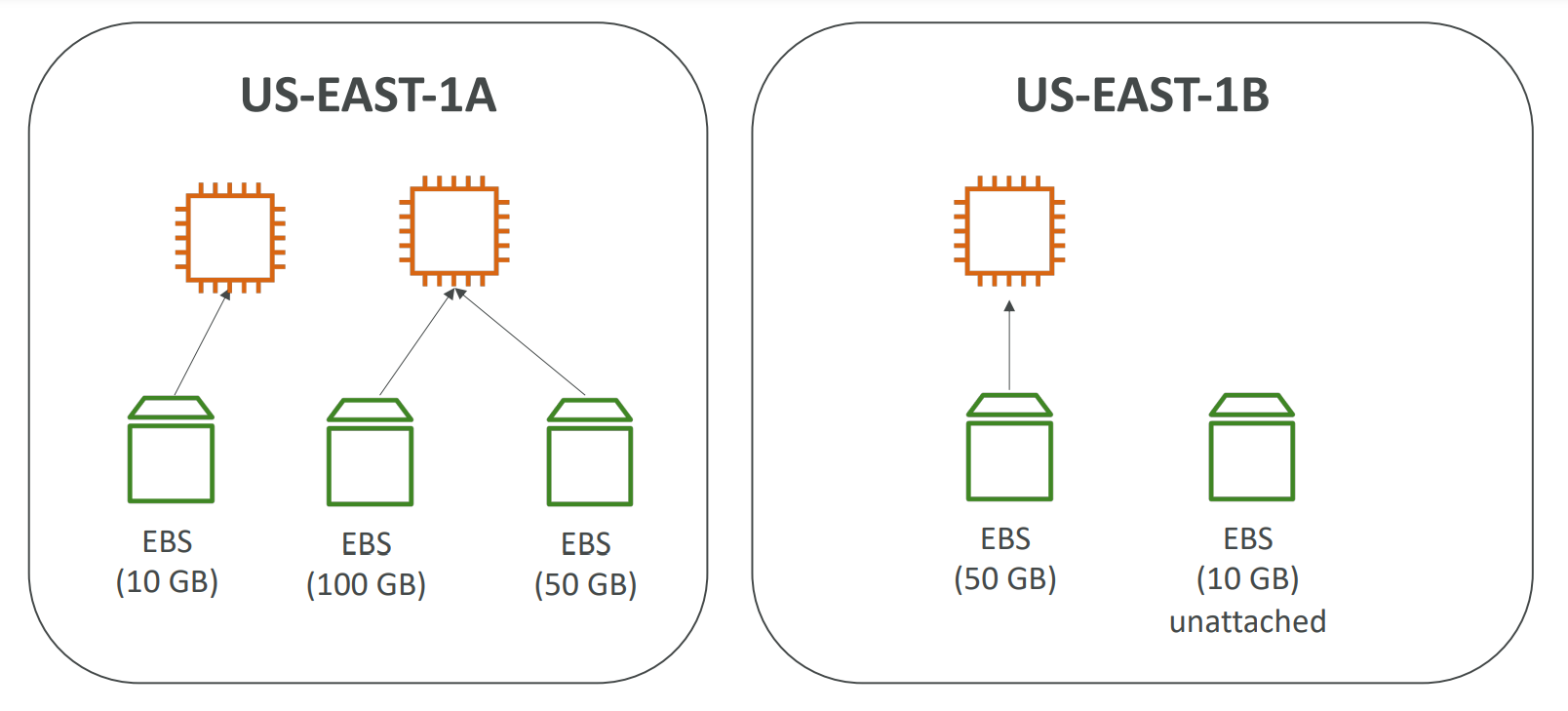

ebs

Delete on Termination attribute
- Controls the EBS behaviour when an EC2 instance terminates
  - By default, the root EBS volume is deleted (attribute enabled)
  - By default, any other attached EBS volume is not deleted (attribute disabled)
- This can be controlled by the AWS console / AWS CLI
- Use case:
  - preserve root volume when instance is terminated

Hands-on: EBS Volume

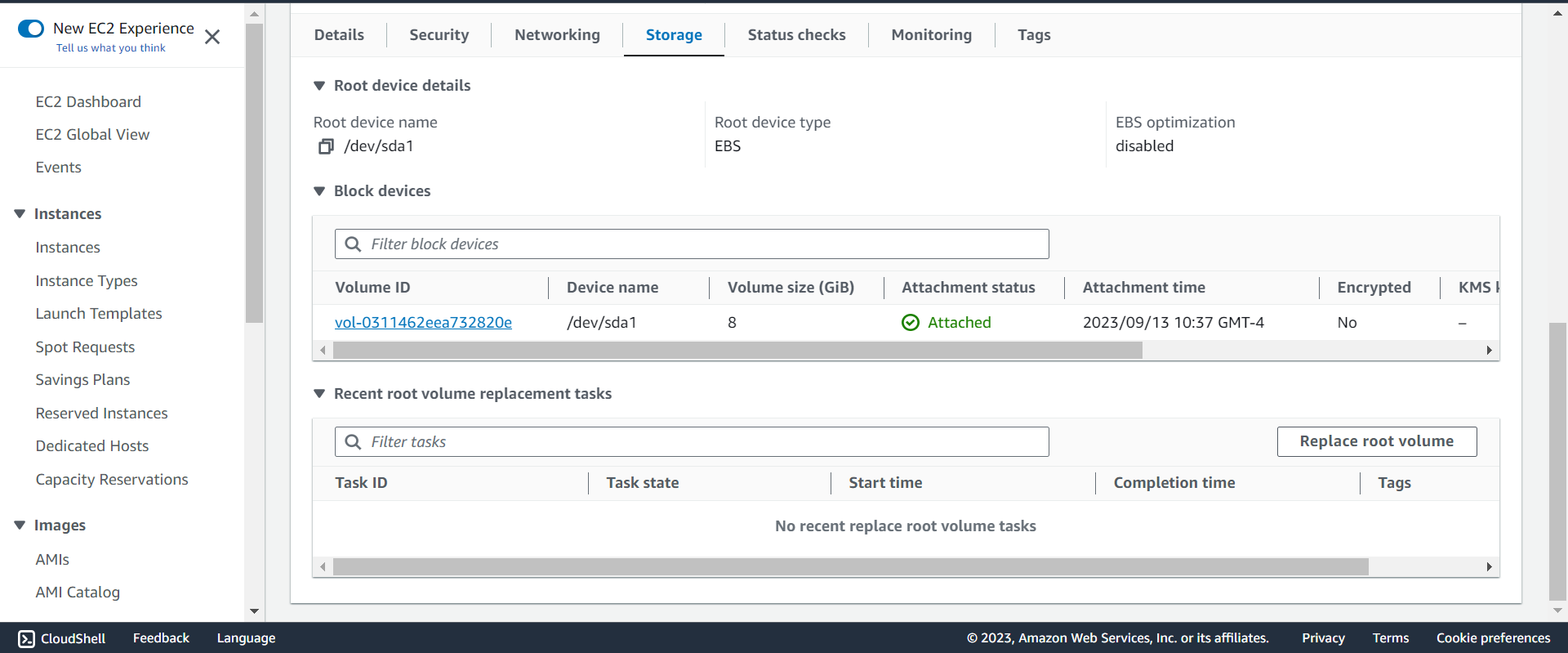

EBS on EC2

ebs_ec2

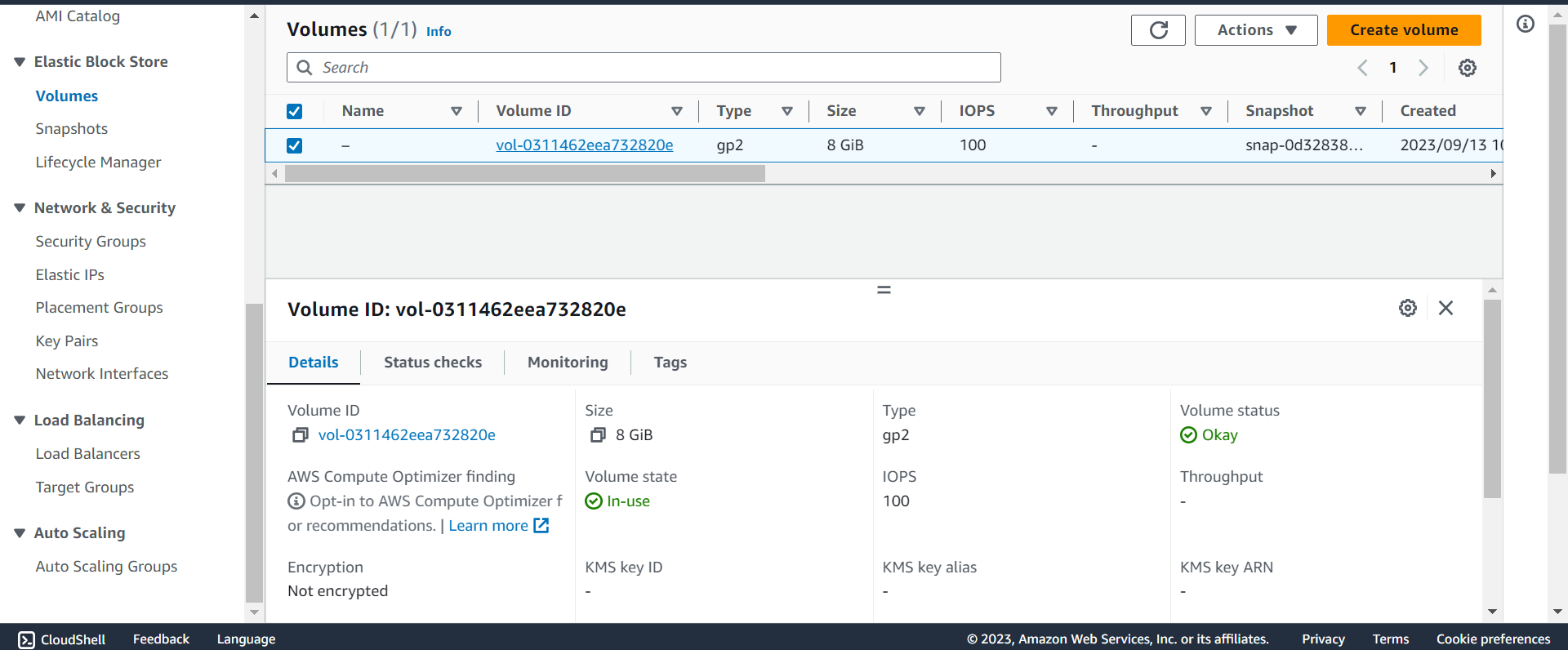

List of EBS

list_ebs

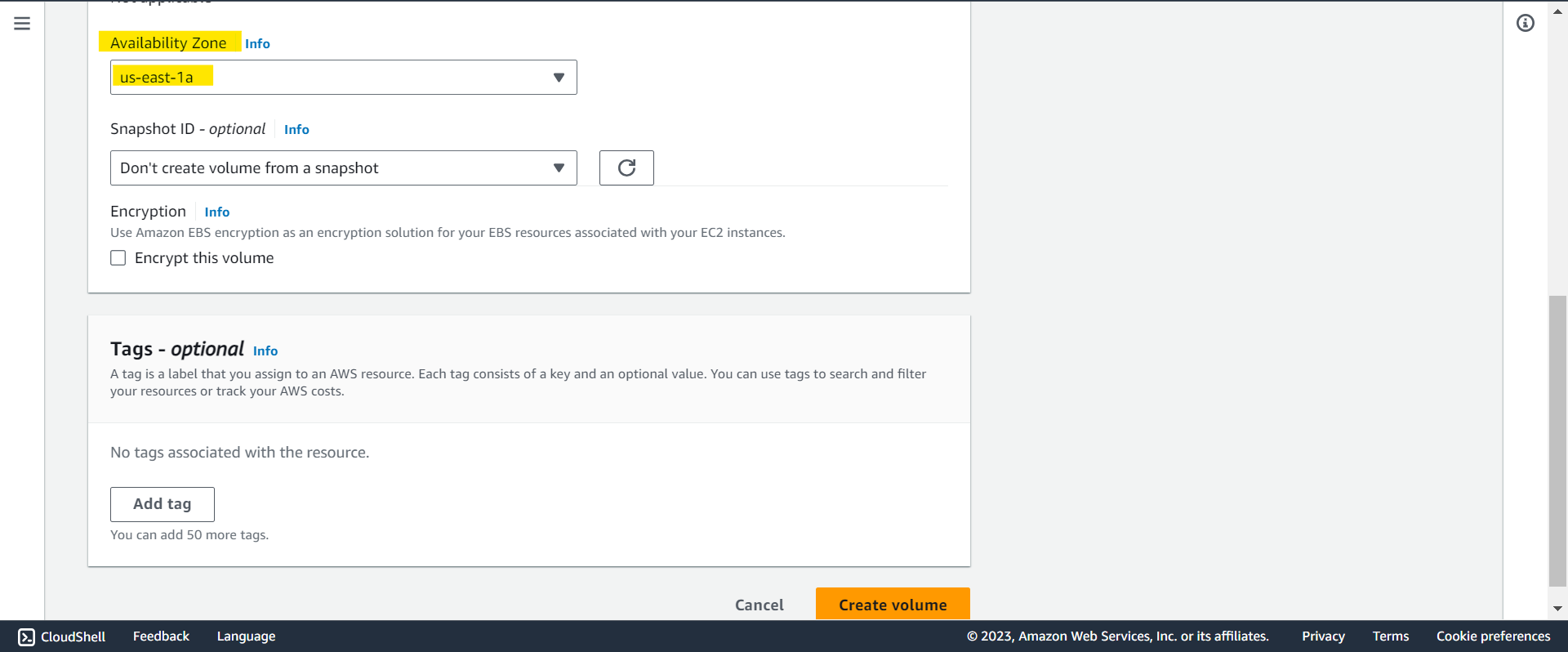

Create EBS

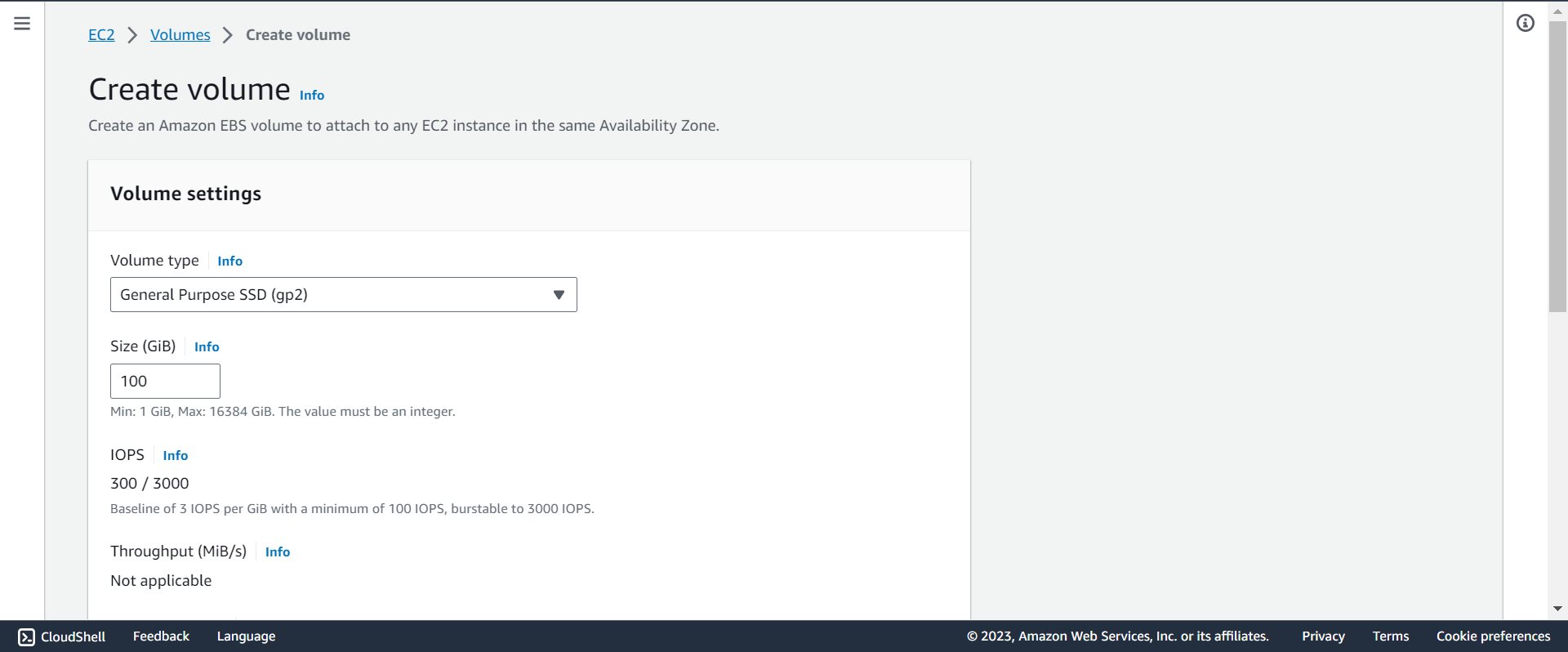

ebs_create

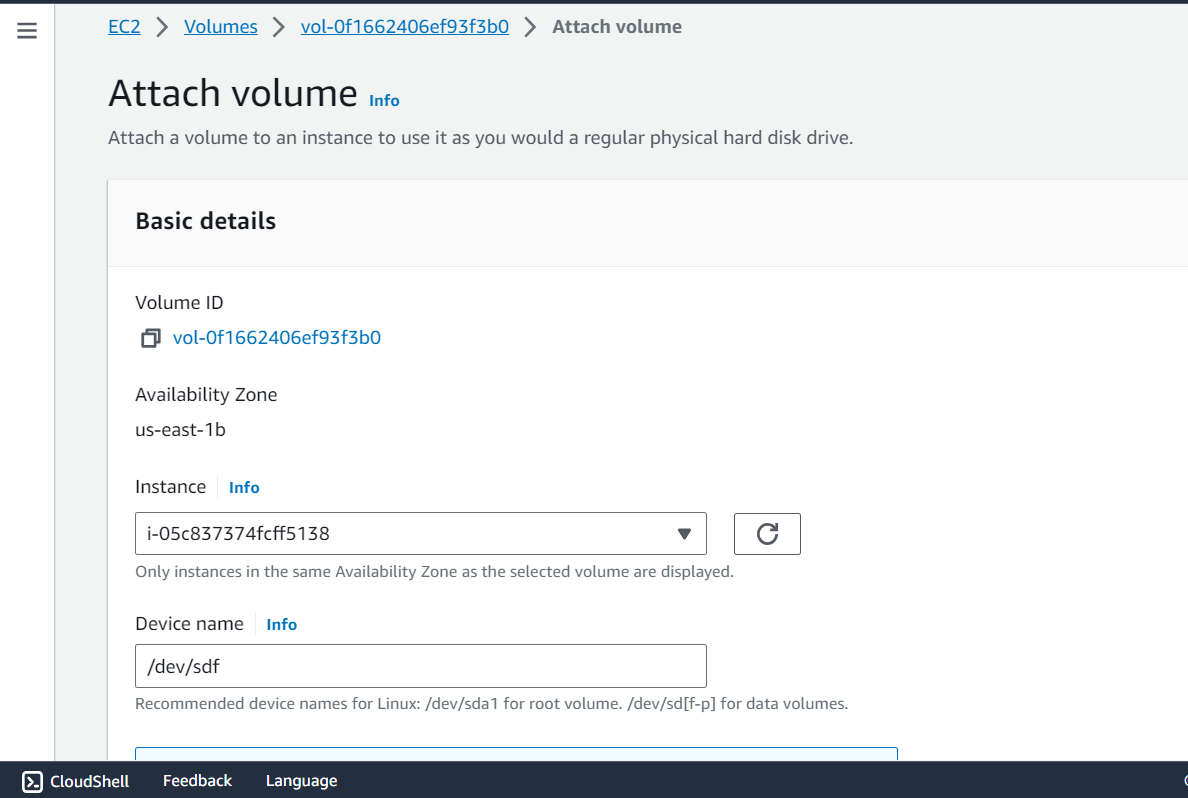

Attach EBS

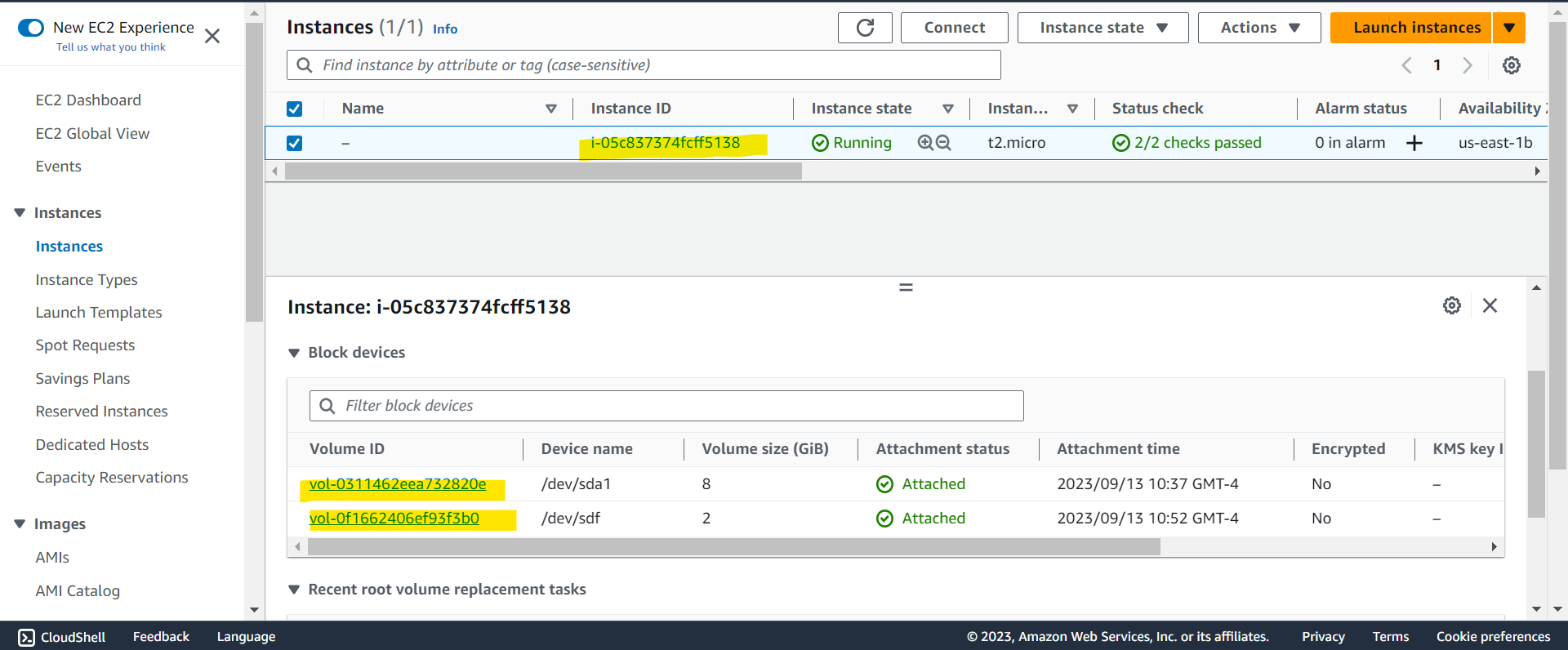

ebs_attach

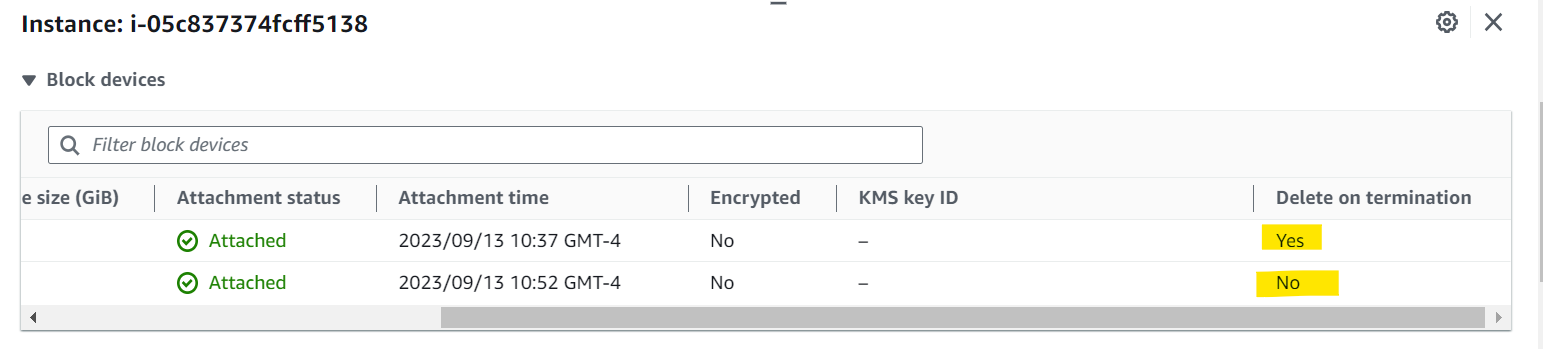

Default Delete on termination attribute

ebs_attach

EBS Snapshots

Make a backup (snapshot) of your EBS volume at a point in time
Not necessary to detach volume to do snapshot, but recommended
Can copy snapshots across AZ or Region

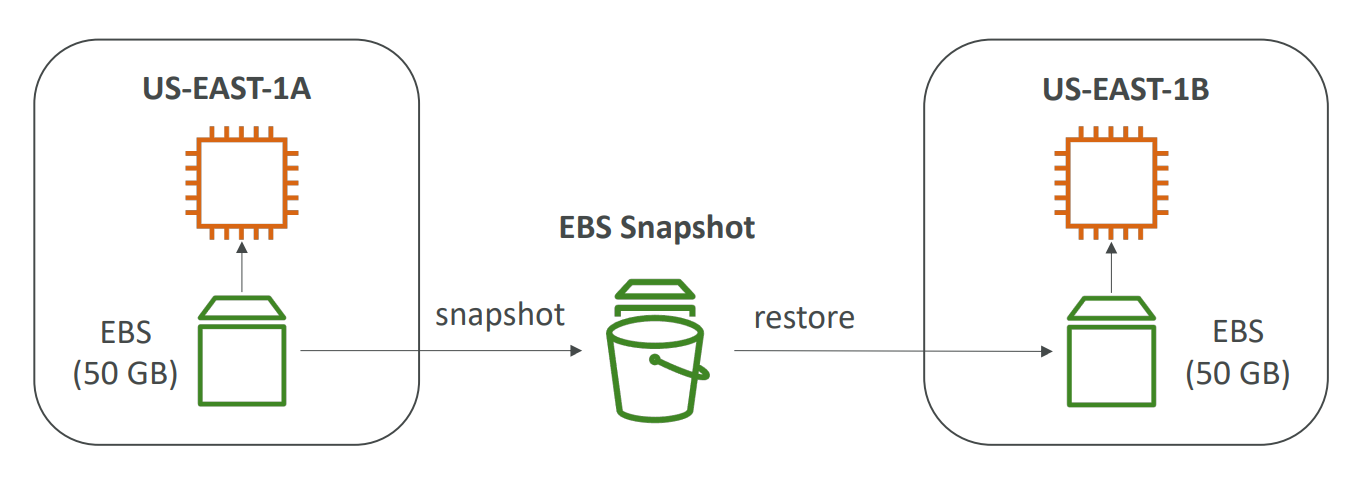

ebs_snapshot_diagram

EBS Snapshot Archive
- Move a Snapshot to an ”archive tier” that is 75% cheaper
- Takes within 24 to 72 hours for restoring the archive

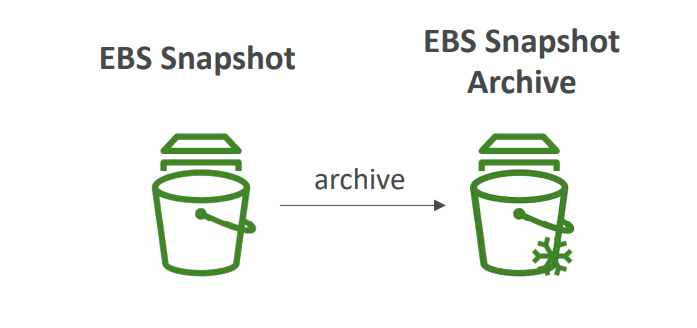

ebs_snapshot_archive_diagram

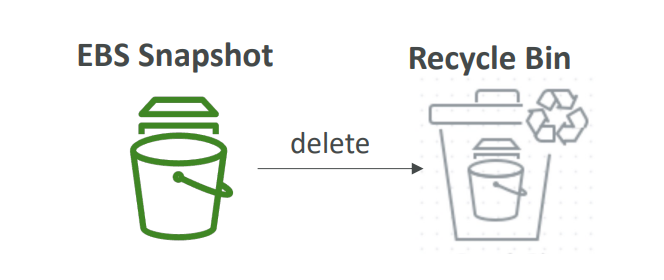

Recycle Bin for EBS Snapshots
- Setup rules to retain deleted snapshots so you can recover them after an accidental deletion
- Specify retention (from 1 day to 1 year)

ebs_snapshot_recycle_bin_diagram

Fast Snapshot Restore (FSR)
- Force full initialization of snapshot to have no latency on the first use ($$$)

Hands-on: EBS Snapshots

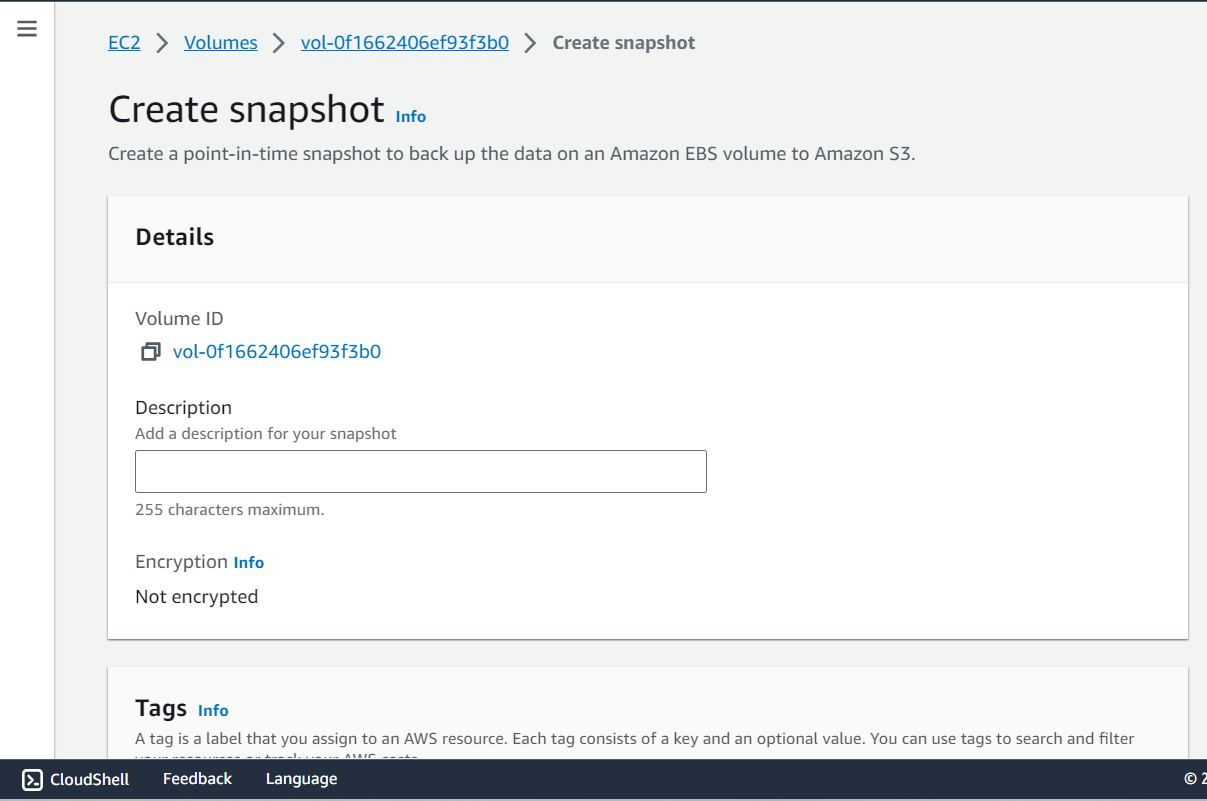

Create snapshot

ebs_snapshot_create

List snapshot

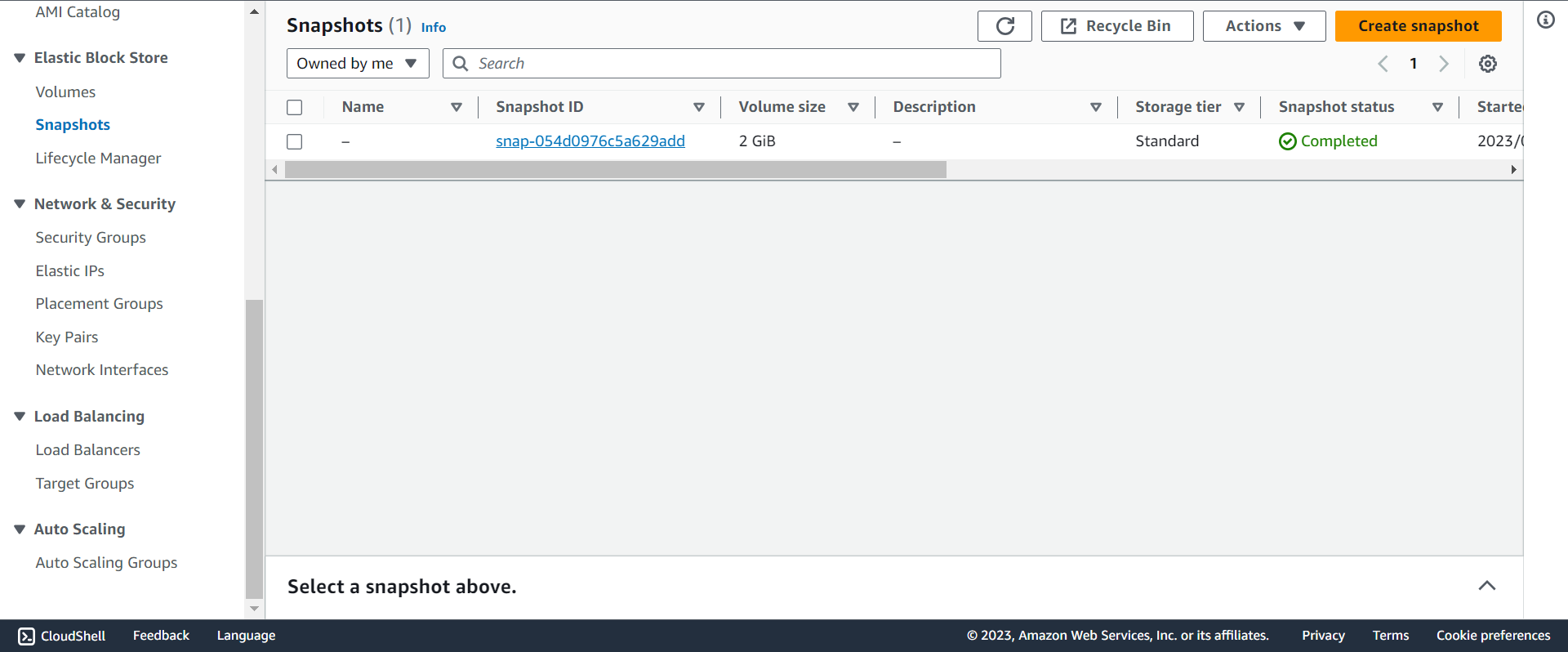

ebs_snapshot_list

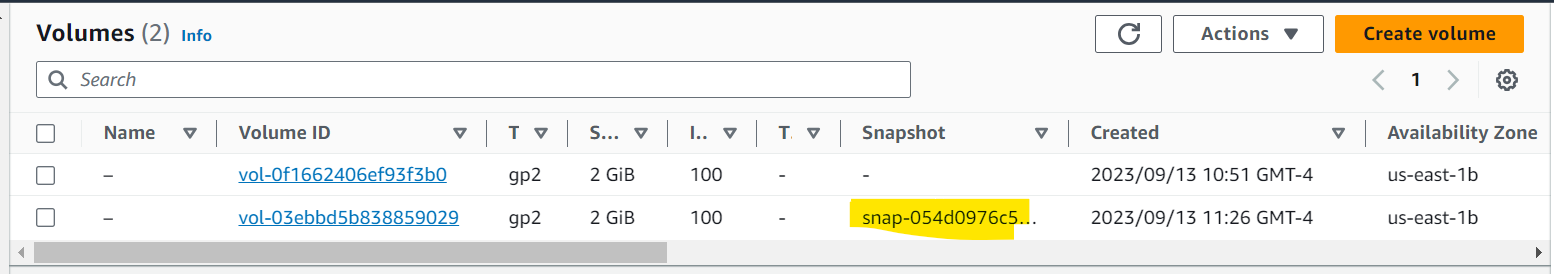

Create volume from snapshot

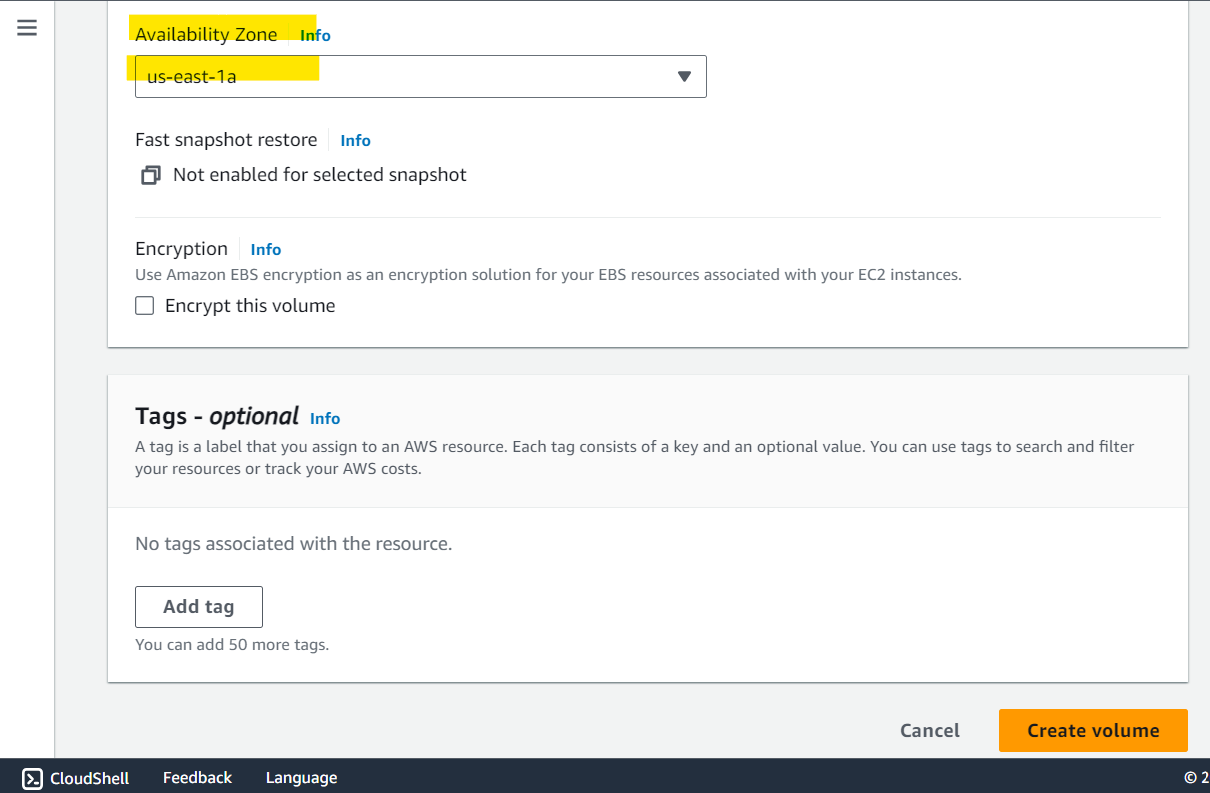

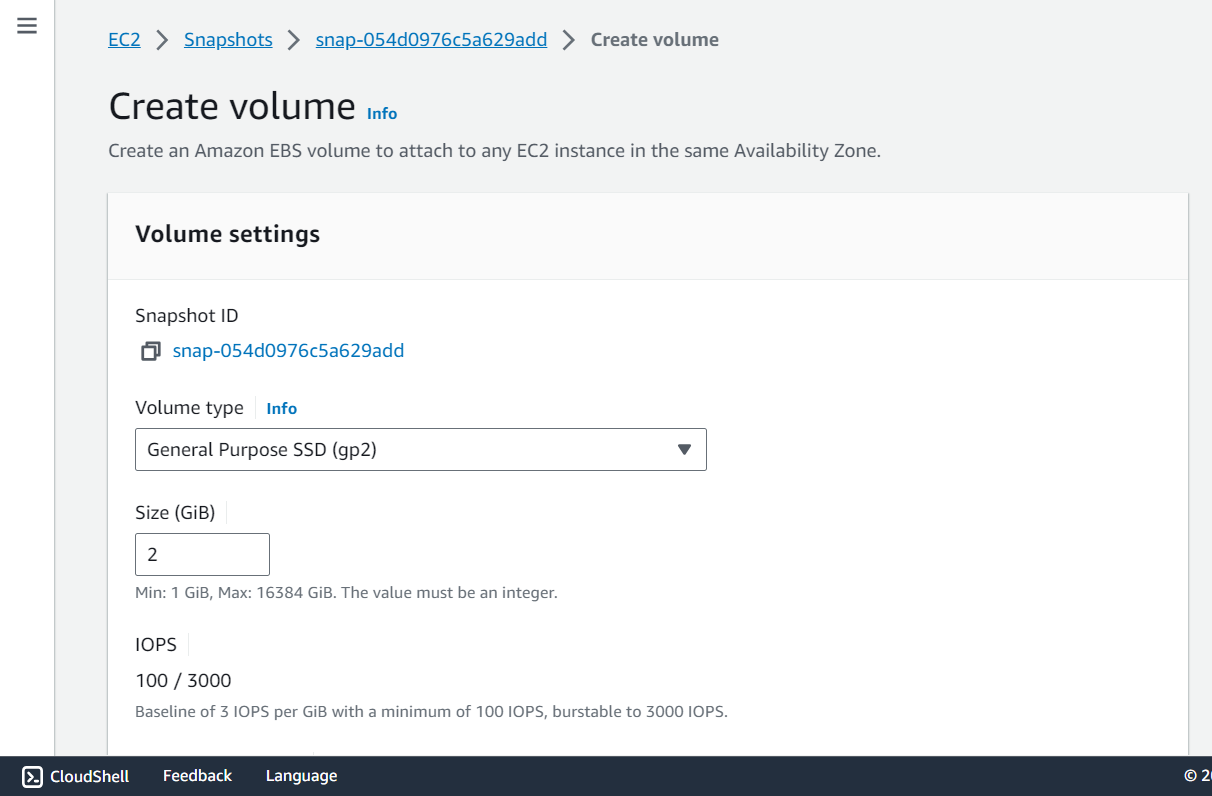

ebs_snapshot_create_volume

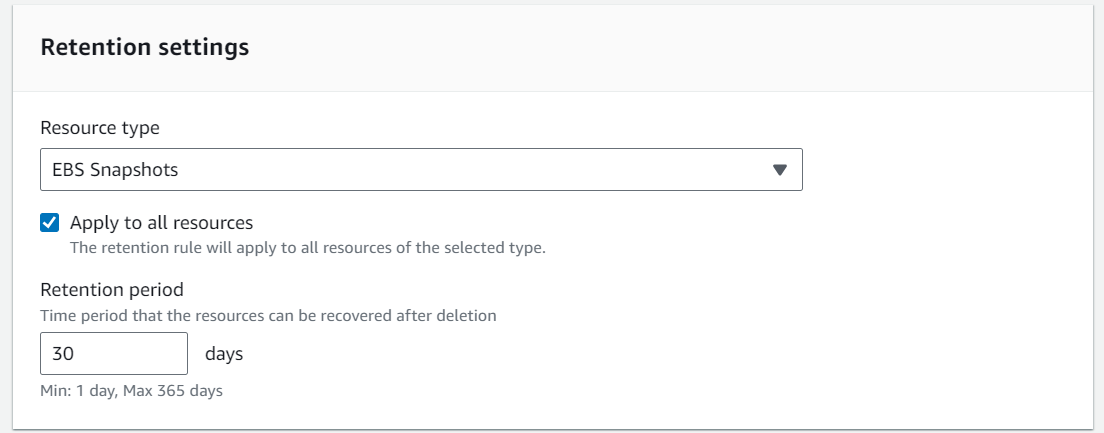

Recycle Bin: Create rules

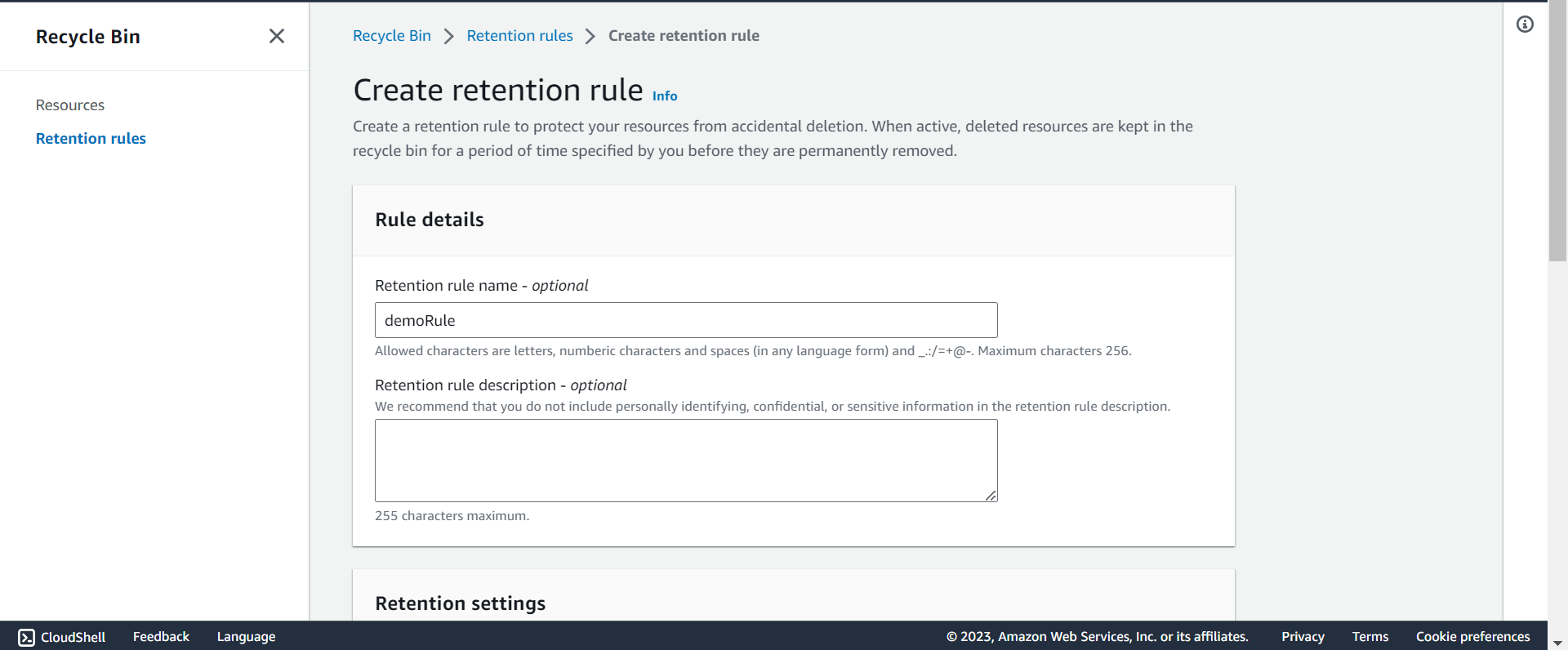

recycle_bin_snapshot

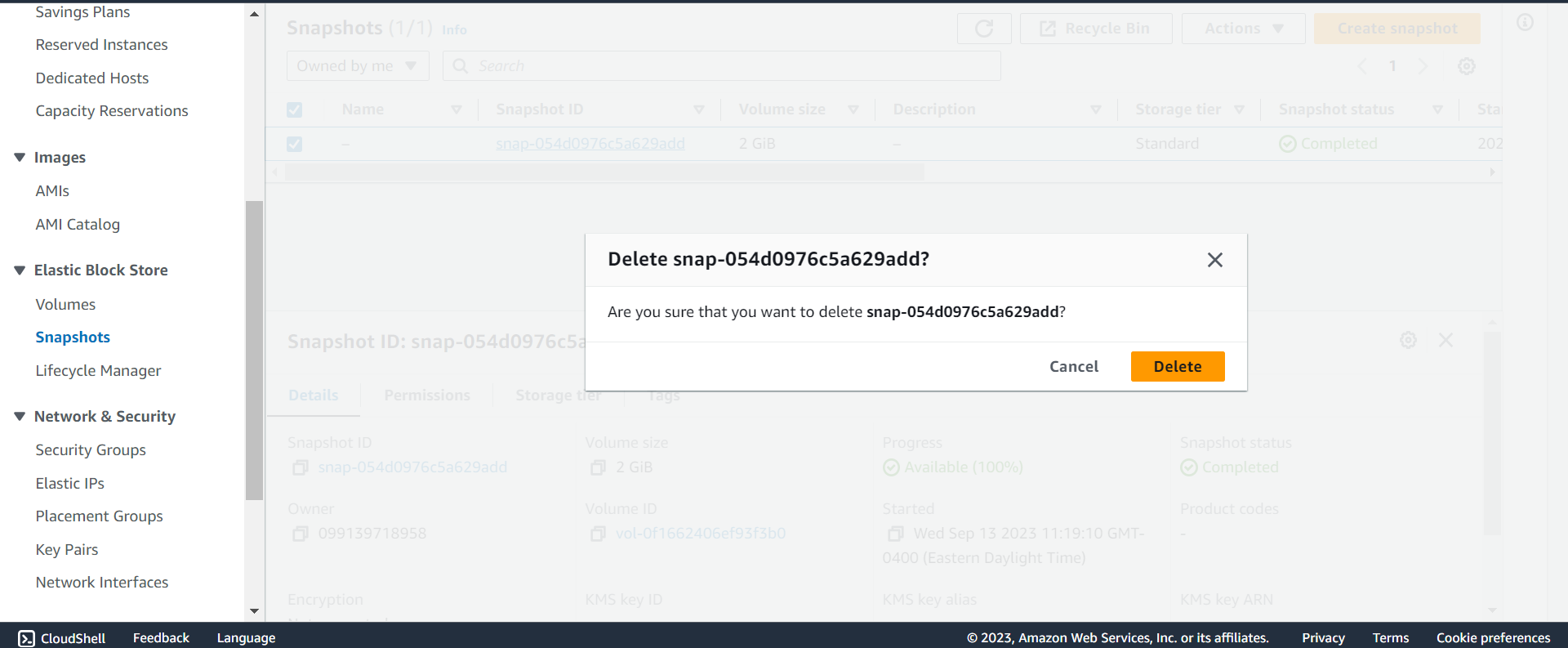

Recycle Bin: Delete Snapshot

recycle_bin_delete_snapshot

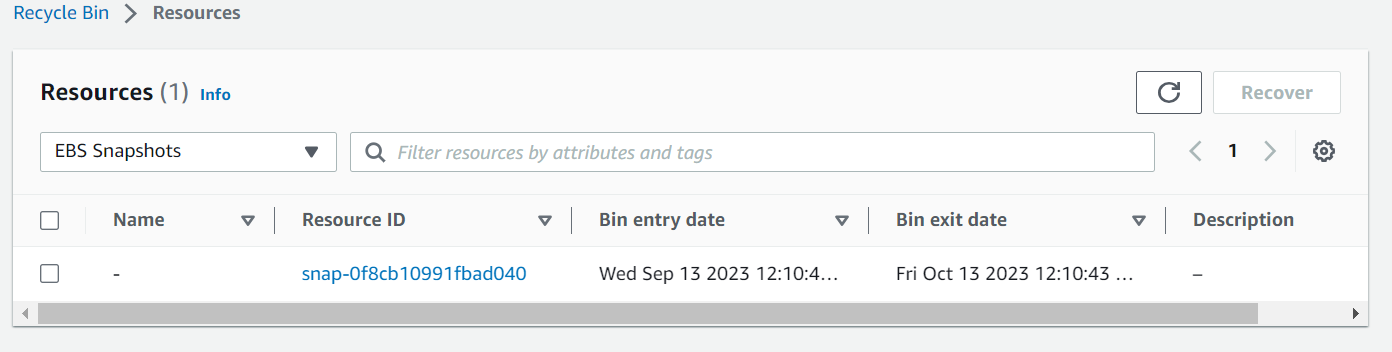

recycle_bin_snapshot_list

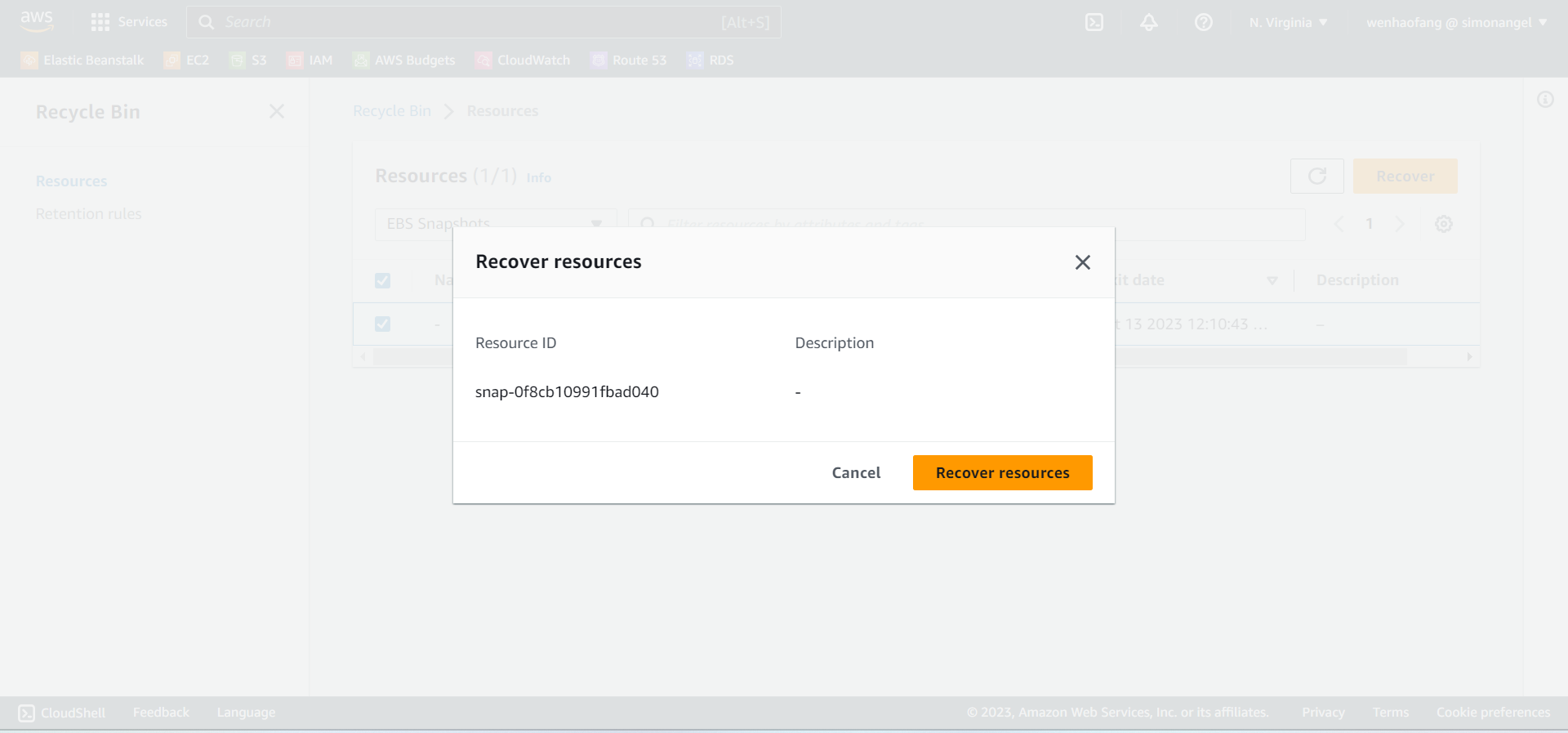

recycle_bin_snapshot_recover

EBS Volume Types

EBS Volumes come in 6 types
- gp2 / gp3 (SSD): General purpose SSD volume that balances price and performance for a wide variety of workloads
- io1 / io2 (SSD): Highest-performance SSD volume for mission-critical low-latency or high-throughput workloads
- st1 (HDD): Low cost HDD volume designed for frequently accessed, throughput-intensive workloads
- sc1 (HDD): Lowest cost HDD volume designed for less frequently accessed workloads
EBS Volumes are characterized in Size Throughput IOPS (I/O Ops Per Sec)
When in doubt always consult the AWS documentation – it’s good!
Only gp2/gp3 and io1/io2 can be used as boot volumes

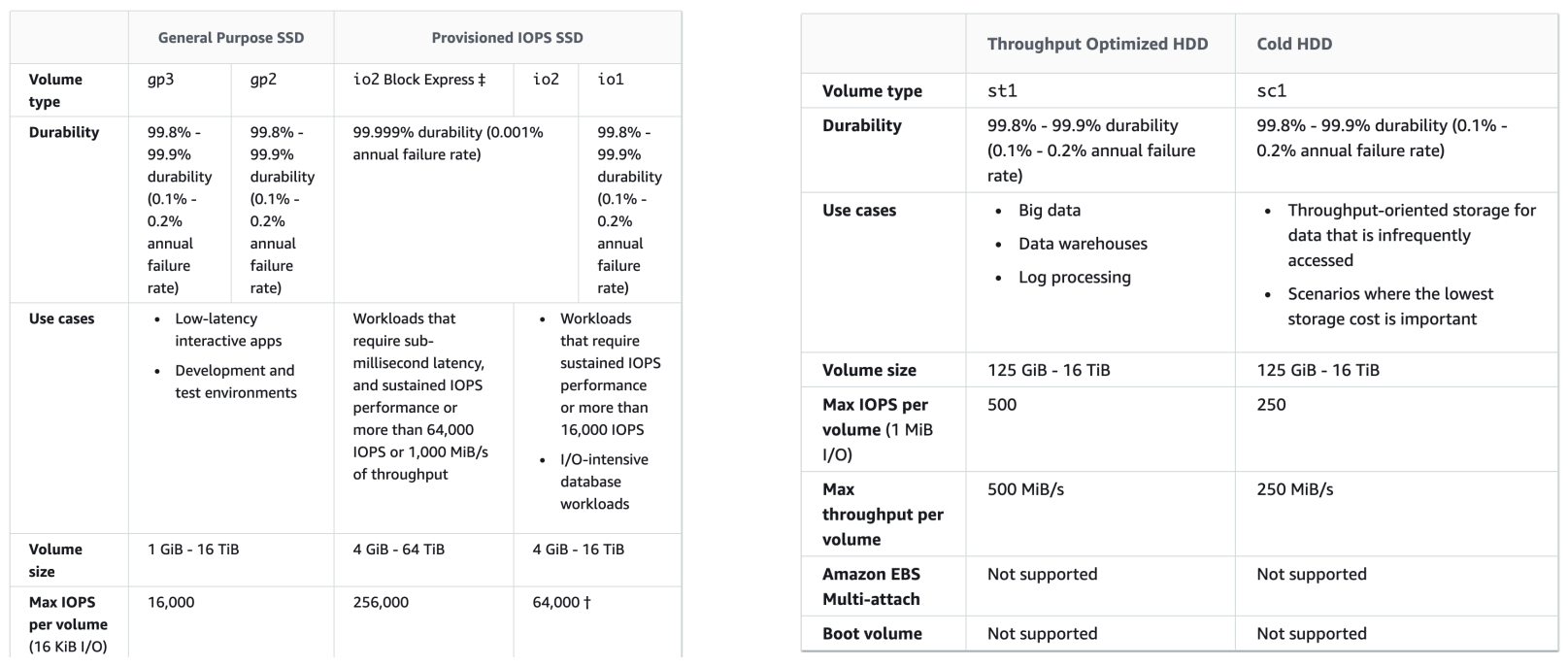

ebs_volume_type

EBS Volume Types Use cases

General Purpose SSD

Cost effective storage, low-latency
System boot volumes, Virtual desktops, Development and test environments
1 GiB - 16 TiB
gp3:
- Baseline of 3,000 IOPS and throughput of 125 MiB/s
- Can increase IOPS up to 16,000 and throughput up to 1000 MiB/s independently (可以独立设置 IOPS)
gp2:
- Small gp2 volumes can burst IOPS to 3,000
- Size of the volume and IOPS are linked, max IOPS is 16,000
- 3 IOPS per GB, means at 5,334 GB we are at the max IOPS

Provisioned IOPS (PIOPS) SSD

Critical business applications with sustained IOPS performance
Or applications that need more than 16,000 IOPS
Great for databases workloads (sensitive to storage perf and consistency)
io1/io2 (4 GiB - 16 TiB): 快
- Max PIOPS: 64,000 for Nitro EC2 instances & 32,000 for other
- Can increase PIOPS independently from storage size
- io2 have more durability and more IOPS per GiB (at the same price as io1)
io2 Block Express (4 GiB – 64 TiB): 量大
- Sub-millisecond latency
- Max PIOPS: 256,000 with an IOPS:GiB ratio of 1,000:1
- Supports EBS Multi-attach

Hard Disk Drives (HDD)

Cannot be a boot volume
125 GiB to 16 TiB
Throughput Optimized HDD (st1)
Big Data, Data Warehouses, Log Processing
Max throughput 500 MiB/s – max IOPS 500
Cold HDD (sc1):
For data that is infrequently accessed(archived)
Scenarios where lowest cost is important
Max throughput 250 MiB/s – max IOPS 250

Multi-Attach – io1/io2 family

Attach the same EBS volume to multiple EC2 instances in the same AZ
Each instance has full read & write permissions to the high-performance volume
Use case:
- Achieve higher application availability in clustered Linux applications (ex: Teradata)
- Applications must manage concurrent write operations
Up to 16 EC2 Instances at a time
Must use a file system that’s cluster-aware (not XFS, EXT4, etc…)

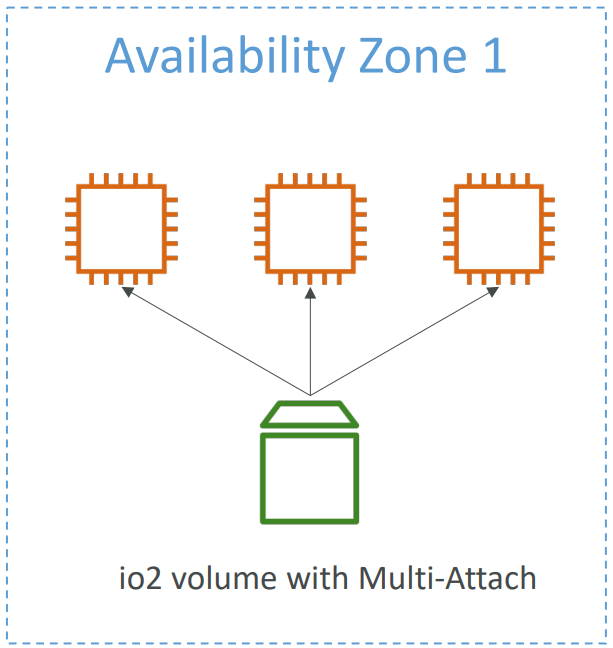

Multi-Attach

EBS Encryption

When you create an encrypted EBS volume, you get the following:
- Data at rest is encrypted inside the volume
- All the data in flight moving between the instance and the volume is encrypted
- All snapshots are encrypted
- All volumes created from the snapshot
Encryption and decryption are handled transparently (you have nothing to do)
Encryption has a minimal impact on latency
EBS Encryption leverages keys from KMS (AES-256)
Copying an unencrypted snapshot allows encryption
Snapshots of encrypted volumes are encrypted
encrypt an unencrypted EBS volume
- Create an EBS snapshot of the volume
- Encrypt the EBS snapshot ( using copy )
- Create new ebs volume from the snapshot ( the volume will also be encrypted )
- Now you can attach the encrypted volume to the original instance

Hands-on: Encryption

Create volume from snapshot

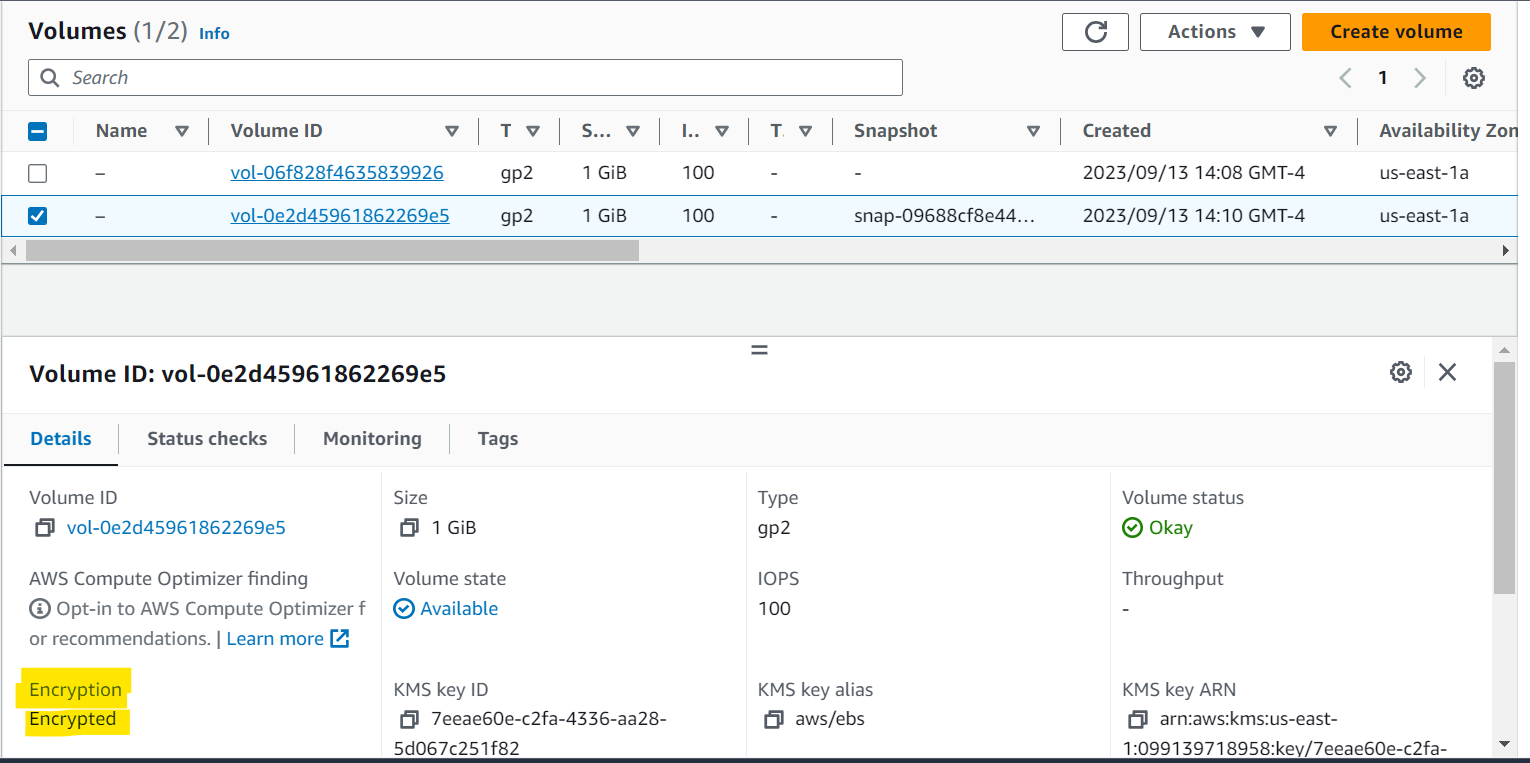

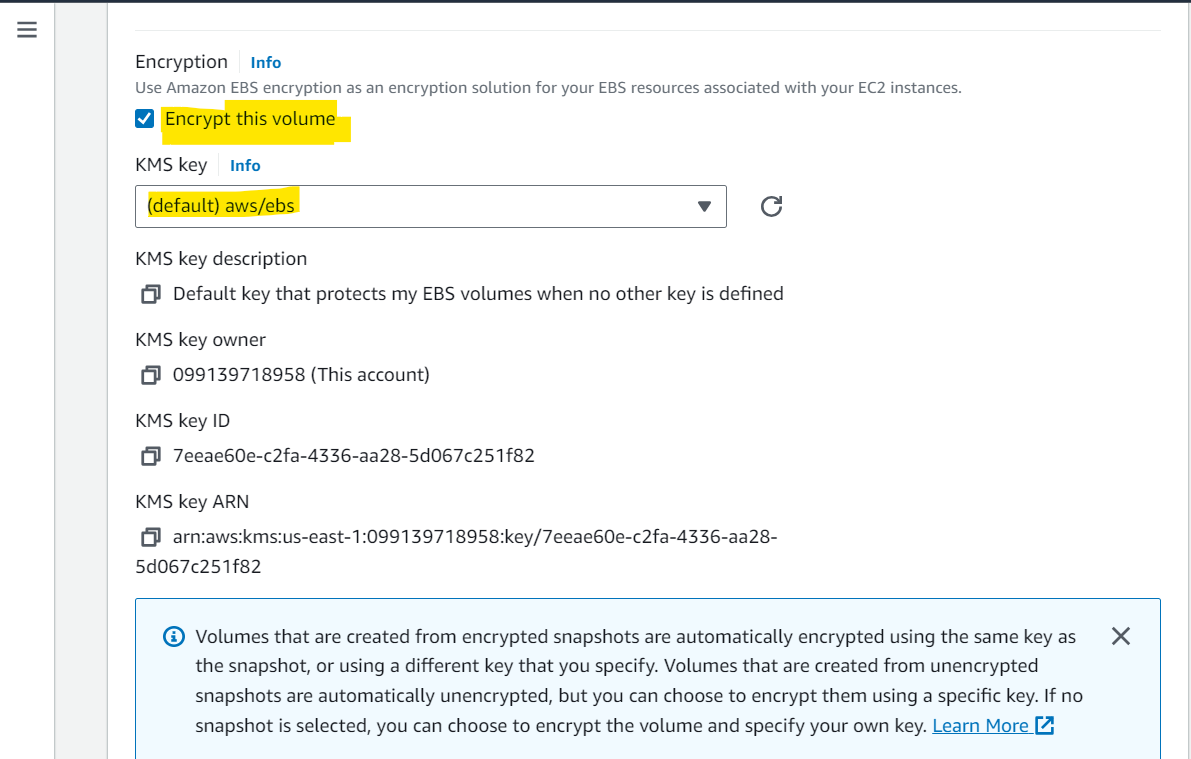

encryption

EC2 `Instance Store`

EBS volumes are network drives with good but “limited” performance
If you need a high-performance hardware disk, use EC2 Instance Store
Feature
- Better I/O performance
- EC2 Instance Store lose their storage if they’re stopped (ephemeral)
Use Case
- Good for buffer / cache / scratch data / temporary content
- Risk of data loss if hardware fails
- Backups and Replication are your responsibility

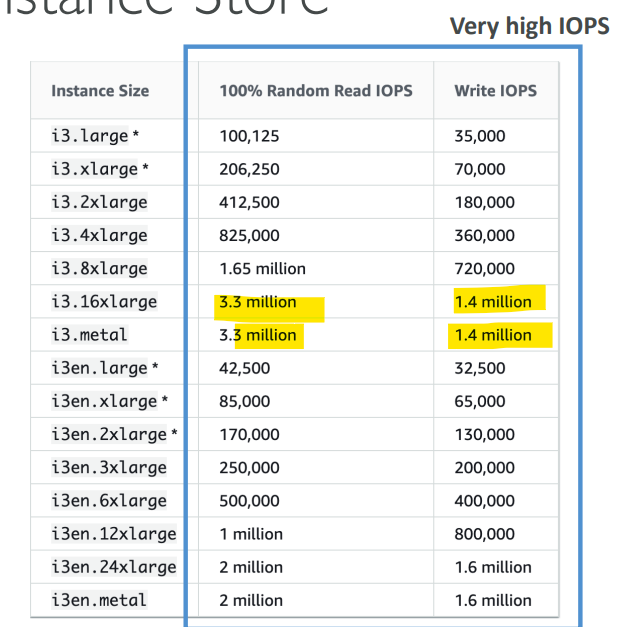

Instance Size: i3, high write IOPS

ec2_instance_store
