AWS Compute - Auto Scaling Group

Back

• AWS Compute - Auto Scaling Group
  • Auto Scaling Group
    • ASG Launch Template
    • CloudWatch Alarms \& Scaling
    • Hands-On: ASG
    • Scalling
      • Dynamic Scaling Policies
      • Scheduled Actions
      • Predictive Scaling
    • Scaling Cooldowns
    • Hands-on: ASG Scalling

---

Auto Scaling Group

• In real-life, the load on your websites and application can change

• In the cloud, you can create and get rid of servers very quickly

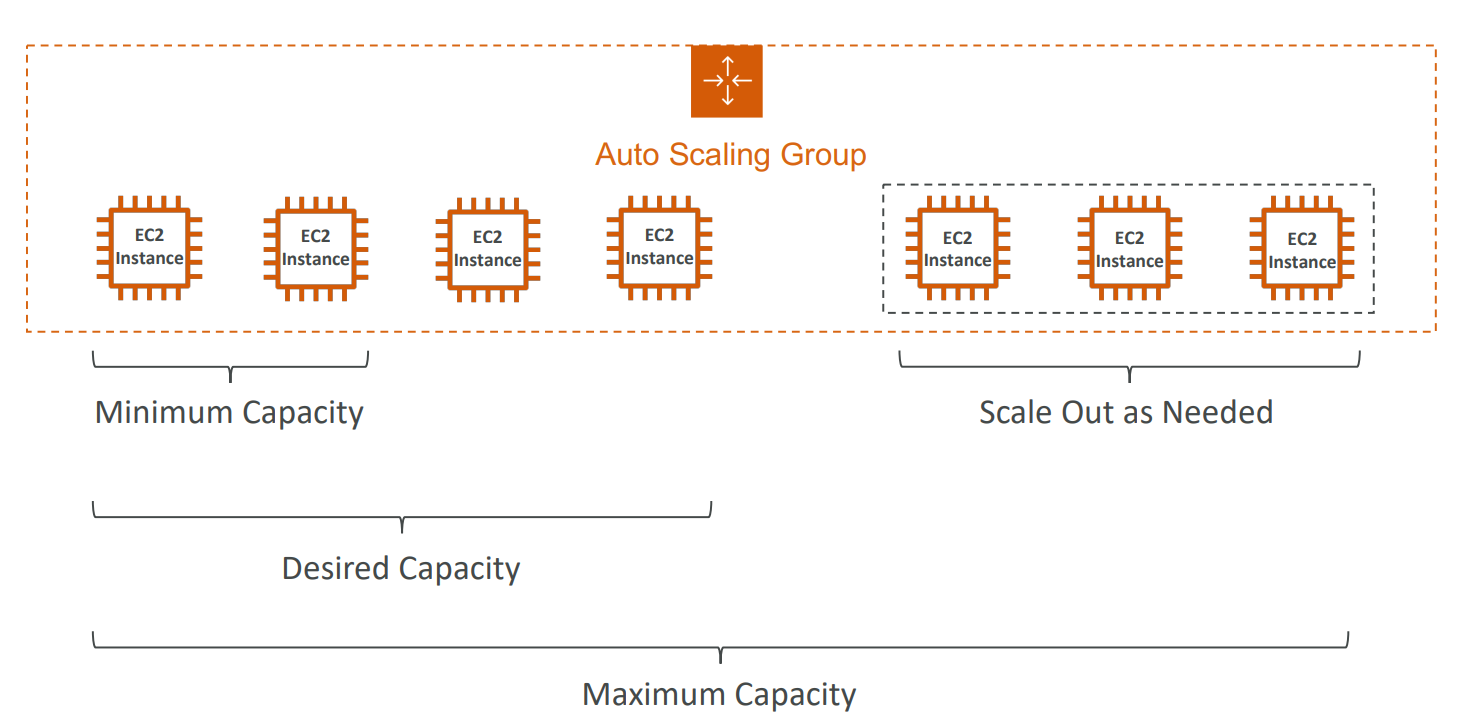

• The goal of an Auto Scaling Group (ASG) is to:

  • Scale out (add EC2 instances) to match an increased load
  • Scale in (remove EC2 instances) to match a decreased load
  • Ensure we have a minimum and a maximum number of EC2 instances running
  • Automatically register new instances to a load balancer
  • Re-create an EC2 instance in case a previous one is terminated (ex: if unhealthy)

• The Auto Scaling Group can’t go over the maximum capacity (you configured) during scale-out events.

• ASG are free (you only pay for the underlying EC2 instances)

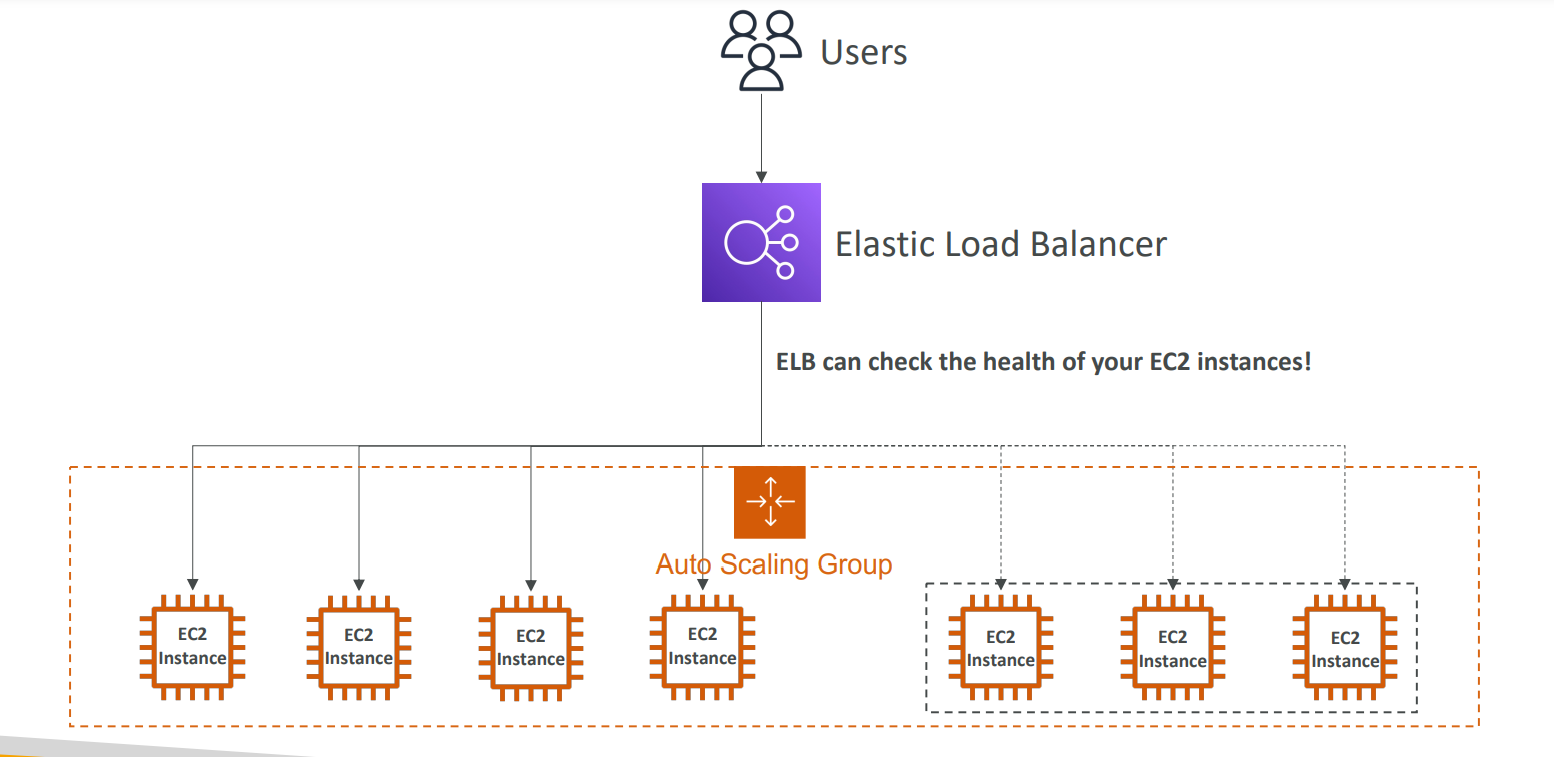

• Work with load balancer
  • You can configure the Auto Scaling Group to determine the EC2 instances’ health based on Application Load Balancer Health Checks instead of EC2 Status Checks (default).
  • When an EC2 instance fails the ALB Health Checks, it is marked unhealthy and will be terminated while the ASG launches a new EC2 instance.

---

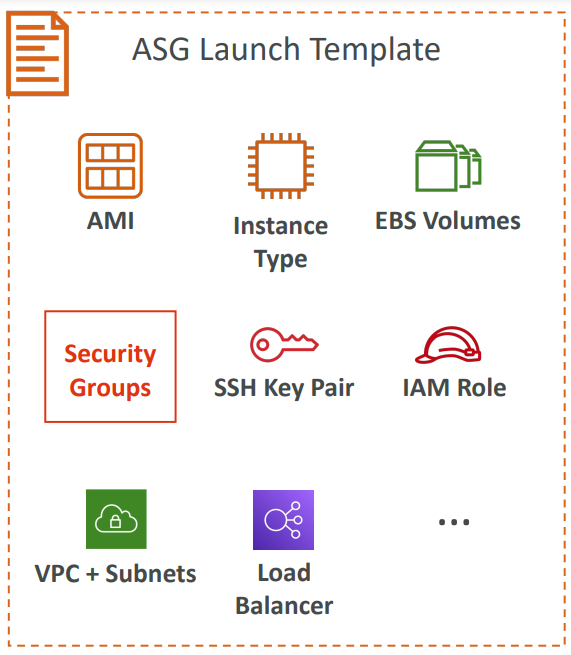

ASG Launch Template

• A Launch Template (older “Launch Configurations” are deprecated)

  • AMI + Instance Type
  • EC2 User Data
  • EBS Volumes
  • Security Groups
  • SSH Key Pair
  • IAM Roles for your EC2 Instances
  • Network + Subnets Information
  • Load Balancer Information
• Min Size / Max Size / Initial Capacity
• Scaling Policies

---

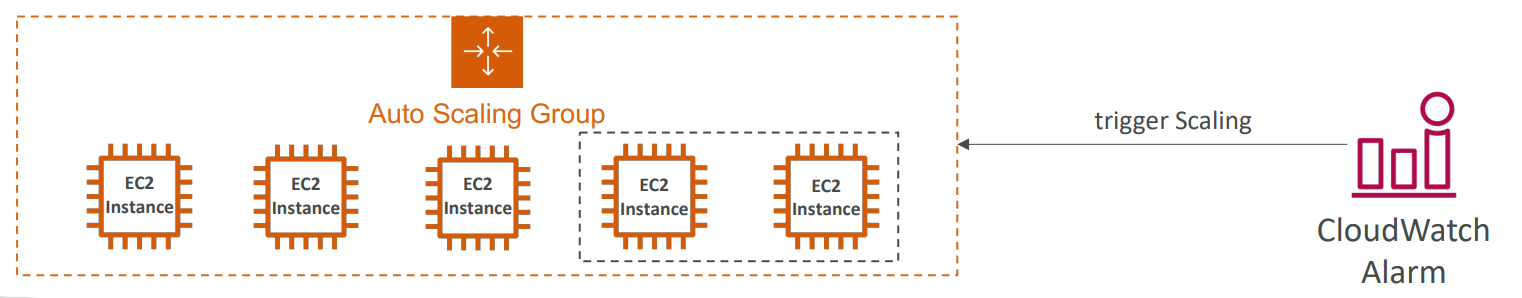

CloudWatch Alarms & Scaling

• It is possible to scale an ASG based on CloudWatch alarms
  • There’s no CloudWatch Metric for “requests per minute” for backend-to-database connections. You need to create a CloudWatch Custom Metric, then create a CloudWatch Alarm.
• An alarm monitors a metric (such as Average CPU, or a custom metric)

• Metrics such as Average CPU are computed for the overall ASG instances

• Based on the alarm:
  • We can create scale-out policies (increase the number of instances)
  • We can create scale-in policies (decrease the number of instances)

---

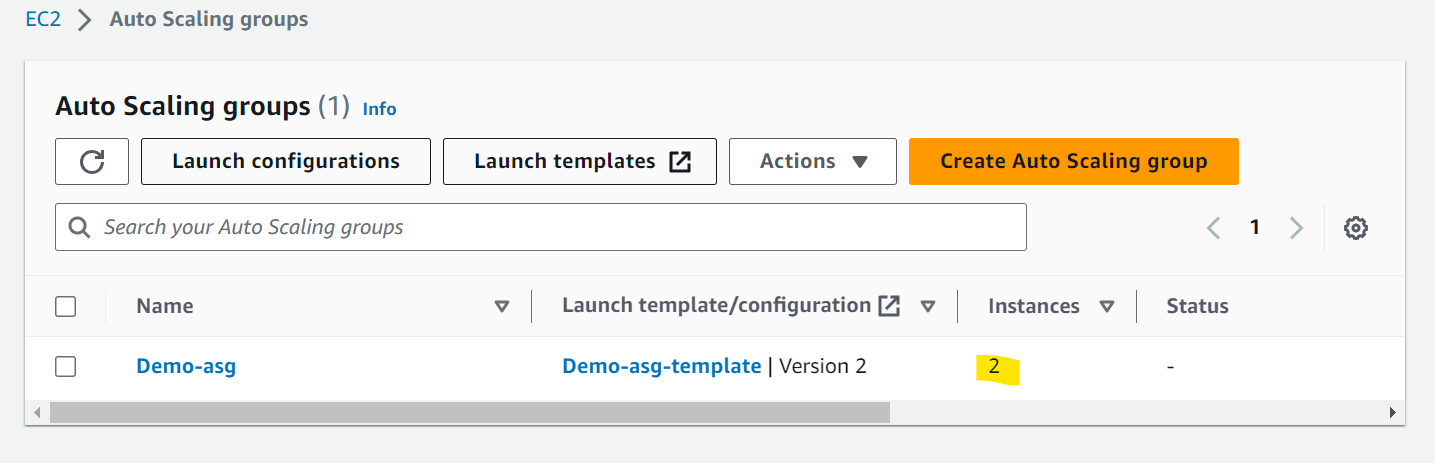

Hands-On: ASG

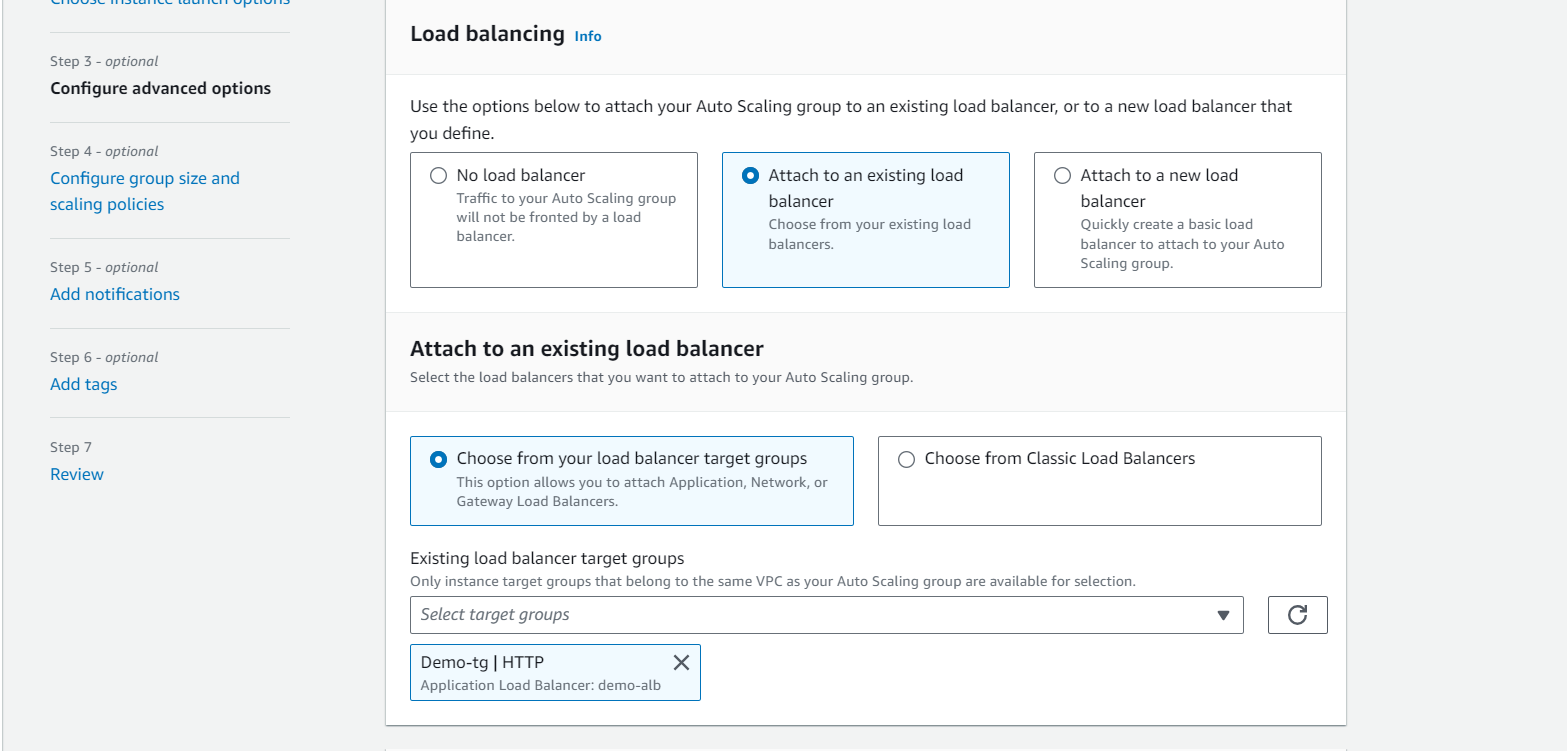

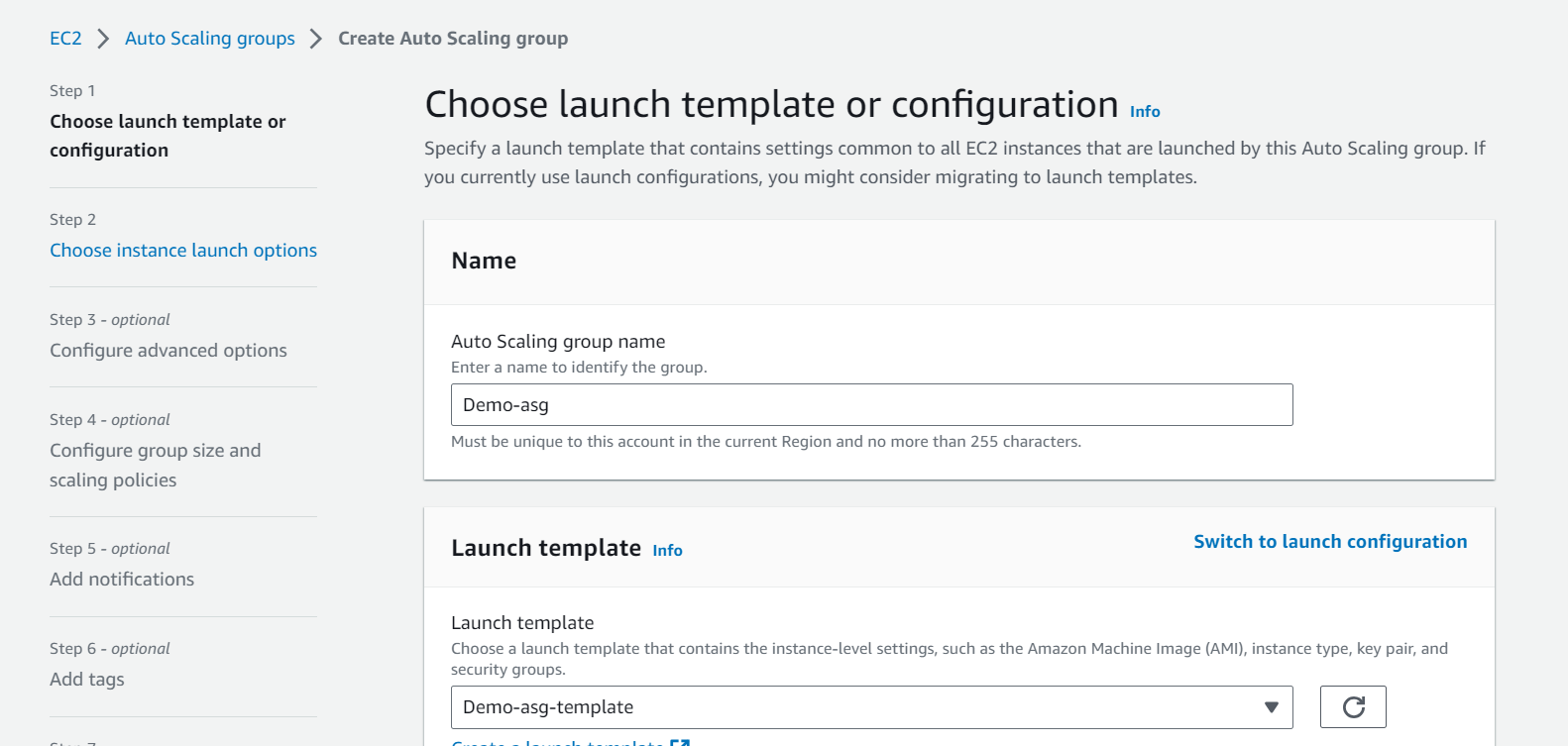

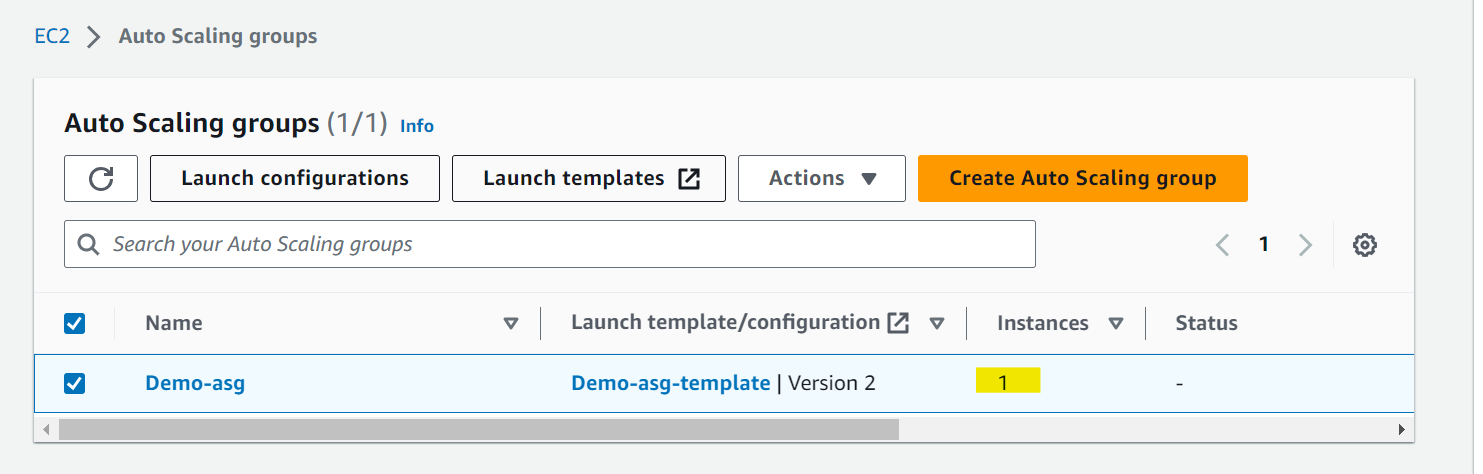

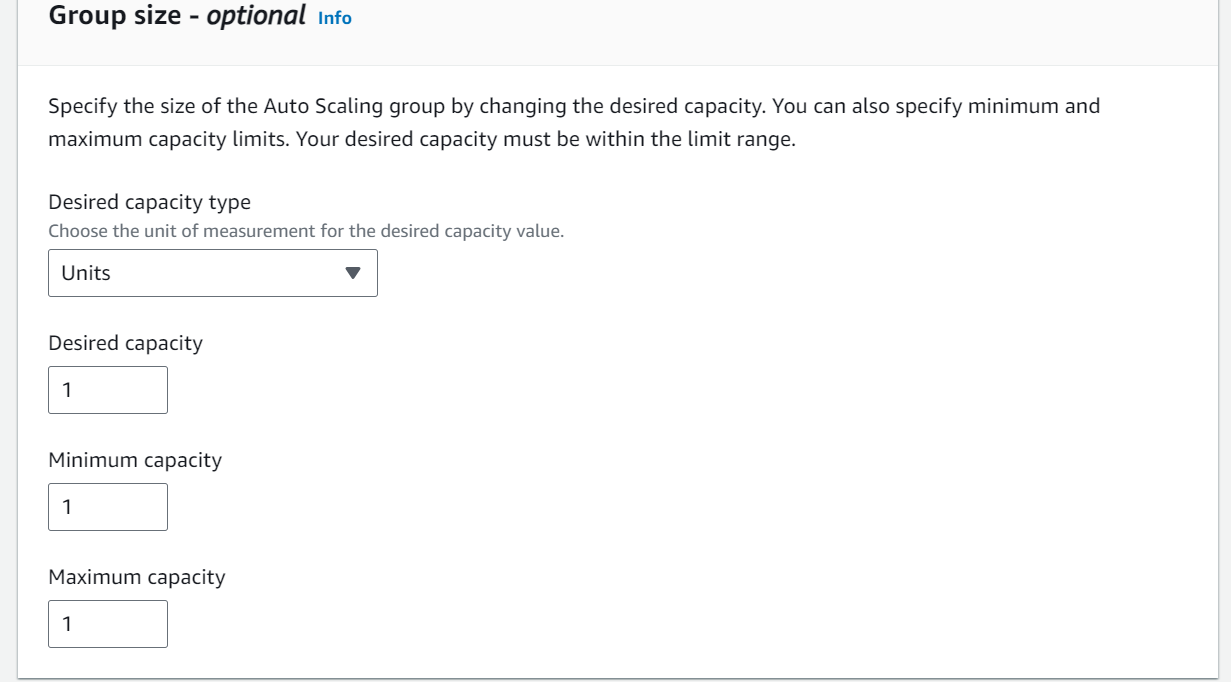

• Create

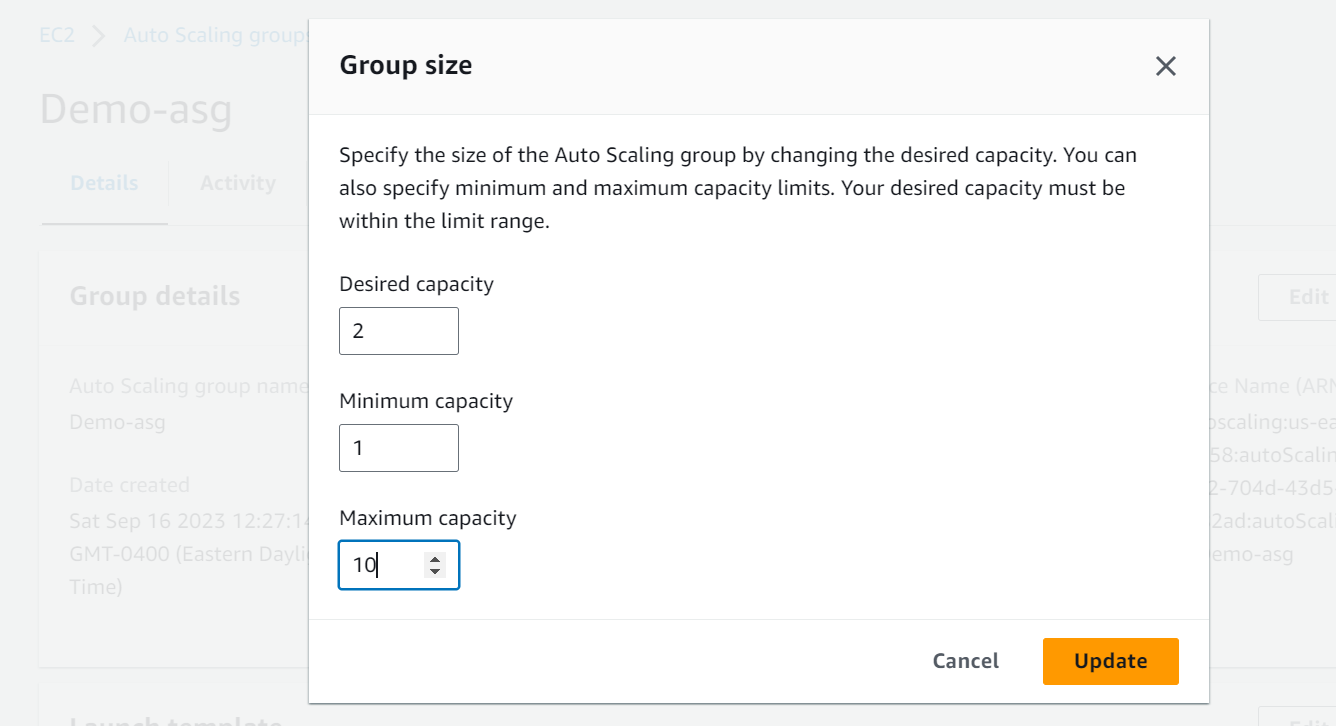

• Update

---

Scalling

Dynamic Scaling Policies

• Target Tracking Scaling

  • Most simple and easy to set-up
  • Example: I want the average ASG CPU to stay at around 40%

• Simple / Step Scaling

  • When a CloudWatch alarm is triggered (example CPU > 70%), then add 2 units
  • When a CloudWatch alarm is triggered (example CPU < 30%), then remove 1

---

Scheduled Actions

• Anticipate a scaling based on known usage patterns
• Example: increase the min capacity to 10 at 5 pm on Fridays

---

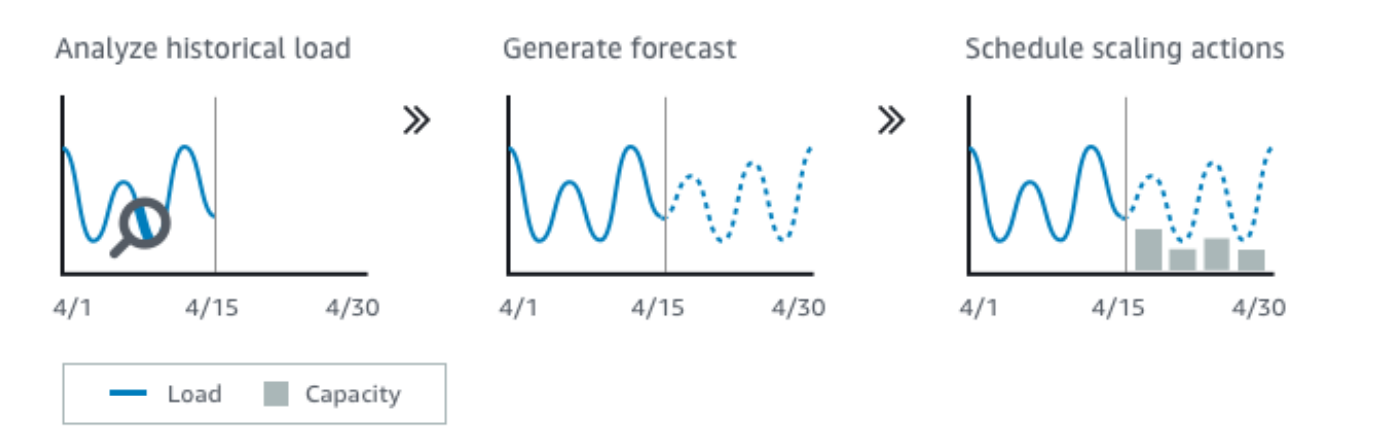

Predictive Scaling

• Predictive scaling: continuously forecast load and schedule scaling ahead

• Good metrics to scale on

  • CPUUtilization:
    • Average CPU utilization across your instances

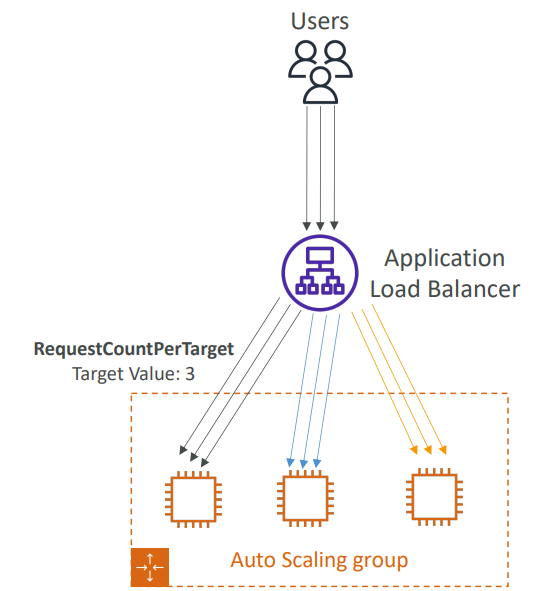

  • RequestCountPerTarget:

    • to make sure the number of requests per EC2 instances is stable



  • Average Network In / Out
    • (if you’re application is network bound)
  • Any custom metric
    • (that you push using CloudWatch)

---

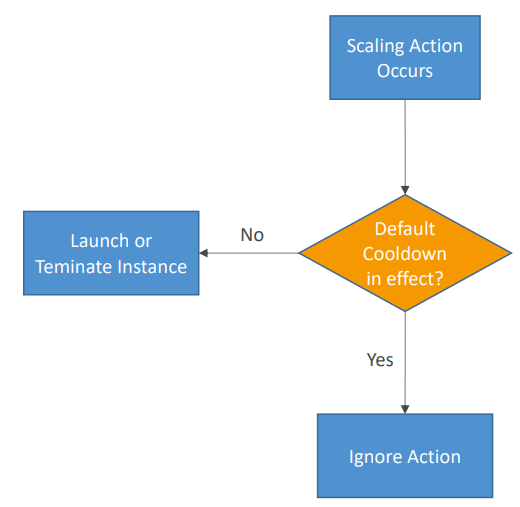

Scaling Cooldowns

• After a scaling activity happens, you are in the cooldown period (default 300 seconds)
• During the cooldown period, the ASG will not launch or terminate additional instances (to allow for metrics to stabilize)
• Advice:
  • Use a ready-to-use AMI to reduce configuration time in order to be serving request fasters and reduce the cooldown period

---

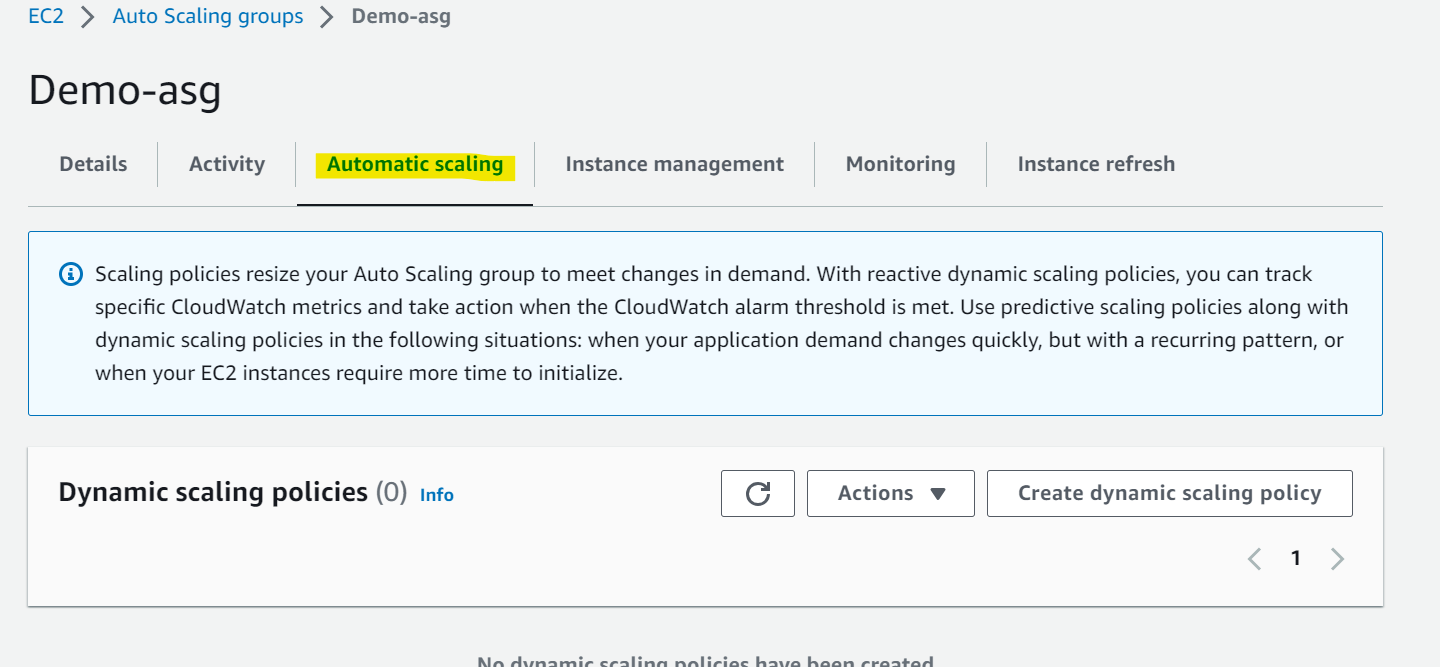

Hands-on: ASG Scalling

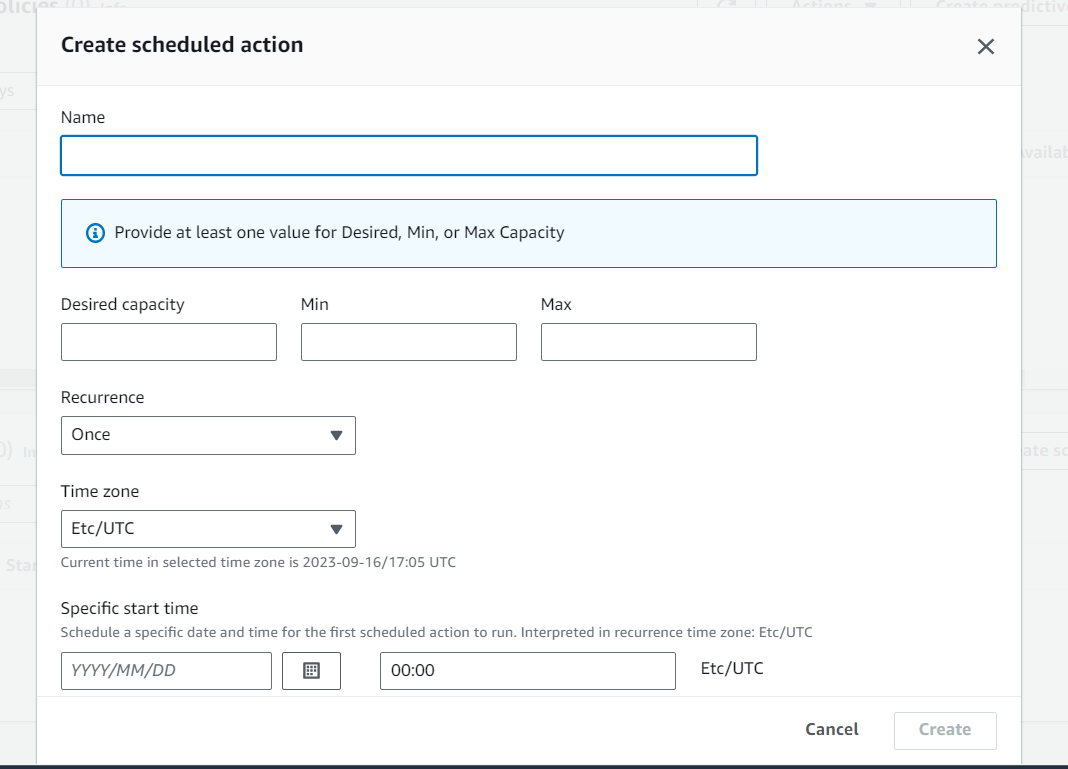

• Scheduled

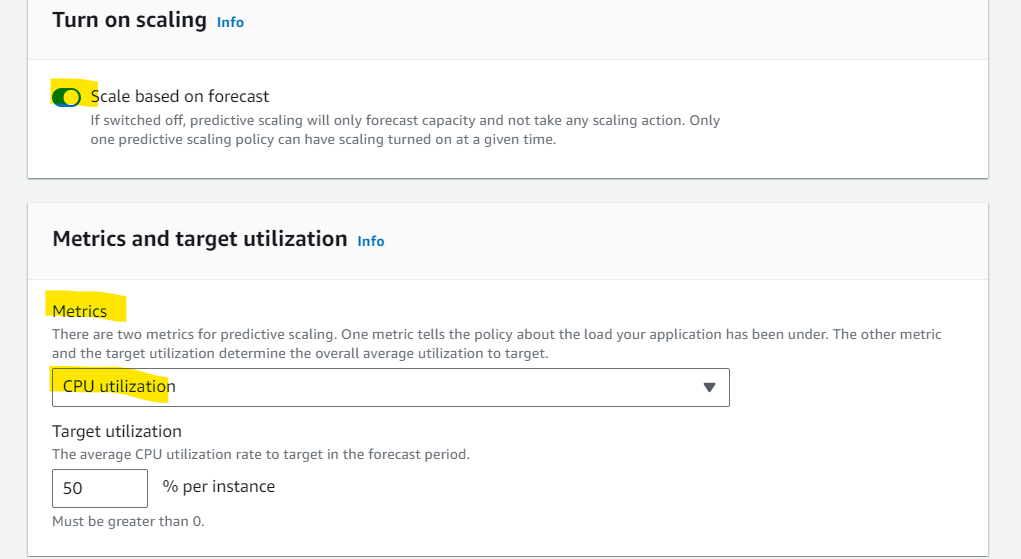

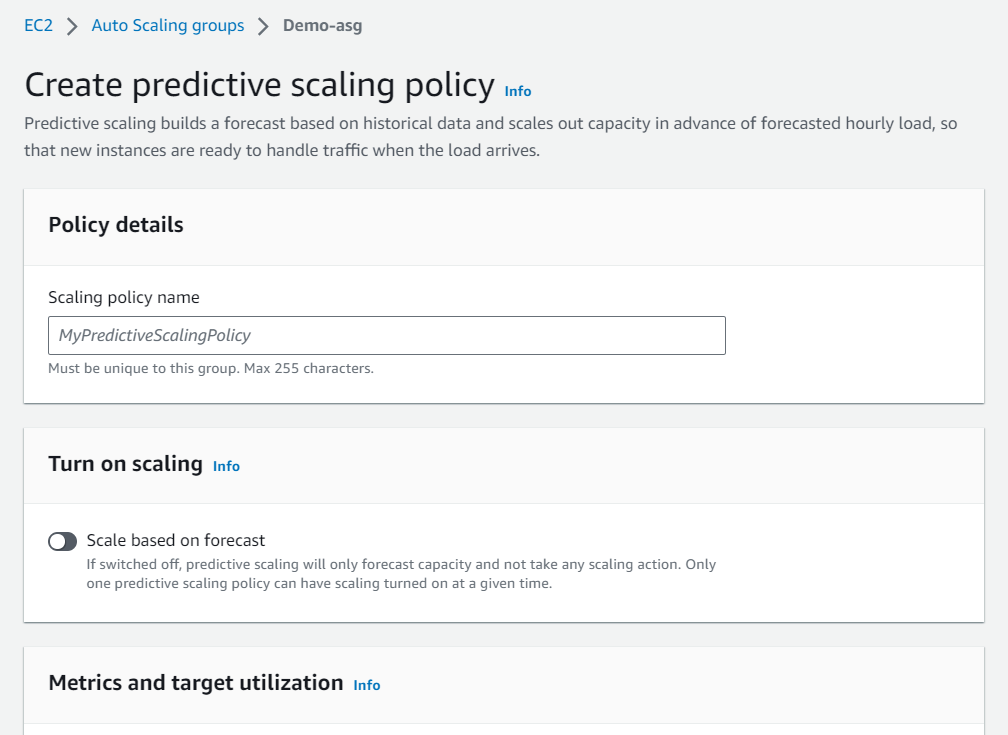

• Predictive scaling policy

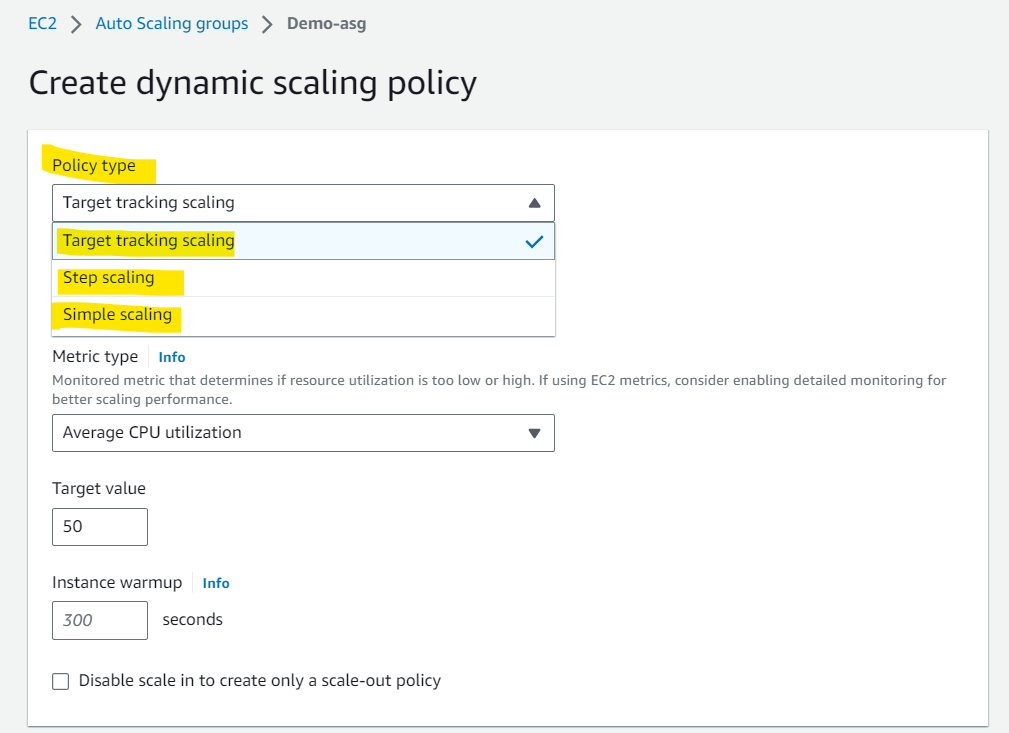

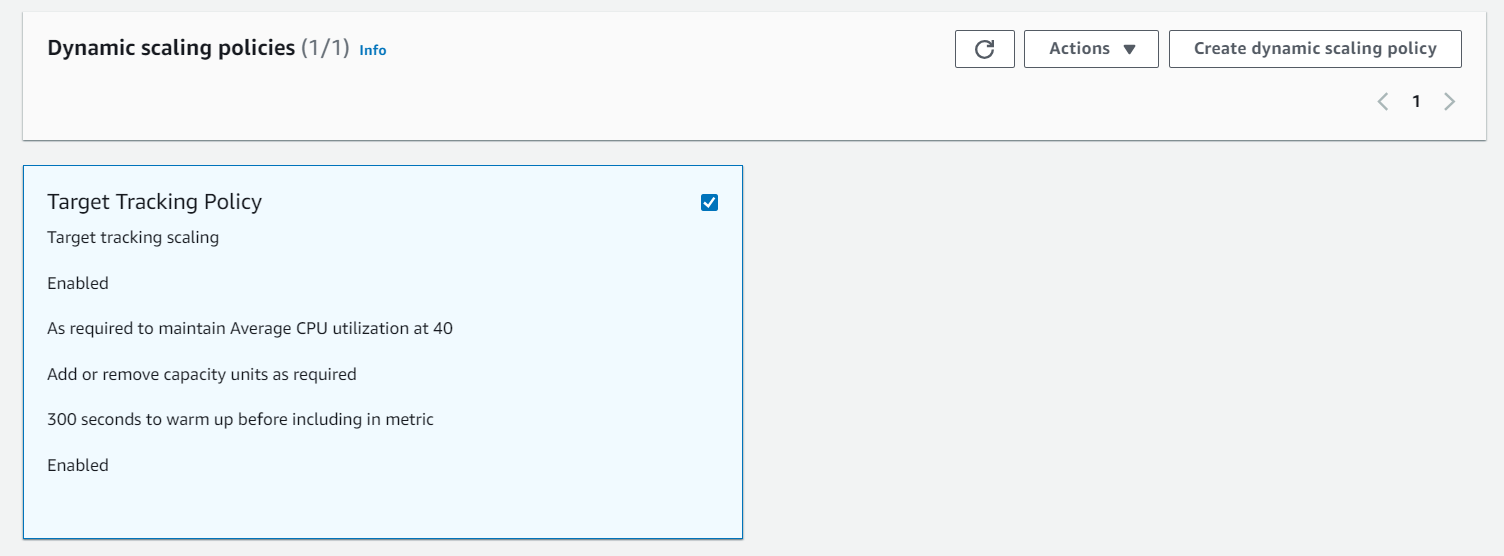

• Dynamic scaling policy

---
