AWS - Lambda

Back

AWS - Lambda

`AWS Lambda`

EC2 vs Lambda
EC2:
- Virtual Servers in the Cloud
- limitations:
  - Limited by RAM and CPU
  - Continuously running
  - Scaling means intervention to add / remove servers
Lambda
- Virtual functions – no servers to manage!
- advatages:
  - Run on-demand
  - Limited by time - short executions
  - Scaling is automated!
sample:
- You have configured a Lambda function to run each time an item is added to a DynamoDB table using DynamoDB Streams. The function is meant to insert messages into the SQS queue for further long processing jobs. Each time the Lambda function is invoked, it seems able to read from the DynamoDB Stream but it isn’t able to insert the messages into the SQS queue. What do you think the problem is?

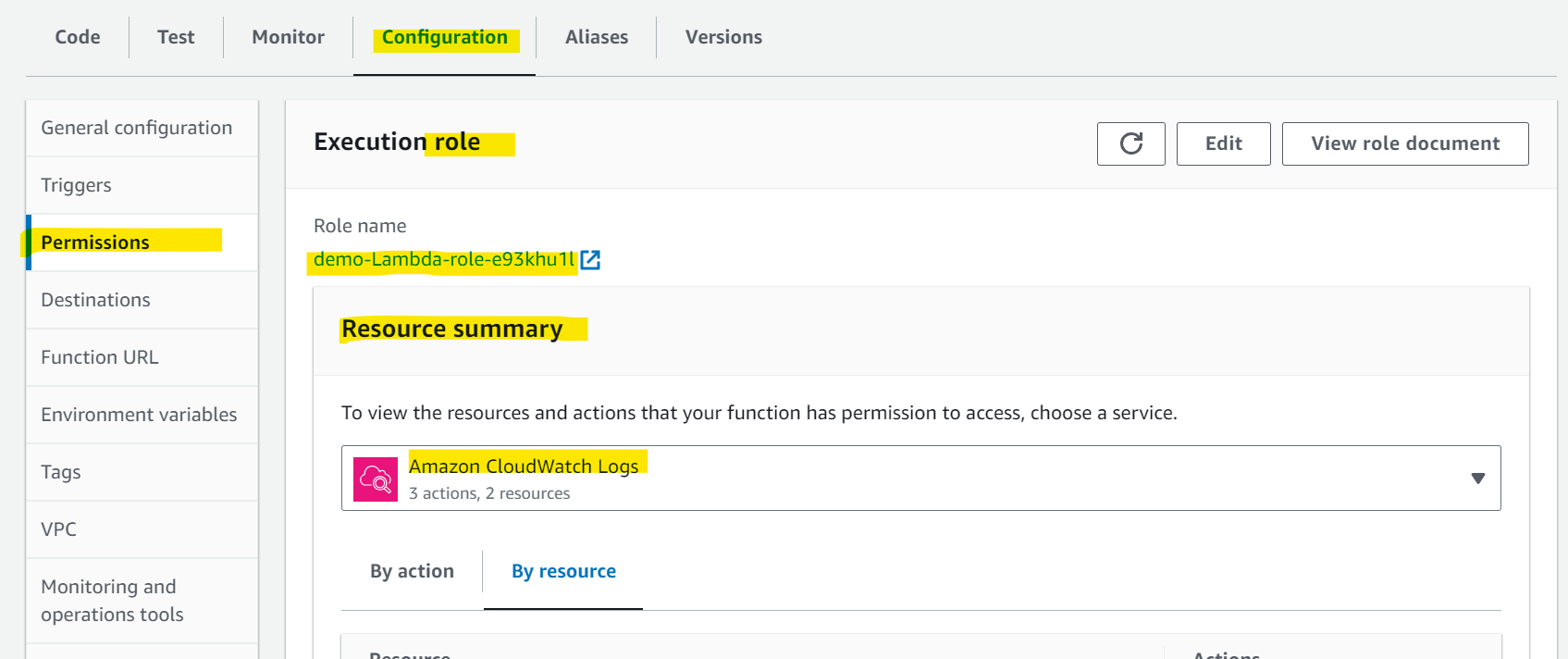

  - Lambda Execution IAM role misses permission.
- You would like to create an architecture for a micro-services application whose sole purpose is to encode videos stored in an S3 bucket and store the encoded videos back into an S3 bucket. You would like to make this micro-services application reliable and has the ability to retry upon failures. Each video may take over 25 minutes to be processed. The services used in the architecture should be asynchronous and should have the capability to be stopped for a day and resume the next day from the videos that haven’t been encoded yet. Which of the following AWS services would you recommend in this scenario?
  - Amazon SQS allows you to retain messages for days and process them later, while we can take down our EC2 instances.

Benefits of AWS Lambda

Easy Pricing:
- Pay per request and compute time
- Free tier of 1,000,000 AWS Lambda requests and 400,000 GBs of compute time

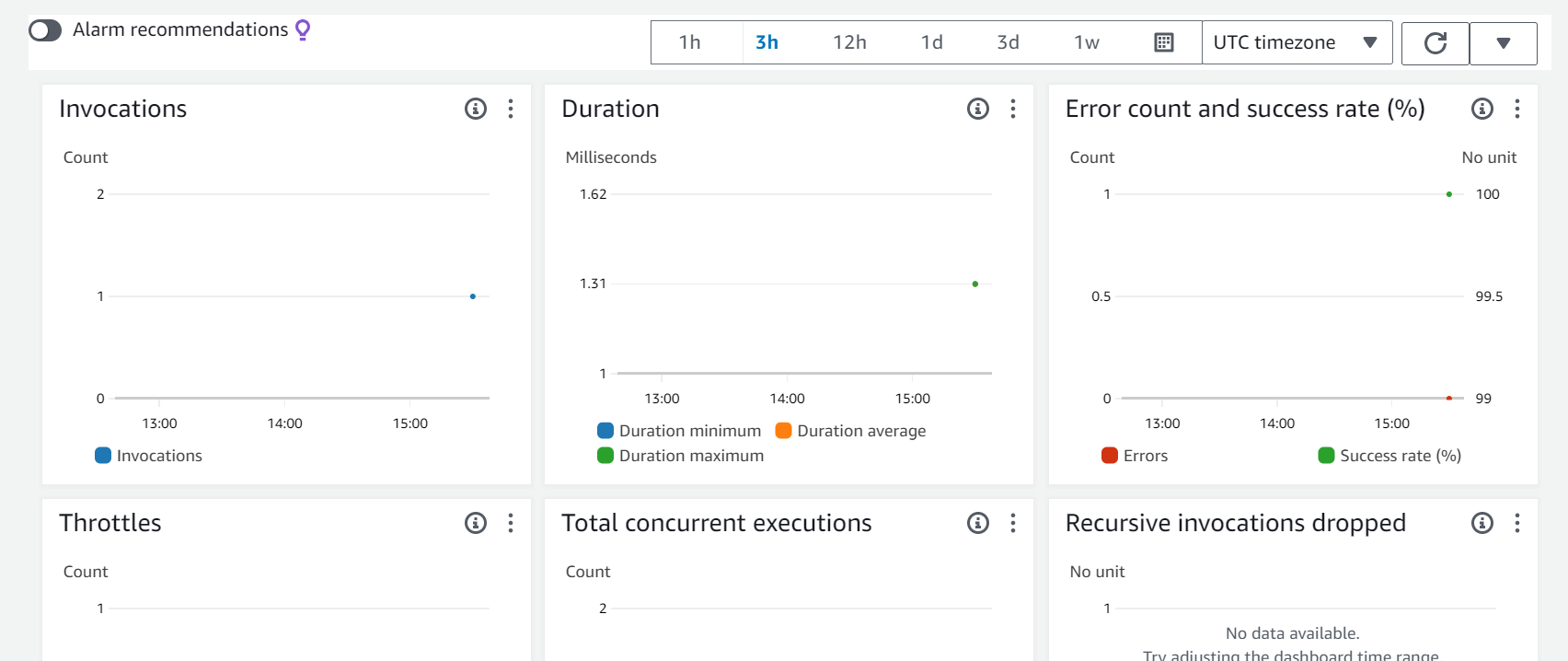

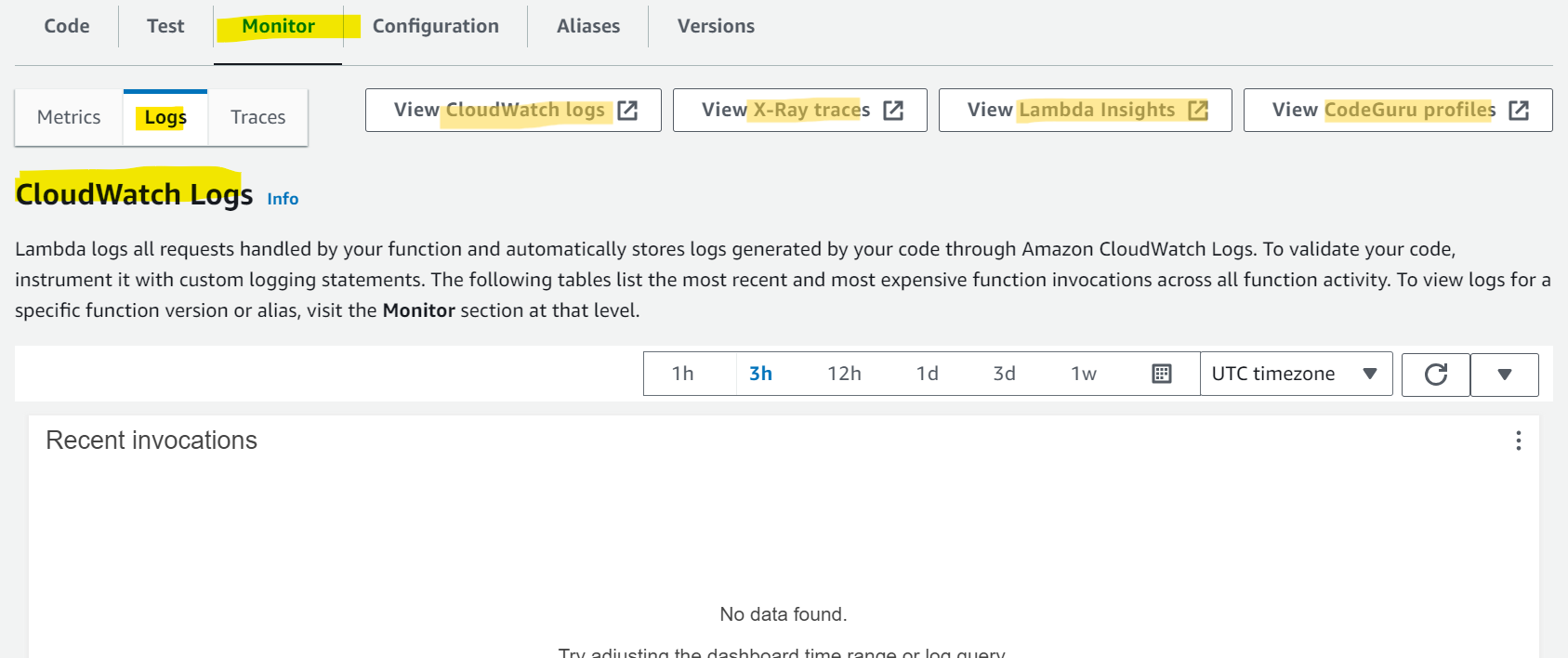

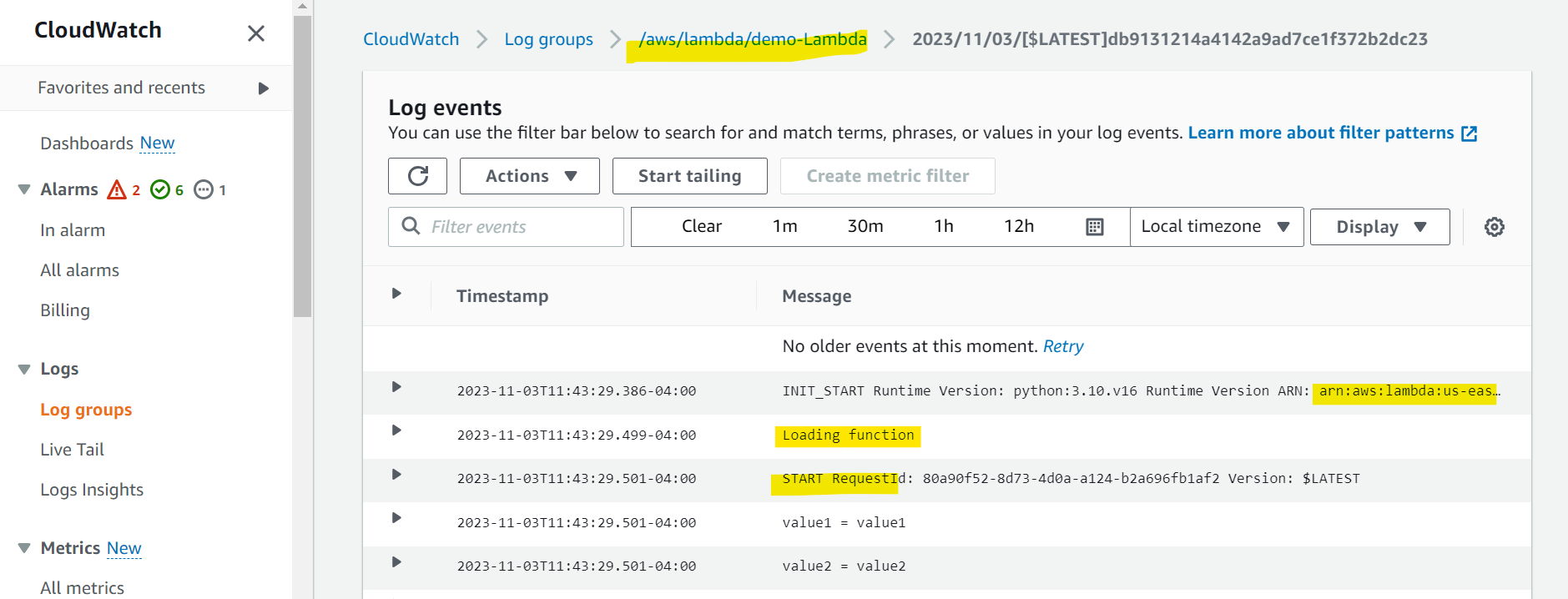

Easy monitoring through AWS CloudWatch
Easy to get more resources per functions (up to 10GB of RAM!)
Increasing RAM will also improve CPU and network!

Programming languages

Integrated with many programming languages
Lambda language support
- Node.js (JavaScript)
- Python
- Java (Java 8 compatible)
- C# (.NET Core)
- Golang
- C# / Powershell
- Ruby
- Custom Runtime API (community supported, example Rust)
Lambda Container Image考点
- The container image must implement the Lambda Runtime API必须, 否则选择 ECS/Fargate
- ECS / Fargate is preferred for running arbitrary Docker images

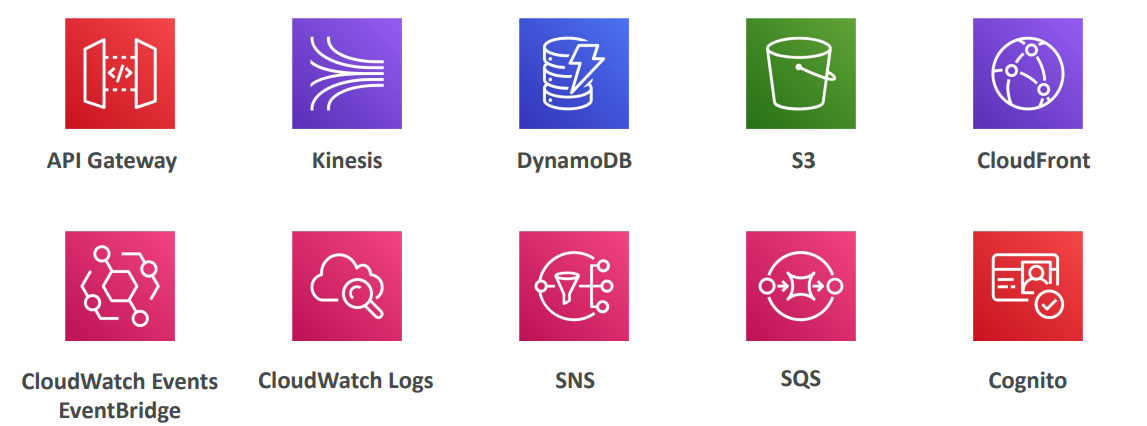

Integration with AWS services

Integrated with the whole AWS suite of services

lambda_aws_services

Pricing

You can find overall pricing information here:
- https://aws.amazon.com/lambda/pricing/
Pay per calls :
- First 1,000,000 requests are free
- $0.20 per 1 million requests thereafter ($0.0000002 per request)
Pay per duration: (in increment of 1 ms )
- 400,000 GB-seconds of compute time per month for FREE
- == 400,000 seconds if function is 1GB RAM
- == 3,200,000 seconds if function is 128 MB RAM
- After that $1.00 for 600,000 GB-seconds
It is usually very cheap to run AWS Lambda so it’s very popular

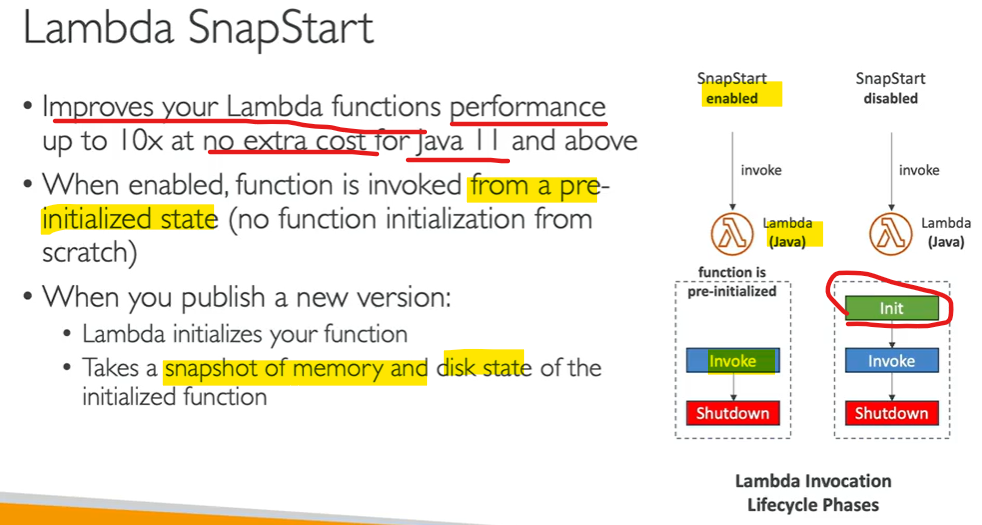

Lambda SnapStart

lambda_snapstart

Lambda Limits to Know - per region (常考)

Execution:

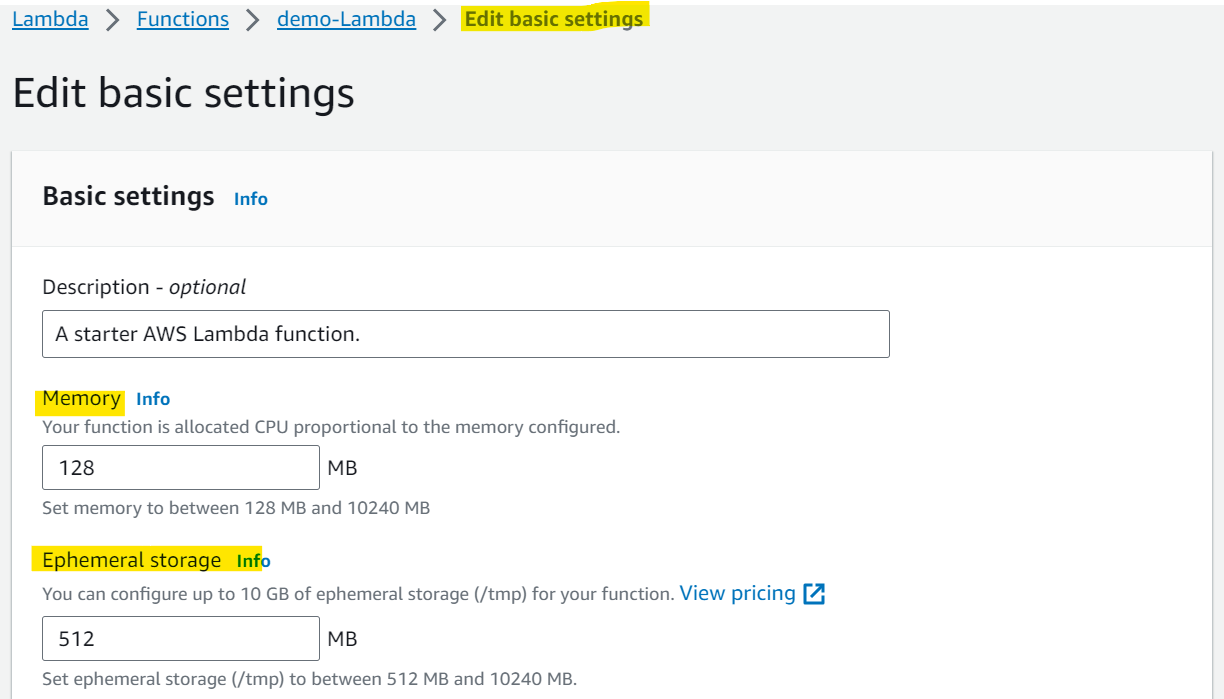

- Memory allocation: 128 MB – 10GB (1 MB increments)
  - more memory, more cpu and improve internet.
- Disk capacity in the “function container” (in /tmp): 512 MB to 10GB
- Maximum execution time: 900 seconds (15 minutes)
- Concurrency executions: 1000 (can be increased)
- Environment variables (4 KB)
Deployment:
- Size:
  - Lambda function deployment size (compressed .zip): 50 MB
  - uncompressed deployment (code + dependencies): 250 MB
- Can use the /tmp directory to load other files at startup
- Size of environment variables: 4 KB
Sample:
- not to usd lambda, if need:
  - memory > 10 GB
  - big file > 50MB / 250MB
  - Env Var > 4KB
  - Execution Time: >900s
Sample:

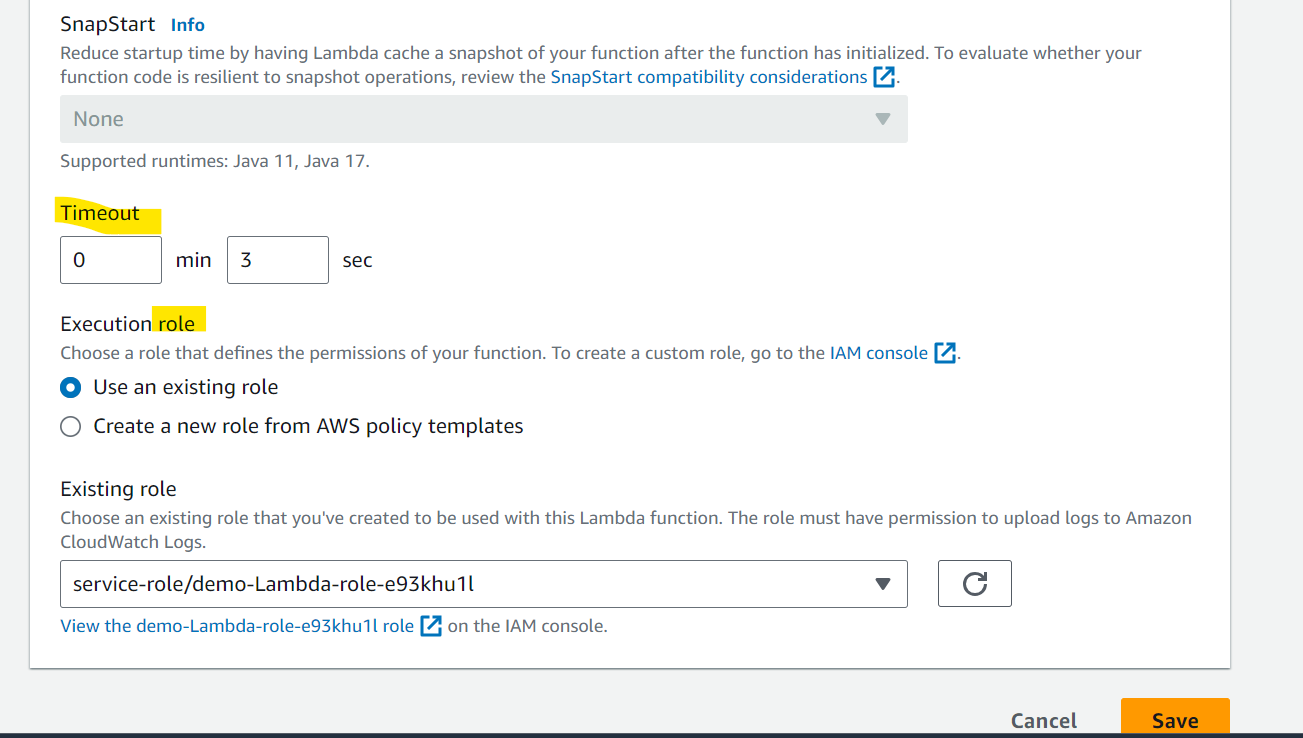

- You have created a Lambda function that typically will take around 1 hour to process some data. The code works fine when you run it locally on your machine, but when you invoke the Lambda function it fails with a “timeout” error after 3 seconds. What should you do?
  - Lambda’s maximum execution time is 15 minutes. You can run your code somewhere else such as an EC2 instance or use Amazon ECS.

Use Case Example

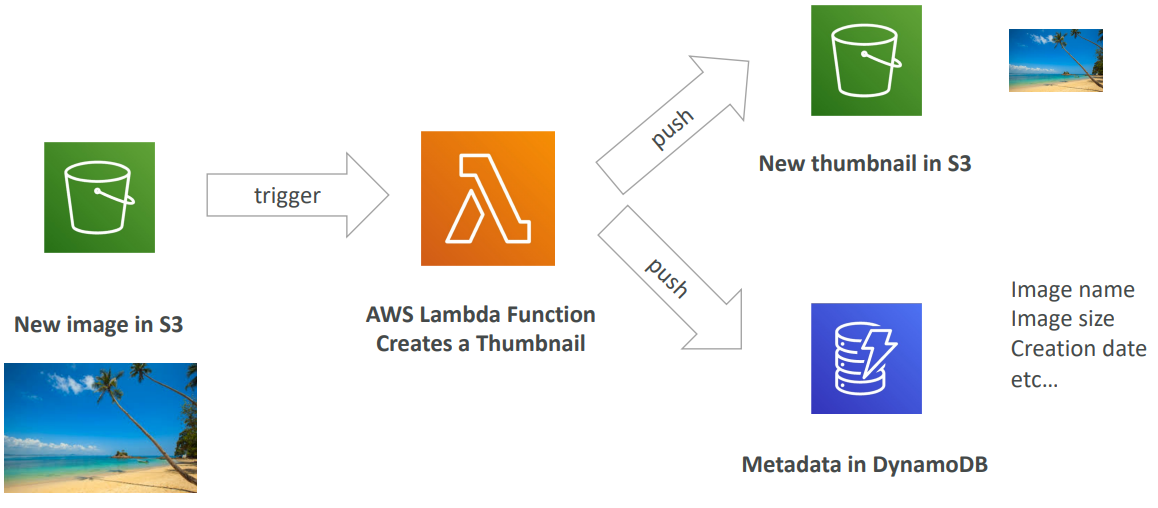

Serverless Thumbnail creation

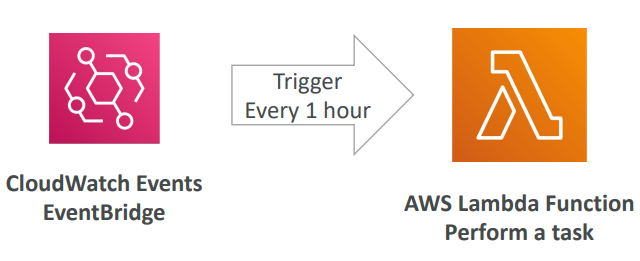

Serverless CRON Job

Customization At The Edge

Many modern applications execute some form of the logic at the edge
Edge Function:
- A code that you write and attach to CloudFront distributions
- Runs close to your users to minimize latency
CloudFront provides two types:
- CloudFront Functions
- Lambda@Edge
Benefits:
- Fully serverless
  - You don’t have to manage any servers
- deployed globally
- Pay only for what you use
Use case:
- Website Security and Privacy
- Dynamic Web Application at the Edge
- Search Engine Optimization (SEO)
- Intelligently Route Across Origins and Data Centers
- Bot Mitigation at the Edge
- Real-time Image Transformation
- A/B Testing
- User Authentication and Authorization
- User Prioritization
- User Tracking and Analytics

`CloudFront Functions`

Features:
- Lightweight functions written in JavaScript
- For high-scale, latency-sensitive CDN customizations
- Sub-ms startup times, millions of requests/second
Native feature of CloudFront (manage code entirely within CloudFront)
Used to change Viewer requests and responses:
- Viewer Request: after CloudFront receives a request from a viewer
- Viewer Response: before CloudFront forwards the response to the viewer

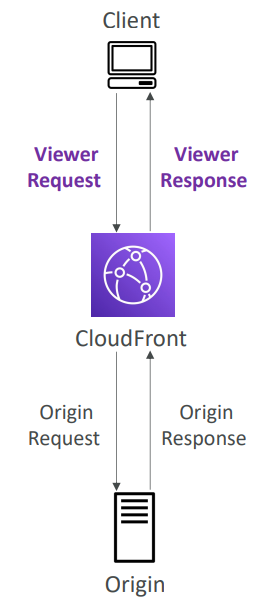

cloudfront_function_diagram

`Lambda@Edge`

Lambda functions written in NodeJS or Python
Scales to 1000s of requests/second
Author your functions in one AWS Region (us-east-1), then CloudFront replicates to its locations
Used to change CloudFront requests and responses:
- Viewer Request
  - after CloudFront receives a request from a viewer
- Origin Request
  - before CloudFront forwards the request to the origin
- Origin Response
  - after CloudFront receives the response from the origin
- Viewer Response
  - before CloudFront forwards the response to the viewer

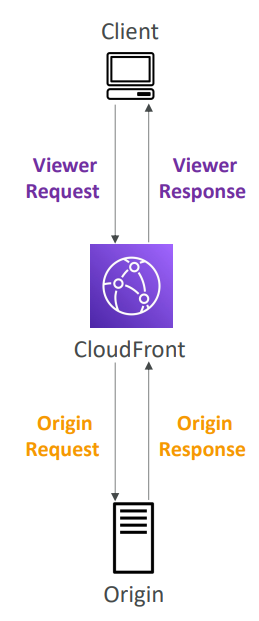

lambda_edge_diagram

Sample:
- You have an application that is served globally using CloudFront Distribution. You want to authenticate users at the CloudFront Edge Locations instead of authentication requests go all the way to your origins. What should you use to satisfy this requirement?
- Lambda@Edge is a feature of CloudFront that lets you run code closer to your users, which improves performance and reduces latency.

`CloudFront Functions` vs. `Lambda@Edge`

	CloudFront Functions	Lambda@Edge
Runtime Support	`JavaScript`	`Node.js`, `Python`
# of Requests	Millions of requests per second	Thousands of requests per second
CloudFront Triggers	Viewer Request/Response	Viewer Request/Response + Origin Request/Response
Max. Execution Time	< 1 ms	5 – 10 seconds
Max. Memory	2 MB	128 MB up to 10 GB
Total Package Size	10 KB	1 MB – 50 MB
Network Access, File System Access	No	Yes
Access to the Request Body	No	Yes
Pricing Free tier available, 1/6th price of @Edge	No free tier, charged per request & duration

Use Cases
- CloudFront Functions
  - Cache key normalization
    - Transform request attributes (headers, cookies, query strings, URL) to create an optimal Cache Key
  - Header manipulation
    - Insert/modify/delete HTTP headers in the request or response
  - URL rewrites or redirects
  - Request authentication & authorization
    - Create and validate user-generated tokens (e.g., JWT) to allow/deny requests
- Lambda@Edge
  - Longer execution time (several ms)
  - Adjustable CPU or memory
  - Your code depends on a 3rd libraries (e.g., AWS SDK to access other AWS services)
  - Network access to use external services for processing
  - File system access or access to the body of HTTP requests

Lambda in VPC

By Default
- By default, your Lambda function is launched outside your own VPC (in an AWS-owned VPC)
- Therefore, it cannot access resources in your VPC (RDS, ElastiCache, internal ELB…)

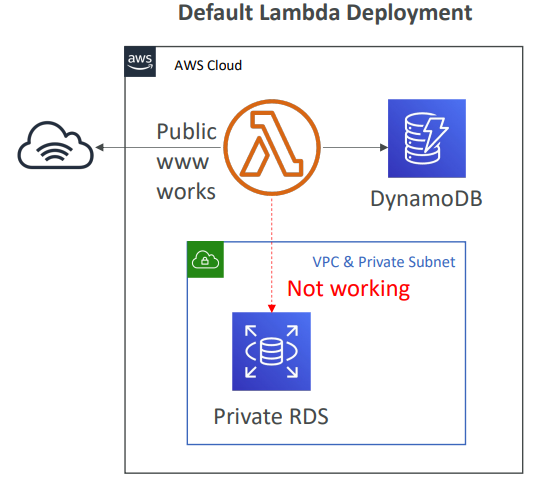

lambda_default_deploy_diagram

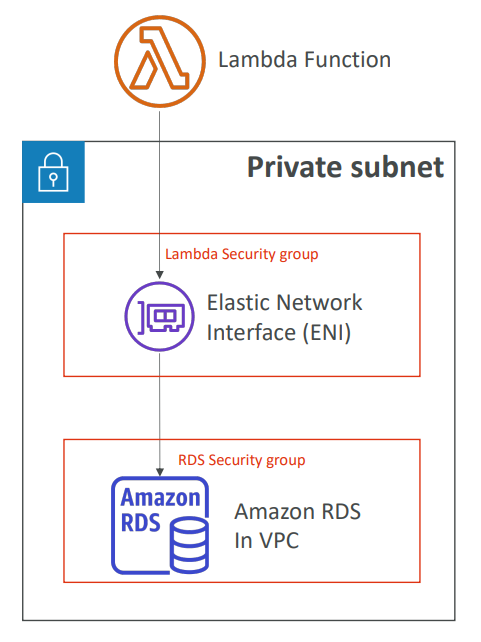

VPC
- You must define
  - the VPC ID,
  - the Subnets
  - the Security Groups
Lambda will create an ENI (Elastic Network Interface) in your subnets

Use Case: Lambda with RDS Proxy

If Lambda functions directly access your database, they may open too many connections under high load
RDS Proxy benefits:
- Improve scalability by pooling and sharing DB connections
- Improve availability by reducing by 66% the failover time and preserving connections
- Improve security by enforcing IAM authentication and storing credentials in Secrets Manager
The Lambda function must be deployed in your VPC, because RDS Proxy is never publicly accessible

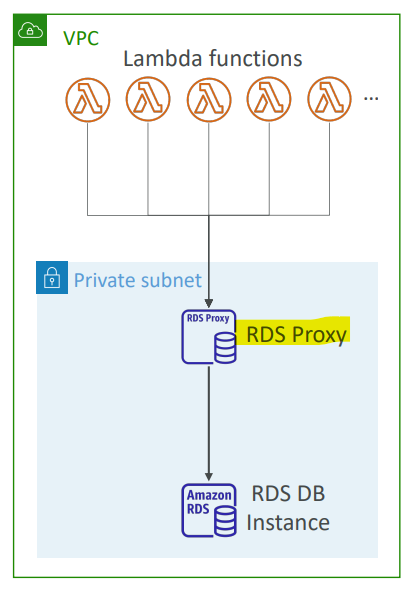

lambda_rds_proxy_diagram

Use Case: Invoking Lambda from RDS & Aurora

Goal
- Invoke Lambda functions from within your DB instance
- Allows you to process data events from within a database
Supported for RDS for PostgreSQL and Aurora MySQL
Must:
- Must allow outbound traffic to your Lambda function from within your DB instance (Public, NAT GW, VPC Endpoints)
- DB instance must have the required permissions to invoke the Lambda function (Lambda Resource-based Policy & IAM Policy)

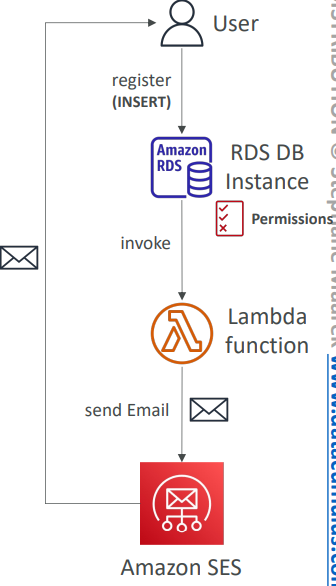

lambda_invoking_from_RDS_diagram

Example:
- new user signs up then recieve a welcome email.

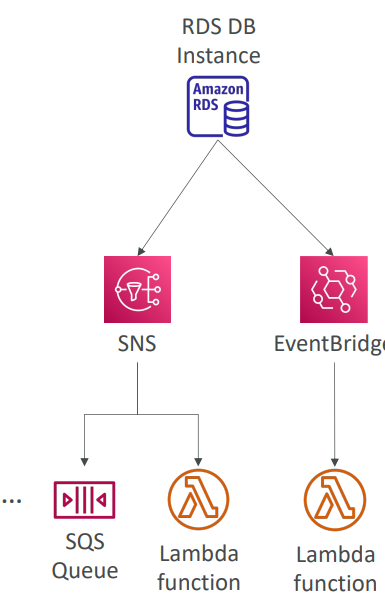

vs `RDS Event Notifications`

Notifications that tells information about the DB instance itself (created, stopped, start, …)只是关于数据库实例的信息
You don’t have any information about the data itself 与数据本身无关.
Subscribe to the following event categories:
- DB instance,
- DB snapshot,
- DB Parameter Group,
- DB Security Group,
- RDS Proxy,
- Custom Engine Version
Near real-time events (up to 5 minutes)
Send notifications to SNS or subscribe to events using EventBridge
