AWS - Amazon Athena

Back

• AWS - Amazon Athena
  • Amazon Athena
    • Performance Improvement
    • Federated Query
  • Hands-on

---

Amazon Athena

• Amazon Athena

  • Serverless query service to analyze data stored in Amazon S3
• Uses standard SQL language to query the files (built on Presto)
• Supports CSV, JSON, ORC, Avro, and Parquet
• Pricing: $5.00 per TB of data scanned

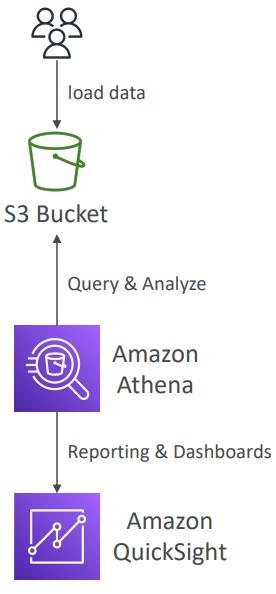

• Commonly used with Amazon Quicksight for reporting/dashboards

• Use cases:

  • Business intelligence
  • analytics
  • reporting
  • analyze & query VPC Flow Logs,
  • ELB Logs,
  • CloudTrail trails, etc…
• Exam Tip: analyze data in S3 using serverless SQL, use Athena

---

Performance Improvement

• Use columnar data for cost-savings (less scan)

  • Apache Parquet or ORC is recommended
  • Huge performance improvement
  • Use Glue to convert your data to Parquet or ORC
• Compress data for smaller retrievals (bzip2, gzip, lz4, snappy, zlip, zstd…)
• Partition datasets in S3 for easy querying on virtual columns

s3://yourBucket/pathToTable
/<PARTITION_COLUMN_NAME>=<VALUE>
/<PARTITION_COLUMN_NAME>=<VALUE>
/<PARTITION_COLUMN_NAME>=<VALUE>
/etc…

• Example: s3://athena-examples/flight/parquet/year=1991/month=1/day=1/
• Use larger files (> 128 MB) to minimize overhead

---

Federated Query

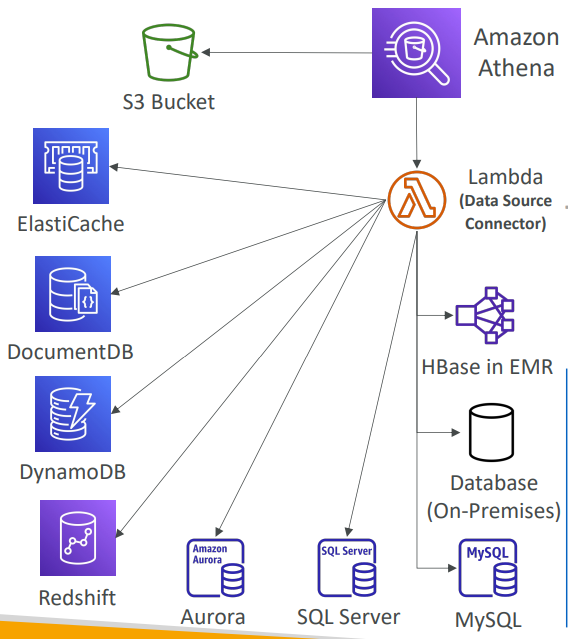

• Federated Query
  • Allows you to run SQL queries across data stored in relational, non-relational, object, and custom data sources (AWS or on-premises)
• Uses Data Source Connectors that run on AWS Lambda to run Federated Queries (e.g., CloudWatch Logs, DynamoDB, RDS, …)
• Store the results back in Amazon S3

---

Hands-on

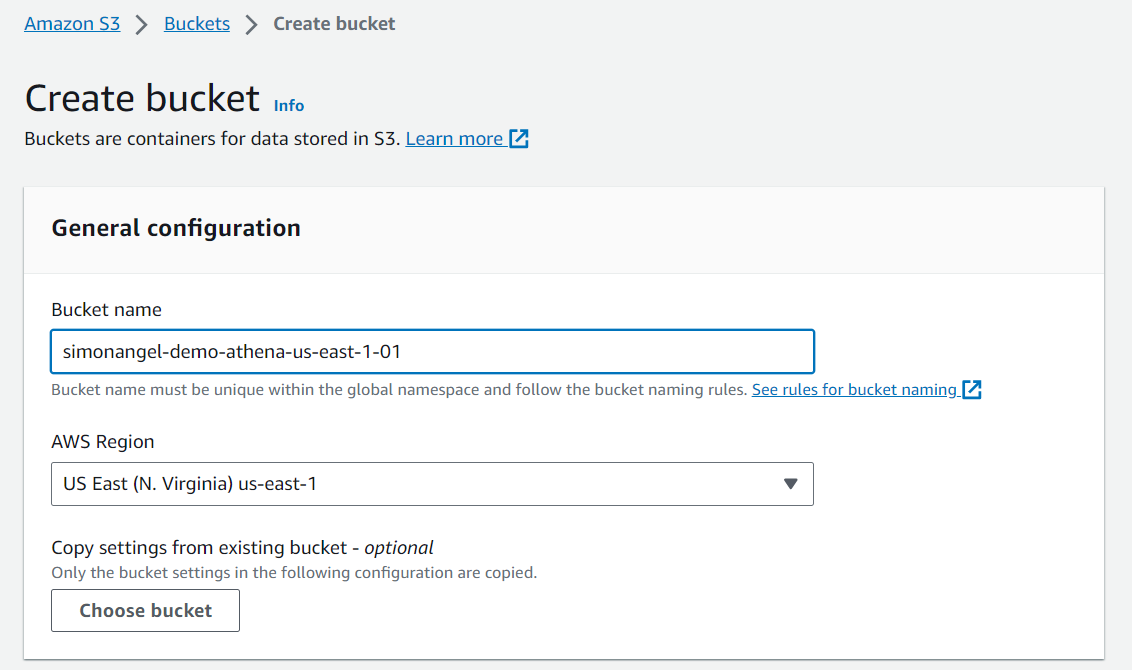

• Create s3 bucket for athena result

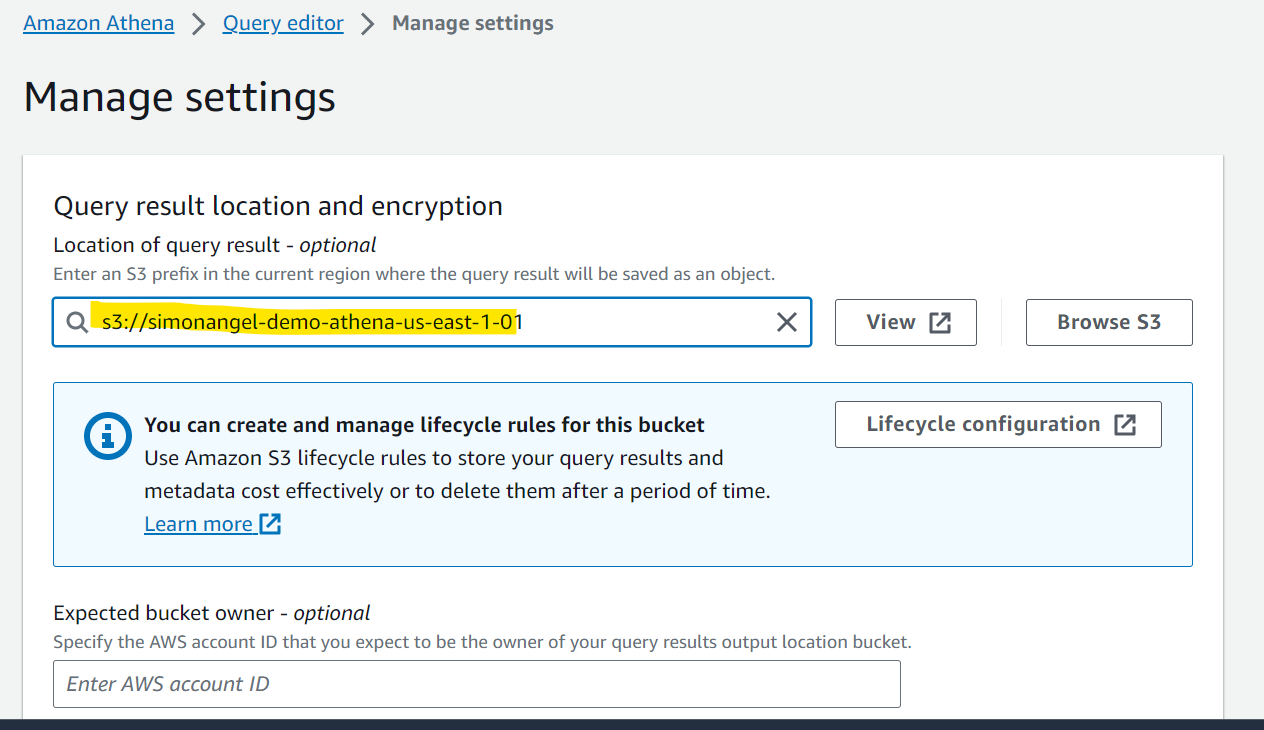

• Set result location

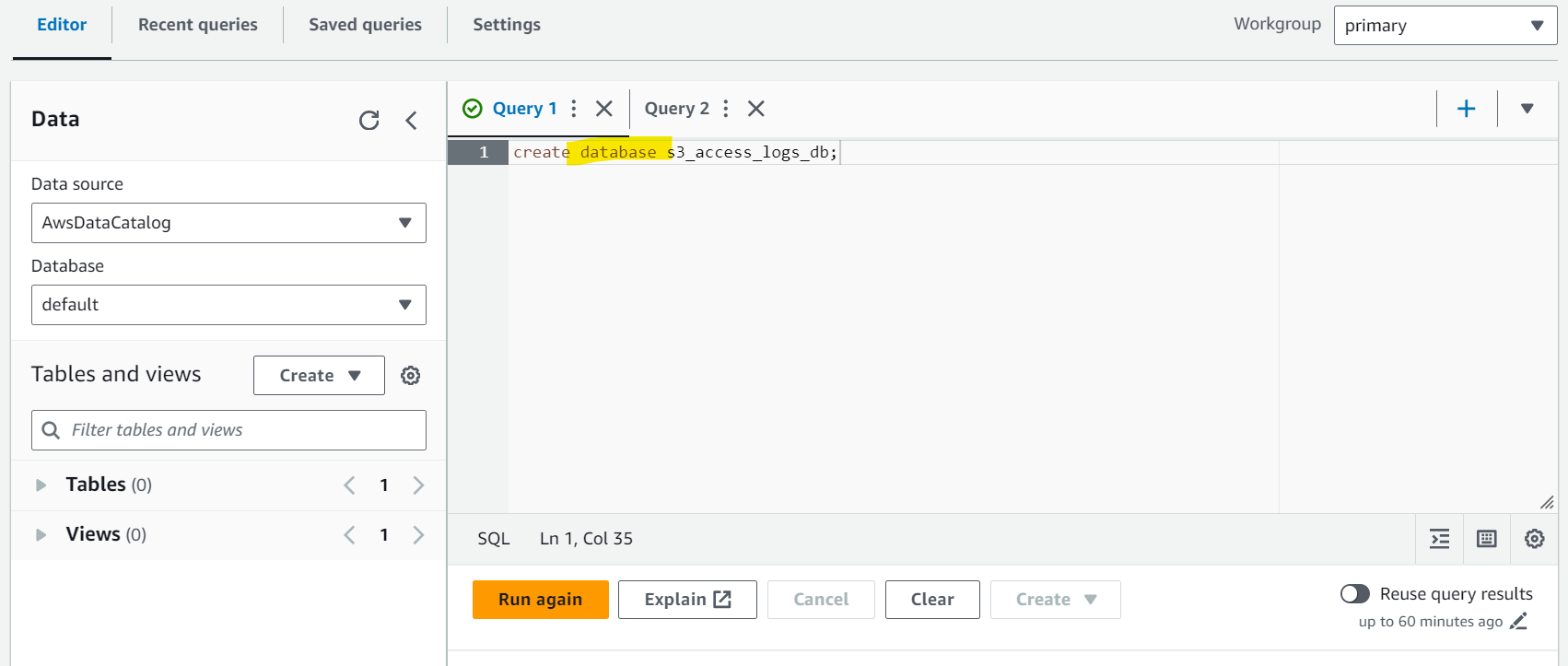

• Create DB

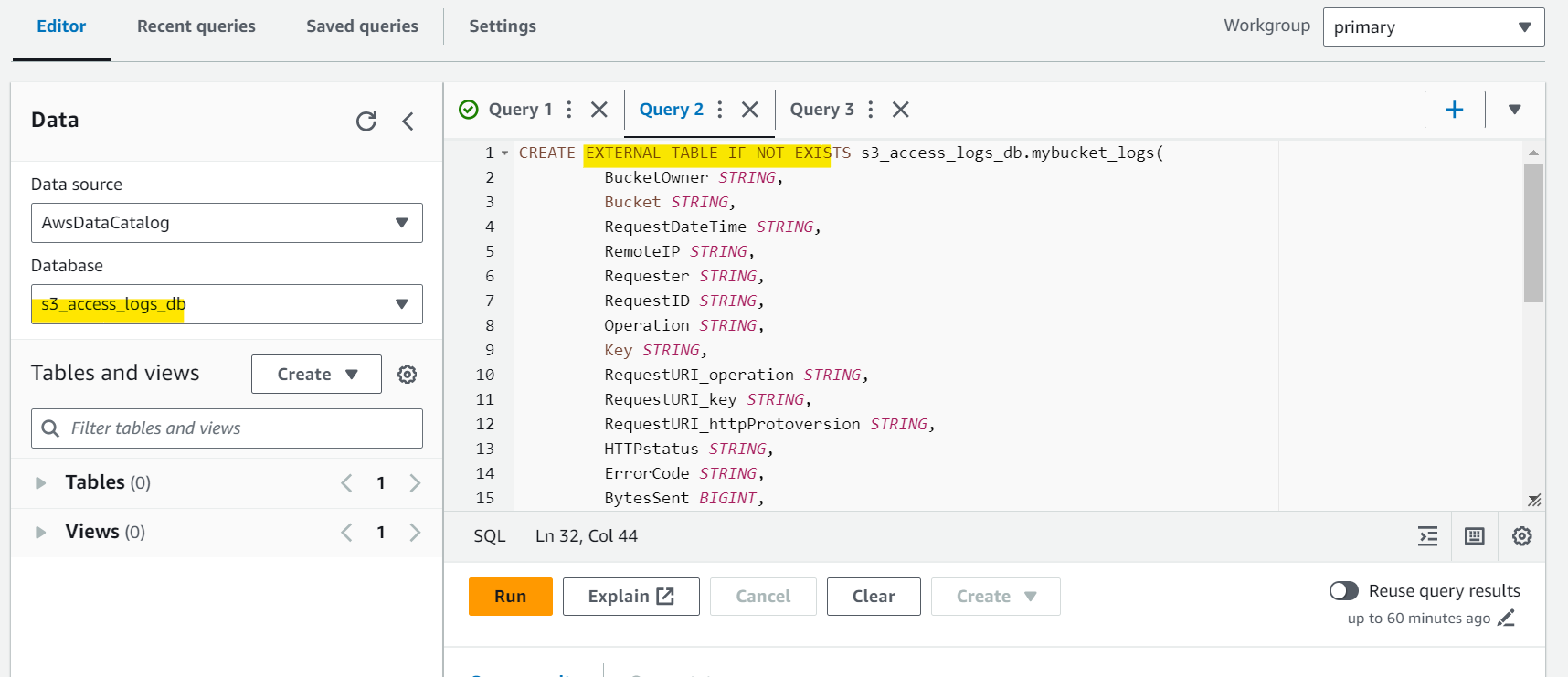

• Create table

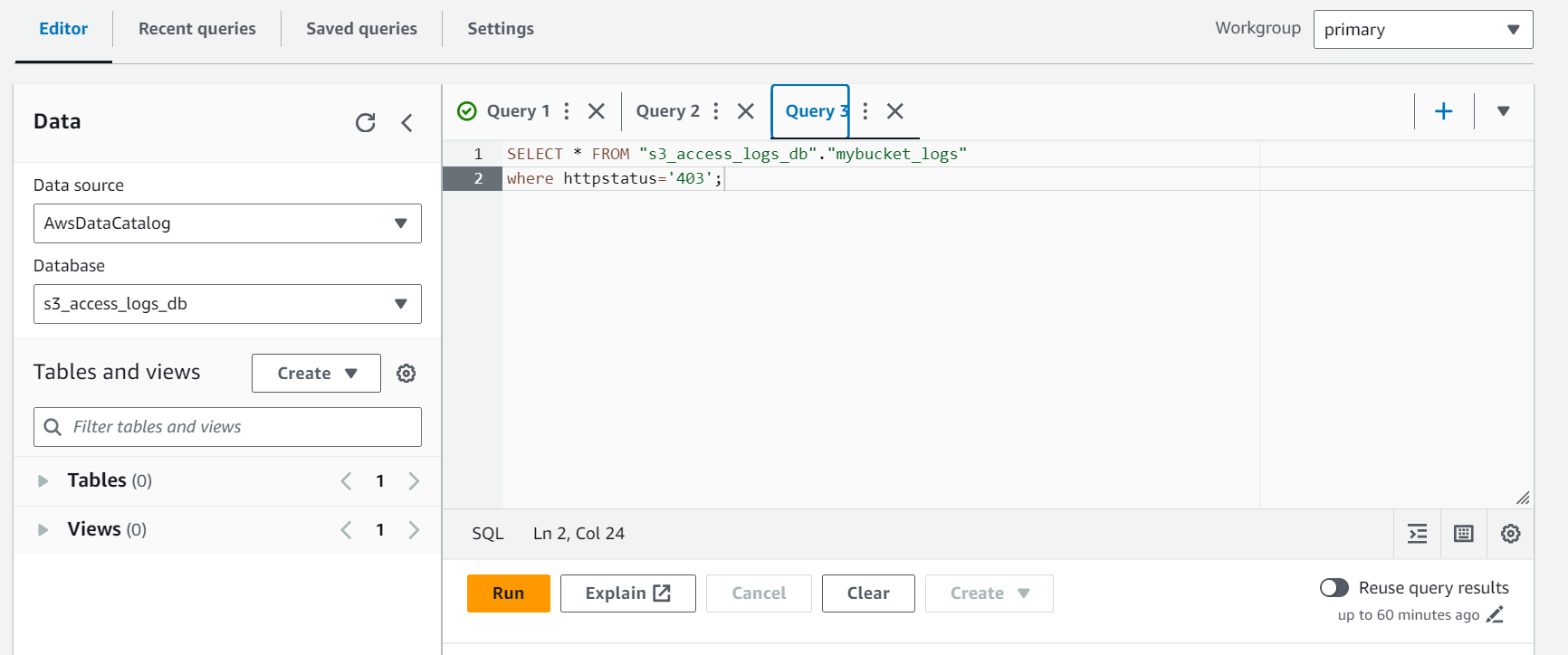

• Query

---
