AWS - Glue

Back

• AWS - Glue
  • AWS Glue
    • Features
    • Glue Data Catalog
  • Use Case:
    • ETL
    • Convert data into Parquet format

---

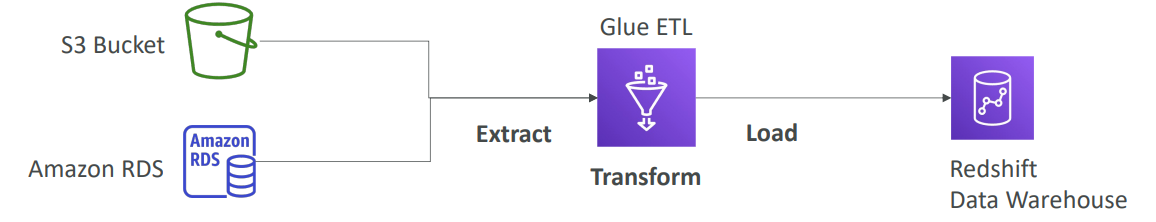

AWS Glue

• AWS Glue

  • Managed extract, transform, and load (ETL) service
• Useful to prepare and transform data for analytics
• Fully serverless service

---

Features

• Glue Job Bookmarks:
  • prevent re-processing old data in a new ETL job.
• Glue Elastic Views:
  • Combine and replicate data across multiple data stores using SQL
  • No custom code, Glue monitors for changes in the source data, serverless
  • Leverages a “virtual table” (materialized view)
• Glue DataBrew:
  • clean and normalize data using pre-built transformation
• Glue Studio:
  • new GUI to create, run and monitor ETL jobs in Glue
• Glue Streaming ETL (built on Apache Spark Structured Streaming):
  • compatible with Kinesis Data Streaming, Kafka, MSK (managed Kafka)

---

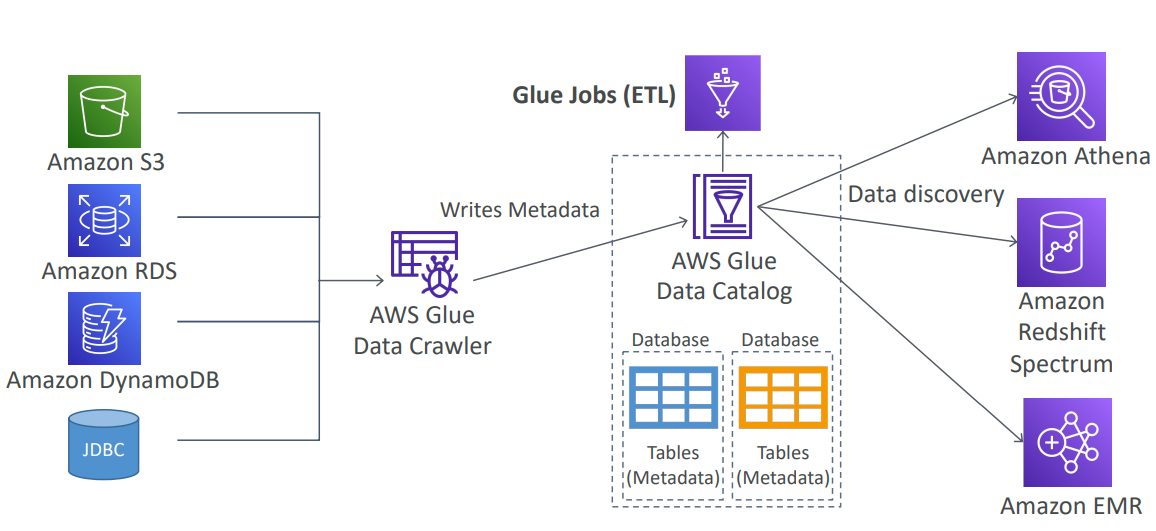

Glue Data Catalog

• Glue Data Catalog

  • a feature of glue to catalog datasets.
  • It will run Glue Data Crawler, which is connected to various data sources and writes all of the metadata into the Glue Data Catalog
  • will be leveraged by Glue jobs for ETL

• It is the central of many services, and used behind the scene like Athena, Redshift, EMR.

---

Use Case:

ETL

---

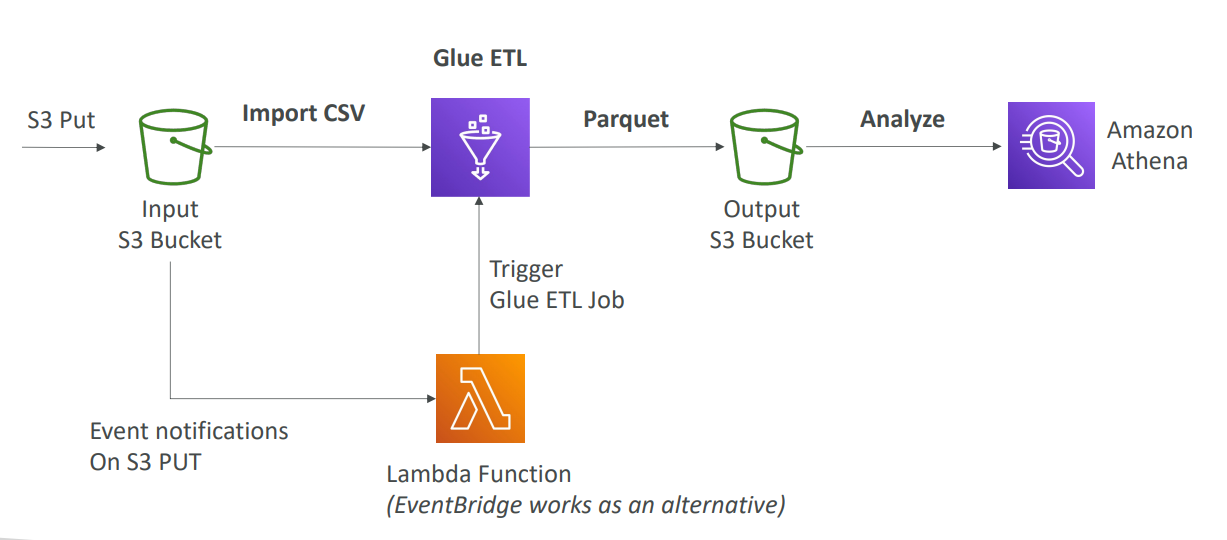

Convert data into Parquet format

• Parquet format

  • a columar data format
  • a better form of data used in Athena.

• Convert CSV in the S3 into Parquet format, then using Athena to analyze.

  • For existing CSV, import, ELT, output to S3 Bucket.
  • For new CSV, put, trigger Lambda, trigger glue ETL job.

---
