AWS - Redshift

Back

• AWS - Redshift
  • Redshift
    • Redshift Cluster
    • Snapshots \& Disaster Recovery
    • Loading data into Redshift
    • Redshift Spectrum
    • Enhanced VPC routing

---

Redshift

• Redshift

  • It’s OLAP – online analytical processing (analytics and data warehousing), based on PostgreSQL

• features:

  • Has a SQL interface for performing the queries
  • Columnar storage of data (instead of row based) & parallel query engine
  • 10x better performance than other data warehouses, scale to PBs of data
  • Pay as you go based on the instances provisioned

• Integration:

  • BI tools such as Amazon Quicksight or Tableau integrate with it

• Redshift vs Athena:

  • Athena: ad hoc query on S3
  • Redshift: intensive data
    • faster queries / joins / aggregations thanks to indexes

---

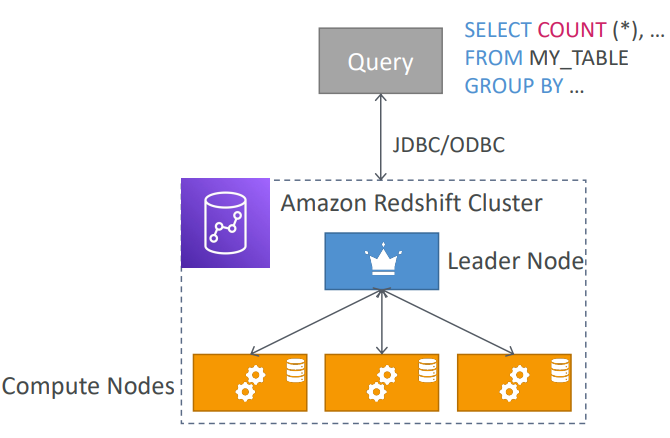

Redshift Cluster

• Leader node: for query planning, results aggregation
• Compute node: for performing the queries, send results to leader
• You provision the node size in advance
• You can used Reserved Instances for cost savings

---

Snapshots & Disaster Recovery

• Redshift has “Multi-AZ” mode for some clusters

• Snapshot: Used for Disater Recovery

  • Snapshots are point-in-time backups of a cluster, stored internally in S3
  • Snapshots are incremental (only what has changed is saved)
  • You can restore a snapshot into a new cluster

• 2 modes to create snapshot:

  • Automated:
    • every 8 hours, every 5 GB, or on a schedule. Set retention between 1 to 35 days
  • Manual:
    • snapshot is retained until you delete it

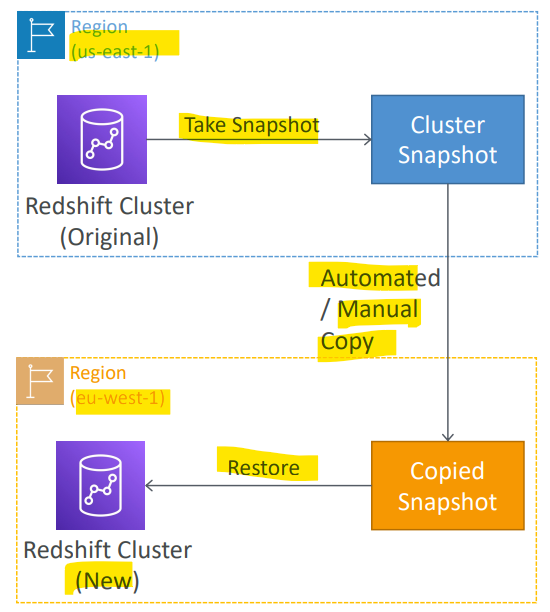

• Copy snapshot for DR

  • You can configure Amazon Redshift to automatically copy snapshots (automated or manual) of a cluster to another AWS Region

• Sample:
  • As a Solutions Architect, you have been instructed you to prepare a disaster recovery plan for a Redshift cluster. What should you do?
    • Auto snapshot, auto copy to another region

---

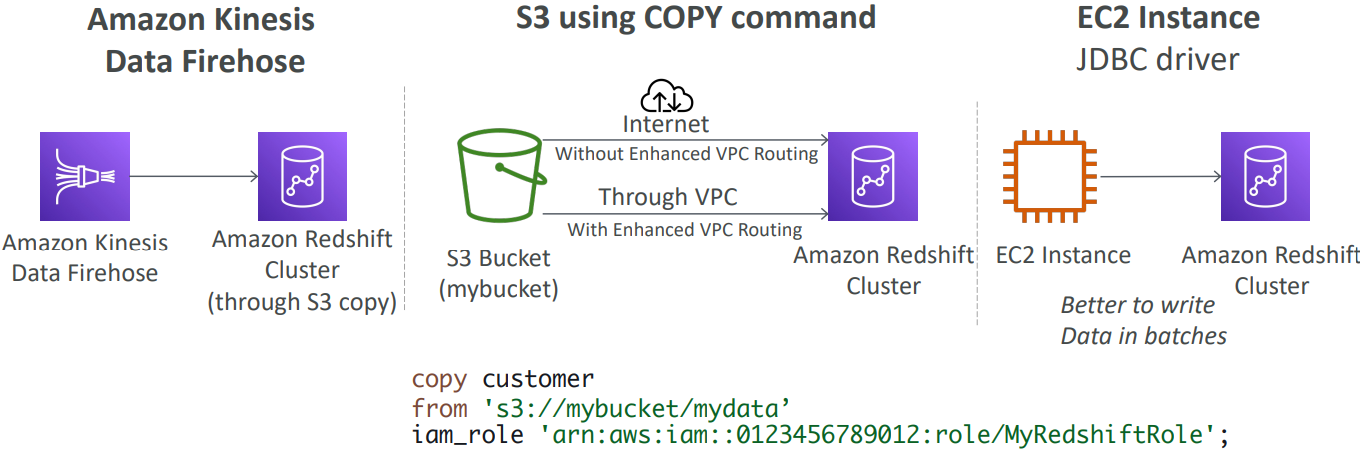

Loading data into Redshift

• Large inserts are MUCH better

• 3 Ways to load data

  • Kinesis firehose collect data to S3, S3 copy command
  • S3 copy command
  • JDBC diver

---

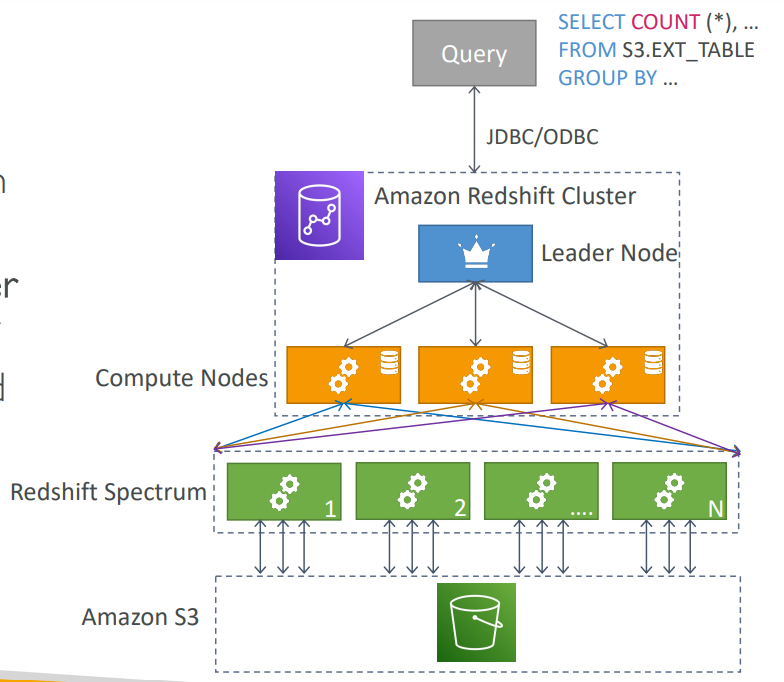

Redshift Spectrum

• Redshift Spectrum

  • a feature of Redshift
  • used to analyze data in S3 without loading data into Redshit
• Query data that is already in S3 without loading it
• Must have a Redshift cluster available to start the query
• The query is then submitted to thousands of Redshift Spectrum nodes

---

Enhanced VPC routing

• When you use Amazon Redshift enhanced VPC routing, Amazon Redshift forces all COPY and UNLOAD traffic between your cluster and your data repositories through your virtual private cloud (VPC) based on the Amazon VPC service.

• Sample:

  • Which feature in Redshift forces all COPY and UNLOAD traffic moving between your cluster and data repositories through your VPCs?
    • Enhanced VPC routing

---
