AWS RDS - Aurora

Back

• AWS RDS - Aurora
  • Aurora
    • Features
    • High Availability and Read Scaling
    • Cluster
    • Aurora Replica
      • Auto Scaling
      • Custom Endpoints
    • Backups
    • Restore options
    • Hands-on
  • Aurora Serverless
  • Aurora Multi-Master
  • Global Aurora (Cross Region)
  • Aurora Machine Learning
  • Aurora Database Cloning

---

Aurora

• Aurora is a proprietary technology from AWS (not open sourced)
• Postgres and MySQL are both supported as Aurora DB (that means your drivers will work as if Aurora was a Postgres or MySQL database)
• Aurora is “AWS cloud optimized” and claims 5x performance improvement over MySQL on RDS, over 3x the performance of Postgres on RDS
• Aurora storage automatically grows in increments of 10GB, up to 128 TB.
• Aurora can have up to 15 replicas and the replication process is faster than MySQL (sub 10 ms replica lag)
• Failover in Aurora is instantaneous. (faster than failover from multi-AZ on MySQL RDS.)
  • It’s HA (High Availability) native.
• Aurora costs more than RDS (20% more) – but is more efficient

---

Features

• Automatic fail-over
• Backup and Recovery
• Isolation and security
• Industry compliance
• Push-button scaling
• Automated Patching with Zero Downtime
• Advanced Monitoring
• Routine Maintenance
• Backtrack: restore data at any point of time without using backups

---

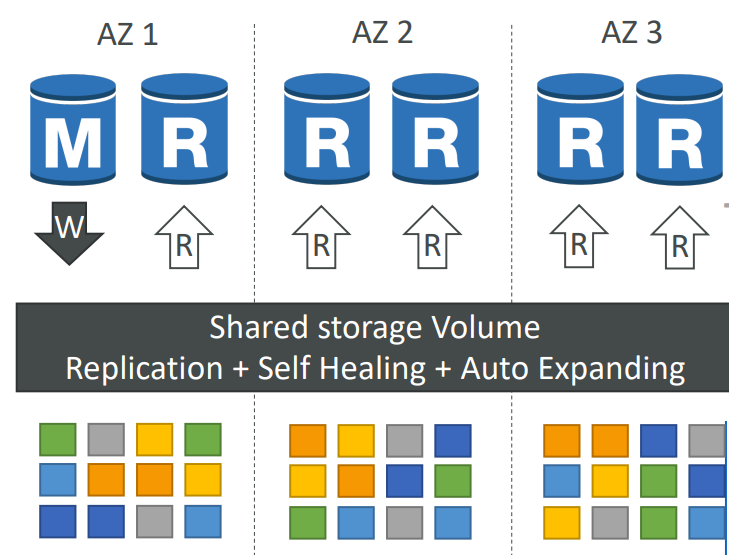

High Availability and Read Scaling

• 6 copies of your data across 3 AZ: (highly available)
  • 4 copies out of 6 needed for writes
  • 3 copies out of 6 need for reads
  • Self healing with peer-to-peer replication
  • Storage is striped across 100s of volumes (backend, managed by AWS, reduce sisk)
• One Aurora Instance takes writes (master)
• Automated failover for master in less than 30 seconds (instantaneous)
• Master + up to 15 Aurora Read Replicas serve reads (this Read Replicas can become master, different from RDS Replica)
• Support for Cross Region Replication

---

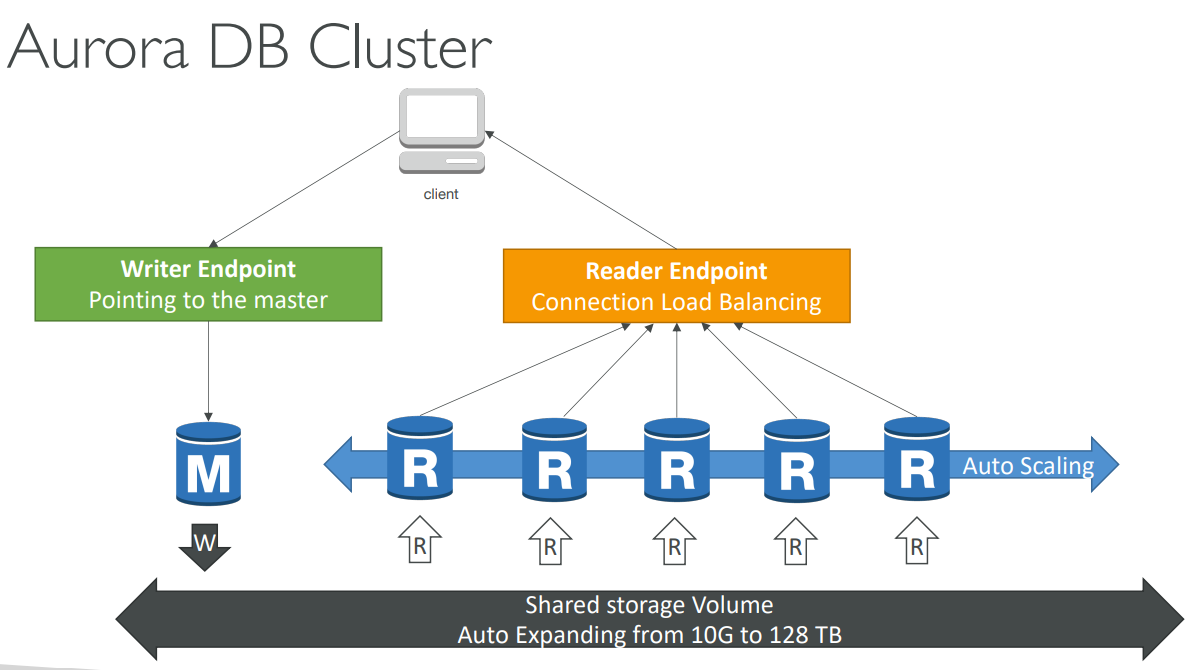

Cluster

• One Writer Endpoint (DNS name)

  • automatically point to master even if it failovers.

• One Reader Endpoint

  • load balancing
  • connects automatically to all replicas
  • on the connection level, not statement level.

---

Aurora Replica

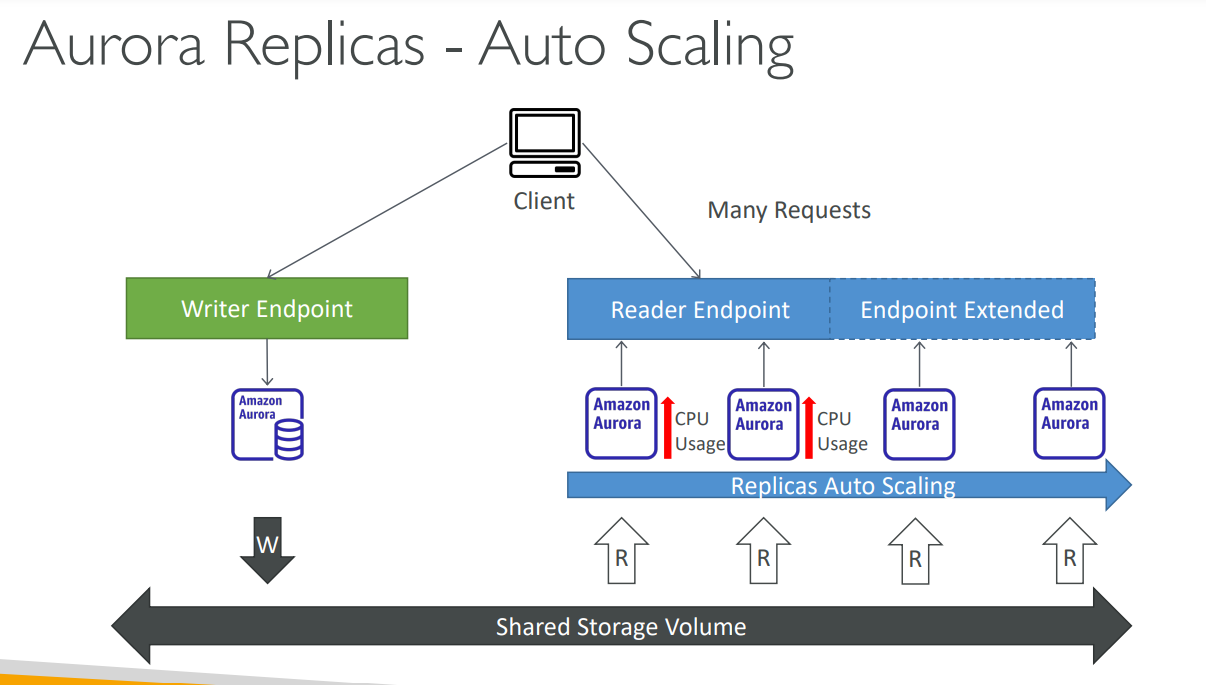

Auto Scaling

• When cpu usages create.

---

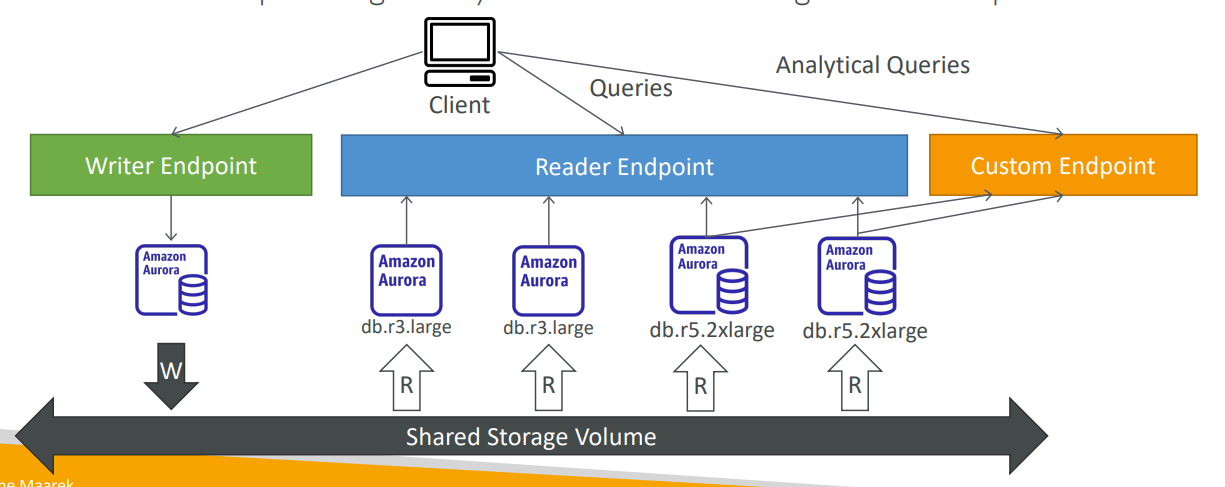

Custom Endpoints

• Define a subset of Aurora Instances as a Custom Endpoint

  • Example: Run analytical queries on specific replicas

• The Reader Endpoint is generally not used after defining Custom Endpoints

• Can set up multiple custom endpoints for different workload.

---

Backups

• Automated backups

  • 1 to 35 days (cannot be disabled)
  • point-in-time recovery in that timeframe

• Manual DB Snapshots

  • Manually triggered by the user
  • Retention of backup for as long as you want

---

Restore options

• Restoring a Aurora backup or a snapshot creates a new database

• Restoring MySQL Aurora cluster from S3

  • Create a backup of your on-premises database using Percona XtraBackup
  • Store the backup file on Amazon S3
  • Restore the backup file onto a new Aurora cluster running MySQ
• Restoring MySQL RDS database from S3
• Create a backup of your on-premises database
• Store it on Amazon S3 (object storage)
• Restore the backup file onto a new RDS instance running MySQL

---

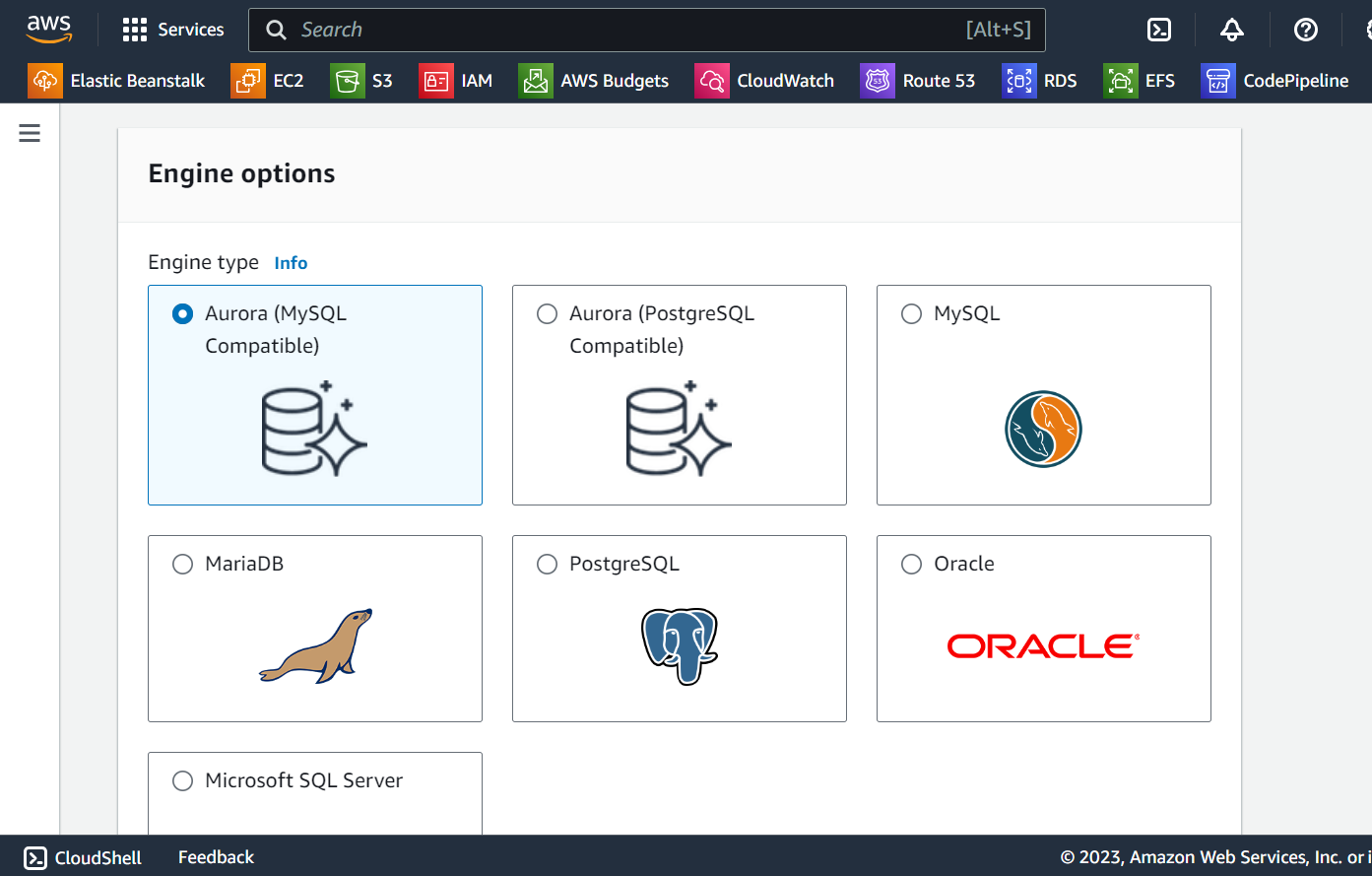

Hands-on

---

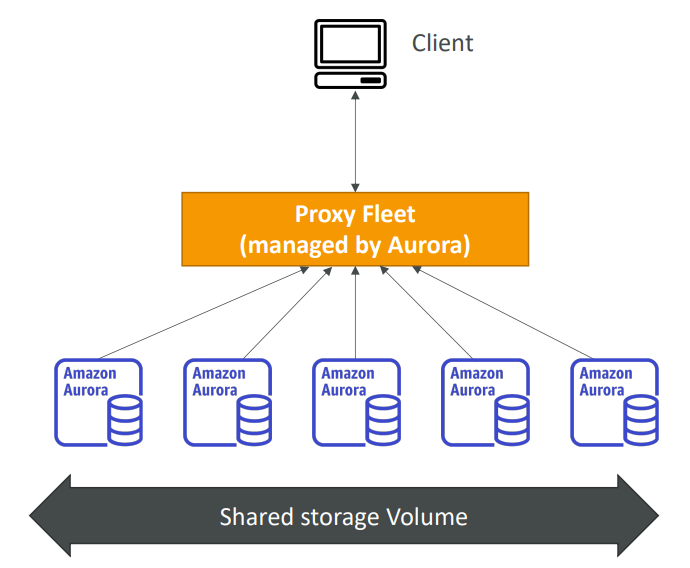

Aurora Serverless

• Automated database instantiation and auto scaling based on actual usage
• Good for infrequent, intermittent or unpredictable workloads
• No capacity planning needed
• Pay per second, can be more cost-effective

---

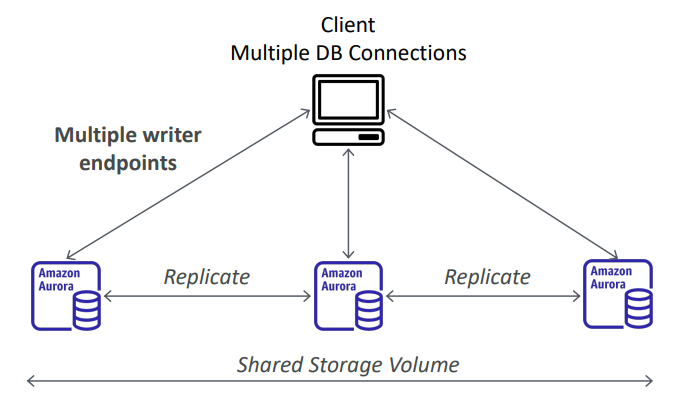

Aurora Multi-Master

• In case you want continuous write availability for the writer nodes

• Multi-Master vs Normal Aurora cluster

  • Multi-Master:

    • Each node does R/W
    • If one failover, client can write to other node.

  • Normal Aurora Cluster:

    • If the master failover, a Read Replica will be promoted as the new master.

---

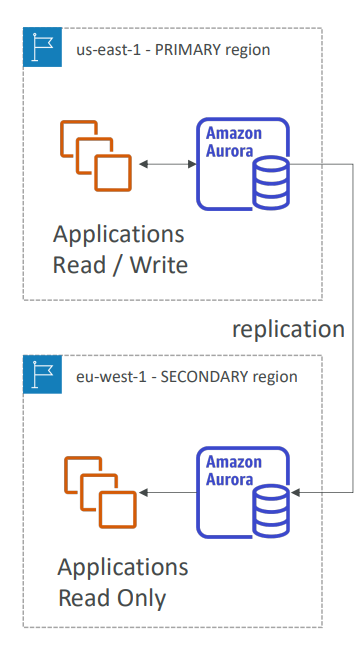

Global Aurora (Cross Region)

• Aurora Cross Region Read Replicas:
  • Useful for disaster recovery
  • Simple to put in place
• Aurora Global Database (recommended):
  • 1 Primary Region (read / write)
  • Up to 5 secondary (read-only) regions, replication lag is less than 1 second
  • Up to 16 Read Replicas per secondary region
  • Helps for decreasing latency
  • Promoting another region (for disaster recovery) has an RTO of < 1 minute
  • Typical cross-region replication takes less than 1 second

---

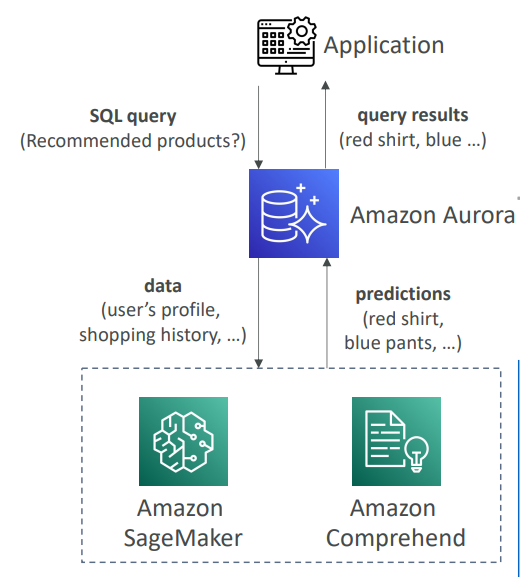

Aurora Machine Learning

• Enables you to add ML-based predictions to your applications via SQL
• Simple, optimized, and secure integration between Aurora and AWS ML services
• Supported services
  • Amazon SageMaker (use with any ML model)
  • Amazon Comprehend (for sentiment analysis)
• You don’t need to have ML experience
• Use cases:
  • fraud detection
  • ads targeting
  • sentiment analysis
  • product recommendations

---

Aurora Database Cloning

• Create a new Aurora DB Cluster from an existing one
• Faster than snapshot & restore
• Uses copy-on-write protocol
  • Initially, the new DB cluster uses the same data volume as the original DB cluster (fast and efficient–no copying is needed)
  • When updates are made to the new DB cluster data, then additional storage is allocated and data is copied to be separated
• Very fast & cost-effective
• Useful to create a “staging” database from a “production” database without impacting the production database

---
