AWS - Database Service

Back

• AWS - Database Service
  • Choosing the Right Database
  • Database Types
  • Summary
    • Amazon S3
    • Amazon RDS
    • Amazon Aurora
    • Amazon ElastiCache
    • Amazon DynamoDB 常考
    • DocumentDB
    • Amazon Keyspaces (for Apache Cassandra)
    • Amazon Neptune
    • Amazon QLDB
    • Amazon Timestream

---

Choosing the Right Database

• We have a lot of managed databases on AWS to choose from
• Questions to choose the right database based on your architecture:
  • Read-heavy, write-heavy, or balanced workload? Throughput needs? Will it change, does it need to scale or fluctuate during the day?
  • How much data to store and for how long? Will it grow? Average object size? How are they accessed?
  • Data durability? Source of truth for the data ?
  • Latency requirements? Concurrent users?
  • Data model? How will you query the data? Joins? Structured? Semi-Structured?
  • Strong schema? More flexibility? Reporting? Search? RDBMS / NoSQL?
  • License costs? Switch to Cloud Native DB such as Aurora?

---

Database Types

• RDBMS (= SQL / OLTP): – great for joins

  • RDS
  • Aurora

• NoSQL database – no joins, no SQL :

  • DynamoDB (~JSON),
  • ElastiCache (key / value pairs),
  • Neptune (graphs),
  • DocumentDB (for MongoDB),
  • Keyspaces (for Apache Cassandra)

• Object Store:

  • S3 (for big objects)
  • Glacier (for backups / archives)

• Data Warehouse (= SQL Analytics / BI):

  • Redshift (OLAP),
  • Athena,
  • EMR

• Search:

  • OpenSearch (JSON) – free text, unstructured searches

• Graphs:

  • Amazon Neptune – displays relationships between data

• Ledger:

  • Amazon Quantum Ledger Database

• Time series:

  • Amazon Timestream

• Note: some databases are being discussed in the Data & Analytics section

---

Summary

	Laug	K-V	File size
S3		Y	Big
RDS	SQL
Aurora	SQL
ElastiCache		Y
DynamoDB	NoSQL	Y	Small
DocumentDB	NoSQL	Y
Keyspace	NoSQL/CQL	Y
Neptune
QLDB
Timestream

Amazon S3

• Usage:

  • S3 is a… key / value store for objects

• Feature:

  • Great for bigger objects, not so great for many small objects
  • Serverless, scales infinitely, max object size is 5 TB, versioning capability
  • Tiers:
    • S3 Standard, S3 Infrequent Access, S3 Intelligent, S3 Glacier + lifecycle policy
  • Versioning, Encryption, Replication, MFA-Delete, Access Logs…
  • Batch operations on objects using S3 Batch, listing files using S3 Inventory
  • Performance:
    • Multi-part upload, S3 Transfer Acceleration, S3 Select
  • Automation:
    • S3 Event Notifications (SNS, SQS, Lambda, EventBridge)

• Security:

  • IAM, Bucket Policies, ACL, Access Points, Object Lambda, CORS, Object/Vault Lock
  • Encryption:
    • SSE-S3, SSE-KMS, SSE-C, client-side, TLS in transit, default encryption

• Use Cases:

  • static files,
  • key value store for big files,
  • website hosting

---

Amazon RDS

• Usage:

  • Managed PostgreSQL / MySQL / Oracle / SQL Server / MariaDB / Custom

• Features:

  • Auto-scaling capability for Storage
  • Provisioned RDS Instance Size and EBS Volume Type & Size
  • Support for Read Replicas and Multi AZ
  • RDS Custom for access to and customize the underlying instance (Oracle & SQL Server)

• Security

  • Security through IAM, Security Groups, KMS , SSL in transit
  • Support for IAM Authentication, integration with Secrets Manager

• Backup and maintenance

  • Automated Backup with Point in time restore feature (up to 35 days)
  • Manual DB Snapshot for longer-term recovery
  • Managed and Scheduled maintenance (with downtime)

• Use case:

  • Store relational datasets (RDBMS / OLTP),
  • perform SQL queries,
  • transactions

---

Amazon Aurora

• Usage:

  • Compatible API for PostgreSQL / MySQL, separation of storage and compute

• Features:

  • Storage:
    • data is stored in 6 replicas, across 3 AZ – highly available, self-healing, auto-scaling
  • Compute:
    • Cluster of DB Instance across multiple AZ, auto-scaling of Read Replicas
  • Cluster:
    • Custom endpoints for writer and reader DB instances
  • Aurora Serverless – for unpredictable / intermittent workloads, no capacity planning
  • Aurora Multi-Master – for continuous writes failover (high write availability)
  • Aurora Global: up to 16 DB Read Instances in each region, < 1 second storage replication
  • Aurora Machine Learning: perform ML using SageMaker & Comprehend on Aurora
  • Aurora Database Cloning: new cluster from existing one, faster than restoring a snapshot

• Security

  • Same security / monitoring / maintenance features as RDS

• Backup and maintenance

  • Know the backup & restore options for Aurora

• Use case:

  • same as RDS, but with less maintenance / more flexibility / more performance / more features

---

Amazon ElastiCache

• Usage

  • Managed Redis / Memcached (similar offering as RDS, but for caches)

• Featurea

  • In-memory data store, sub-millisecond latency
  • Select an ElastiCache instance type (e.g., cache.m6g.large)
  • Support for Clustering (Redis) and Multi AZ, Read Replicas (sharding)
  • Requires some application code changes to be leveraged(常考, 需要修改代码)

• Security

  • Security through IAM, Security Groups, KMS, Redis Auth

• Backup

  • Backup / Snapshot / Point in time restore feature
  • Managed and Scheduled maintenance

• Use Case:

  • Key/Value store,
  • Frequent reads, less writes,
  • cache results for DB queries,
  • store session data for websites,
  • cannot use SQL.

---

Amazon DynamoDB 常考

• Usage

  • AWS proprietary technology, managed serverless NoSQL database, millisecond latency

• Features:

  • Capacity modes:
    • provisioned capacity with optional auto-scaling
    • on-demand capacity
  • Can replace ElastiCache as a key/value store (storing session data for example, using TTL feature)等价于 ElastiCache
  • Highly Available, Multi AZ by default, Read and Writes are decoupled, transaction capability
  • DAX cluster for read cache, microsecond read latency
  • Event Processing:
    • DynamoDB Streams to integrate with AWS Lambda, or Kinesis Data Streams
  • Global Table feature: active-active setup
  • Export to S3 without using RCU within the PITR window, import from S3 without using WCU
  • Great to rapidly evolve schemas

• Backups

  • Automated backups up to 35 days with PITR (restore to new table)
  • on-demand backups

• Security

  • Security, authentication and authorization is done through IAM

• Use Case:

  • Serverless applications development (small documents 100s KB),
  • distributed serverless cache

---

DocumentDB

• Usage:

  • Aurora is an “AWS-implementation” of PostgreSQL / MySQL …
  • DocumentDB is the same for MongoDB (which is a NoSQL database)
  • MongoDB is used to store, query, and index JSON data

• Features

  • Similar “deployment concepts” as Aurora
    • Fully Managed, highly available with replication across 3 AZ
  • DocumentDB storage automatically grows in increments of 10GB, up to 64 TB.
  • Automatically scales to workloads with millions of requests per seconds

---

Amazon Keyspaces (for Apache Cassandra)

• Usage:

  • Apache Cassandra is an open-source NoSQL distributed database
  • A managed Apache Cassandra-compatible database service

• Features:

  • Serverless, Scalable, highly available, fully managed by AWS
  • Automatically scale tables up/down based on the application’s traffic
  • Tables are replicated 3 times across multiple AZ
  • Using the Cassandra Query Language (CQL)
  • Single-digit millisecond latency at any scale, 1000s of requests per second
  • Capacity:
    • On-demand mode
    • provisioned mode with auto-scaling

• Security and backup:

  • Encryption, backup, Point-In-Time Recovery (PITR) up to 35 days

• Use cases:

  • store IoT devices info,
  • time-series data, …

---

Amazon Neptune

• Usage

  • Fully managed graph database
  • A popular graph dataset would be a social network
    • Users have friends
    • Posts have comments
    • Comments have likes from users
    • Users share and like posts…

• Features

  • Highly available across 3 AZ, with up to 15 read replicas
  • Build and run applications working with highly connected datasets - optimized for these complex and hard queries
  • Can store up to billions of relations and query the graph with milliseconds latency
  • Highly available with replications across multiple AZs

• Usa Case:

  • knowledge graphs (Wikipedia),
  • fraud detection,
  • recommendation engines,
  • social networking

---

Amazon QLDB

• Usage:

  • QLDB stands for ”Quantum Ledger Database”
  • A ledger is a book recording financial transactions

• Features:

  • Fully Managed, Serverless, High available, Replication across 3 AZ
  • Used to review history of all the changes made to your application data over time
  • Immutable system:
    • no entry can be removed or modified, cryptographically verifiable
  • 2-3x better performance than common ledger blockchain frameworks, manipulate data using SQL
  • Difference with Amazon Managed Blockchain:
    • no decentralization component, in accordance with financial regulation rules

---

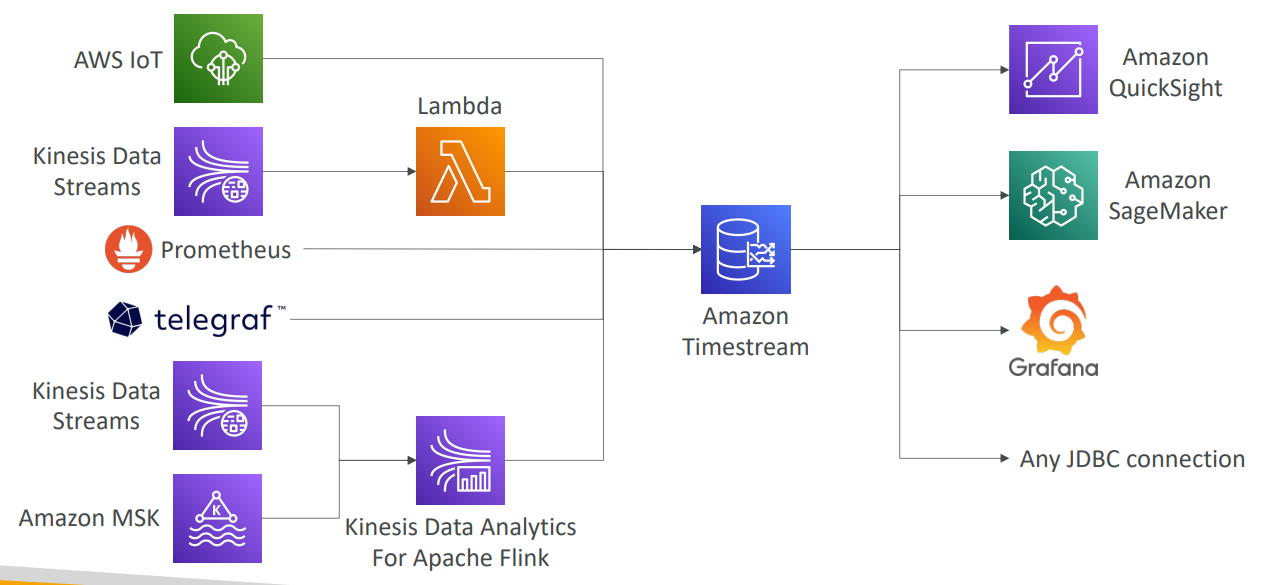

Amazon Timestream

• Usage:

  • Fully managed, fast, scalable, serverless time series database

• Features:

  • Automatically scales up/down to adjust capacity
  • Store and analyze trillions of events per day
  • 1000s times faster & 1/10th the cost of relational databases
  • Scheduled queries, multi-measure records, SQL compatibility
  • Data storage tiering:
    • recent data kept in memory
    • historical data kept in a cost-optimized storage
  • Built -in time series analytics functions (helps you identify patterns in your data in near real-time)

• Security:

  • Encryption in transit and at rest

• Use cases:

  • IoT apps,
  • operational applications,
  • real-time analytics, …

• Sample:
  • A startup is working on developing a new project to reduce forest fires due to climate change. The startup is developing sensors that will be spread across the entire forest to make some readings such as temperature, humidity, and pressures which will help detect the forest fires before it happens. They are going to have thousands of sensors that are going to store a lot of readings each second. There is a requirement to store those readings and do fast analytics so they can predict if there is a fire. Which AWS service can they use to store those readings?
    • Timestream
    • Iot, real-time analytics

---
