AWS - Amazon DynamoDB

Back

AWS - Amazon DynamoDB

`Amazon DynamoDB` 常考篇目

NoSQL database
- not a relational database
- with transaction support
Fully managed, highly available with replication across multiple AZs
Scales to massive workloads, distributed database
Millions of requests per seconds, trillions of row, 100s of TB of storage
Fast and consistent in performance (single-digit millisecond)即很快
Integrated with IAM for security, authorization and administration
Low cost and auto-scaling capabilities
No maintenance or patching, always available

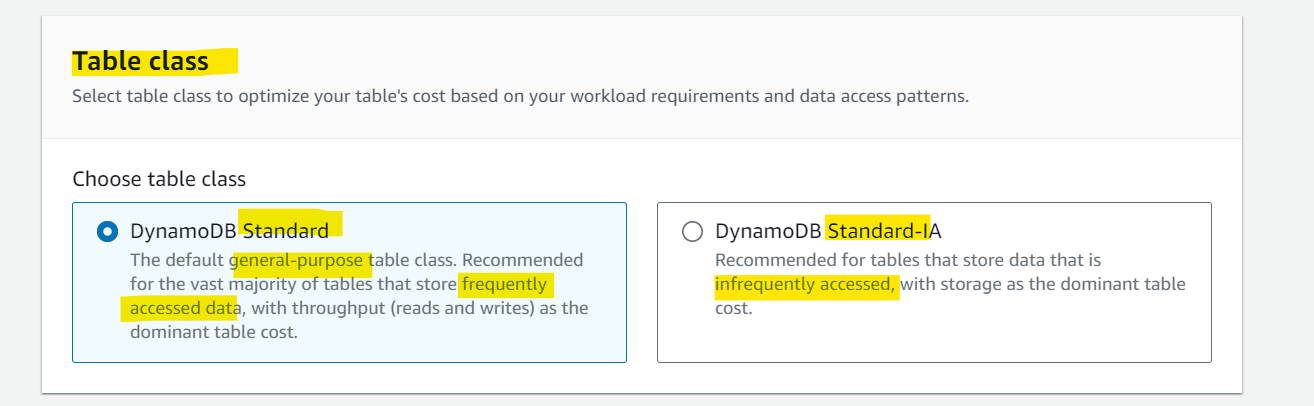

Standard & Infrequent Access (IA) Table Class

Basics

No need to create a database like RDS / Aurora

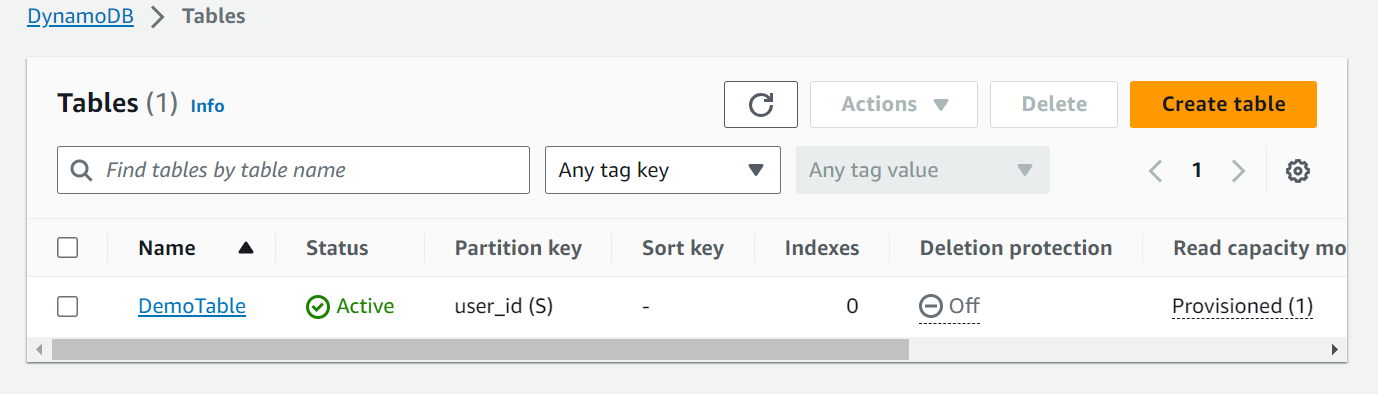

DynamoDB is made of Tables

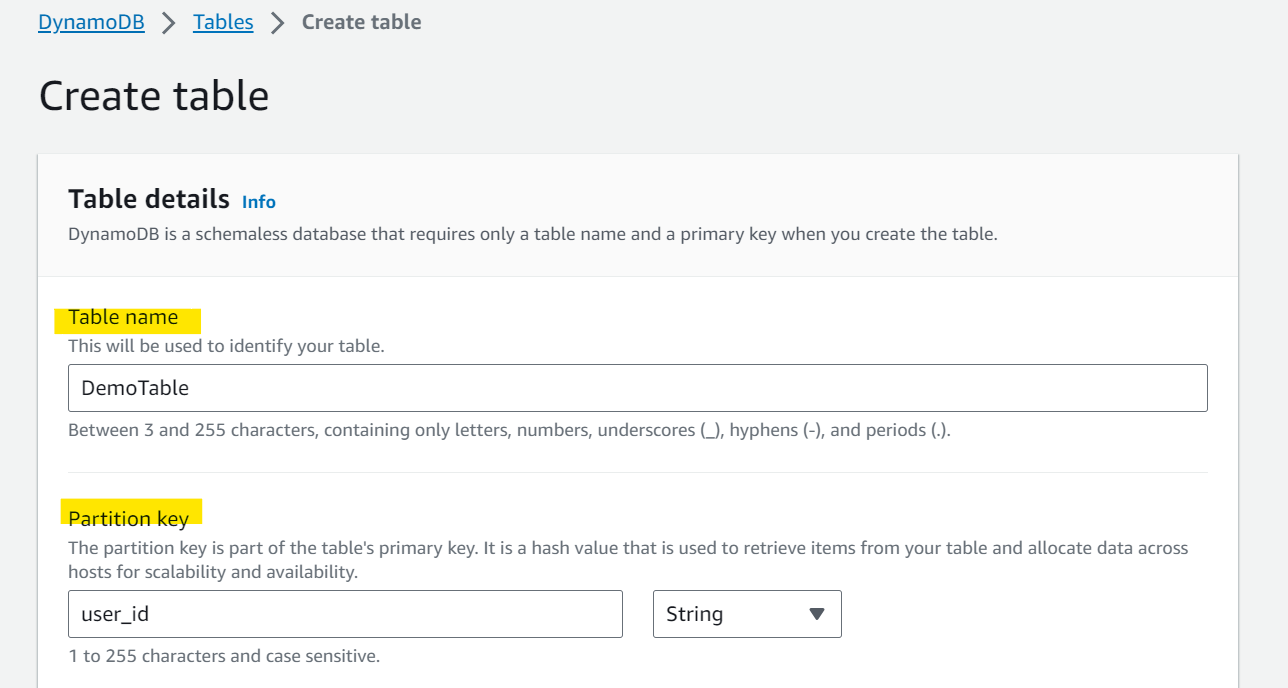

- Each table has a Primary Key (must be decided at creation time)

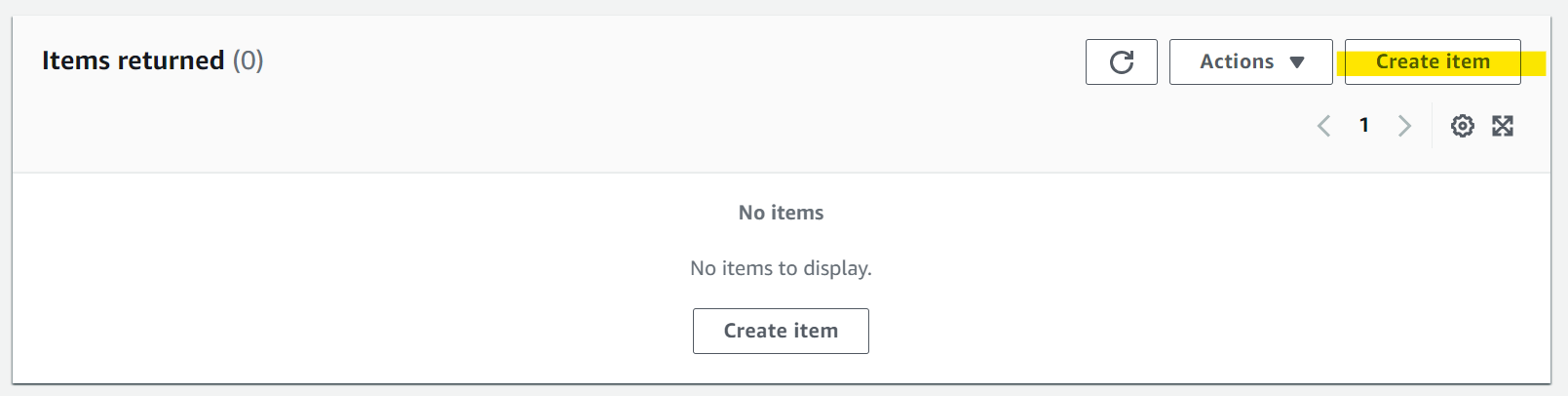

- Each table can have an infinite number of items (= rows)

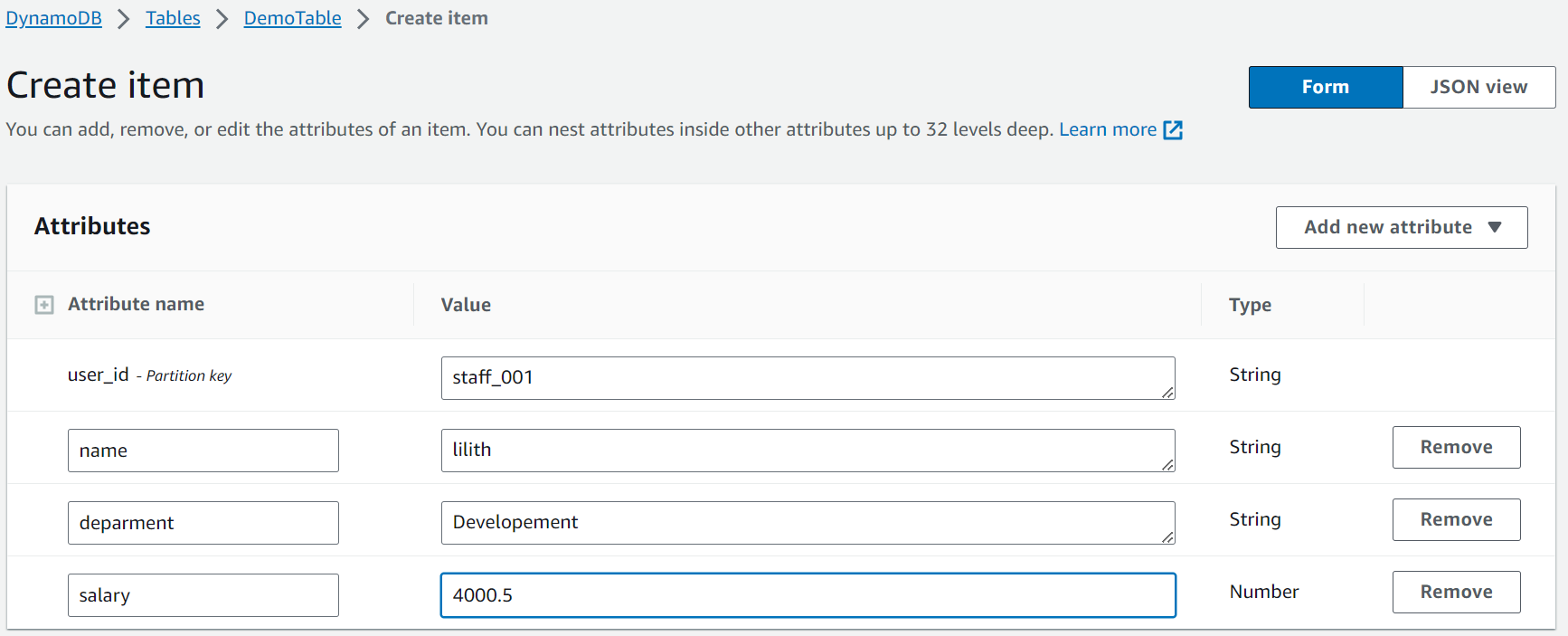

- Each item has attributes (can be added over time – can be null)
  - Unlike RDS / Aurora, schema is easy to evolve.
- Maximum size of an item is 400KB(not suitable to store large objects)
Data types supported are:
- Scalar Types
  - String, Number, Binary, Boolean, Null
- Document Types
  - List, Map
- Set Types
  - String Set, Number Set, Binary Set
Therefore, in DynamoDB you can rapidly evolve schemas

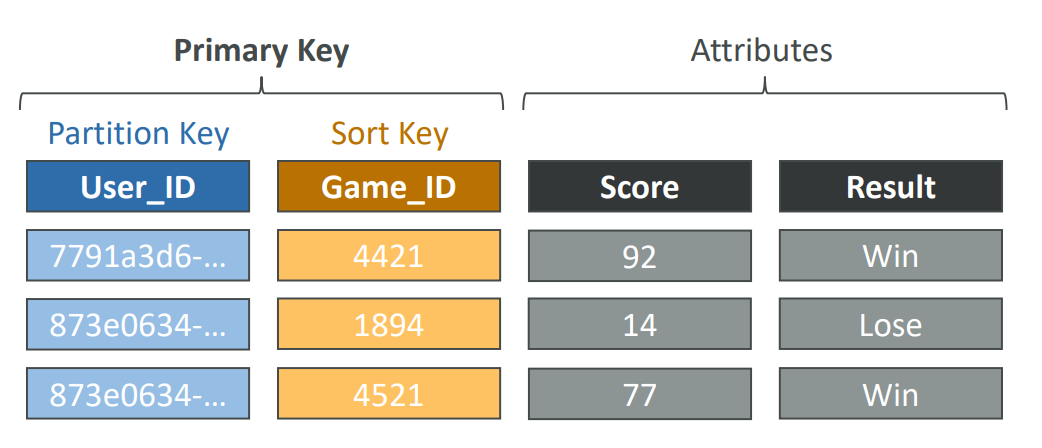

dynamo_table_example

Sample:
- Before you create a DynamoDB table, you need to provision the EC2 instance the DynamoDB table will be running on.
  - False
- DynamoDB is serverless with no servers to provision, patch, or manage and no software to install, maintain or operate. It automatically scales tables up and down to adjust for capacity and maintain performance. It provides both provisioned (specify RCU & WCU) and on-demand (pay for what you use) capacity modes.
  - The maximum size of an item in a DynamoDB table is 400kb

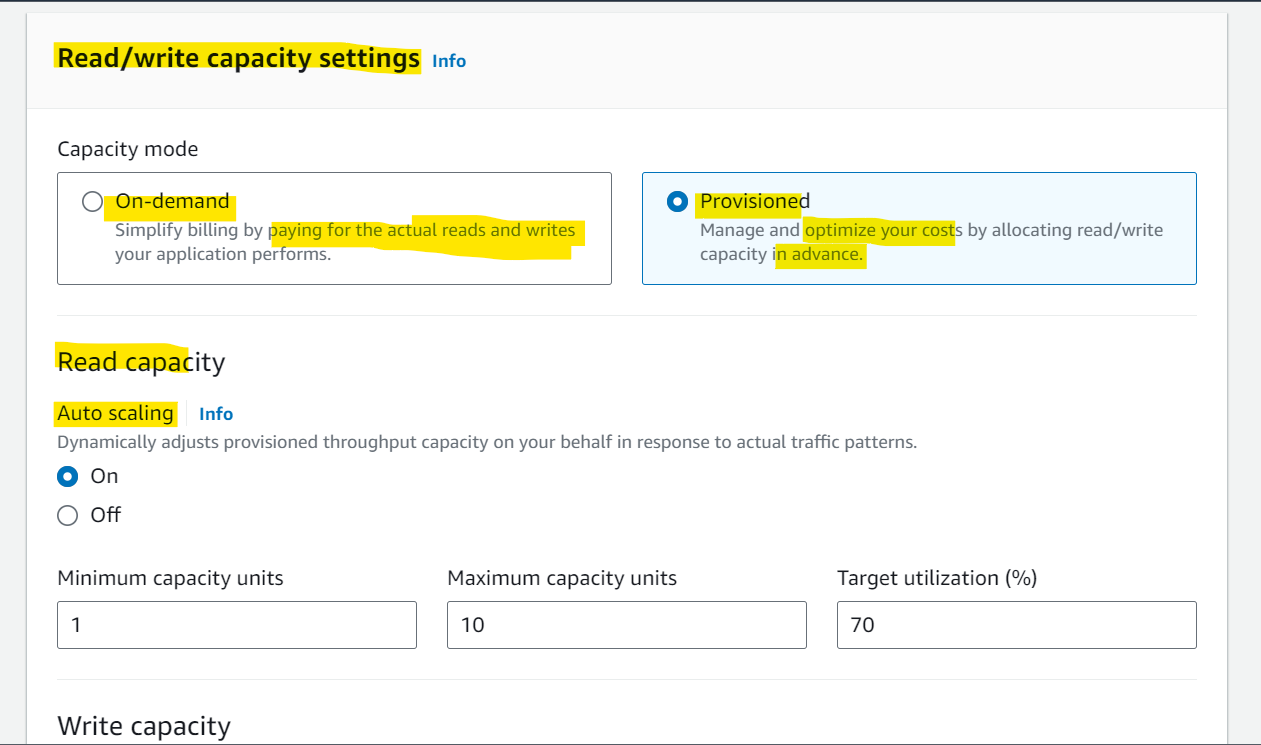

Read/Write Capacity Modes

Control how you manage your table’s capacity (read/write throughput)
Provisioned Mode (default)
- You specify the number of reads/writes per second
- You need to plan capacity beforehand
- Pay for provisioned Read Capacity Units (RCU) & Write Capacity Units (WCU)
- Possibility to add auto-scaling mode for RCU & WCU(but not scalling fast enough like On-Demand Mode)
On-Demand Mode
- Read/writes automatically scale up/down with your workloads
- No capacity planning needed
- Pay for what you use, more expensive ($$$)
- Great for unpredictable workloads, steep sudden spikes
Sample:
- You have provisioned a DynamoDB table with 10 RCUs and 10 WCUs. A month later you want to increase the RCU to handle more read traffic. What should you do?
  - RCU and WCU are decoupled, so you can increase/decrease each value separately.
- You are running an application in production that is leveraging DynamoDB as its datastore and is experiencing smooth sustained usage. There is a need to make the application run in development mode as well, where it will experience the unpredictable volume of requests. What is the most cost-effective solution that you recommend?
  - production=Provisioned mode+auto scaling, development=on-demand mode

`DynamoDB Stream` Processing

Ordered stream of item-level modifications (create/update/delete) in a table
Use cases:
- React to changes in real-time (welcome email to users)
- Real-time usage analytics
- Insert into derivative tables
- Implement cross-region replication
- Invoke AWS Lambda on changes to your DynamoDB table
2 Types of Stream processing in DynamoDB
- DynamoDB Streams
  - 24 hours retention
  - Limited # of consumers
  - Process using AWS Lambda Triggers, or DynamoDB Stream Kinesis adapter
- Kinesis Data Streams (newer)
  - 1 year retention
  - High # of consumers
  - Process using AWS Lambda, Kinesis Data Analytics, Kineis Data Firehose, AWS Glue Streaming ETL

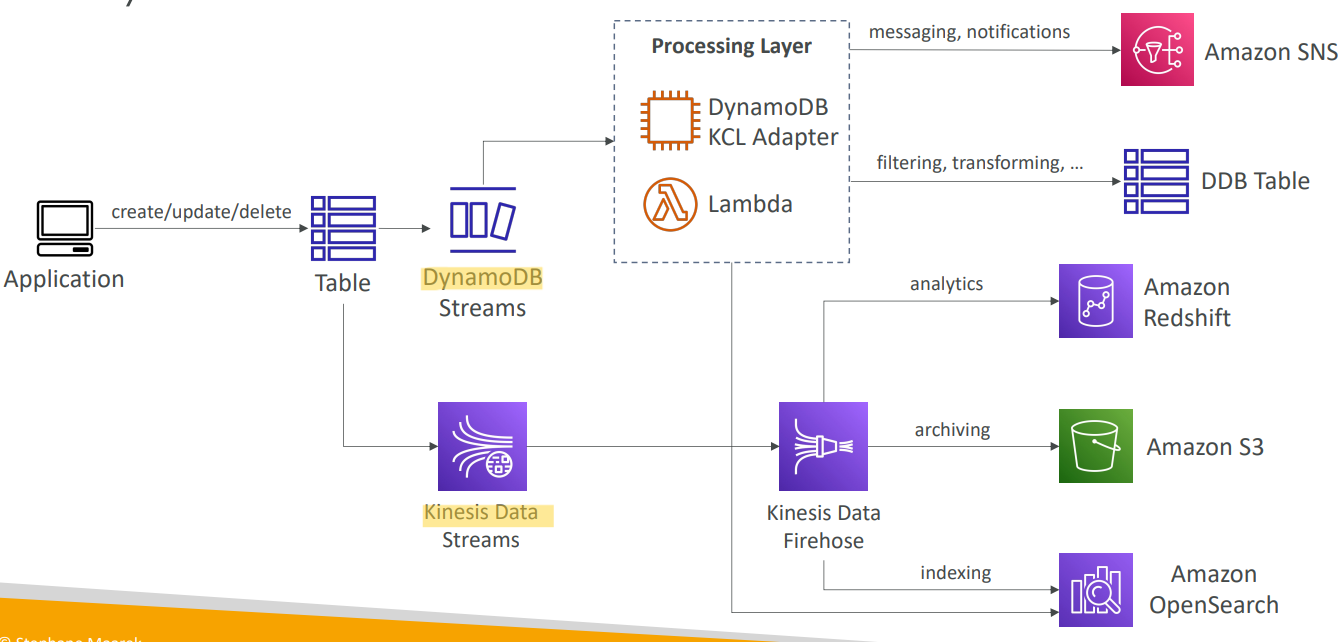

dynamodb_streams_diagram

Sample:
- You have developed a mobile application that uses DynamoDB as its datastore. You want to automate sending welcome emails to new users after they sign up. What is the most efficient way to achieve this?
- DynamoDB Streams allows you to capture a time-ordered sequence of item-level modifications in a DynamoDB table. It’s integrated with AWS Lambda so that you create triggers that automatically respond to events in real-time.

Time To Live (`TTL`)

Automatically delete items after an expiry timestamp
Use cases:
- reduce stored data by keeping only current items,
- adhere to regulatory obligations,
- web session handling(常考)
sample:
- A website is currently in the development process and it is going to be hosted on AWS. There is a requirement to store user sessions for users logged in to the website with an automatic expiry and deletion of expired user sessions. Which of the following AWS services are best suited for this use case?
  - store session into dynamoDB enabling TTL

Backups for disaster recovery

Continuous backups using point-in-time recovery (PITR)
- Point-in-time recovery to any time within the backup window
- Optionally enabled for the last 35 days
- The recovery process creates a new table
On-demand backups
- Full backups for long-term retention, until explicitely deleted
- Doesn’t affect performance or latency
- Can be configured and managed in AWS Backup (enables cross-region copy)
- The recovery process creates a new table

Integration with Amazon S3

Export to S3 (must enable PITR)
- feature
  - Works for any point of time in the last 35 days
  - Doesn’t affect the read capacity of your table
  - Export in DynamoDB JSON or ION format
- Use Case:
  - Perform data analysis on top of DynamoDB
  - Retain snapshots for auditing
  - ETL on top of S3 data before importing back into DynamoDB

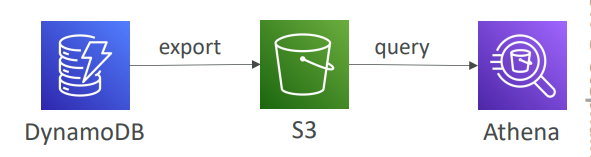

dynamodb_export_s3

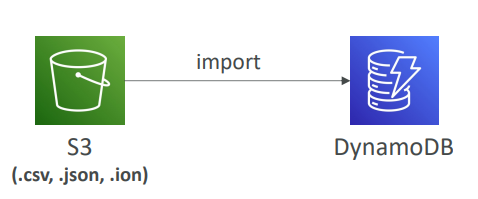

Import from S3
- Import CSV, DynamoDB JSON or ION format
- Doesn’t consume any write capacity
- Creates a new table
- Import errors are logged in CloudWatch Logs

Sample:
- You are a DevOps engineer in a football company that has a website that is backed by a DynamoDB table. The table stores viewers’ feedback for football matches. You have been tasked to work with the analytics team to generate reports on the viewers’ feedback. The analytics team wants the data in DynamoDB in json format and hosted in an S3 bucket to start working on it and create the reports. What is the best and most cost-effective way to convert DynamoDB data to json files?
  - Select DynamoDB table then select Export to S3

`DynamoDB Accelerator (DAX)`

Fully-managed, highly available, seamless inmemory cache for DynamoDB
Help solve read congestion by caching
Microseconds latency for cached data
Doesn’t require application logic modification(compatible with existing DynamoDB APIs)
5 minutes TTL for cache (default)
Sample:
- You have an e-commerce website where you are using DynamoDB as your database. You are about to enter the Christmas sale and you have a few items which are very popular and you expect that they will be read often. Unfortunately, last year due to the huge traffic you had the ProvisionedThroughputExceededException exception. What would you do to prevent this error from happening again?
  - Create DAX
  - DynamoDB Accelerator (DAX) is a fully managed, highly available, in-memory cache for DynamoDB that delivers up to 10x performance improvement. It caches the most frequently used data, thus offloading the heavy reads on hot keys off your DynamoDB table, hence preventing the ProvisionedThroughputExceededException exception.
- A company has a serverless application on AWS which consists of Lambda, DynamoDB, and Step Functions. In the last month, there are an increase in the number of requests against the application which results in an increase in DynamoDB costs, and requests started to be throttled. After further investigation, it shows that the majority of requests are read requests against some queries in the DynamoDB table. What do you recommend to prevent throttles and reduce costs efficiently?
  - DAX to cache most frequently read data.

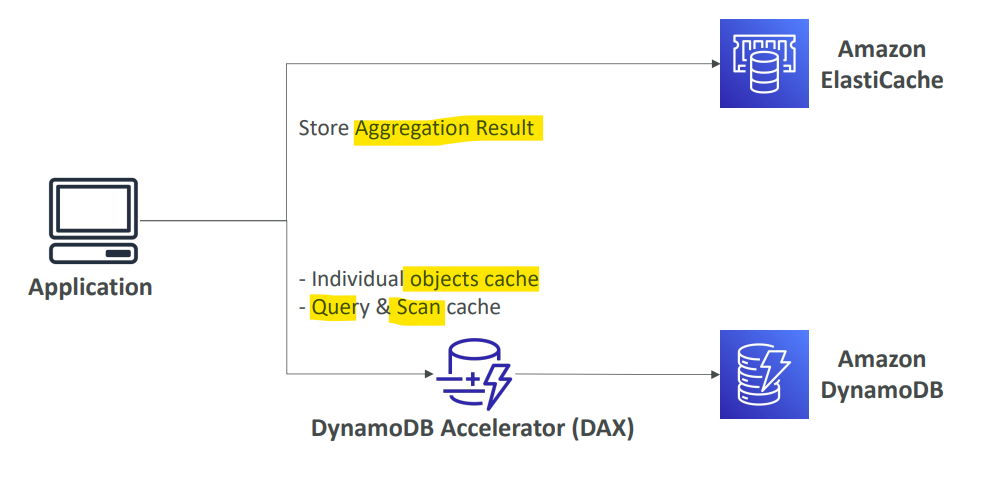

`DynamoDB Accelerator (DAX)` vs. `ElastiCache`

`DynamoDB Global Tables`(multiple-regions)

Make a DynamoDB table accessible with low latency in multiple-regions
Active-Active replication
- Applications can READ and WRITE to the table in any region
Must enable DynamoDB Streams as a pre-requisite

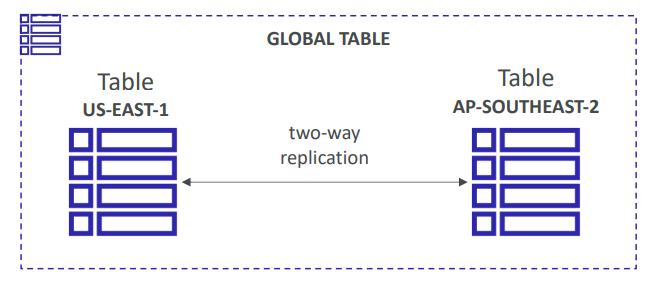

dynamodb_global_table

sample:
- You have created a DynamoDB table in ap-northeast-1 and would like to make it available in eu-west-1, so you decided to create a DynamoDB Global Table. What needs to be enabled first before you create a DynamoDB Global Table?
  - DynamoDB Streams enable DynamoDB to get a changelog and use that changelog to replicate data across replica tables in other AWS Regions.
