AWS - RDS

Back

• AWS - RDS
  • RDS Overview
    • Ports
    • Storage Auto Scaling
    • Read Replicas for read scalability
    • Multi AZ (Disaster Recovery)
    • Hands-On: Create
  • RDS Custom
  • RDS Backups
  • Restore options
  • RDS \& Aurora Security
  • RDS Proxy

---

RDS Overview

• RDS

  • stands for Relational Database Service
  • It’s a managed DB service for DB use SQL as a query language.

• It allows to create databases in the cloud that are managed by AWS

  • Postgres
  • MySQL
  • MariaDB
  • Oracle
  • Microsoft SQL Server
  • Aurora (AWS Proprietary database)

---

• Advantage over using RDS versus deploying DB on EC2

  • RDS is a managed service:
    • Automated provisioning, OS patching
    • Continuous backups and restore to specific timestamp (Point in Time Restore)!
    • Monitoring dashboards
    • Read replicas for improved read performance
    • Multi AZ setup for DR (Disaster Recovery)
    • Maintenance windows for upgrades
    • Scaling capability (vertical and horizontal)
    • Storage backed by EBS (gp2 or io1)

• BUT you can’t SSH into your instances

---

Ports

• Important ports:

Protocol	Port
FTP	21
SSH	22
SFTP	22
HTTP	80
HTTPS	443

• RDS Databases ports:

Database	Port
PostgreSQL	5432
Aurora(PostgreSQL compatible)	5432
MySQL	3306
Aurora(MySQL compatible)	3306
MariaDB	3306
Oracle RDS	1521
MSSQL Server	1433

---

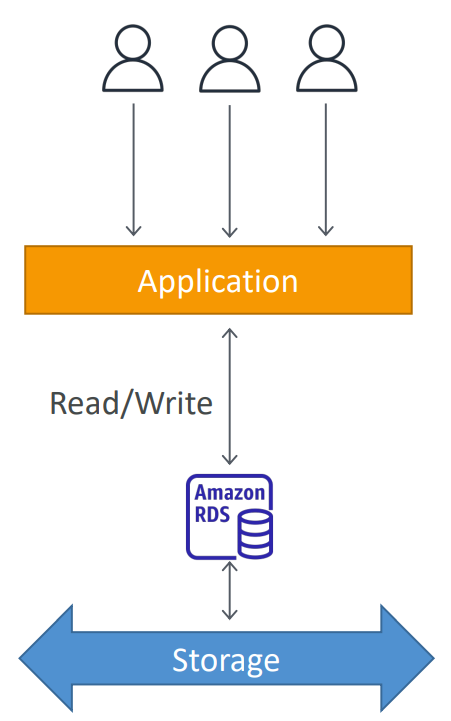

Storage Auto Scaling

• Helps increase storage on RDS DB instance dynamically

  • When RDS detects you are running out of free database storage, it scales automatically
  • Avoid manually scaling your database storage

• You have to set Maximum Storage Threshold (maximum limit for DB storage)

• Automatically modify storage if:
  • Free storage is less than 10% of allocated storage
  • Low-storage lasts at least 5 minutes
  • 6 hours have passed since last modification
• Useful for applications with unpredictable workloads
• Supports all RDS database engines (MariaDB, MySQL, PostgreSQL, SQL Server, Oracle)

---

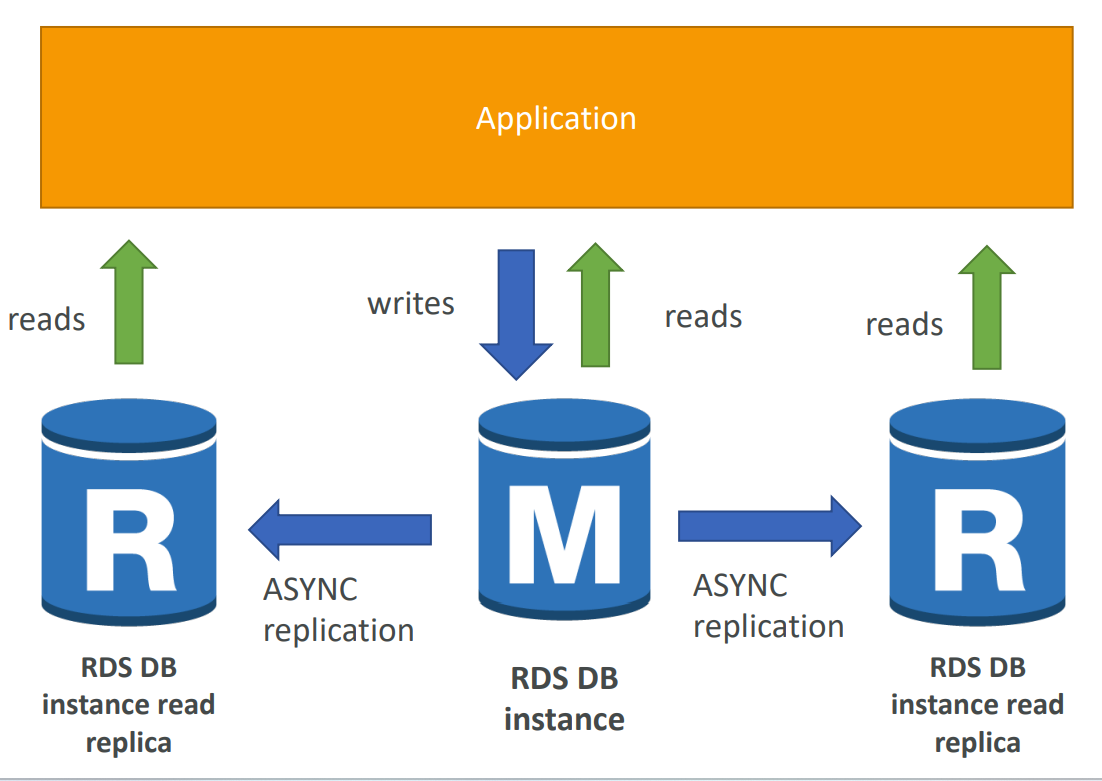

Read Replicas for read scalability

• Up to 15 Read Replicas
• Within AZ, Cross AZ or Cross Region
• Replication is ASYNC, so reads are eventually consistent
• Replicas can be promoted to their own DB 可以提升为数据库之一.
  • Applications must update the connection string to leverage read. replicas 必须升级连接字符串.

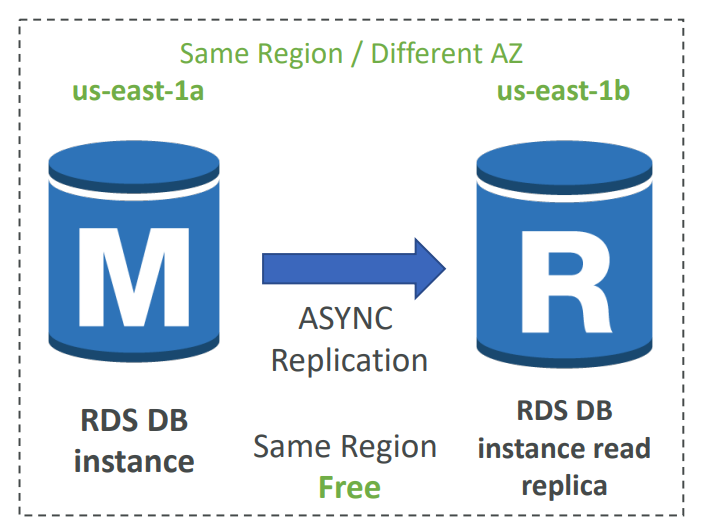

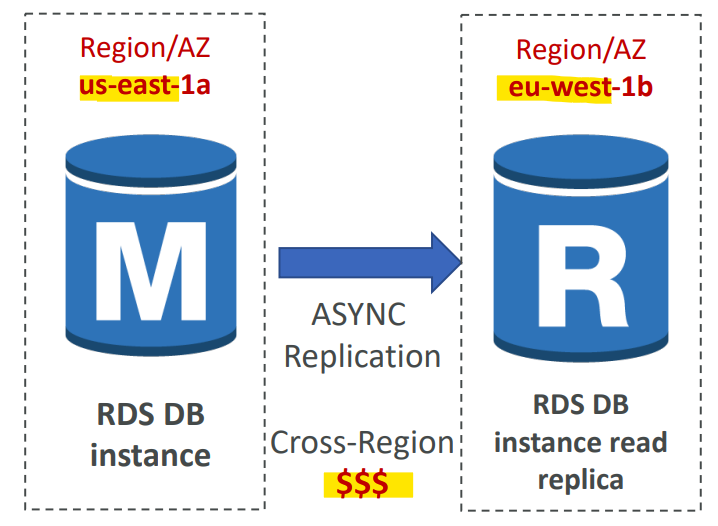

• Network Cost

  • In AWS there’s a network cost when data goes from one AZ to another

  • For RDS Read Replicas within the same region, you don’t pay that fee

---

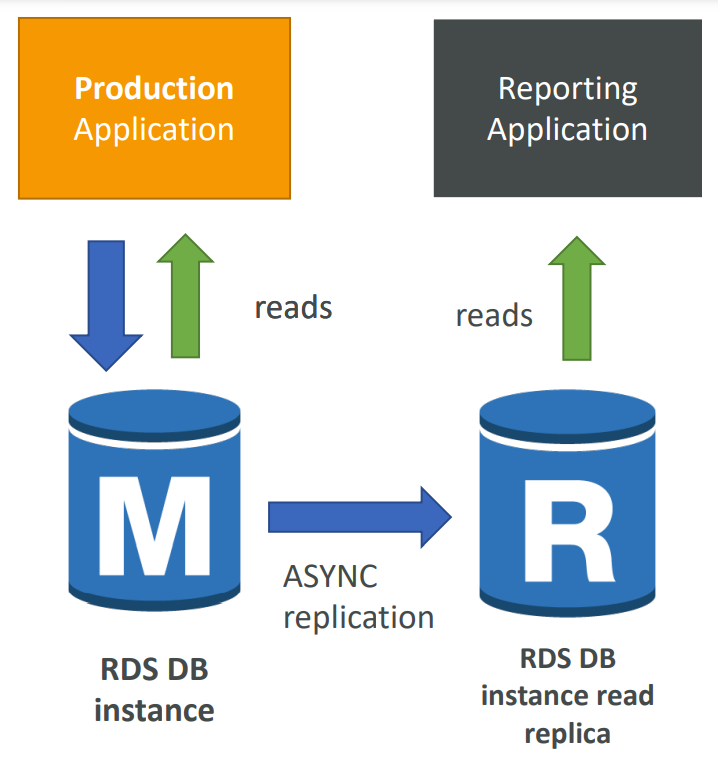

• Use Cases

  • You have a production database that is taking on normal load
  • You want to run a reporting application to run some analytics
    • Read Replicas will help as your analytics application can now perform queries against it, and these queries won’t impact the main production RDS database.
  • You create a Read Replica to run the new workload there
  • The production application is unaffected
  • Read replicas are used for SELECT (=read) only kind of statements (not INSERT, UPDATE, DELETE)

---

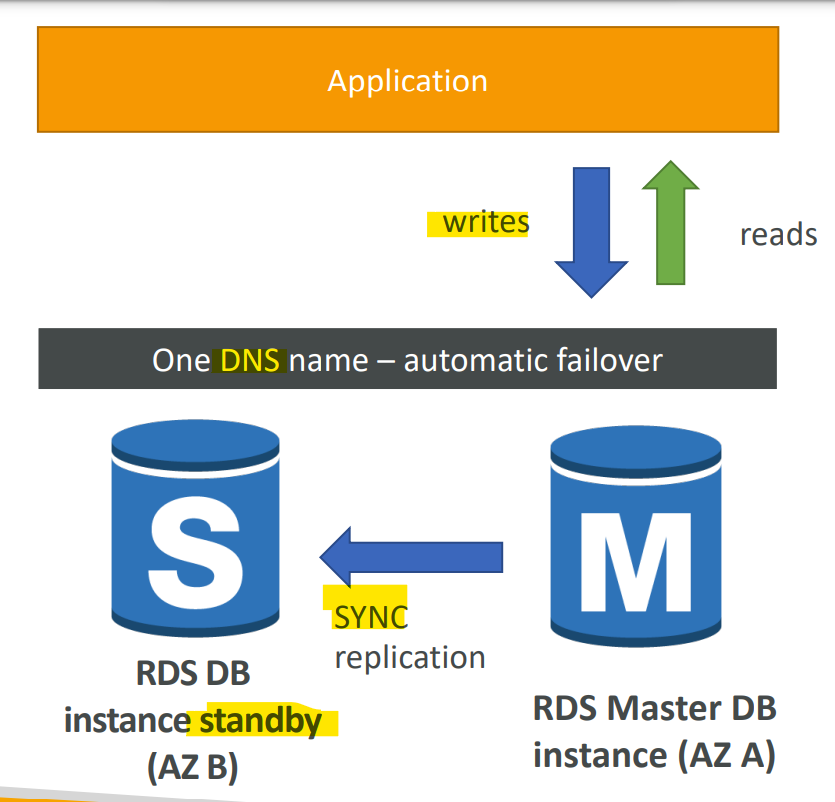

Multi AZ (Disaster Recovery)

• SYNC replication
• One DNS name – automatic app failover(故障转移) to standby
  • Multi-AZ keeps the same connection string regardless of which database is up.
• Increase availability
• Failover in case of loss of AZ, loss of network, instance or storage failure
• No manual intervention in apps
• Not used for scaling 不是 scaling
• Note:The Read Replicas be setup as Multi AZ for Disaster Recovery (DR) 不只是数据库本身, read replica 也可以

---

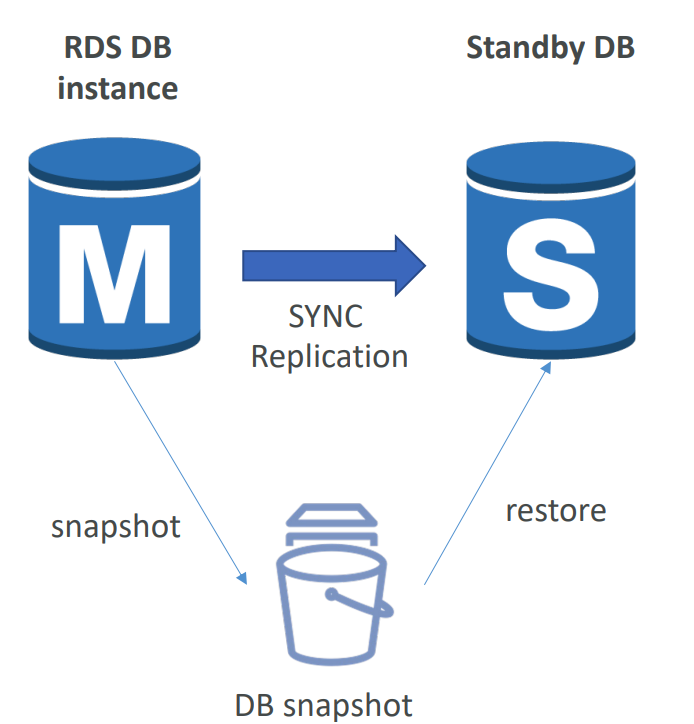

• From Single-AZ to Multi-AZ 启用 multi 的原理:

  • Zero downtime operation (no need to stop the DB)无需下线
  • Just click on “modify” for the database and enable
  • The following happens internally:
    • A snapshot is taken 设 s3
    • A new DB is restored from the snapshot in a new AZ
    • Synchronization is established between the two databases

---

Hands-On: Create

---

RDS Custom

• Managed Oracle and Microsoft SQL Server Database with OS and database customization

• RDS vs. RDS Custom

  • RDS:

    • entire database and the OS to be managed by AWS
    • Automates setup, operation, and scaling of database in AWS

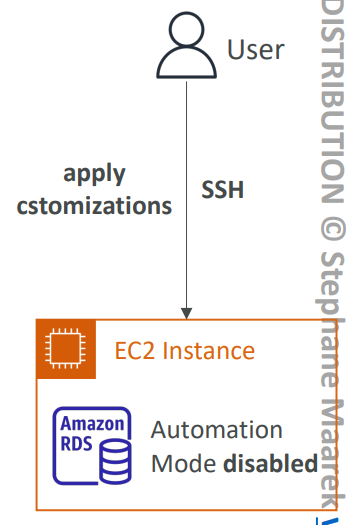

  • Custom:

    • full admin access to the underlying OS and the database
      • Configure settings
      • Install patches
      • Enable native features
• Access the underlying EC2 Instance using SSH or SSM Session Manager
• De-activate Automation Mode to perform your customization,
• Better to take a DB snapshot before

---

RDS Backups

• Automated backups:

  • Daily full backup of the database (during the backup window)
  • Transaction logs are backed-up by RDS every 5 minutes
  • => ability to restore to any point in time (from oldest backup to 5 minutes ago)
  • 1 to 35 days of retention, set 0 to disable automated backups

• Manual DB Snapshots

  • Manually triggered by the user
  • Retention of backup for as long as you want

• Trick: for a RDS used in short period per month.

  • in a stopped RDS database, you will still pay for storage.
  • If you plan on stopping it for a long time, you should snapshot, delete & restore instead

---

Restore options

• Restoring a RDS backup or a snapshot creates a new database.

• Restoring MySQL RDS database from S3

  • Create a backup of your on-premises database
  • Store it on Amazon S3 (object storage)
  • Restore the backup file onto a new RDS instance running MySQL

---

RDS & Aurora Security

• Encryption

  • At-rest encryption: 储存是加密

    • Database master & replicas encryption using AWS KMS – must be defined as launch time
      • If the master is not encrypted, the read replicas cannot be encrypted
      • can not create encrypted Read Replicas from an unencrypted RDS DB instance.
    • To encrypt an un-encrypted database, go through a DB snapshot & restore as encrypted

  • In-flight encryption: between db and clients

    • TLS-ready by default
    • use the AWS TLS root certificates client-side

• Authentication:

  • can enable IAM Authentication (Not default): IAM roles to connect to your database (instead of username/pw)
  • Oracle NOT support IAM Database Authentication

• Network access:

  • Security Groups: Control Network access to your RDS / Aurora DB
  • No SSH available except on RDS Custom

• Audit:

  • Audit Logs can be enabled and sent to CloudWatch Logs for longer retention

---

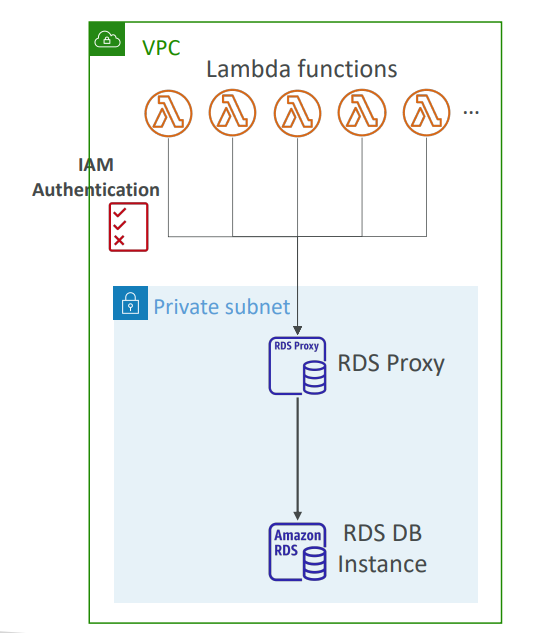

RDS Proxy

• Fully managed database proxy for RDS
• Allows apps to pool and share DB connections established with the database
• Improving database efficiency by reducing the stress on database resources (e.g., CPU, RAM) and minimize open connections (and timeouts)
• Serverless, autoscaling, highly available (multi-AZ)
• Reduced RDS & Aurora failover time by up 66%
• Supports RDS (MySQL, PostgreSQL, MariaDB, MS SQL Server) and Aurora (MySQL, PostgreSQL)
• No code changes required for most apps
• Enforce IAM Authentication for DB, and securely store credentials in AWS Secrets Manager
• RDS Proxy is never publicly accessible (must be accessed from VPC)

---
