AWS - Disaster Recovery

disaster
- the negative impact of any event on a company’s business continuity or finances
Disaster recovery (DR)
- about preparing for and recovering from a disaster
Types of disaster recovery?
- On-premise => On-premise:
  - traditional DR, and very expensive
- On-premise => AWS Cloud:
  - hybrid recovery
- AWS Cloud Region A => AWS Cloud Region B
Need to define two terms:
- RPO: Recovery Point Objective
- RTO: Recovery Time Objective

RPO: Recovery Point Objective
- how much of a data loss is to be accepted in case of a disaster happens.
- Depends on how often the backups are run.
- when a disaster strikes, the time between RPO and the disaster is the data loss.
  - e.g., if data are backs up every hour and a disaster strikes, then can go back in time for an hour and lost one hour of data.
RTO: Recovery Time Objective
- When recover from disaster, between teh disaster and the RTO is the amount of downtime the application has.

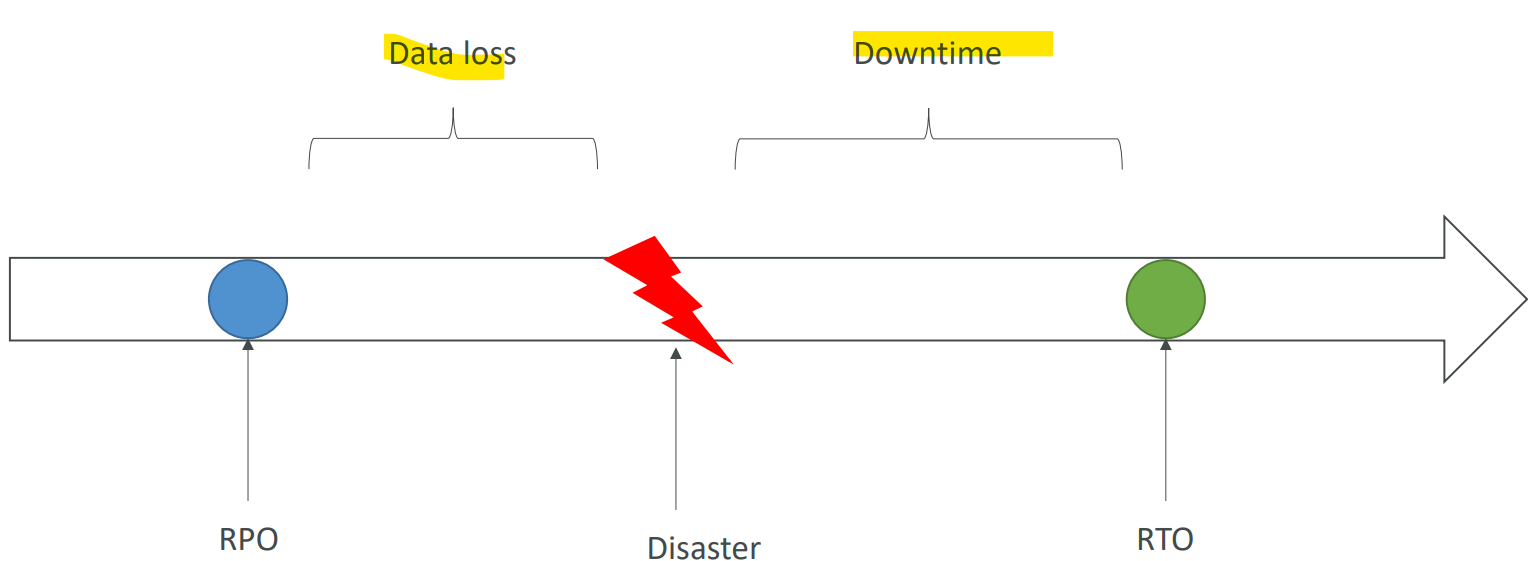

rpo_rto

Optimizing for the RPO and the RTO drives solution architecture decisions.
- The smaller these things to be, the higher the cost.

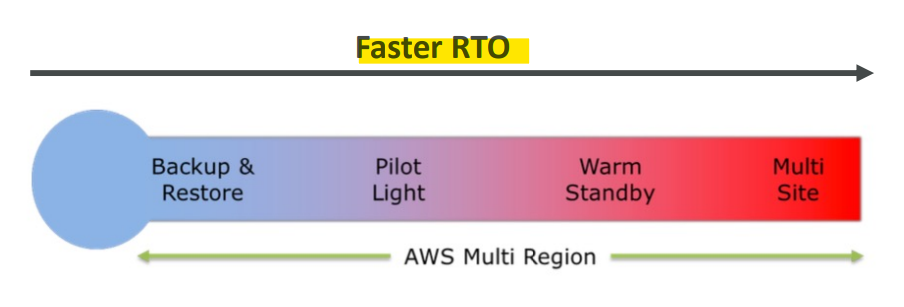

dr_strategies

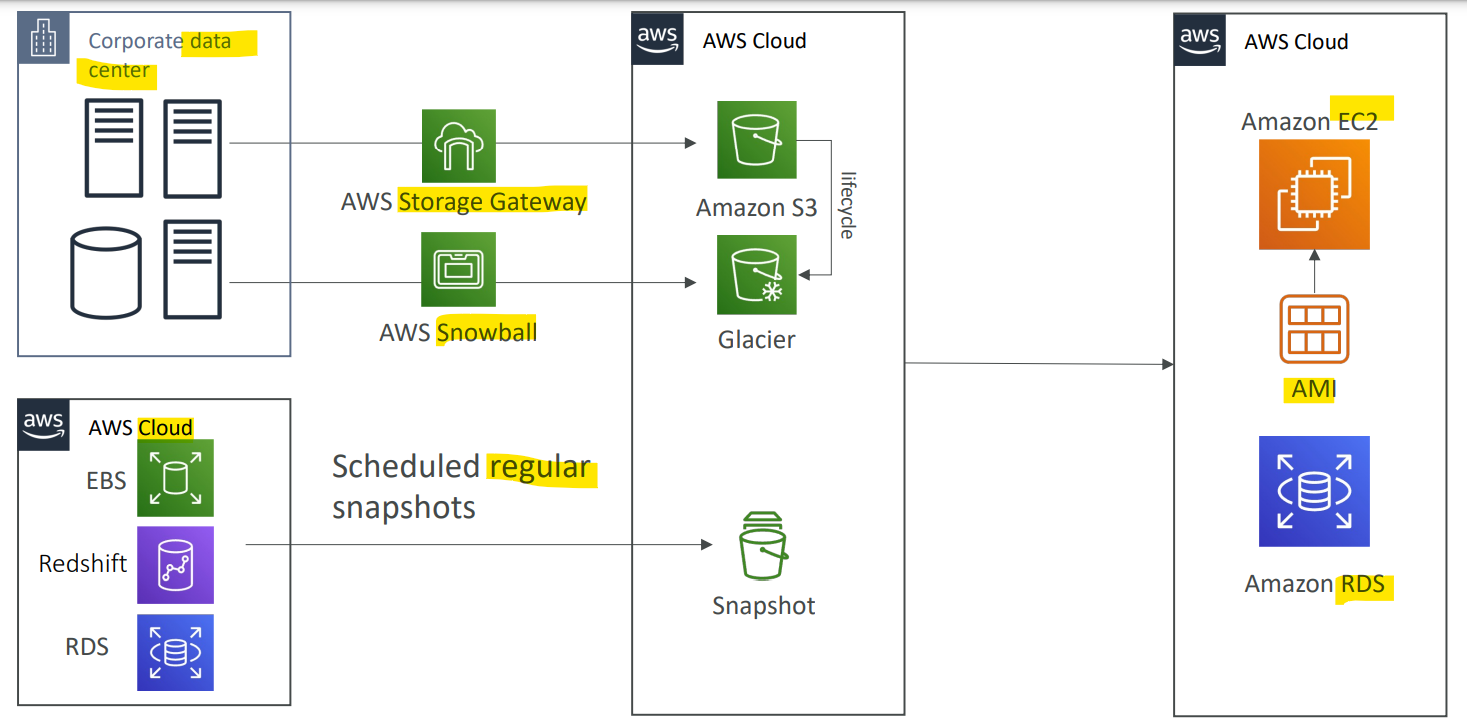

backup_restore

Sample:
- Which of the following Disaster Recovery strategies has a potentially high Recovery Point Objective (RPO) and Recovery Time Objective (RTO)?
  - Backup and Restore

A small version of the app is always running in the cloud
Useful for the critical core (pilot light)
Very similar to Backup and Restore
Faster than Backup and Restore as critical systems are already up
Features:
- only for critical core assistance.
- lower RPO and RTO
  - only the RDS database is running for data replication.
- manage costs

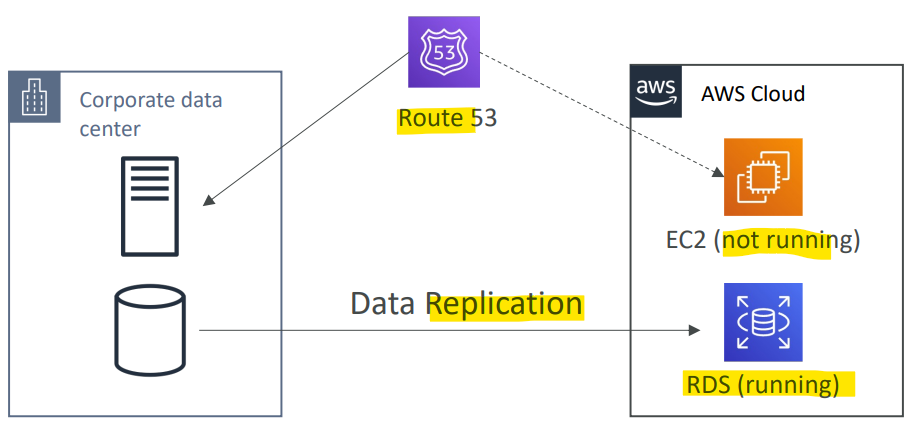

dr_pilot_ligh

Sample:
- As part of your Disaster Recovery plan, you would like to have only the critical infrastructure up and running in AWS. You don’t mind a longer Recovery Time Objective (RTO). Which DR strategy do you recommend?
  - Pilot Light

Full system is up and running, but at minimum size
Upon disaster, we can scale to production load
Feature:
- can descrease RPO and RTO
  - full system is running
- more costly
  - need ELB and EC2 asg

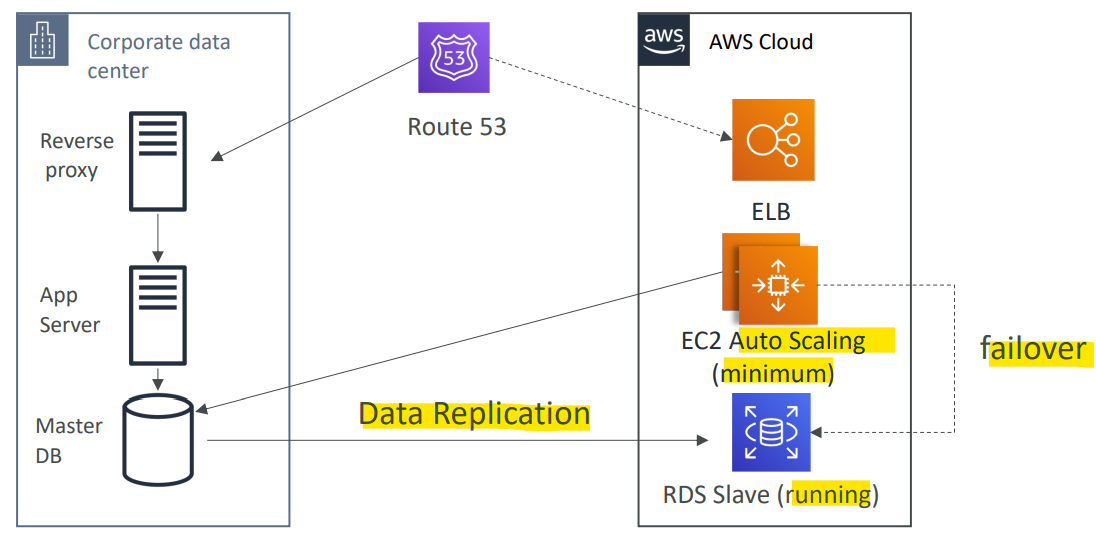

dr_warm_standby

Sample:
- You want to make a Disaster Recovery plan where you have a scaled-down version of your system up and running, and when a disaster happens, it scales up quickly. Which DR strategy should you choose?
  - Warm Standby

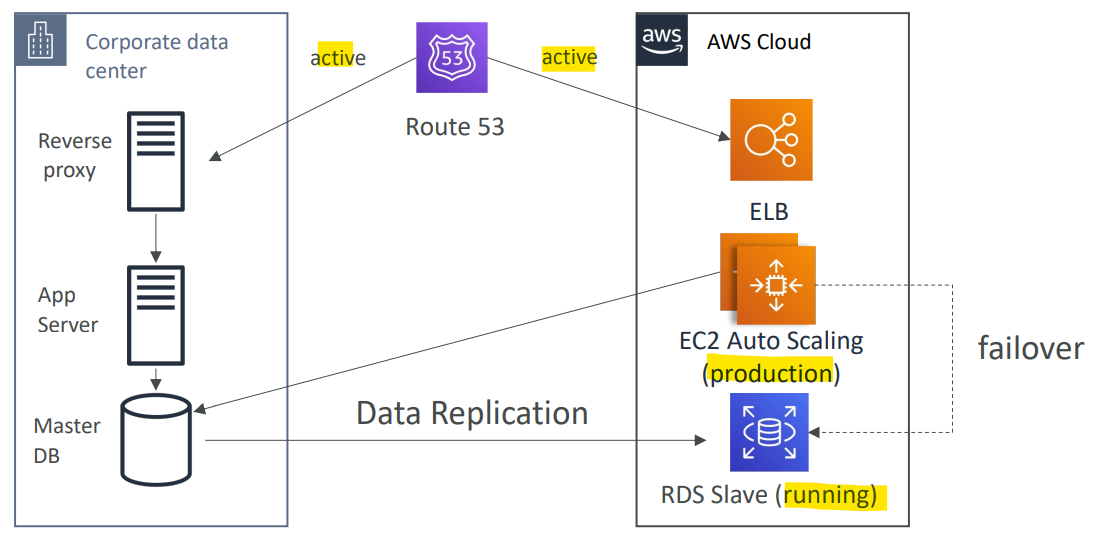

dr_multi_site

Sample:
- You would like to get the Disaster Recovery strategy with the lowest Recovery Time Objective (RTO) and Recovery Point Objective (RPO), regardless of the cost. Which DR should you choose?
  - Multi Site

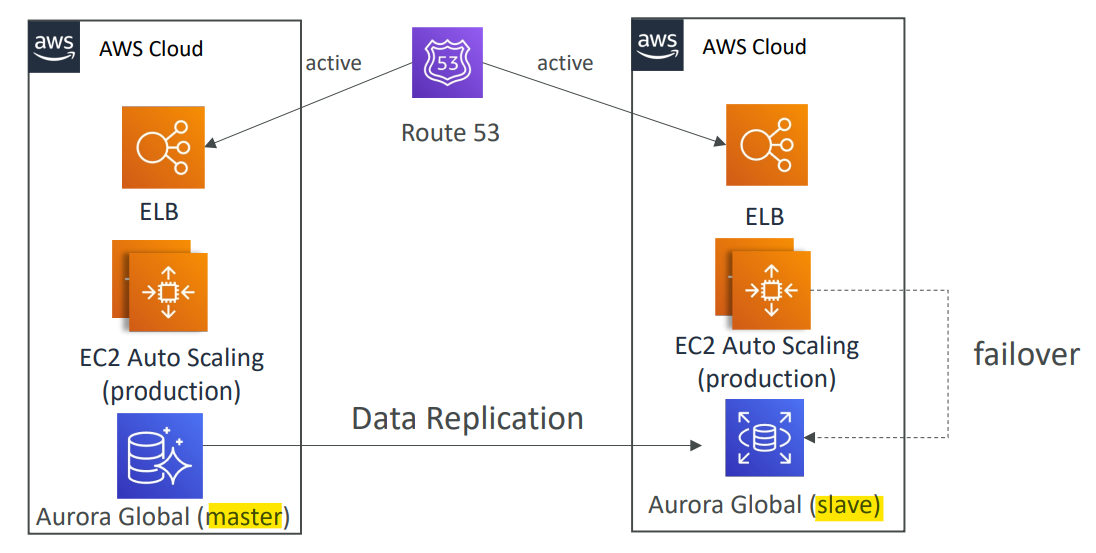

dr_multi_region

Backup
- EBS Snapshots, RDS automated backups / Snapshots, etc…
- Regular pushes to S3 / S3 IA / Glacier, Lifecycle Policy, Cross Region Replication
- From On-Premise: Snowball or Storage Gateway
High Availability
- Use Route53 to migrate DNS over from Region to Region
- RDS Multi-AZ, ElastiCache Multi-AZ, EFS, S3
- Site to Site VPN as a recovery from Direct Connect
Replication
- RDS Replication (Cross Region), AWS Aurora + Global Databases
- Database replication from on-premises to RDS
- Storage Gateway
Automation
- CloudFormation / Elastic Beanstalk to re-create a whole new environment
- Recover / Reboot EC2 instances with CloudWatch if alarms fail
- AWS Lambda functions for customized automations
Chaos
- Netflix has a “simian-army” randomly terminating EC2
