AWS - Systems Manager(SSM)

Back

• AWS - Systems Manager(SSM)
  • AWS Systems Manager
    • Parameter Store
    • Standard and advanced parameter tiers
    • Parameters Policies
  • Hands-on
  • Hands-on: integrate with lambda
  • SSM - Session Manager
    • Hands-on
  • Run Command
  • Patch Manager
  • Maintenance Windows
    • Automation

---

AWS Systems Manager

• AWS Systems Manager

  • formerly known as “Amazon Simple Systems Manager (SSM)” and “Amazon EC2 Systems Manager (SSM)”
  • View operational data for groups of resources, so you can quickly identify and act on any issues that might impact applications that use those resources.

---

Parameter Store

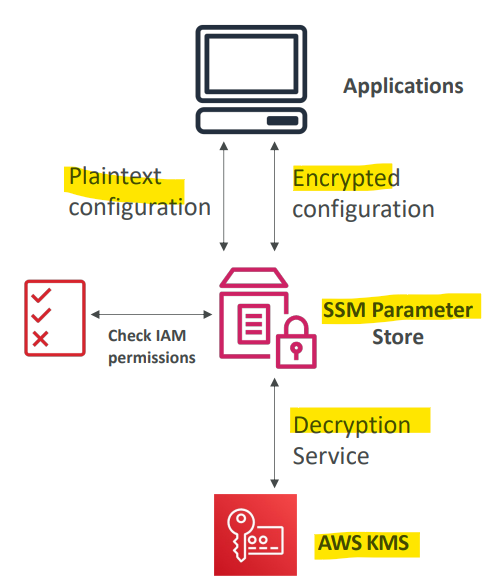

• AWS Systems Manager Parameter Store / SSM Parameter Store

  • Centralized storage and management of your secrets and configuration data such as passwords, database strings, and license codes.
  • You can encrypt values, or store as plain text, and secure access at every level.

• Features:

  • Version tracking of configurations / secrets
  • Serverless, scalable, durable, easy SDK

• Integration:

  • Optional Seamless Encryption using KMS
  • Security through IAM
  • Notifications with Amazon EventBridge
  • Integration with CloudFormation

• Sample:
  • You have a secret value that you use for encryption purposes, and you want to store and track the values of this secret over time. Which AWS service should you use?
    • SSM Parameters Store can be used to store secrets and has built-in version tracking capability. Each time you edit the value of a parameter, SSM Parameter Store creates a new version of the parameter and retains the previous versions. You can view the details, including the values, of all versions in a parameter’s history.
  • You would like to externally maintain the configuration values of your main database, to be picked up at runtime by your application. What’s the best place to store them to maintain control and version history?
    • SSM Parameters Store

---

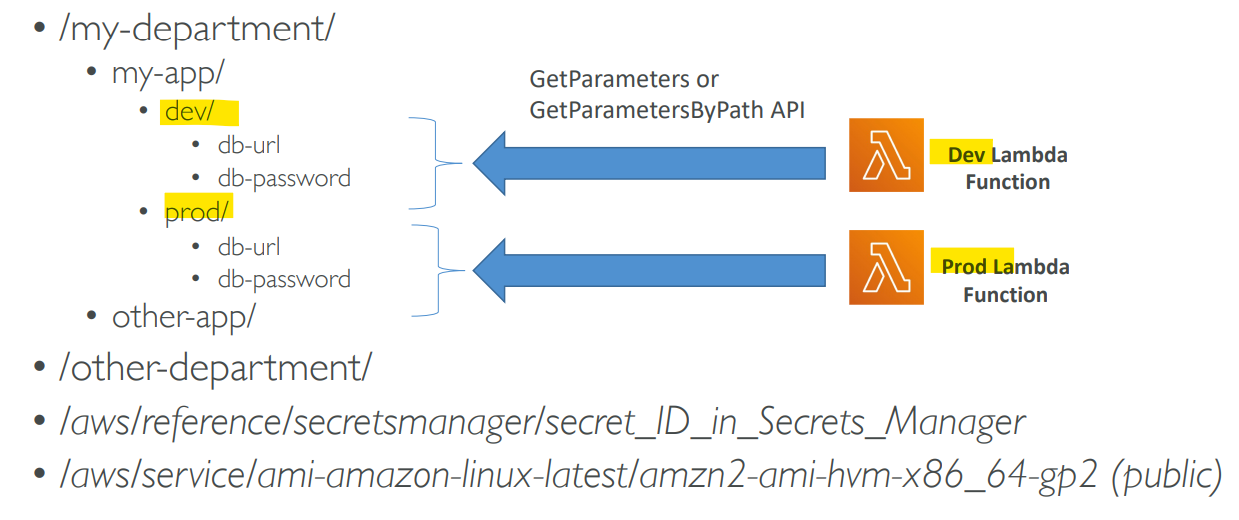

• Hierarchy

---

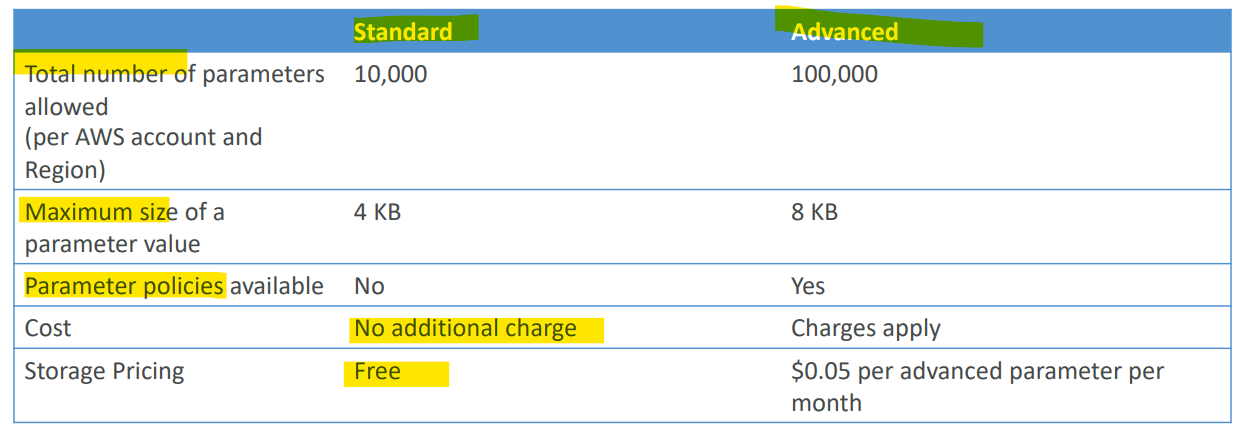

Standard and advanced parameter tiers

---

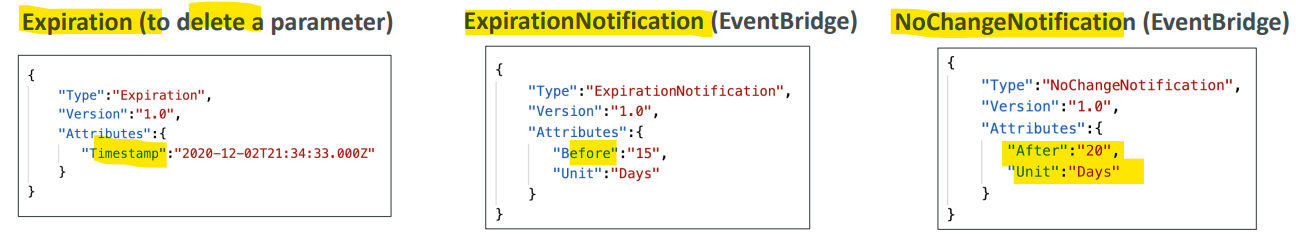

Parameters Policies

• for advanced parameters
• Allow to assign a TTL to a parameter (expiration date) to force updating or deleting sensitive data such as passwords
• Can assign multiple policies at a time

---

Hands-on

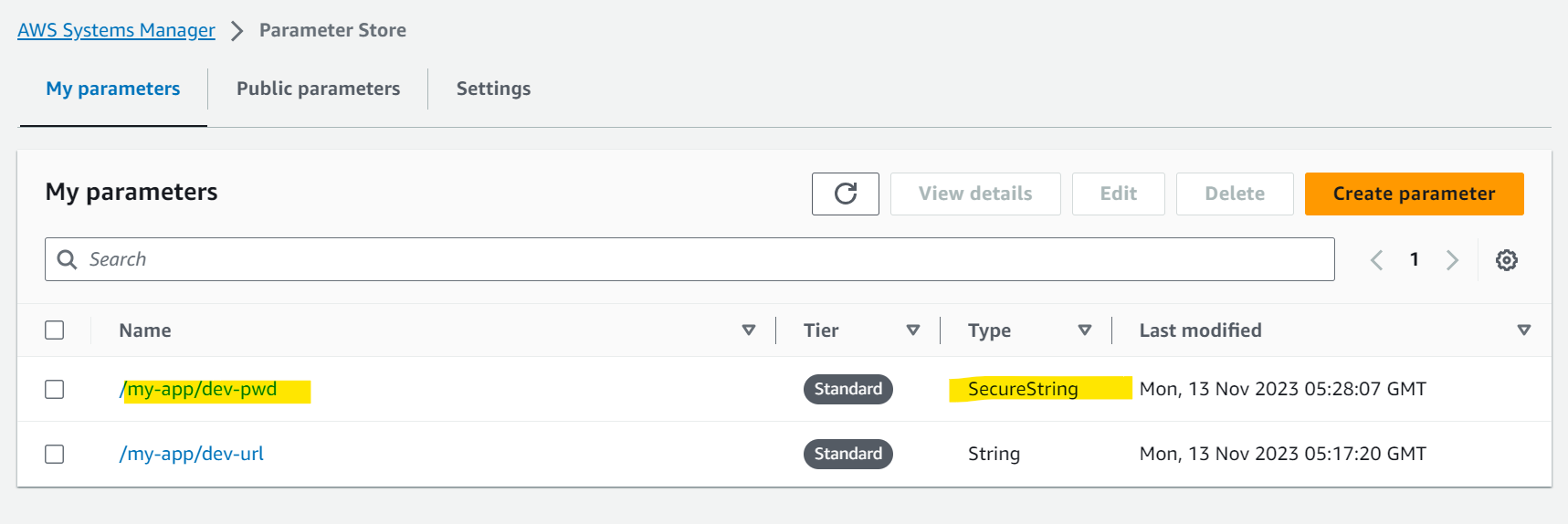

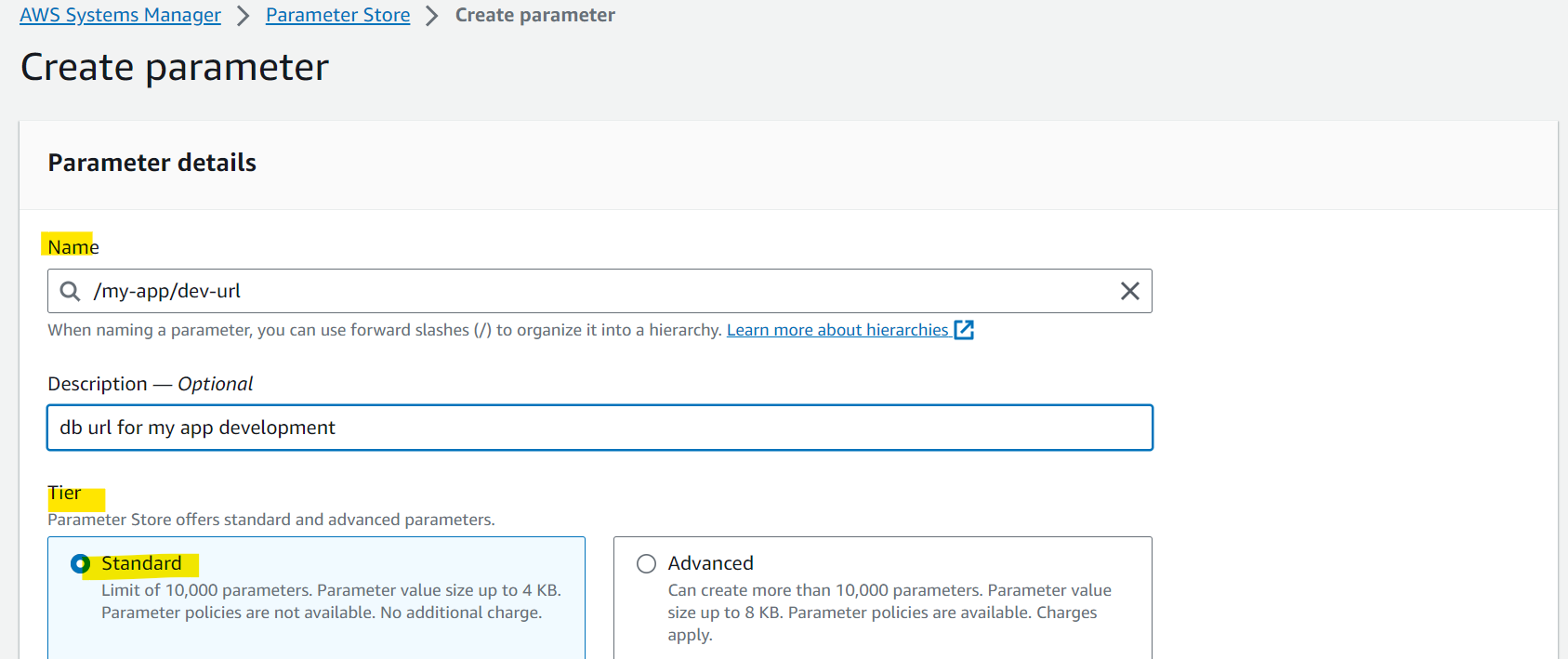

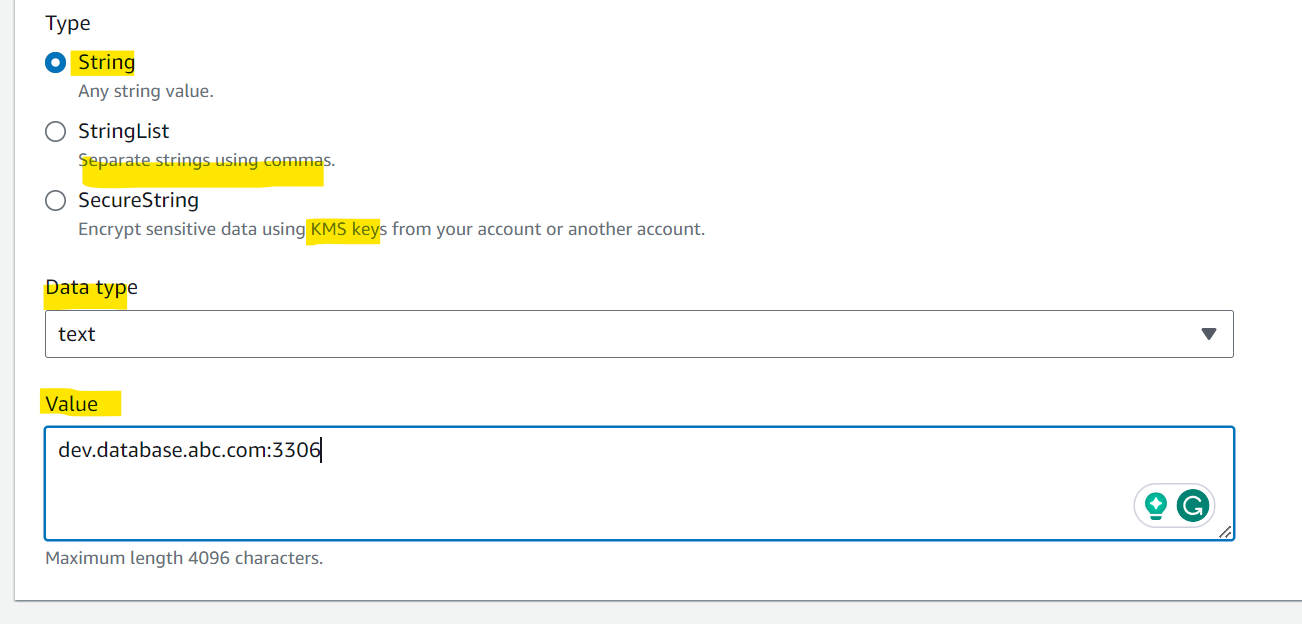

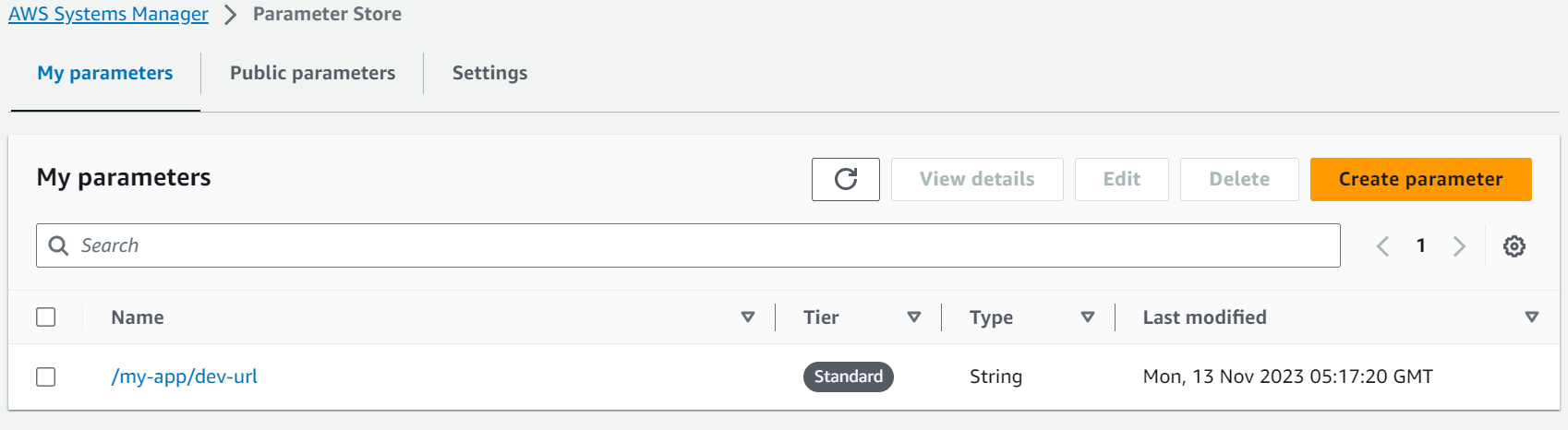

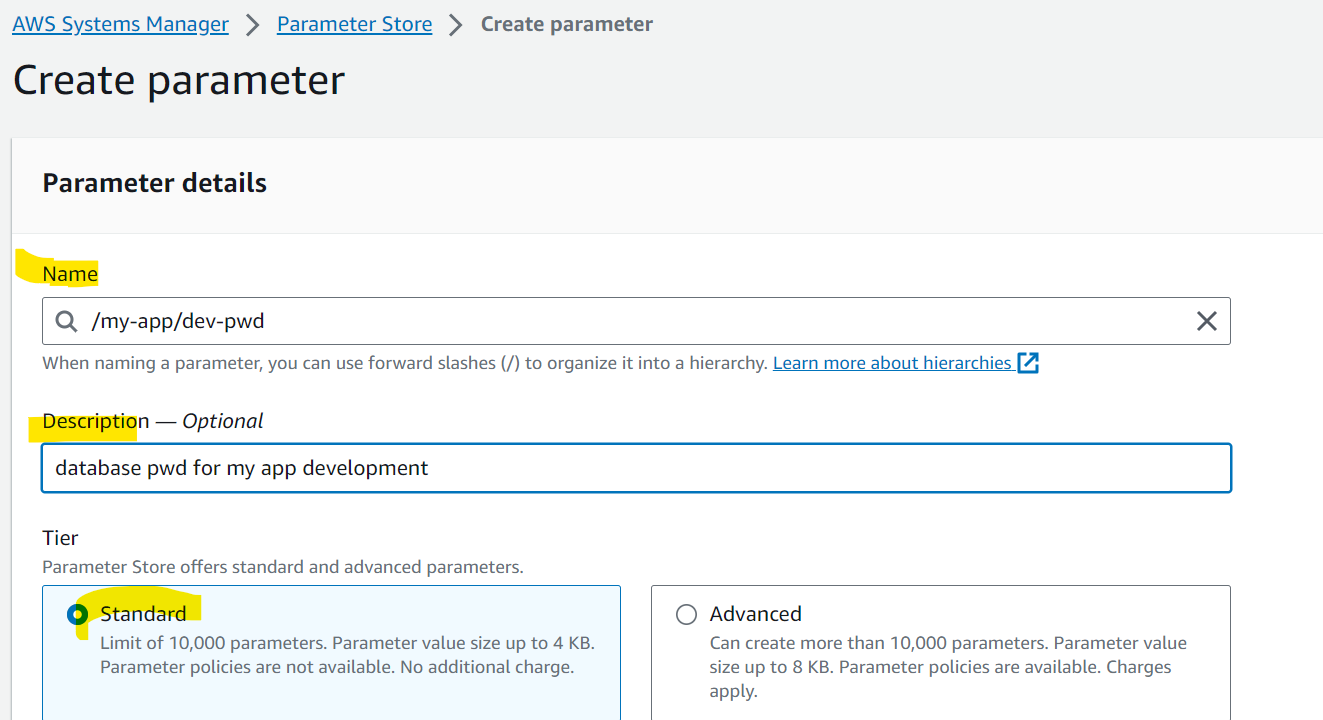

• String parameter

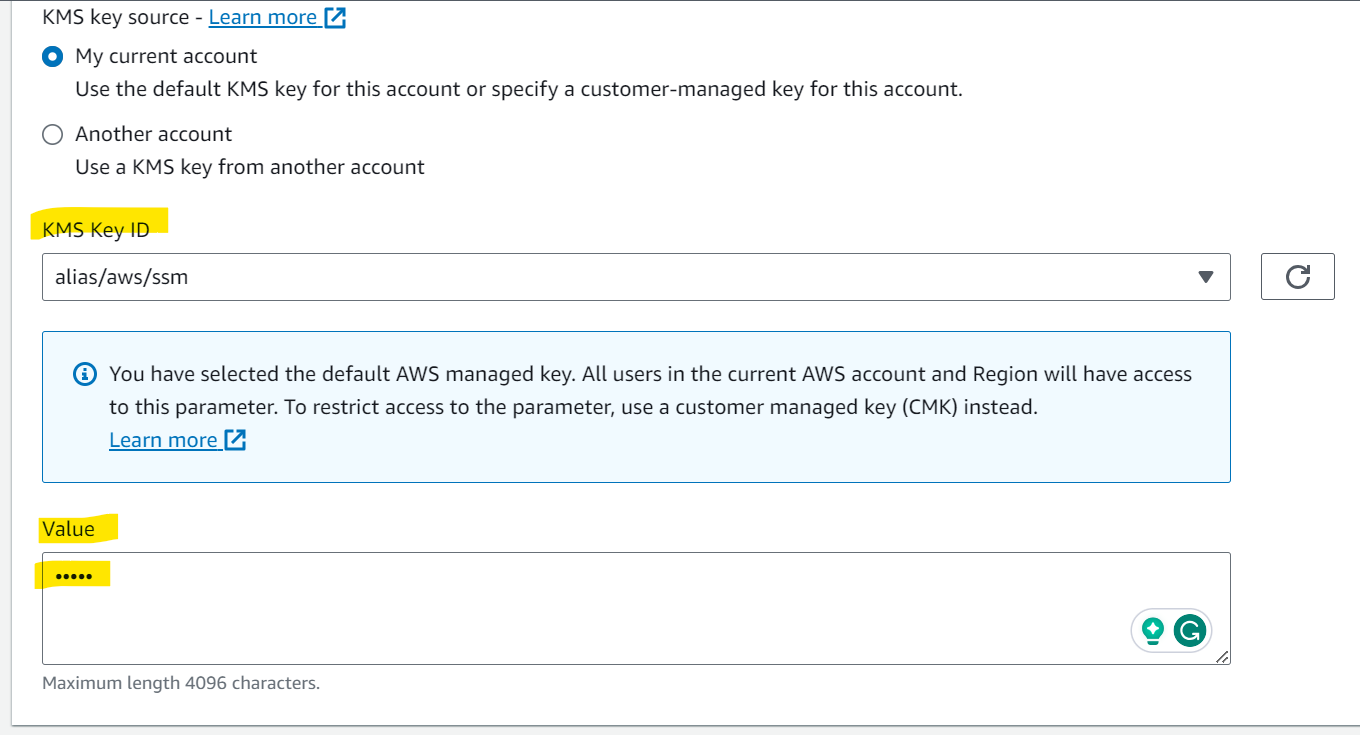

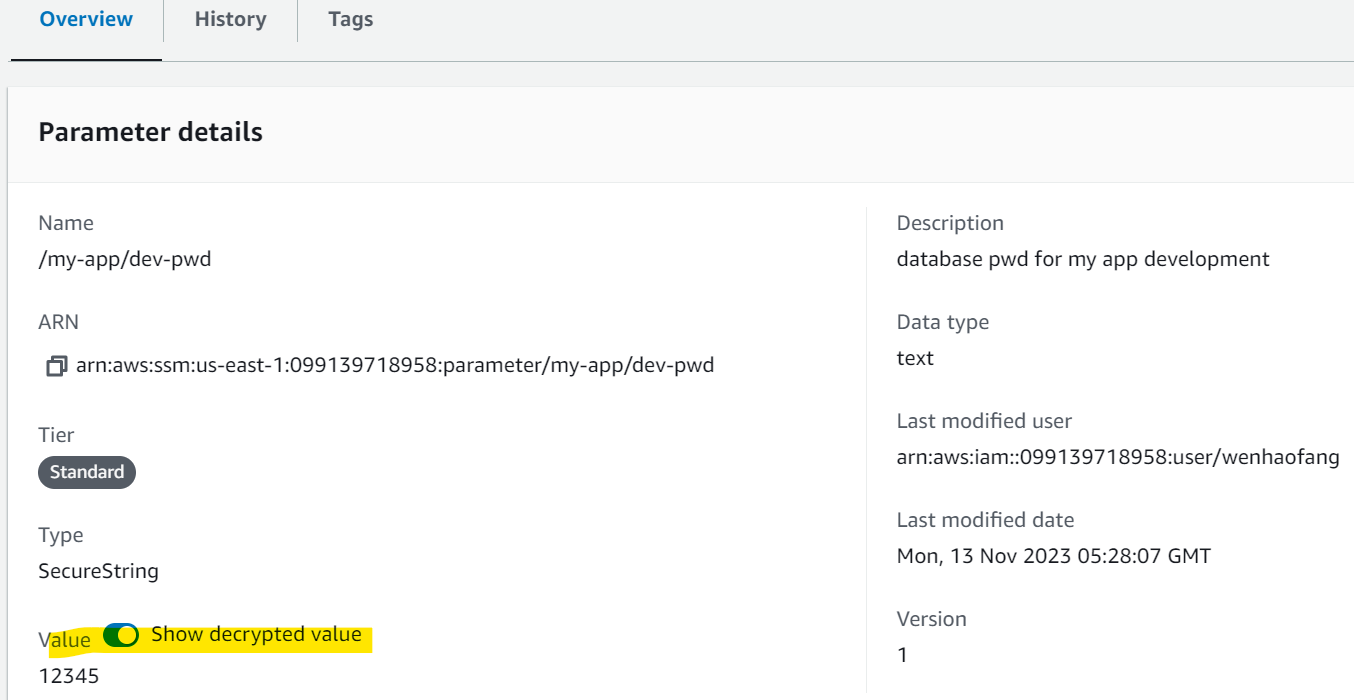

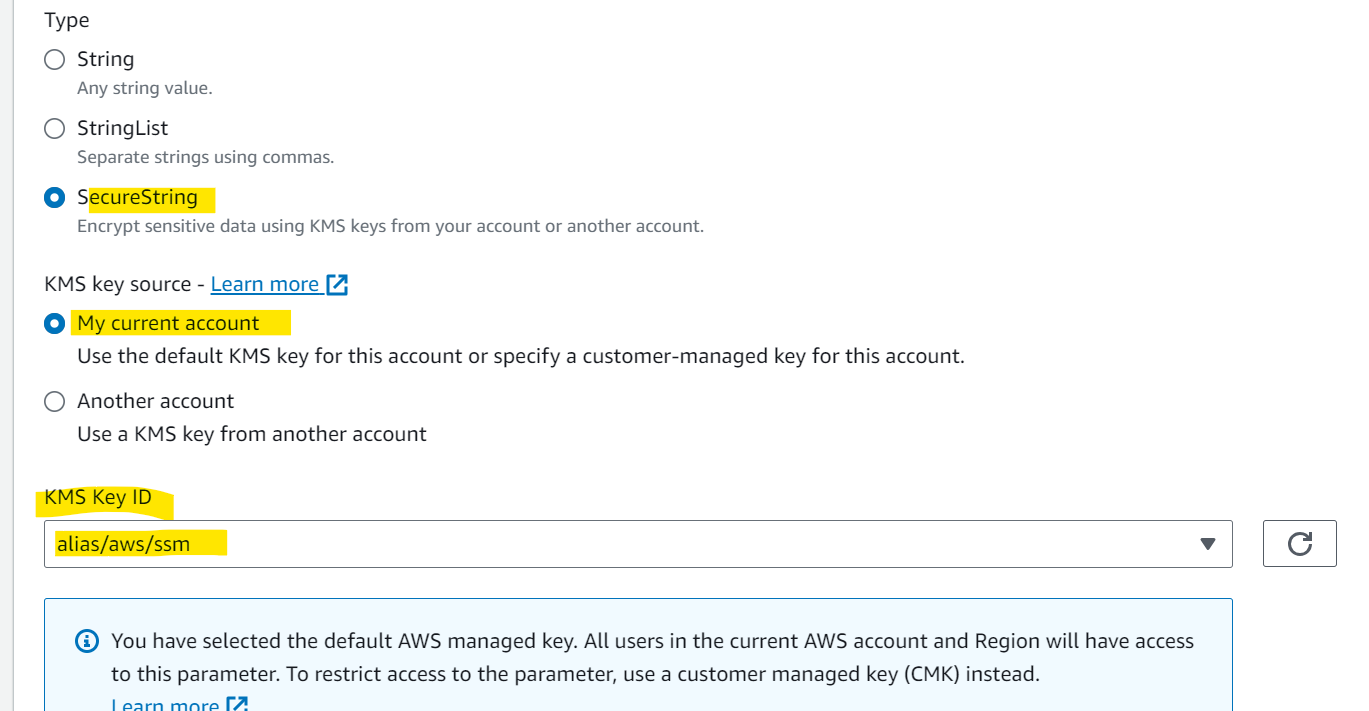

• Security string

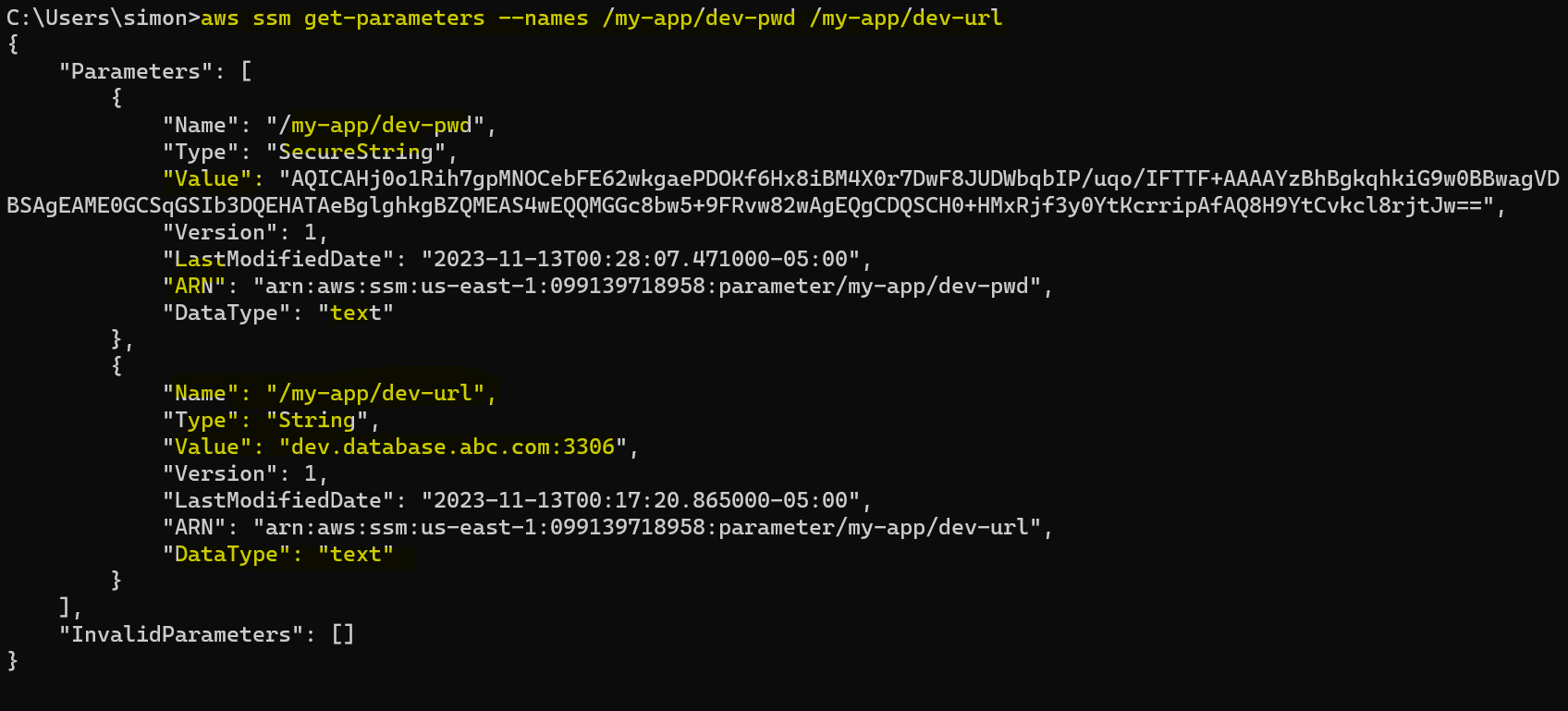

• Get parameter using CLI

aws ssm get-parameters --names /my-app/dev-pwd /my-app/dev-url

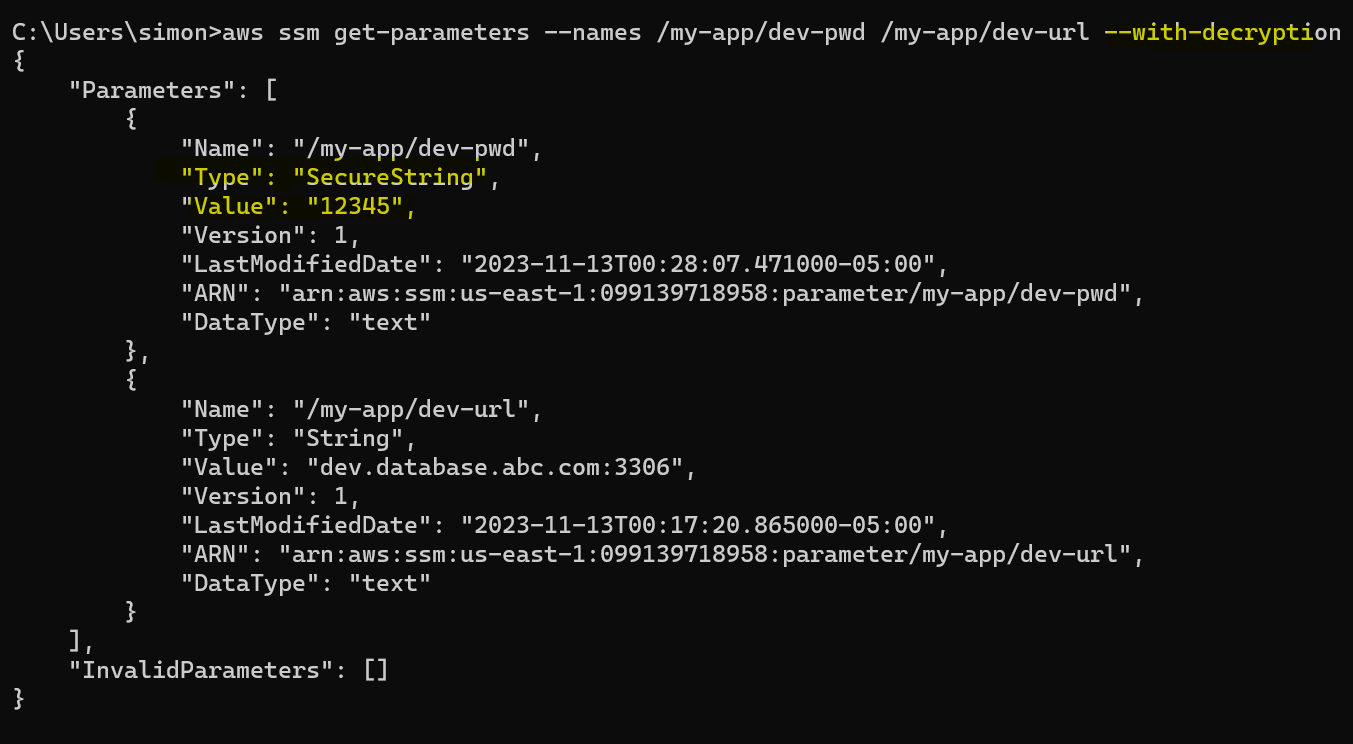

• Decrype parameter

# GET PARAMETERS WITH DECRYPTION
aws ssm get-parameters --names /my-app/dev-pwd /my-app/dev-url --with-decryption

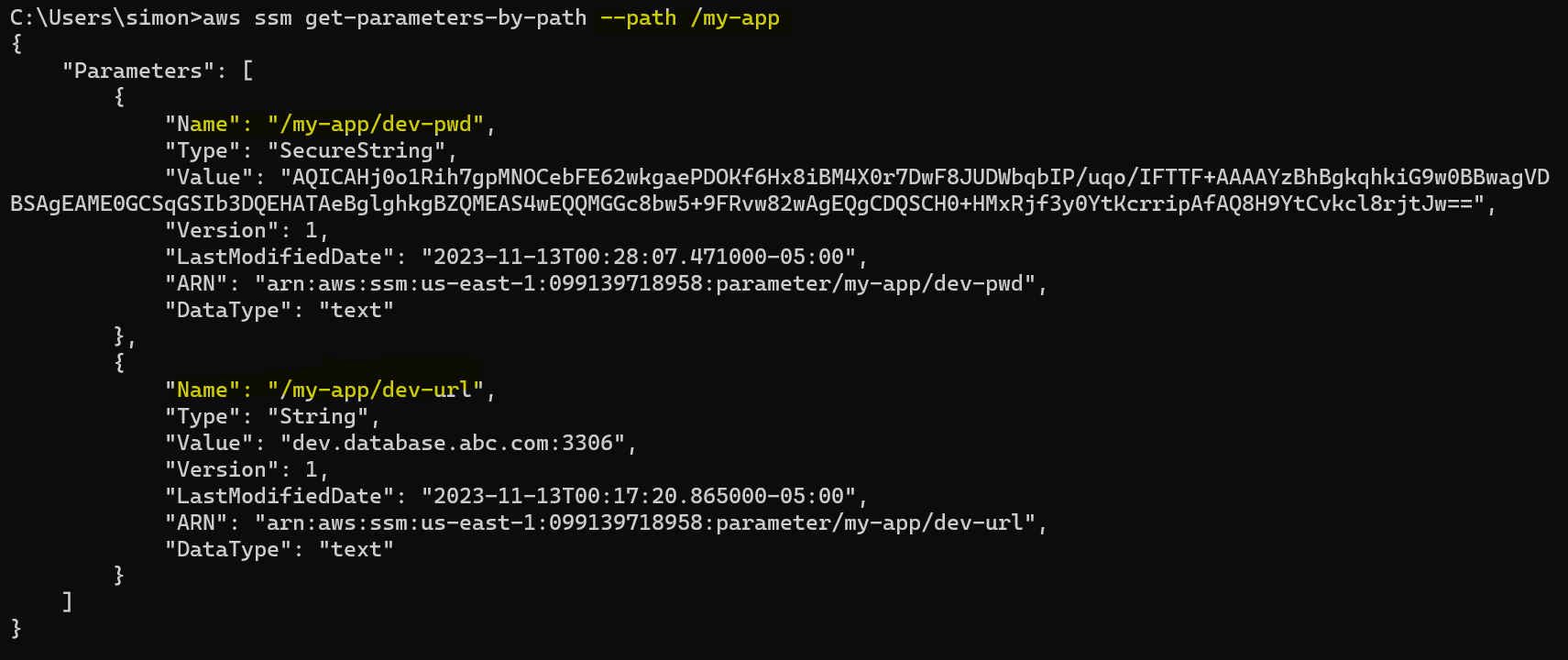

• Get parameters by path

# GET PARAMETERS BY PATH
aws ssm get-parameters-by-path --path /my-app/dev/

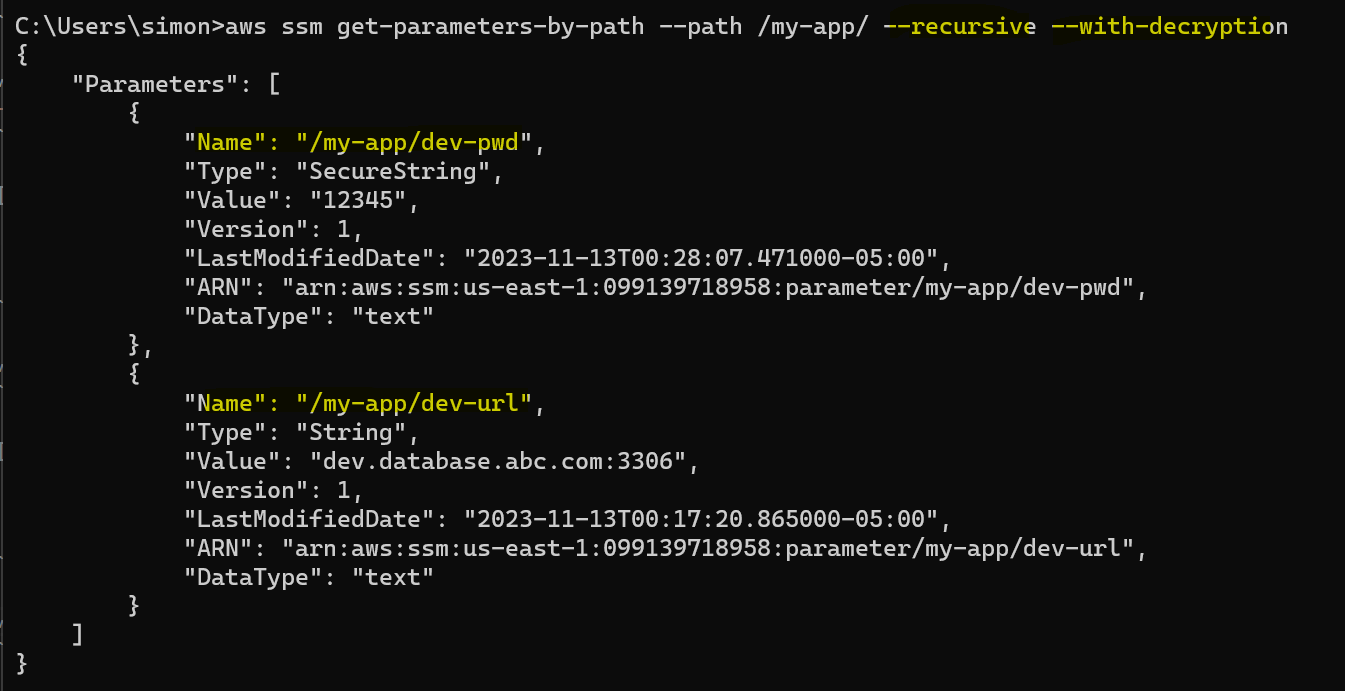

• Get by path recursively and decryption

# GET PARAMETERS BY PATH WITH DECRYPTION
aws ssm get-parameters-by-path --path /my-app/ --recursive --with-decryption

---

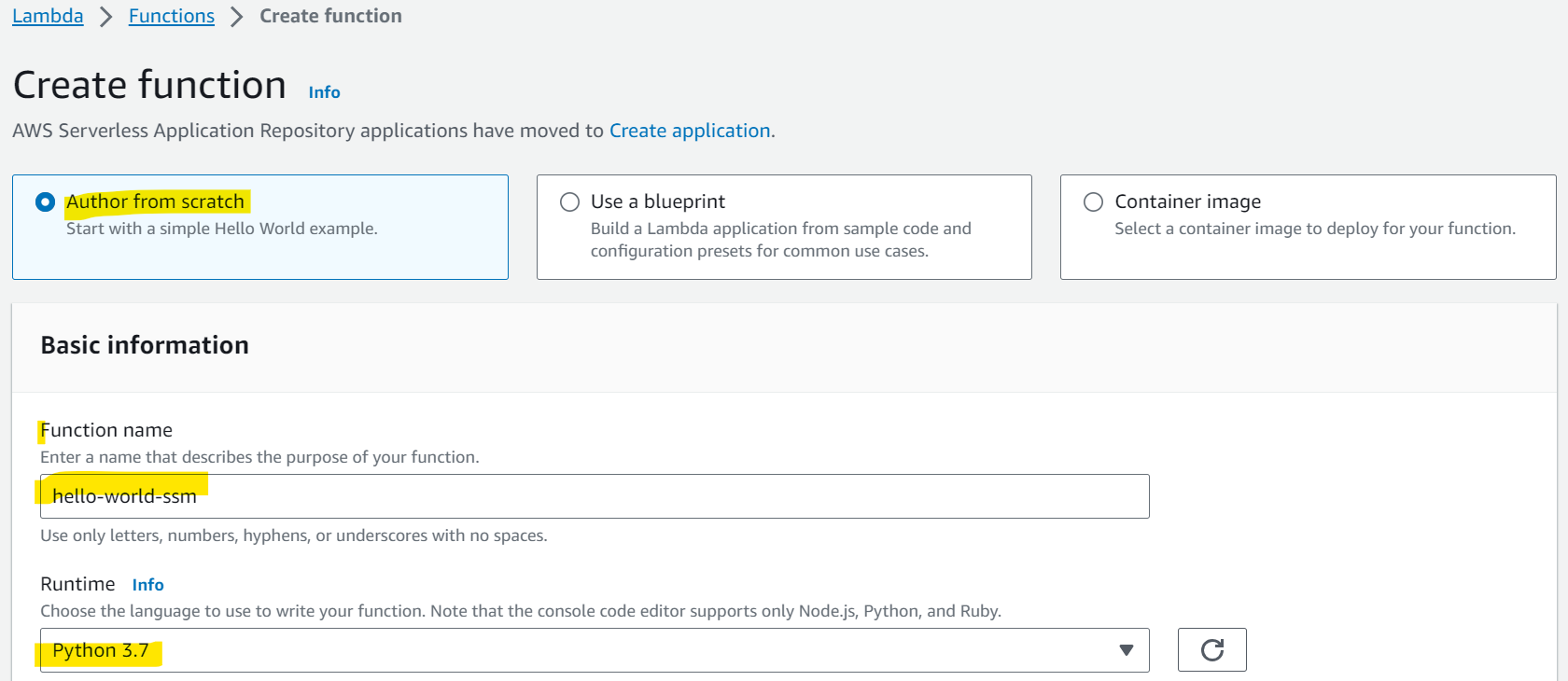

Hands-on: integrate with lambda

• function code:

import json
import boto3
import os

ssm = boto3.client('ssm', region_name="us-east-1")
app_name = os.environ['APP_NAME']

def lambda_handler(event, context):
    db_url = ssm.get_parameters(Names=[app_name + "/dev-url"])
    print(db_url)
    db_password = ssm.get_parameters(Names=[app_name + "/dev_pwd"], WithDecryption=True)
    print(db_password)
    return "worked!"

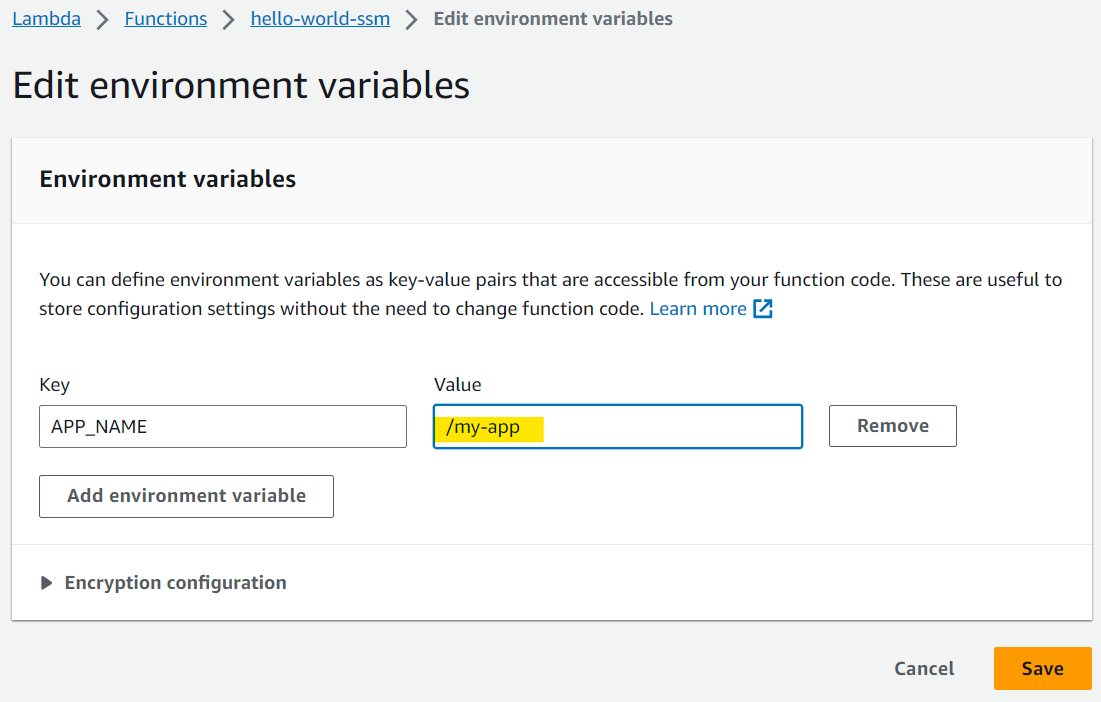

• Add environment variables

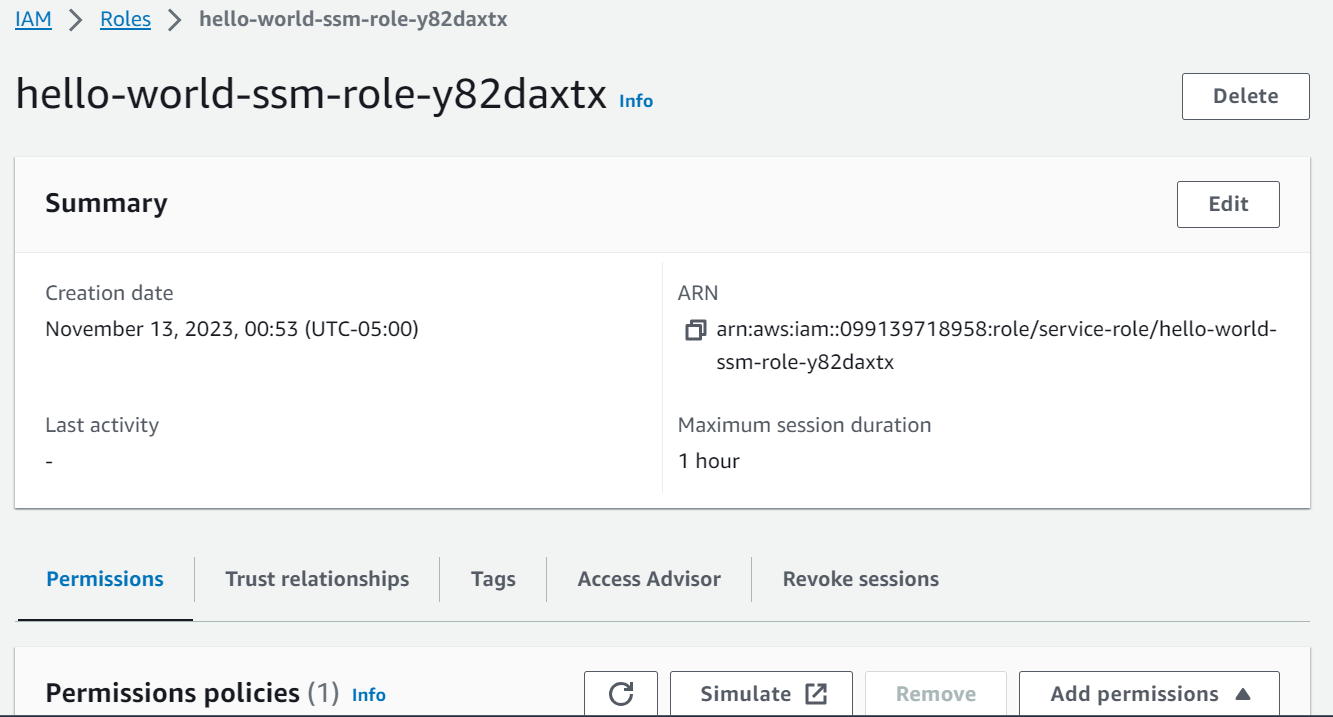

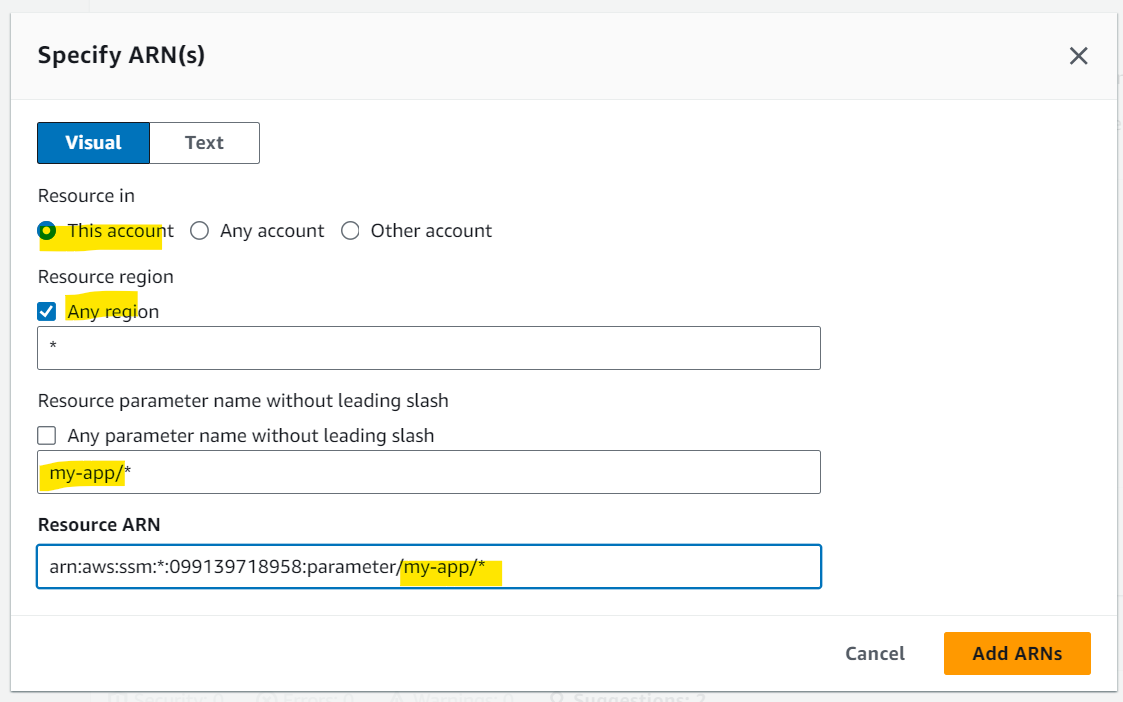

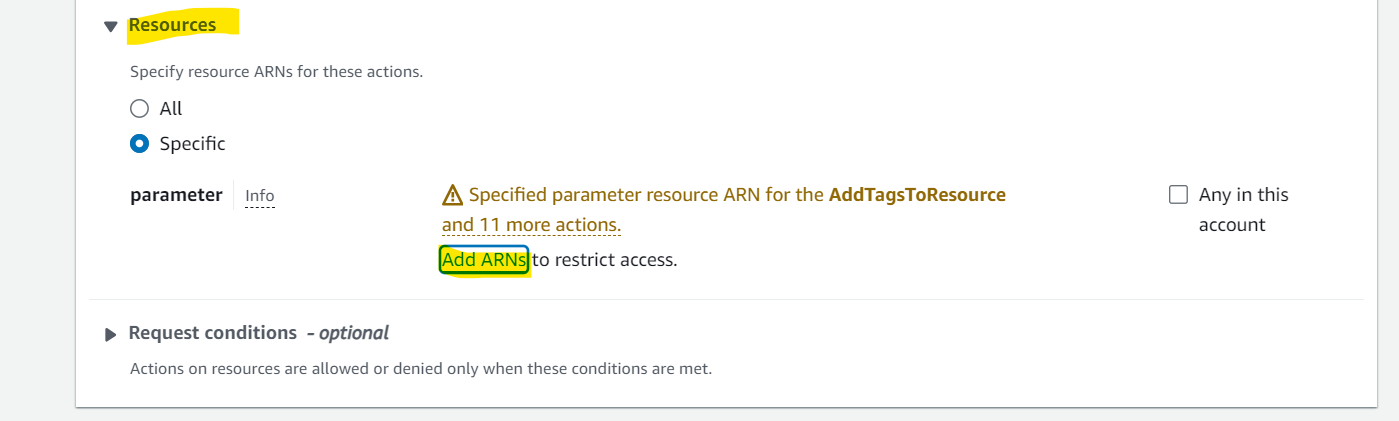

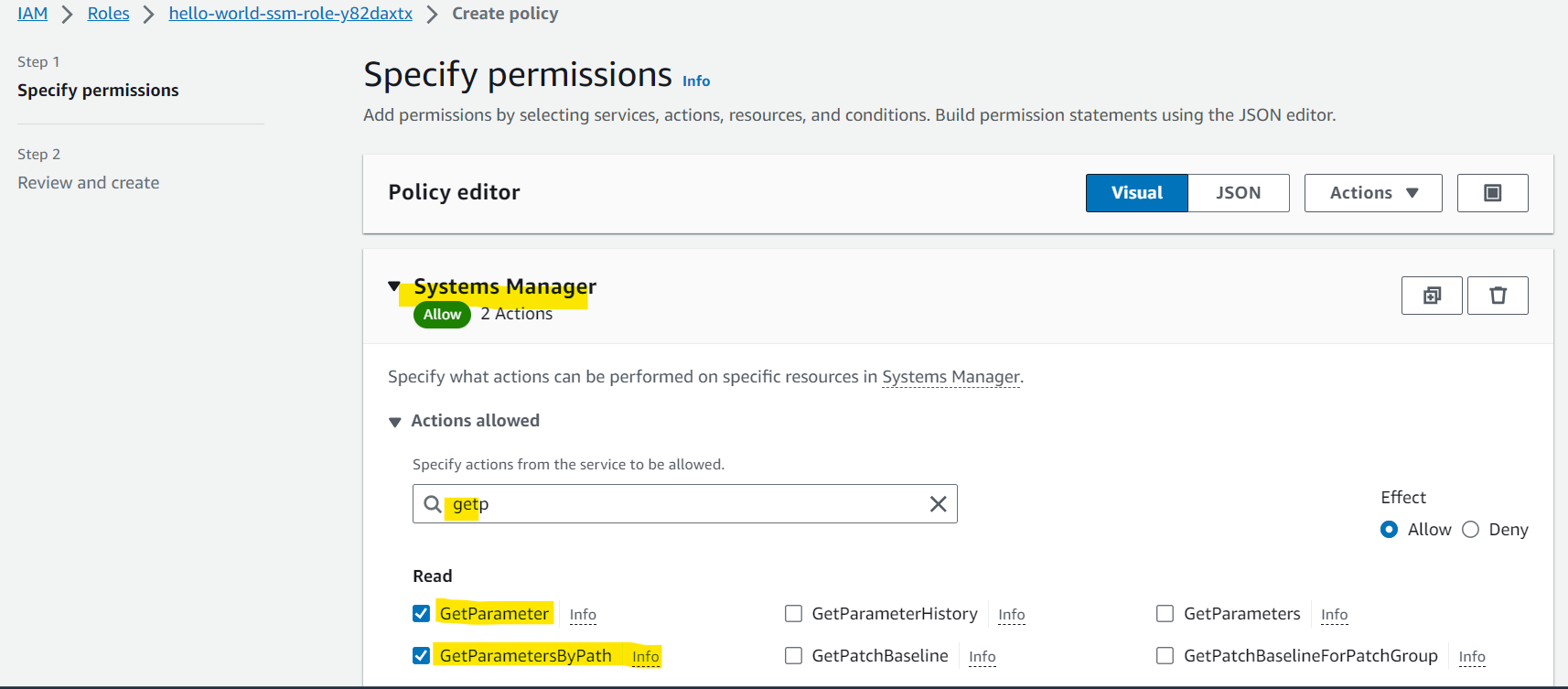

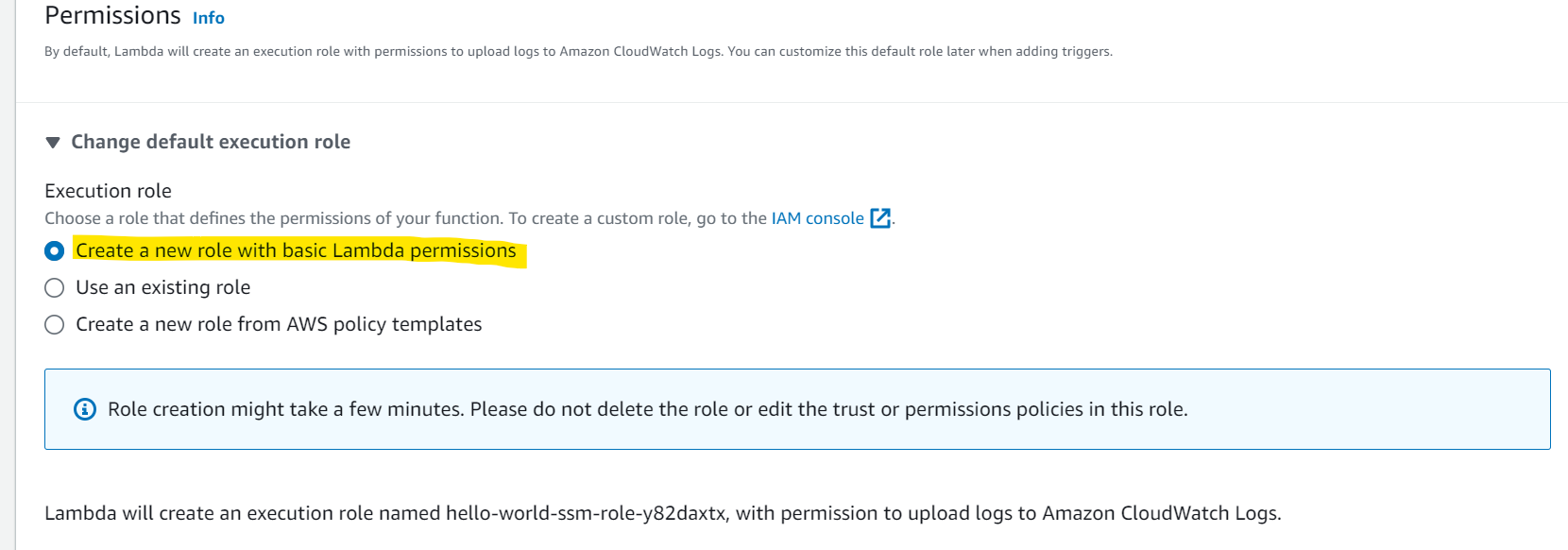

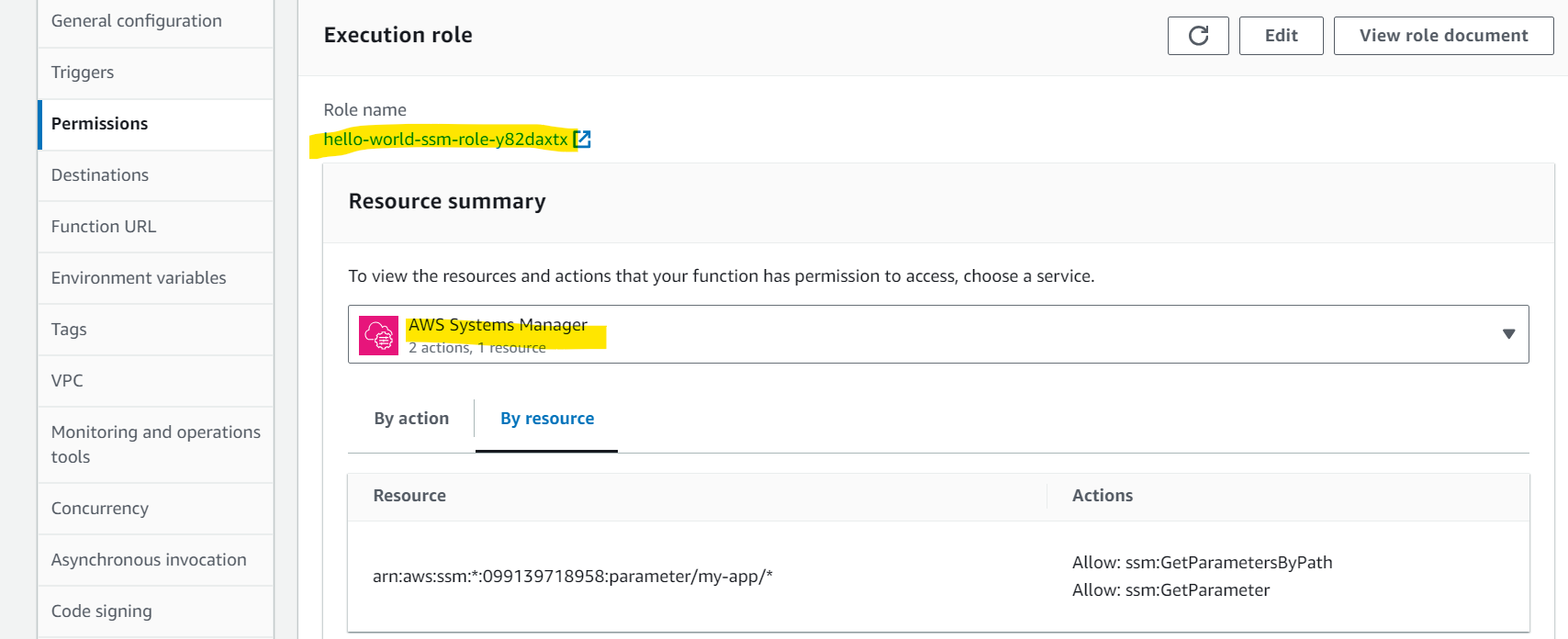

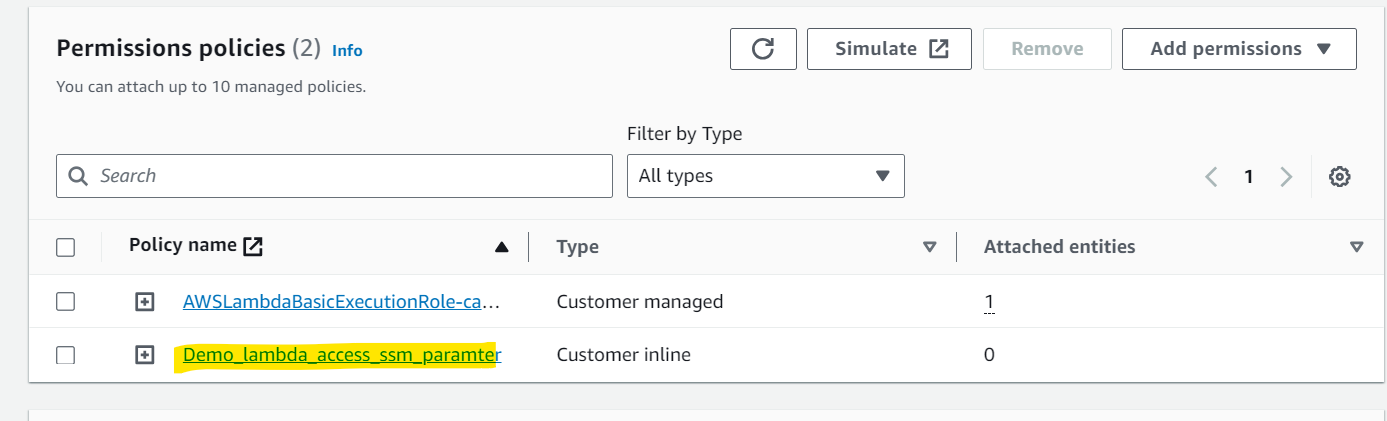

• Edit role: access to SSM

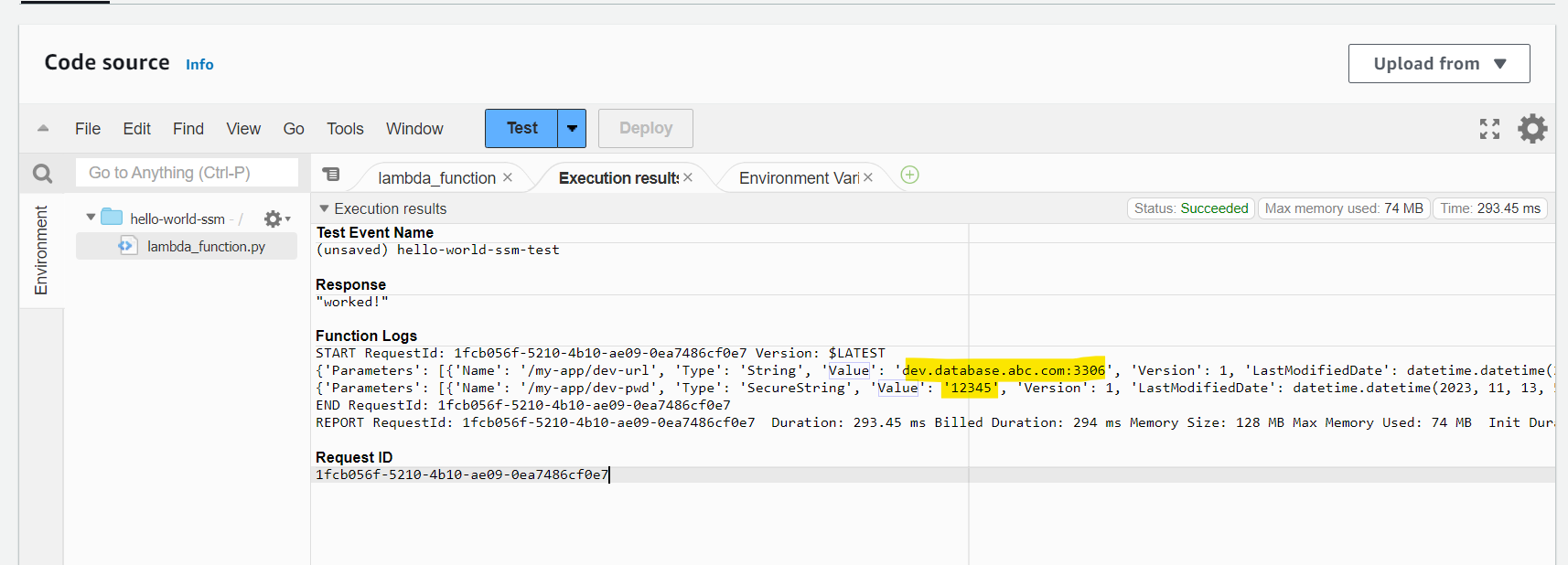

• Test

• Edit role: (skip this step)

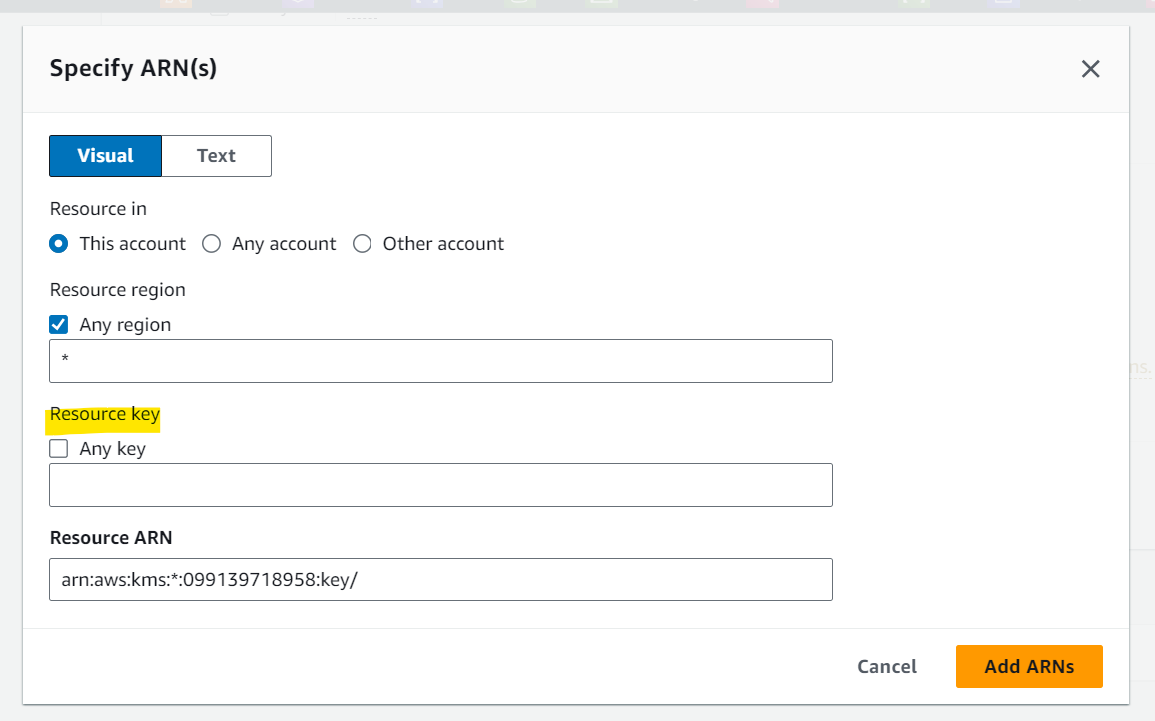

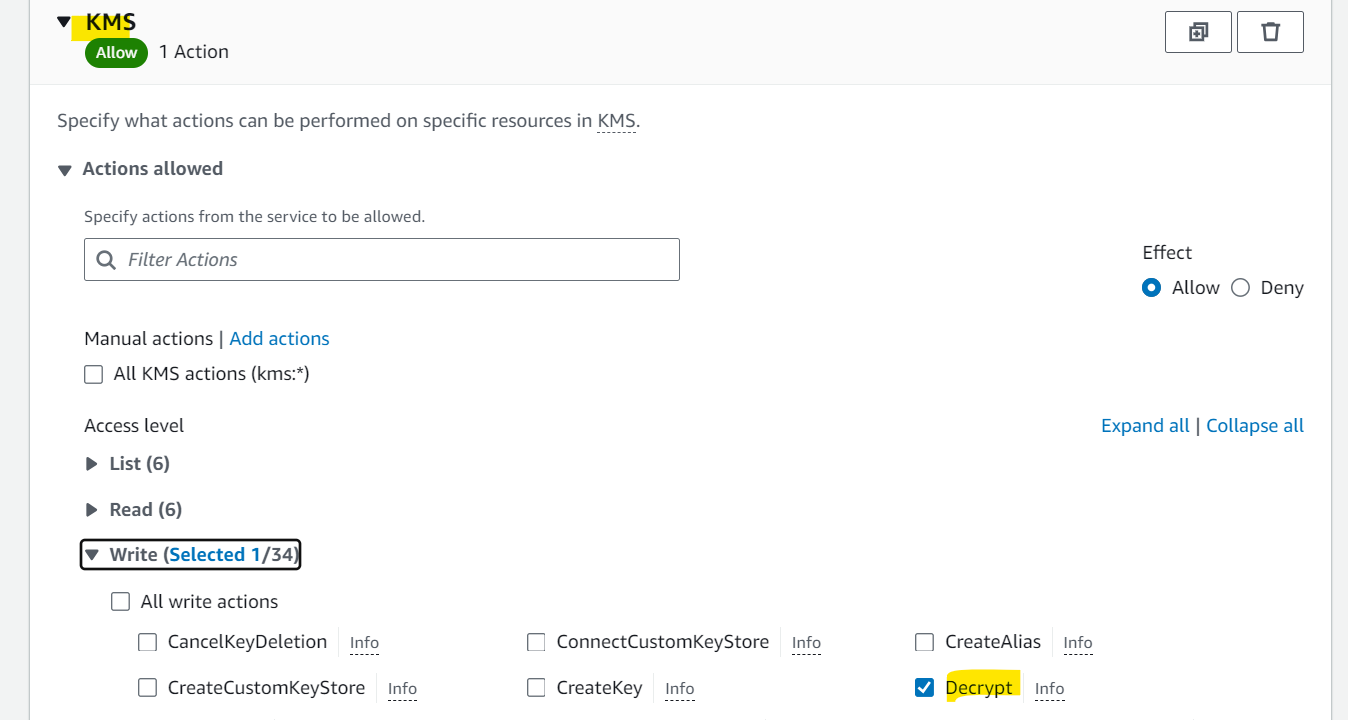

  • access to KMS for decryption if using Customer managed keys

---

SSM - Session Manager

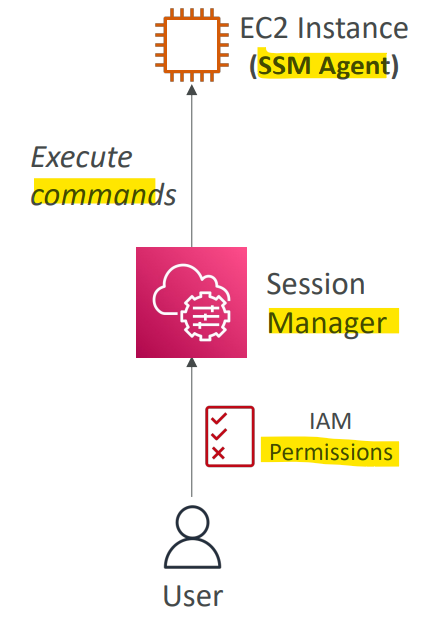

• Session Manager

  • Allows you to start a secure shell on your EC2 and on-premises servers

• Features

  • No SSH access, bastion hosts, or SSH keys needed
  • No port 22 needed (better security)
  • Supports Linux, macOS, and Windows
  • Send session log data to S3 or CloudWatch Logs

---

Hands-on

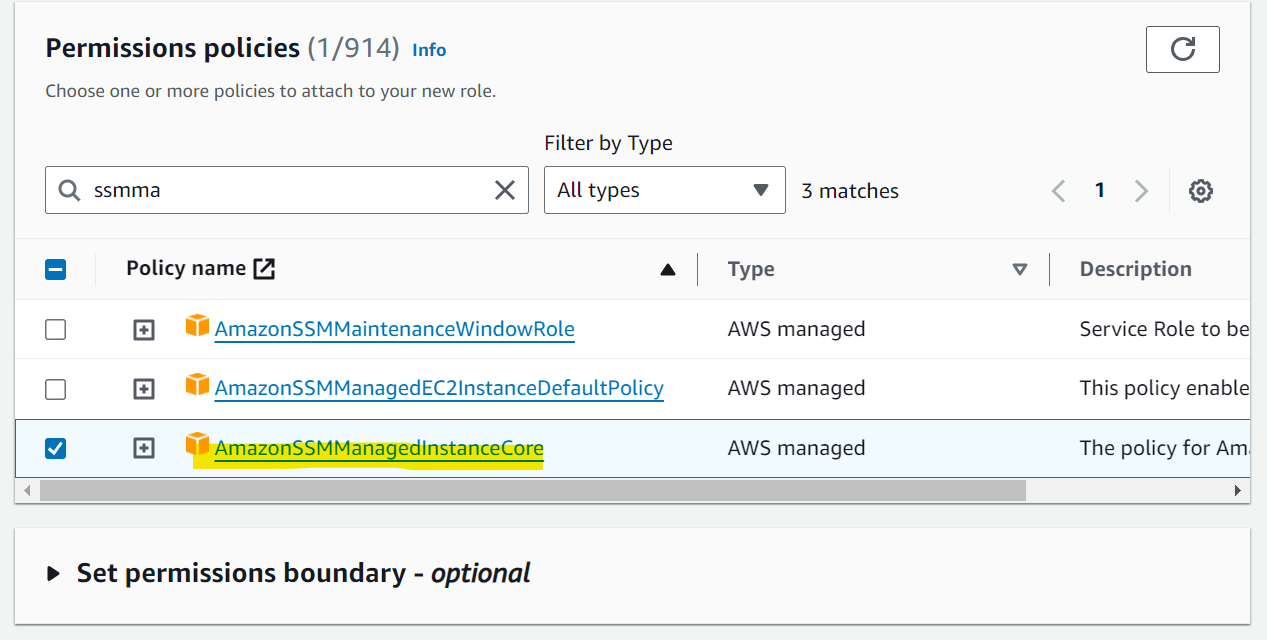

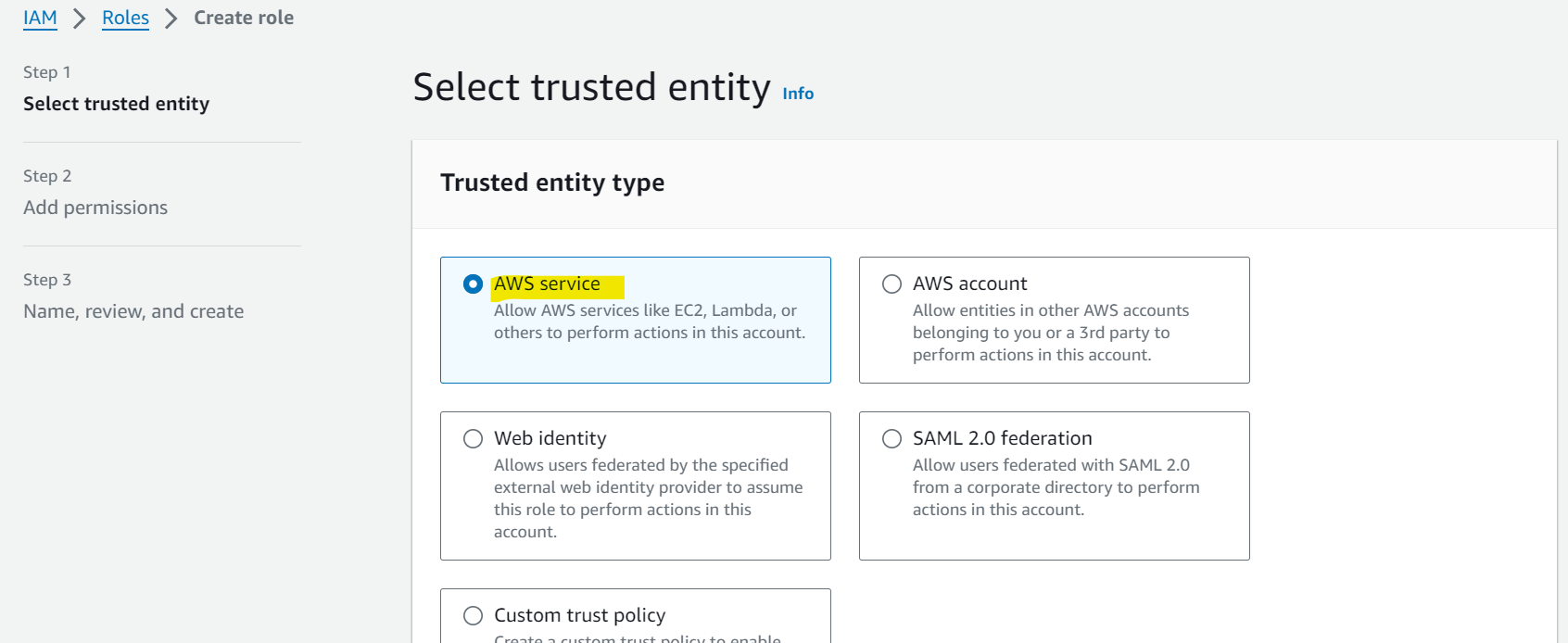

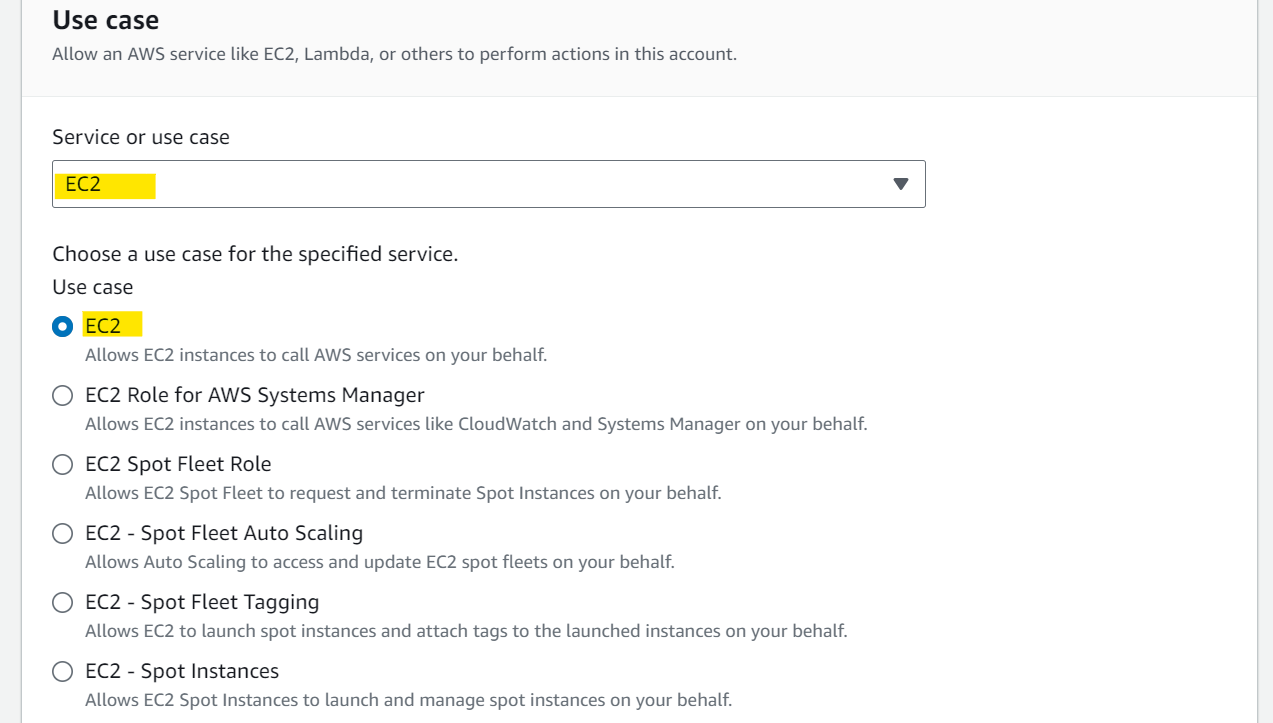

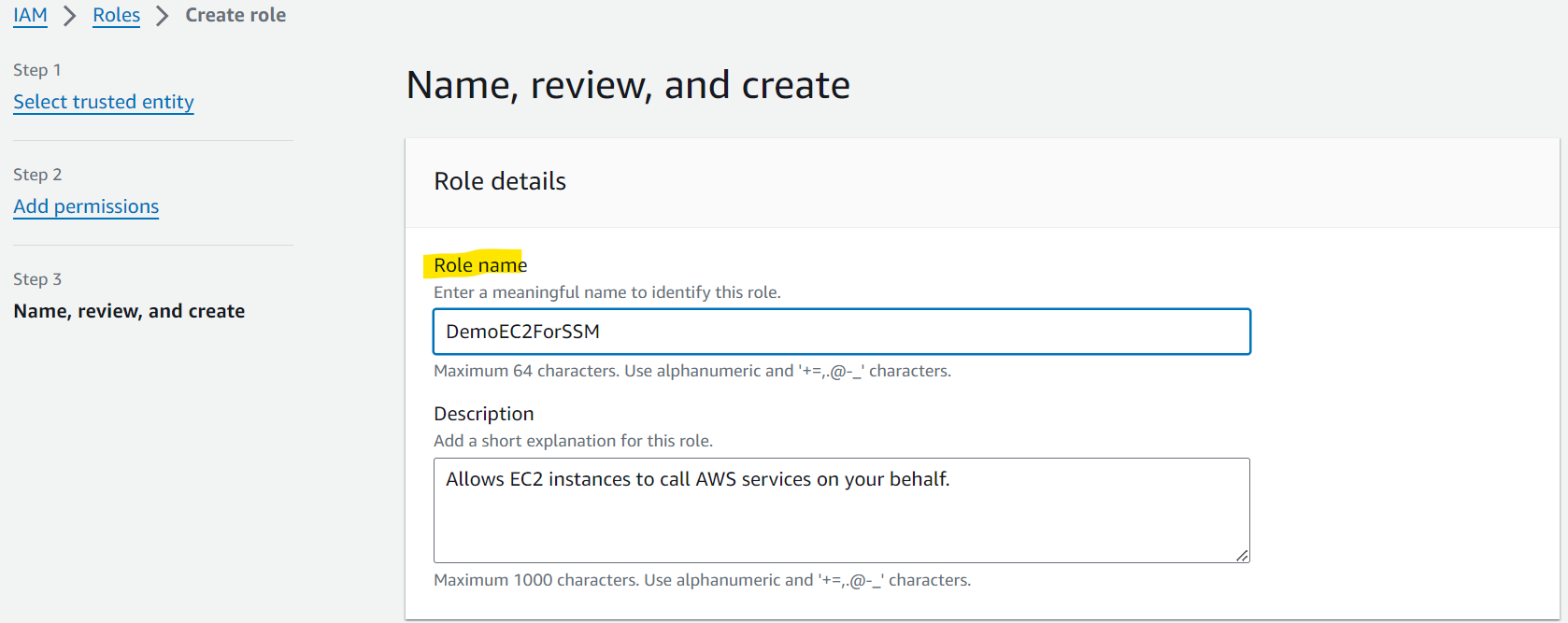

• Create role for ssm to access to ec2

---

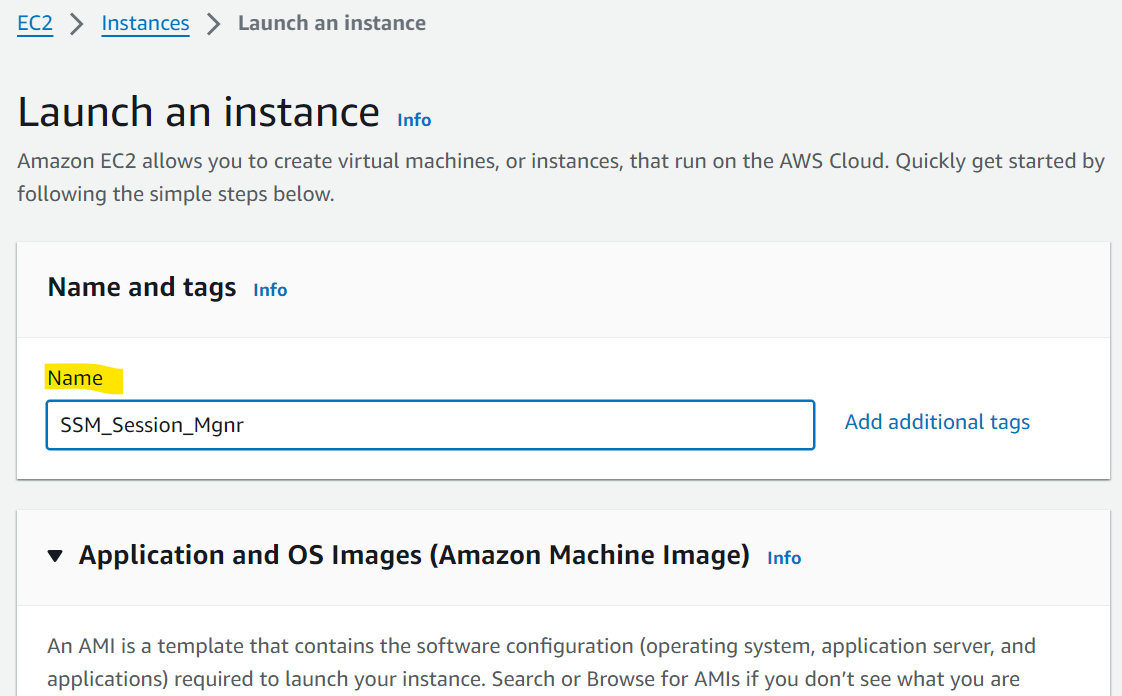

• Create an instance with no ssh

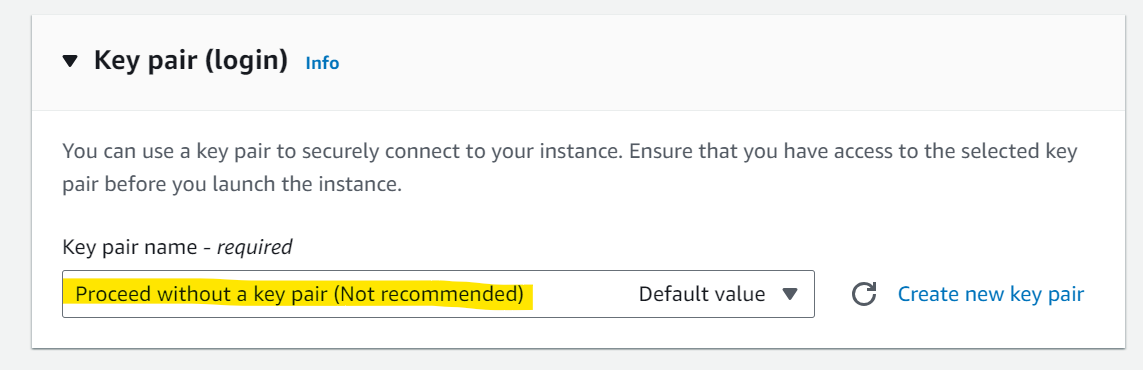

  • No key pair

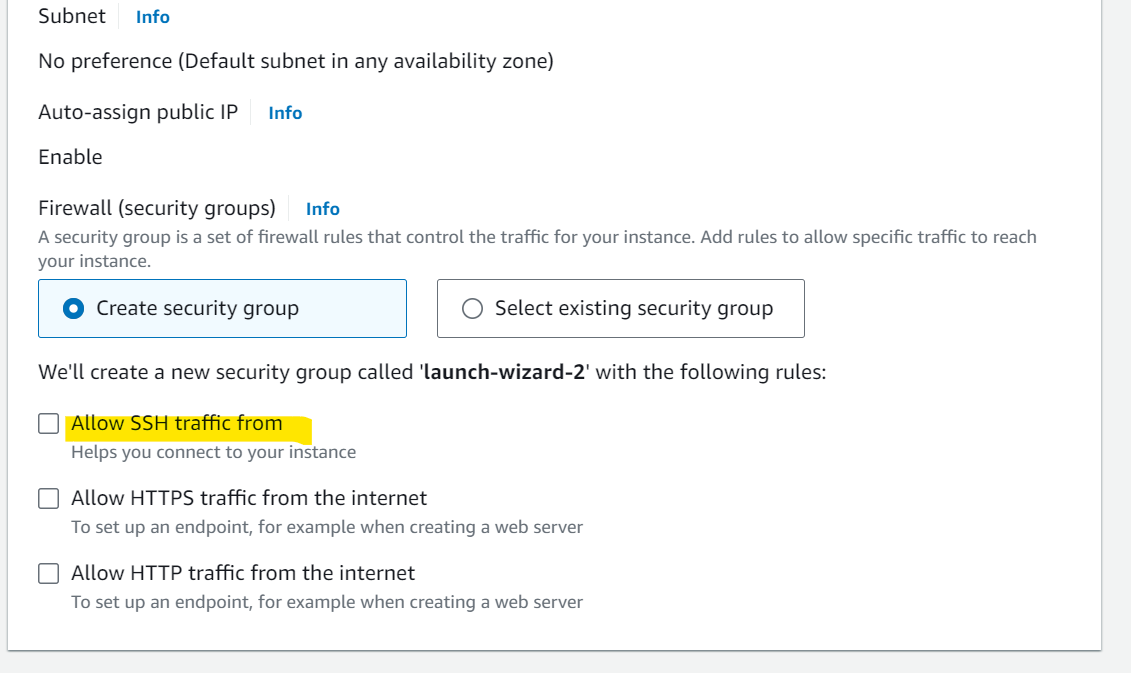

  • disable ssh

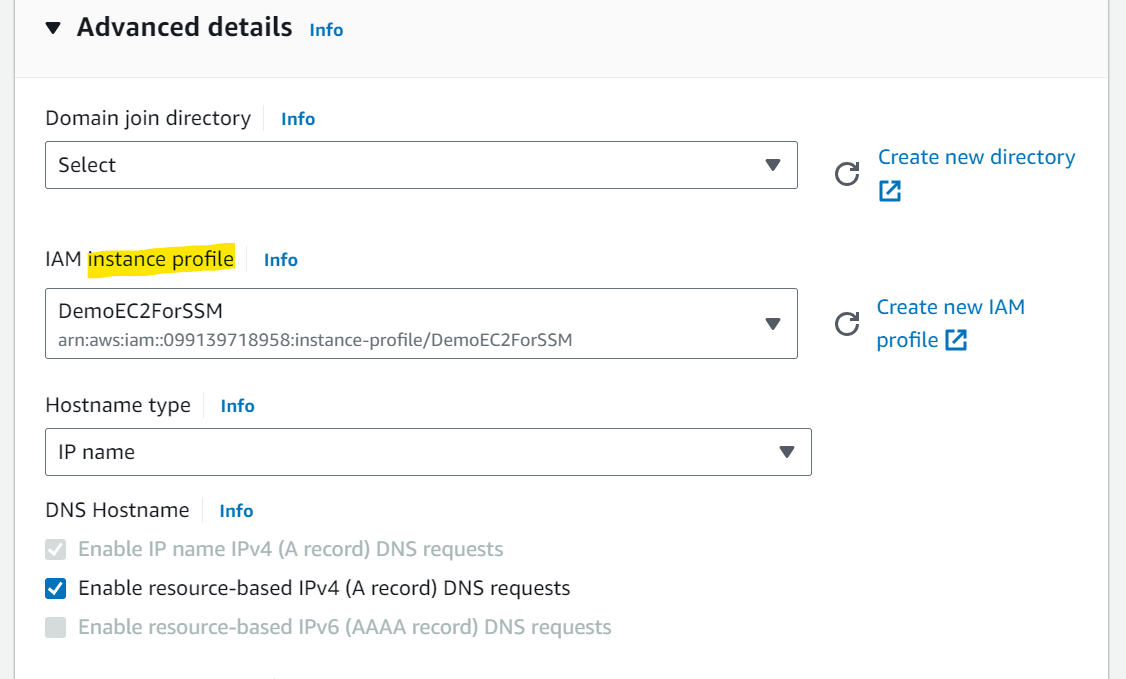

  • assign role for ssm

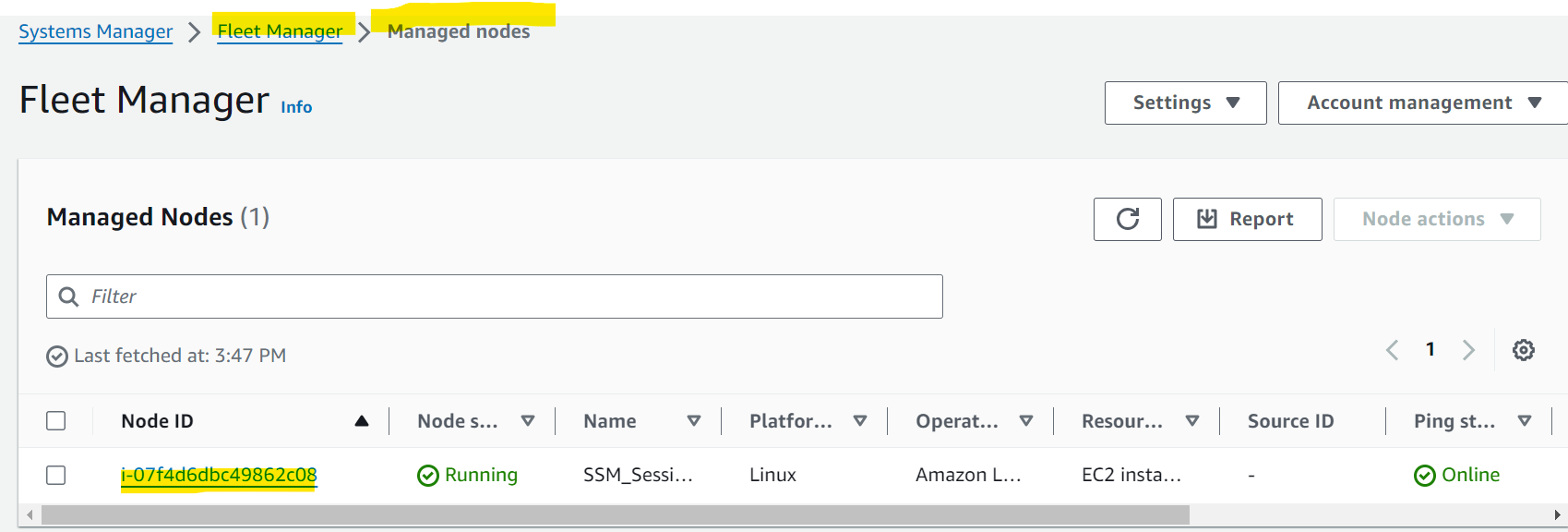

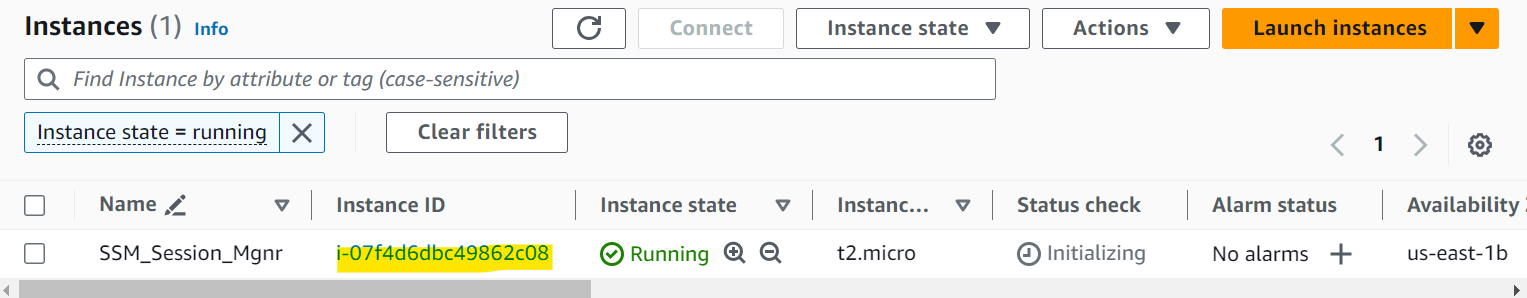

• outcome

---

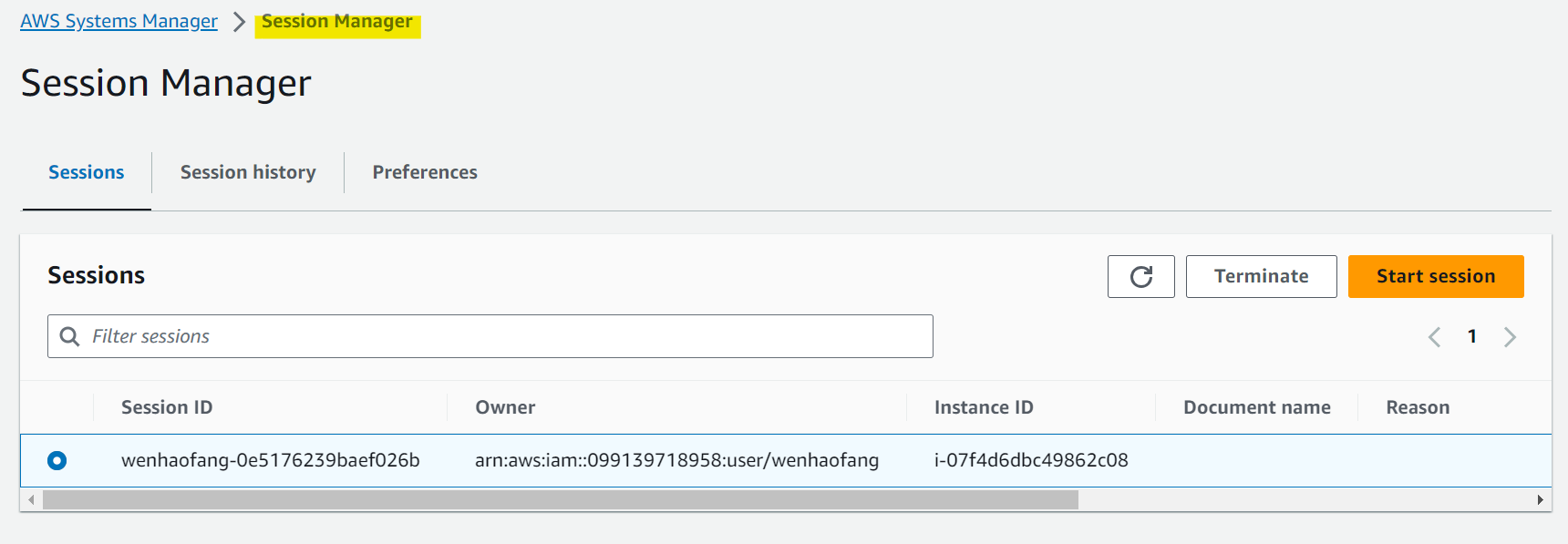

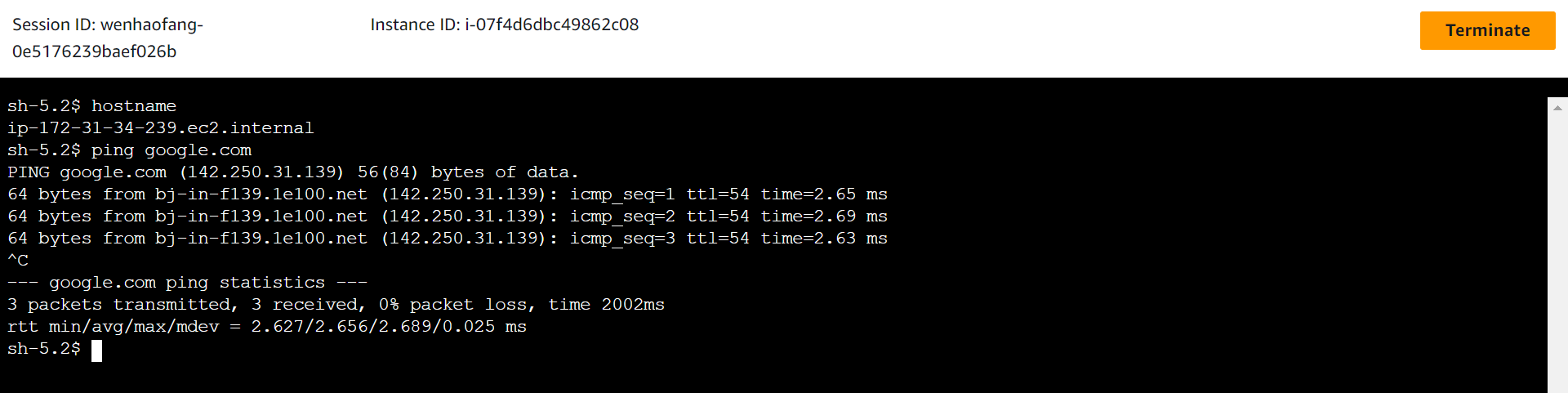

• Start session

---

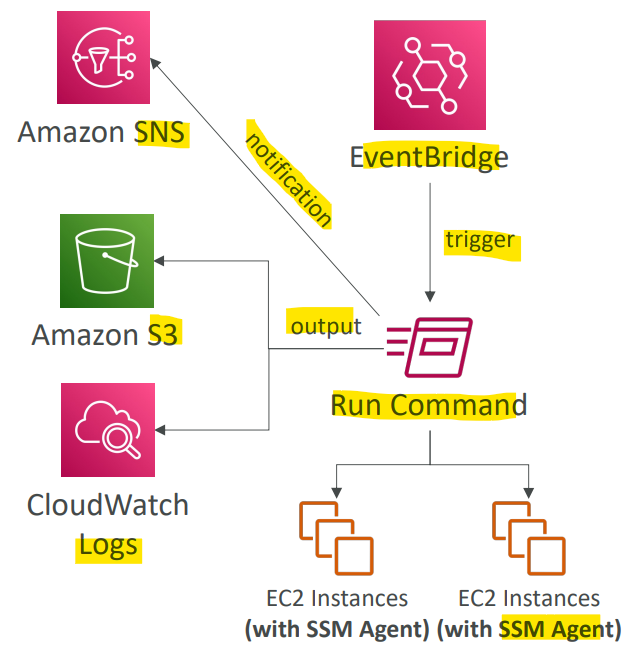

Run Command

• Run Command

  • Execute a document (= script) or just run a command

• Features:

  • Run command across multiple instances (using resource groups)
  • No need for SSH

• Integration

  • Command Output can be shown in the AWS Console, sent to S3 bucket or CloudWatch Logs
  • Send notifications to SNS about command status (In progress, Success, Failed, …)
  • Integrated with IAM & CloudTrail
  • Can be invoked using EventBridge

---

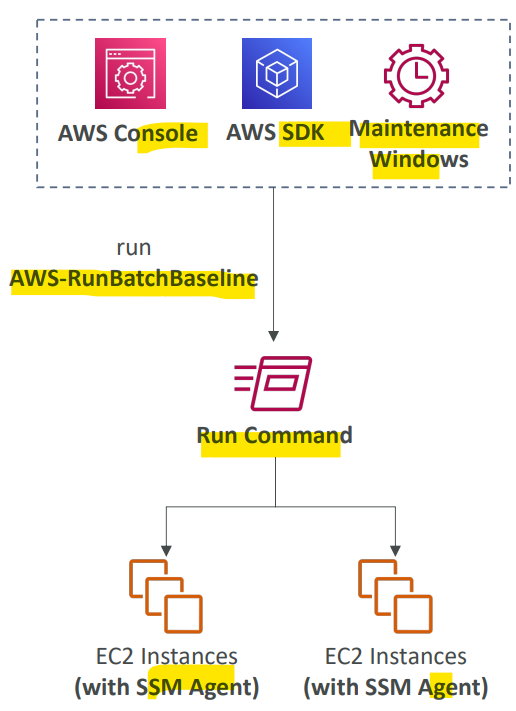

Patch Manager

• Patch Manager

  • Automates the process of patching managed instances

• Features:

  • OS updates, applications updates, security updates
  • Supports EC2 instances and on-premises servers
  • Supports Linux, macOS, and Windows
  • Patch on-demand or on a schedule using Maintenance Windows
  • Scan instances and generate patch compliance report (missing patches)

---

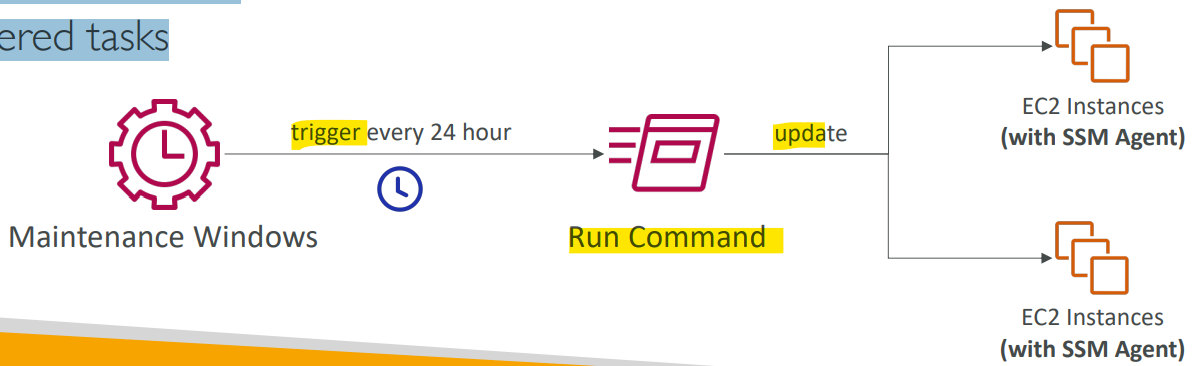

Maintenance Windows

• Maintenance Windows

  • Defines a schedule for when to perform actions on your instances
  • Example: OS patching, updating drivers, installing software, …

• Maintenance Window contains

  • Schedule
  • Duration
  • Set of registered instances
  • Set of registered tasks

---

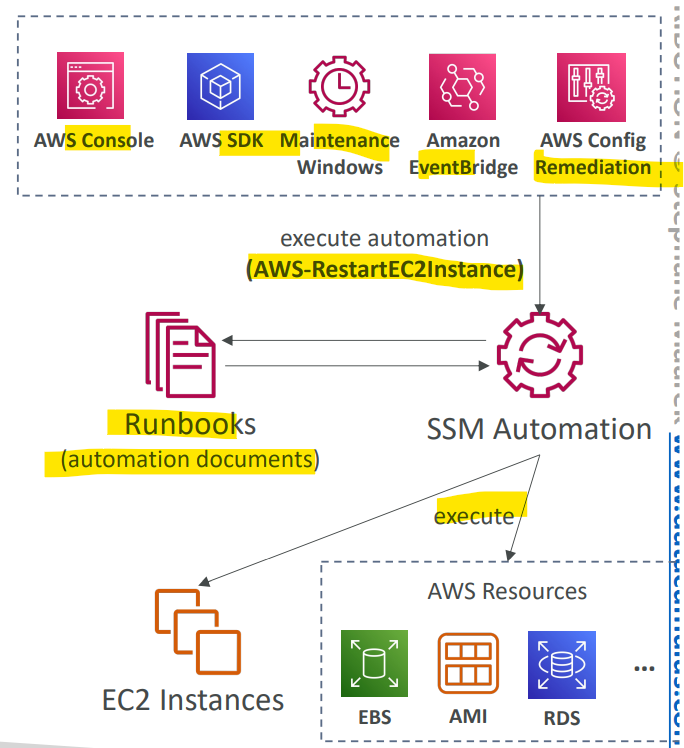

Automation

• Automation

  • Simplifies common maintenance and deployment tasks of EC2 instances and other AWS resources
  • Examples: restart instances, create an AMI, EBS snapshot

• Automation Runbook

  • SSM Documents to define actions preformed on your EC2 instances or AWS resources (pre-defined or custom)

• Can be triggered using:

  • Manually using AWS Console, AWS CLI or SDK
  • Amazon EventBridge
  • On a schedule using Maintenance Windows
  • By AWS Config for rules remediations

---
