AWS - Organizations

Back

• AWS - Organizations
  • AWS Organizations
    • Organizational Units (OU) Example
    • Benefits
    • Service Control Policies(常考)
      • SCP Hierarchy
      • SCP Strategies
    • Hands-on

---

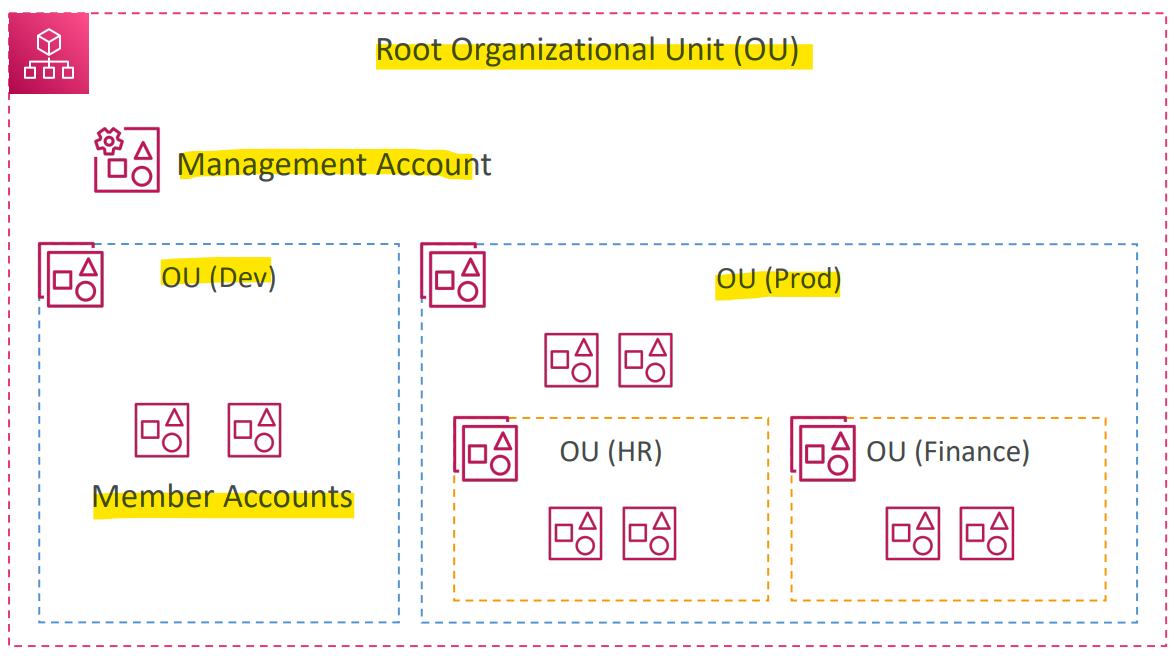

AWS Organizations

• AWS Organizations

  • Global service
  • Allows to manage multiple AWS accounts

• Typs of Account

  • management account

    • The main account

  • member accounts

    • Other accounts
    • Member accounts can only be part of one organization

• Consolidated Billing

  • across all accounts
  • single payment method on the management account
  • Pricing benefits from aggregated usage (volume discount for EC2, S3…)
  • Shared reserved instances and Savings Plans discounts across accounts

• API is available to automate AWS account creation

---

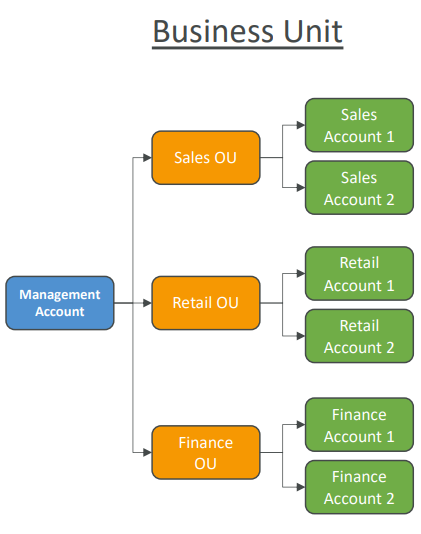

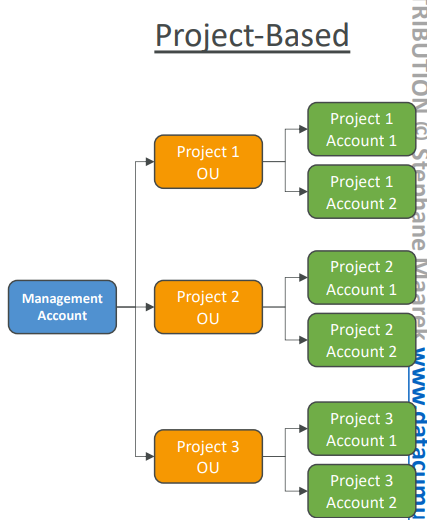

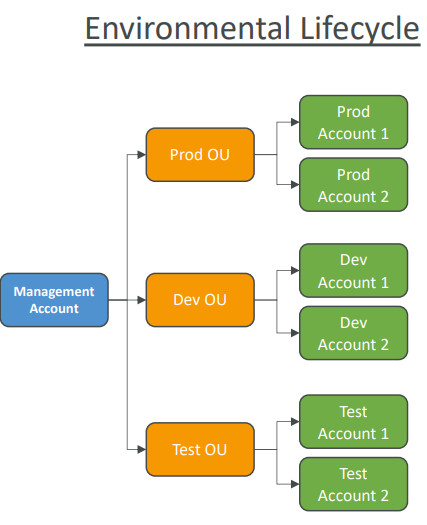

Organizational Units (OU) Example

---

Benefits

• Advantages

  • Admin

    • Establish Cross Account Roles for Admin purposes

  • Billing

    • Use tagging standards for billing purposes

  • Log

    • Send CloudWatch Logs to central logging account

  • Audit

    • Enable CloudTrail on all accounts, send logs to central S3 account

  • Security

    • Multi Account vs One Account Multi VPC(more separated, more security)
    • SCP

---

Service Control Policies(常考)

• Service Control Policies (SCP)

  • the IAM policies applied to OU or Accounts to restrict Users and Roles
  • They do not apply to the management account (full admin power)
  • Must have an explicit allow
    • does not allow anything by default – like IAM

• Sample:

  • You have strong regulatory requirements to only allow fully internally audited AWS services in production. You still want to allow your teams to experiment in a development environment while services are being audited. How can you best set this up?
    • Create Organ and create Prod and Dev OU, apply SCP on Prod OU
  • You have 5 AWS Accounts that you manage using AWS Organizations. You want to restrict access to certain AWS services in each account. How should you do that?
    • Organ SCP

---

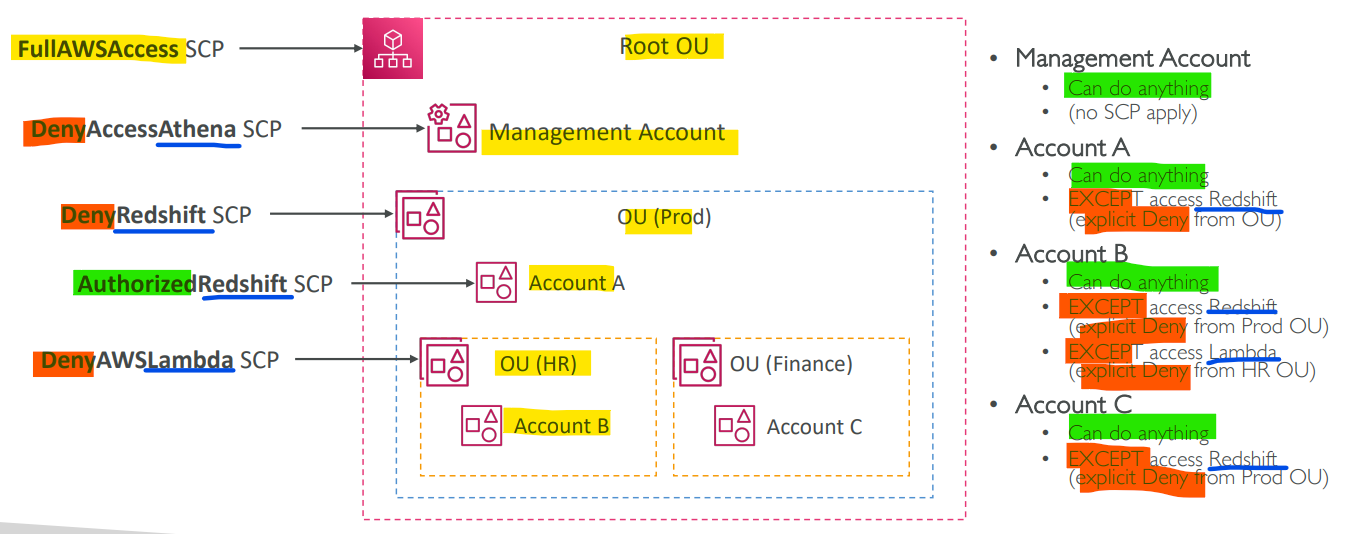

SCP Hierarchy

• 注意:

1. 以上对 Management Account 的 DenyAthena 无效, 因为 full admin power.
2. AccountA 有授权 Redshift, 但不能与上位法 OU SCP 冲突, 所以无效.

---

SCP Strategies

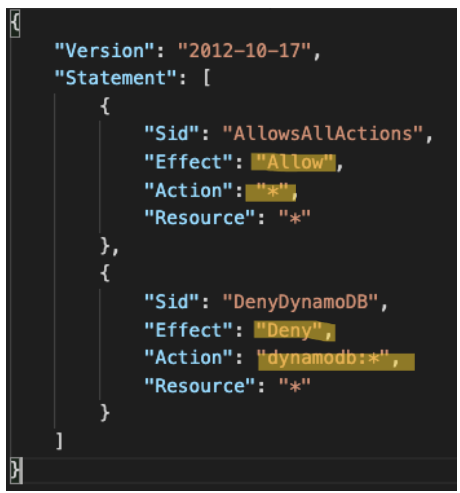

• Blocklist Strategy
  • AllowsAllActions + Deny Actions

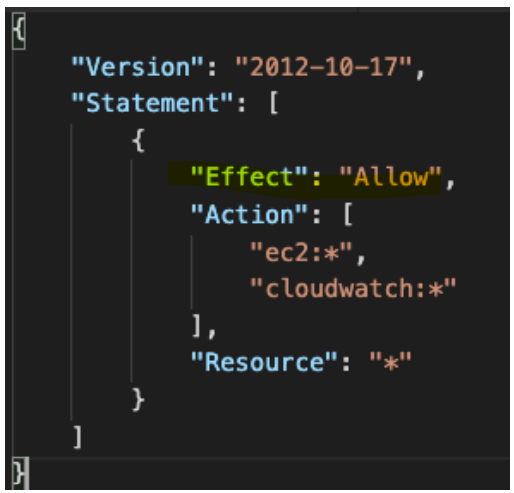

• Allowlist Strategy
  • Allow actions

---

Hands-on

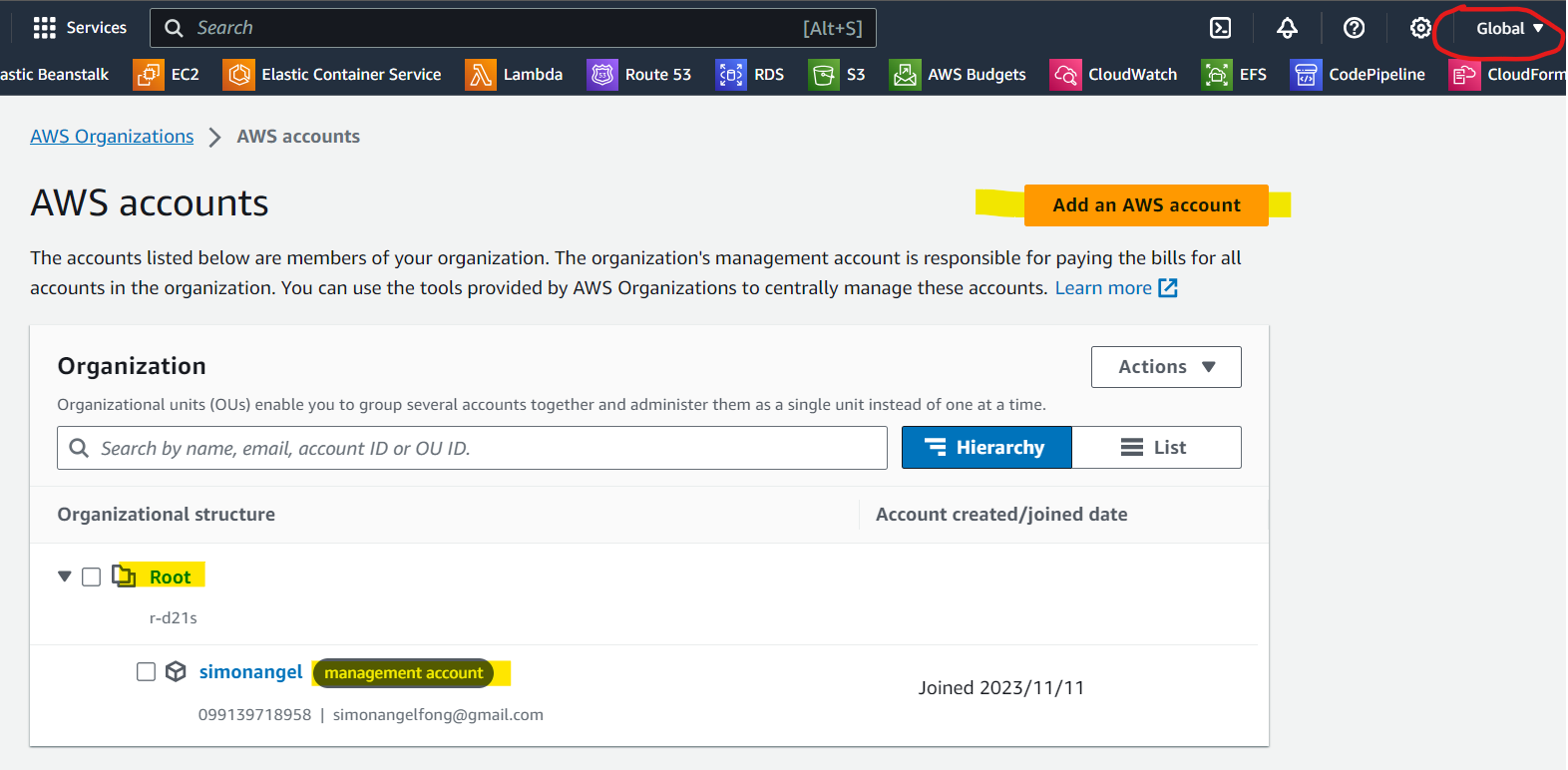

• Create Organization

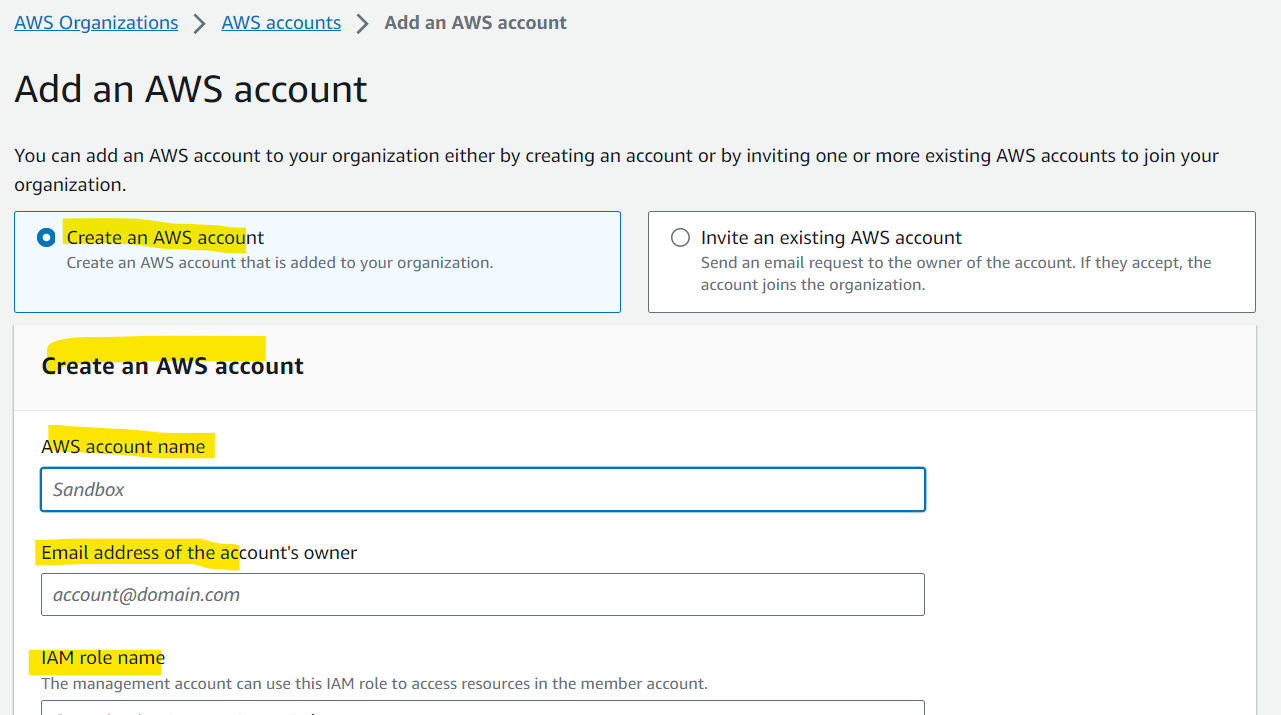

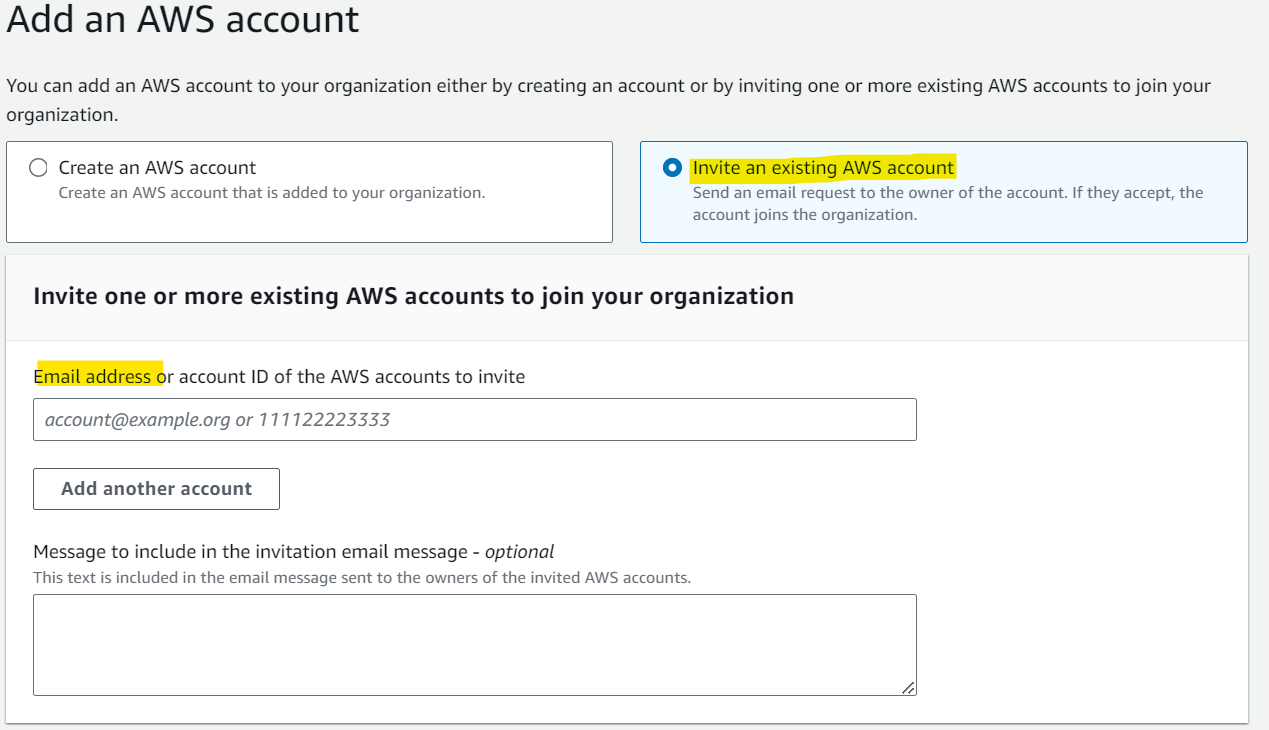

• Add account

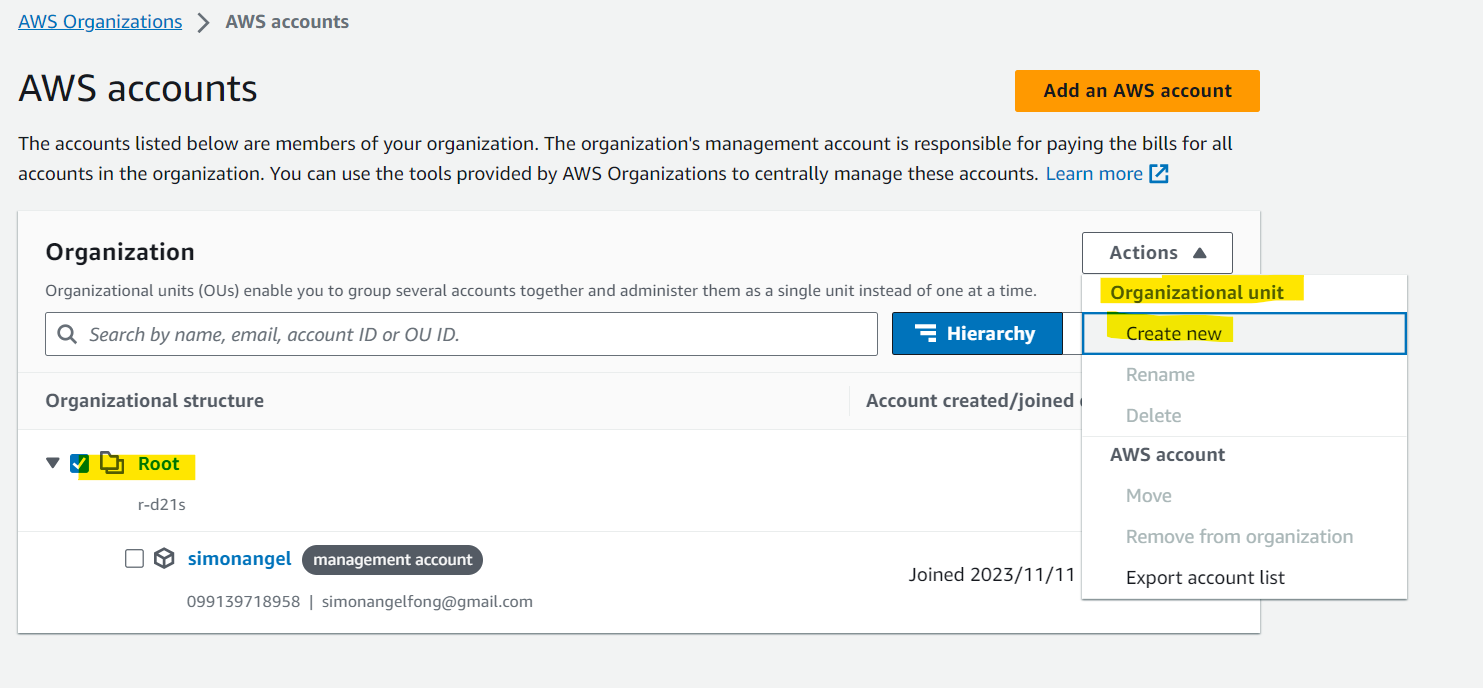

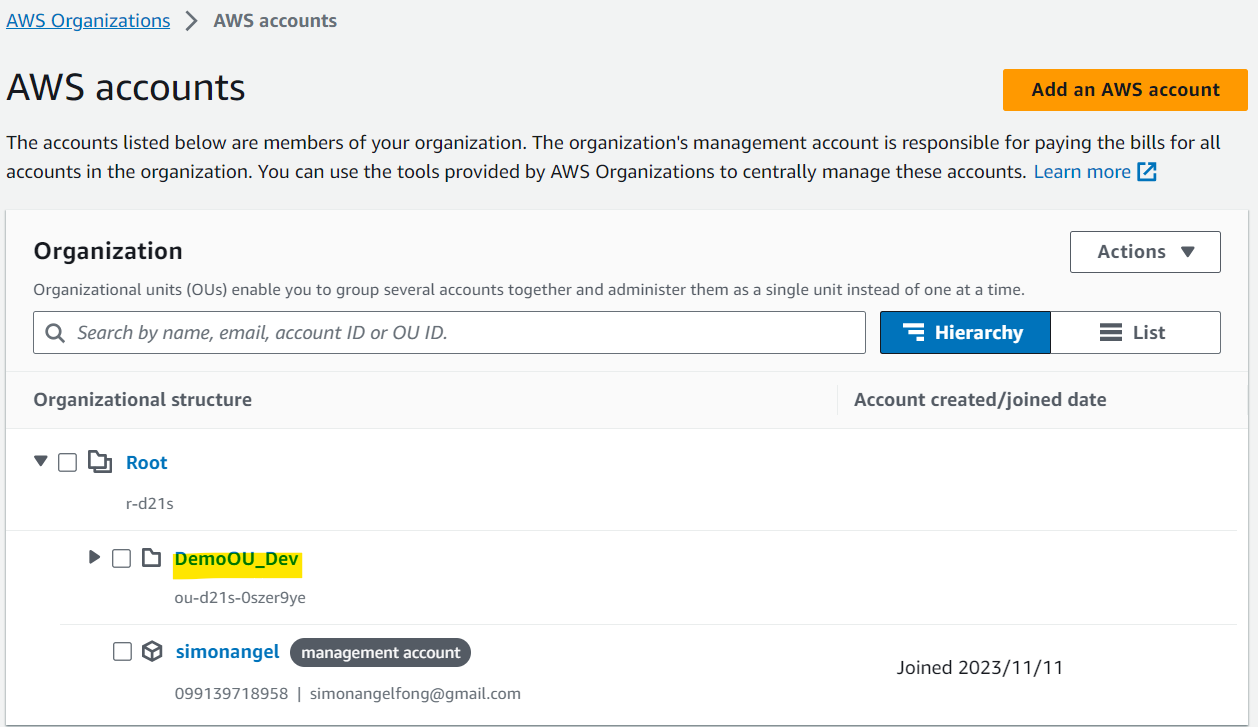

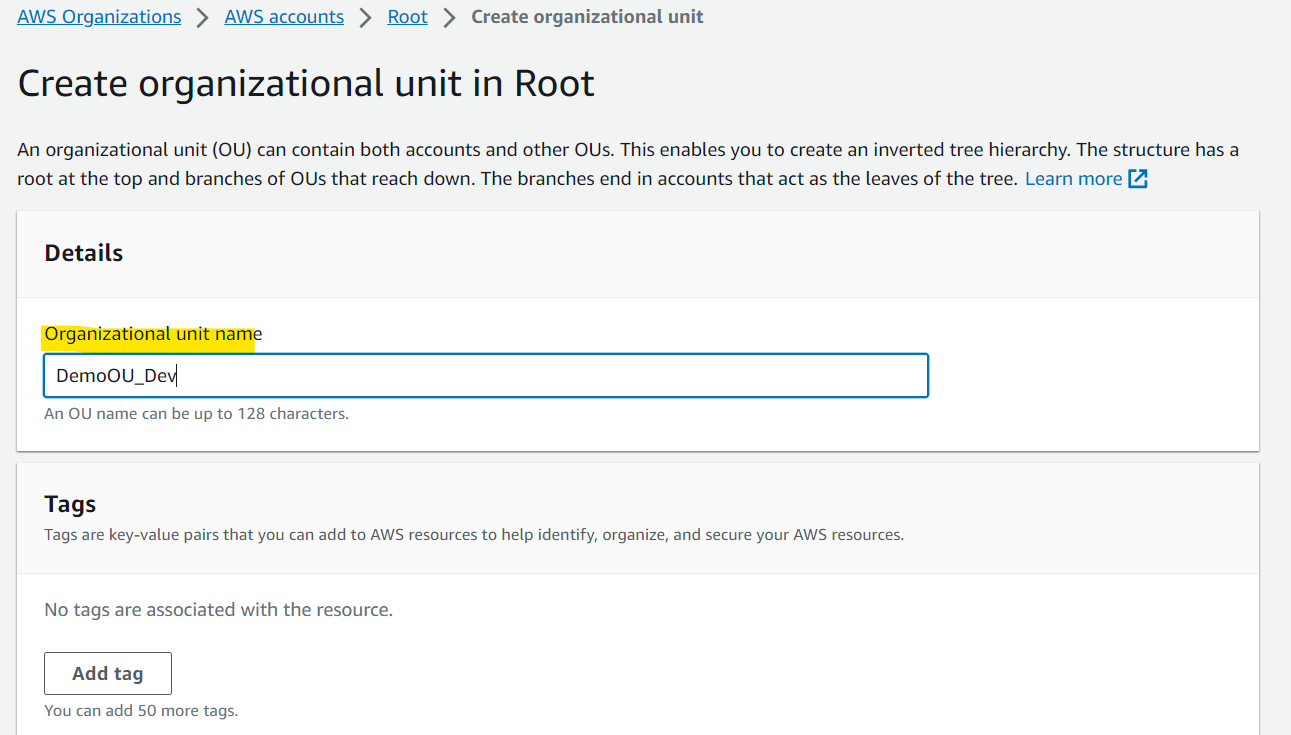

• Create OU

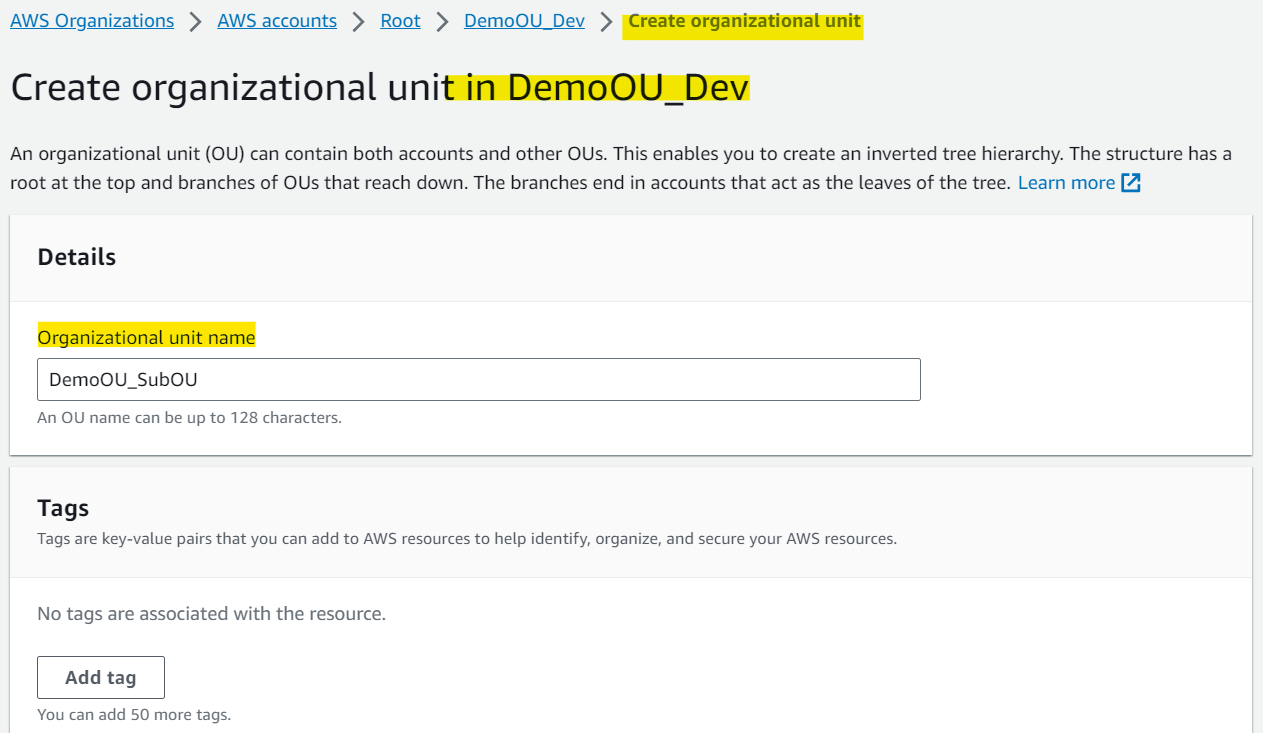

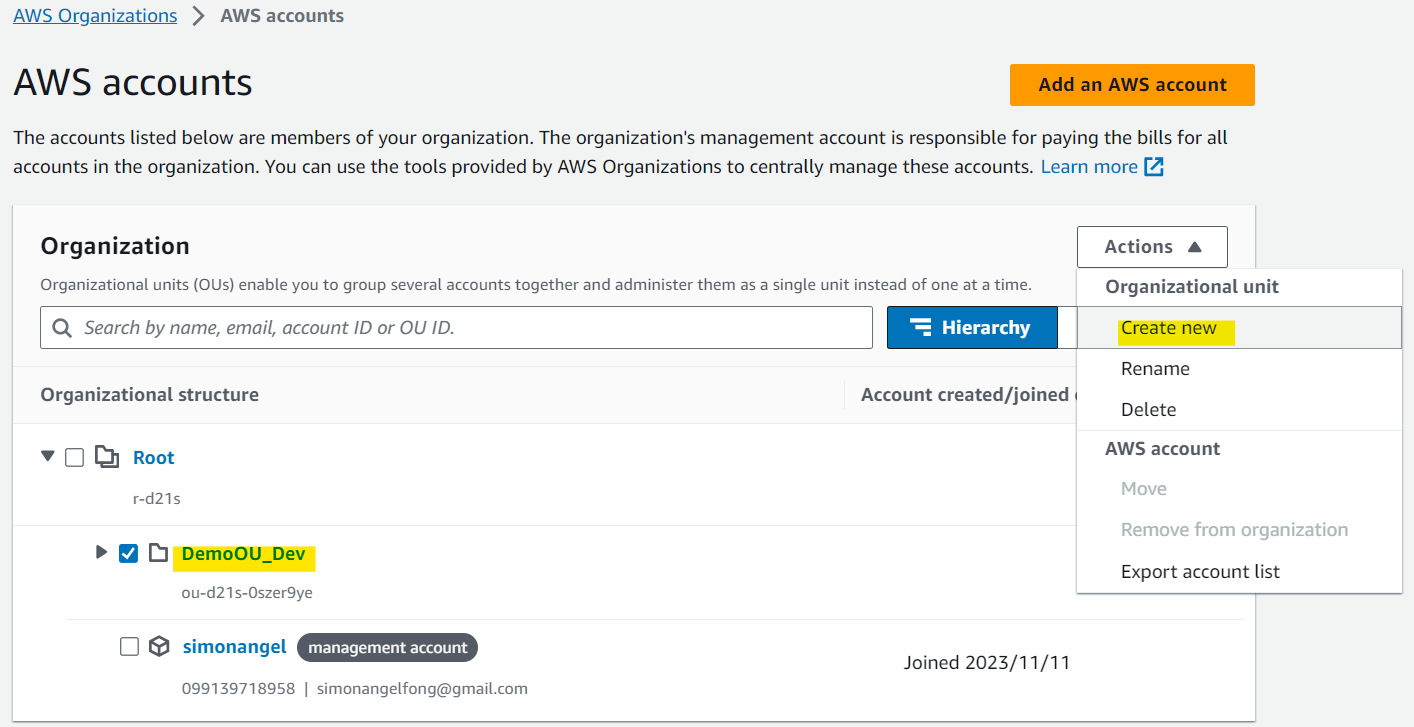

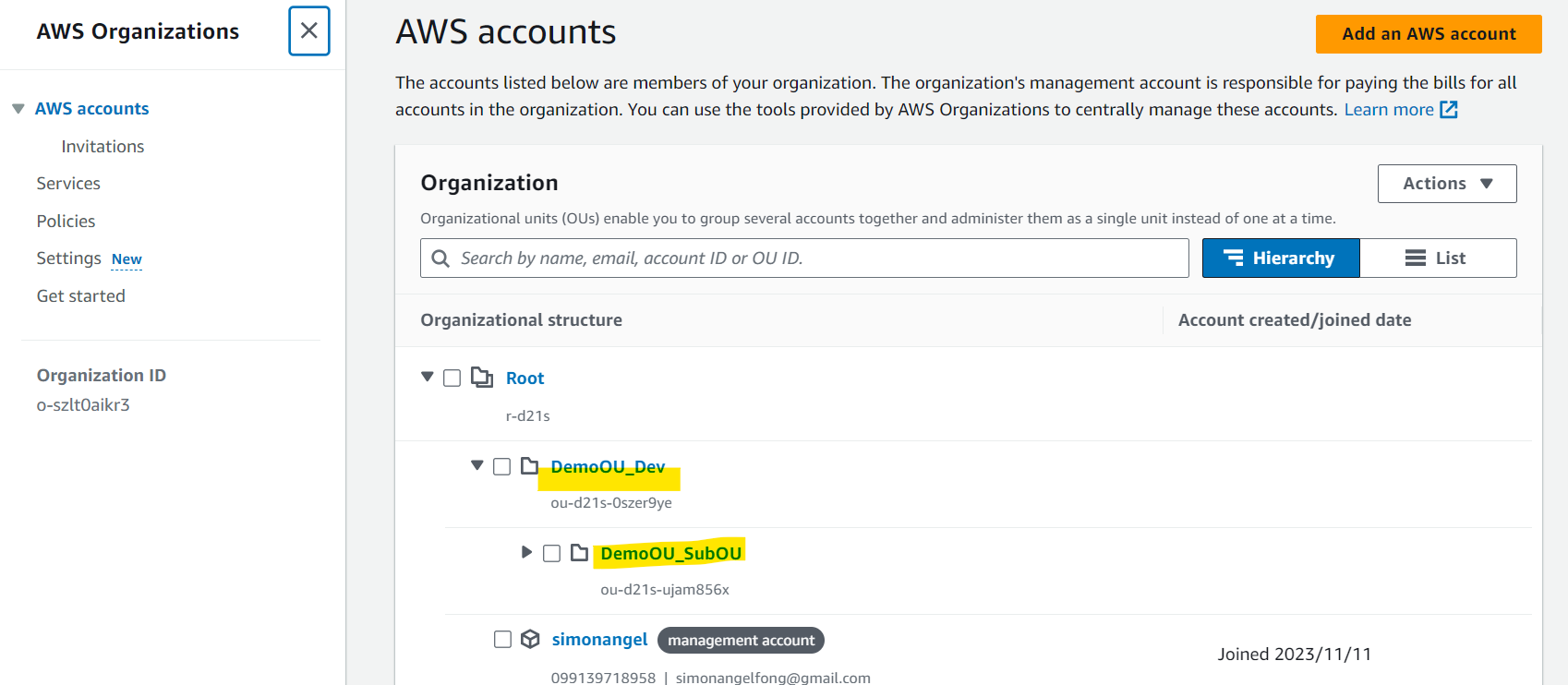

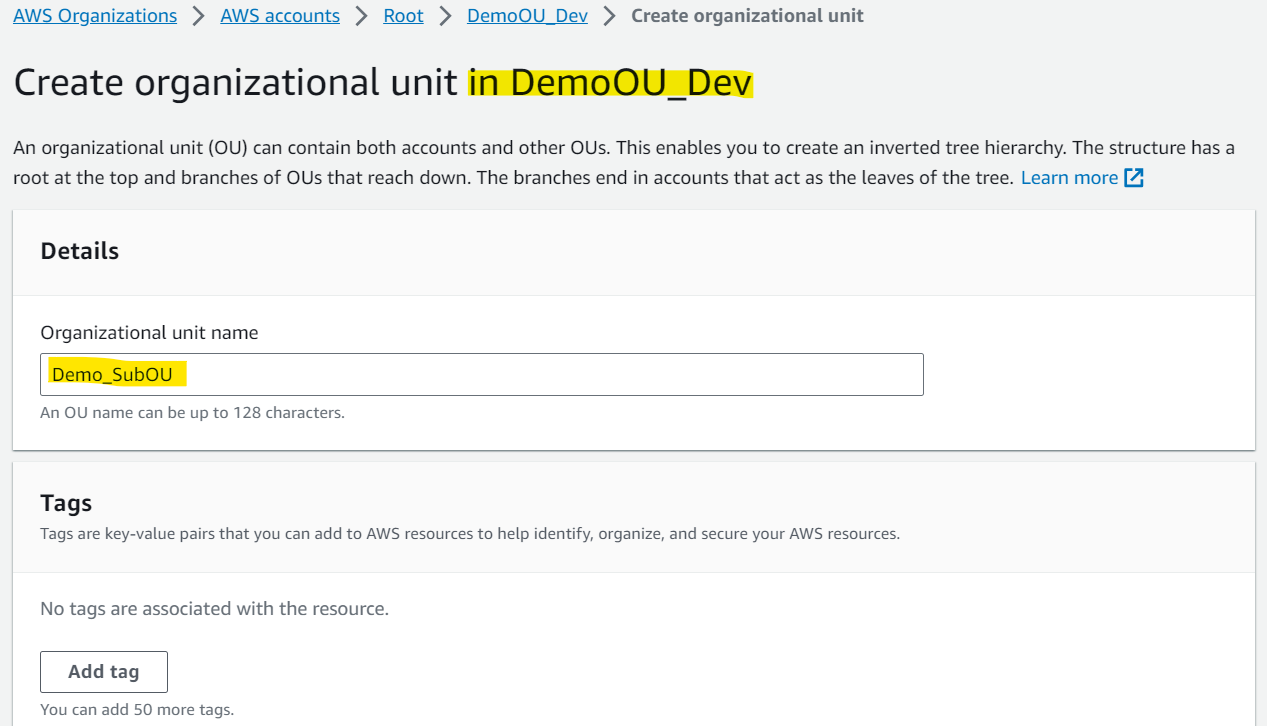

• Create subOU

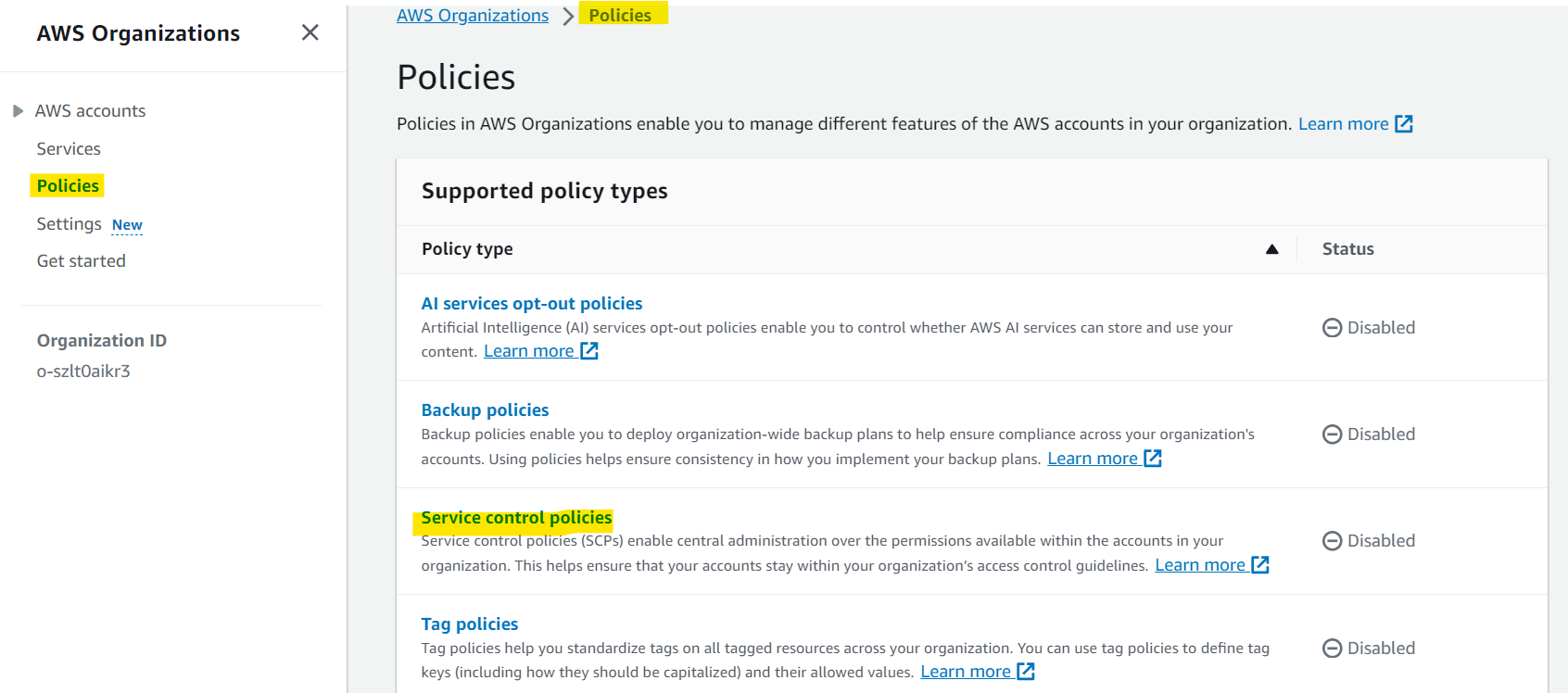

• Policies

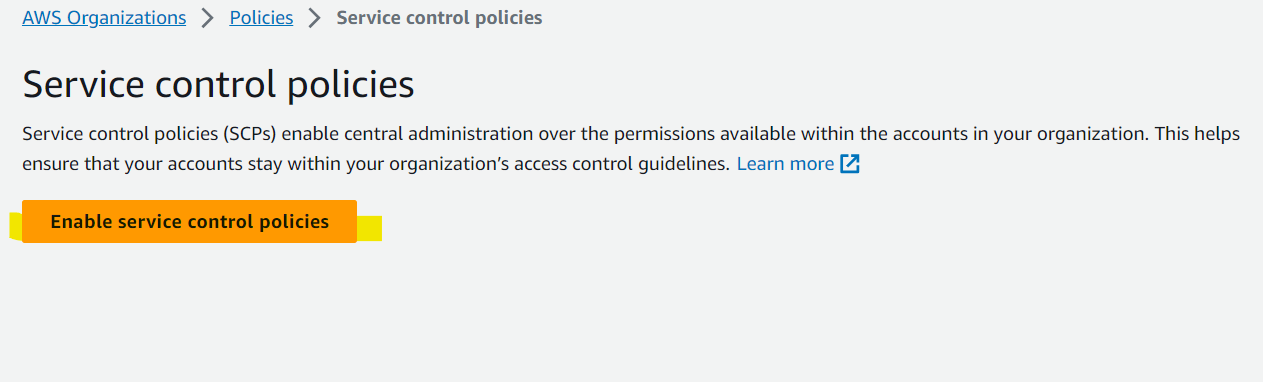

• SCP

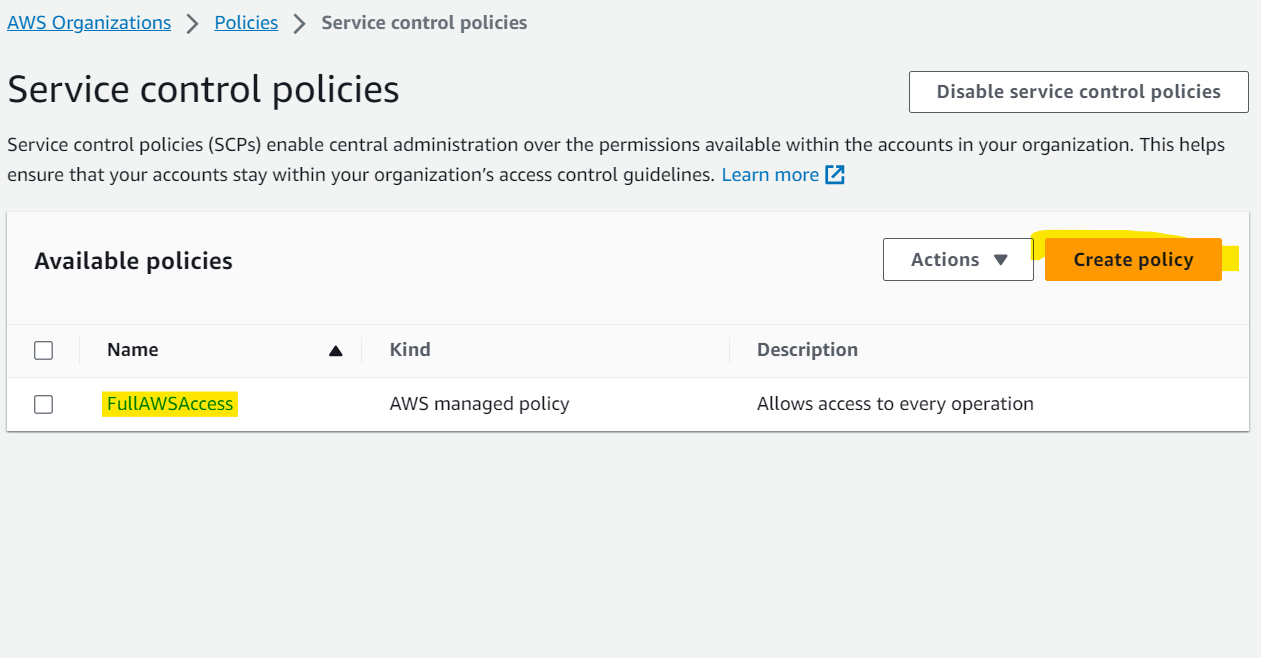

• By default, SCP has FULLAWSAccess policy.

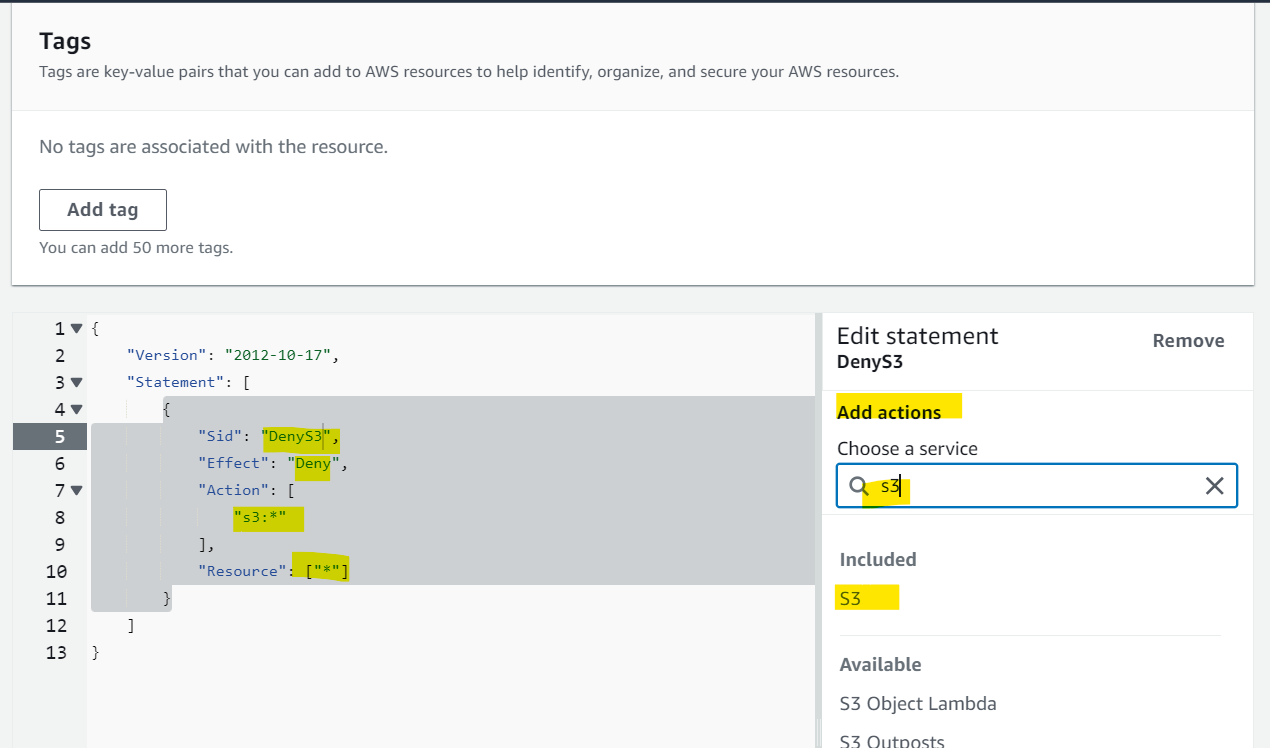

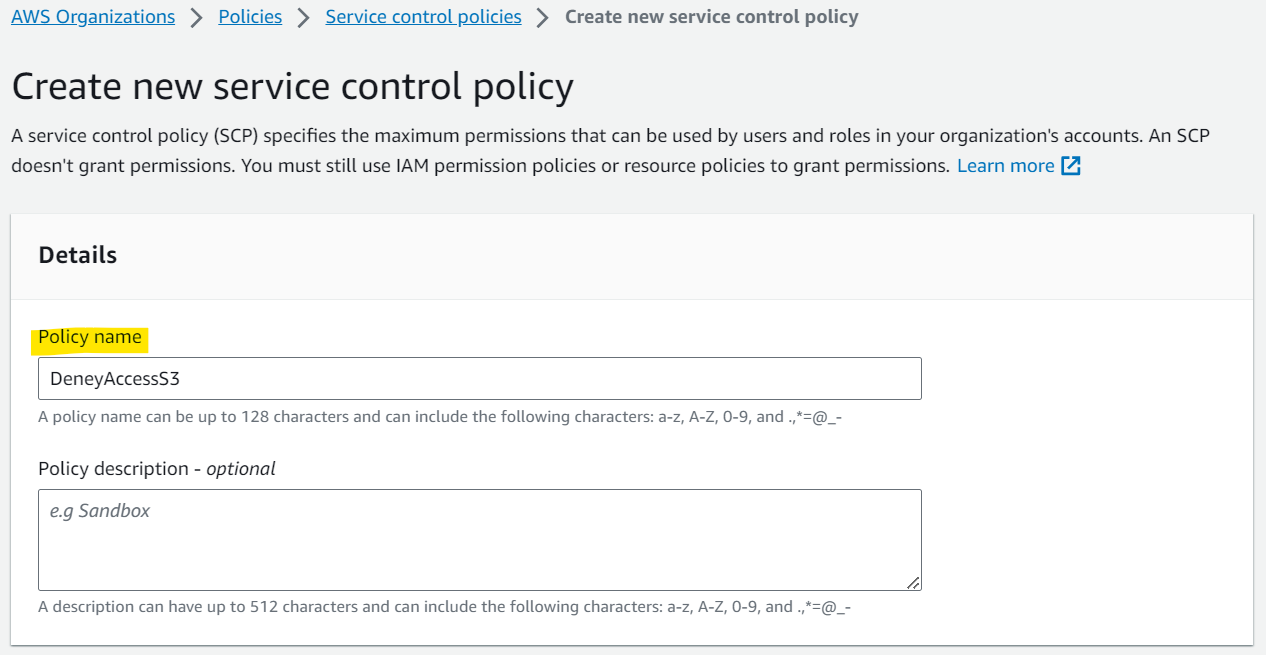

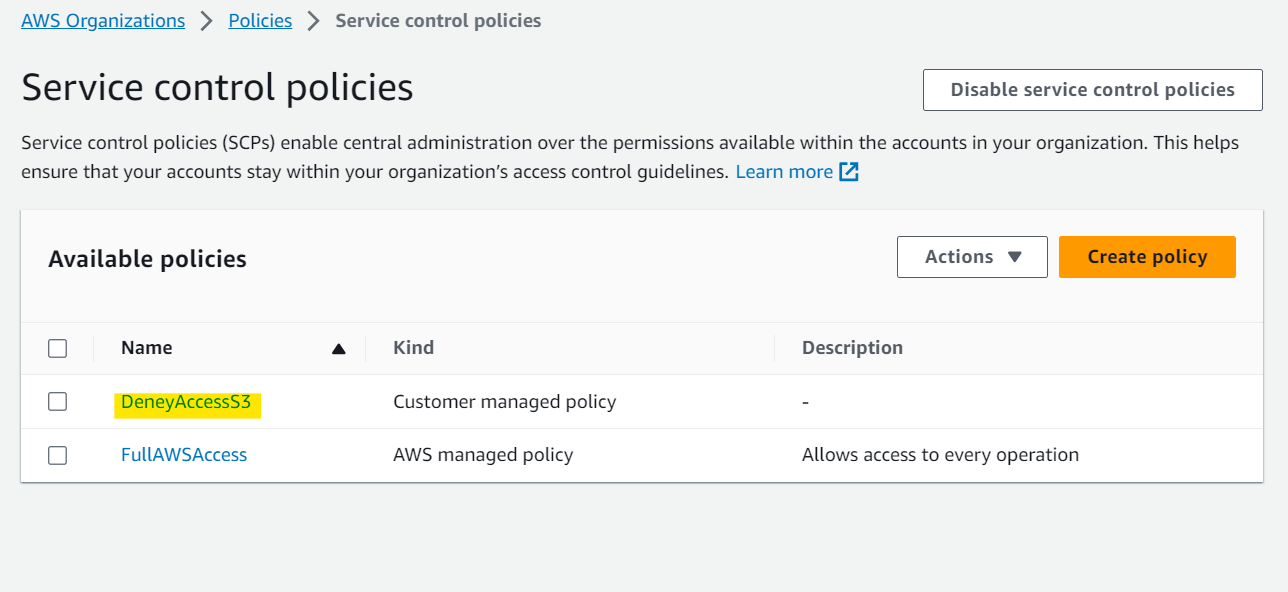

• Create policy

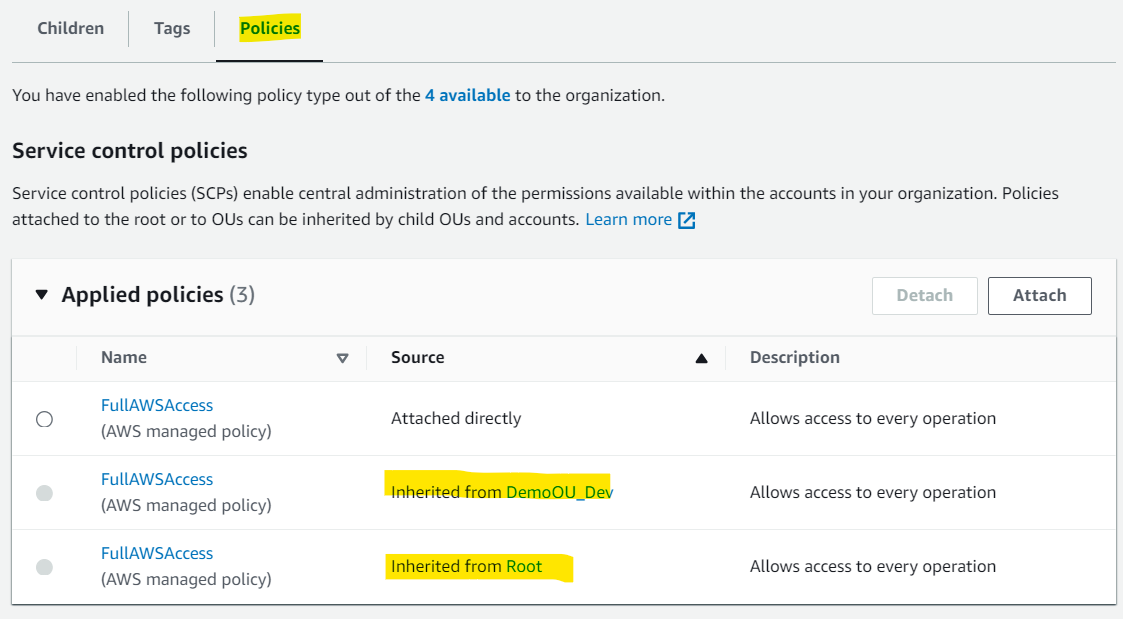

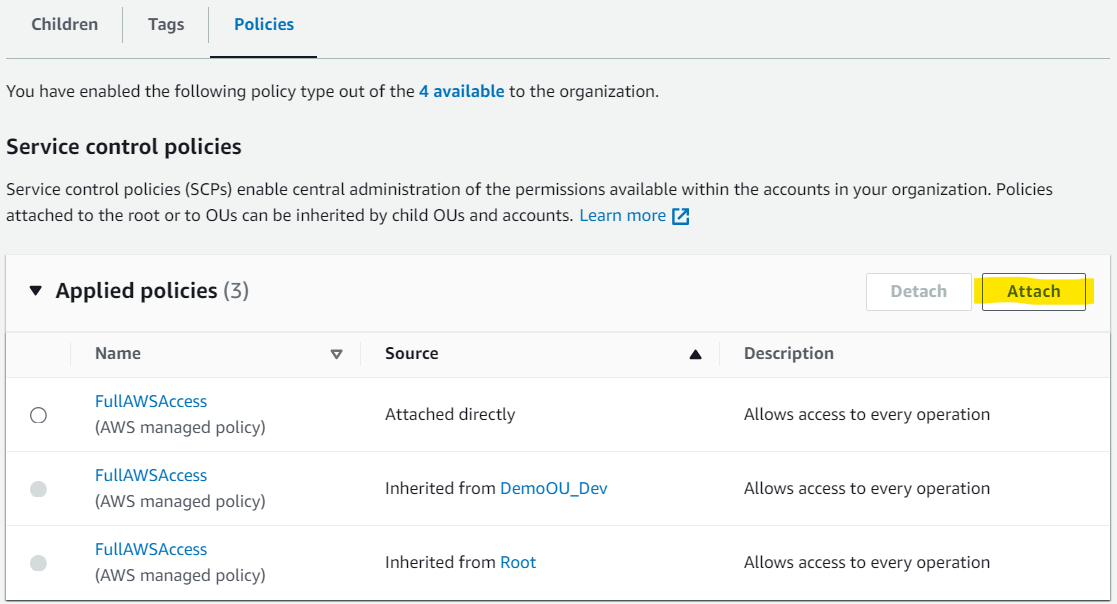

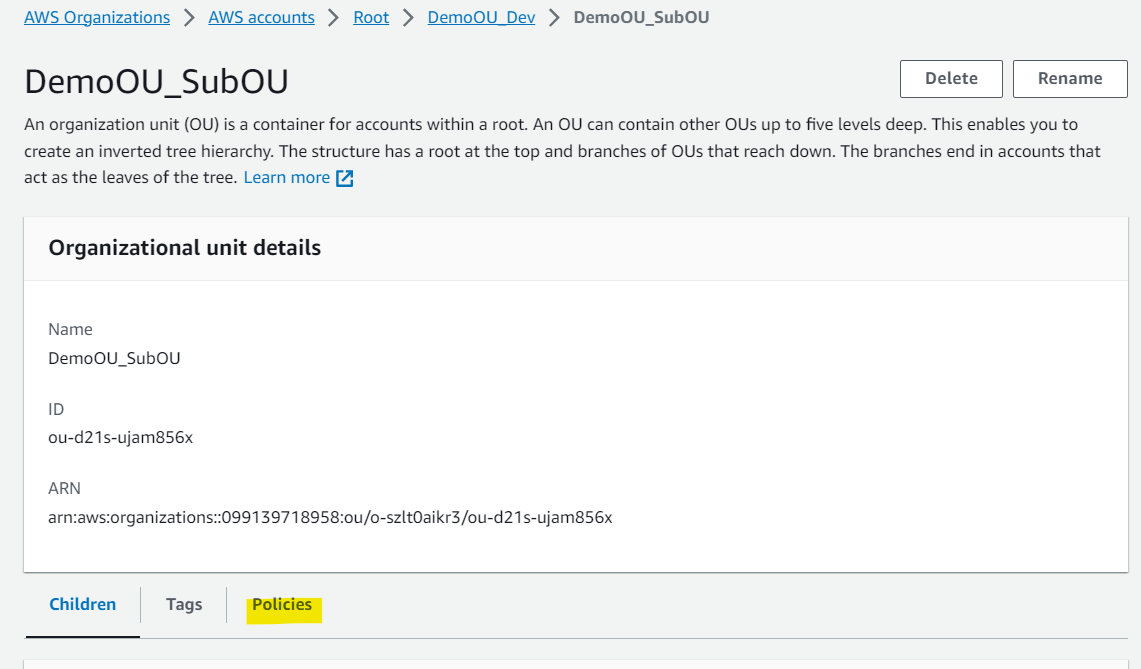

• Policies hierarchy (subOU)

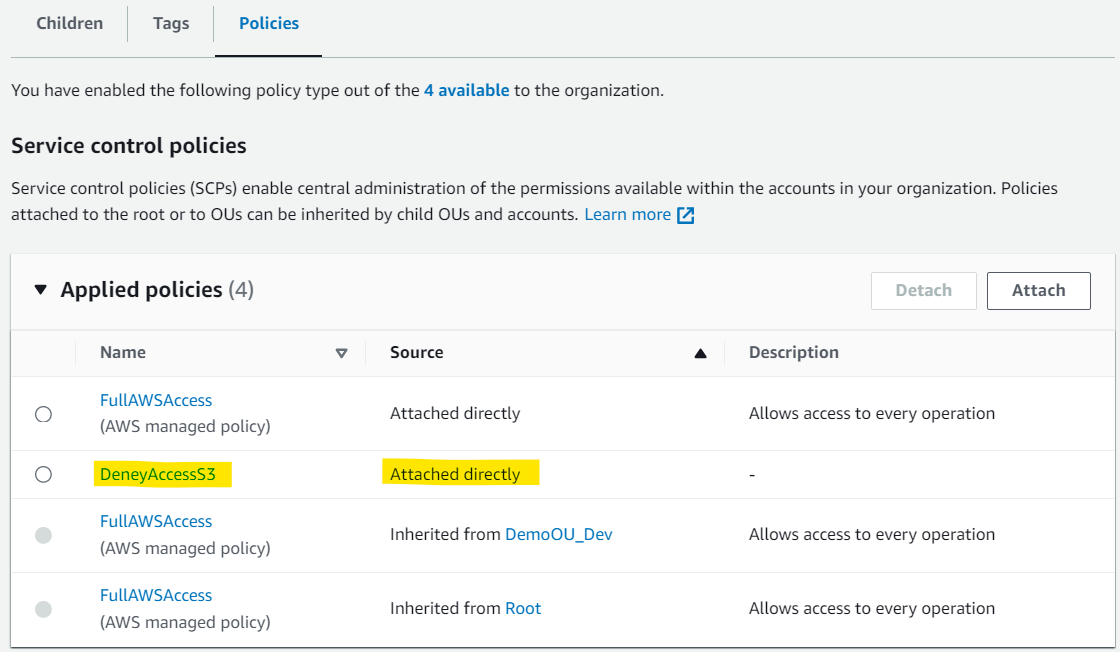

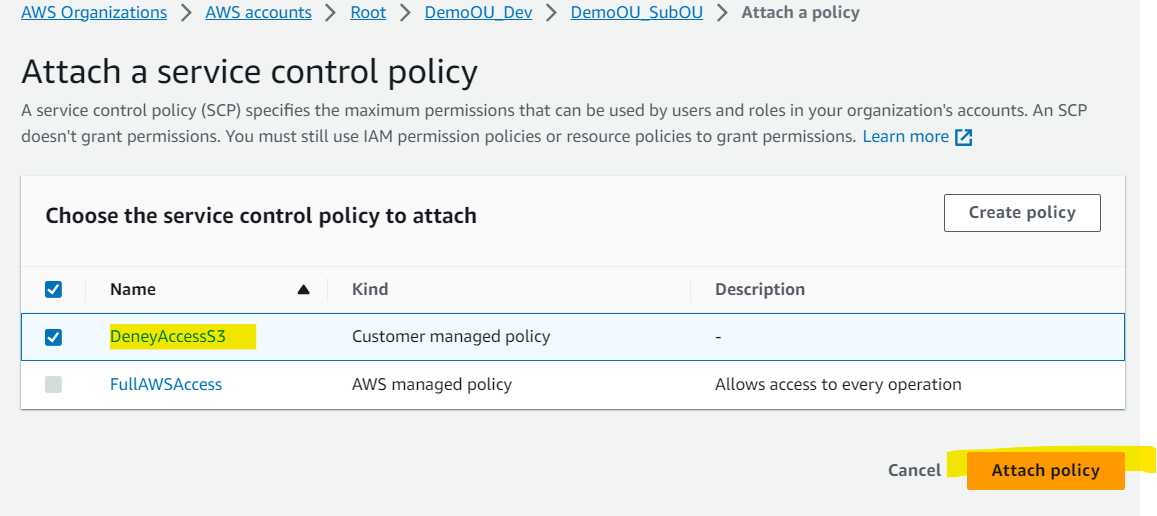

• Attach policy

---
