AWS - Directory Services

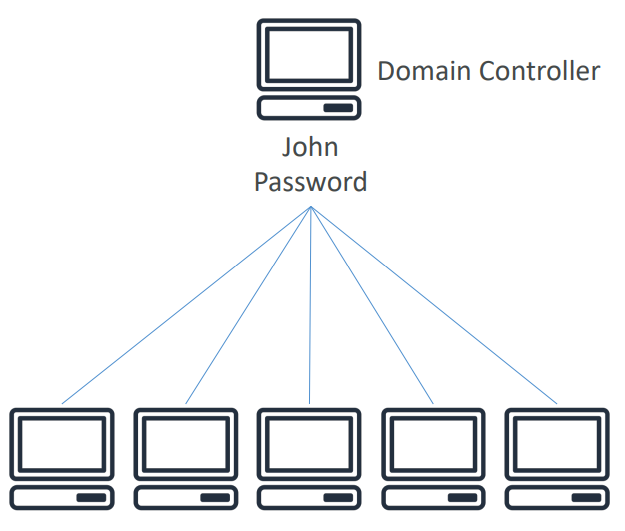

Found on any Windows Server with AD Domain Services
Database of objects:
- User Accounts, Computers, Printers, File Shares, Security Groups
Centralized security management, create account, assign permissions
Objects are organized in trees
A group of trees is a forest

win_ad_diagram

AWS Directory Services
- allow Windows ec2 instance to join the domain controllers for your network and share all the logins, credentials, and so on.
- A directory in AWS make it closer to ec2 instances running windows.

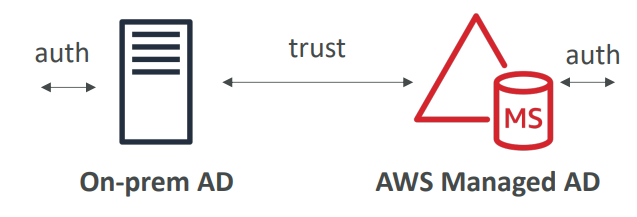

AWS Managed Microsoft AD
- Create your own AD in AWS, manage users locally, supports MFA
- Establish “trust” connections with your on-premises AD
- On-premises 或 Directory Services 任何一方认证即可访问另一方资源.

directory_service_managed_microsoft_ad

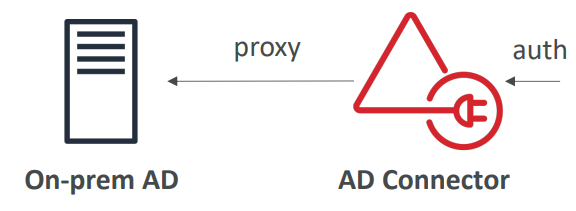

AD Connector
- Directory Gateway (proxy) to redirect to on-premises AD supports MFA
- Users are solely managed on the on-premises AD
- connector is just proxy, all users are managed on the on-premises AD.

directory_service_ad_connector

Simple AD
- AD-compatible managed directory on AWS
- Cannot be joined with on-premises AD
- no on-premises AD

directory_service_simple_ad

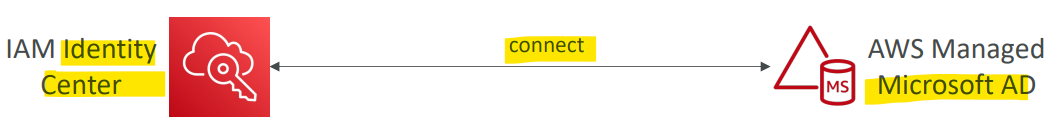

IAM Identity Center connect to an AWS Managed Microsoft AD (Directory Service)
- Integration is out of the box

directory_service_identity_center

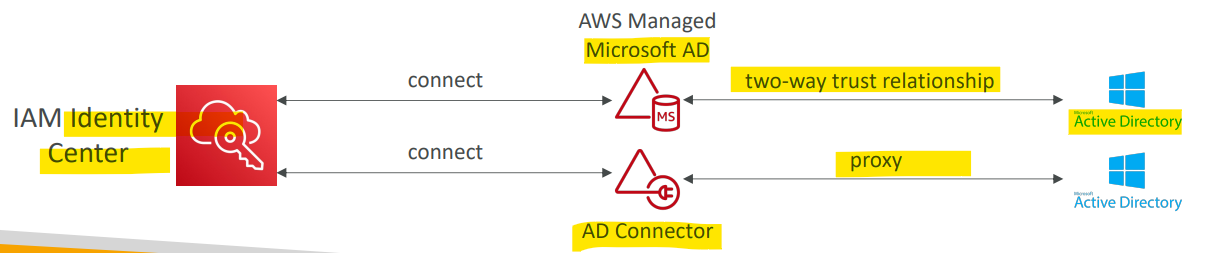

IAM Identity Center connect to a Self-Managed Directory
- 2 ways to build integration:
  - Create Two-way Trust Relationship using AWS Managed Microsoft AD
  - Create an AD Connector

directory_service_identity_center_selfmanaged

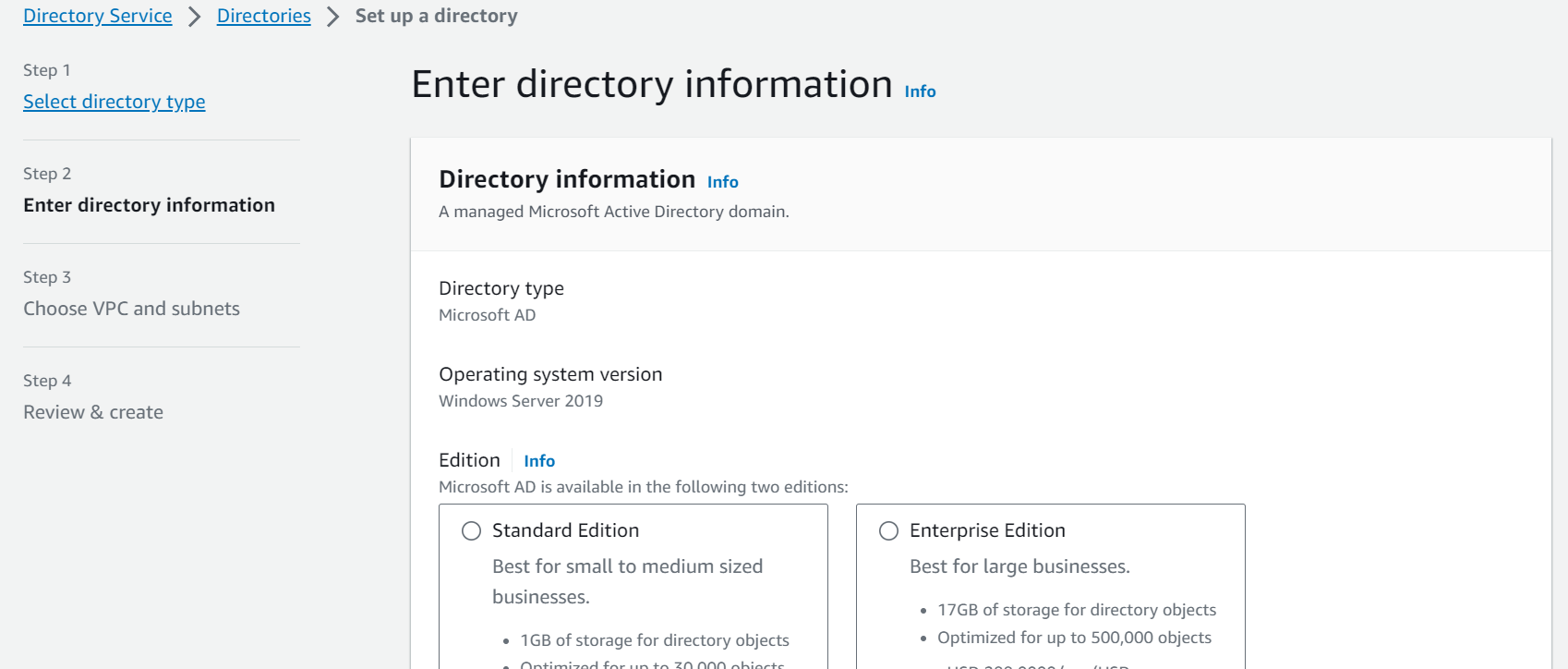

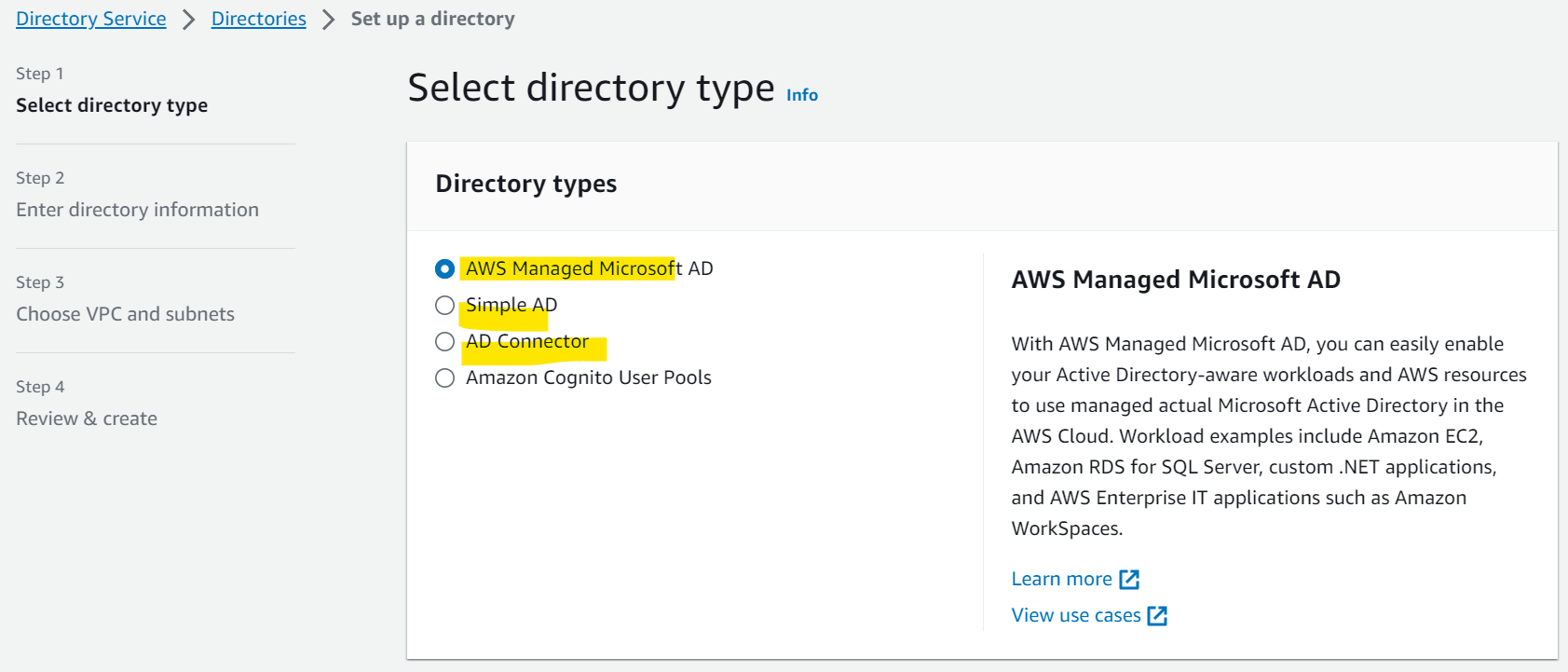

directory_service_handson01
