AWS - CloudTrail

AWS CloudTrail
- Provides governance, compliance and audit for your AWS Account
- enabled by default!
Features:
- Get an history of events / API calls made within your AWS Account by:
  - Console
  - SDK
  - CLI
  - AWS Services
- Can put logs from CloudTrail into CloudWatch Logs or S3
- A trail can be applied to All Regions (default) or a single Region.
If a resource is deleted in AWS, investigate CloudTrail first!

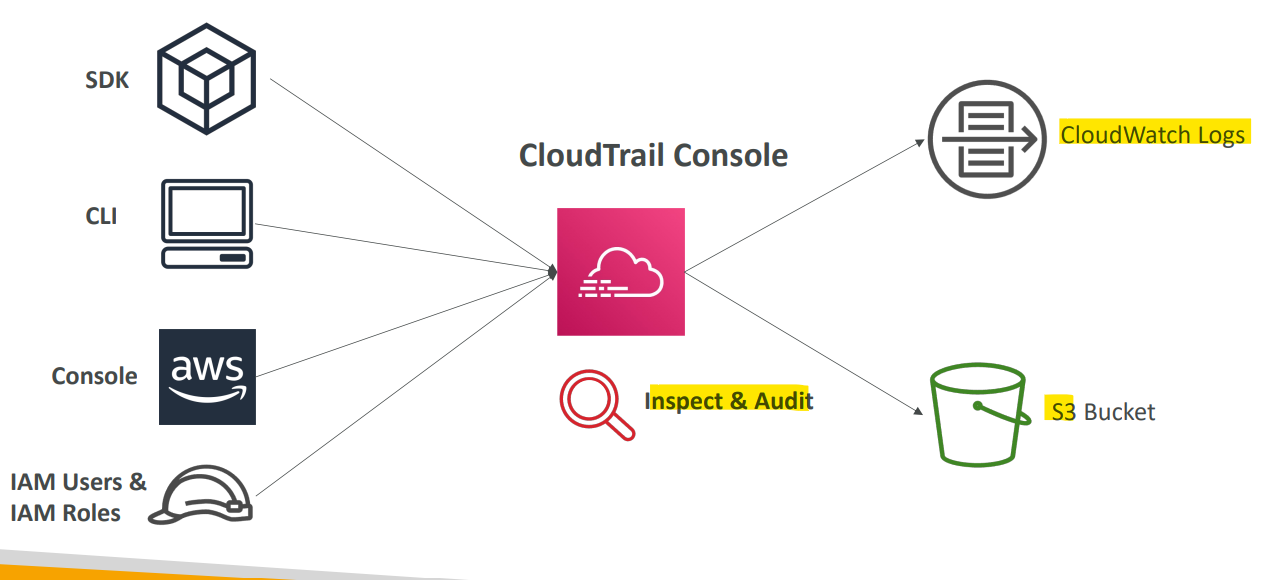

cloudtrail_diagram

Sample:
- Someone has terminated an EC2 instance in your AWS account last week, which was hosting a critical database that contains sensitive data. Which AWS service helps you find who did that and when?
  - AWS CloudTrail allows you to log, continuously monitor, and retain account activity related to actions across your AWS infrastructure. It provides the event history of your AWS account activity, audit API calls made through the AWS Management Console, AWS SDKs, AWS CLI. So, the EC2 instance termination API call will appear here. You can use CloudTrail to detect unusual activity in your AWS accounts.
- Someone changed the configuration of a resource and made it non-compliant. Which AWS service is responsible for logging who made modifications to resources?
  - AWS CloudTrail

Operations that are performed on resources in your AWS account
- e.g.,
  - Configuring security (IAM AttachRolePolicy)
  - Configuring rules for routing data (Amazon EC2 CreateSubnet)
  - Setting up logging (AWS CloudTrail CreateTrail)
By default, trails are configured to log management events.
Can separate Read Events (that don’t modify resources) from Write Events (that may modify resources)

By default, data events are not logged (because high volume operations)
Amazon S3 object-level activity (ex: GetObject, DeleteObject, PutObject): can separate Read and Write Events
AWS Lambda function execution activity (the Invoke API)

Not enable by default. Not free.
Enable CloudTrail Insights to detect unusual activity in your account:
- inaccurate resource provisioning
- hitting service limits
- Bursts of AWS IAM actions
- Gaps in periodic maintenance activity
CloudTrail Insights analyzes normal management events to create a baseline
- And then continuously analyzes write events to detect unusual patterns
Process:
- Anomalies appear in the CloudTrail console
- Event is sent to Amazon S3
- An EventBridge event is generated (for automation needs)

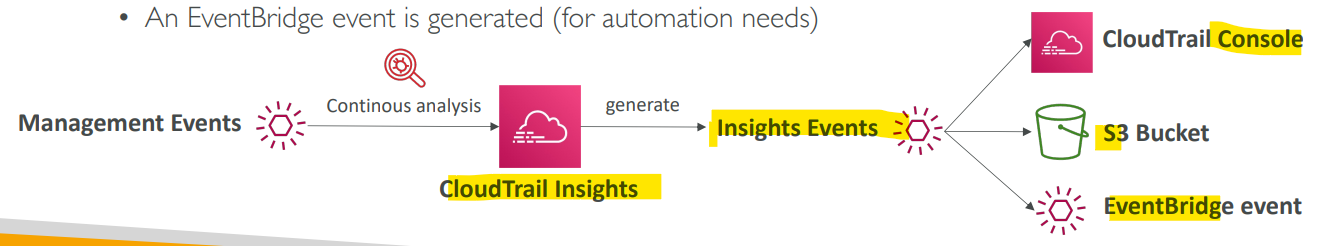

cloudtrail_insights_diagram

Sample:
- You have CloudTrail enabled for your AWS Account in all AWS Regions. What should you use to detect unusual activity in your AWS Account?
  - CloudTrail Insights

Sample:
- One of your teammates terminated an EC2 instance 4 months ago which has critical data. You don’t know who made this so you are going to review all API calls within this period using CloudTrail. You already have CloudTrail set up and configured to send logs to the S3 bucket. What should you do to find out who made this?

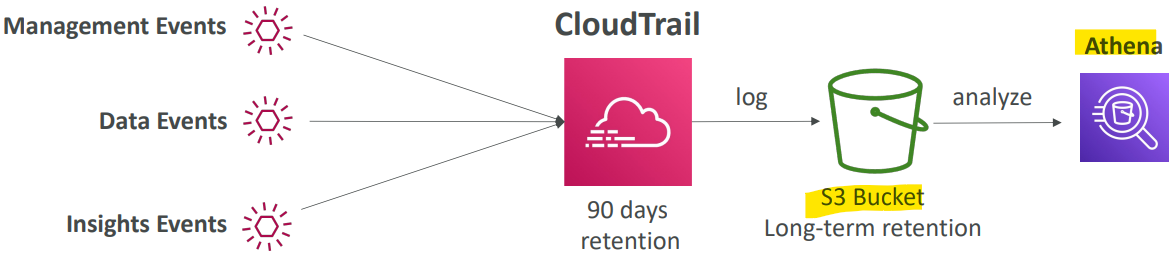

  - You can use the CloudTrail Console to view the last 90 days of recorded API activity.
  - For events older than 90 days, use Athena to analyze CloudTrail logs stored in S3.

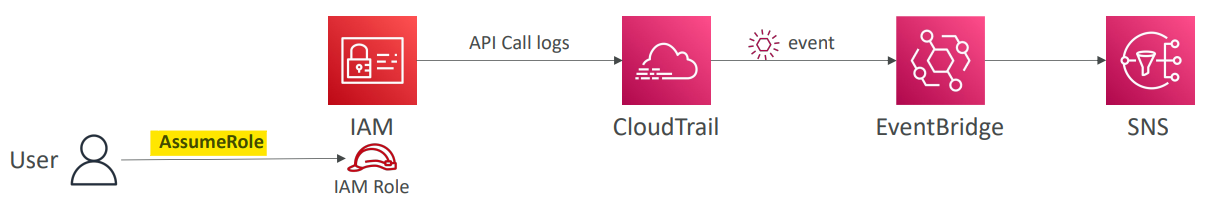

Get notified when assuming role
- Assume Role will call API, which will be logged into CouldTrail.

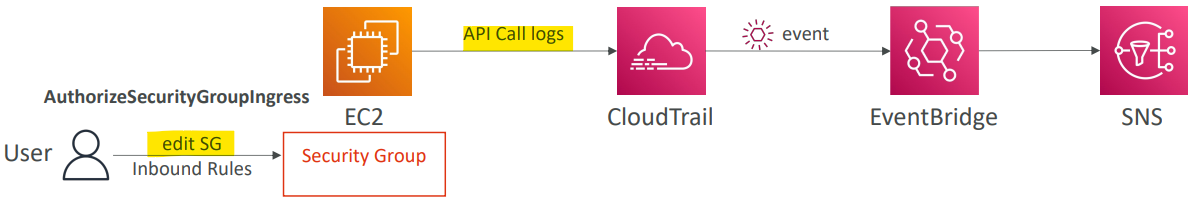

Get notified when edit SG rules
- Edit SG rule will call API, which will be logged

Sample:

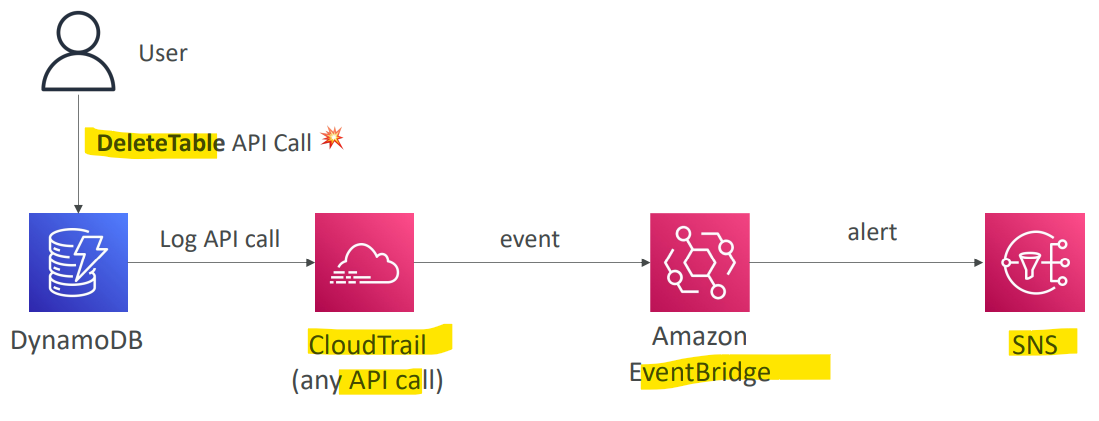

- A company is developing a Serverless application on AWS using Lambda, DynamoDB, and Cognito. A junior developer joined a few weeks ago and accidentally deleted one of the DynamoDB tables in the dev AWS account which contained important data. The CTO asks you to prevent this from happening again and there must be a notification system to monitor if there is an attempt to make such deletion actions for the DynamoDB tables. What would you do?
  - Assign dev to a IAM group which prevent deletion. Configure EventBridge to capture any DeleteTable API Calls through CloudTrail and send notification using SNS.

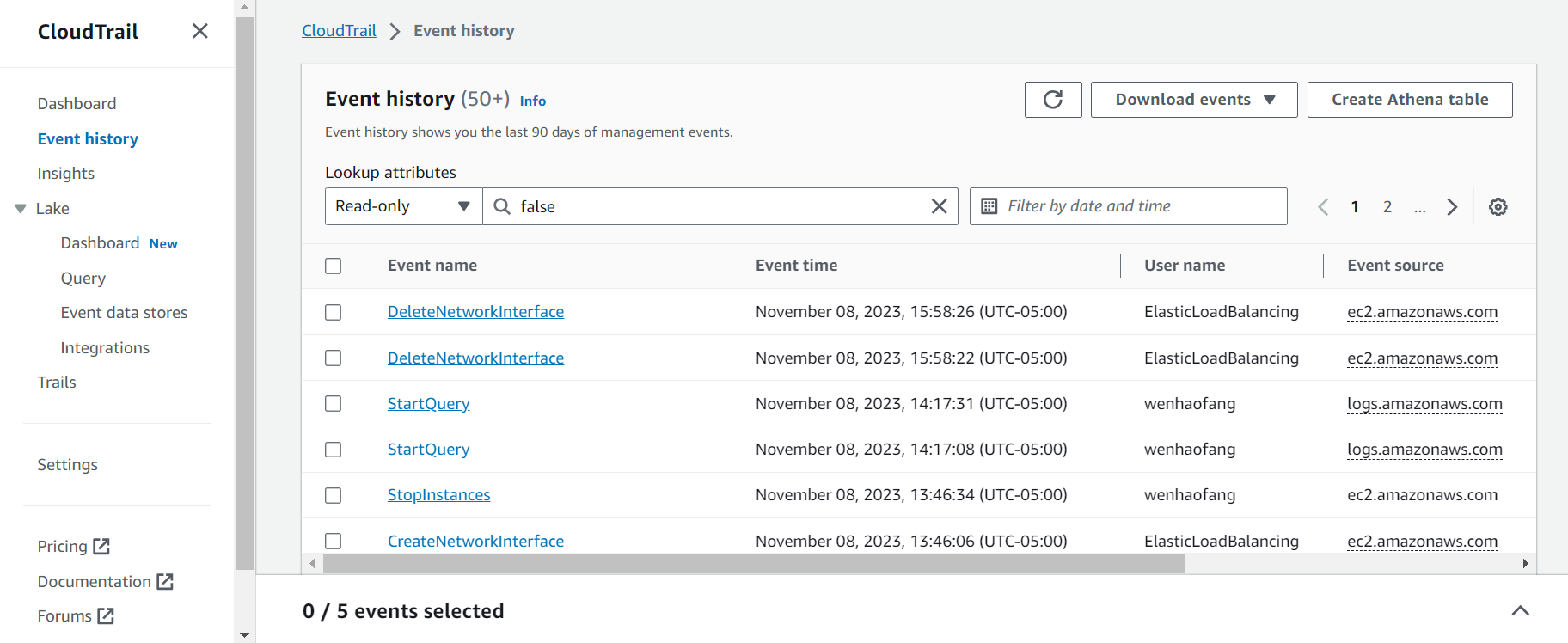

cloudtrail_handson01
