AWS - Config

Helps with auditing and recording compliance of your AWS resources

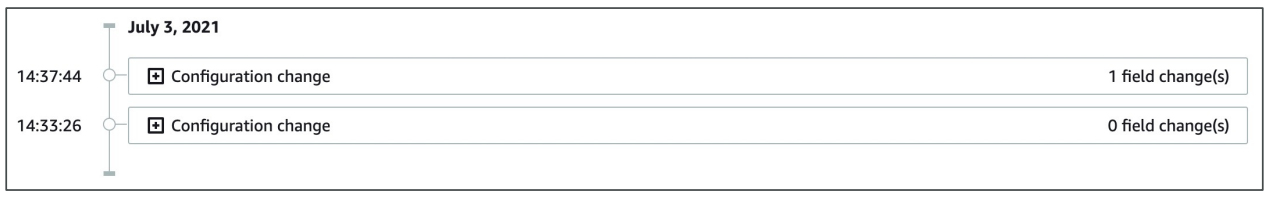

Helps record configurations and changes over time
Questions that can be solved by AWS Config:
- Is there unrestricted SSH access to my security groups?
- Do my buckets have any public access?
- How has my ALB configuration changed over time?
You can receive alerts (SNS notifications) for any changes
AWS Config
- a per-region service
- Can be aggregated across regions and accounts
Possibility of storing the configuration data into S3 (analyzed by Athena)

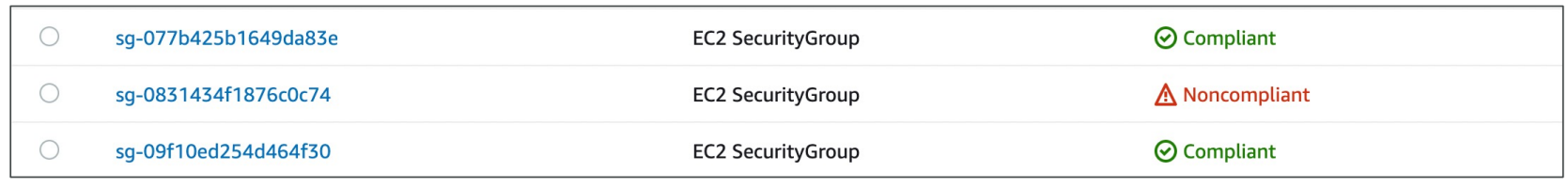

config_compliance_resource

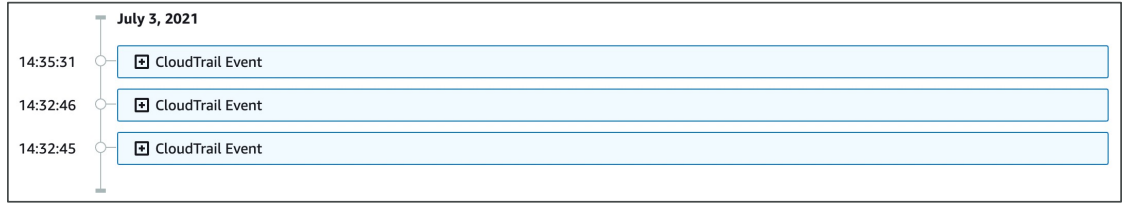

config_resource_cloudtrail_api

Types:
- Can use AWS managed config rules (over 75)
- Can make custom config rules (must be defined in AWS Lambda)
  - Ex: evaluate if each EBS disk is of type gp2
  - Ex: evaluate if each EC2 instance is t2.micro
Rules can be evaluated / triggered:
- For each config change
- And / or: at regular time intervals(ie: every 2 hours)
AWS Config Rules does not prevent actions from happening (no deny)(just overview of configurateion)
- IAM deny
Pricing:
- no free tier, $0.003 per configuration item recorded per region, $0.001 per config rule evaluation per region
Sample:
- You are running a website on a fleet of EC2 instances with OS that has a known vulnerability on port 84. You want to continuously monitor your EC2 instances if they have port 84 exposed. How should you do this?
  - Setup Config Rules
- You would like to evaluate the compliance of your resource’s configurations over time. Which AWS service will you choose?
  - AWS Config

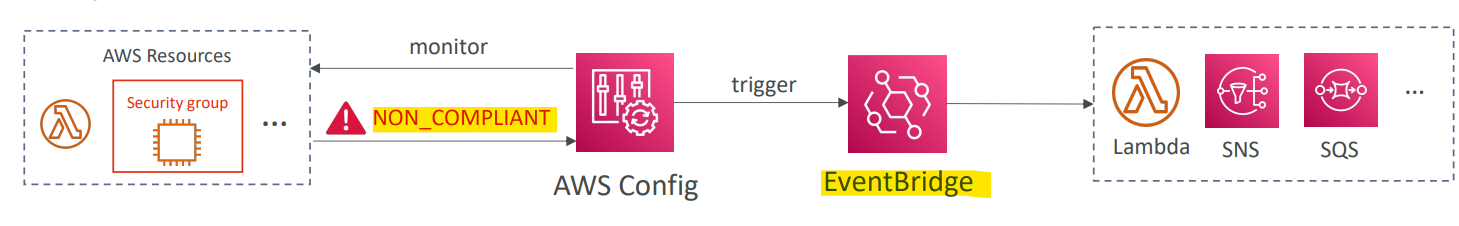

Use EventBridge to trigger notifications when AWS resources are noncomplian

config_eventbridge_notification

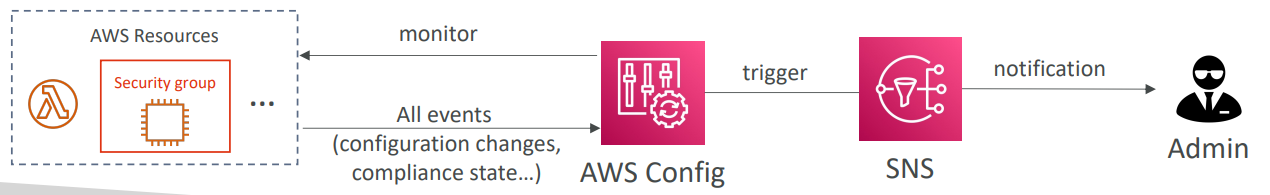

Ability to send configuration changes and compliance state notifications to SNS (all events – use SNS Filtering or filter at client-side)

Sample:
- You are running a critical website on a set of EC2 instances with a tightened Security Group that has restricted SSH access. You have enabled AWS Config in your AWS Region and you want to be notified via email when someone modified your EC2 instances’ Security Group. Which AWS Config feature helps you do this?
  - AWX Config Notifications

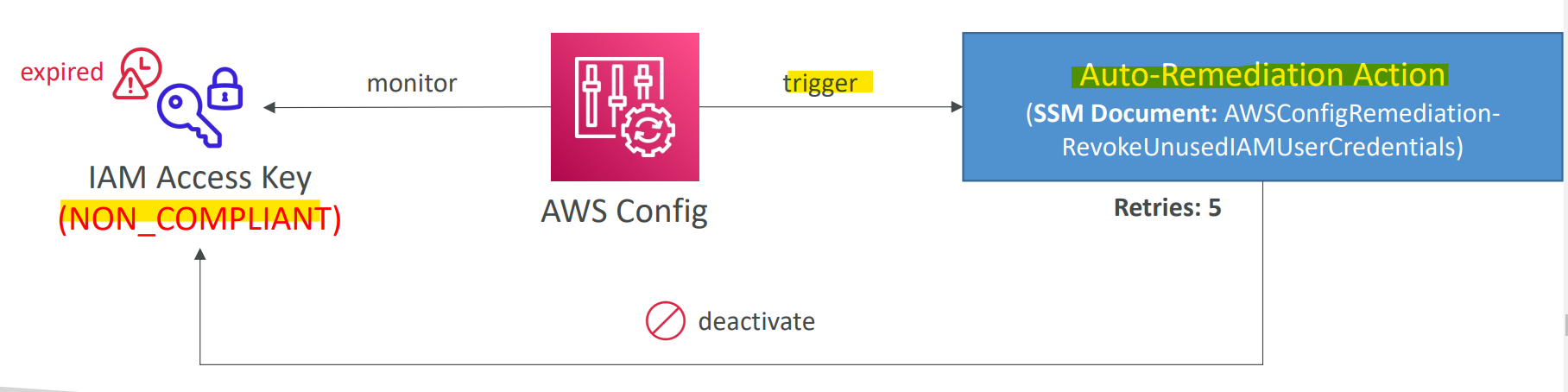

Automate remediation of non-compliant resources using SSM Automation Documents
Use AWS-Managed Automation Documents or create custom Automation Documents
Tip:
- you can create custom Automation Documents that invokes Lambda function
- You can set Remediation Retries if the resource is still non-compliant after auto-remediation

config_rules_remediations

Sample
- You have enabled AWS Config to monitor Security Groups if there’s unrestricted SSH access to any of your EC2 instances. Which AWS Config feature can you use to automatically re-configure your Security Groups to their correct state?
  - Config Remediations

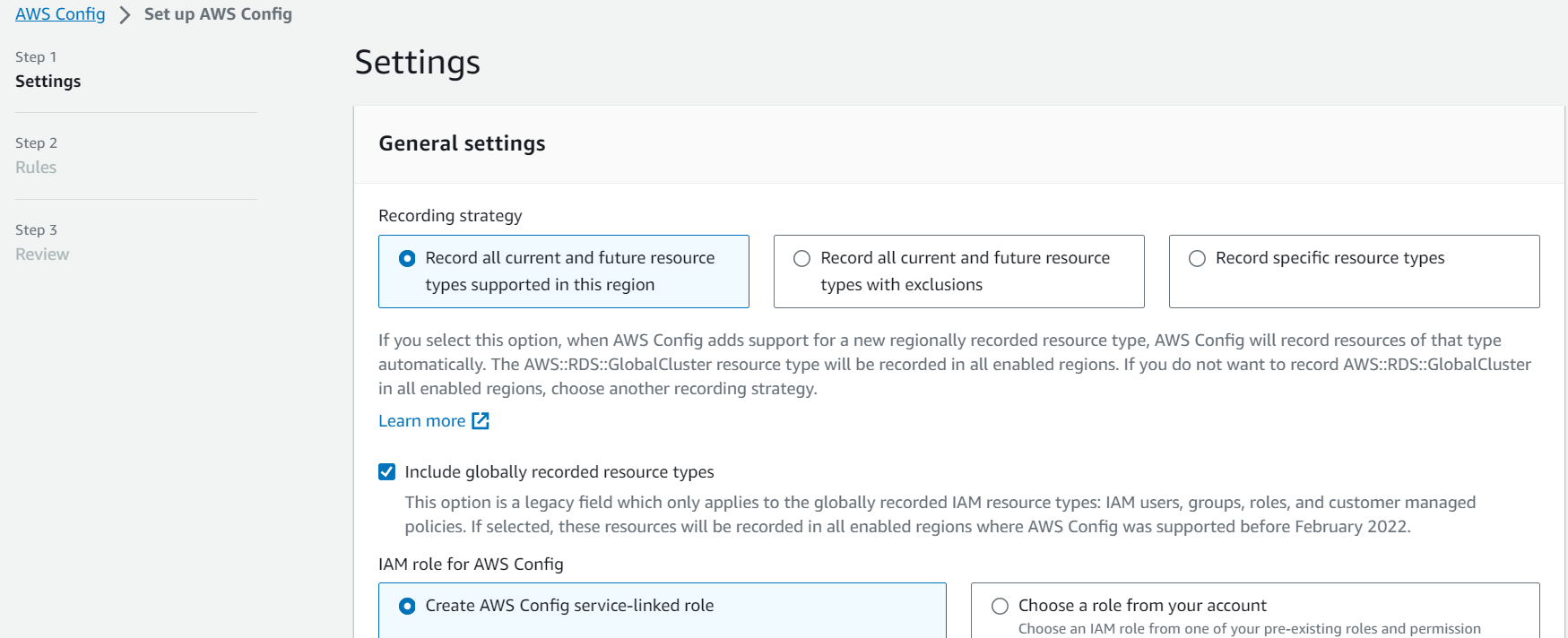

config_handson
