AWS Networking - VPC Endpoints

Back

• AWS Networking - VPC Endpoints
  • VPC Endpoints
  • Types of Endpoints
    • Interface Endpoints(IP+SG+most)
    • Gateway Endpoints(Route TB+s3/dynamo)
    • Choice on S3
    • Hands-on

---

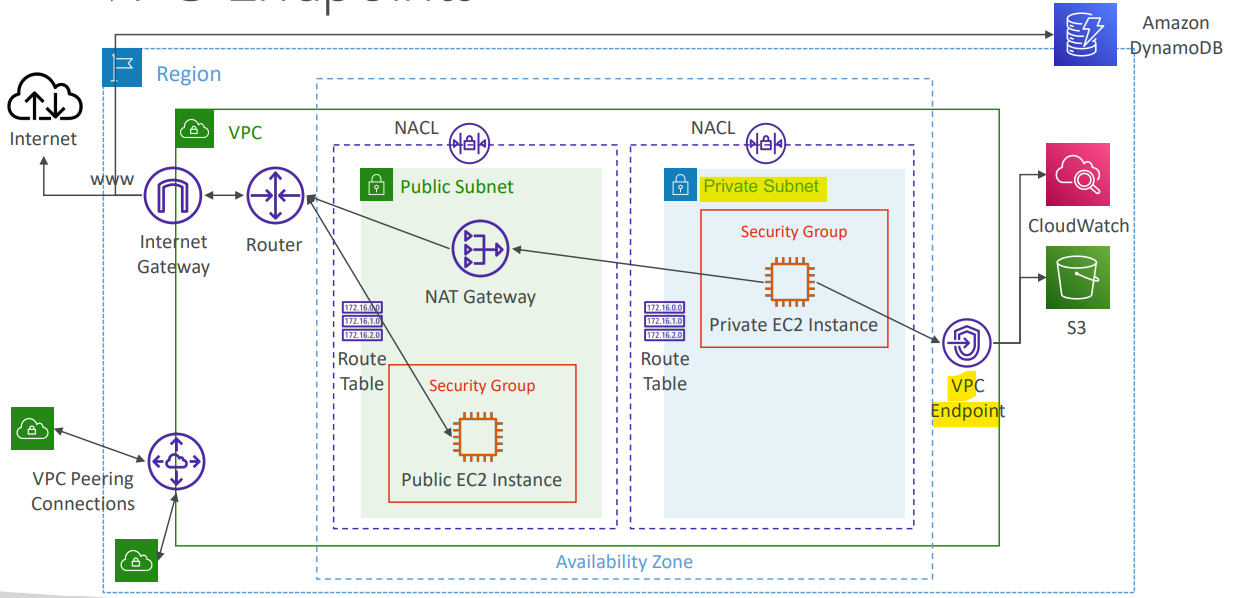

VPC Endpoints

• VPC Endpoints

  • powered by AWS PrivateLink
  • allows you to connect to AWS services using a private network instead of using the public Internet
    • Every AWS service is publicly exposed (public URL)

• Feature

  • They’re redundant and scale horizontally
  • They remove the need of IGW, NATGW, … to access AWS Services

• In case of issues:

  • Check DNS Setting Resolution in your VPC
  • Check Route Tables

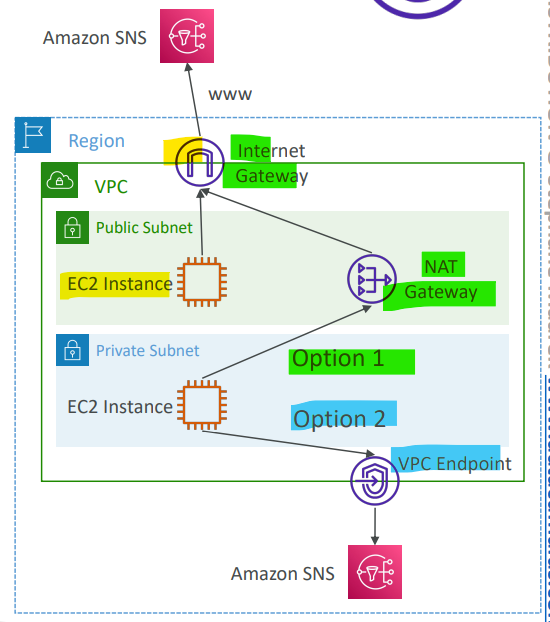

• Example:

  • ec2 in public subnet: IGW(no charge) -> SNS(public)
  • ec2 in private subnet: NATGW(costly) -> IGW(no charge) -> SNS(public)
  • ec2 in private subnet: vpc endpoint -> SNS(private)

---

Types of Endpoints

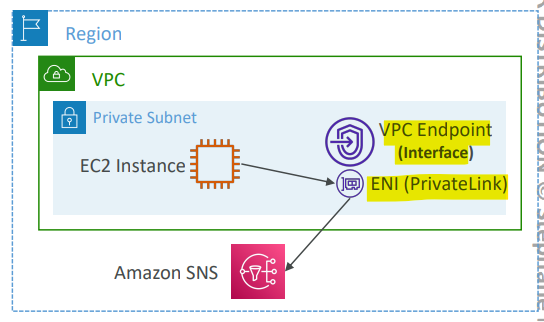

Interface Endpoints(IP+SG+most)

• Interface Endpoints (powered by PrivateLink)
  • Provisions an ENI (private IP address) as an entry point (must attach a Security Group)
  • Supports most AWS services
  • $ per hour + $ per GB of data processed

---

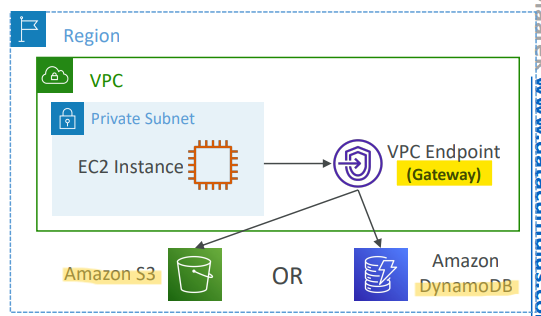

Gateway Endpoints(Route TB+s3/dynamo)

• Gateway Endpoints
  • Provisions a gateway and must be used as a target in a route table (does not use security groups)
  • Supports both S3 and DynamoDB
  • Free

• Sample:
  • When using VPC Endpoints, what are the only two AWS services that have a Gateway Endpoint available?
    • S3+dynamoDB: Gateway Endpoint (remember it),
    • all the other ones have an Interface endpoint (powered by Private Link - means a private IP).

---

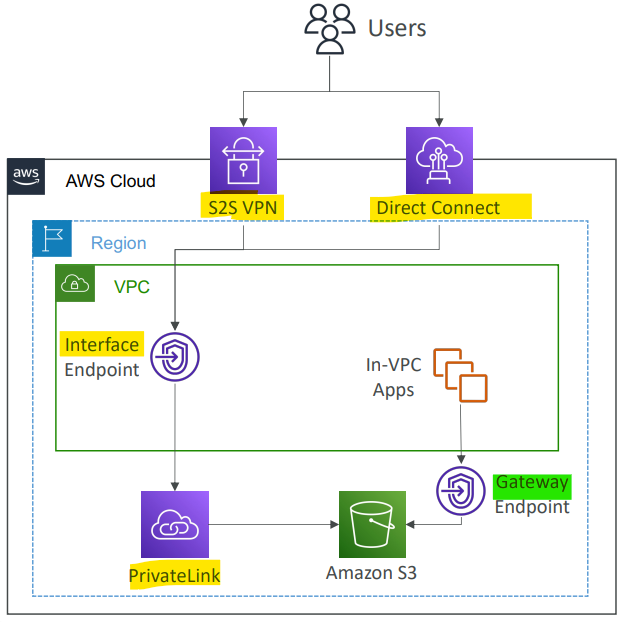

Choice on S3

• Both Interface and Gateway Endpoints support S3

• Gateway is most likely going to be preferred all the time at the exam

  • no sg / IP; Route table only
  • Cost:
    • free for Gateway,
    • $ for interface endpoint

• Interface Endpoint is preferred access is

  • required from on-premises (Site to Site VPN or Direct Connect),
  • a different VPC
  • or a different region

---

Hands-on

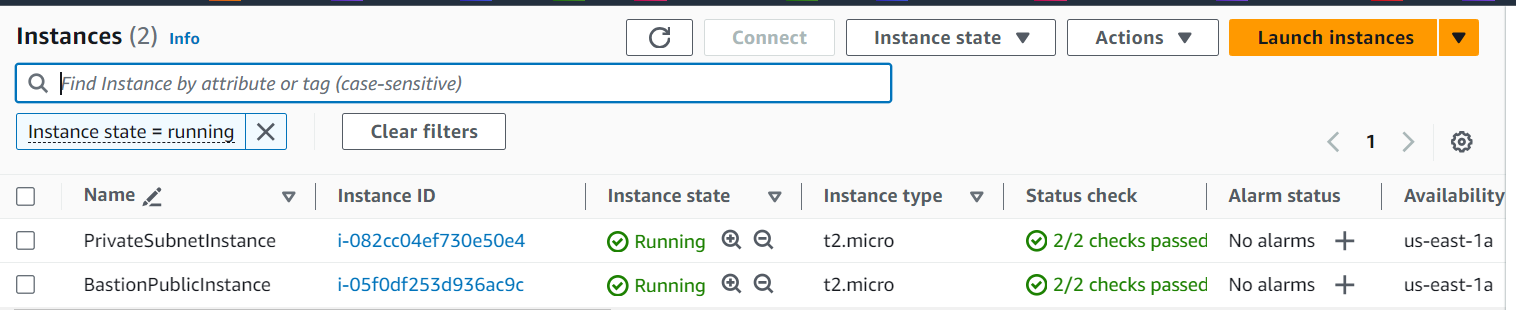

• Create a Bastion public and private instance.

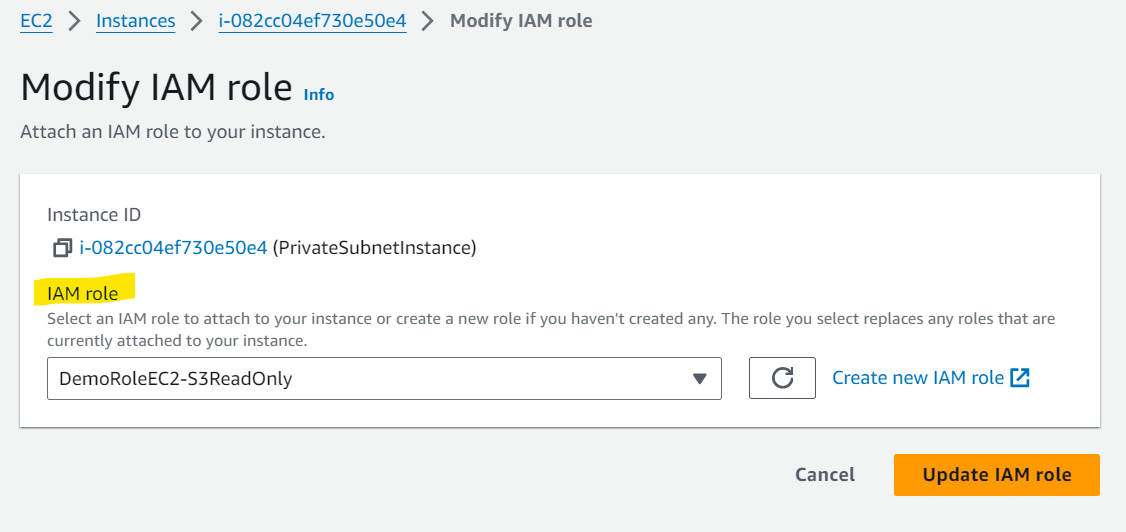

• Create a new IAM role for this instance with S3ReadOnlyAccess permission.

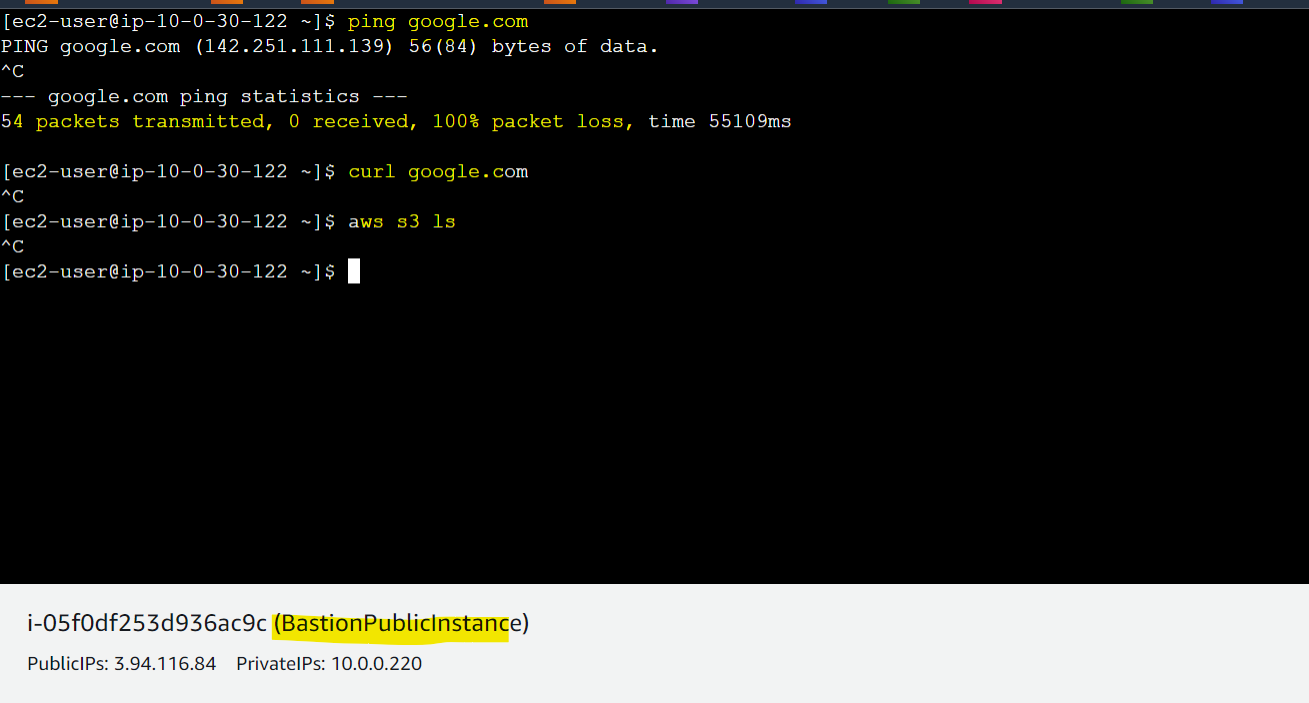

• Try to connect public internet: fails because the private instance locates in the private VPC.
  • try to access S3: fails because cannot access the public internet.

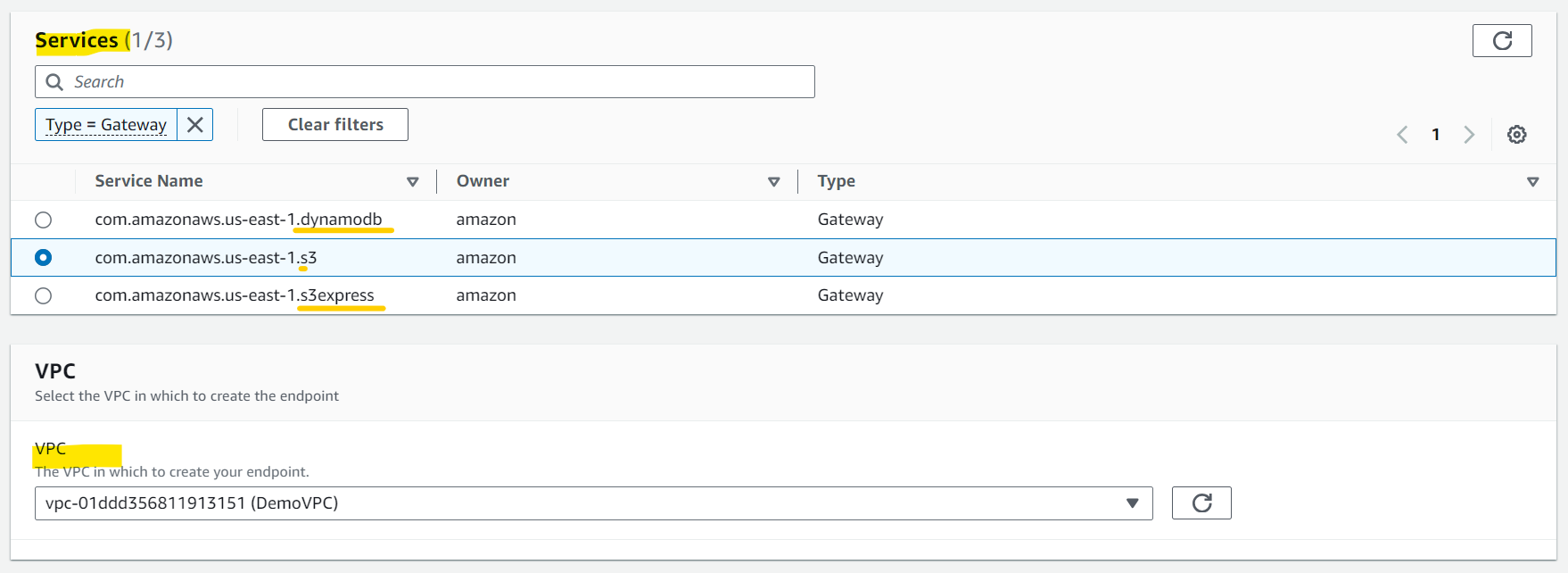

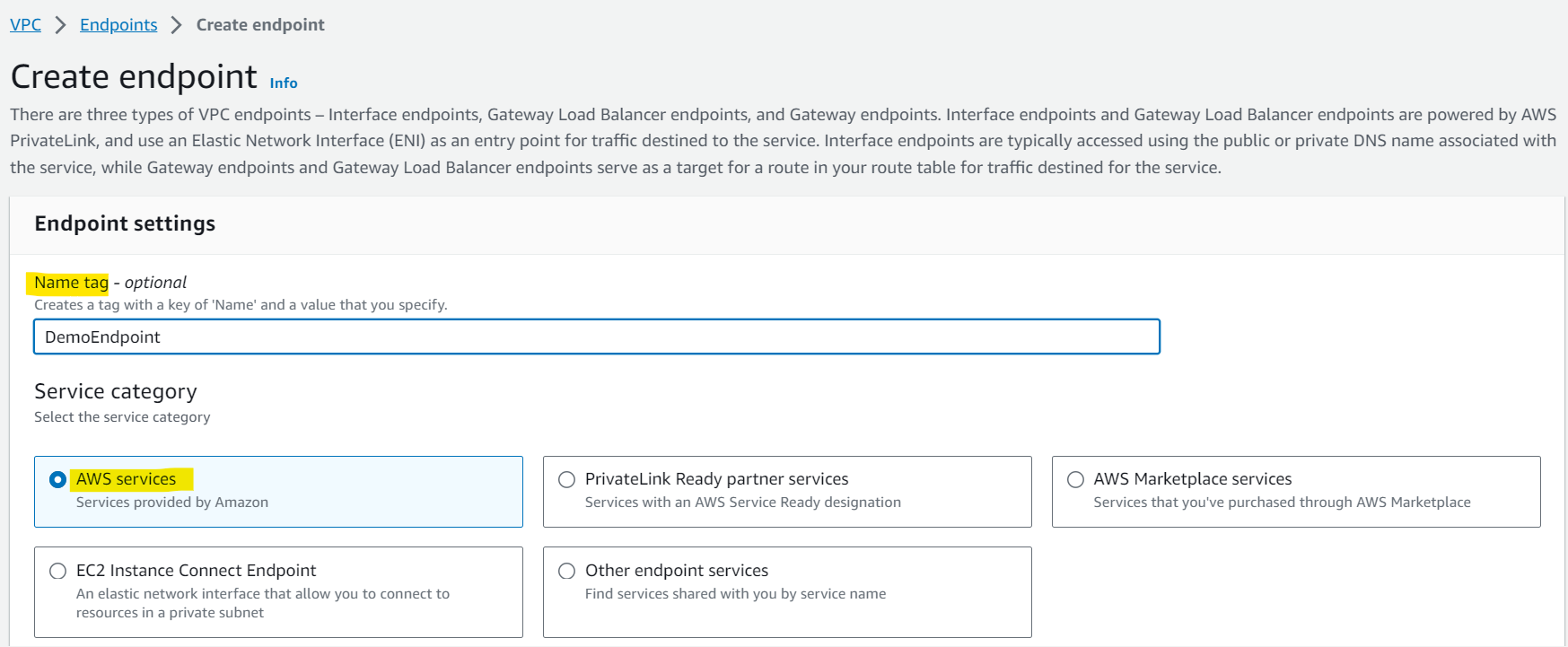

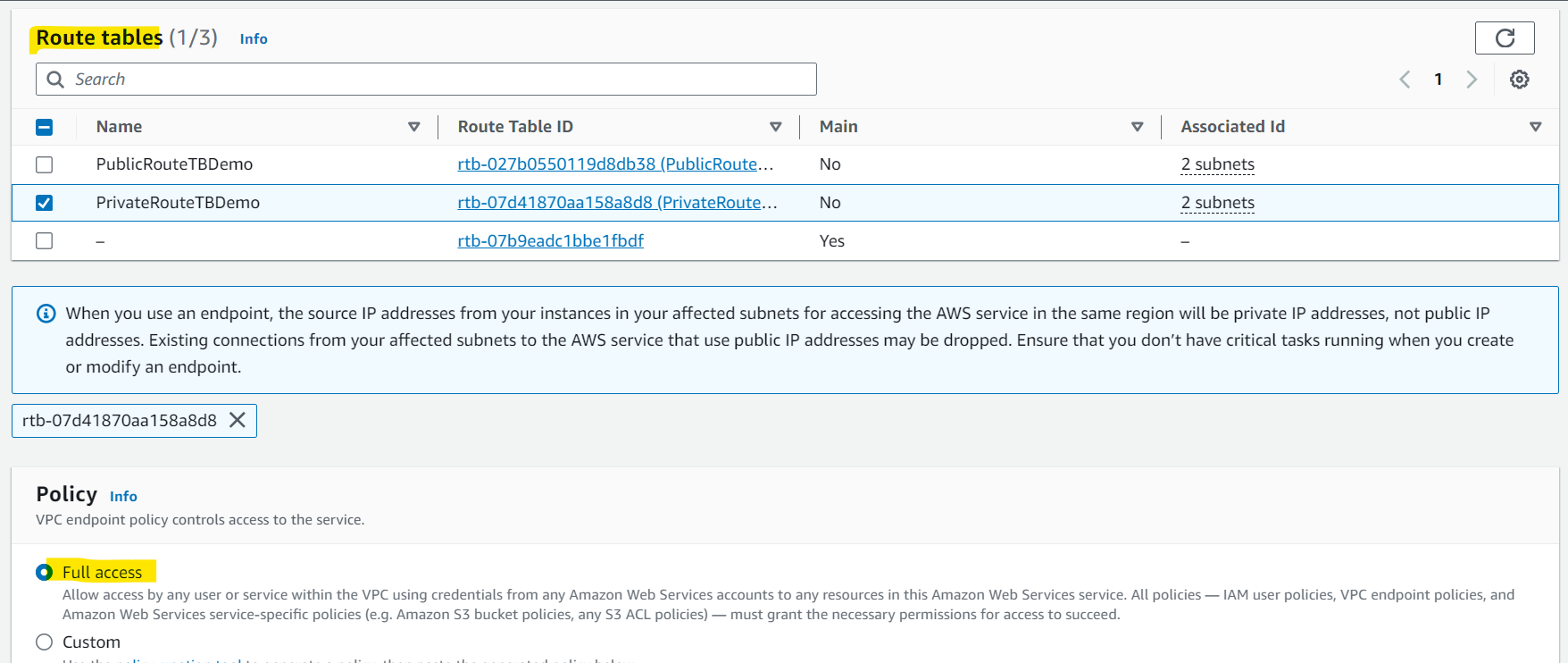

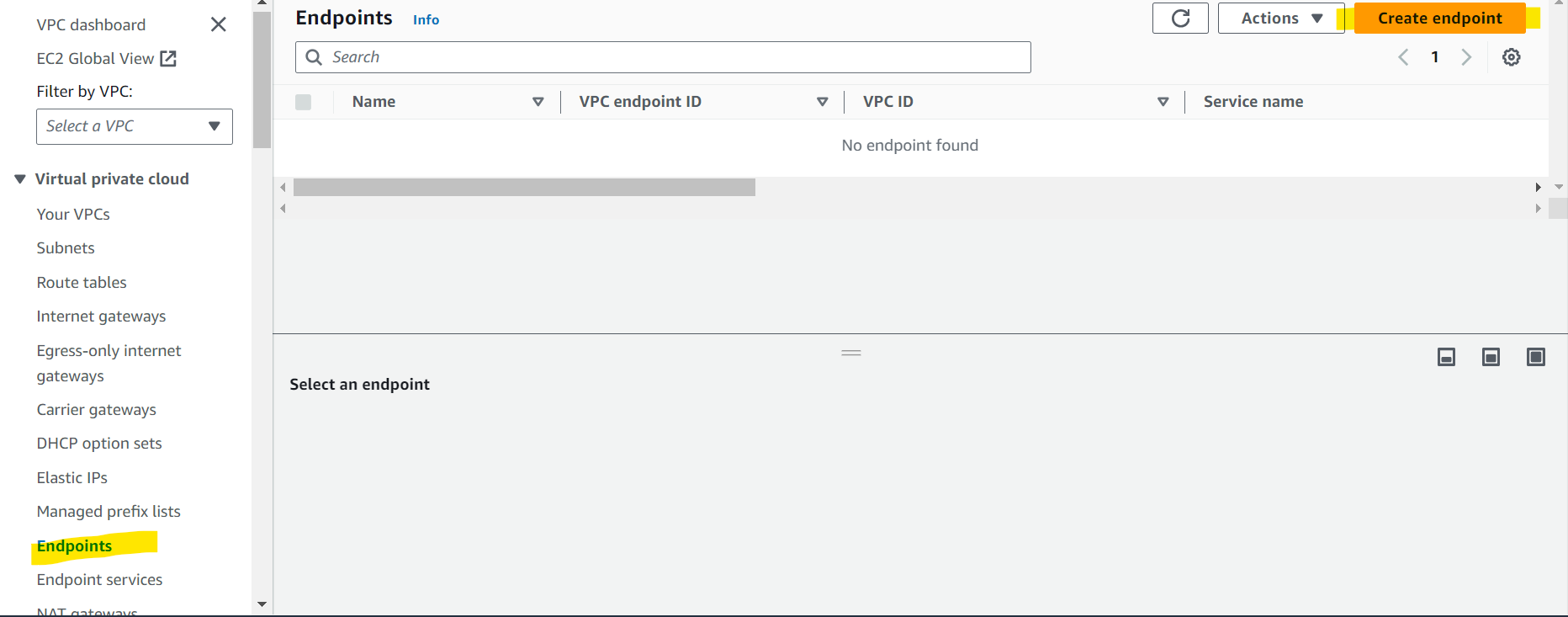

• Create Endpoints

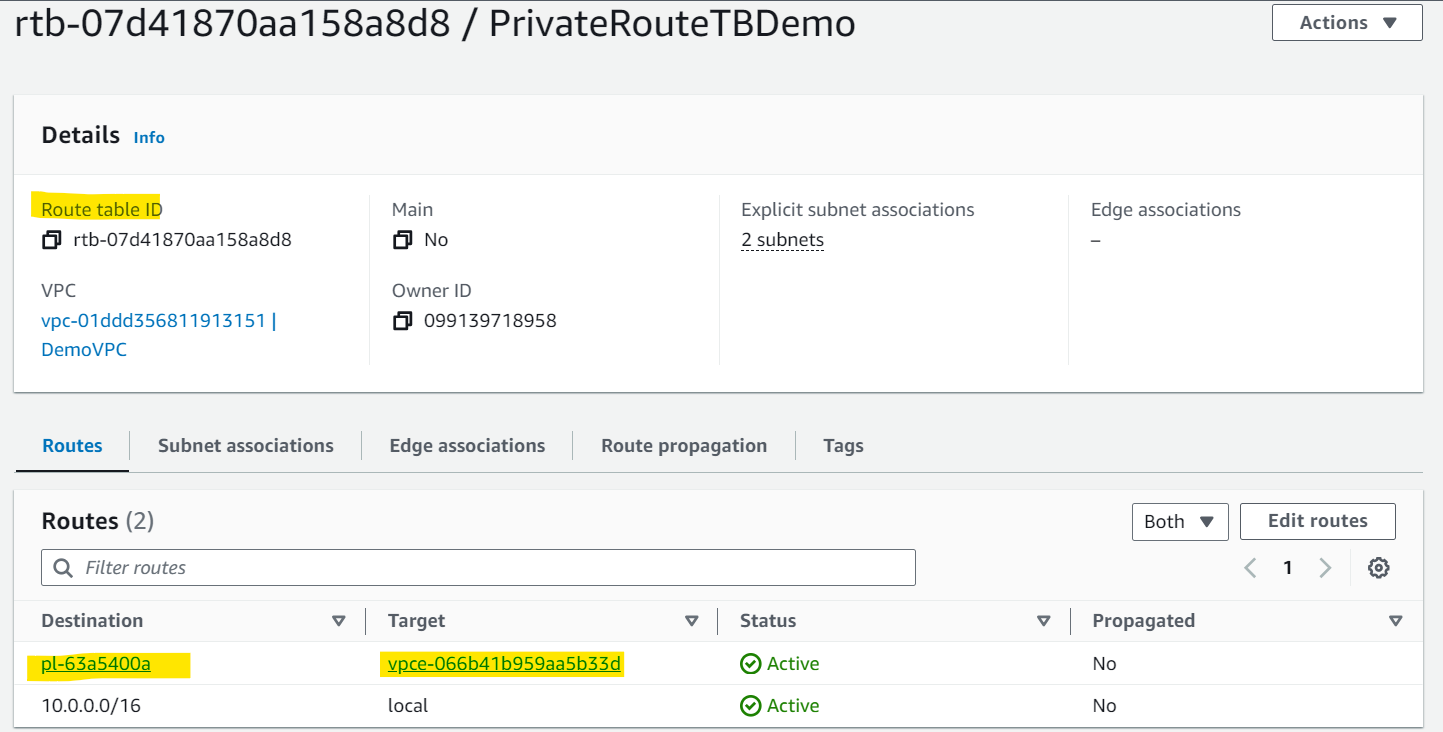

• Check the route table
  • pl-63a5400a: the prefix of S3
  • target will be the endpoint
  • Request for S3 will route to endpoint.

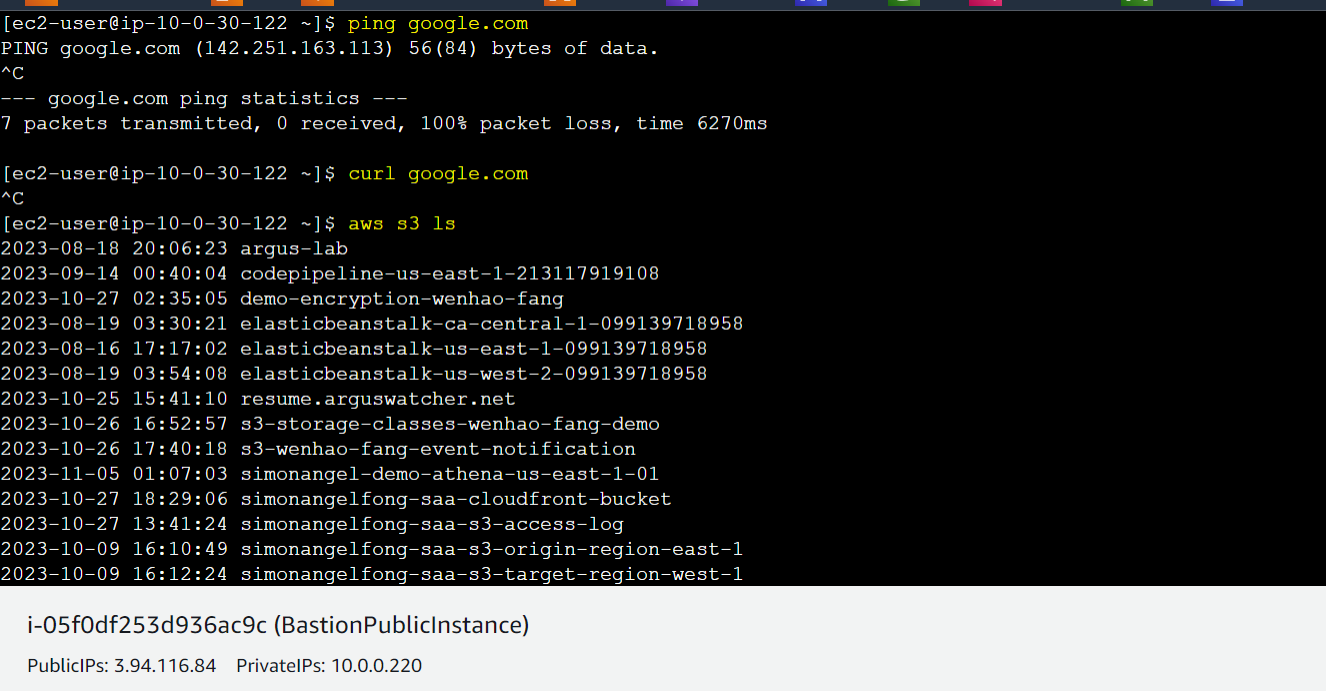

• Outcome
  • private instance cannot access to internet
  • private instance can access to S3 via Endpoint Gateway

---
