Network Access Control List (NACL)

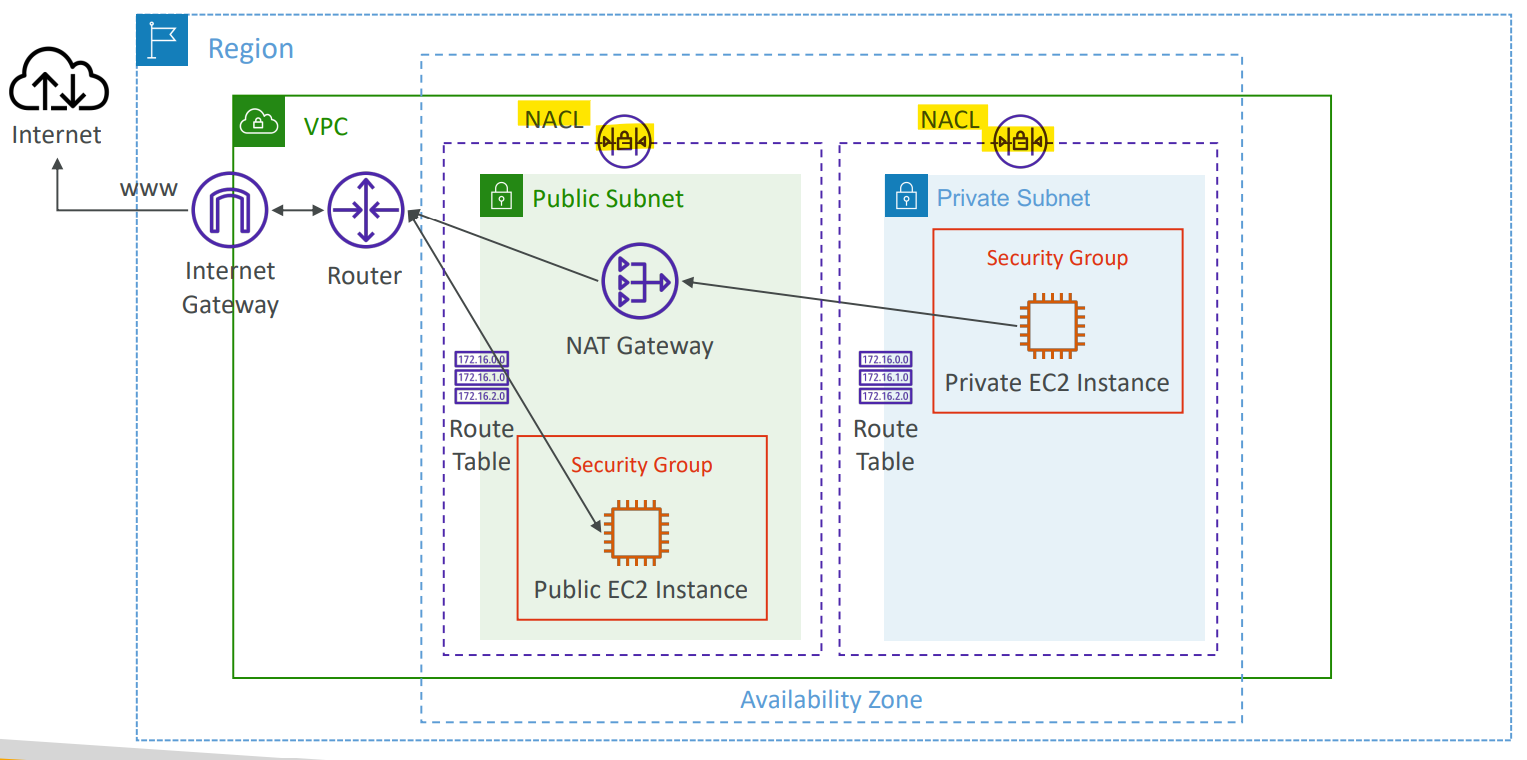

• Network Access Control List (NACL)

• NACL are like a firewall which control traffic from and to subnets
• One NACL per subnet, new subnets are assigned the Default NACL. 一对一. 新归默认.
• You define NACL Rules:
  • Rules have a number (1-32766), higher precedence with a lower number
    • 1: highest priority
  • First rule match will drive the decision. 首现决定.
    • Example: if you define #100 ALLOW 10.0.0.10/32 and #200 DENY 10.0.0.10/32, the IP address will be allowed because 100 has a higher precedence over 200
    • Precedence of 100 > Precedence of 200
  • The last rule is an asterisk (*) and denies a request in case of no rule match
  • AWS recommends adding rules by increment of 100
• Newly created NACLs will deny everything
• NACL are a great way of blocking a specific IP address at the subnet level

---

• an extra layer outside the subnet
  • NACL > Subnet > Security Group
  • Request will be denied unless explicitily allowed.
  • 一对一

---

NACL vs SG

	NACL	SG
State	Stateless	Statefull
Subnet	Outside	Inside

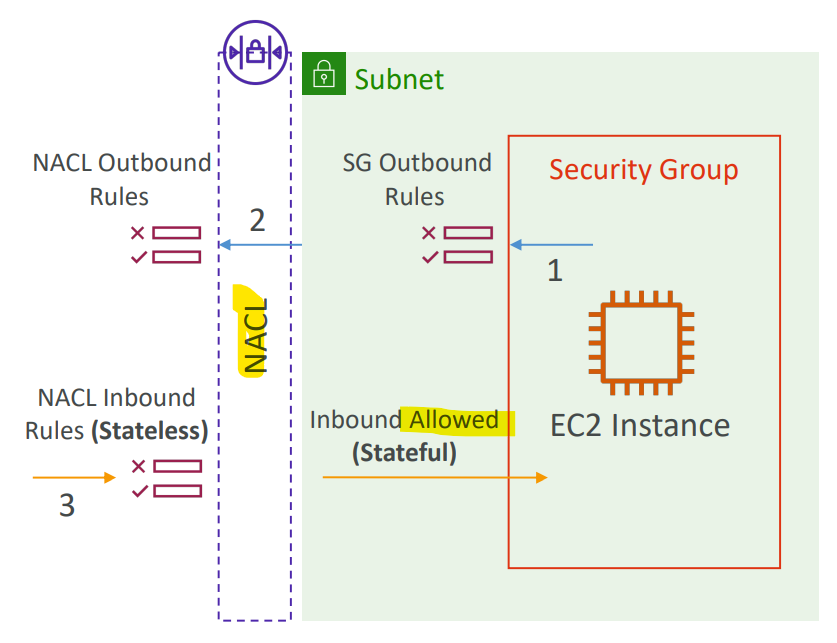

• Stateful:

  • whatever is accepted in can also goes out.(no rules being evaluated)

• Stateless:

  • No matter it has been accepted, NACL rules are evaluated.

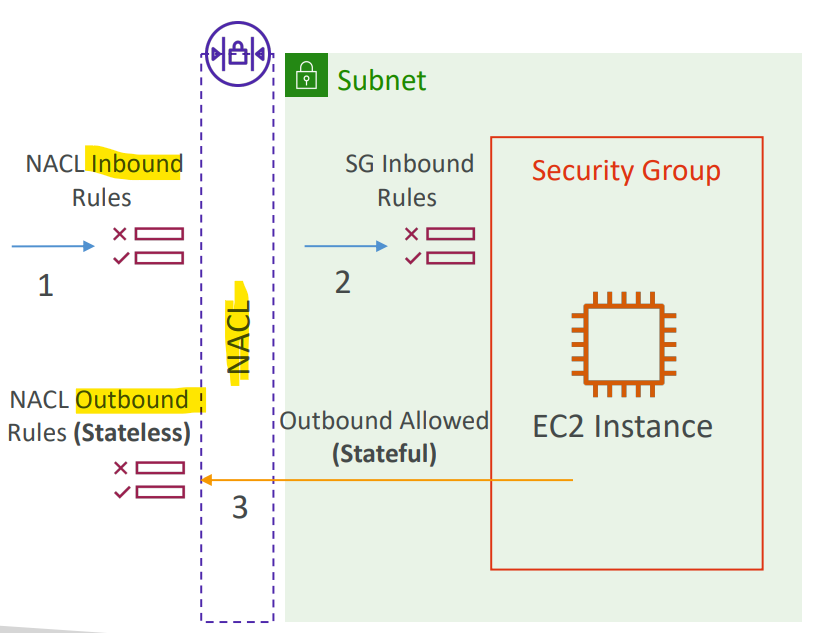

• Incoming Request

  • The inbound request is evaluated by NACL rules.
  • The inbound request is evaluated by SG.
  • The outbound request is not evalued by SG due to stateful.
  • The outbound request is evalued by SG due to stateless.

• Incoming Request
  • The inbound request is evaluated by NACL rules.
  • The inbound request is evaluated by SG.
  • The outbound request is not evalued by SG due to stateful.
  • The outbound request is evalued by SG due to stateless.

• Sample:
  • You have attached an Internet Gateway to your VPC, but your EC2 instances still don’t have access to the internet. What is NOT a possible issue?
    • The Security Group does not allow traffic in
    • Security groups are stateful and if traffic can go out, then it can go back in.
    • can be possible:
      • Route tables are missing entries(local)
      • EC2 instance don’t have public IP
      • NACL not allow network traffic out
  • A web application hosted on a fleet of EC2 instances managed by an Auto Scaling Group. You are exposing this application through an Application Load Balancer. Both the EC2 instances and the ALB are deployed on a VPC with the following CIDR 192.168.0.0/18. How do you configure the EC2 instances’ security group to ensure only the ALB can access them on port 80?
    • Add an Inbound Rule with port 80 and ALB’s SG as the source.
    • Referencing by security groups in rules is an extremely powerful rule
    • ALB 一定在 pubic 子网, 所以不能引用 CIDR

---

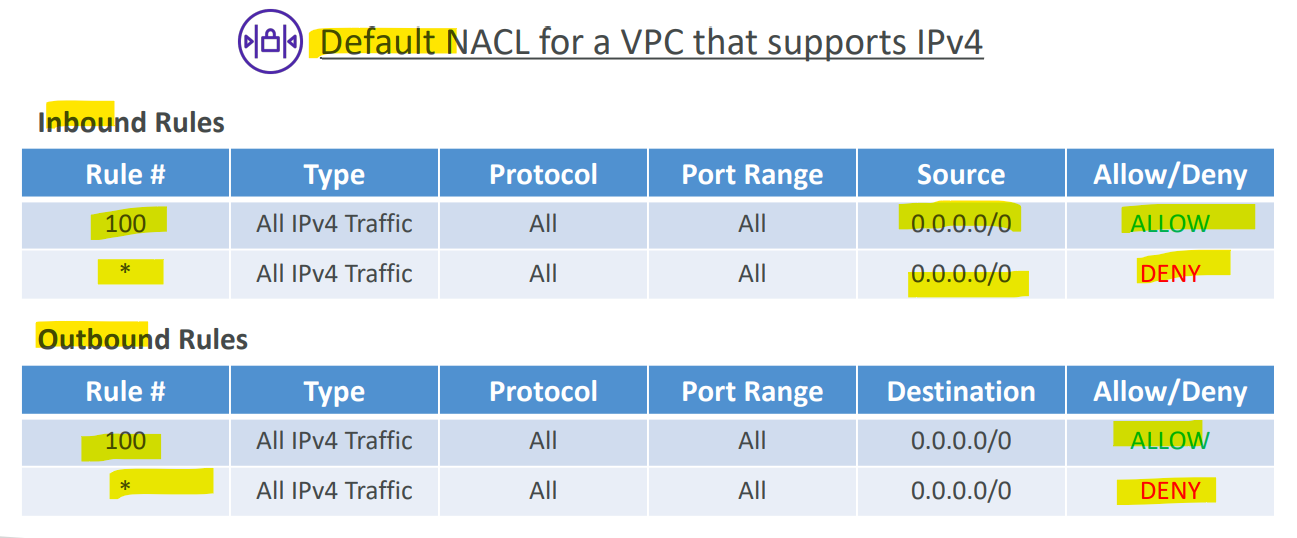

Default NACL 常考

• Accepts everything inbound/outbound with the subnets it’s associated with
  • 考点:关联的 VPC 将 open to everything
• Do NOT modify the Default NACL, instead create custom NACLs

---

Ephemeral Ports

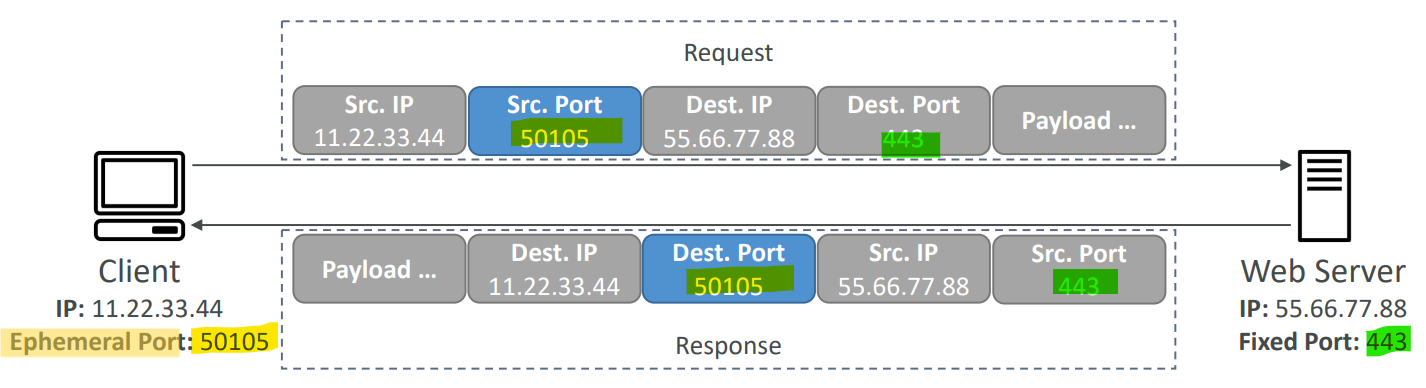

• Ephemeral Ports

  • a random port that is assigned only for connection life.
  • refer to the port on the client when connecting.
• For any two endpoints to establish a connection, they must use ports
• Clients connect to a defined port, and expect a response on an ephemeral port
  • When client is connecting to a server, the client will open a specific ports,which is ephemeral because it will be as long lived as the connection is between clients and server.
• Different Operating Systems use different port ranges, examples:
  • IANA & MS Windows 10: 49152 – 65535
  • Many Linux Kernels: 32768 – 60999

---

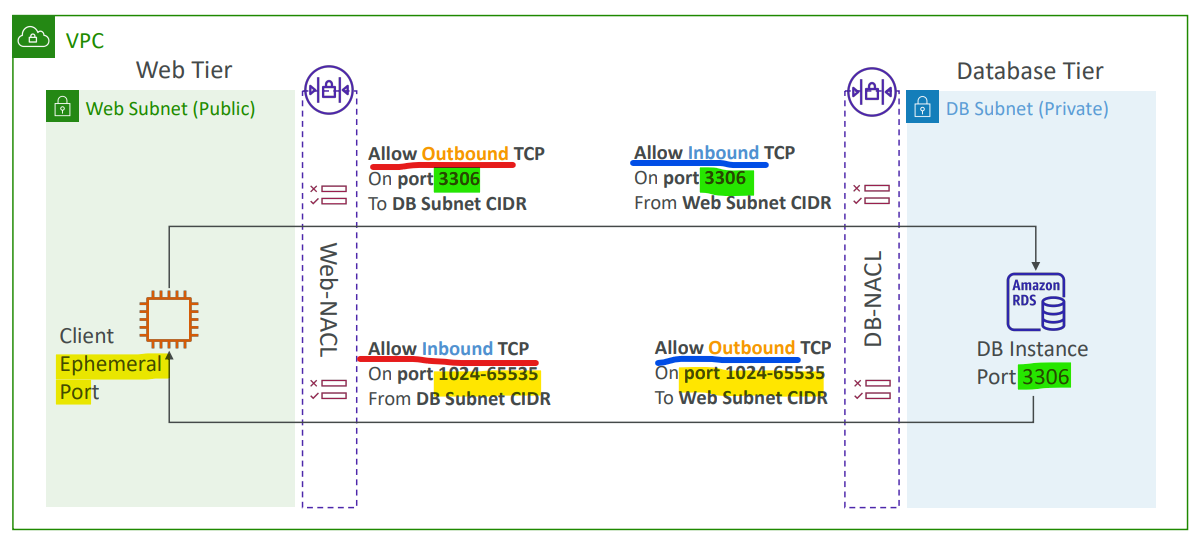

• NACL with Ephemeral Ports
  • 在 NACL 中会使用

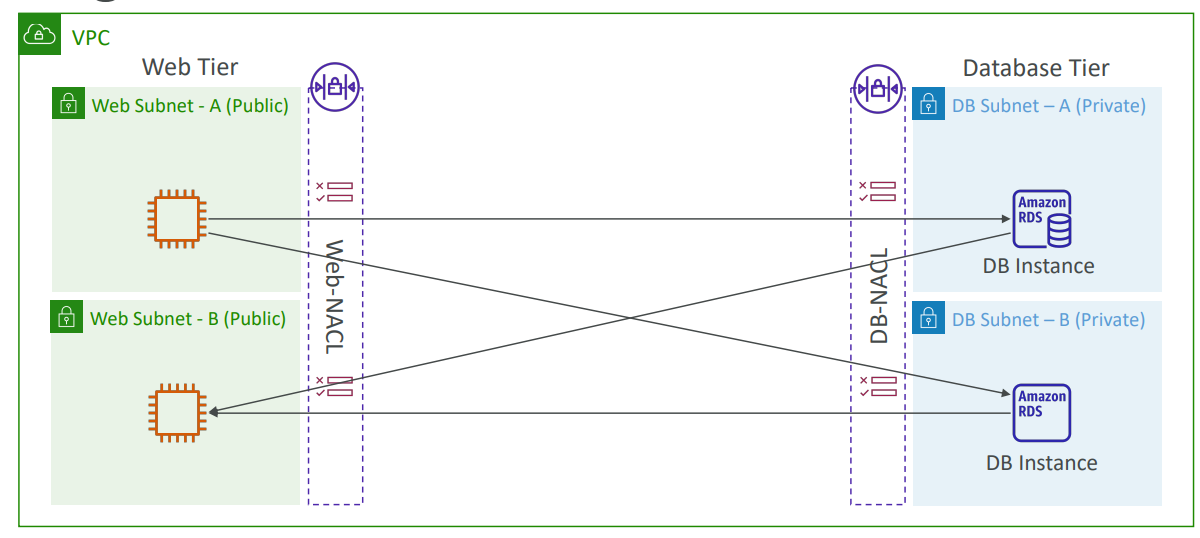

  • example: request for DB

---

Create NACL rules for each target subnets CIDR

• If a new target subnet is added, new nacle rules for the new subnet cidr should be updated.

---

Security Group vs. NACLs

Security	Group NACL
instance level	subnet level
Supports allow rules only	Supports allow rules and deny rules
Stateful	Stateless
All rules are evaluated	Rules are evaluated in order (lowest to highest) , first match wins
Applies to an EC2 instance when specified by someone	Automatically applies to all EC2 instances in the subnet that it’s associated with

• Stateful:
  • return traffic is automatically allowed, regardless of any rules
• Stateless:
  • return traffic must be explicitly allowed by rules (think of ephemeral ports)

---

Hands-on

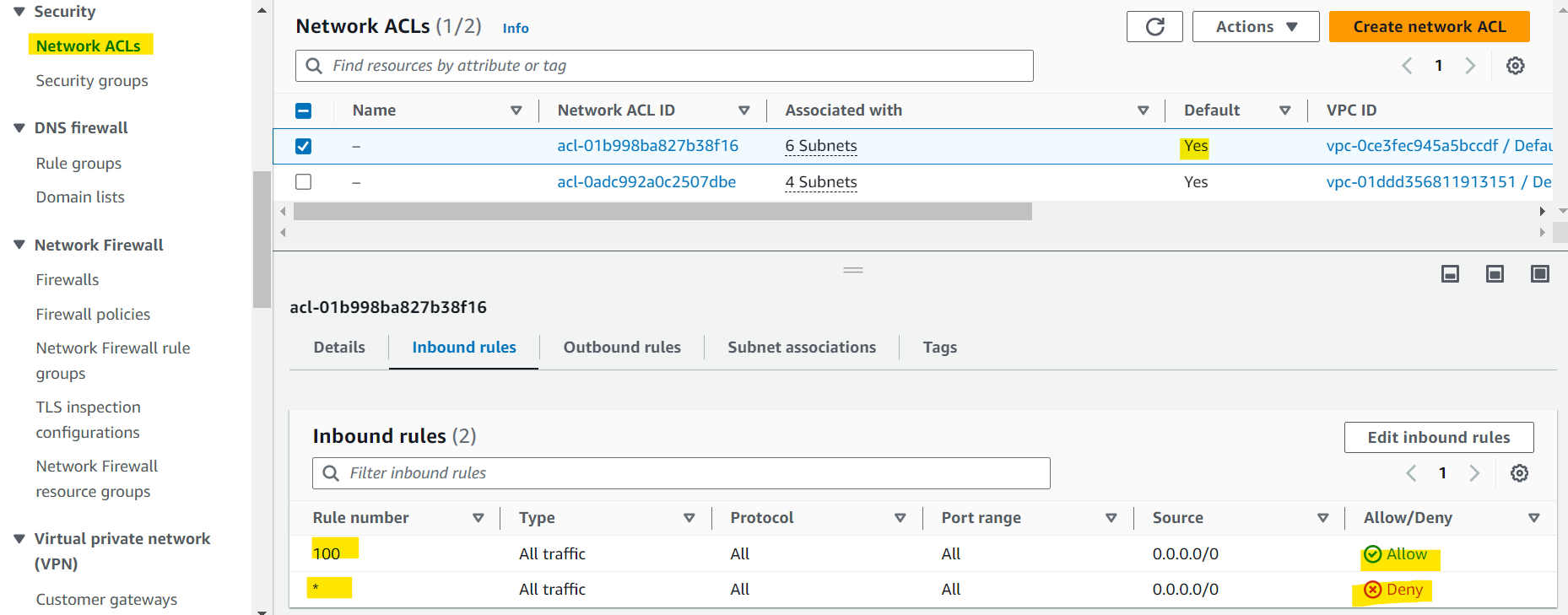

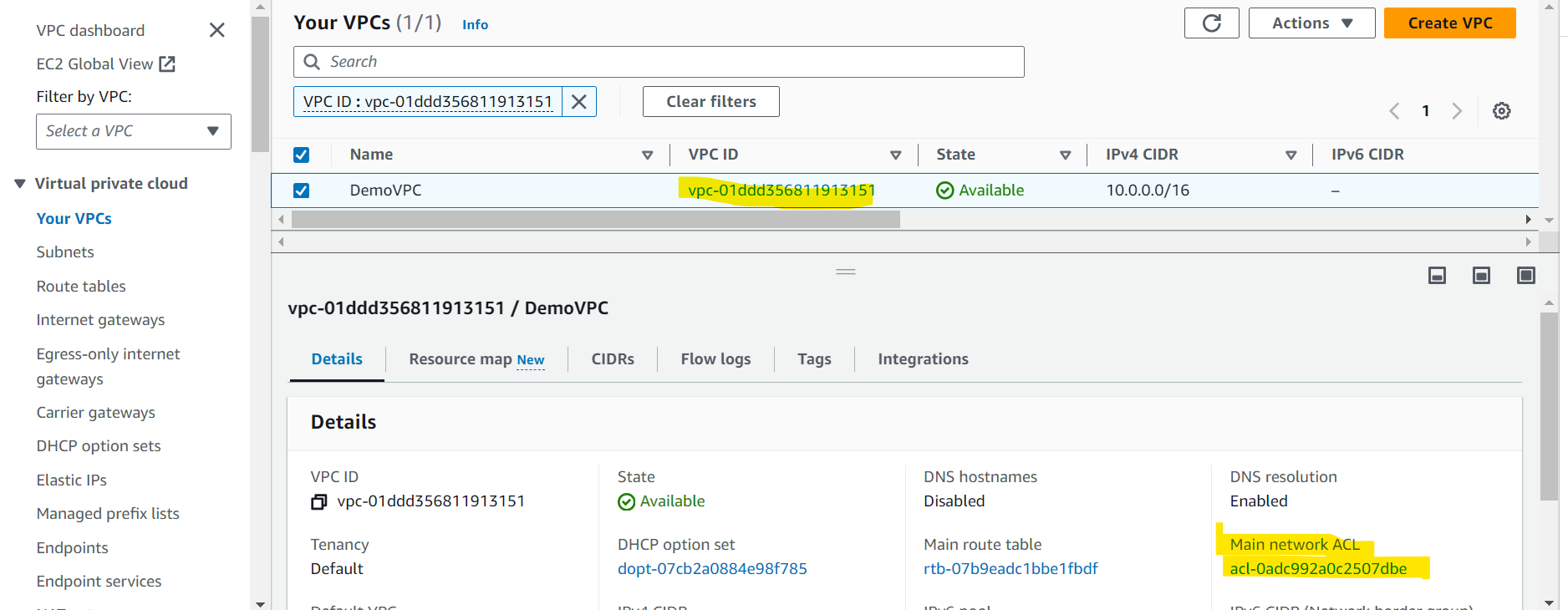

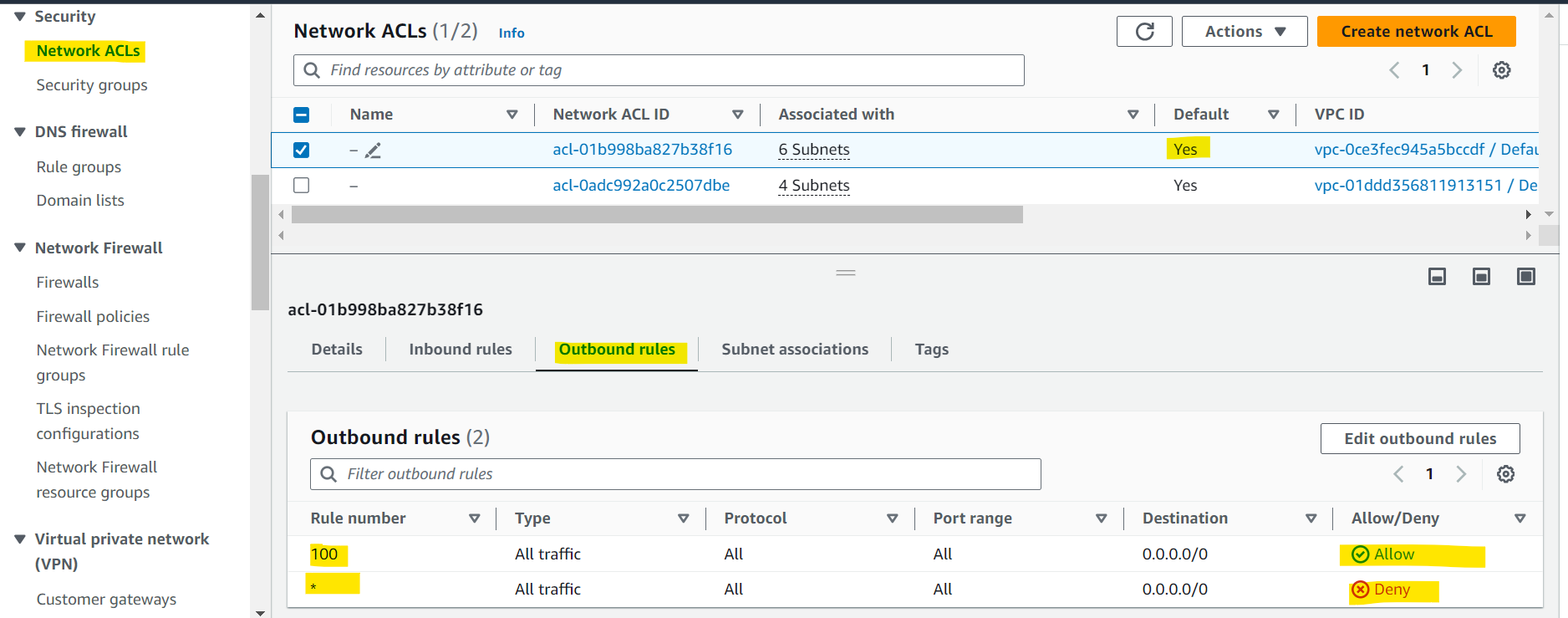

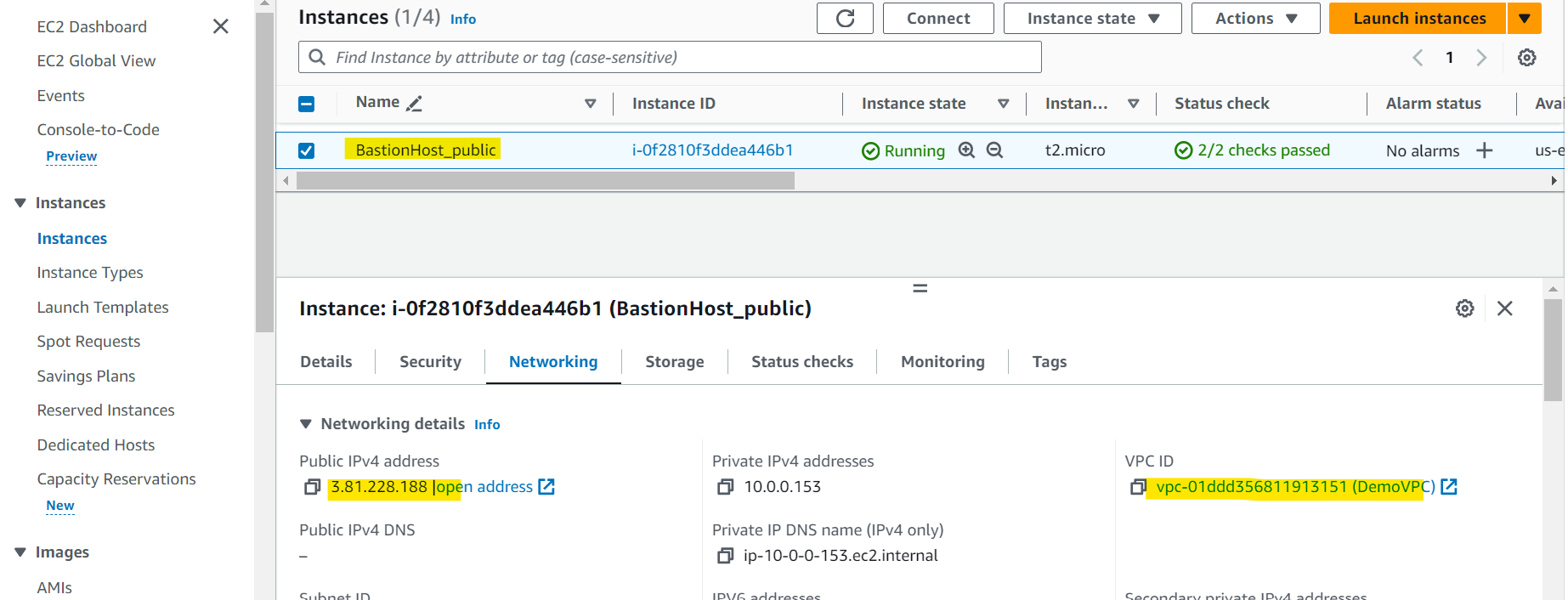

• Default NACL

---

• Connect an instance
  • Install Apache HTTP Server package: sudo yum -y install httpd
  • Enable httpd: sudo systemctl enable httpd
  • Status of httpd: sudo systemctl enable httpd
  • Start httpd service: sudo systemctl enable httpd
  • Using root: sudo su

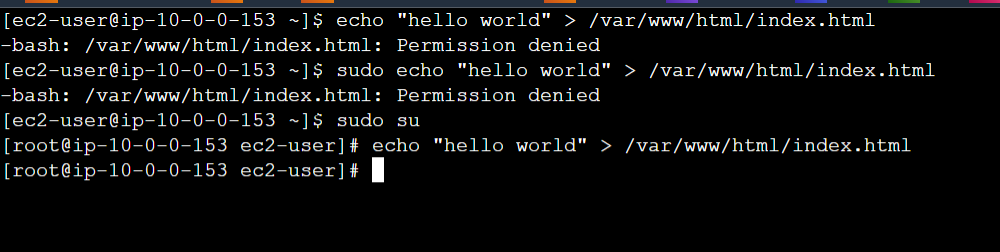

  • Create http files: echo "hello world" > /var/www/html/index.html

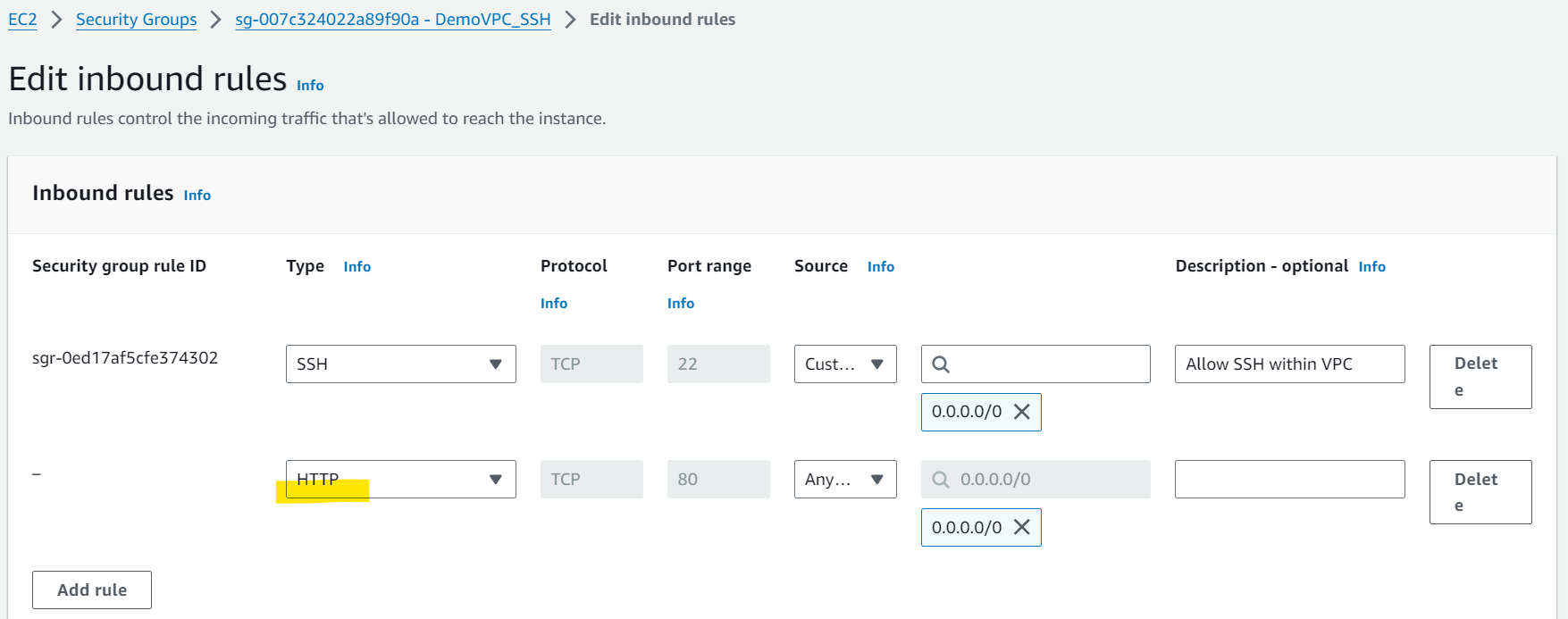

• Enable http for inbound rule of SG

• Visit via public ip

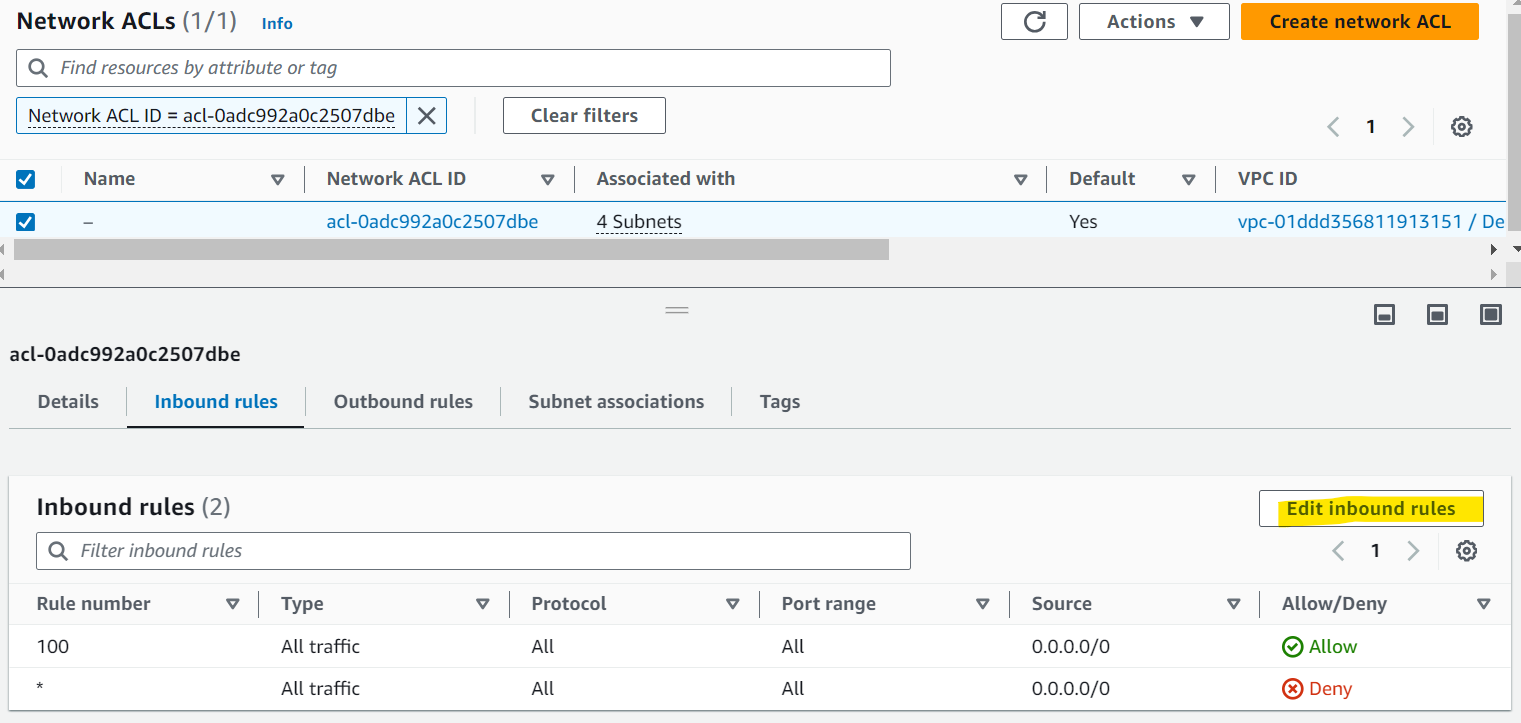

• Edit NACL of this instance’s subnet

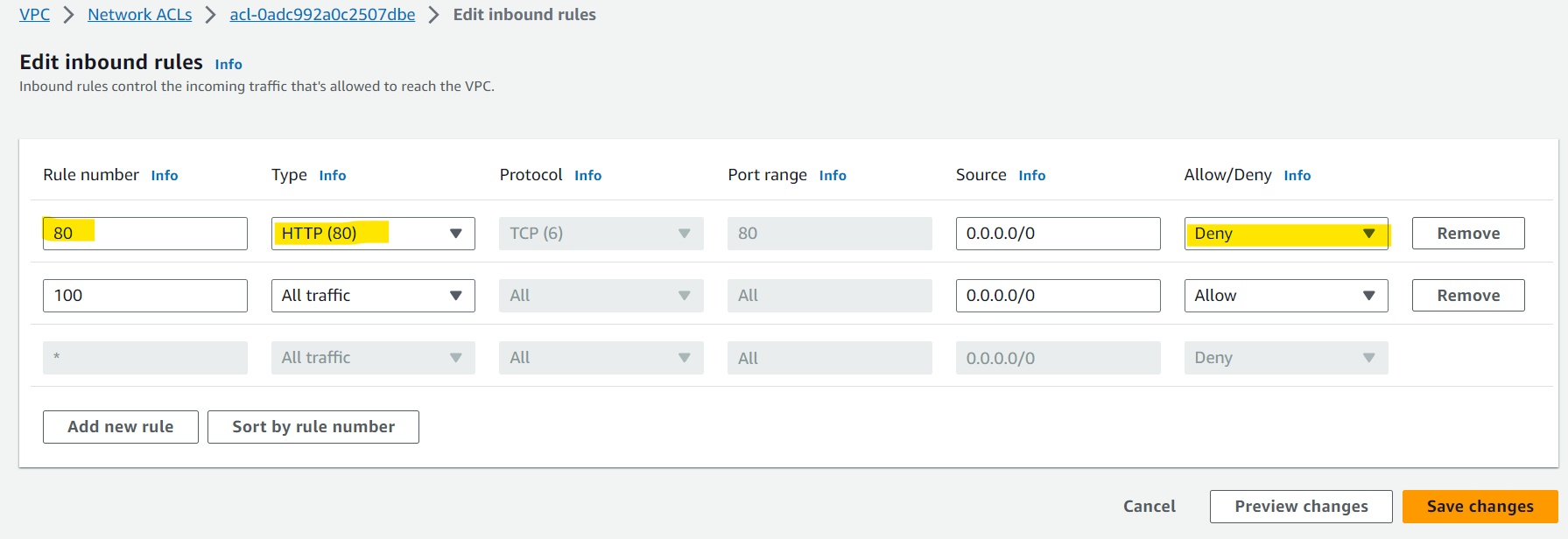

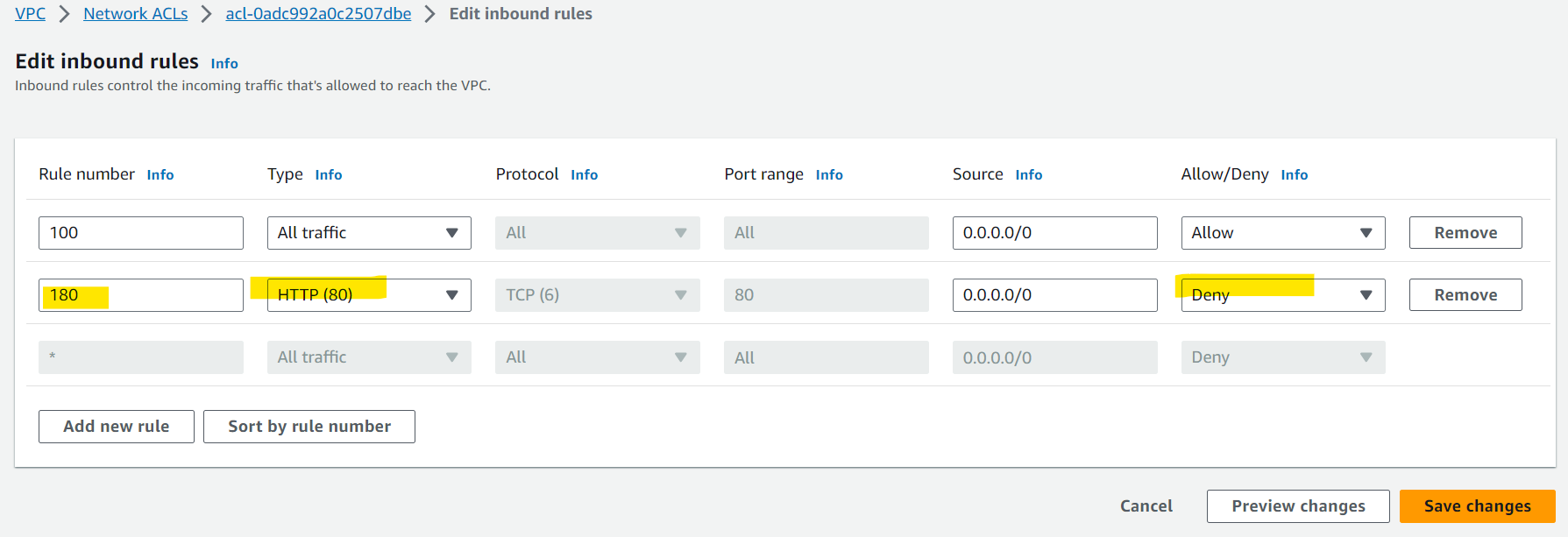

  • Deny HTTP

• Outcome:

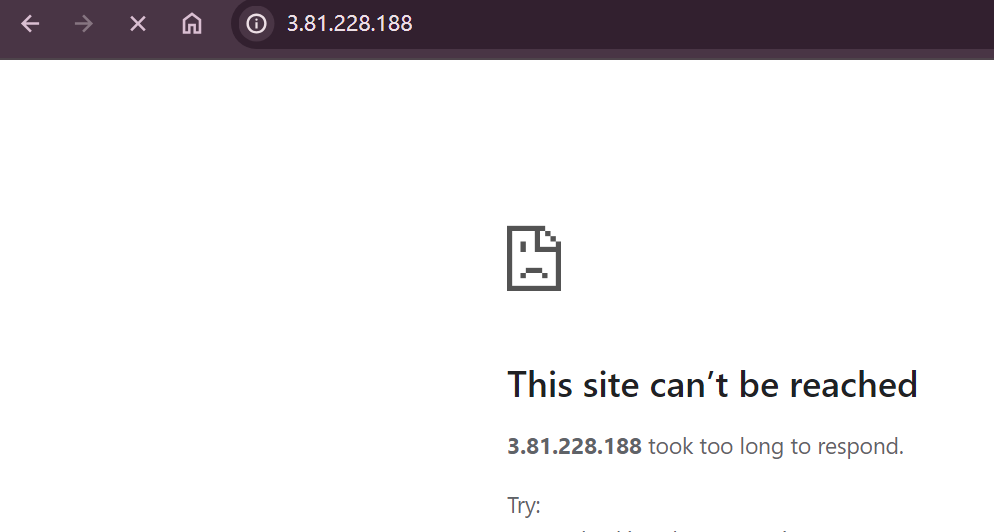

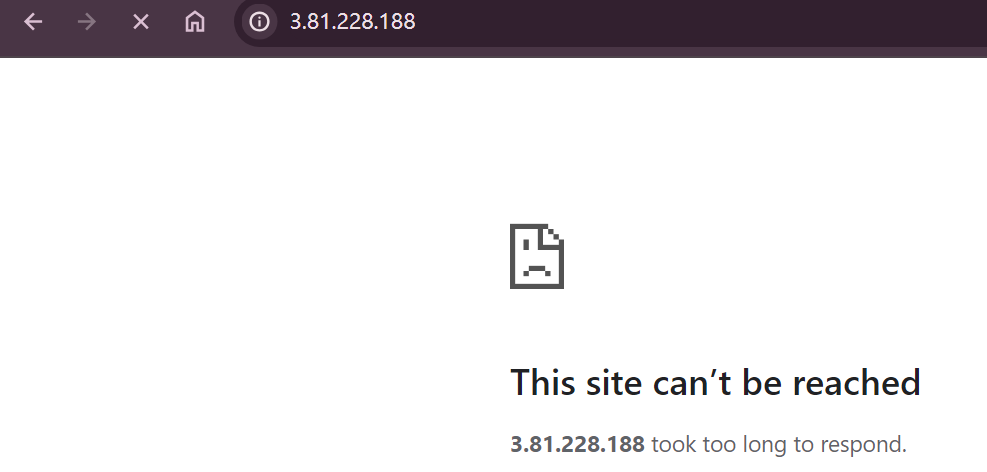

  • Not response due to deny rule

---

• Edit the rule number

• Outcome:
  • accessible due to the precedence of http rule

---

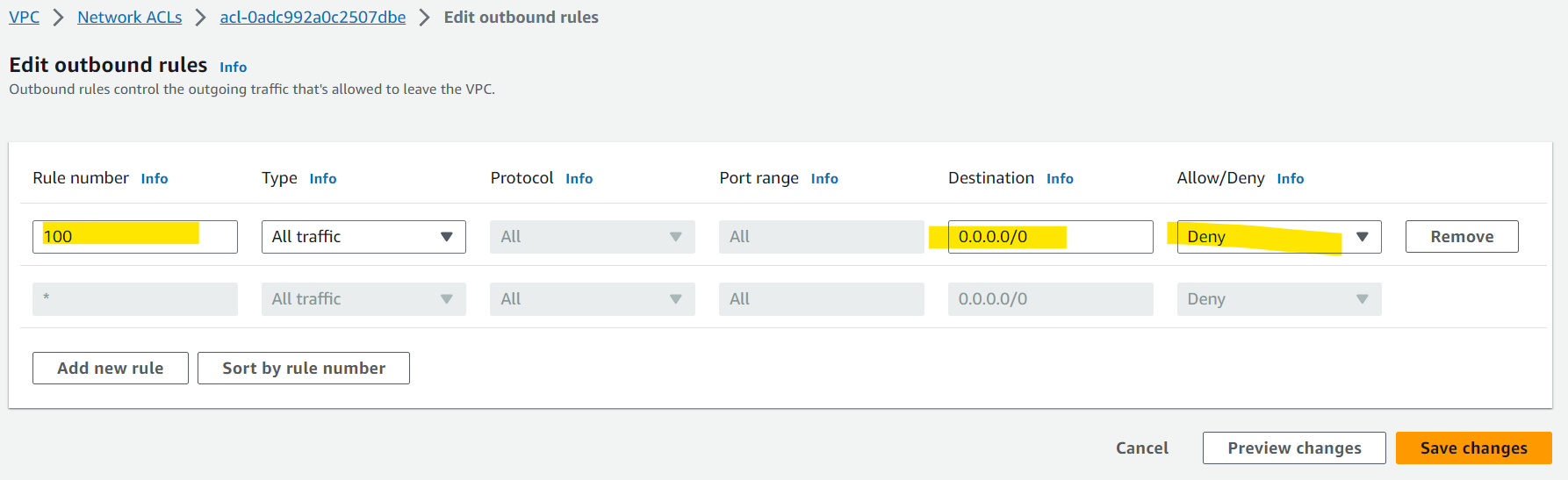

• edit the outbound rule

• Outcome:
  • cannot access
  • even though security group allows, meaning stateless.

• edit sg:

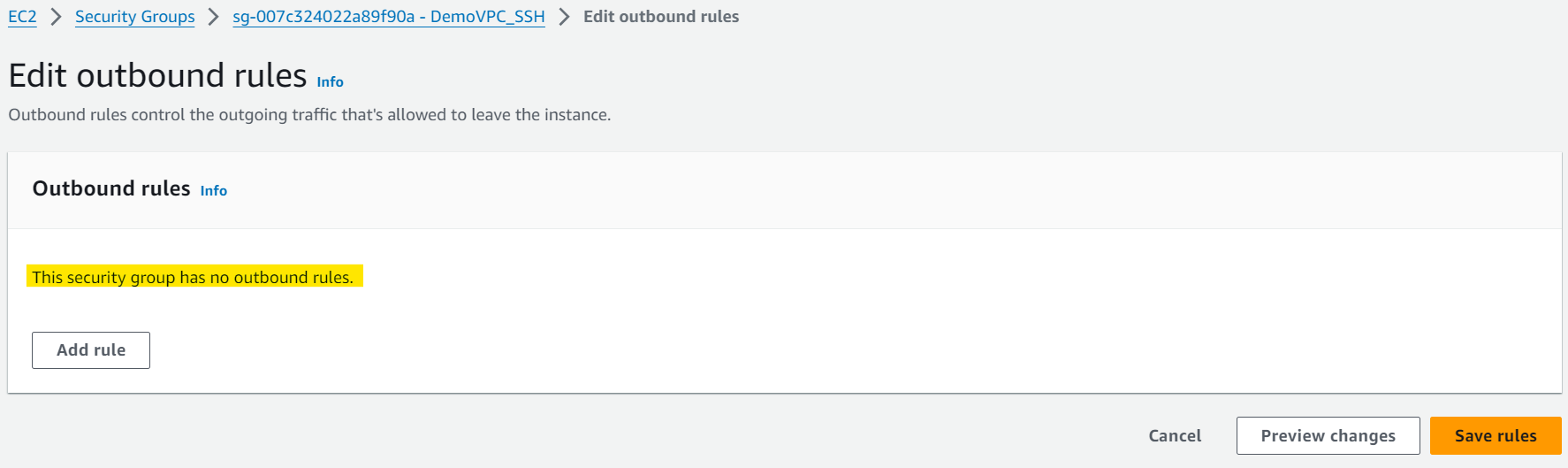

  • delete every outbound rules.

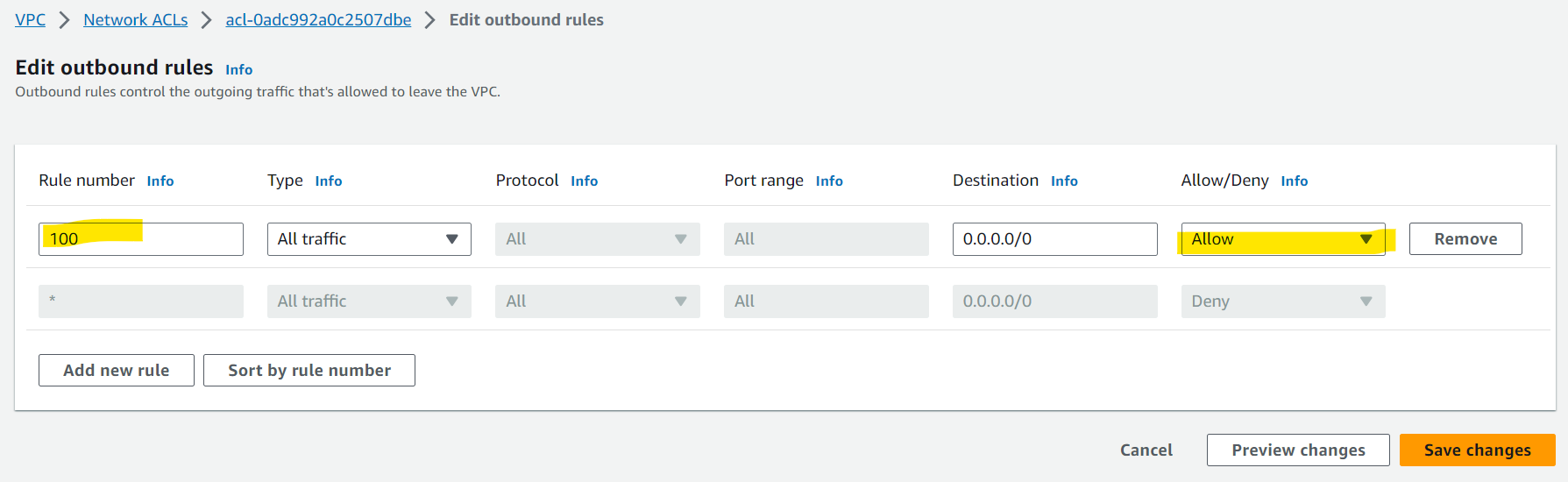

• edit the outbound rule of NACL
  • allow every rules

• Outcome:
  • can access
  • SG is statefule. Even if there is no SG, website is accessible as long as NACL allows.

---
