AWS Networking - NAT Gateway

Back

• AWS Networking - NAT Gateway
  • NAT Instance (outdated, but still at the exam)
  • NAT Gateway
    • High Availability
    • NAT Gateway vs. NAT Instance
    • Hands-on

---

NAT Instance (outdated, but still at the exam)

• NAT / Network Address Translation

• NAT Instance

  • Allows EC2 instances in private subnets to connect to the Internet

• Features

  • Must be launched in a public subnet
  • Must disable EC2 setting:
    • Source / destination Check
    • because some ip address will be rewritten.
  • Must have Elastic IP attached to it
  • Route Tables must be configured to route traffic from private subnets to the NAT Instance

• 虽然过时, 但考试会涉及 NAT Instance 和 NAT Gateway 的差别.

• Limitations:

  • Pre-configured Amazon Linux AMI is available
    • Reached the end of standard support on December 31, 2020
  • Not highly available / resilient setup out of the box
    • You need to create an ASG in multi-AZ + resilient user-data script
  • Internet traffic bandwidth depends on EC2 instance type
  • You must manage Security Groups & rules:
    • Inbound:
      • Allow HTTP / HTTPS traffic coming from Private Subnets
      • Allow SSH from your home network (access is provided through Internet Gateway)
    • Outbound:
      • Allow HTTP / HTTPS traffic to the Internet

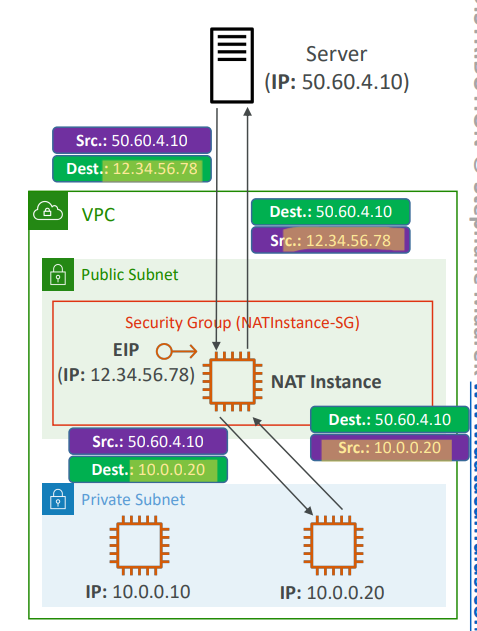

• 以下, 注意 scr 和 dest 的改变.

---

• Hands-on: Skip

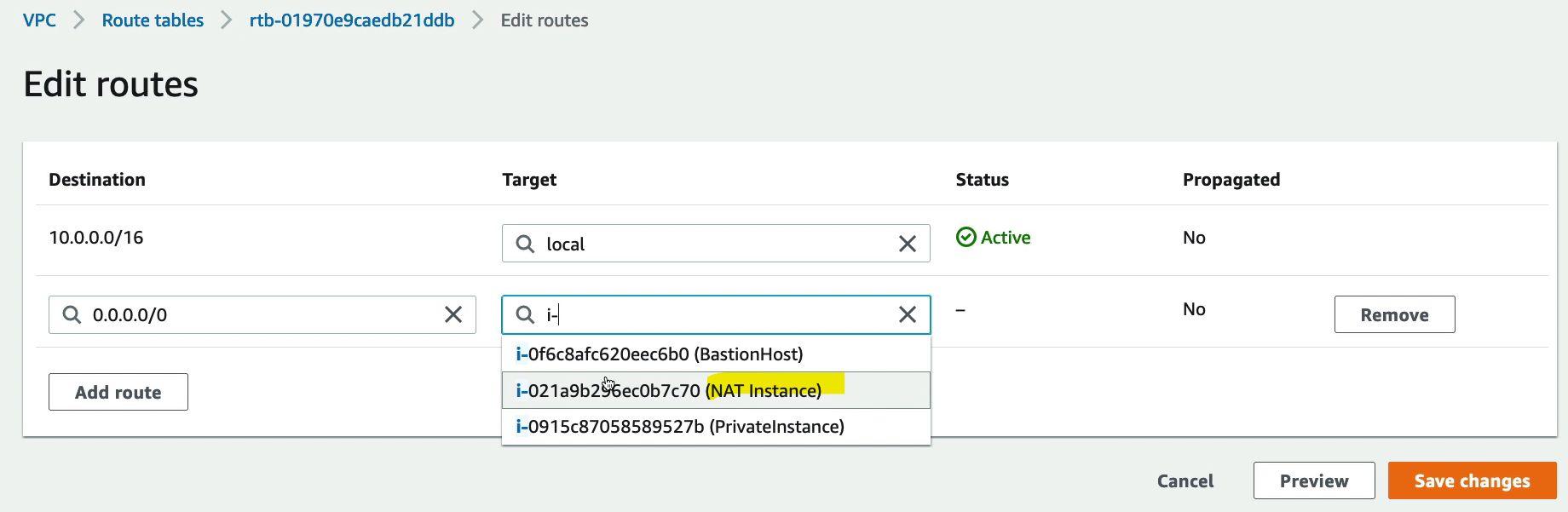

• Edit route table in private subnet
  • when talk to the internet, route target is the NAT instance

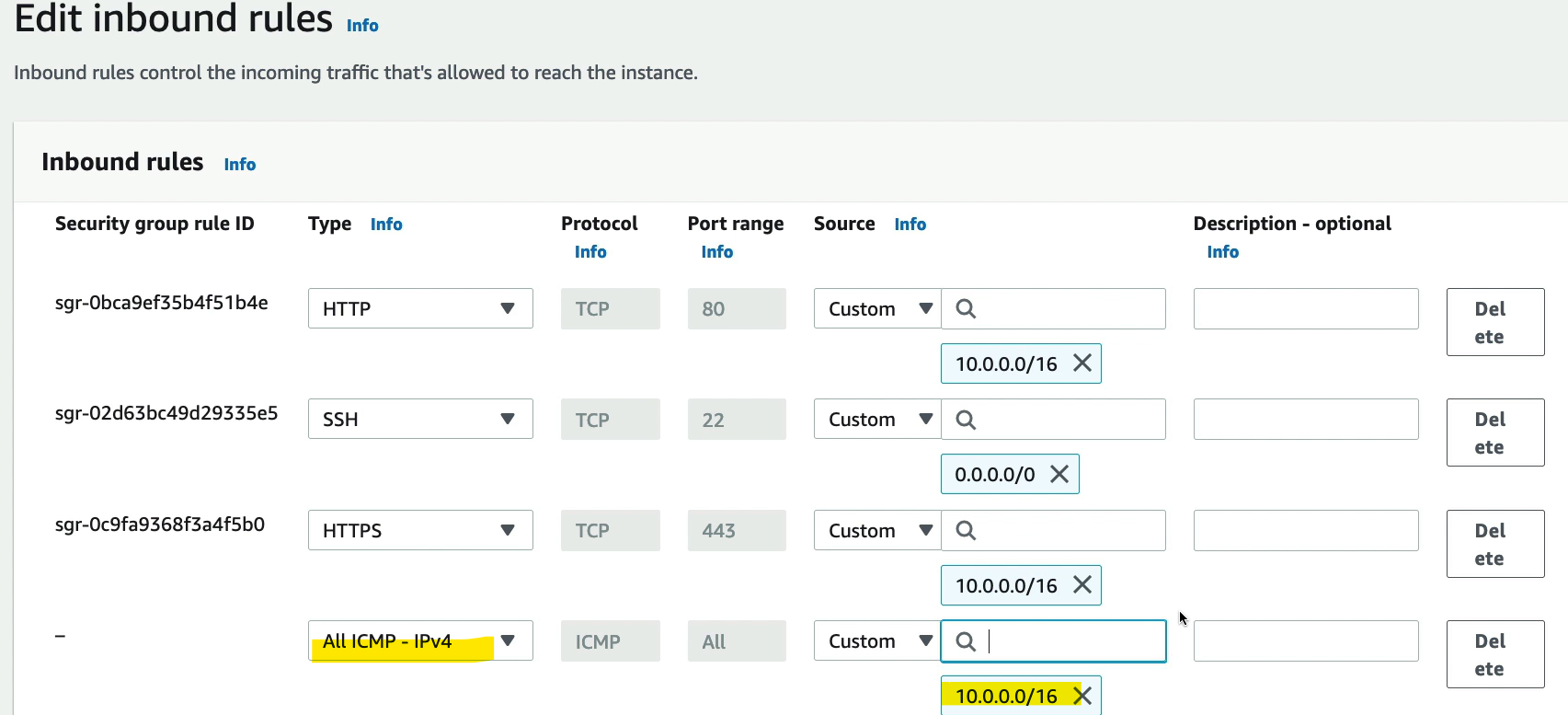

• Edit SG of NAT instace to allow inbound traffic

• 设置后, private instance 可以通过 NAT instance 访问 internet.

---

NAT Gateway

• AWS-managed NAT, higher bandwidth, high availability, no administration
• Pay per hour for usage and bandwidth
• NATGW is created in a specific Availability Zone, uses an Elastic IP
• Can’t be used by EC2 instance in the same subnet (only from other subnets)
  • commonly created in public subnect, then connected by a private subnet.
• Requires an IGW

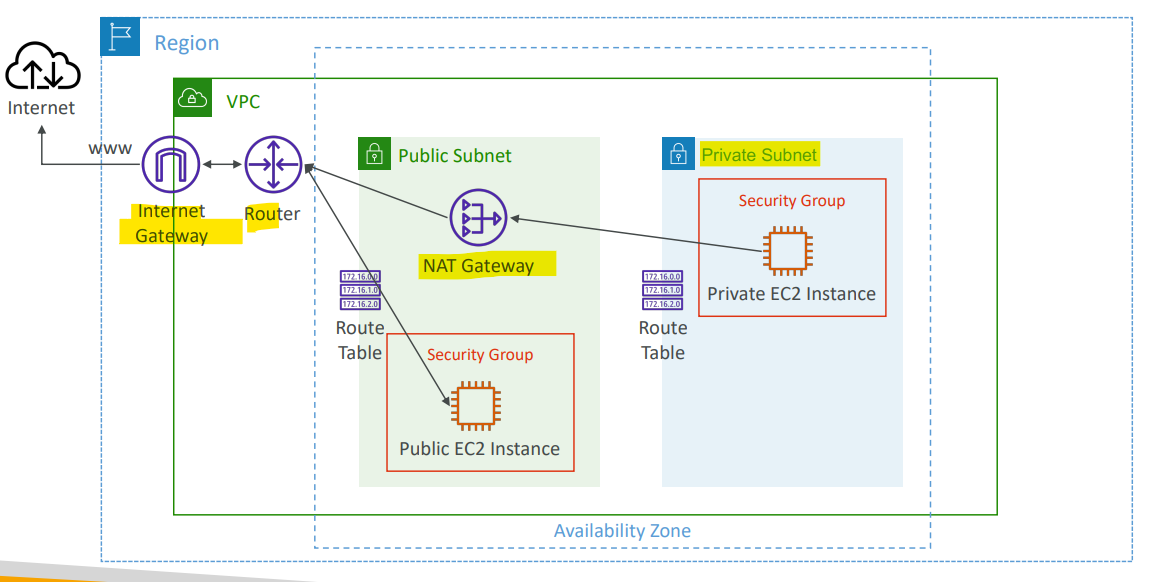

  • Private Subnet => NATGW => IGW
• 5 Gbps of bandwidth with automatic scaling up to 100 Gbps
• No Security Groups to manage / required

---

High Availability

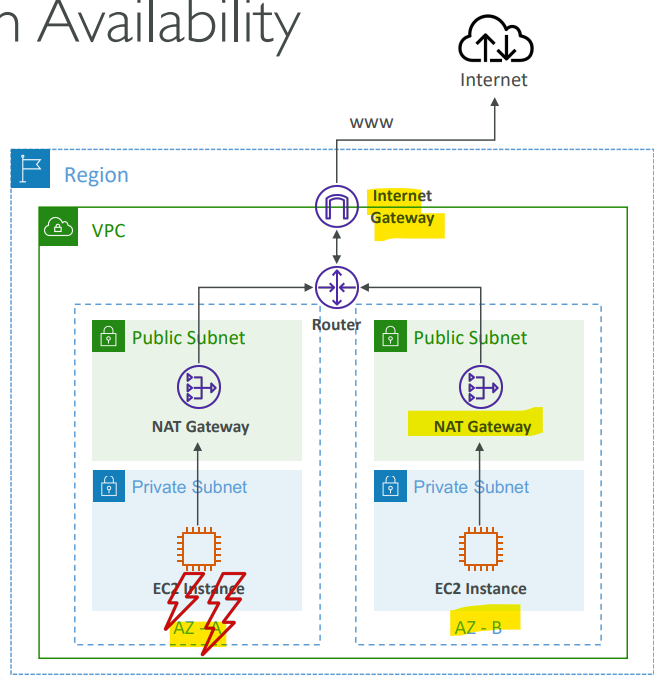

• NAT Gateway is resilient within a single Availability Zone
• Must create multiple NAT Gateways in multiple AZs for fault-tolerance
• There is no cross-AZ failover needed because if an AZ goes down it doesn’t need NAT

---

NAT Gateway vs. NAT Instance

	NAT Gateway	NAT Instance
Availability	Highly available within AZ (create in another AZ)	Use a script to manage failover between instances
Bandwidth	Up to 100 Gbps	Depends on EC2 instance type
Maintenance	Managed by AWS Managed	by you (e.g., software, OS patches, …)
Cost	Per hour & amount of data transferred	Per hour, EC2 instance type and size, + network $
Public IPv4	Y	Y
Private IPv4	Y	Y
Security Groups	N	Y
Use as Bastion Host?	N	Y

• Sample:
  • You would like to provide Internet access to your EC2 instances in private subnets with IPv4 while making sure this solution requires the least amount of administration and scales seamlessly. What should you use?
    • NAT Gateway

---

Hands-on

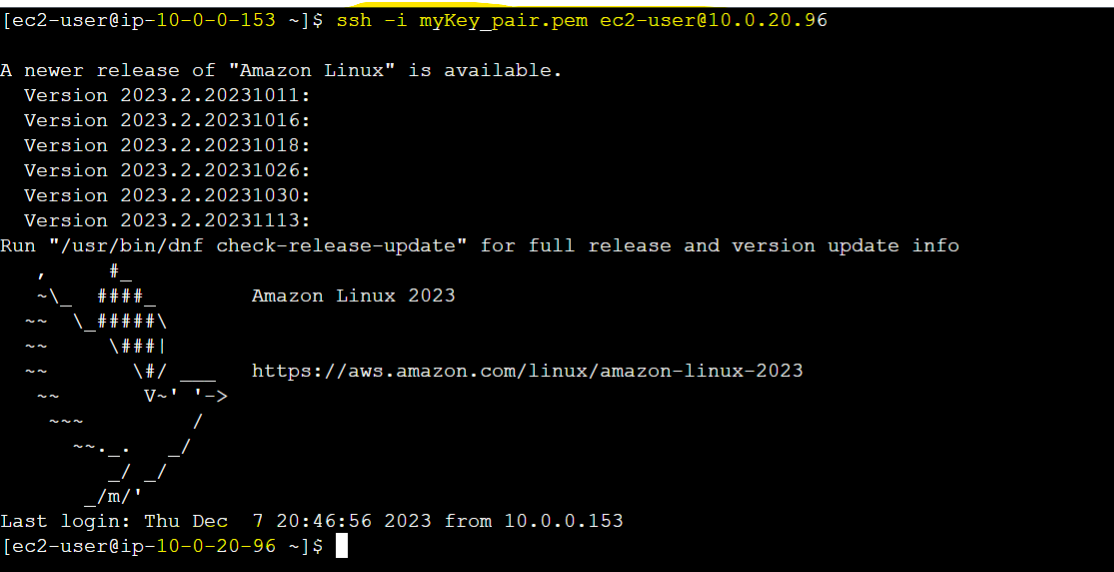

• Using the EC2 instance created in Bastion Instance.

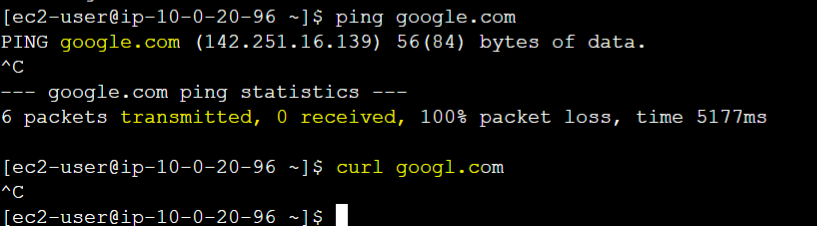

  • the private instance cannot connect to the internet.

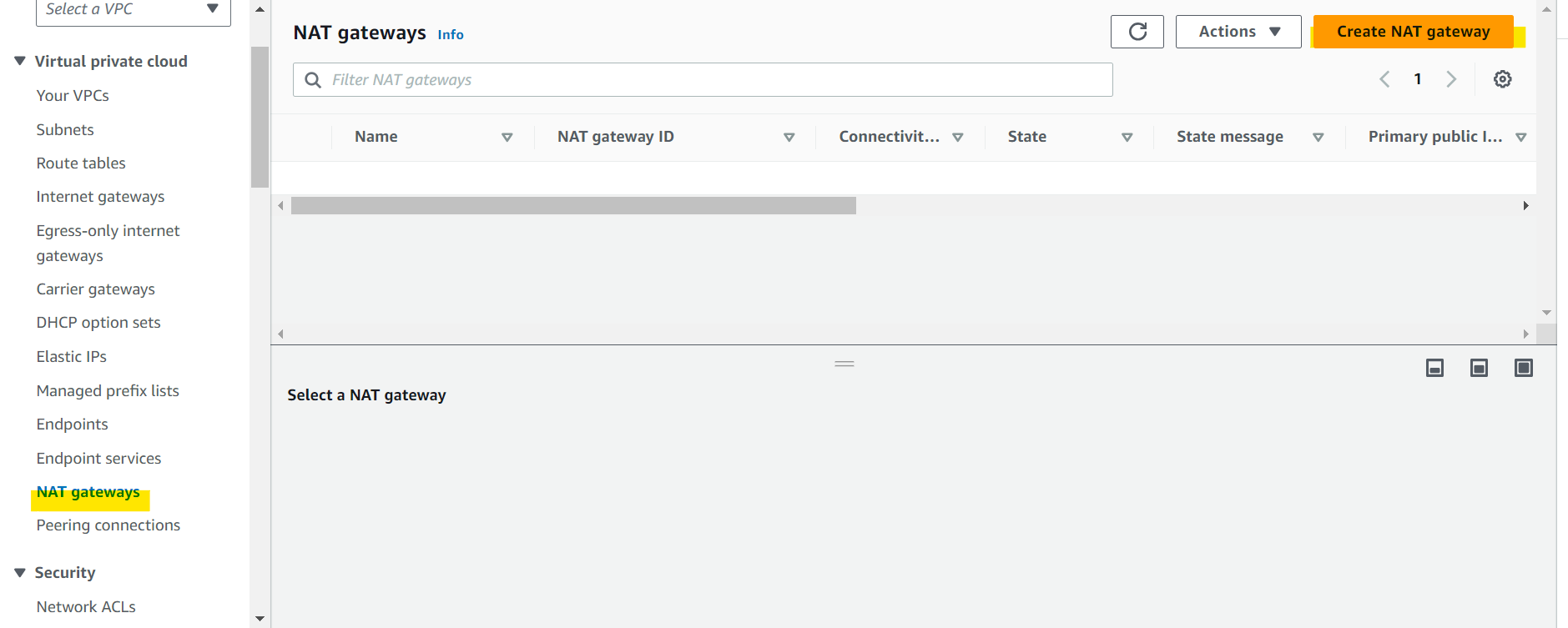

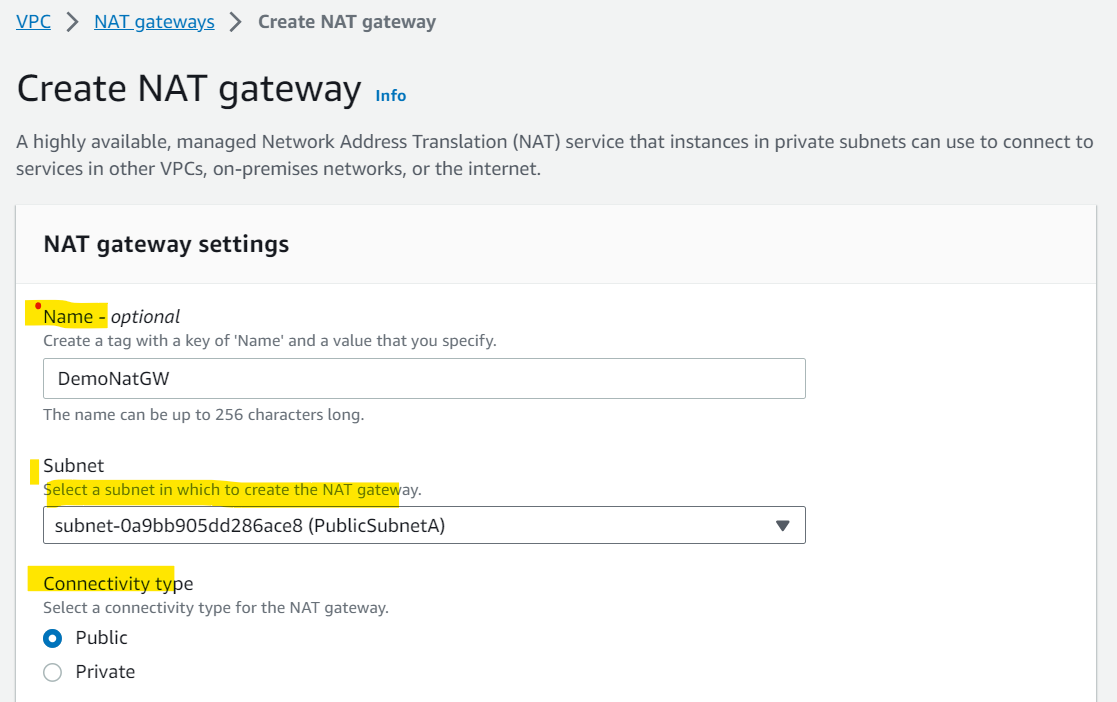

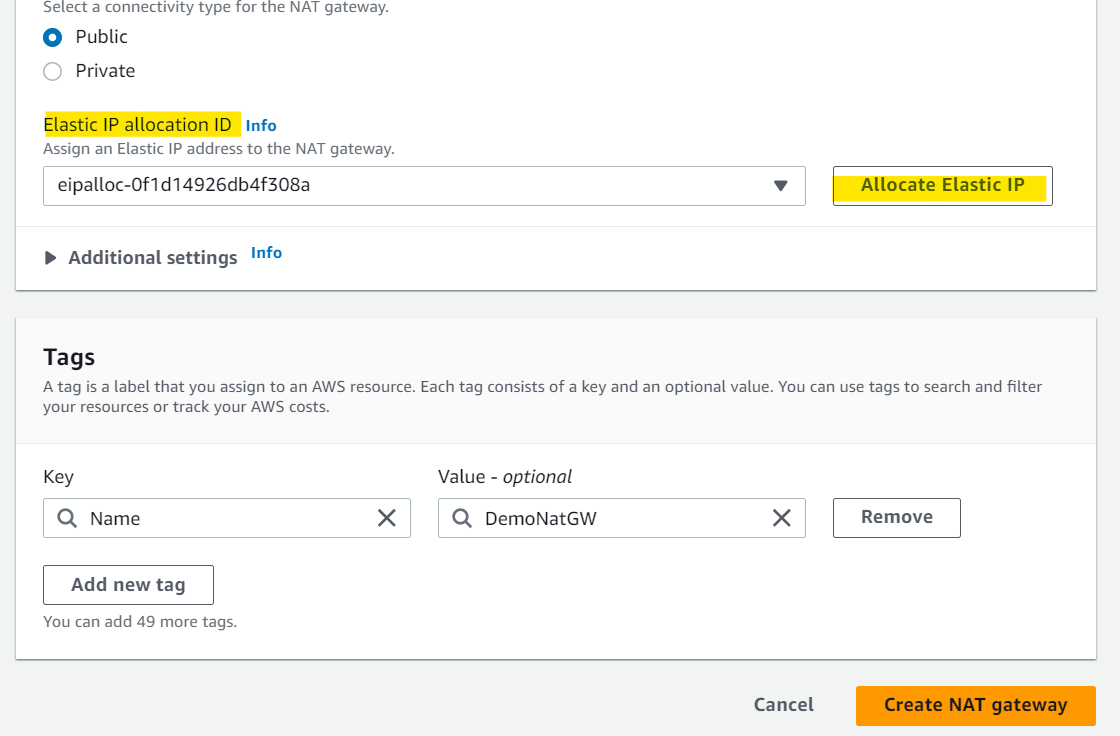

• Create a NAT gateway

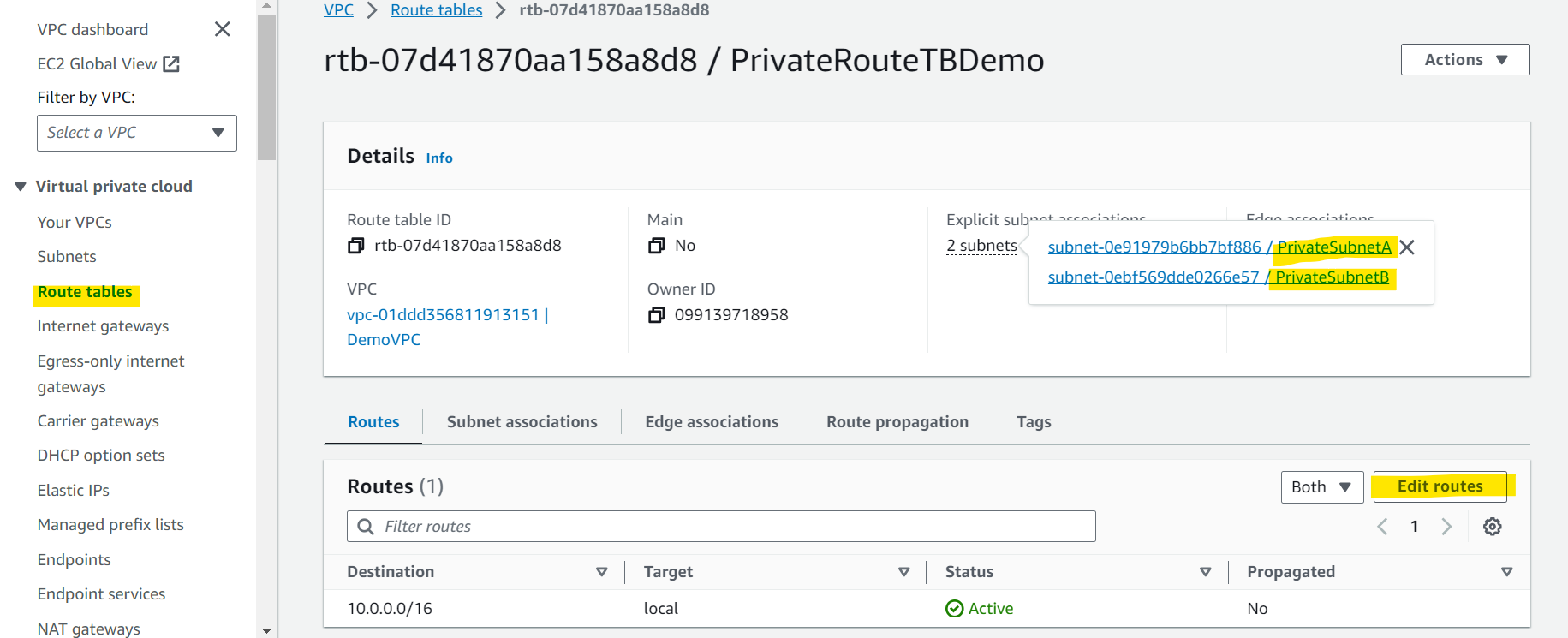

• Edit a route table of a subnet

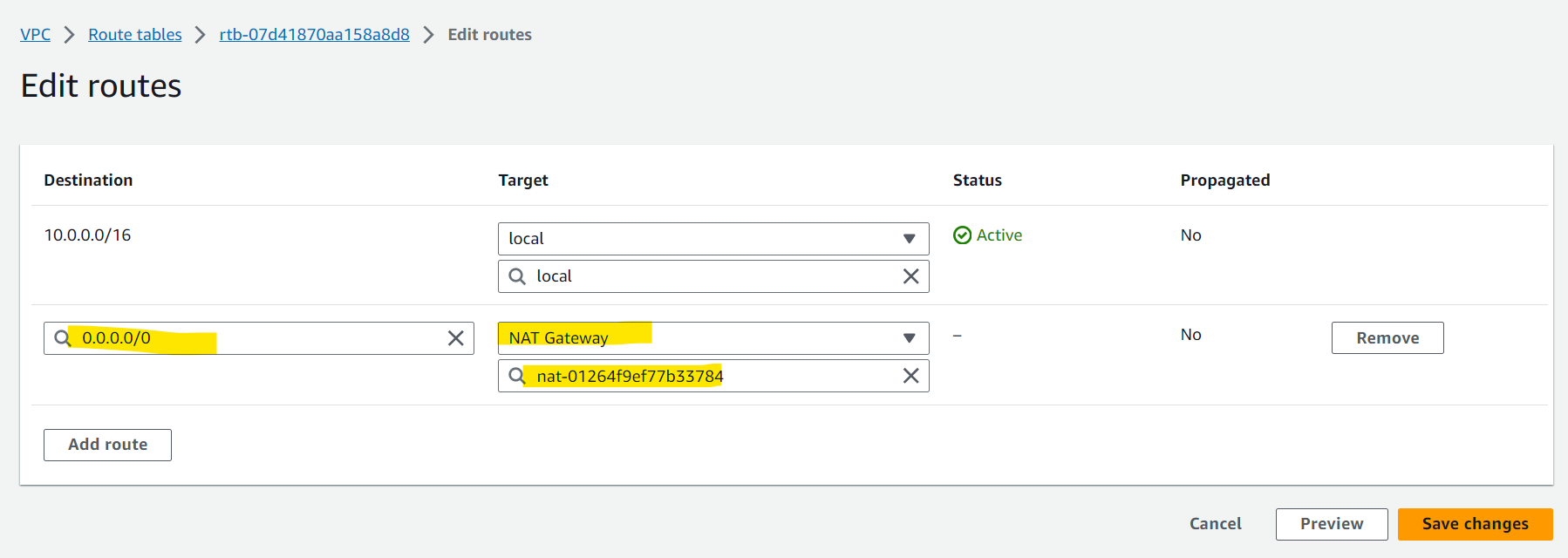

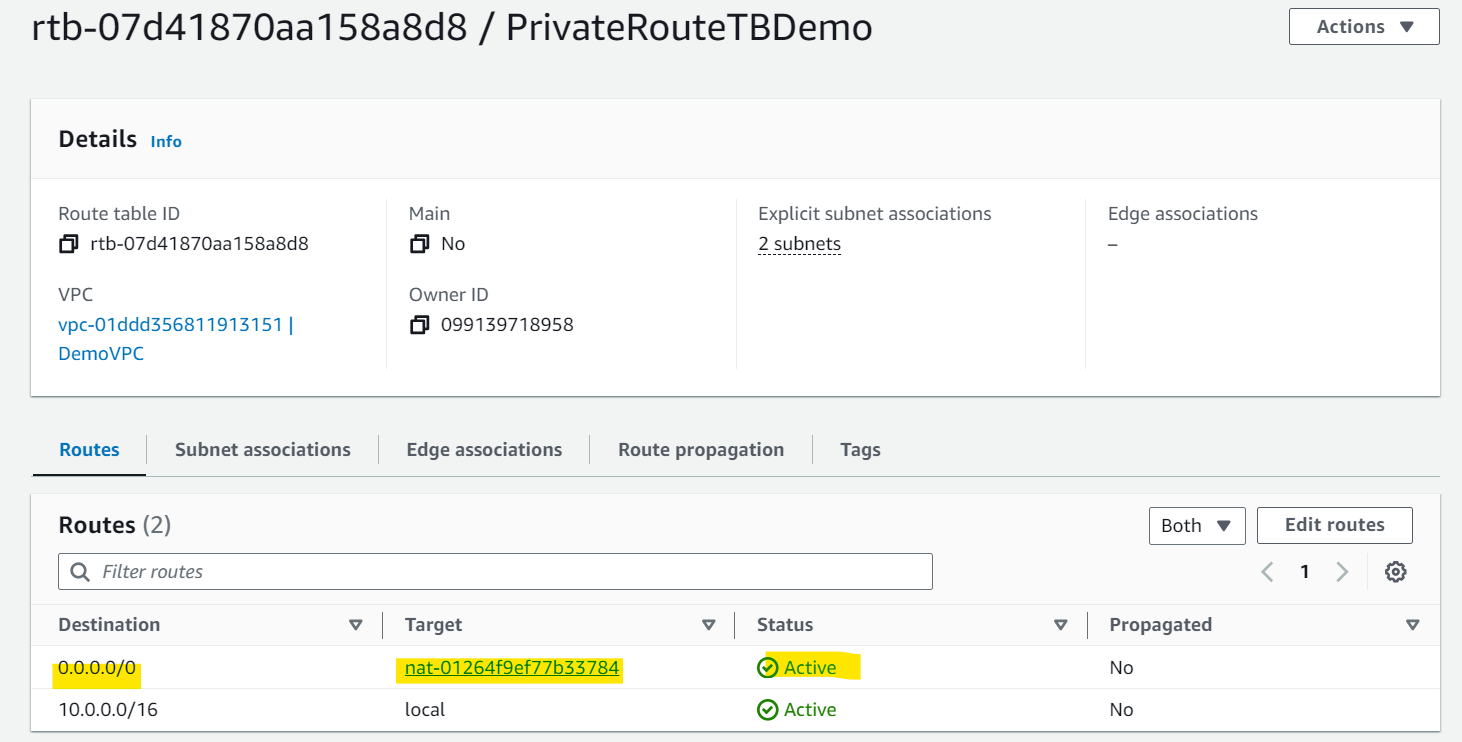

  • when connecting to internet, target will be the nat gateway.

• Test instance in private subnet

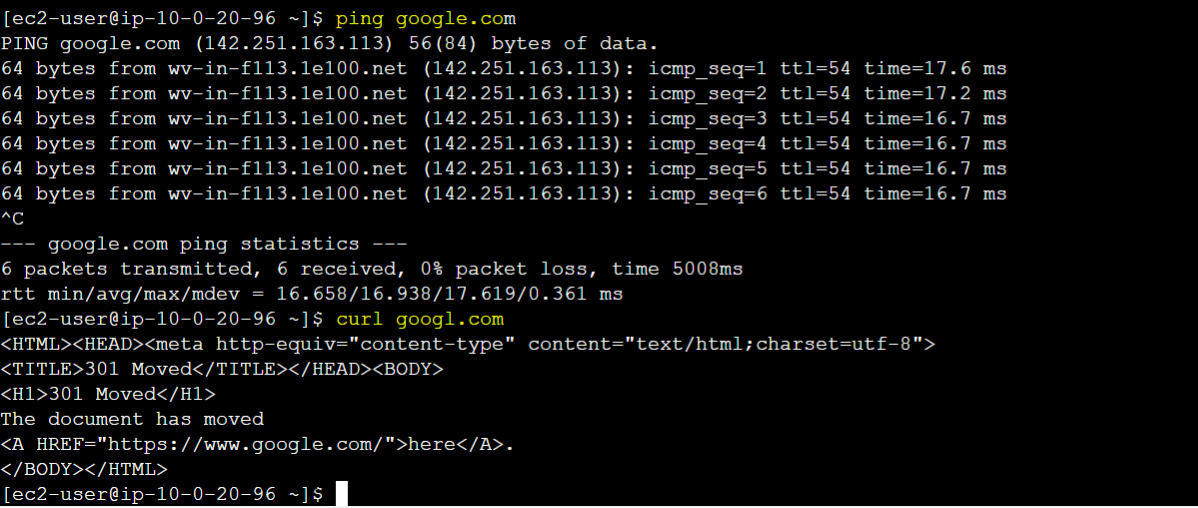

  • now instance in private subnet can access to the internet.

---
