AWS - Networking

Classless Inter-Domain Routing
- a method for allocating IP addresses
- Used in Security Groups rules and AWS networking in general
They help to define an IP address range:
- We’ve seen WW.XX.YY.ZZ/32 => one IP
- We’ve seen 0.0.0.0/0 => all IPs
- But we can define:192.168.0.0/26 =>192.168.0.0 – 192.168.0.63 (64 IP addresses)
CIDR
- consists of two components, Base IP and Subnet Mask
Base IP
- Represents an IP contained in the range (XX.XX.XX.XX)
- e.g.: 10.0.0.0, 192.168.0.0, …
Subnet Mask
- Defines how many bits can change in the IP
- e.g.: /0, /24, /32

Can take two forms:
- /8 <=> 255.0.0.0
- /16 <=> 255.255.0.0
- /24 <=> 255.255.255.0
- /32 <=> 255.255.255.255
The Subnet Mask basically allows part of the underlying IP to get additional next values from the base IP

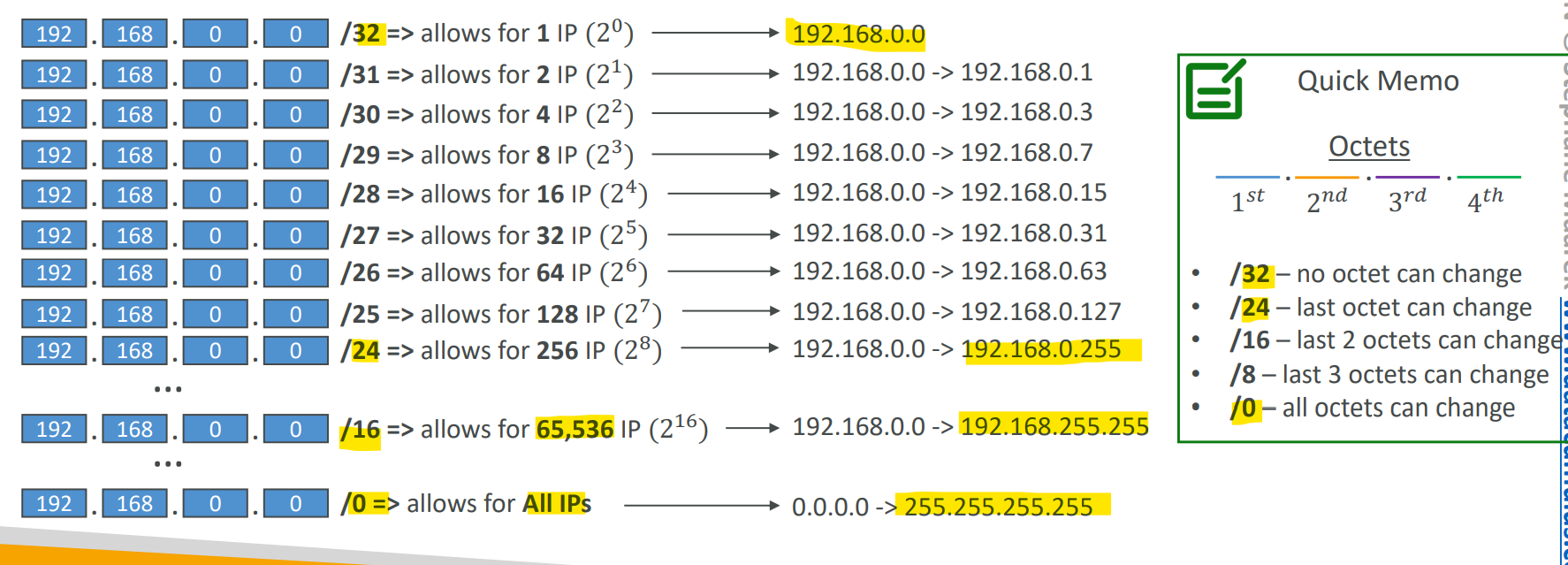

subnet_mask

The Internet Assigned Numbers Authority (IANA) established certain blocks of IPv4 addresses for the use of private (LAN) and public (Internet) addresses
Private IP can only allow certain values:
- 10.0.0.0 - 10.255.255.255 (10.0.0.0/8) <= in big networks
- 172.16.0.0 - 172.31.255.255 (172.16.0.0/12) <= AWS default VPC in that range
- 192.168.0.0 - 192.168.255.255 (192.168.0.0/16) <= e.g., home networks
Public IP:
- All the rest of the IP addresses on the Internet are

IPv4 designed to provide 4.3 Billion addresses (they’ll be exhausted soon)
IPv6
- the successor of IPv4
- designed to provide 3.4 × 10^38 unique IP addresses
Every IPv6 address is public and Internet-routable (no private range)
Format: x.x.x.x.x.x.x.x (x is hexadecimal, range can be from 0000 to ffff)
Examples:
- 2001:db8:3333:4444:5555:6666:7777:8888
- 2001:db8:3333:4444:cccc:dddd:eeee:ffff
- ::: all 8 segments are zero
- 2001:db8::: the last 6 segments are zero
- ::1234:5678: the first 6 segments are zero
- 2001:db8::1234:5678: the middle 4 segments are zero

IPv4 cannot be disabled for your VPC and subnets
You can enable IPv6 (they’re public IP addresses) to operate in dual-stack mode
- Your EC2 instances will get at least a private internal IPv4 and a public IPv6

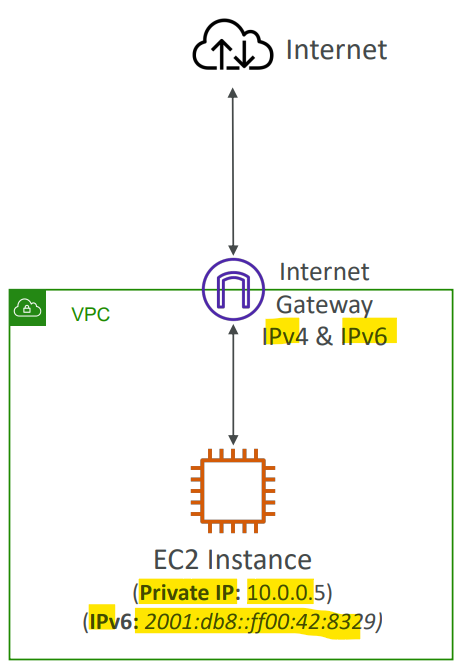

- They can communicate using either IPv4 or IPv6 to the internet through an Internet Gateway

ip6_vpc

Sample:
- You have a VPC in your AWS account that runs in a dual-stack mode. You are continuously trying to launch an EC2 instance, but it fails. After further investigation, you have found that you are no longer have IPv4 addresses available. What should you do?
  - add an additional IPv4 CIDR to VPC

IPv4 cannot be disabled for your VPC and subnets
So, if you cannot launch an EC2 instance in your subnet
- It’s not because it cannot acquire an IPv6 (the space is very large)
- It’s because there are no available IPv4 in your subnet
Solution:
- create a new IPv4 CIDR in your subnet

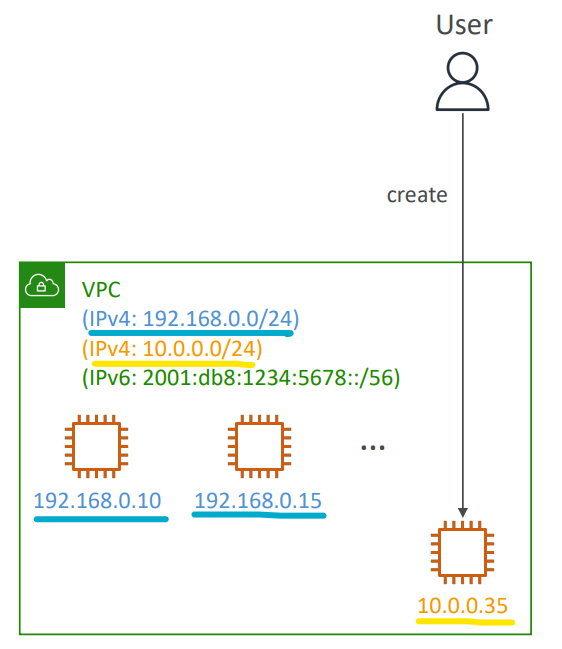

ip6_troubleshooting

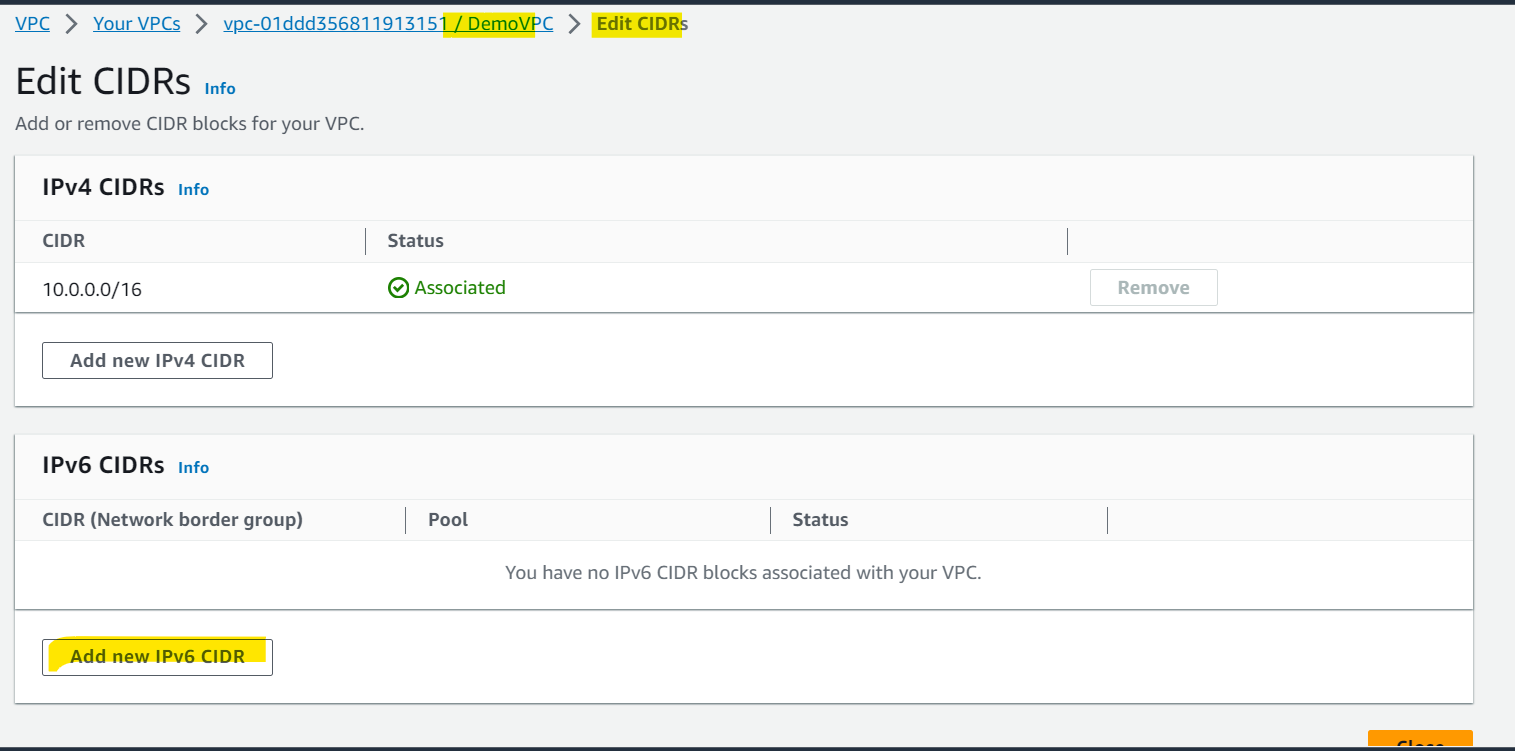

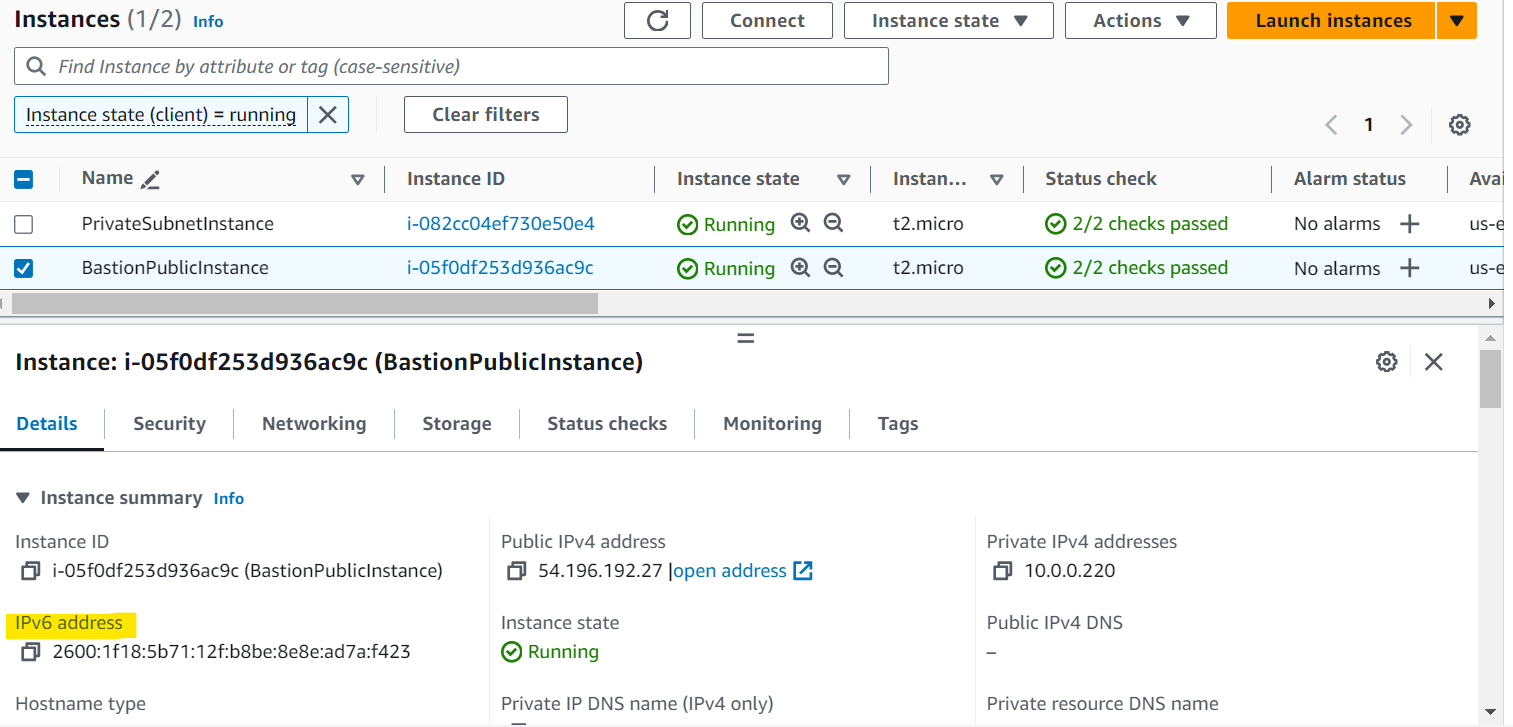

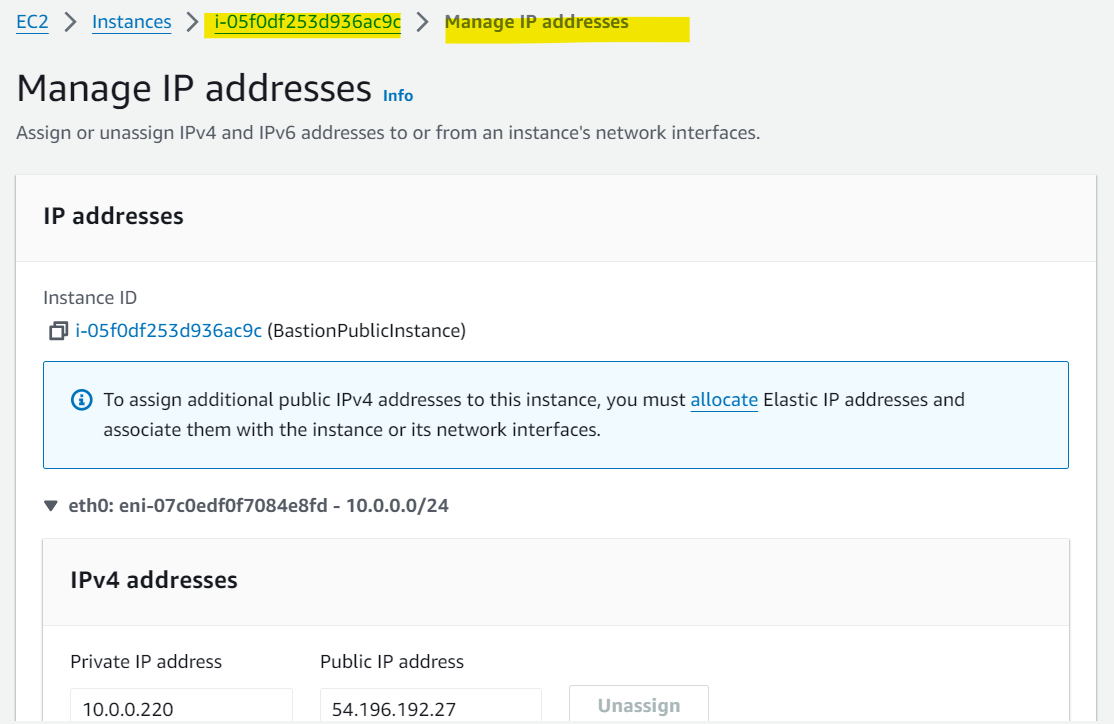

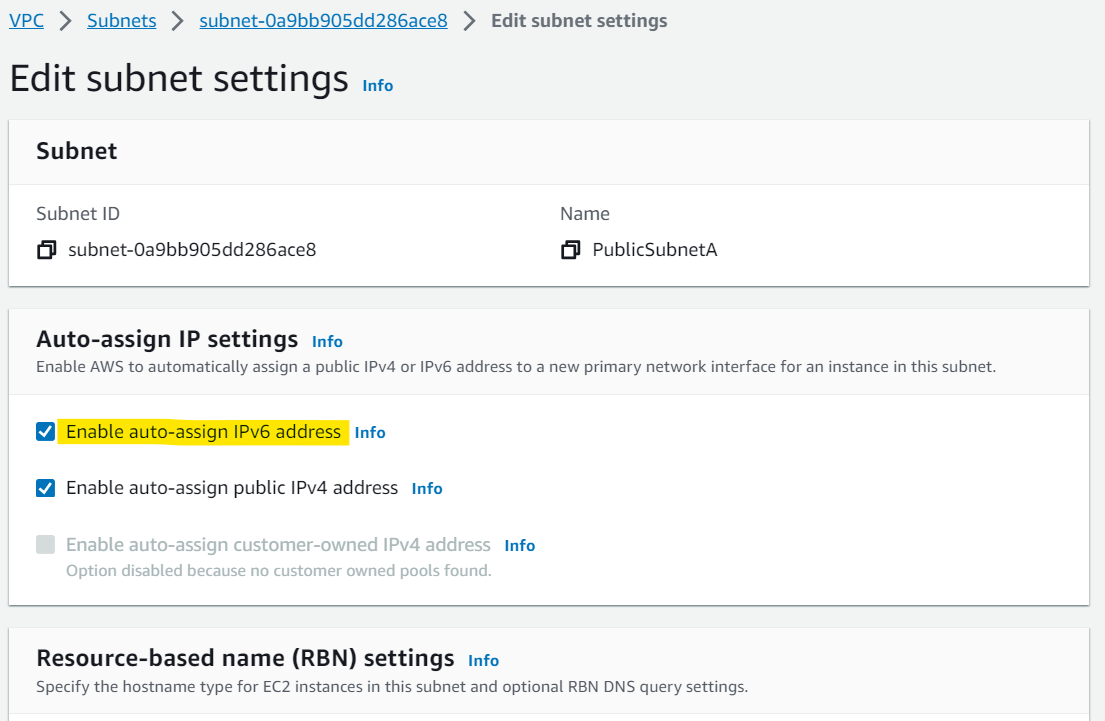

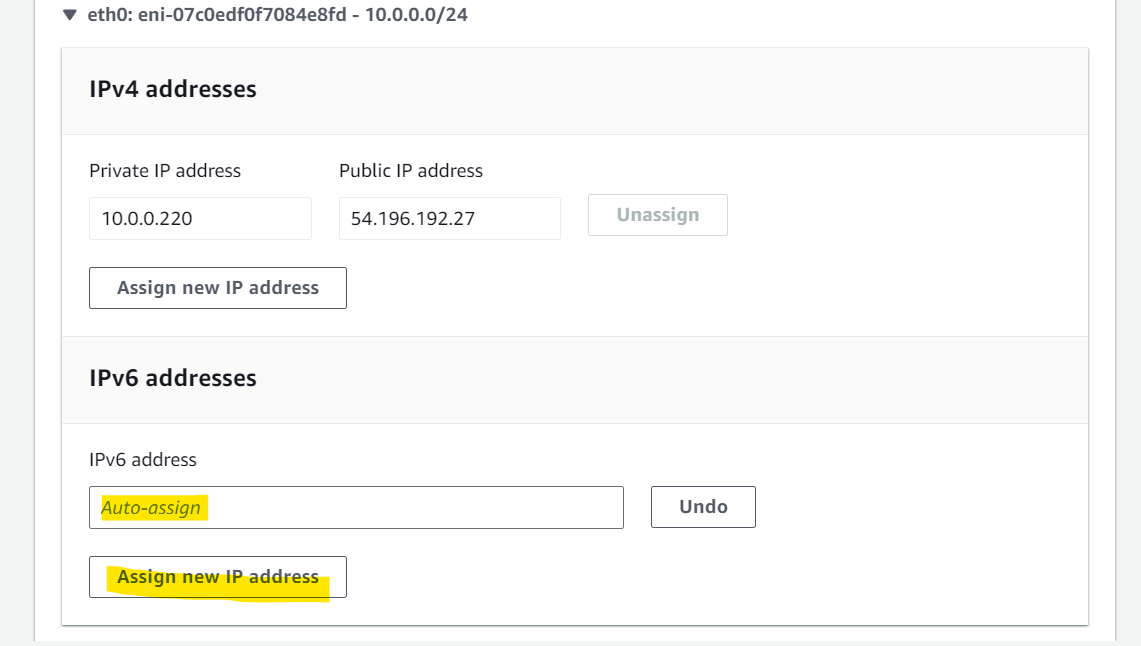

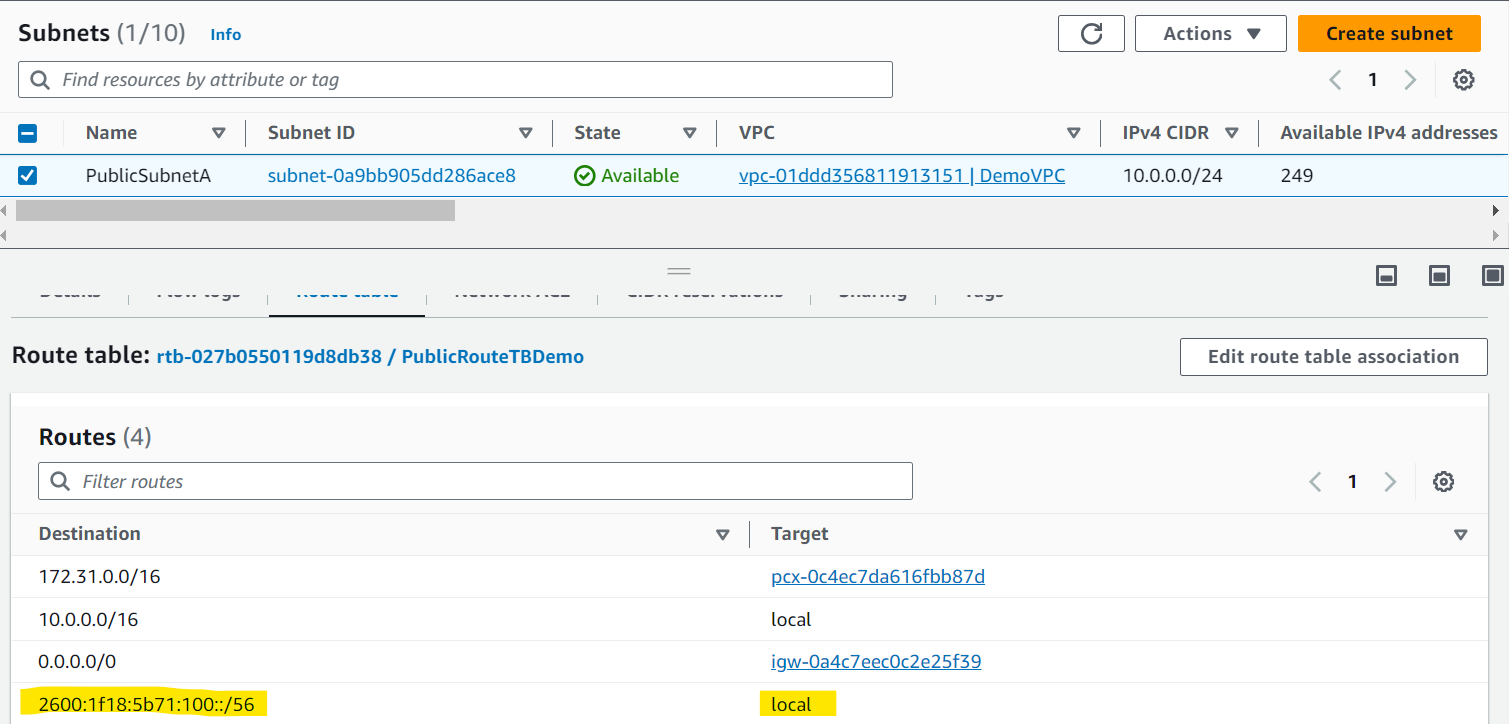

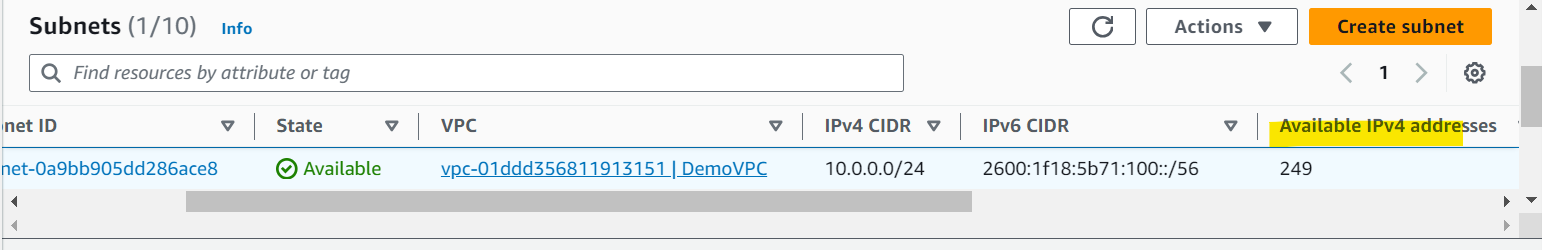

hands-on

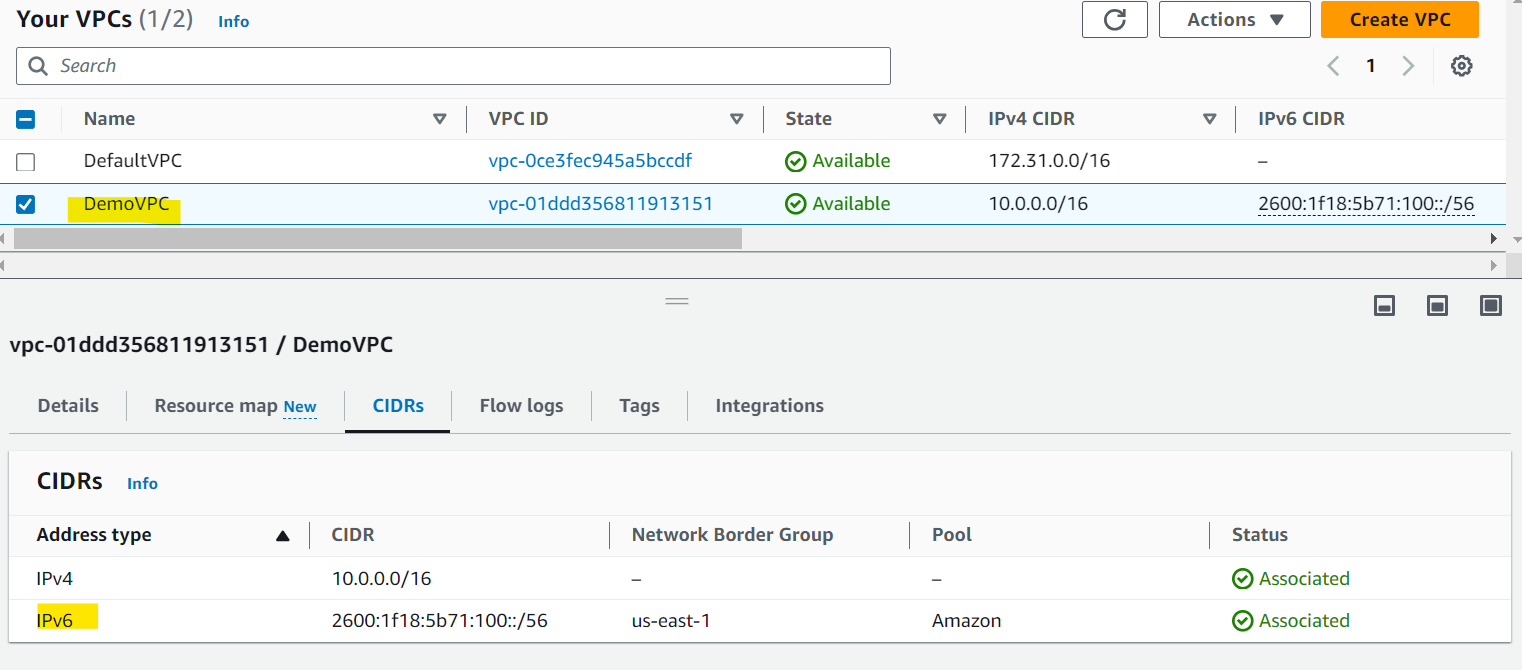

hands-on

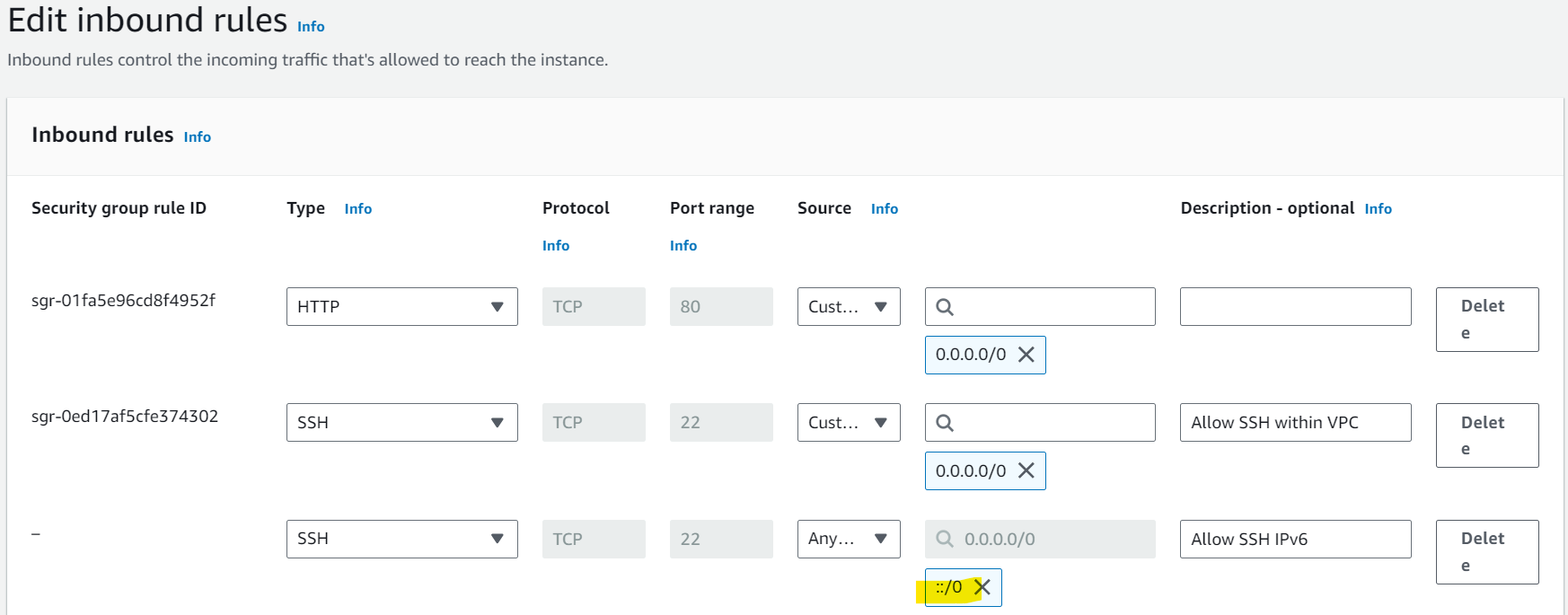

hands-on

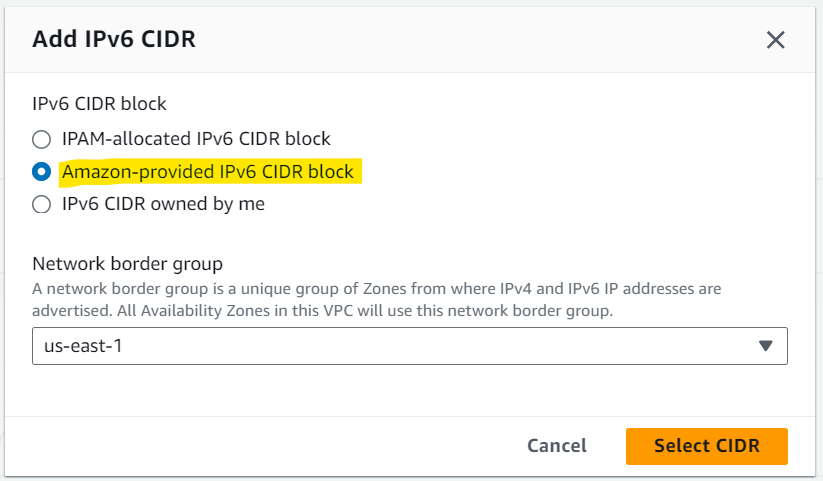

hands-on

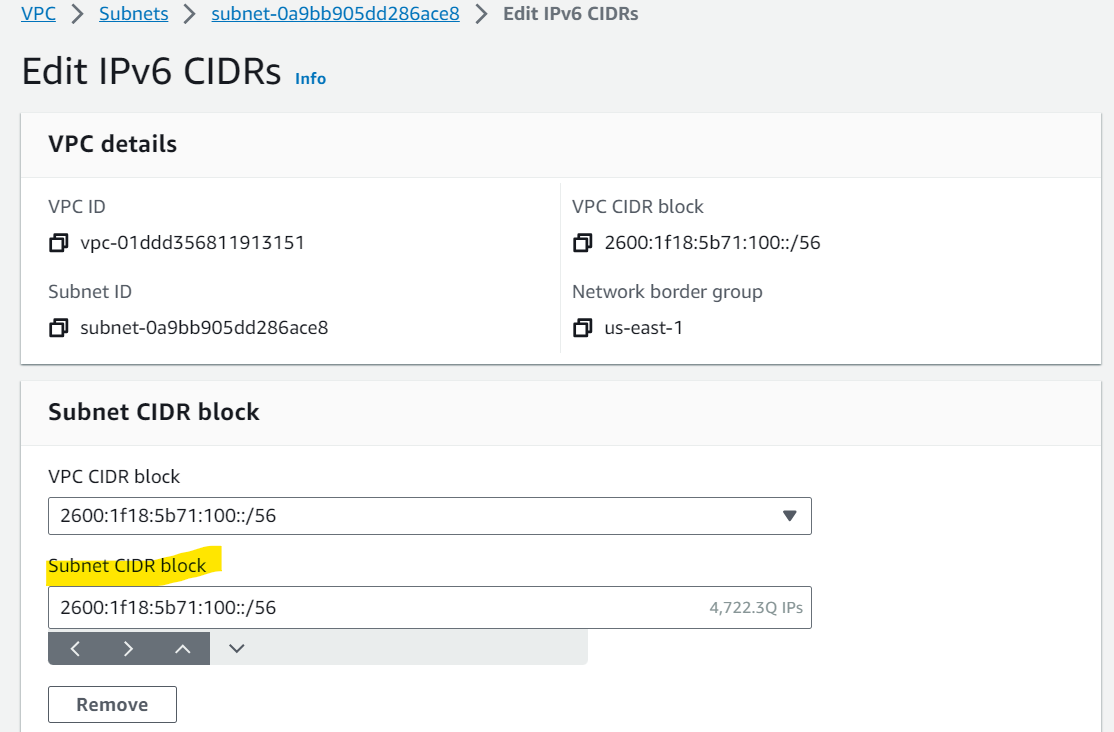

hands-on

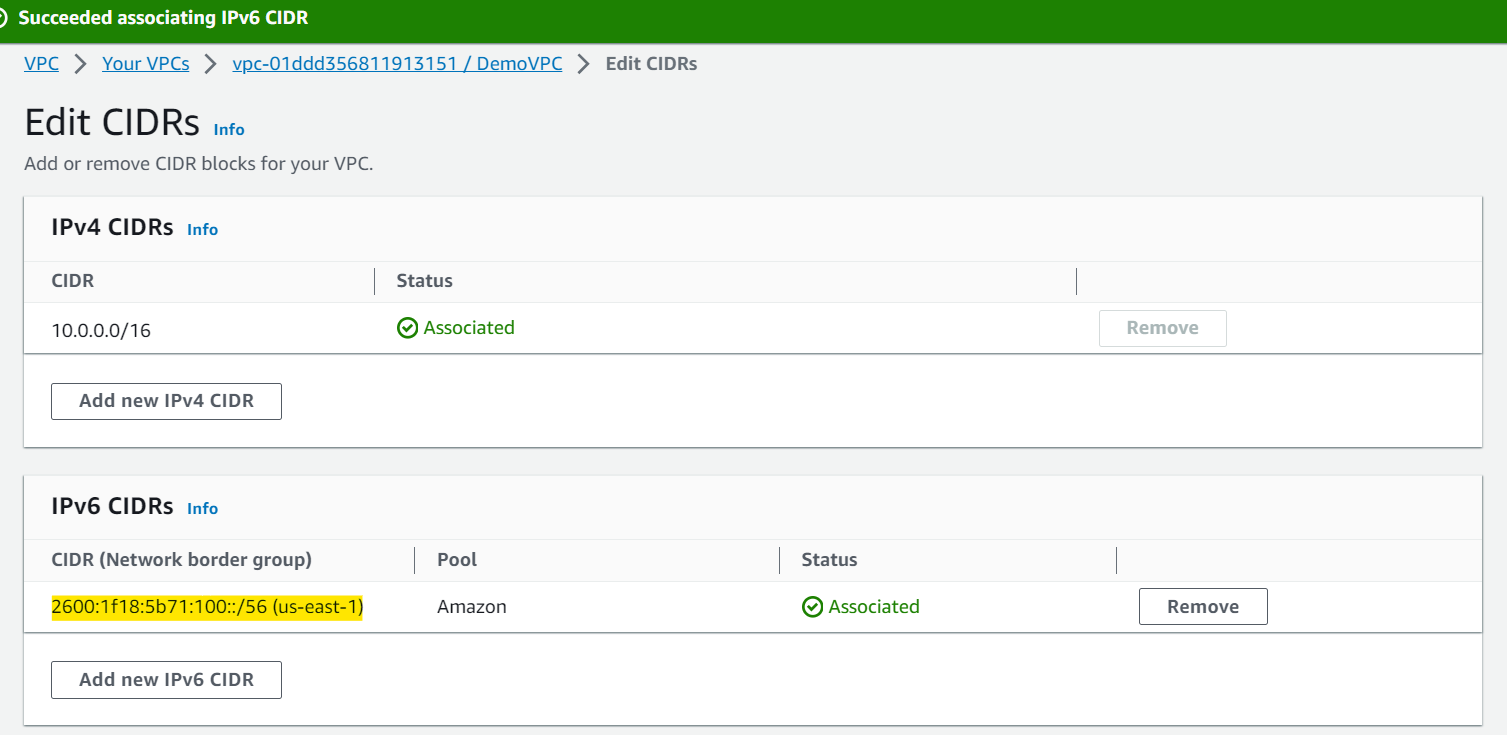

hands-on

Internet Gateway: for VPC
- at the VPC level,
- provide IPv4 & IPv6 Internet Access
Route Tables: for Subnet
- must be edited to add routes from subnets to the IGW, VPC Peering onnections, VPC Endpoints, …
ClassicLink: for EC2
- connect EC2-Classic EC2 instances privately to your VPC
VPC Peering: between VPC
- connect two VPCs with non overlapping CIDR,
- non-transitive
VPC Endpoints: for AWS service within VPC
- provide private access to AWS Services (S3, DynamoDB, CloudFormation, SSM) within a VPC
- gateway endpoint: S3 + DynamoDB
- Interface endpoint: the rest
AWS PrivateLink / VPC Endpoint Services: for AWS service within VPC
- Connect services privately from your service VPC to customers VPC
- Doesn’t need VPC Peering, public Internet, NAT Gateway, Route Tables
- Must be used with Network Load Balancer & ENI

Site-to-Site VPN: with on-premises via public
- setup a Customer Gateway on DC,
- a Virtual Private Gateway on VPC,
- and site-to-site VPN over public Internet
AWS VPN CloudHub: multiple sites
- hub-and-spoke VPN model to connect your sites
Direct Connect: DX location, private
- setup a Virtual Private Gateway on VPC, and establish a direct private connection to an AWS Direct Connect Location
Direct Connect Gateway: DX regions
- setup a Direct Connect to many VPCs in different AWS regions
Transit Gateway: peering
- transitive peering connections for VPC, VPN & DX

Bastion Host: SSH
- public EC2 instance to SSH into, that has SSH connectivity to EC2 instances in private subnets
NAT Instances: internet access
- gives Internet access to EC2 instances in private subnets.
- Old, must be setup in a public subnet, disable Source / Destination check flag
NAT Gateway: internet access IPv4
- managed by AWS, provides scalable Internet access to private EC2 instances,
- IPv4 only
Egress-only Internet Gateway: internet access IPv6
- like a NAT Gateway, but for IPv6

NACL:Subnet level
- stateless,
- subnet rules for inbound and outbound
- don’t forget Ephemeral Ports
Security Groups: instance level
- stateful,
- operate at the EC2 instance level

VPC Flow Logs: log
- can be setup at the VPC / Subnet / ENI Level, for ACCEPT and REJECT traffic,
- helps identifying attacks, analyze using Athena or CloudWatch Logs Insights
Traffic Mirroring: copy
- copy network traffic from ENIs for further analysis
