AWS Networking - VPC Peering

Back

• AWS Networking - VPC Peering
  • VPC Peering
  • Hands-on

---

VPC Peering

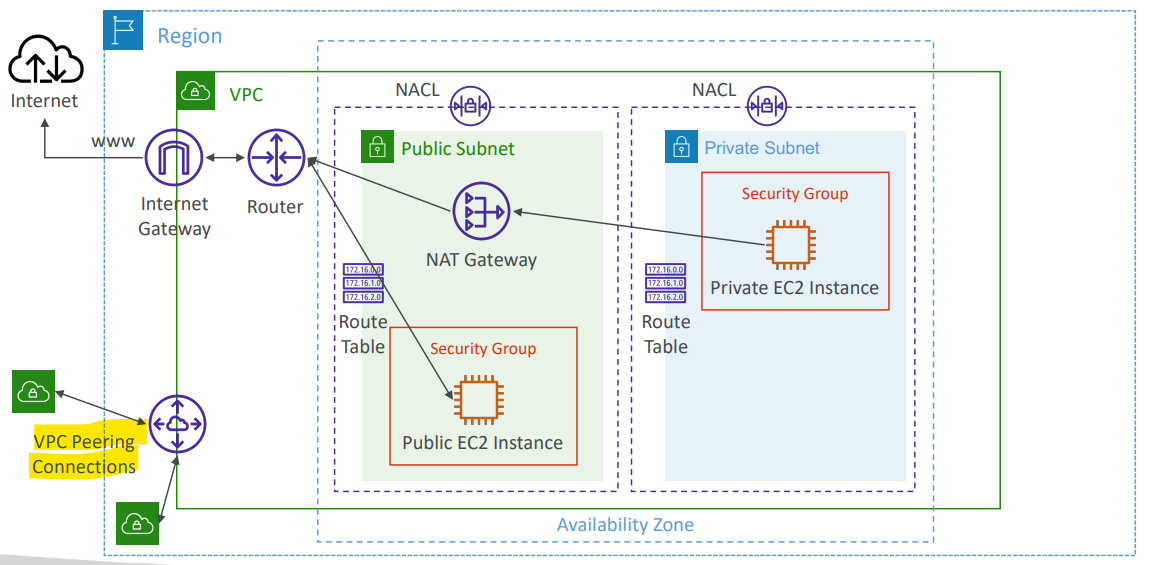

• VPC Peering

  • Privately connect two VPCs(might be in different regions and accounts) using AWS’ network
  • Make them behave as if they were in the same network
• Must not have overlapping CIDRs, otherwise cannot communicate with each other.

• VPC Peering connection is NOT transitive

  • must be enabled for each VPC that need to communicate with one another. 相互启用, 不能单方启用.
  • You must update route tables in each VPC’s subnets to ensure EC2 instances can communicate with each other
  • example:
    • a->b, b->c. 但不能以此推导出 a->c, 没有传递性.
    • 必须启用 a->c.

• You can create VPC Peering connection between VPCs in different AWS accounts/regions

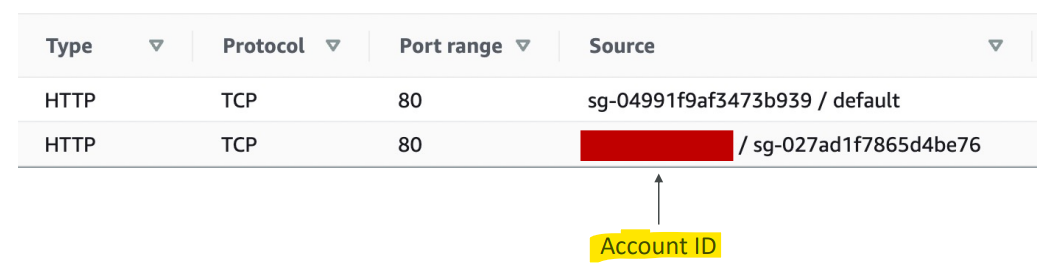

• You can reference a security group in a peered VPC (works cross accounts – same region)即只需要引用 sg, 而无需引用具体的 CIDR 或 IP 地址.

• Sample:
  • VPC Peering has been enabled between VPC A and VPC B, and the route tables have been updated for VPC A. But, the EC2 instances cannot communicate. What is the likely issue?
    • Check the Route Tables in VPC B
    • Route tables must be updated in both VPCs that are peered.

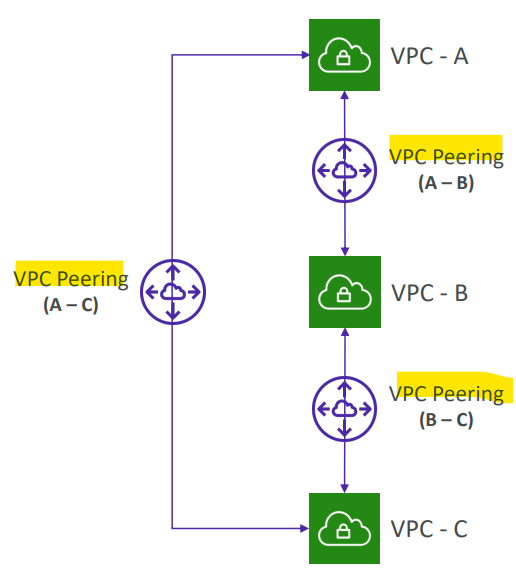

  • You have 3 VPCs A, B, and C. You want to establish a VPC Peering connection between all the 3 VPCs. What should you do?
    • A-B, B-C, A-C

---

Hands-on

• Create 2 intances in 2 VPCs

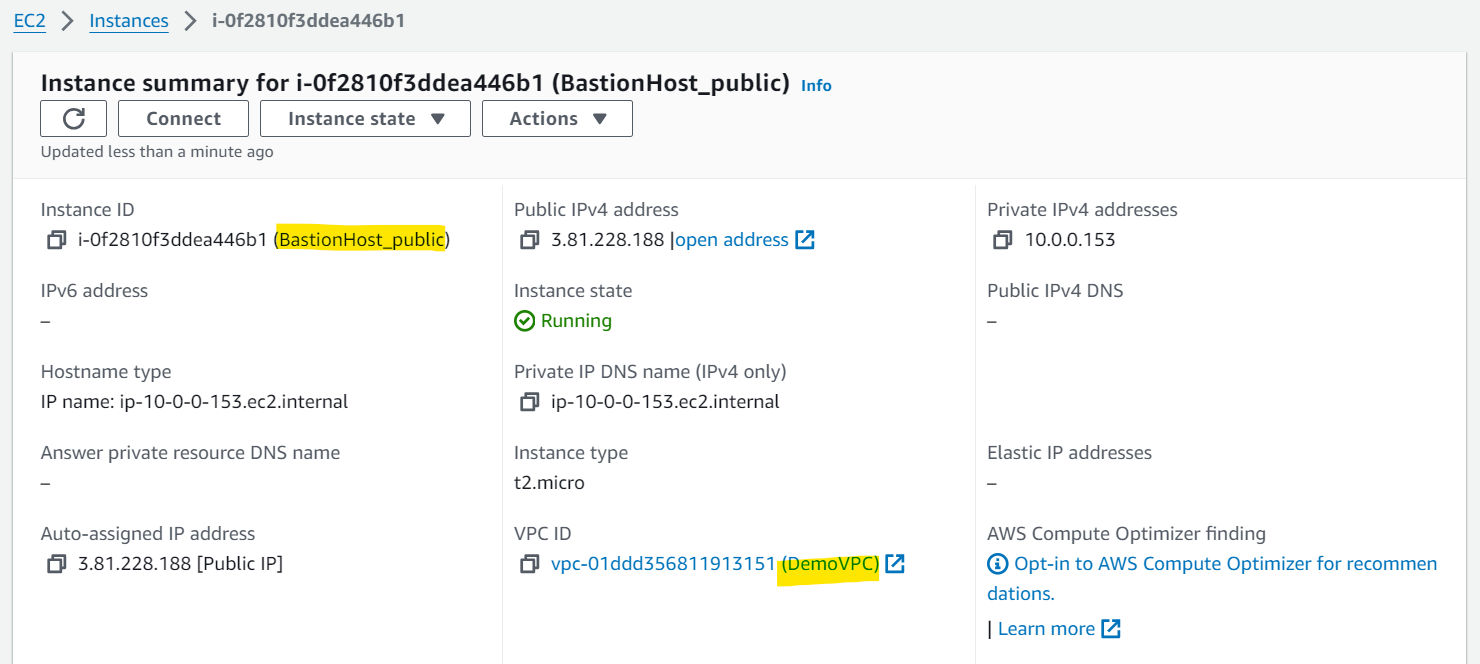

• Bastion instance in Demo VPC
  • enable httpd service

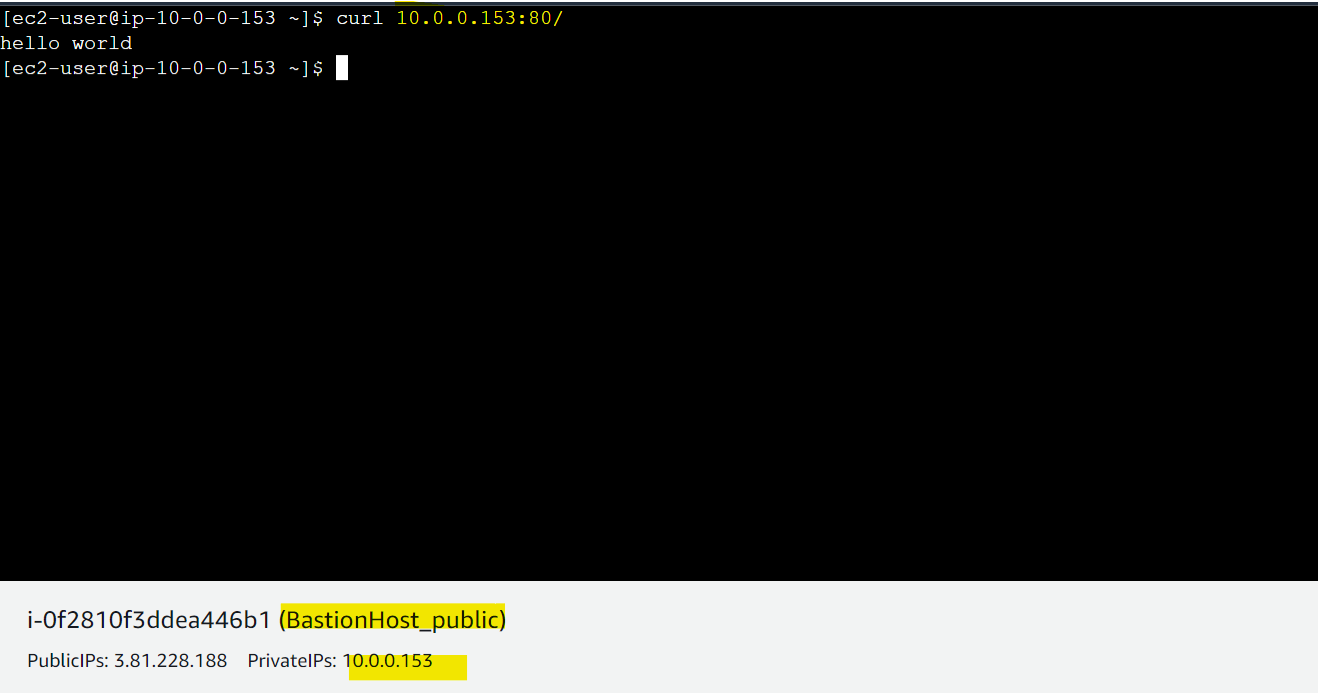

  • Accessible via local priavte ip address: curl <private_ip>:80/

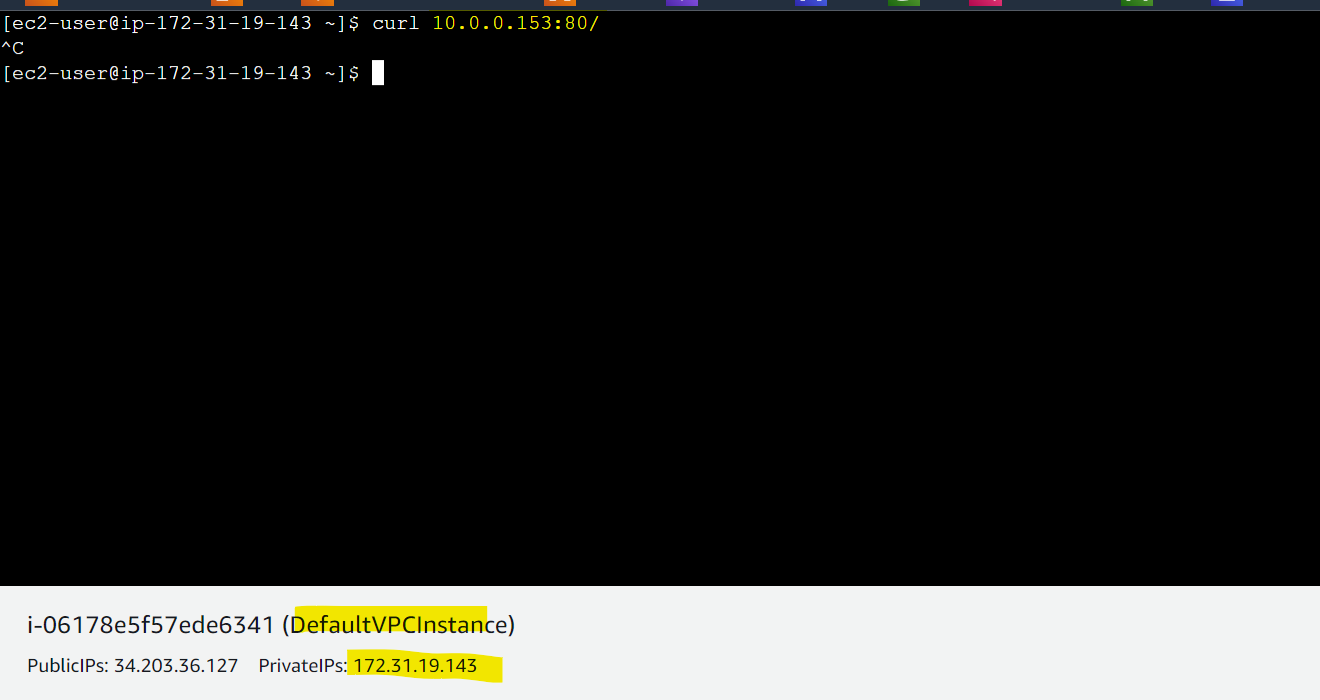

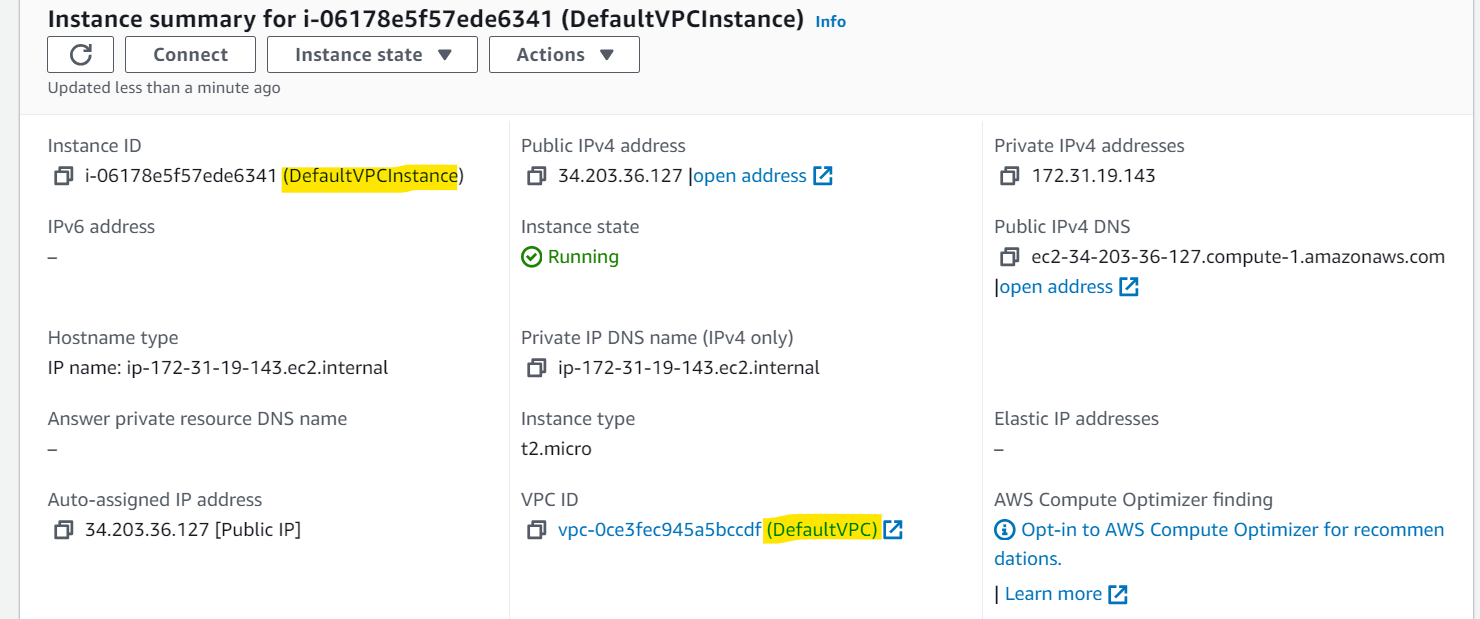

• DefaultVPCInstance in default VPC
  • Not accessible to the above ip address due to different VPC.

---

• Goal:

  • enable DefaultVPCInstance within Default VPC accessible to BastionHostPublic instance within Demo VPC.

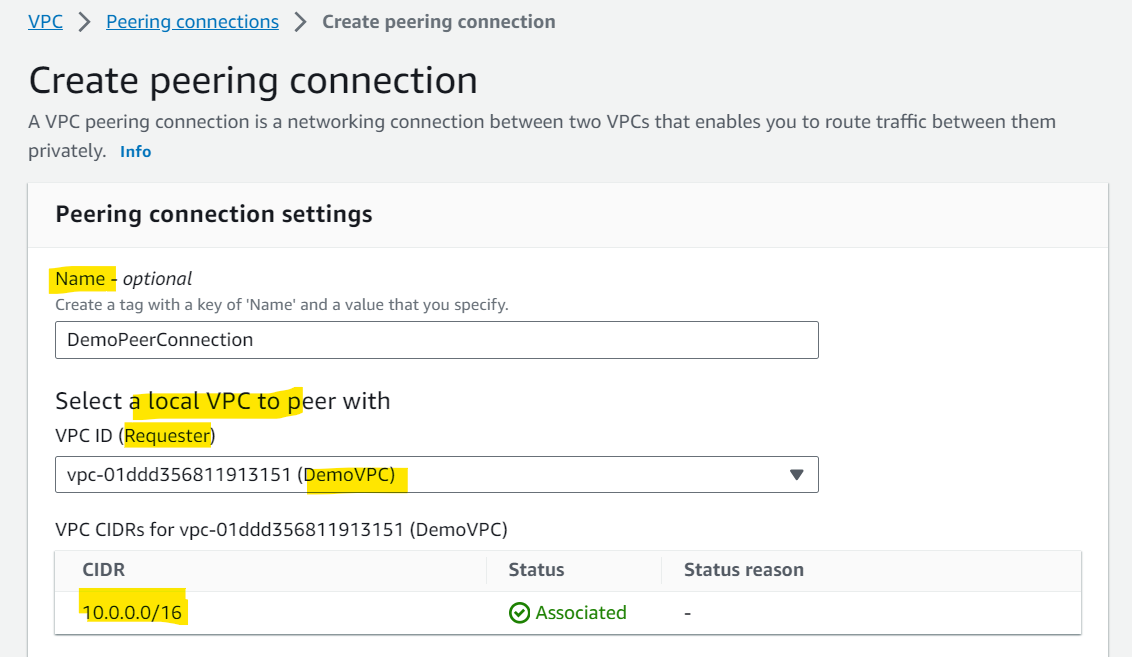

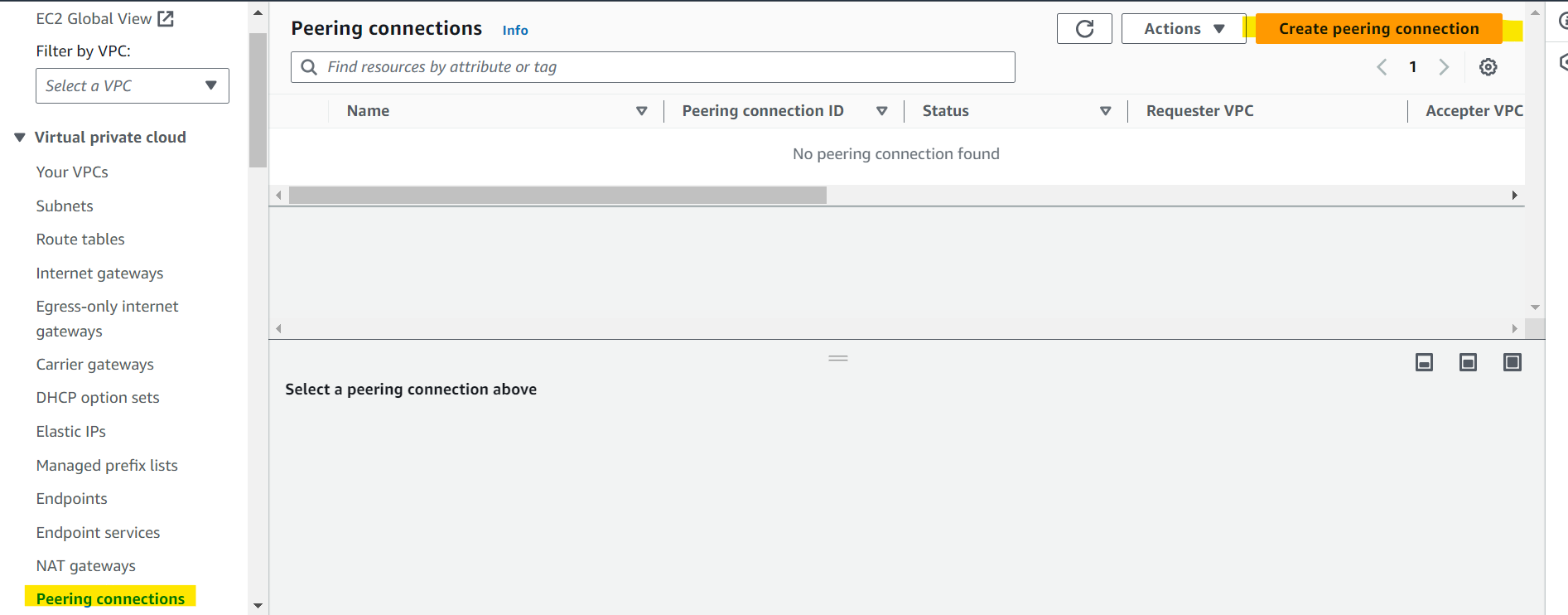

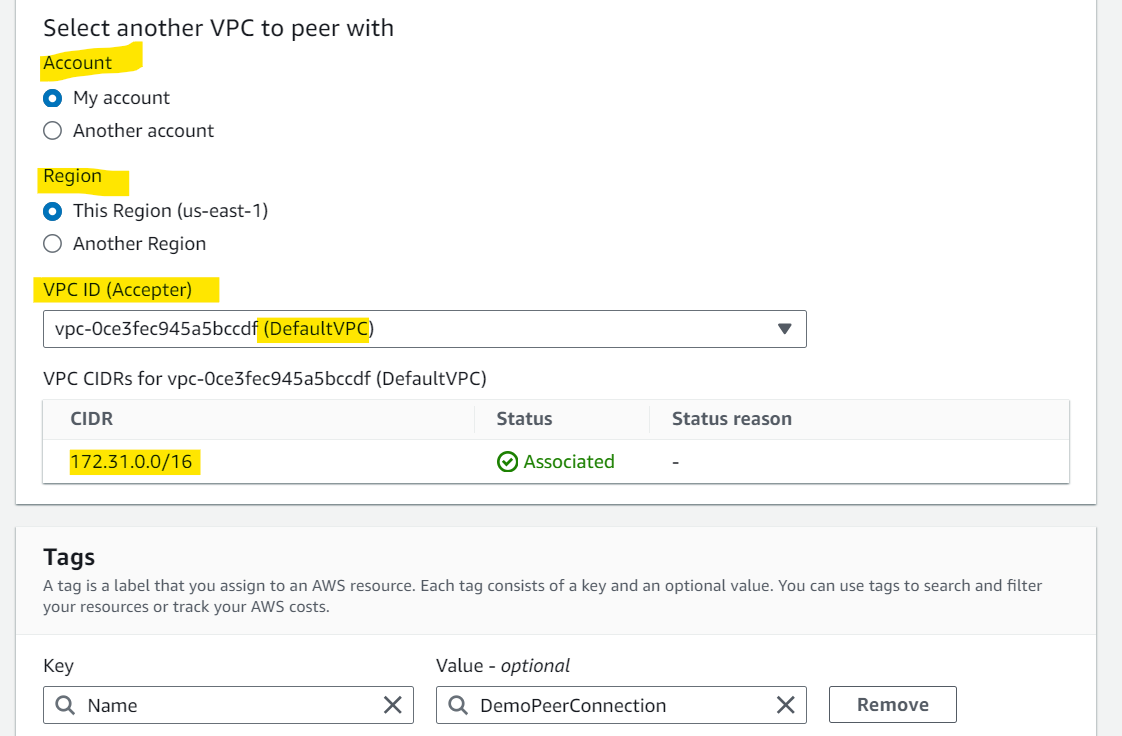

• Create a peering connection, Requester=DemoVPC, Accepter=DefaultVPC.
• The owner of the requester VPC sends a request to the owner of the accepter VPC to create the VPC peering connection.

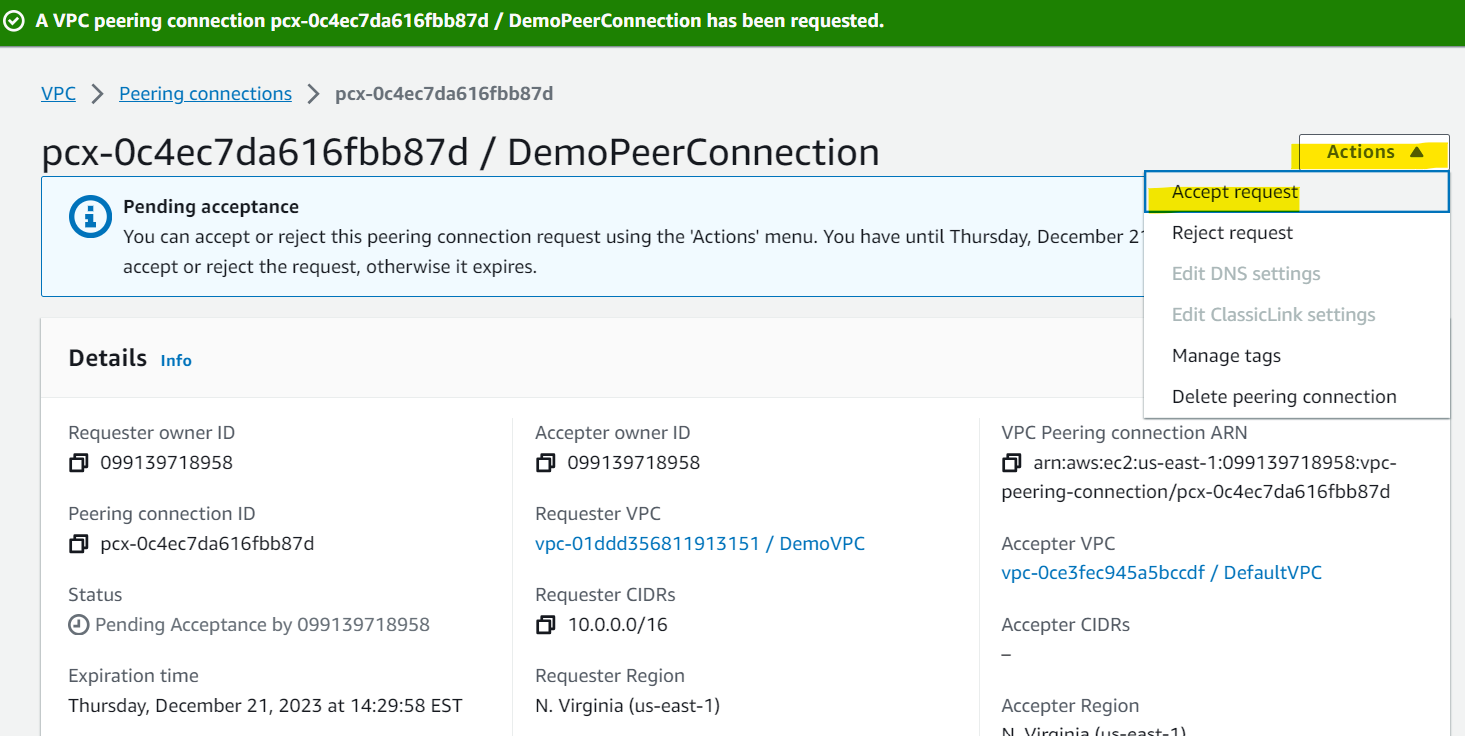

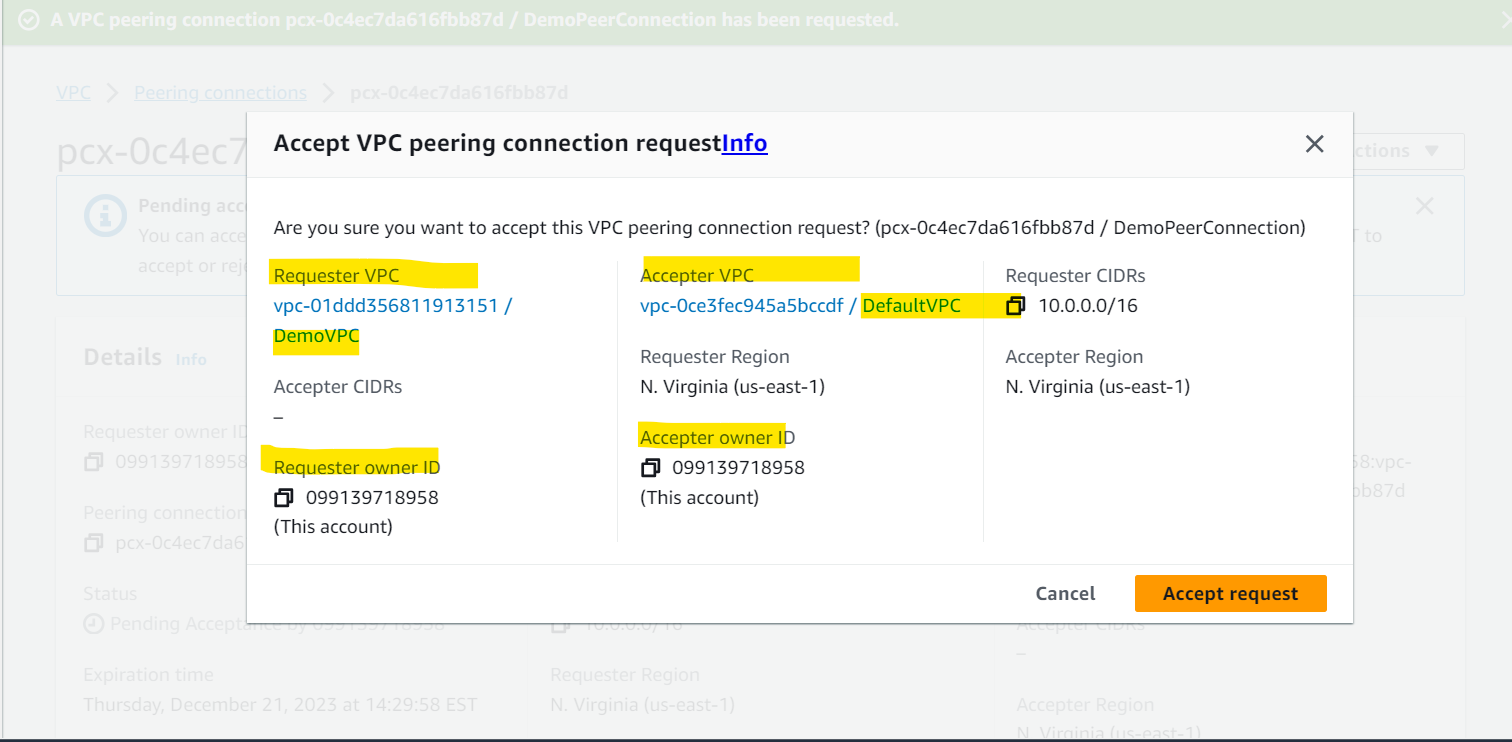

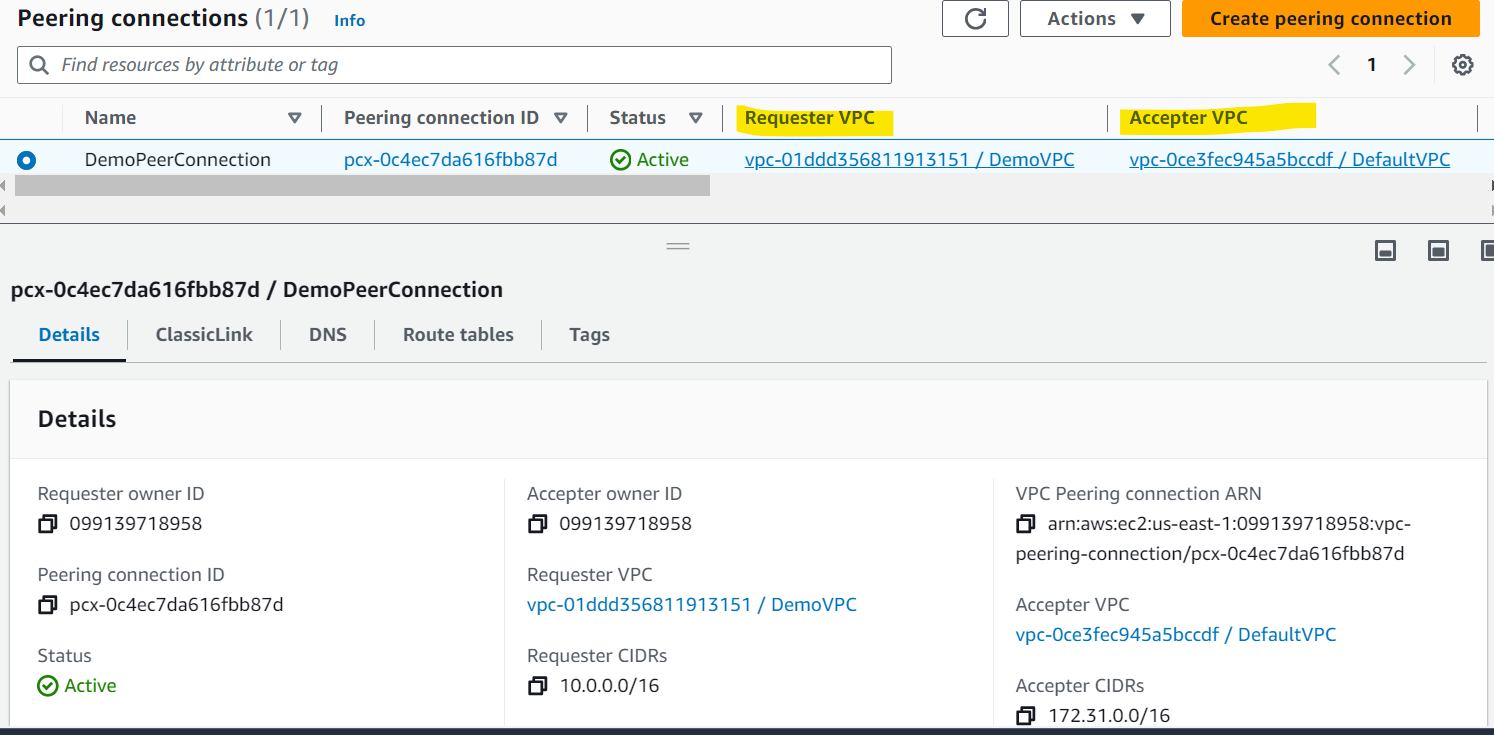

• Accept VPC peering request

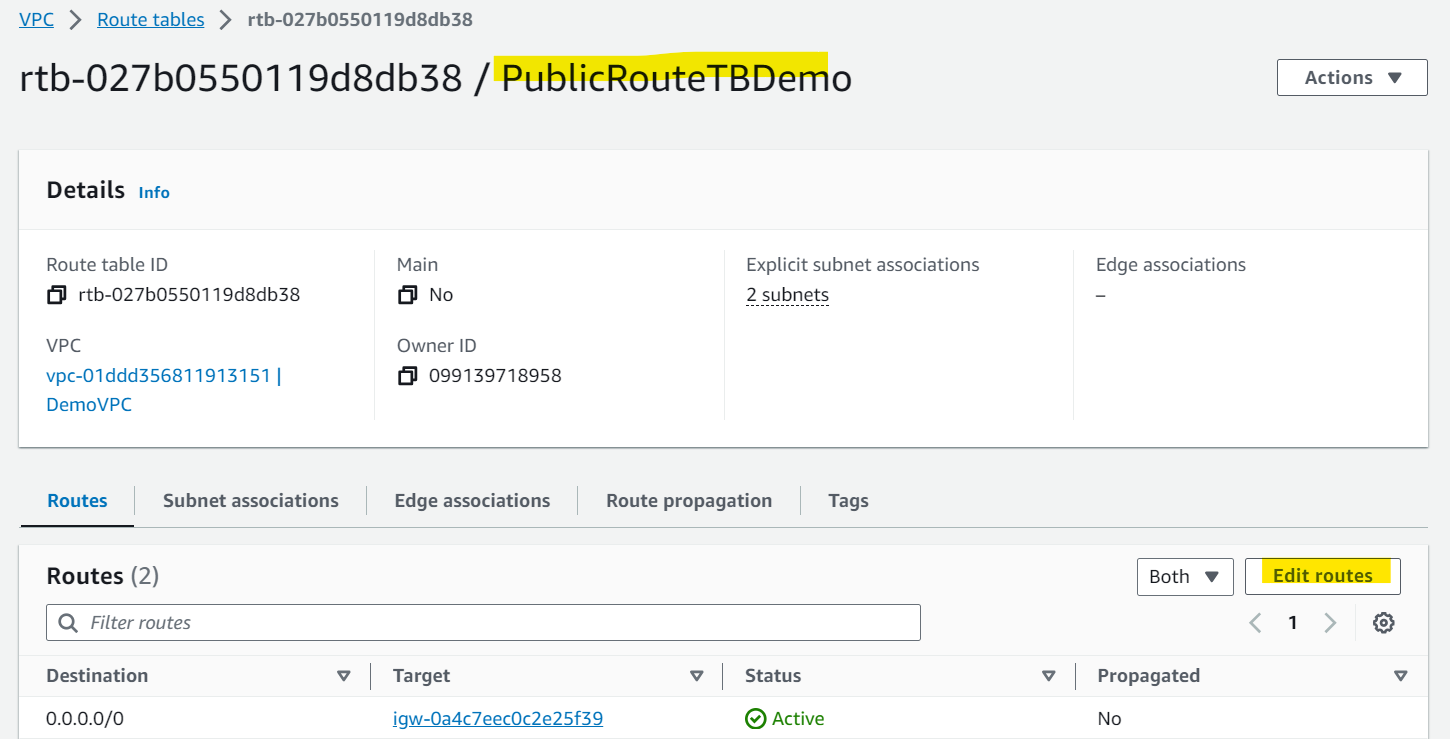

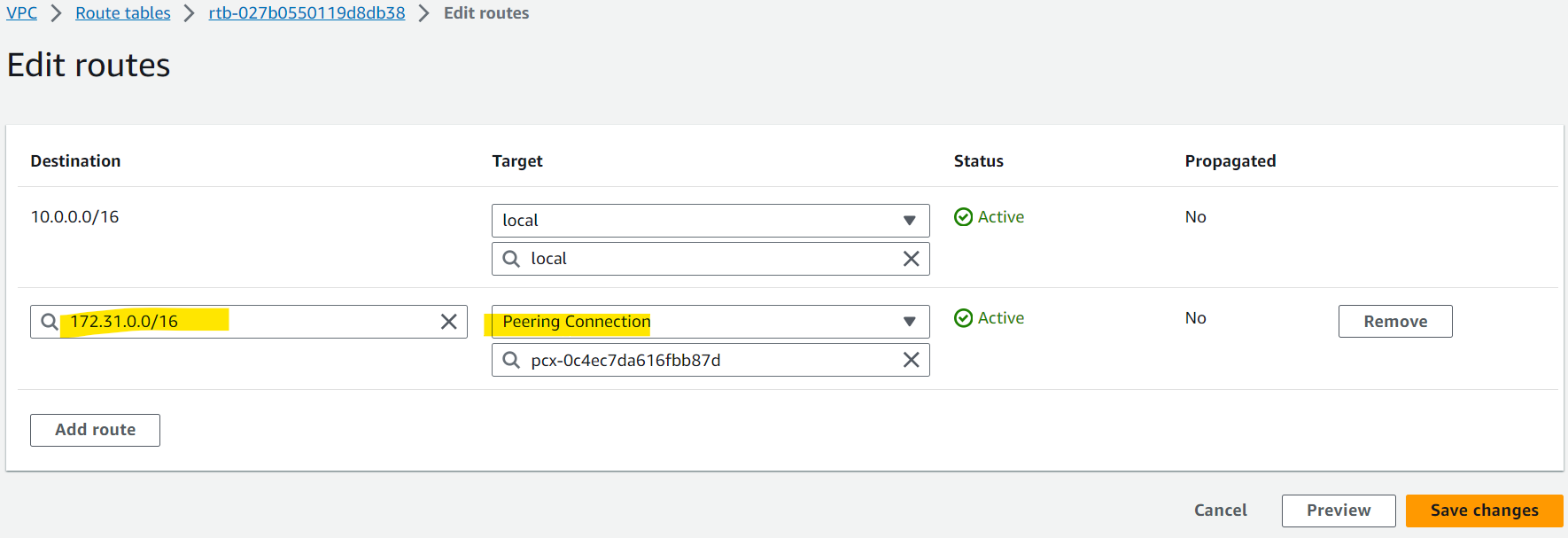

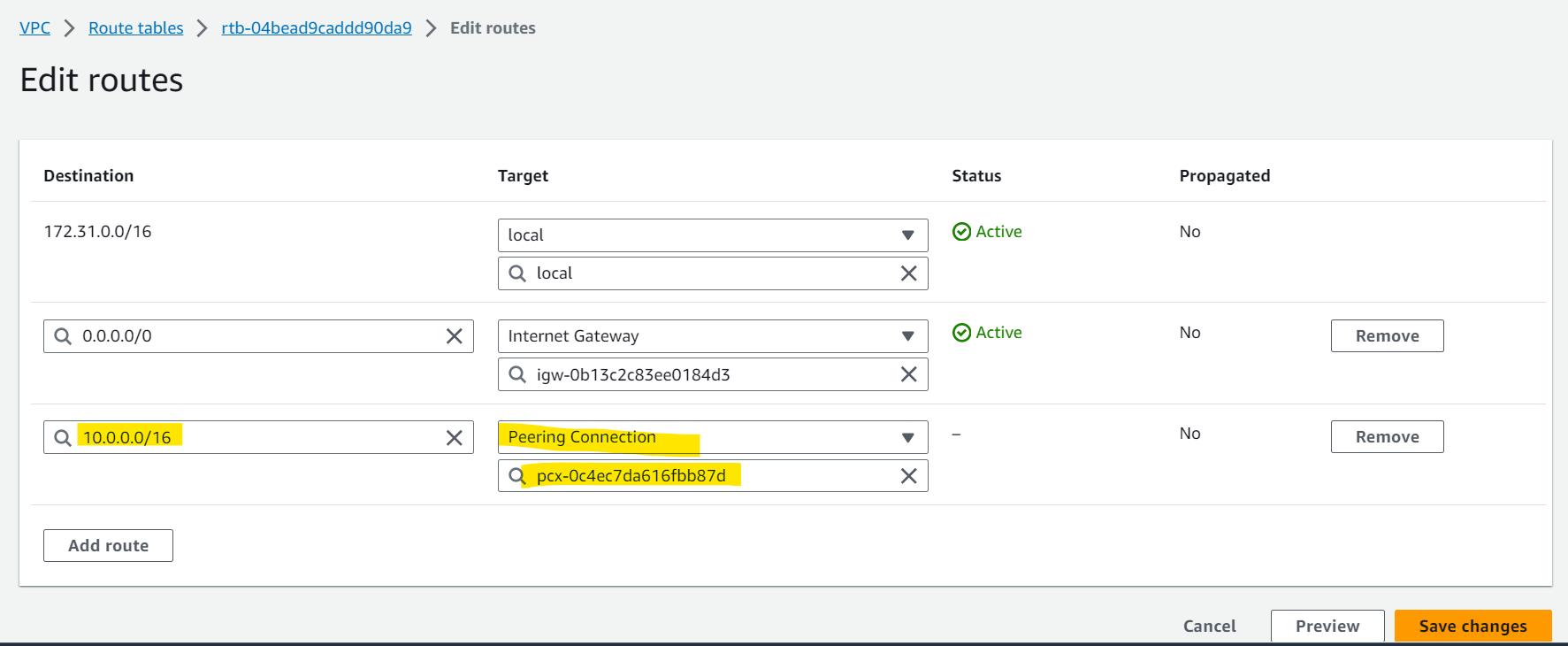

• Edit both route table

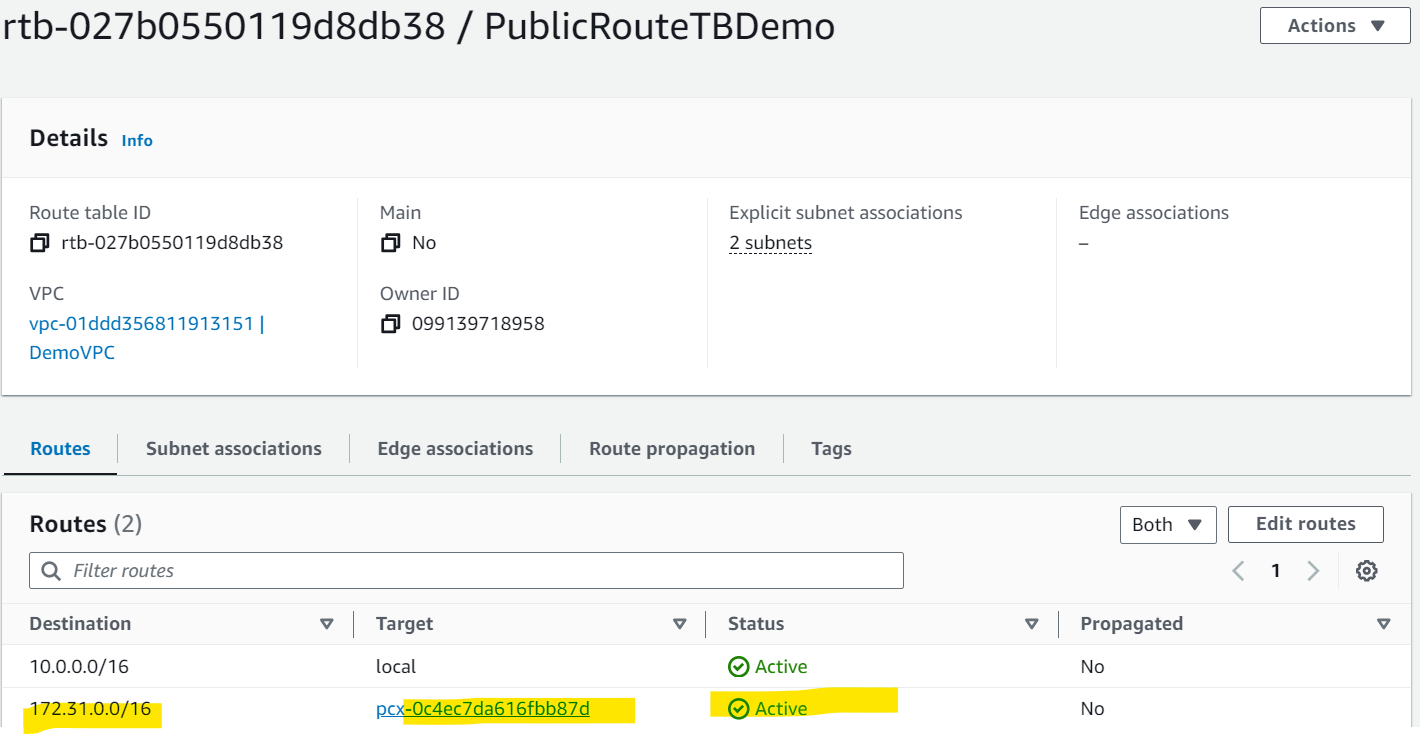

• Route table where Bastion Instance located
  • Destination:
    • the CIDR of the peering VPC subnet
    • the request to destination will route to peering connection.

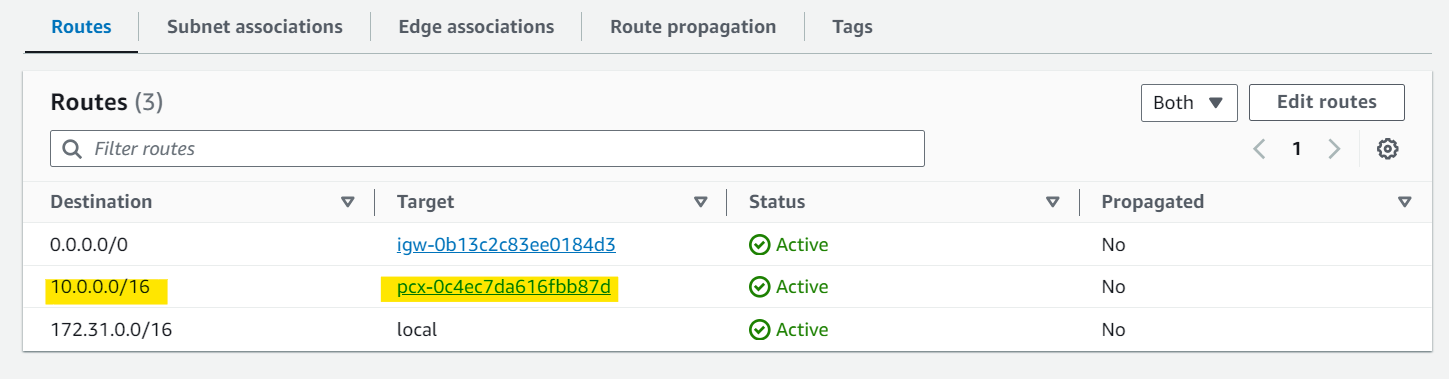

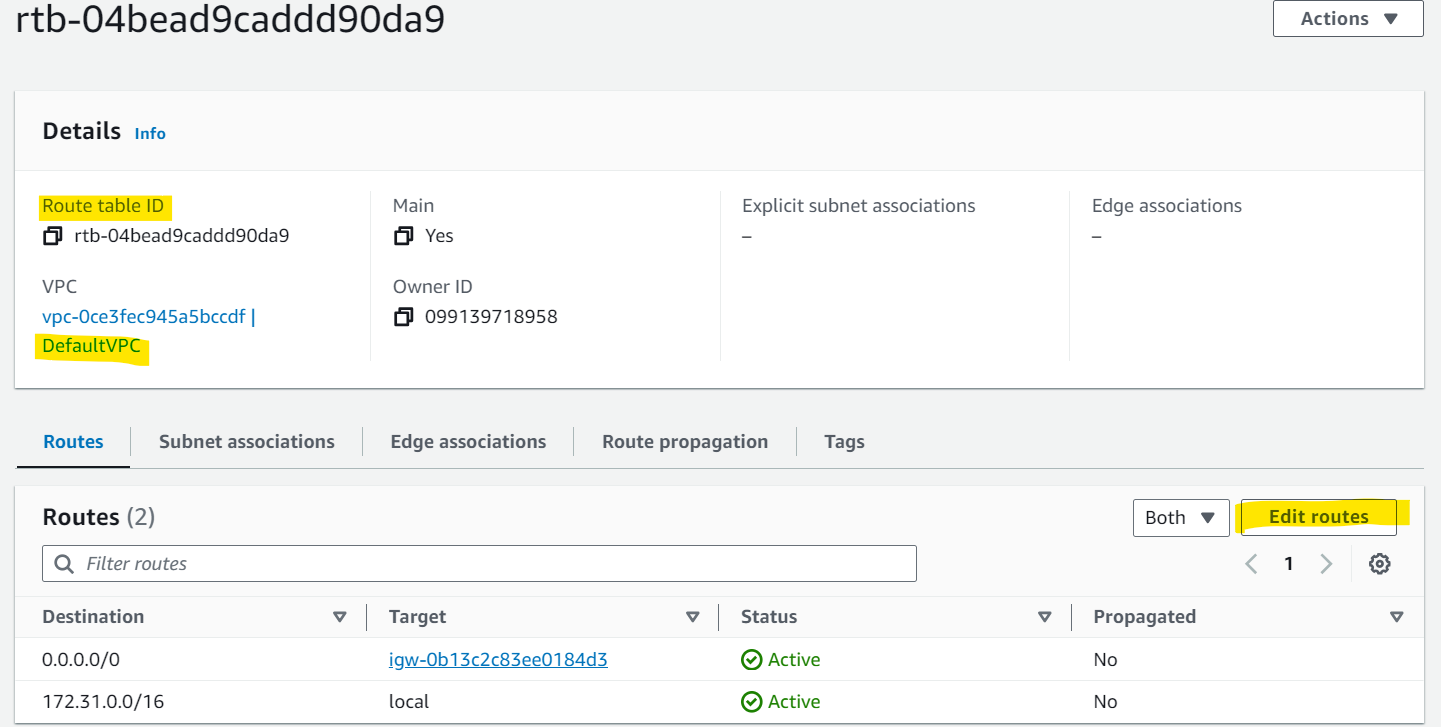

• Route table where DefaultVPCInstance located
  • Destination:
    • the CIDR of the peering VPC subnet
    • the request to destination will route to peering connection.

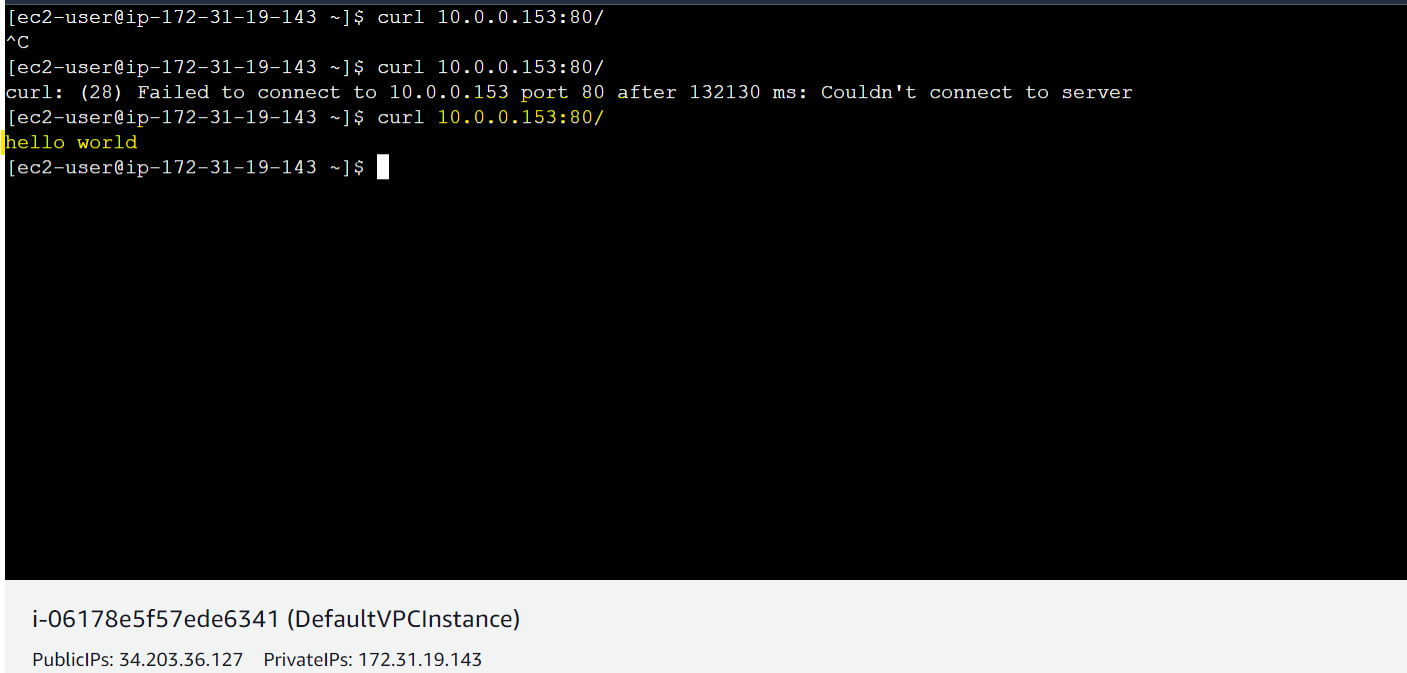

• Outcome

---
