AWS - Route53

DNS

Domain Name System
- translates the human friendly hostnames into the machine IP addresses
- i.e.: www.google.com => 172.217.18.36
DNS is the backbone of the Internet
DNS uses hierarchical naming structure
- .com
- example.com
- www.example.com
- api.example.com

Terminologies
Domain Registrar: Amazon Route 53, GoDaddy, …
DNS Records: A, AAAA, CNAME, NS, …
Zone File: contains DNS records
Name Server: resolves DNS queries (Authoritative or Non-Authoritative)
Top Level Domain (TLD): .com, .us, .in, .gov, .org, …
Second Level Domain (SLD): amazon.com, google.com, …

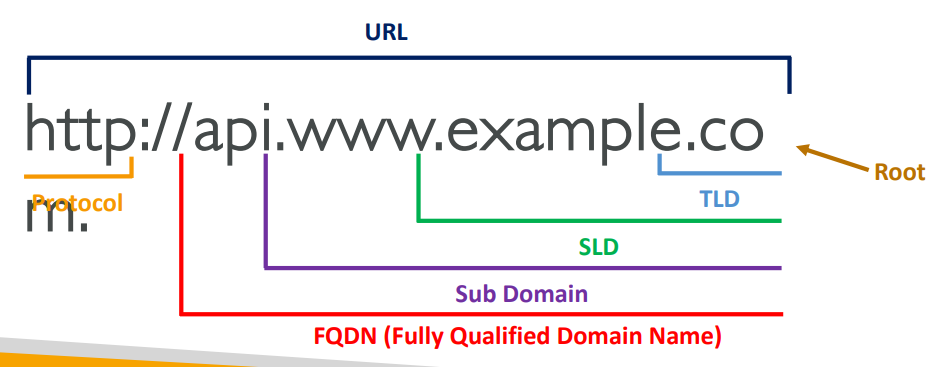

dns_url

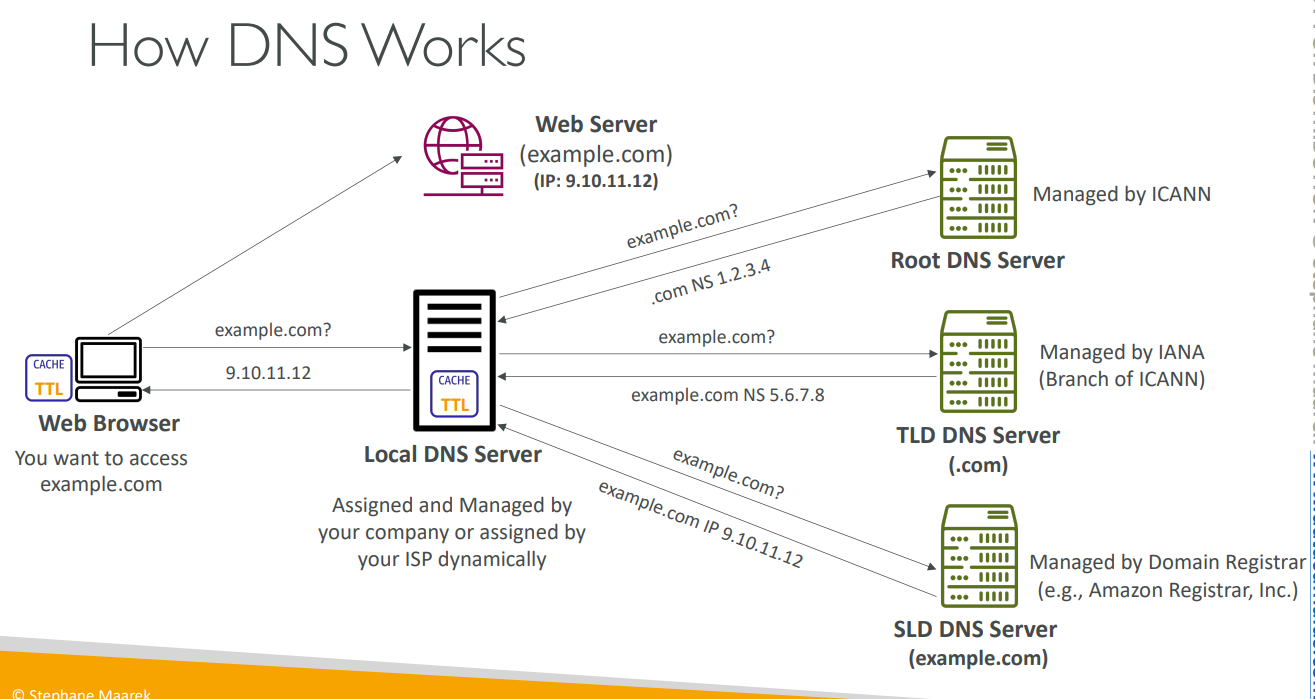

dns_diagram

`Amazon Route 53`

A highly available, scalable, fully managed and Authoritative DNS
- Authoritative = the customer (you) can update the DNS records
Route 53 is also a Domain Registrar
Ability to check the health of your resources
The only AWS service which provides 100% availability SLA(Service Level Agreements)
Benefit:
- 53 is a reference to the traditional DNS port

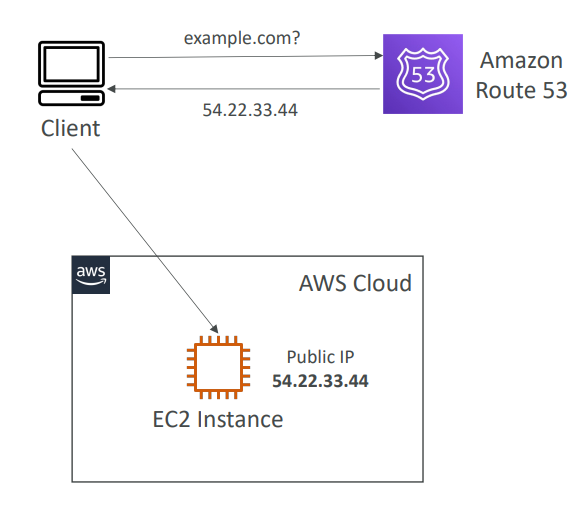

route_53

DNS Records

DNS Records
- how to route traffic for a domain
Each record contains:
- Domain/subdomain Name – e.g., example.com
- Record Type – e.g., A or AAAA
- Value – e.g., 12.34.56.78
- Routing Policy – how Route 53 responds to queries
- TTL – amount of time the record cached at DNS Resolvers
Route 53 supports the following DNS record types:
- must know: A / AAAA / CNAME / NS
- (advanced) CAA / DS / MX / NAPTR / PTR / SOA / TXT / SPF / SRV

Record Types

A – maps a hostname to IPv4
AAAA – maps a hostname to IPv6
CNAME / Canonical Name – maps a hostname to another hostname
- The target is a domain name which must have an A or AAAA record
- Can’t create a CNAME record for the top node of a DNS namespace (Zone Apex)
- Example: you can’t create for example.com, but you can create for www.example.com
NS – Name Servers for the Hosted Zone
- Control how traffic is routed for a domain

Hosted Zones

Hosted Zones
- A container for records that define how to route traffic to a domain and its subdomains
Types of Hosted Zones:
- Public Hosted Zones
  - contains records that specify how to route traffic on the Internet (public domain names)
  - e.g.:application1.mypublicdomain.com

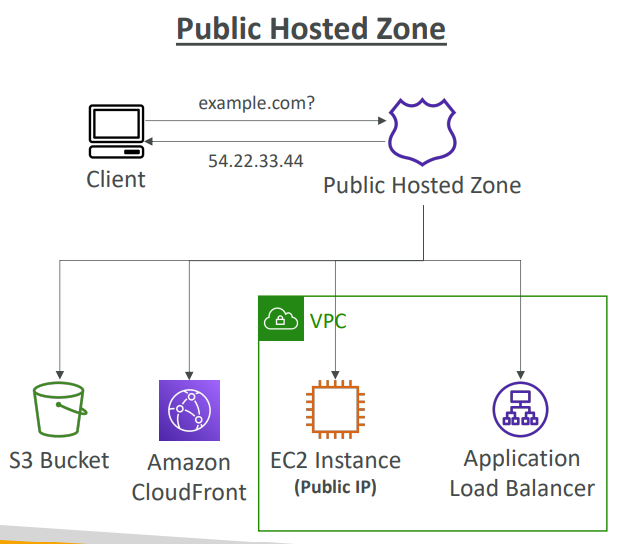

route_53_host_zone_public

Private Hosted Zones
- contain records that specify how you route traffic within one or more VPCs(Virtual Private Cloud) (private domain names)
- e.g.:application1.company.internal

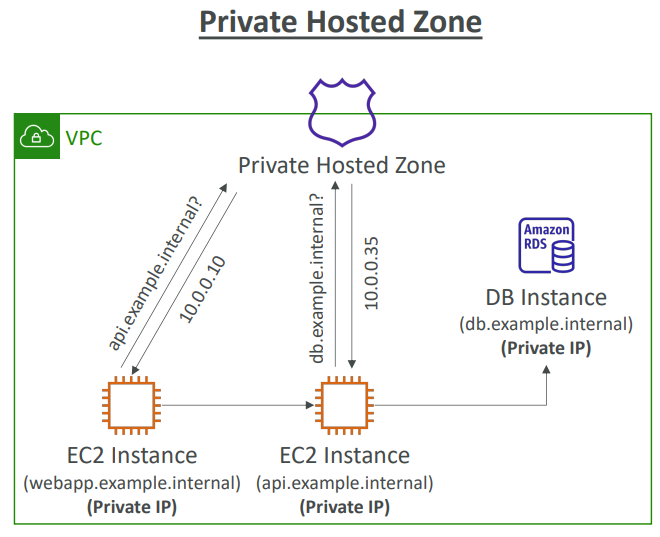

route_53_host_zone_private

pay $0.50 per month per hosted zone

Hands-On: Register a Domain

Create and buy a domain name

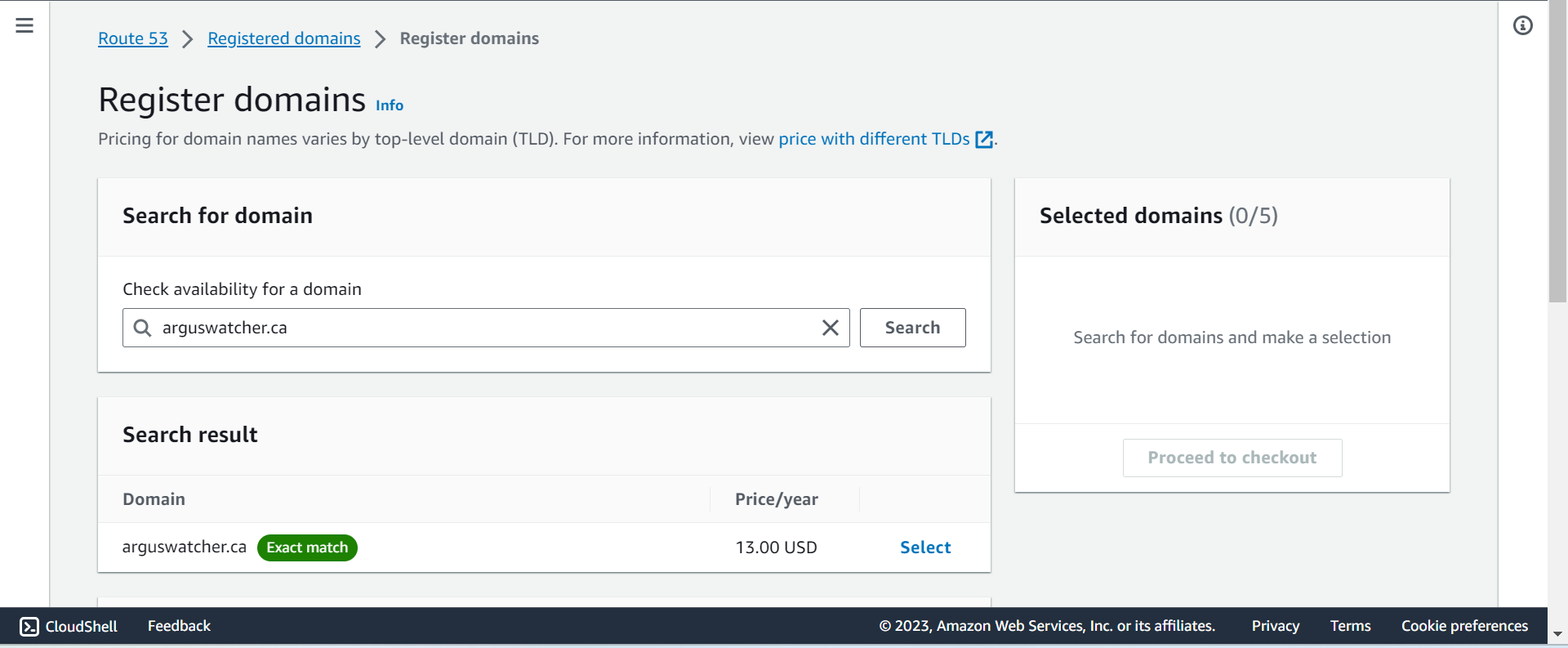

route_53_handson_register_domain

using cloudshell to nslookup and dig

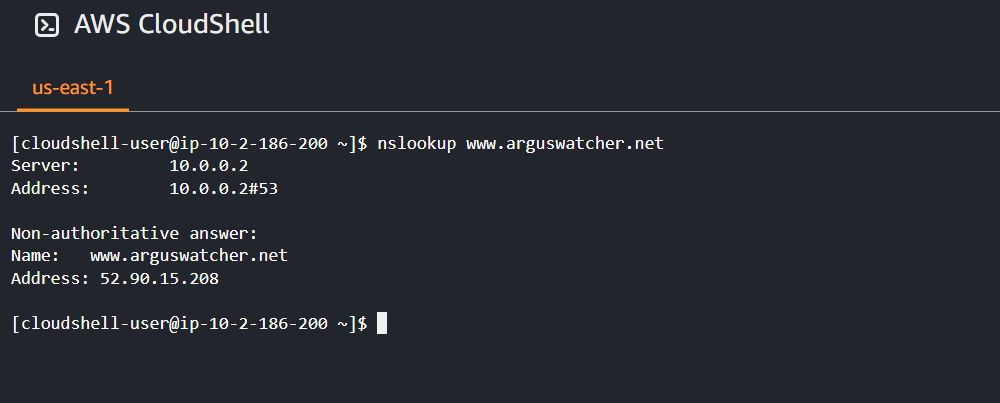

route_53_host_zone_nslookup

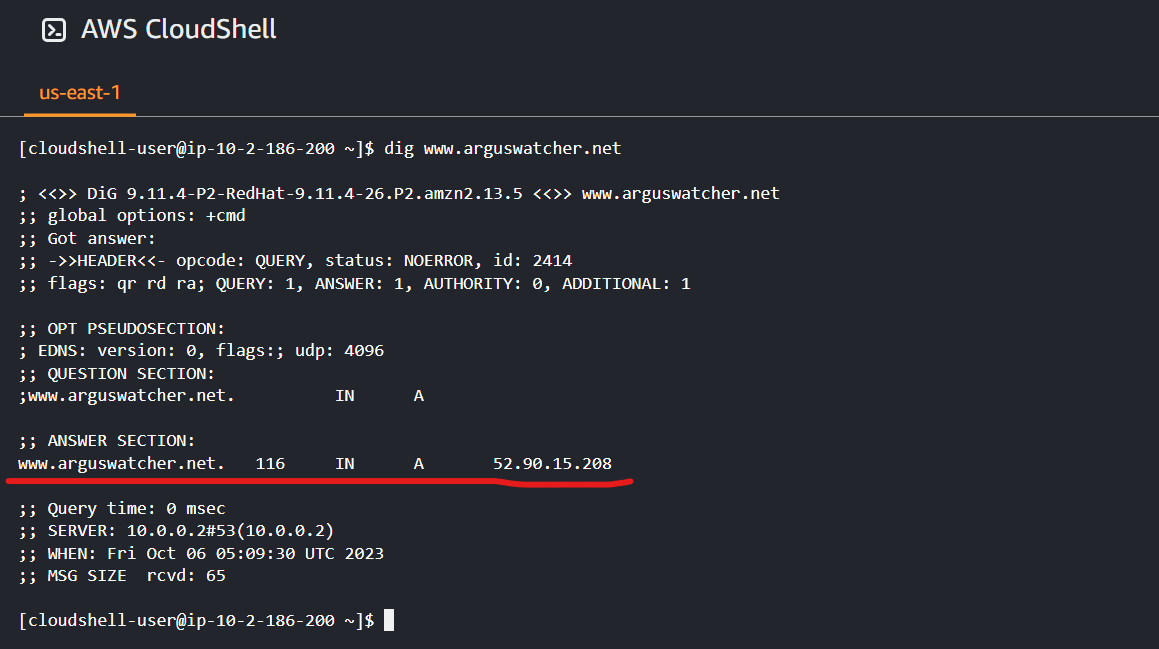

route_53_host_zone_dig

Records TTL (Time To Live)

TTL / Time To Live
- a numerical value that determines how long a DNS cache server can serve a DNS record before reaching out to the authoritative DNS server and getting a new copy of the record.
- Time to cache DNS record locally
Strategy
- The TTL value should be set to strike a balance between how long the value should be cached vs. how many requests should go to the DNS Resolver.
- High TTL – e.g., 24 hr
  - Less traffic on Route 53
  - Possibly outdated records
- Low TTL – e.g., 60 sec.
  - More traffic on Route 53 ($$)
  - Records are outdated for less time
  - Easy to change records
TTL is mandatory for each DNS record
- Except for Alias records

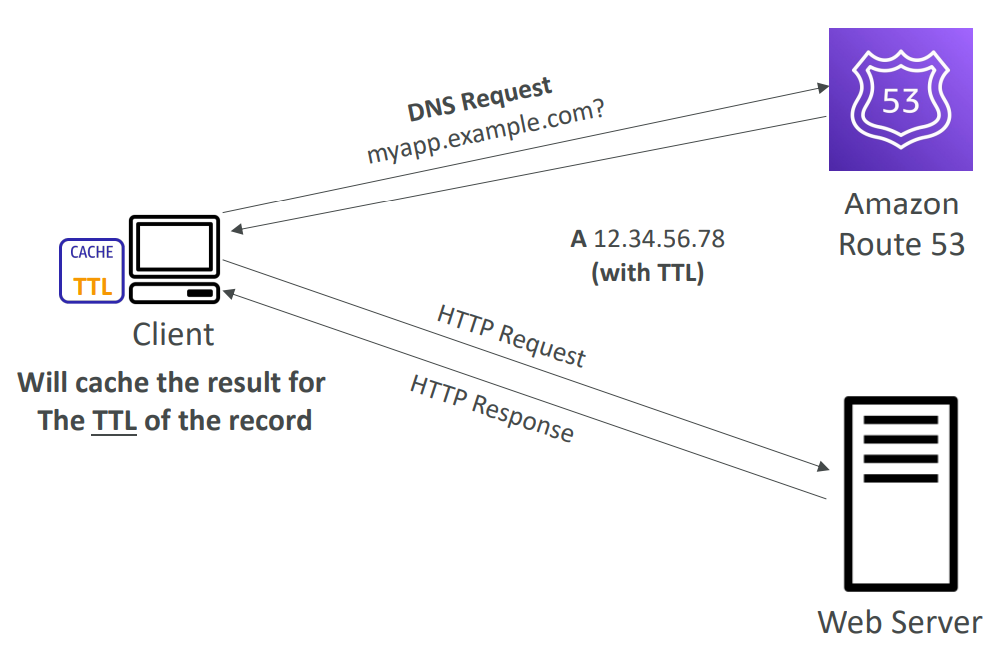

dns_ttl_diagram

Hands-On: TTL

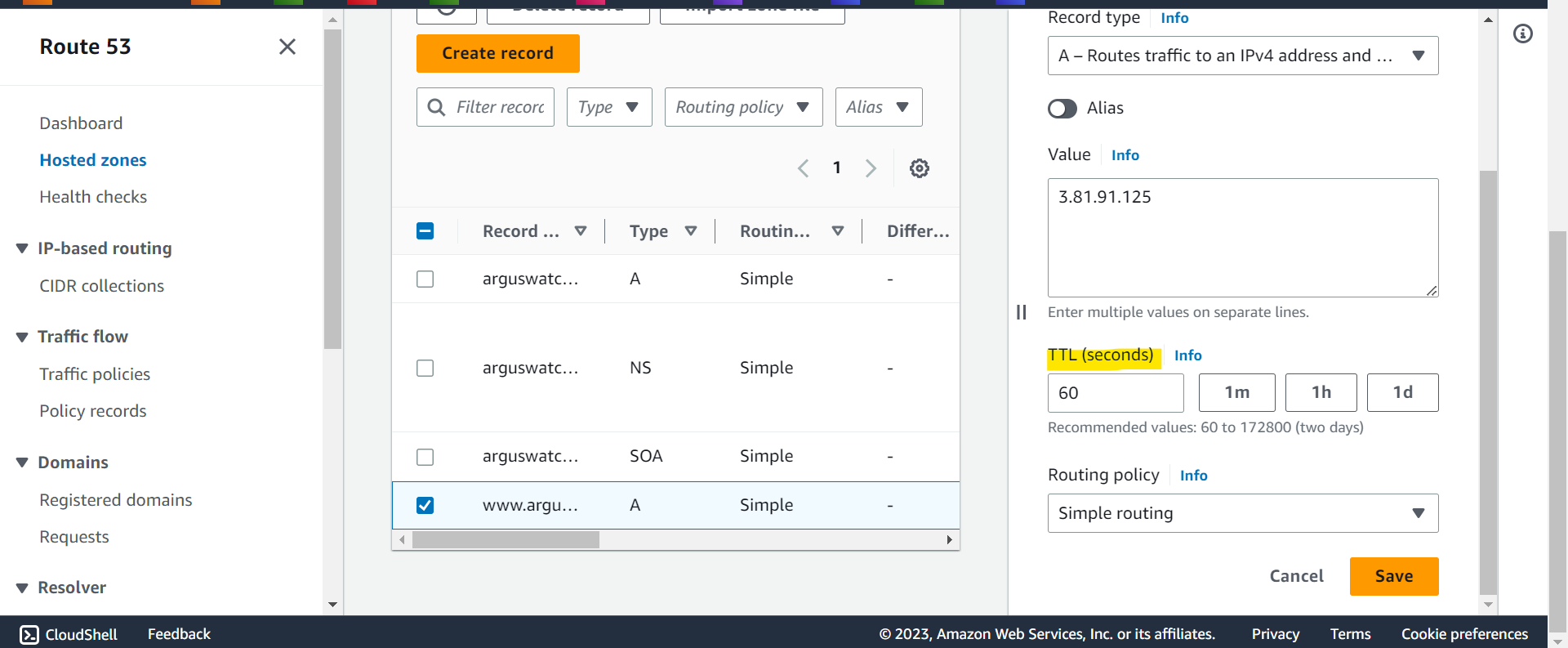

route_53_ttl_handson01

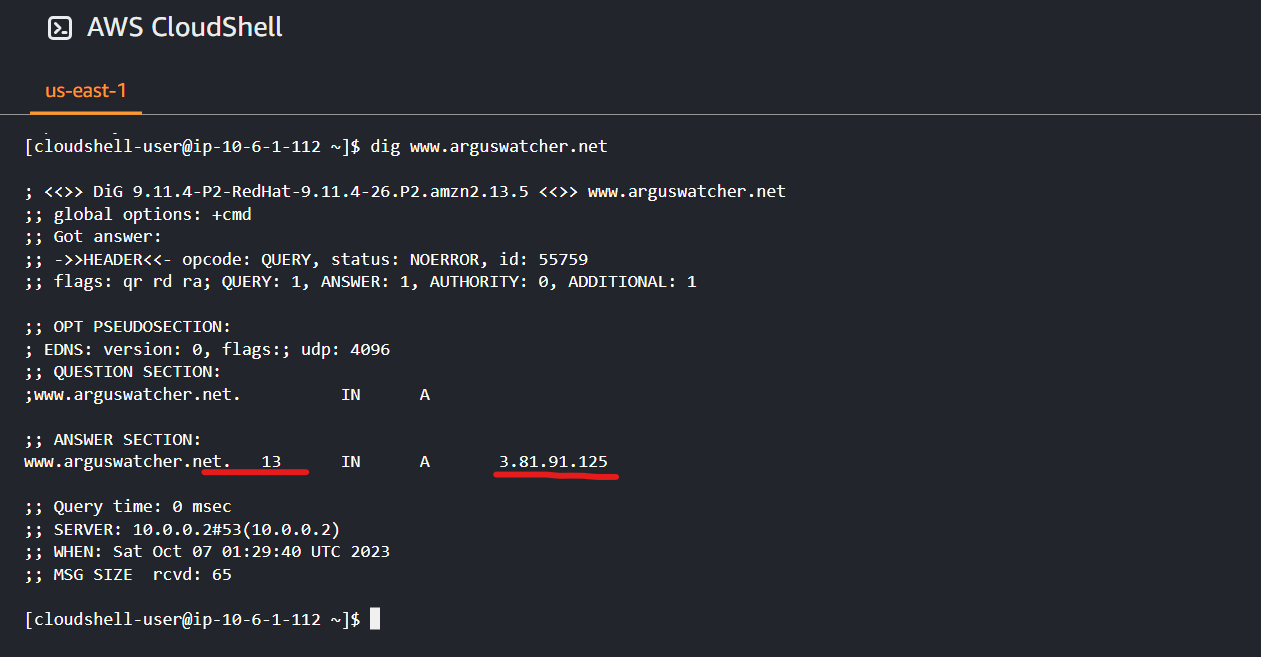

route_53_ttl_handson02

Alias Records

Alias Records
- Maps a hostname to an AWS resource
- An extension to DNS functionality
Automatically recognizes changes in the resource’s IP addresses
Unlike CNAME, it can be used for the top node of a DNS namespace (Zone Apex)
- e.g.: example.com
Alias Record is always of type A/AAAA for AWS resources (IPv4 / IPv6)
You can’t set the TTL (managed by AWS)

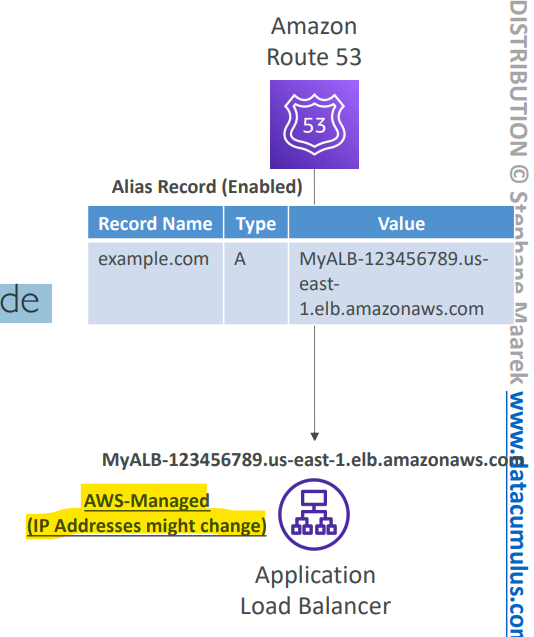

route_53_alias

CNAME vs Alias

AWS Resources (Load Balancer, CloudFront…) expose an AWS hostname:
- lb1-1234.us-east-2.elb.amazonaws.com and you want myapp.mydomain.com
CNAME:
- Points a hostname to any other hostname.
  - eg.: app.mydomain.com => blabla.anything.com
- ONLY FOR NON ROOT DOMAIN
  - aka. something.mydomain.com
Alias:
- Points a hostname to an AWS Resource
  - e.g.: app.mydomain.com => blabla.amazonaws.com
- Works for ROOT DOMAIN and NON ROOT DOMAIN
  - aka. mydomain.com
Free of charge
Native health check

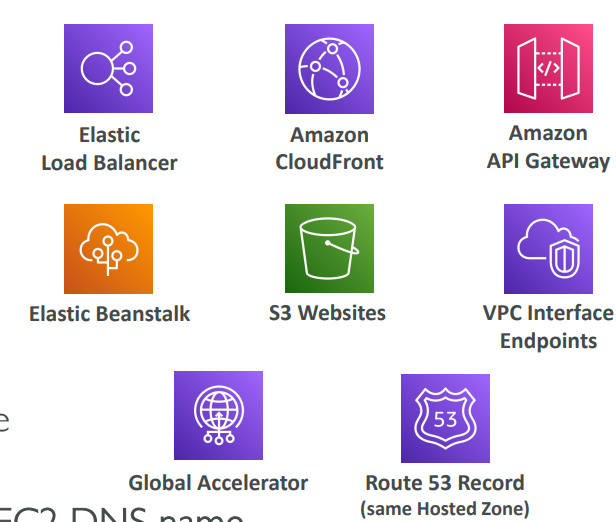

Alias Records Targets

Elastic Load Balancers
CloudFront Distributions
API Gateway
S3 Websites
Elastic Beanstalk environments
VPC Interface Endpoints
Global Accelerator accelerator
Route 53 record in the same hosted zone
注意:
- You cannot set an ALIAS record for an EC2 DNS name

route_53_alias

Hands-on

CNAME
- the value below is the DNS name of the Applicatioin Load Balancer.

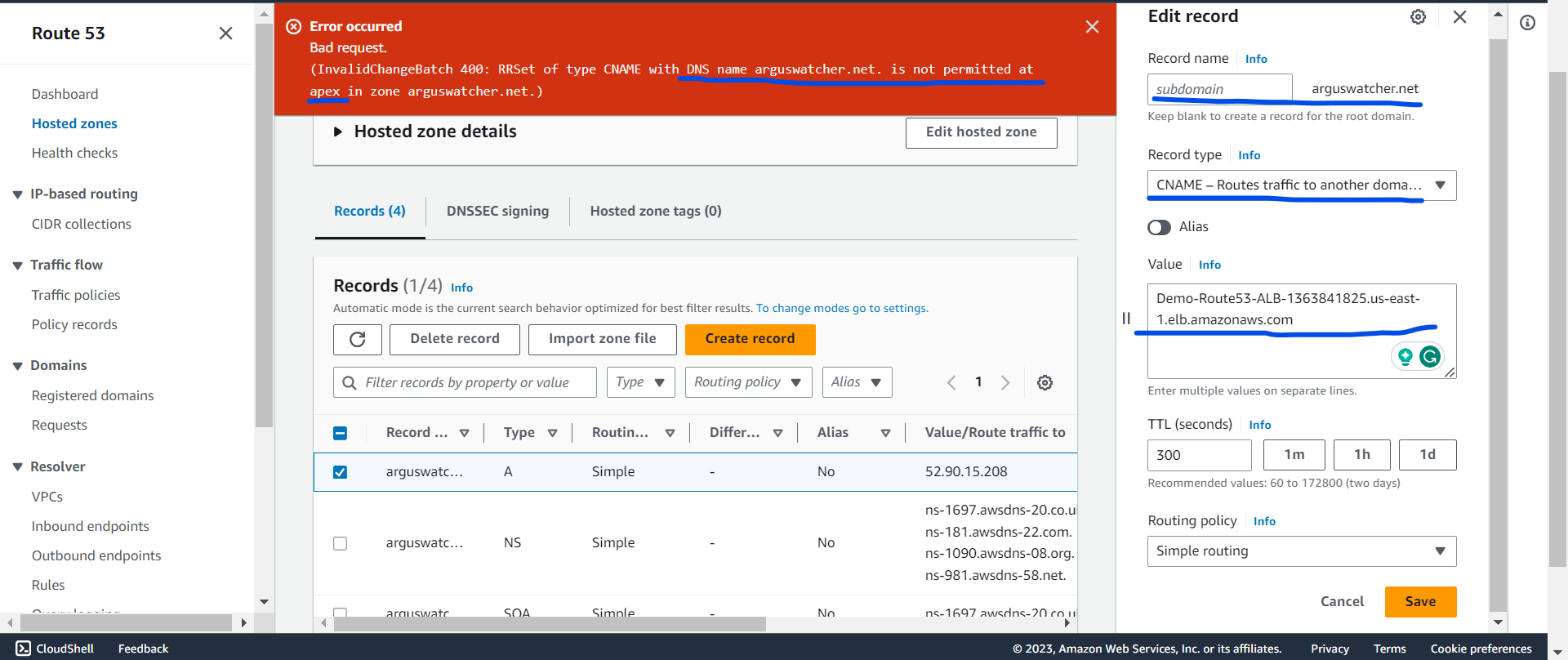

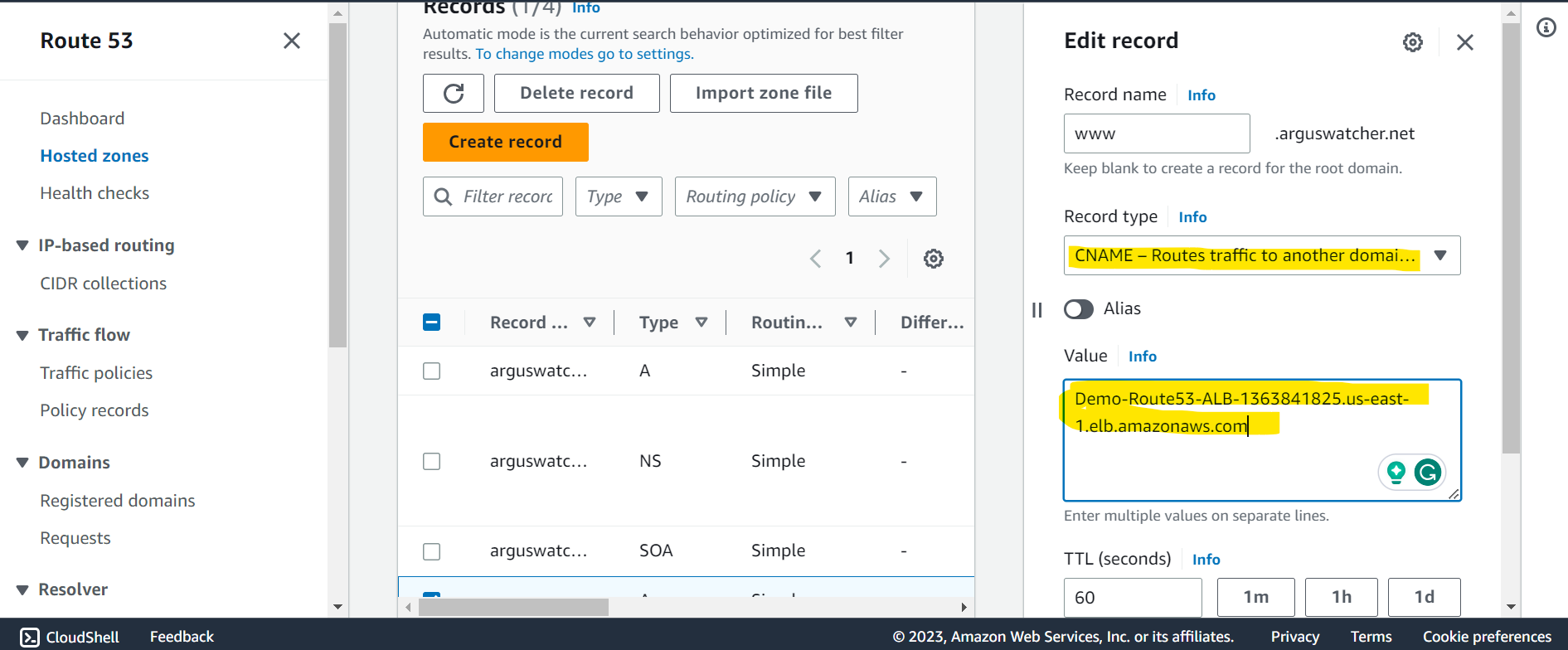

route_53_cname_handson01

CNAME cannot used for root domain name.

route_53_cname_handson01

Alias
- Route to Target Group as ALB
- Free

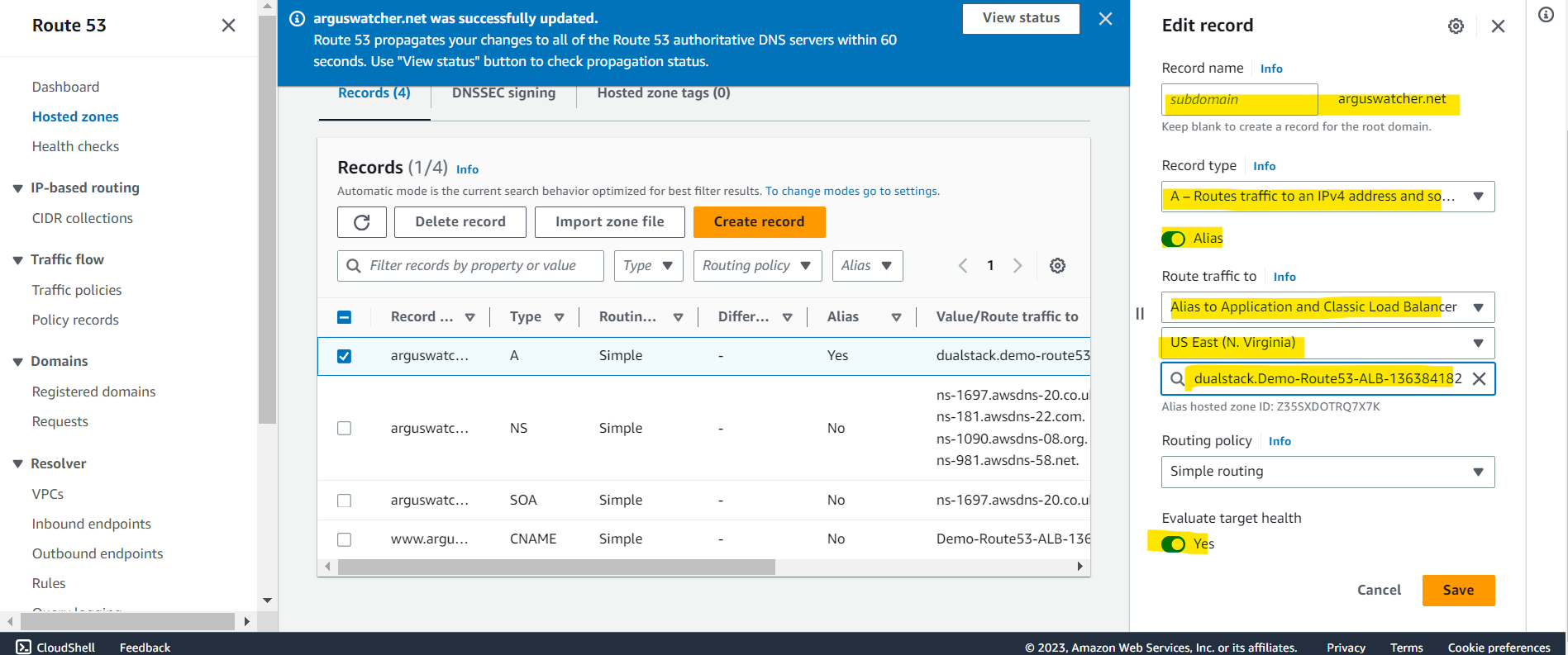

route_53_alias_handson01

Health Checks

HTTP Health Checks are only for public resources
Health Check => Automated DNS Failover:
1. Health checks that monitor an public endpoint (application, server, other AWS resource)
2. Health checks that monitor other health checks (Calculated Health Checks)
3. Health checks that monitor CloudWatch Alarms (full control !!) – e.g., throttles of DynamoDB, alarms on RDS, custom metrics, … (helpful for private resources)
Health Checks are integrated with CloudWatch metrics

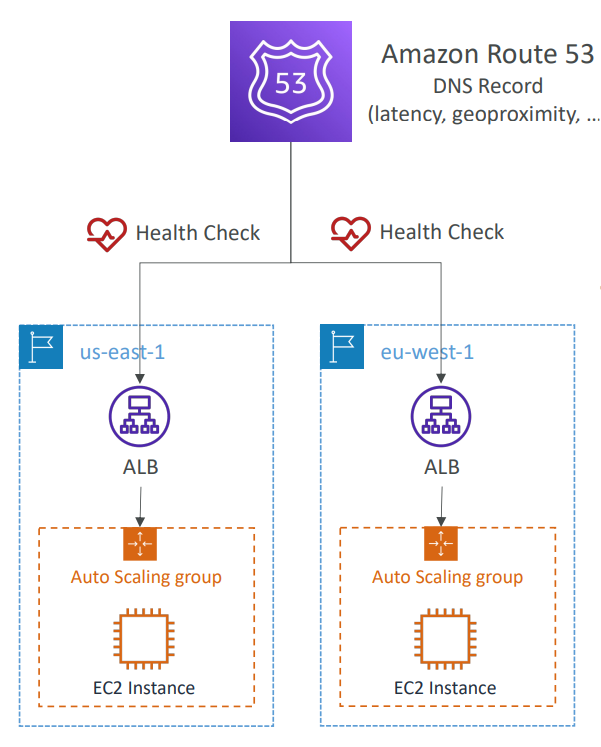

route_53_route_health_check_diagram

Health Checks – Monitor an Endpoint

About 15 global health checkers will check the endpoint health
- Healthy/Unhealthy Threshold – 3 (default)
- Interval – 30 sec (can set to 10 sec – higher cost)
- Supported protocol: HTTP, HTTPS and TCP
- If > 18% of health checkers report the endpoint is healthy, Route 53 considers it Healthy. Otherwise, it’s Unhealthy
Ability to choose which locations you want Route 53 to use
Health Checks pass only when the endpoint responds with the 2xx and 3xx status codes
Health Checks can be setup to pass / fail based on the text in the first 5120 bytes of the response
Configure you router/firewall to allow incoming requests from Route 53 Health Checkers

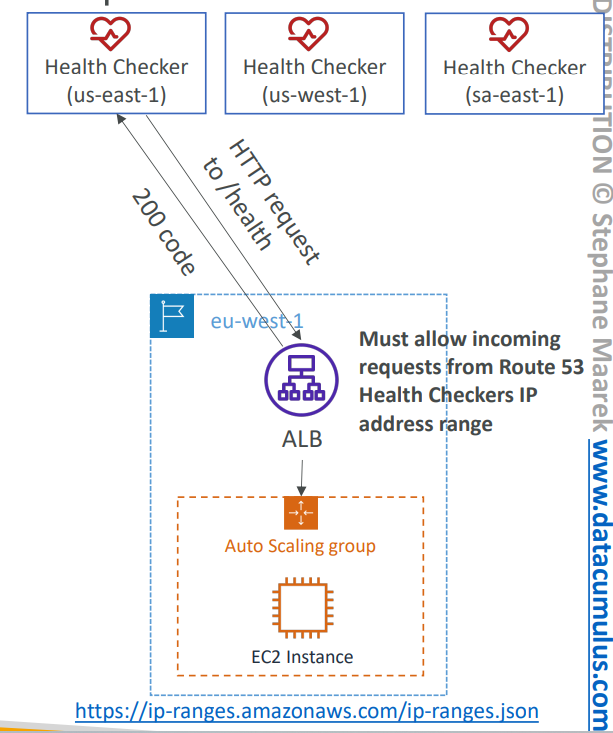

route_53_route_health_check_monitor_endpoint_diagram

Route 53 – Calculated Health Checks

Combine the results of multiple Health checks into a single Health Check
You can use OR, AND, or NOT
Can monitor up to 256 Child Health Checks
Specify how many of the health checks need to pass to make the parent pass
Usage:
- perform maintenance to your website without causing all health checks to fail

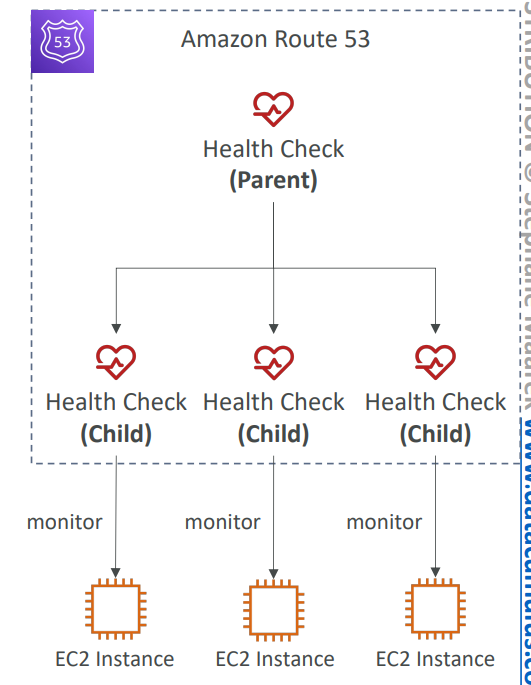

route_53_route_health_check_calculated_health_checks_diagram

Health Checks – Private Hosted Zones

Route 53 health checkers are outside the VPC
They can’t access private endpoints (private VPC or on-premises resource)
You can create a CloudWatch Metric and associate a CloudWatch Alarm, then create a Health Check that checks the alarm itself

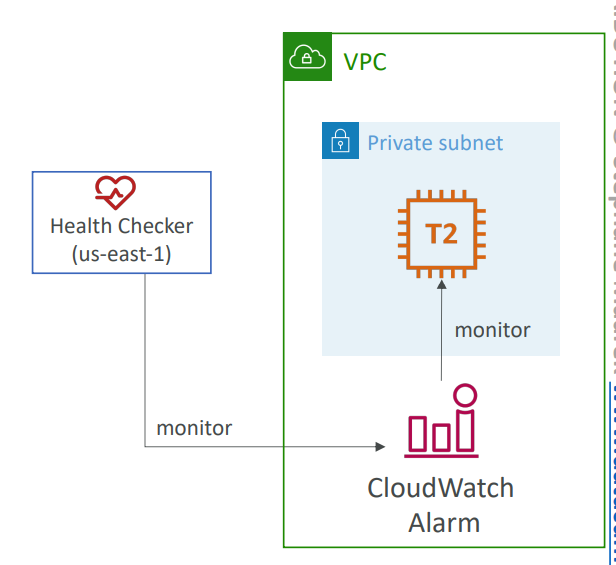

route_53_route_health_check_cloudwatch_alarm

Hands-on

Health Check: Endpoint

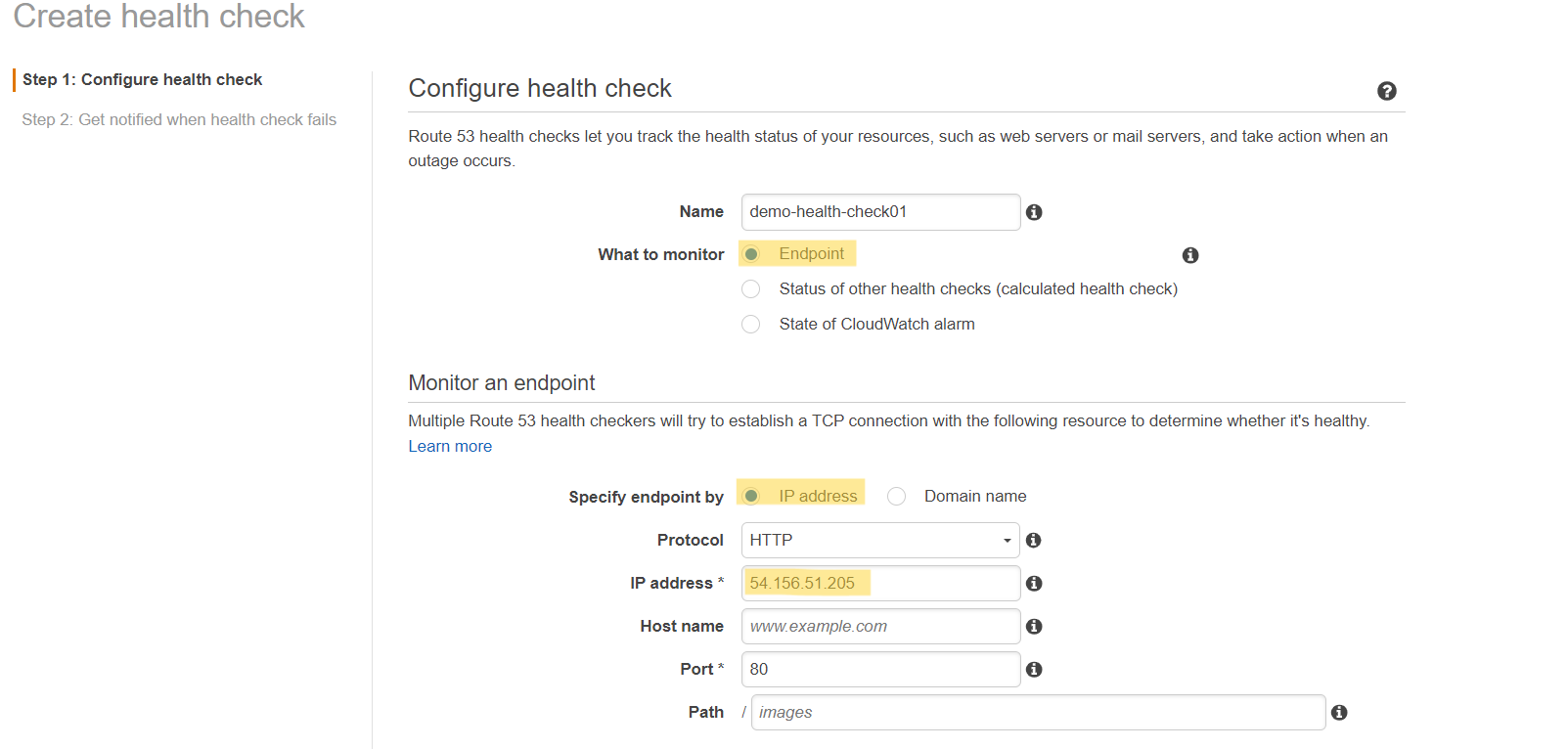

route_53_route_health_check_handson01

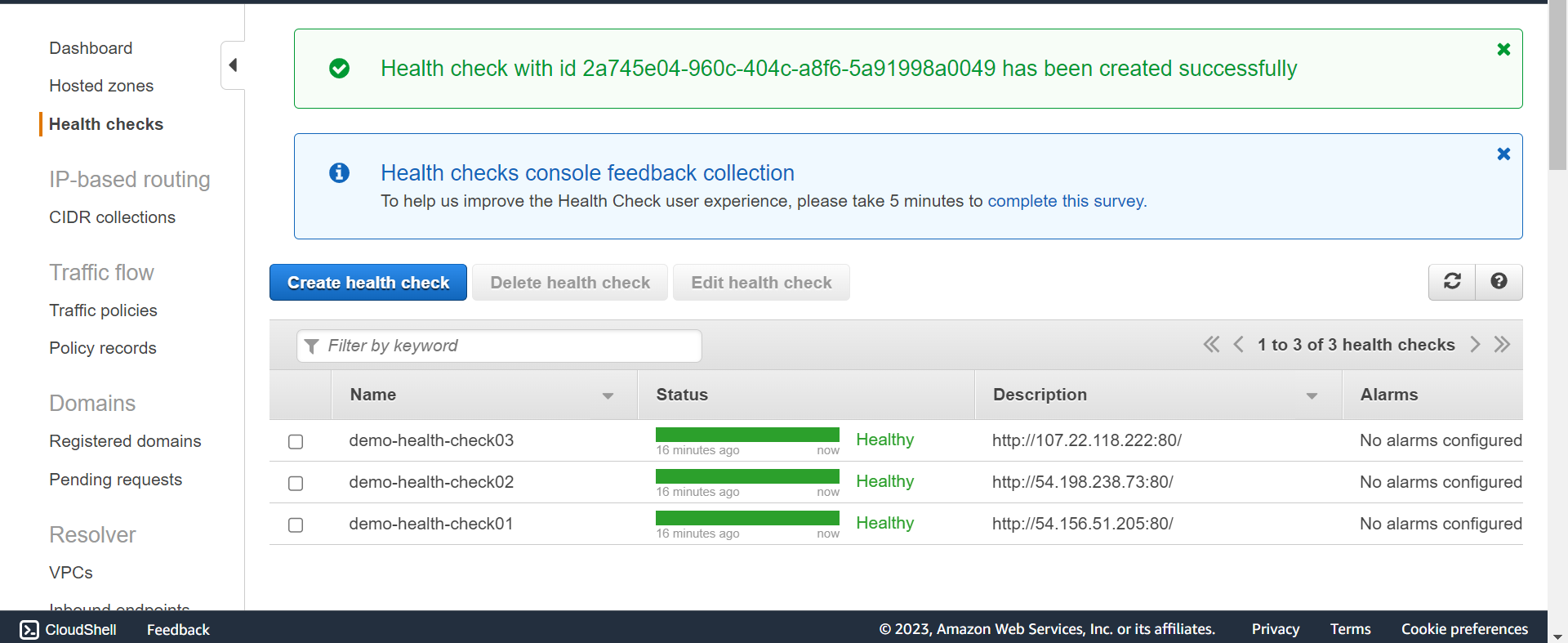

route_53_route_health_check_handson02

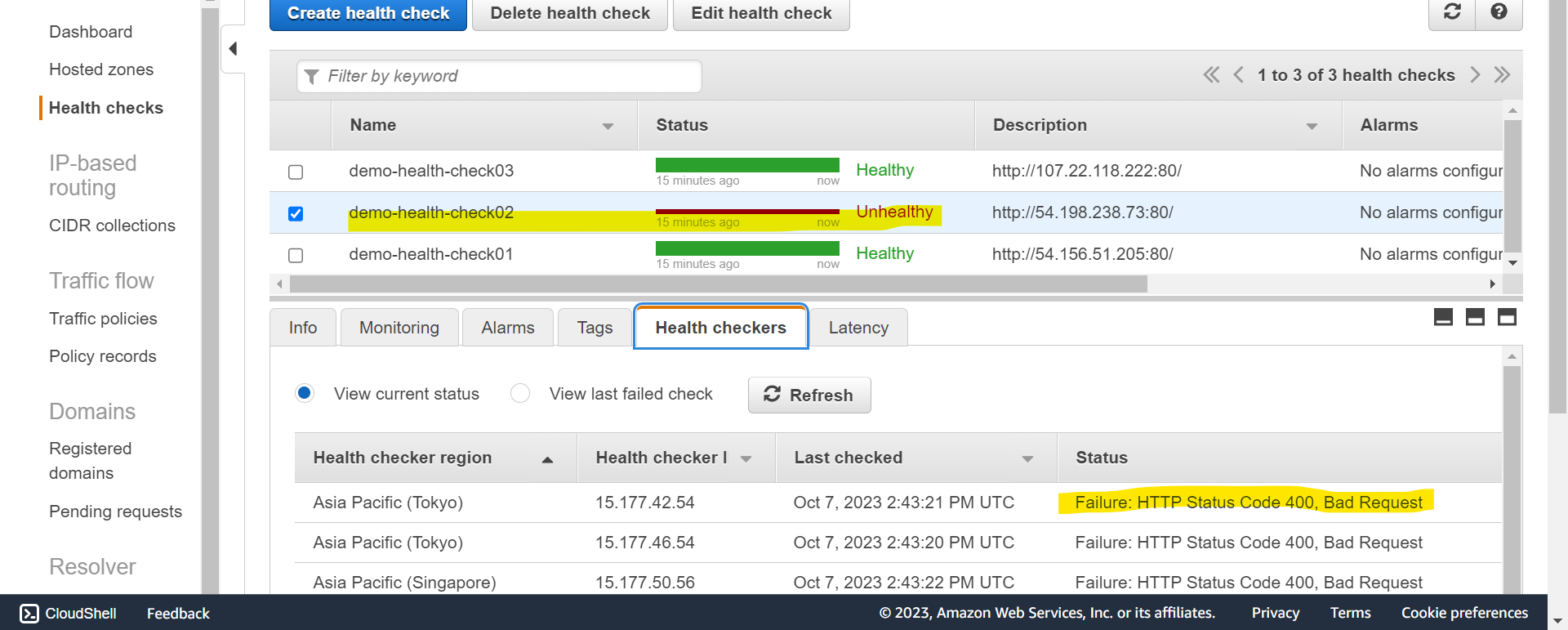

Health check status after block http in security group.

route_53_route_health_check_handson03

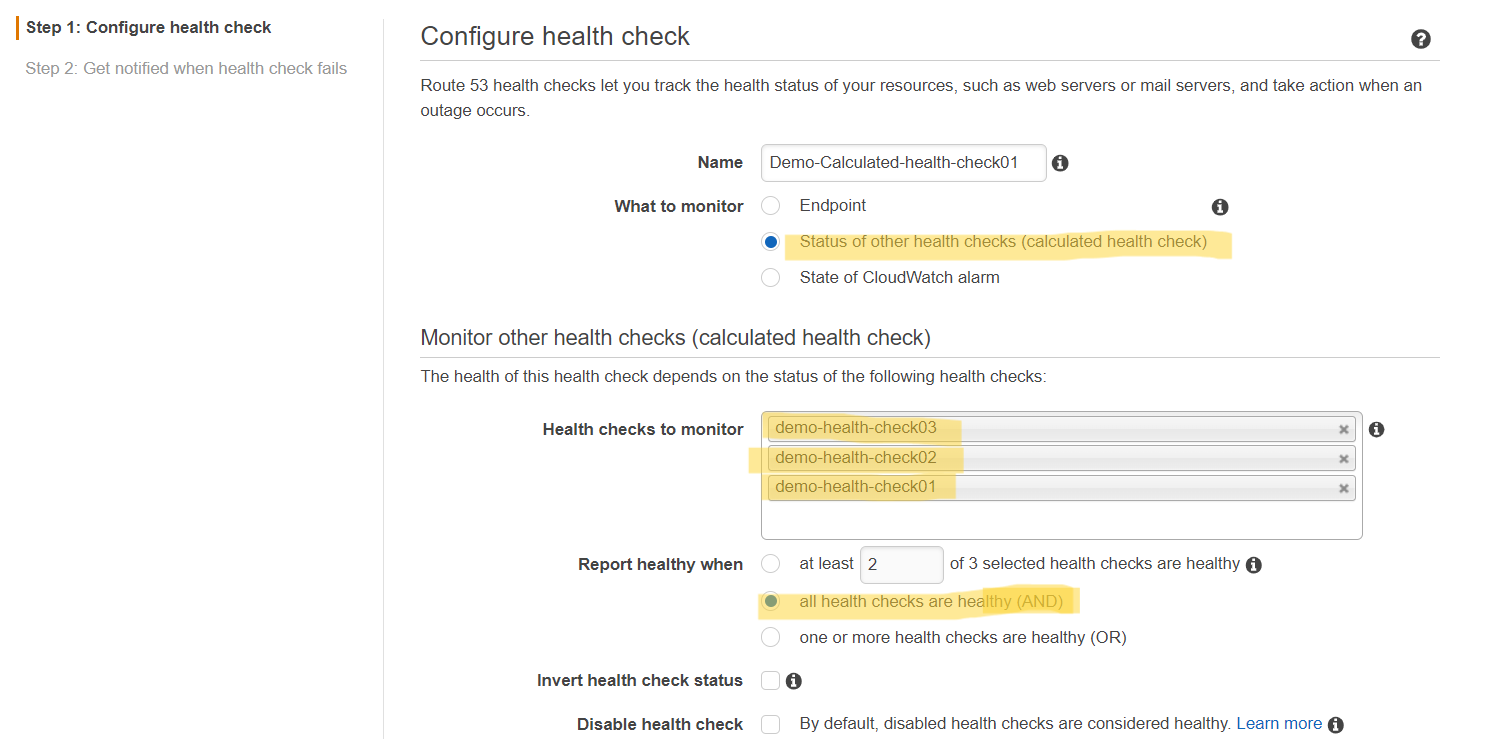

Calculated health check.
- health check fail, because one is block http in SG. one returns 400 code due to the application reason.

route_53_route_health_check_handson04

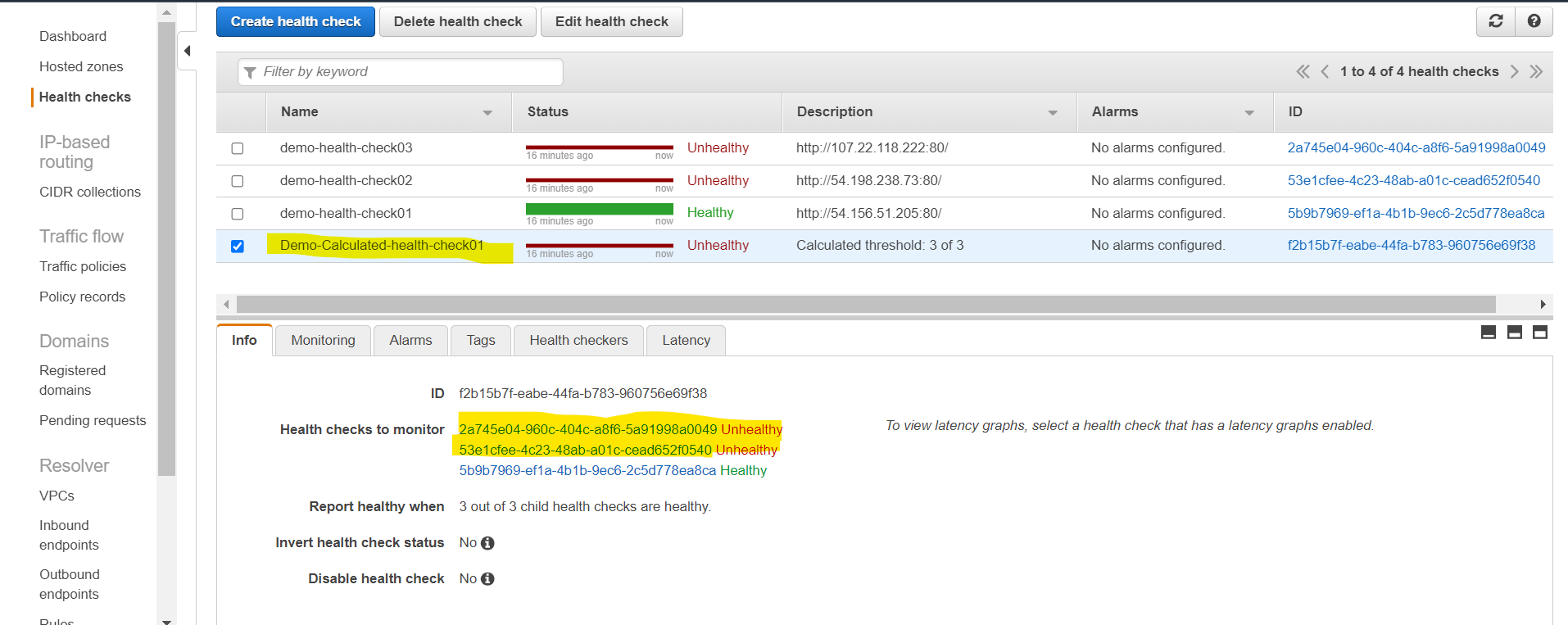

route_53_route_health_check_handson05

Routing Policies

Routing Policy
- Define how Route 53 responds to DNS queries
Don’t get confused by the word “Routing”
It’s not the same as Load balancer routing which routes the traffic
DNS does not route any traffic, it only responds to the DNS queries
Route 53 Supports the following Routing Policies
- Simple
- Weighted
- Failover
- Latency based
- Geolocation
- Multi-Value Answer
- Geoproximity (using Route 53 Traffic Flow feature)

Routing Policies – Simple

Typically, route traffic to a single resource
Can specify multiple values in the same record
- If multiple values are returned, a random one is chosen by the client
When Alias enabled, specify only one AWS resource
Can’t be associated with Health Checks

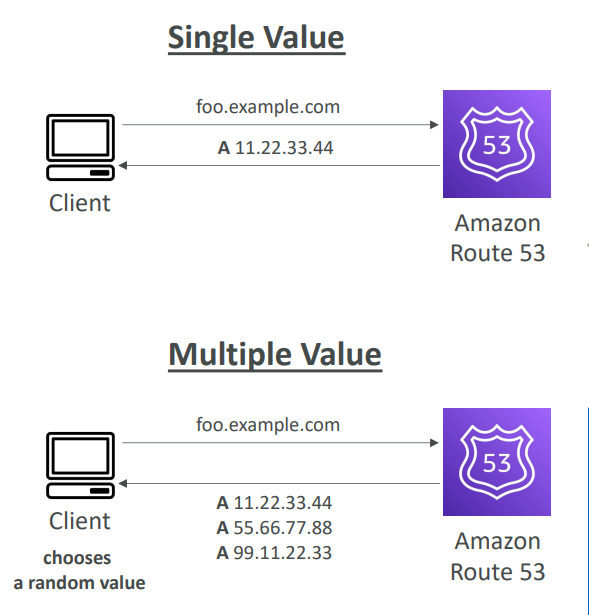

route_53_route_policy_simple_diagram

Hands-on: Multiple Values

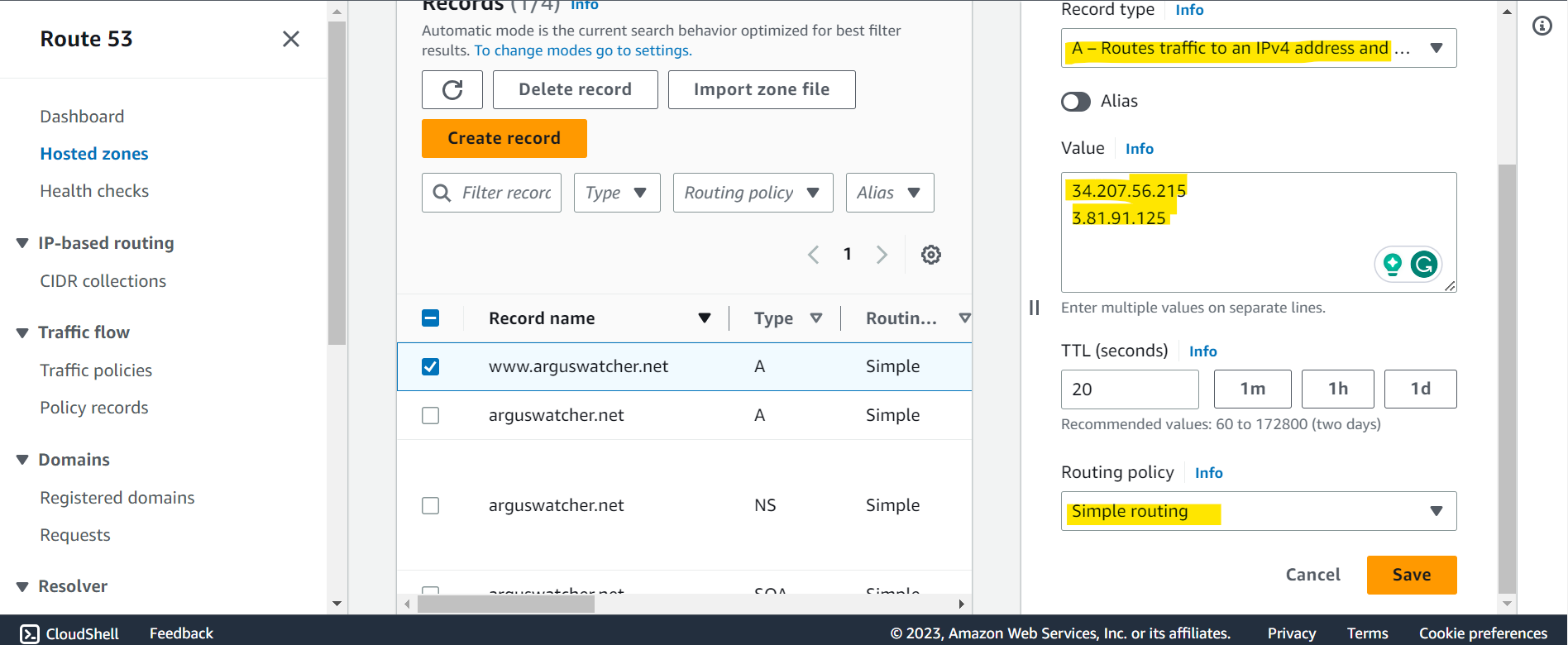

route_53_route_policy_simple_handson01

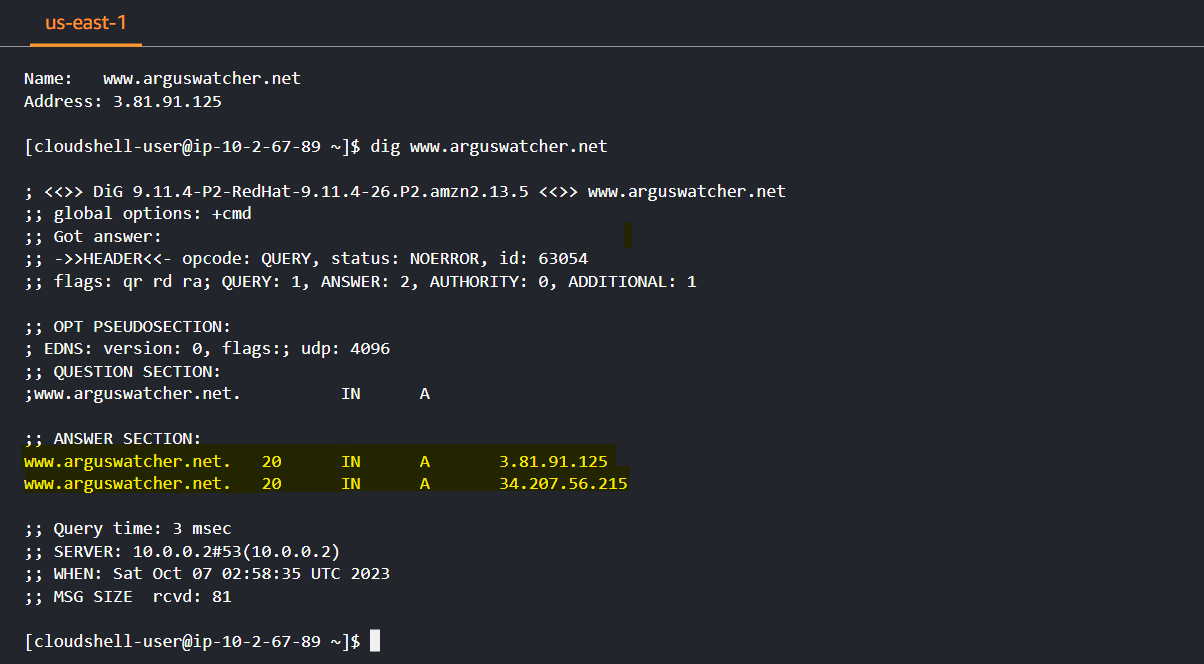

route_53_route_policy_simple_handson02

Routing Policies – Weighted

Control the % of the requests that go to each specific resource
Assign each record a relative weight:

route_53_route_policy_weighted

Weights don’t need to sum up to 100
DNS records must have the same name and type
Can be associated with Health Checks
Use cases:
- load balancing between regions,
- testing new application versions…
Assign a weight of 0 to a record to stop sending traffic to a resource
If all records have weight of 0, then all records will be returned equally

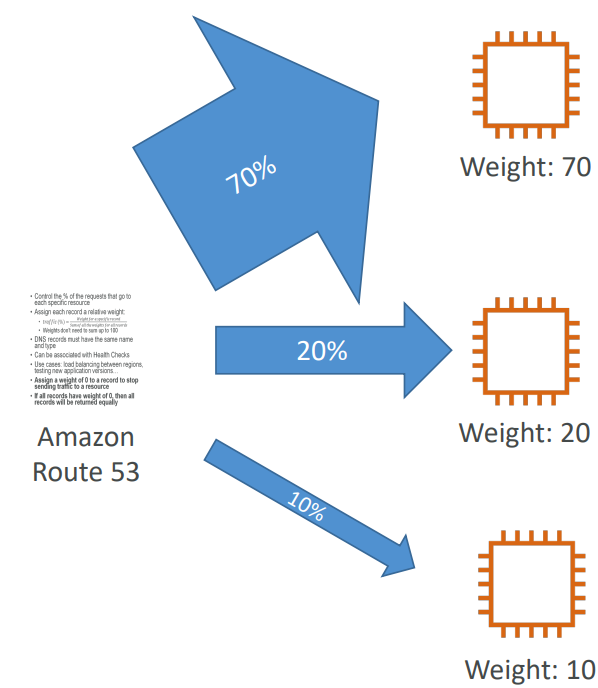

route_53_route_policy_weighted_diagram

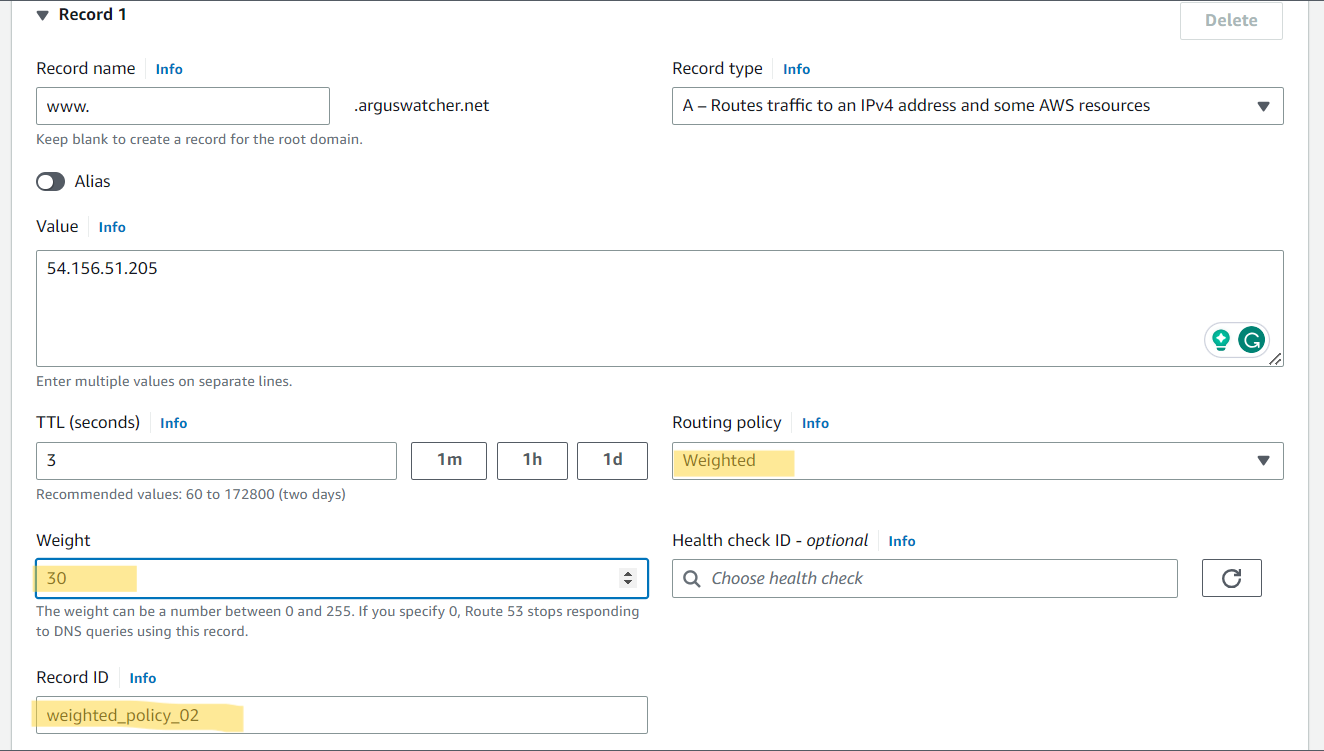

Hands-on

route_53_route_policy_weighted_handson01

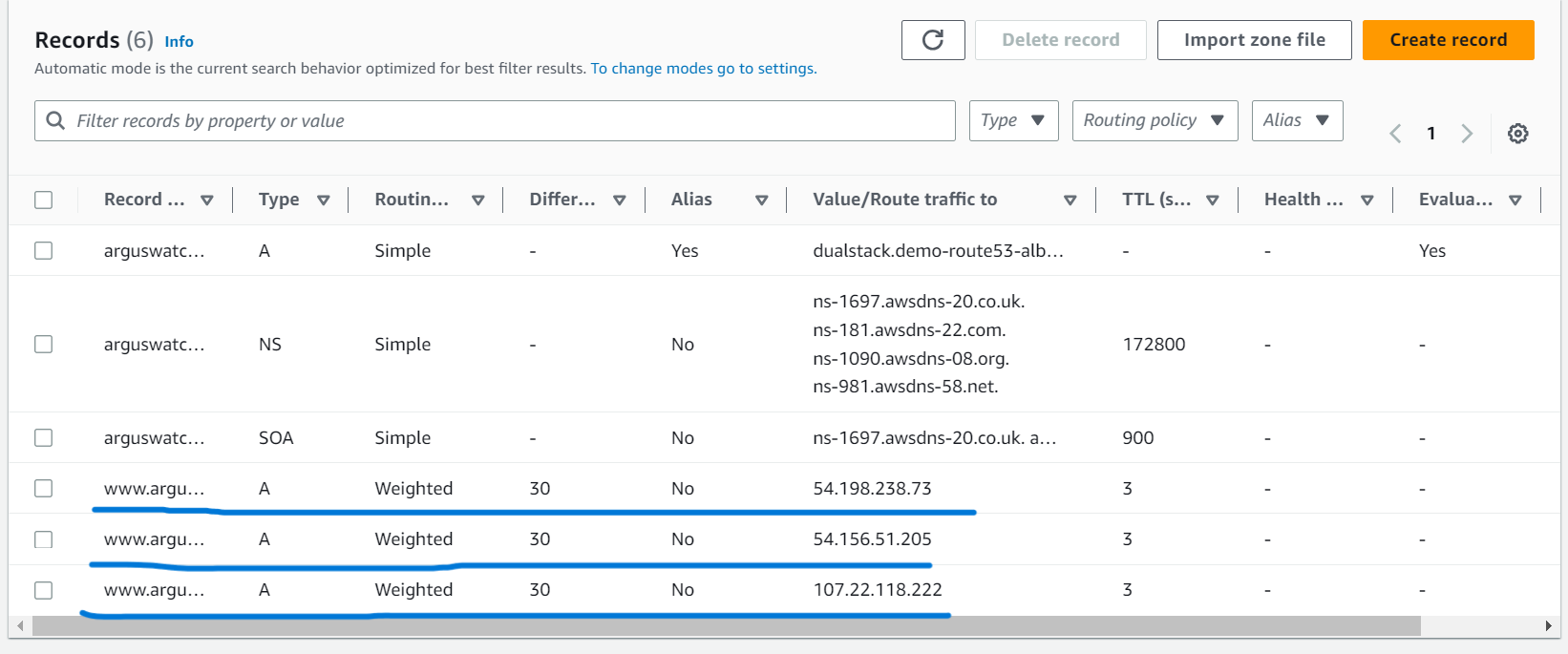

route_53_route_policy_weighted_handson02

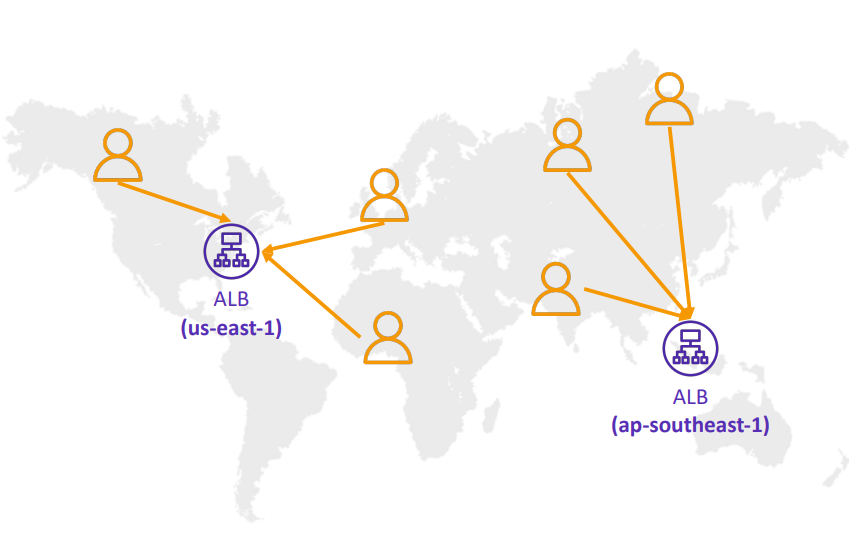

Routing Policies - Latency-based

Redirect to the resource that has the least latency close to client.
Super helpful when latency for users is a priority
Latency is based on traffic between users and AWS Regions
- Germany users may be directed to the US (if that’s the lowest latency)
Can be associated with Health Checks (has a failover capability)
注意, 因为 latency 与位置有关,相同位置的延迟先后是固定的,所以最后访问的 target 是相同.

route_53_route_policy_latency_diagram

Hands-on

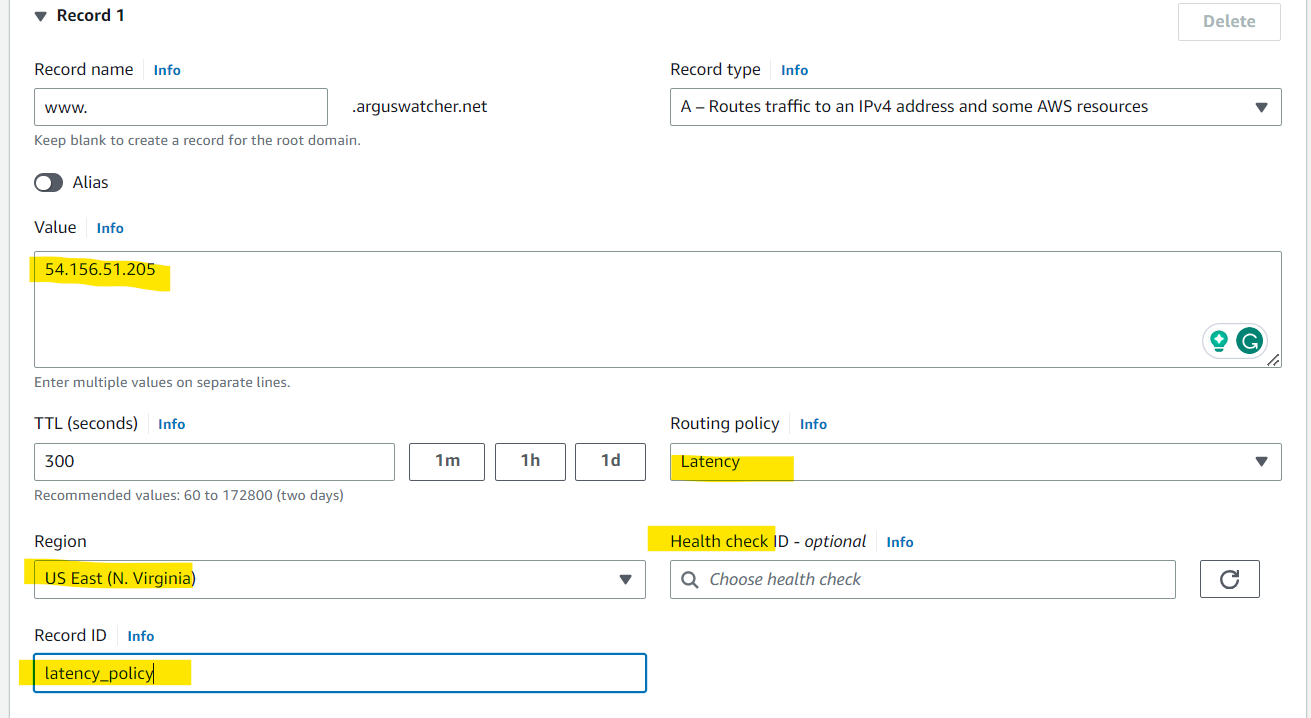

route_53_route_policy_latency_handson01

Routing Policies – Failover (Active-Passive)

Using health check to determine.

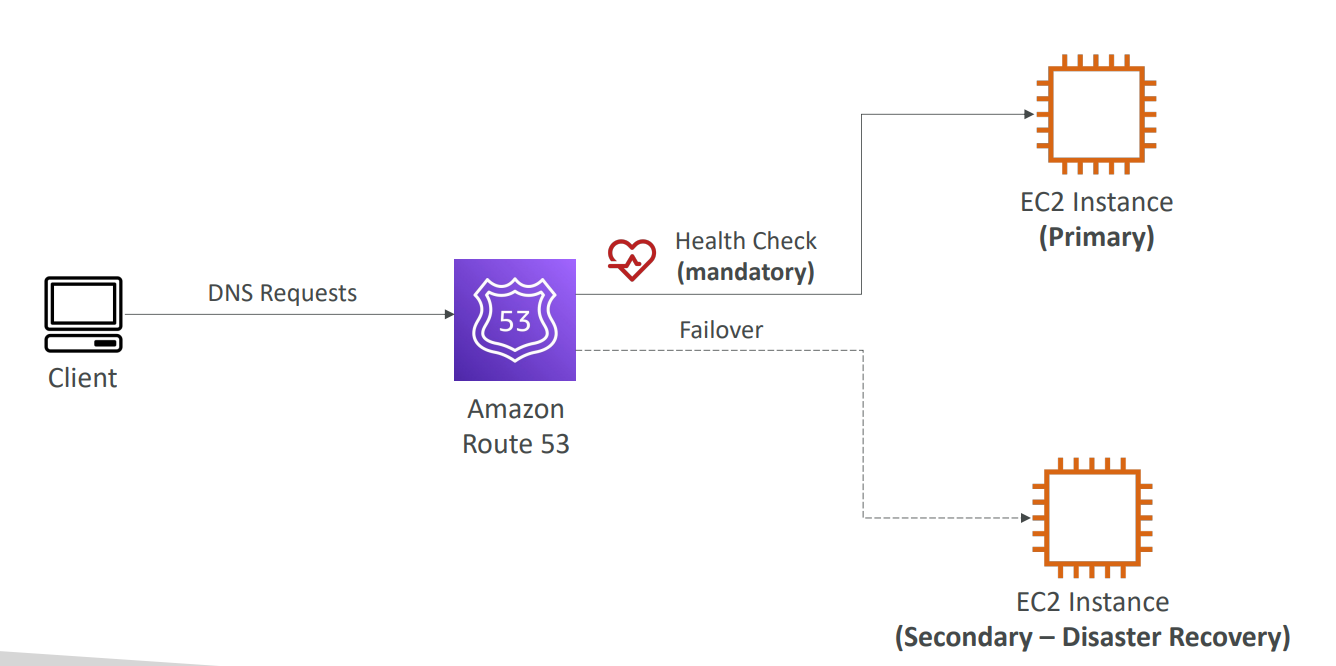

route_53_route_policy_failover_diagram

Hands-on

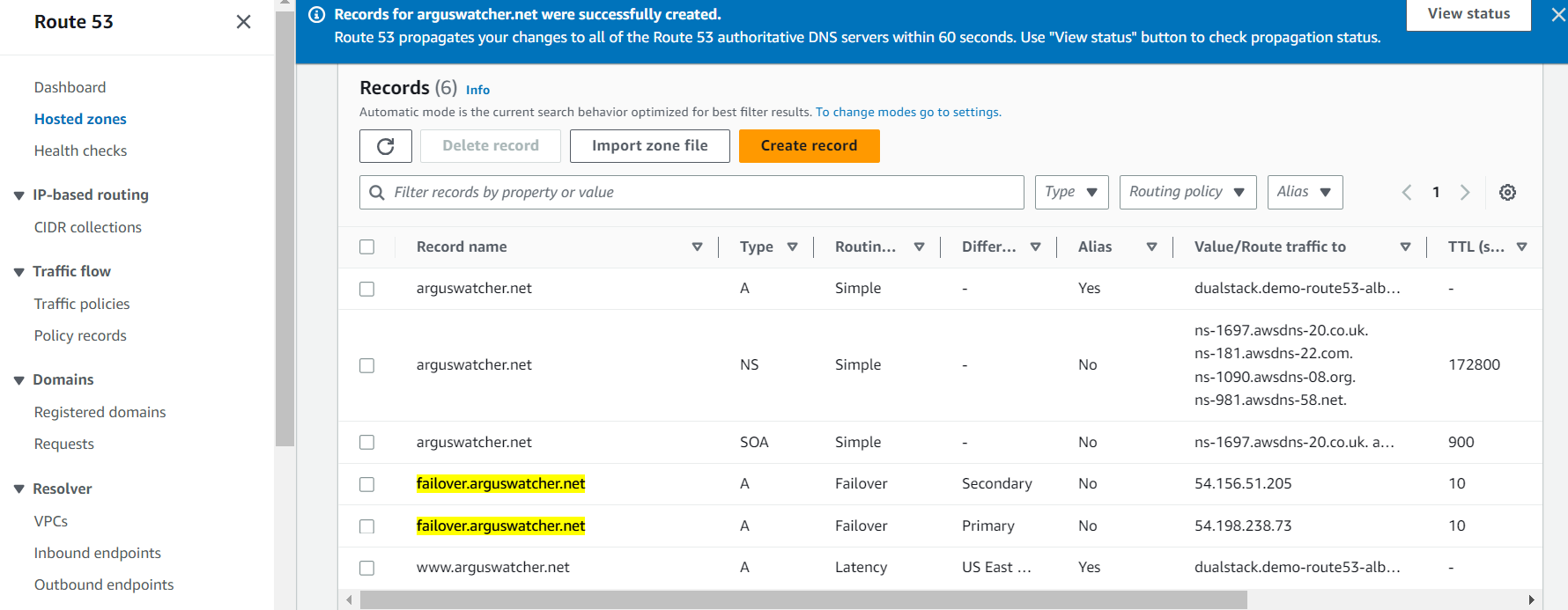

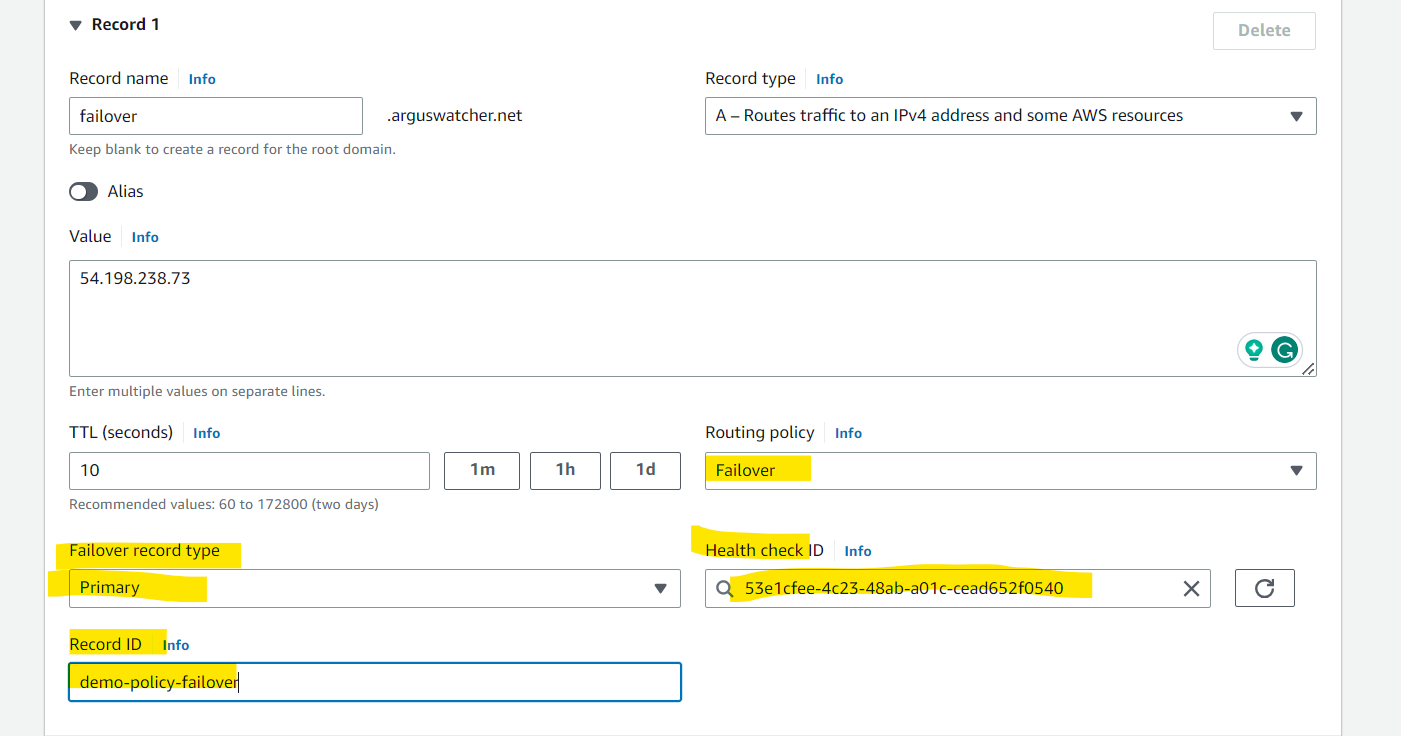

route_53_route_policy_failover_handson01

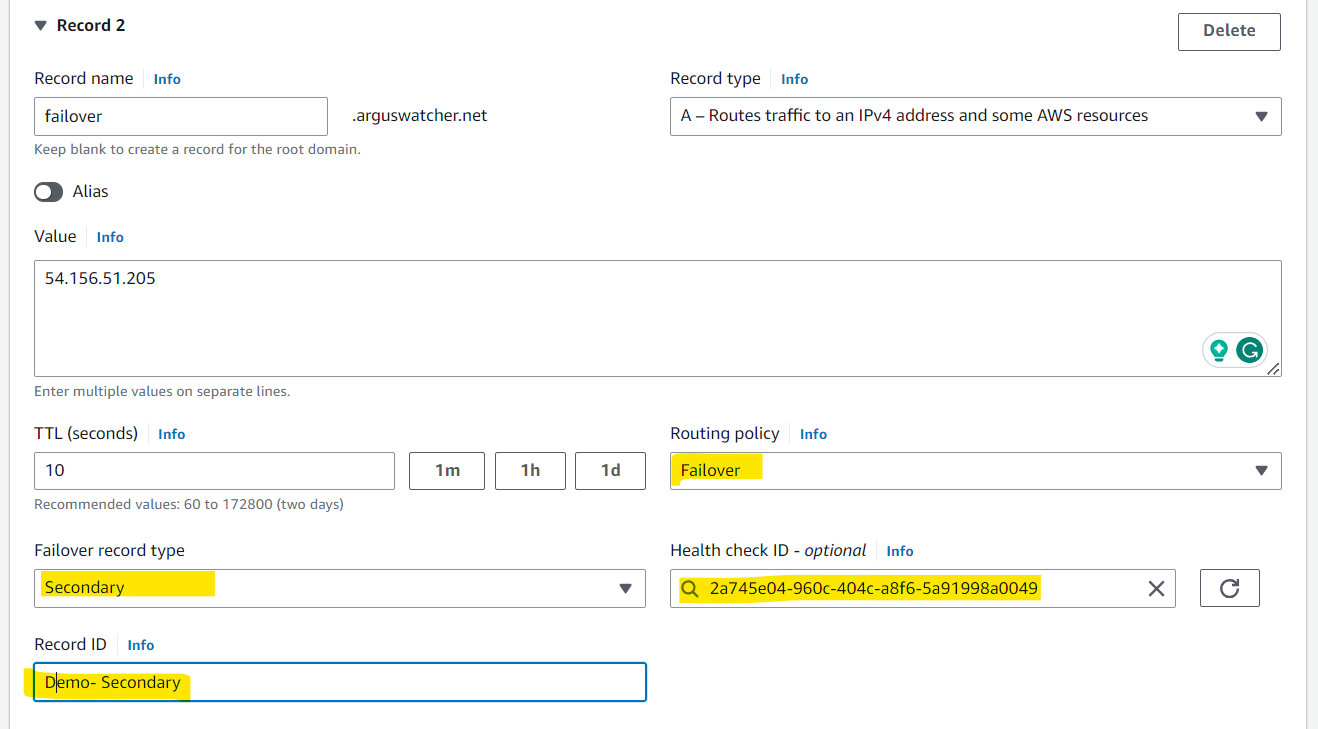

route_53_route_policy_failover_handson02

route_53_route_policy_failover_handson03

Routing Policies – Geolocation

Different from Latency-based!
This routing is based on user location
Specify location by Continent, Country or by US State
- if there’s overlapping, most precise location selected
Should create a “Default” record (in case there’s no match on location)
Use cases:
- website localization, restrict content distribution, load balancing, …
Can be associated with Health Checks

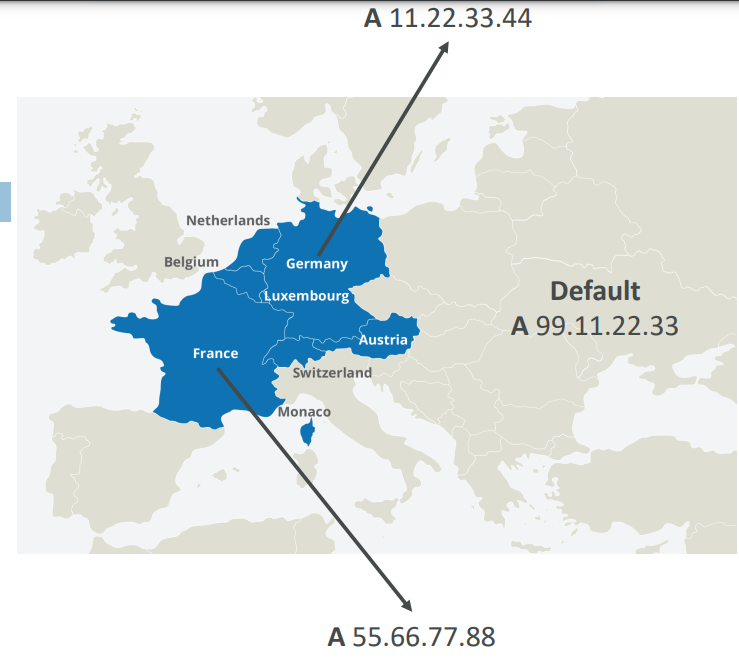

route_53_route_policy_geolocation_diagram

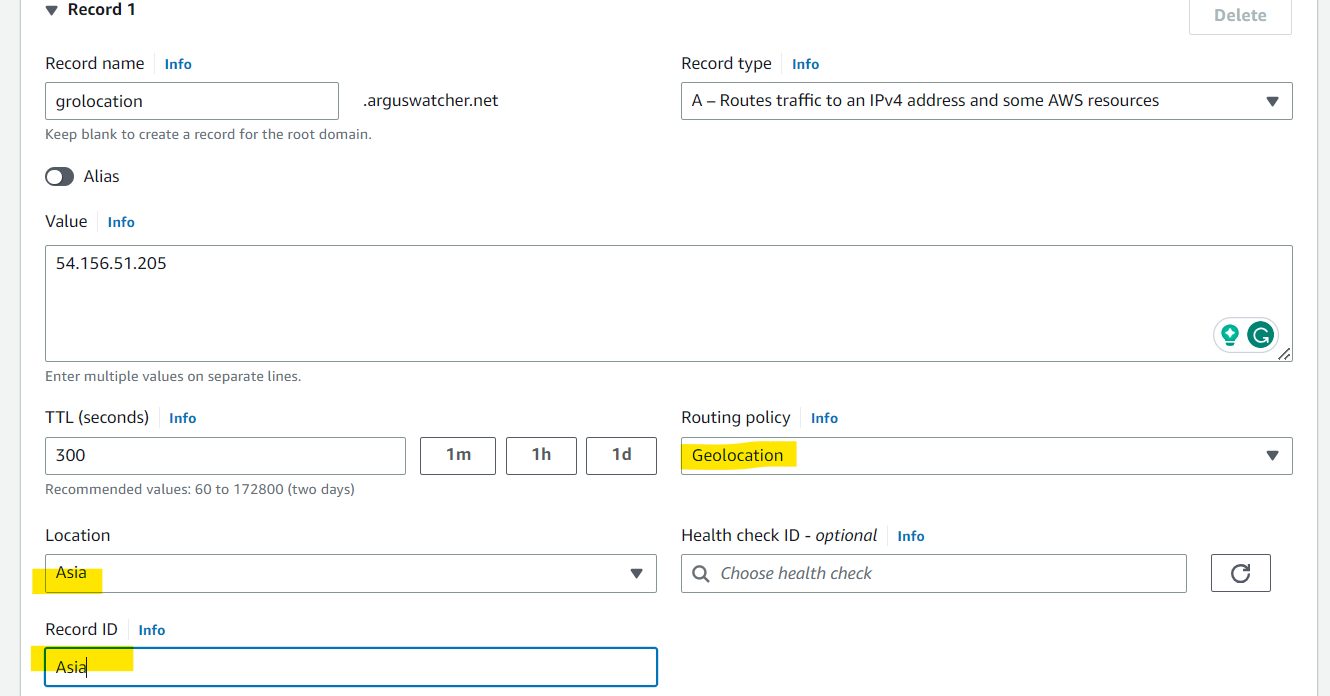

Hands-one

route_53_route_policy_geolocation_handson01

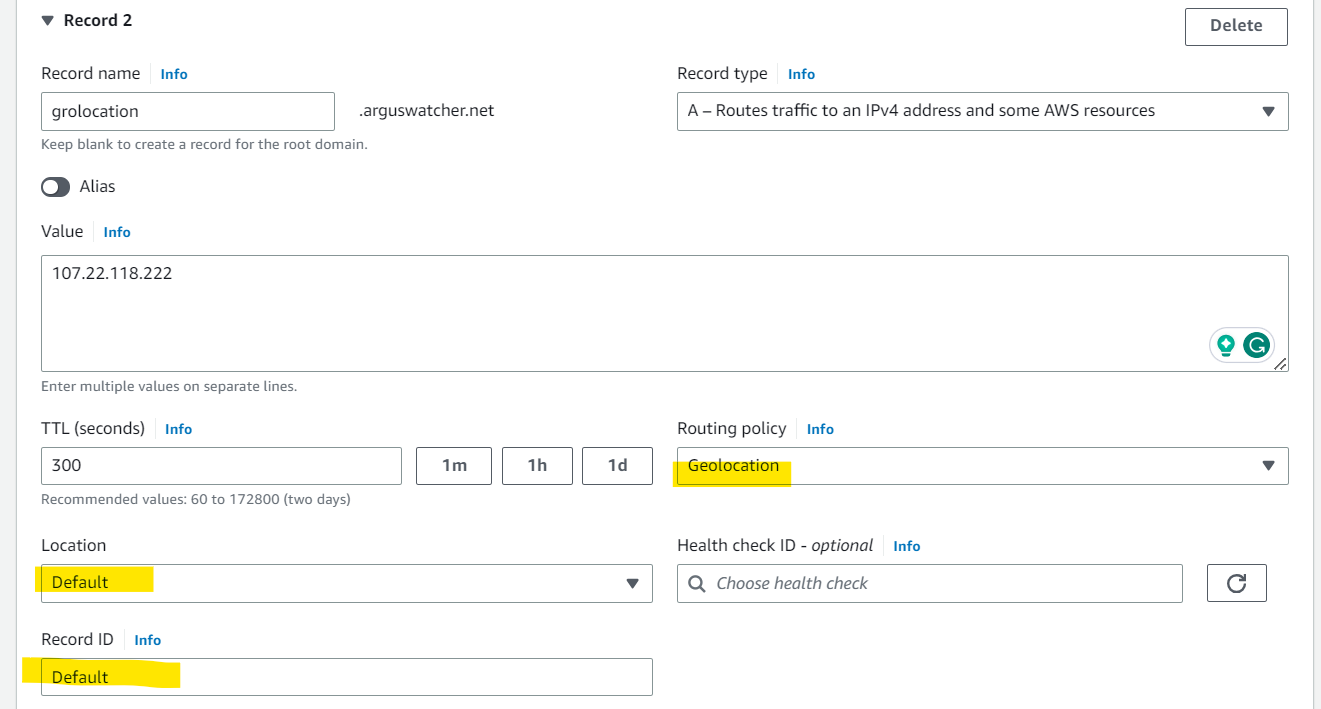

route_53_route_policy_geolocation_handson02

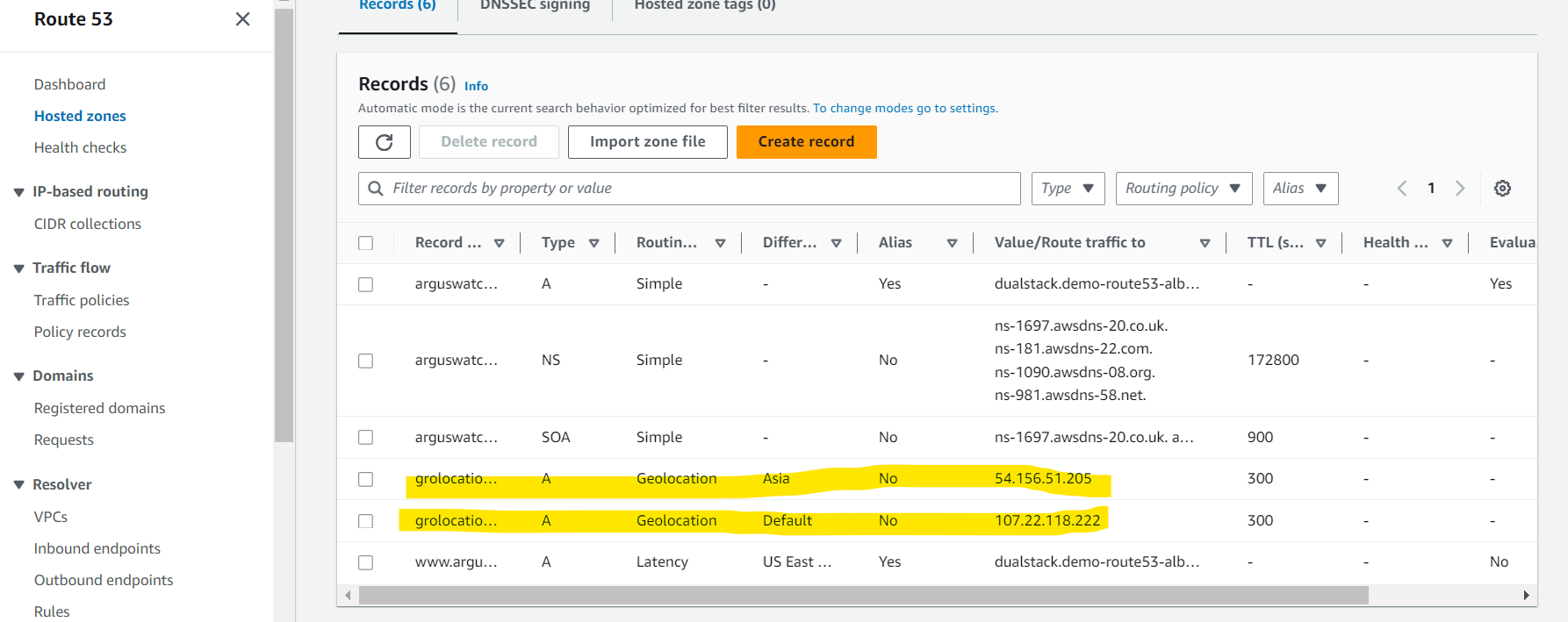

route_53_route_policy_geolocation_handson03

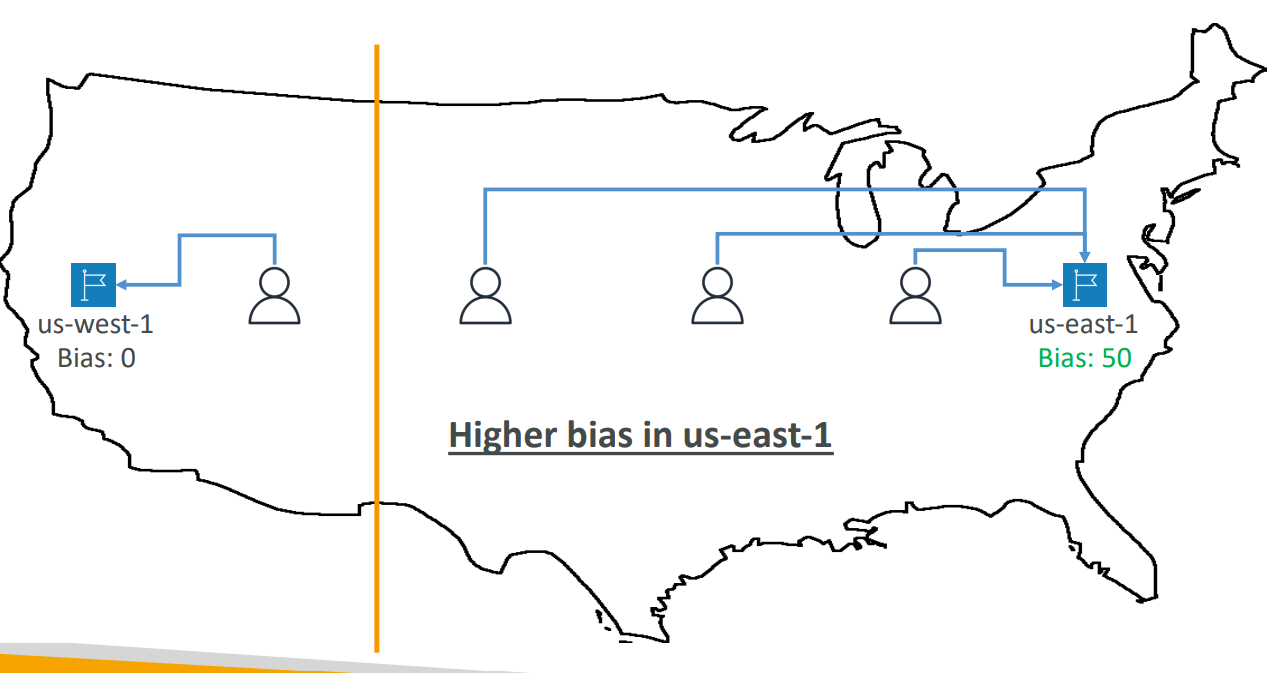

Routing Policies – Geoproximity

Route traffic to your resources based on the geographic location of users and resources
Ability to shift more traffic to resources based on the defined bias
To change the size of the geographic region, specify bias values:
- To expand (1 to 99) – more traffic to the resource
- To shrink (-1 to -99) – less traffic to the resource
Resources can be:
- AWS resources (specify AWS region)
- Non-AWS resources (specify Latitude and Longitude)
You must use Route 53 Traffic Flow to use this feature
Use case:
- when needs to shift traffic from one region to another by increasing the bias.

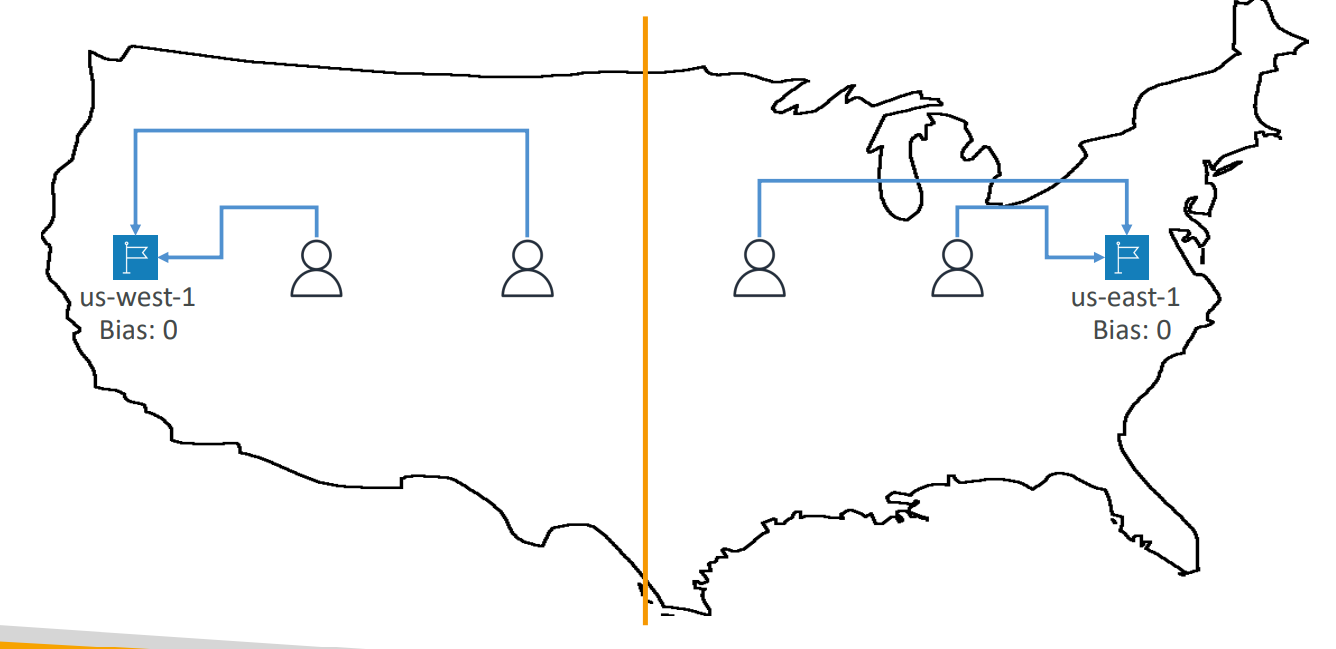

route_53_route_policy_geoproximity_diagram01

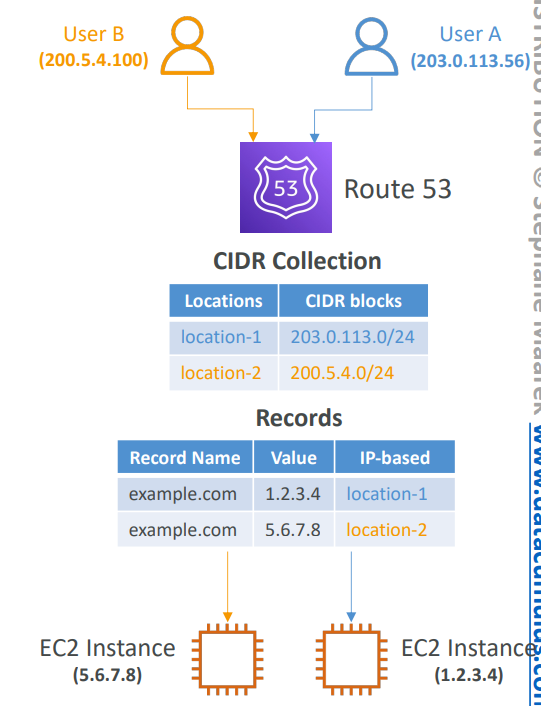

Routing Policies – IP-based Routing

Routing is based on clients’ IP addresses
You provide a list of CIDRs for your clients and the corresponding endpoints/locations (user-IP-to-endpoint mappings)
Use cases:
- Optimize performance, reduce network costs…
- Example: route end users from a particular ISP to a specific endpoint

route_53_route_policy_IP_based_diagram

Routing Policies – Multivalue Answer

Use when routing traffic to multiple resources
Route 53 return multiple values/resources
Can be associated with Health Checks (return only values for healthy resources)
- whereas simple policy can return multiple resources but cannot associate with Health Checks.
Up to 8 healthy records are returned for each Multi-Value query
Multi-Value is not a substitute for having an ELB
- ELB on Client side.
- Client choose one.

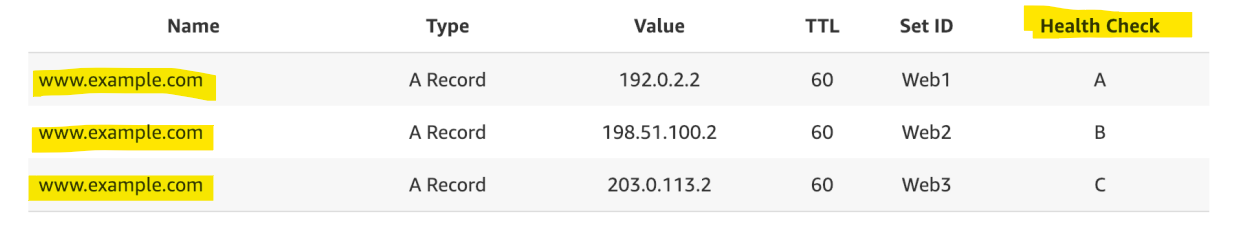

route_53_route_policy_multi-value_eg

Hands-on

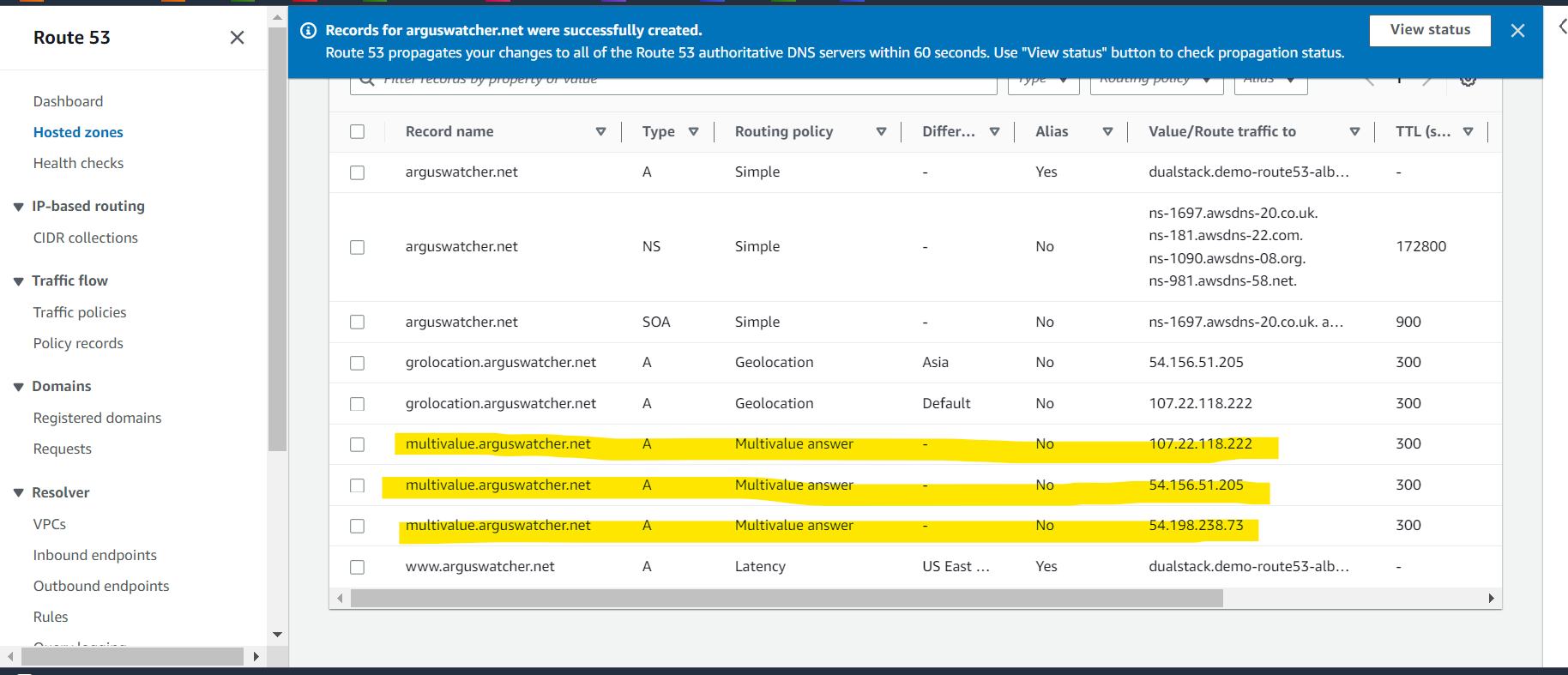

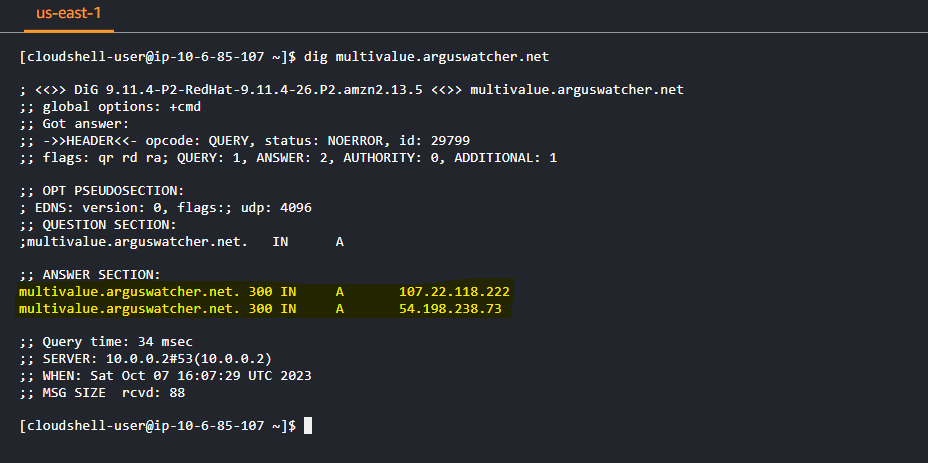

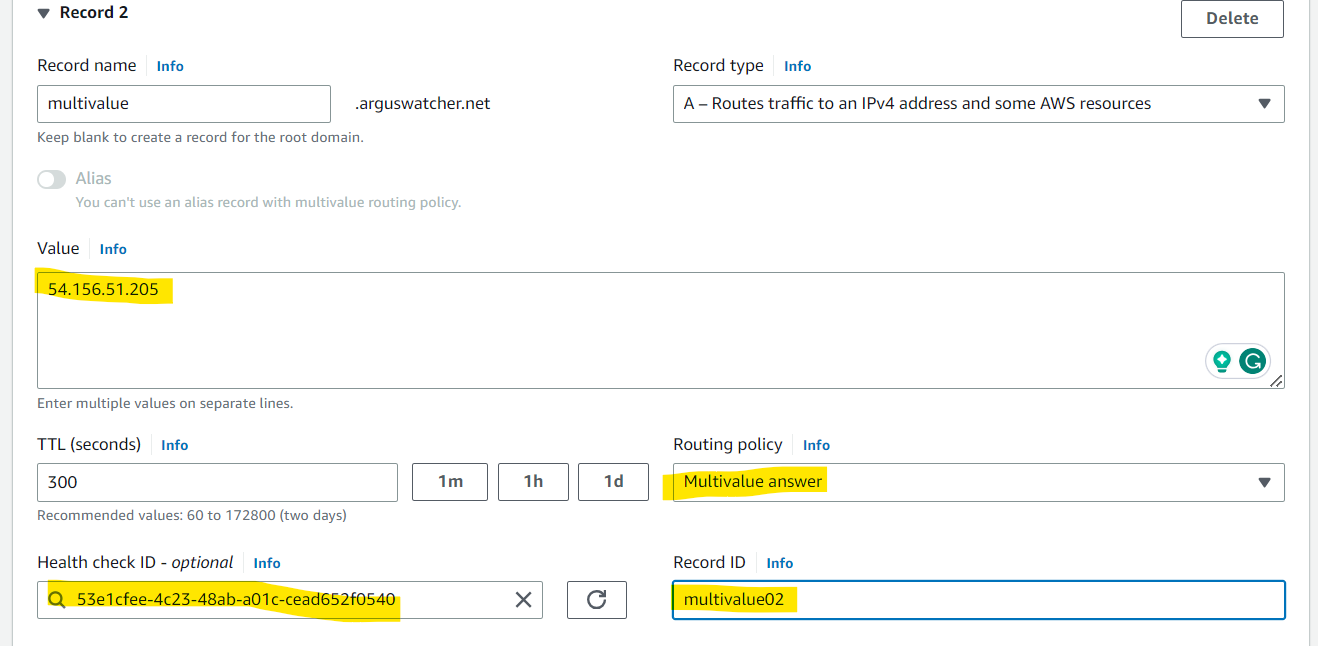

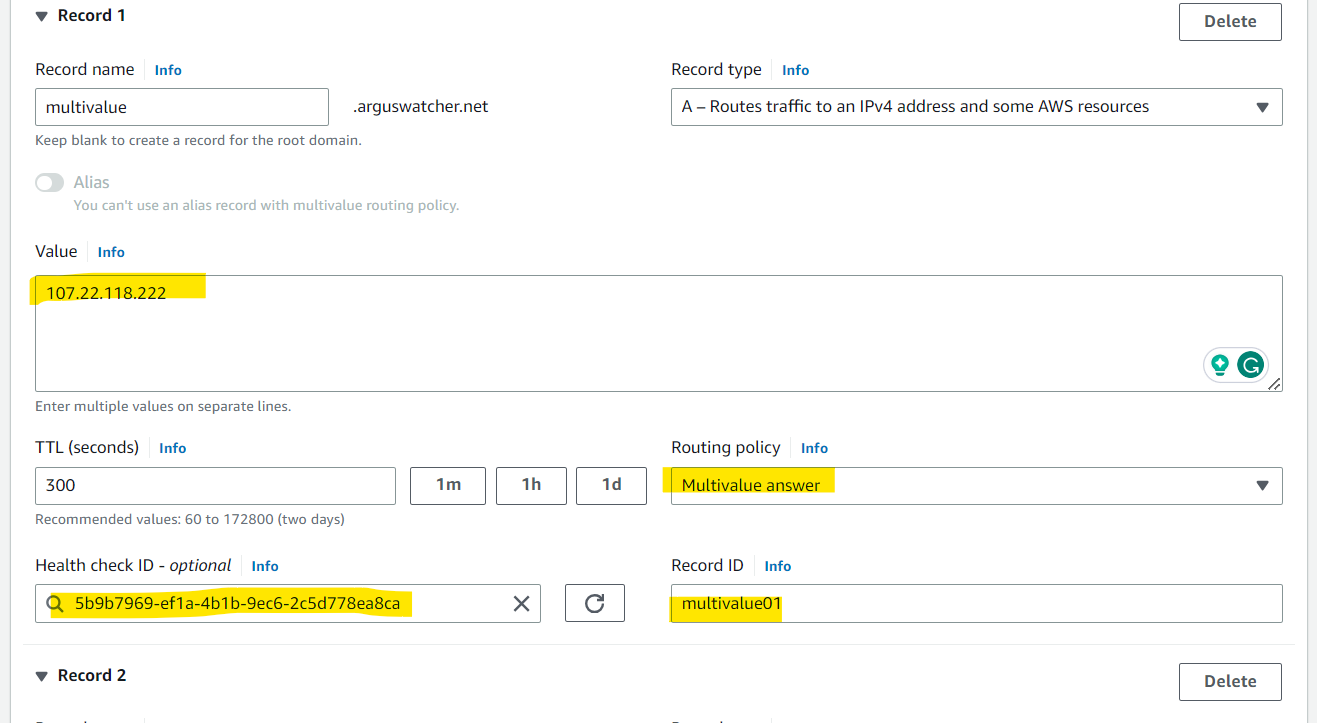

route_53_route_policy_multivalue_handson01

route_53_route_policy_multivalue_handson02

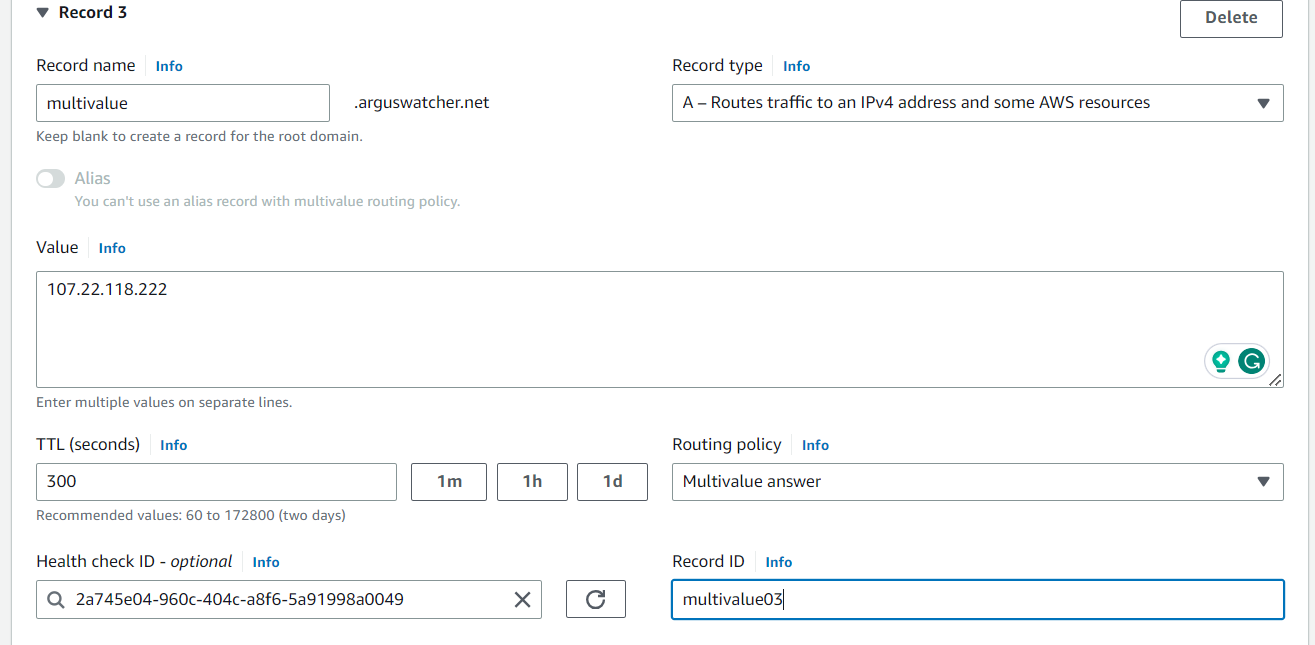

route_53_route_policy_multivalue_handson03

route_53_route_policy_multivalue_handson04

if dig, it will return 2 since only 2 of 3 passed the health check. User can choose one out of 2.

route_53_route_policy_multivalue_handson05

Domain Registar vs. DNS Service

You buy or register your domain name with a Domain Registrar typically by paying annual charges (e.g., GoDaddy, Amazon Registrar Inc., …)
The Domain Registrar usually provides you with a DNS service to manage your DNS records
But you can use another DNS service to manage your DNS records
- Example: purchase the domain from GoDaddy and use Route 53 to manage your DNS records
3rd Party Registrar with Amazon Route 53
- If you buy your domain on a 3rd party registrar, you can still use Route 53 as the DNS Service provider
1. Create a Hosted Zone in Route 53
2. Update NS Records on 3rd party website to use Route 53 Name Servers

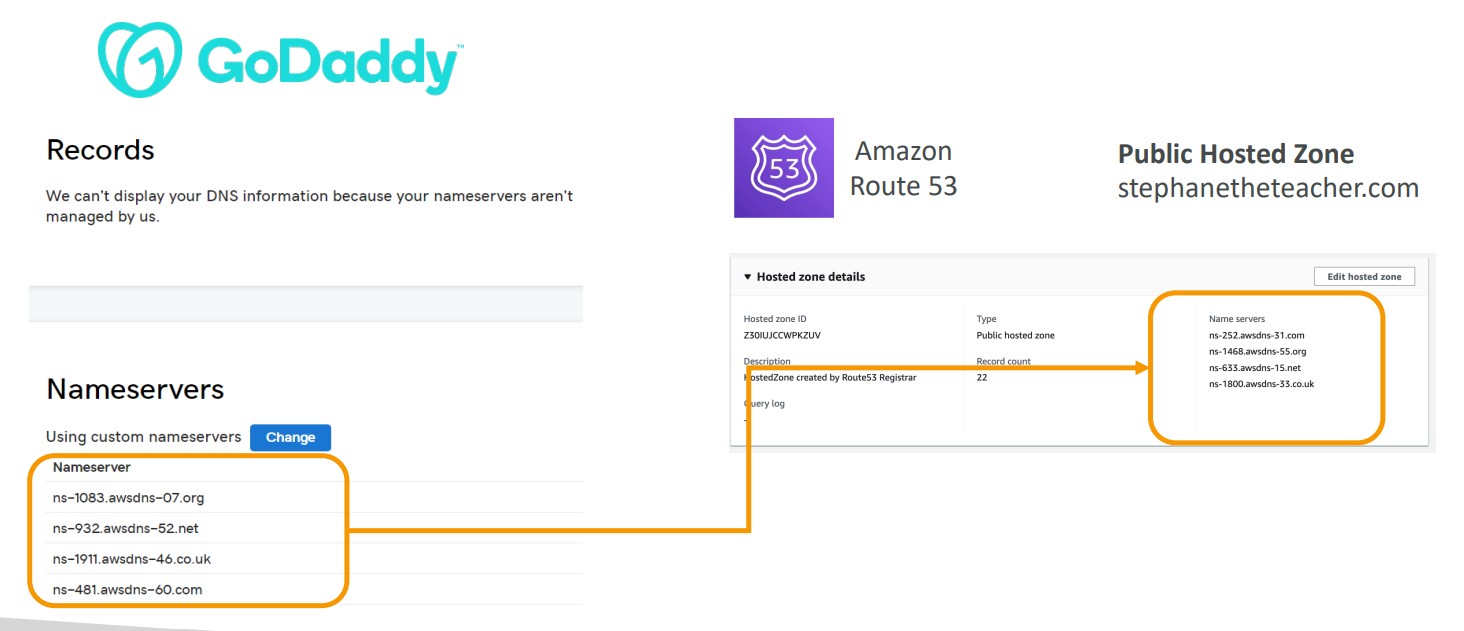

route_53_route_DNS_service_example

Domain Registrar != DNS Service
- But every Domain Registrar usually comes with some DNS features

TOP
