AWS Networking - Site-to-Site VPN + Direct Connection(DX)

Back

• AWS Networking - Site-to-Site VPN + Direct Connection(DX)
  • Site-to-Site VPN
    • Connections(会考)
    • Hands-on
    • AWS VPN CloudHub: diff sites, multi-VPNs
  • Direct Connect (DX)
    • Connection Types
    • Encryption
    • Resiliency
    • Direct Connect Gateway: cross regions
    • DX backup: DX + Site-to-Site VPN connection

---

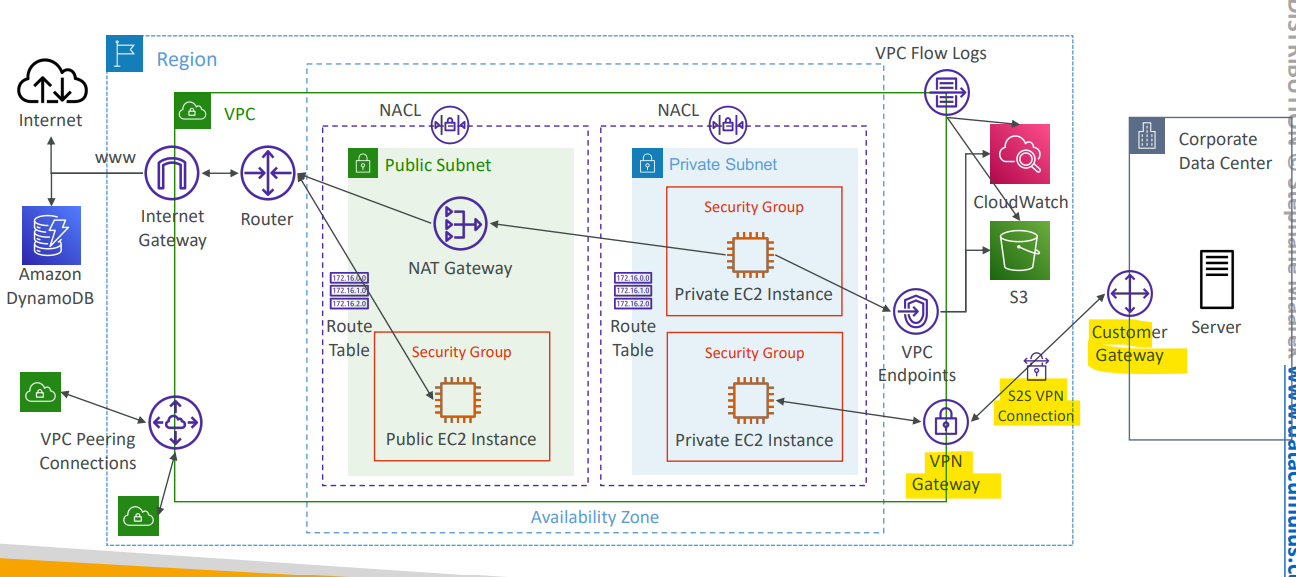

Site-to-Site VPN

• Site-to-Site VPN

  • a private site-to-site connection established through the public internet between corporate data center using customer gateway and AWS VPC using VPN Gateway.
  • encrypted connection
  • over the public internet

• Site-to-Site VPN requires 2 things:

  • Virtual Private Gateway (VGW)

    • VPN concentrator on the AWS side of the VPN connection
    • VGW is created and attached to the VPC from which you want to create the Site-to-Site VPN connection
    • Possibility to customize the ASN (Autonomous System Number)

  • Customer Gateway (CGW)

    • Software application or physical device on customer side of the VPN connection
    • https://docs.aws.amazon.com/vpn/latest/s2svpn/your-cgw.html#DevicesTested

---

Connections(会考)

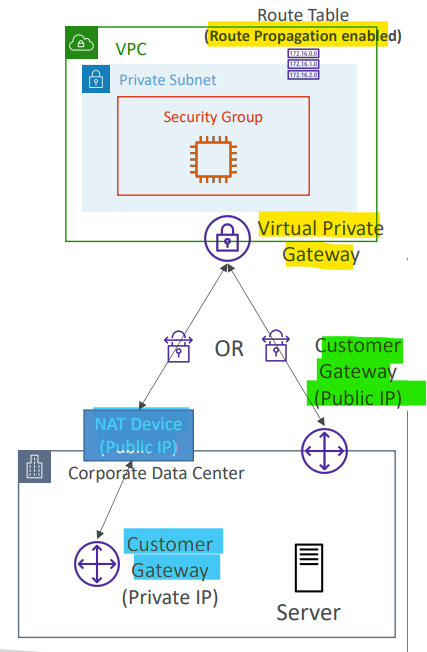

• Customer Gateway Device (On-premises)
  • What IP address to use?
    • Public Internet-routable IP address for your Customer Gateway device (when using public IP)
    • If it’s behind a NAT device that’s enabled for NAT traversal (NAT-T), use the public IP address of the NAT device(private IP)(会考)
• Important step:
  • enable Route Propagation for the Virtual Private Gateway in the route table that is associated with your subnets
• If you need to ping your EC2 instances from on-premises, make sure you add the ICMP protocol on the inbound of your security groups

• Sample:
  • When you set up an AWS Site-to-Site VPN connection between your corporate on-premises datacenter and VPCs in AWS Cloud, what are the two major components you want to configure for this connection?
    • Customer Gateway + Virtual Private Gateway

---

Hands-on

• skip, out of scope
• only need to know steps:
  • customer Gateway
  • Virtual Gateway
  • Connect two in Site-to-Site VPN Connections.

---

AWS VPN CloudHub: diff sites, multi-VPNs

• Provide secure communication between multiple sites, if you have multiple VPN connections
• A low-cost hub-and-spoke(轴辐式枢纽) model for primary or secondary network connectivity between different locations (VPN only)(一个使用 VPN 连接多个 site 的中央枢纽)
  • customer network can communicate with each other.
• It’s a VPN connection so it goes over the public Internet

• To set it up, connect multiple VPN connections on the same VGW, setup dynamic routing and configure route tables

• Sample:
  • Your company has several on-premises sites across the USA. These sites are currently linked using private connections, but your private connections provider has been recently quite unstable, making your IT architecture partially offline. You would like to create a backup connection that will use the public Internet to link your on-premises sites, that you can failover in case of issues with your provider. What do you recommend?
    • VPN CloudHub

---

Direct Connect (DX)

• Direct Connect (DX)

  • Provides a dedicated private connection from a remote network to your VPC

• Features

  • Dedicated connection must be setup between your DC and AWS Direct Connect locations
  • You need to setup a Virtual Private Gateway on your VPC
  • Supports both IPv4 and IPv6

• Benefit:

  • Access public resources (S3) and private (EC2) on same connection

• Use Cases:

  • Increase bandwidth throughput
    • working with large data sets
    • lower cost
  • More consistent network experience
    • applications using real-time data feeds
  • Hybrid Environments (on prem + cloud)

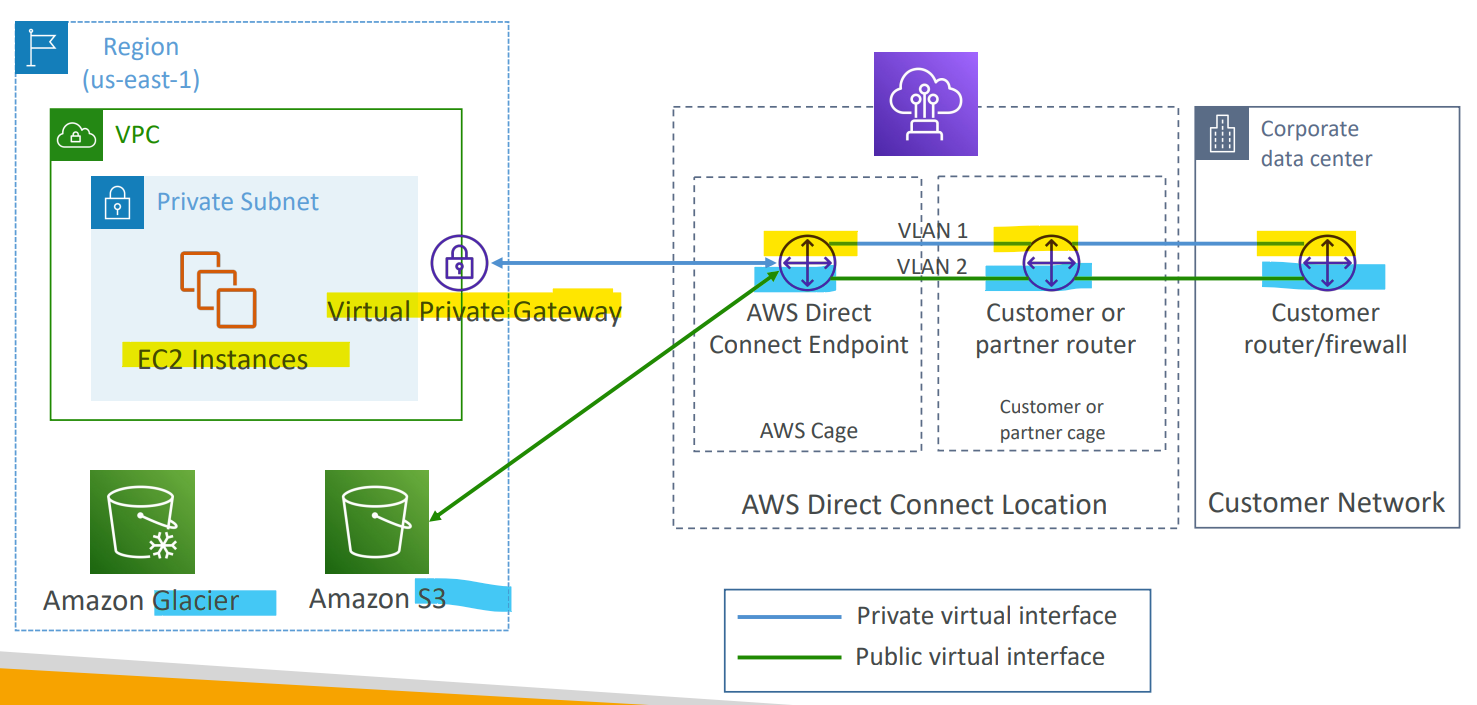

• Cage options:
  • AWS Cage
  • Custoer/partner cage

• 即可以连接私有资源(黄色), 又可以连接公有资源(蓝色)

• Sample:
  • You need to set up a dedicated connection between your on-premises corporate datacenter and AWS Cloud. This connection must be private, consistent, and traffic must not travel through the Internet. Which AWS service should you use?
    • Direct Connect
  • Using a Direct Connect connection, you can access both public and private AWS resources.
    • True

---

Connection Types

• Dedicated Connections:

  • 1 Gbps, 10 Gbps and 100 Gbps capacity
  • Physical ethernet port dedicated to a customer
  • Request made to AWS first, then completed by AWS Direct Connect Partners

• Hosted Connections:

  • 50Mbps, 500 Mbps, to 10 Gbps
  • Connection requests are made via AWS Direct Connect Partners
  • Capacity can be added or removed on demand
  • 1, 2, 5, 10 Gbps available at select AWS Direct Connect Partners

• Lead times are often longer than 1 month to establish a new connection(常考: 需要提前至少 1 个月申请)

• Sample:

  • If you want a 500 Mbps Direct Connect connection between your corporate datacenter to AWS, you would choose a ……………… connection.
    • Hosted
    • Hosted Direct Connect connection supports 50Mbps, 500Mbps, up to 10Gbps.

---

Encryption

• Data in transit is not encrypted but is private
• AWS Direct Connect + VPN provides an IPsec-encrypted private connection
• Good for an extra level of security, but slightly more complex to put in place

---

Resiliency

• 2 modes of resiliency archetectures

  • High Resiliency for Critical Workloads
  • Maximum Resiliency for Critical Workloads

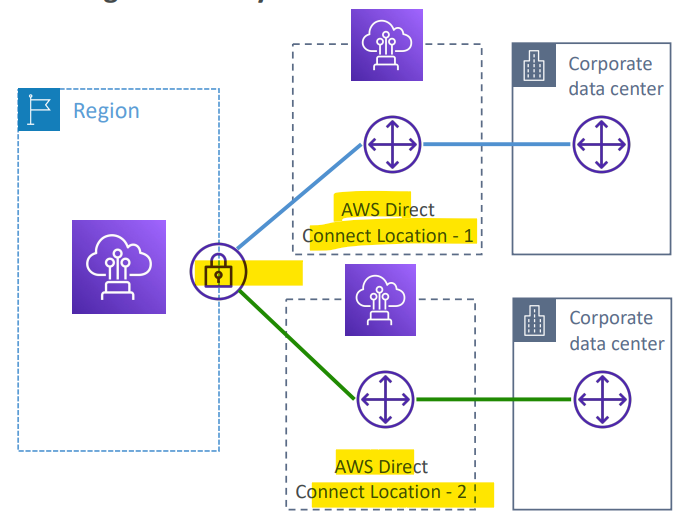

• High Resiliency for Critical Workloads

  • One connection at multiple locations
  • if one of the DX location goes down, at least has backup DX location.

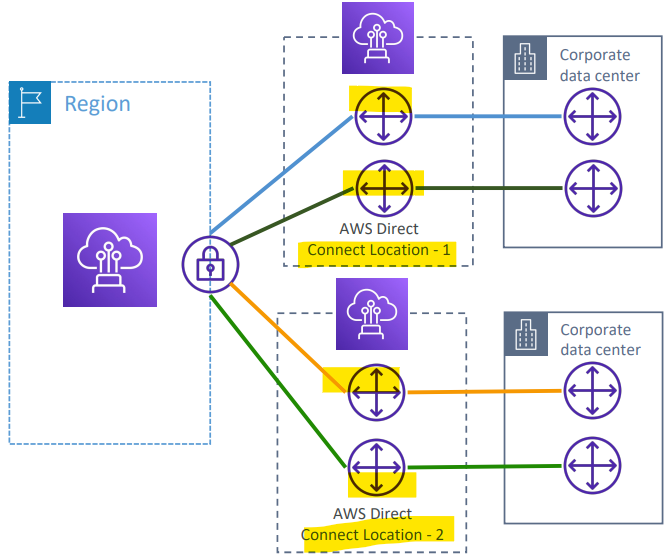

• Maximum Resiliency for Critical Workloads
  • Maximum resilience is achieved by separate connections terminating on separate devices in more than one location. 多链接多地点

---

Direct Connect Gateway: cross regions

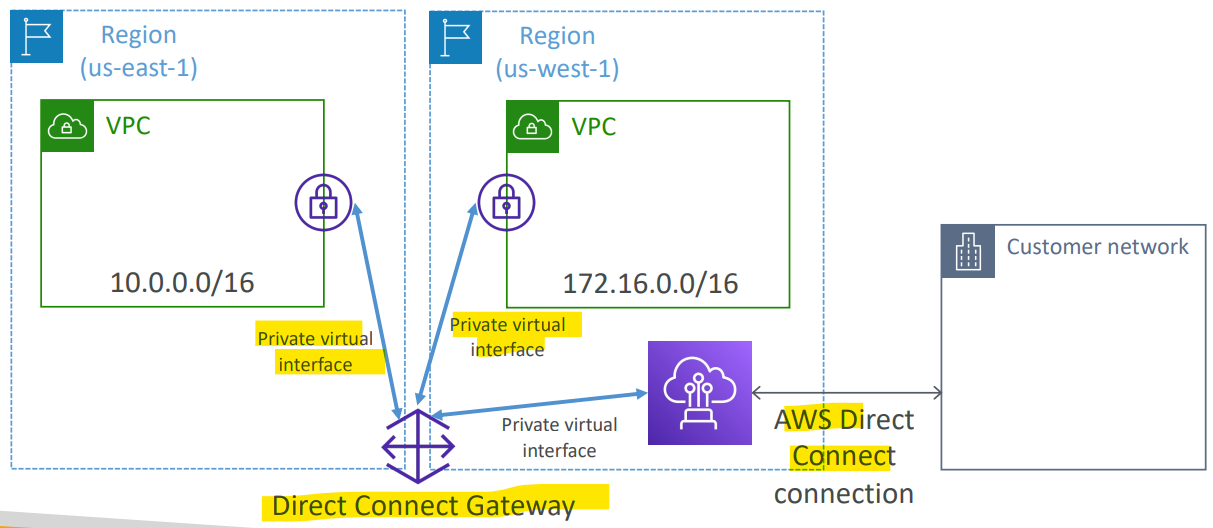

• Direct Connect Gateway
  • used to setup a Direct Connect to one or more VPC in many different regions (same account).

• Sample:
  • You have set up a Direct Connect connection between your corporate data center and your VPC A in your AWS account. You need to access VPC B in another AWS region from your corporate datacenter as well. What should you do?
    • Direct Connect Gateway

---

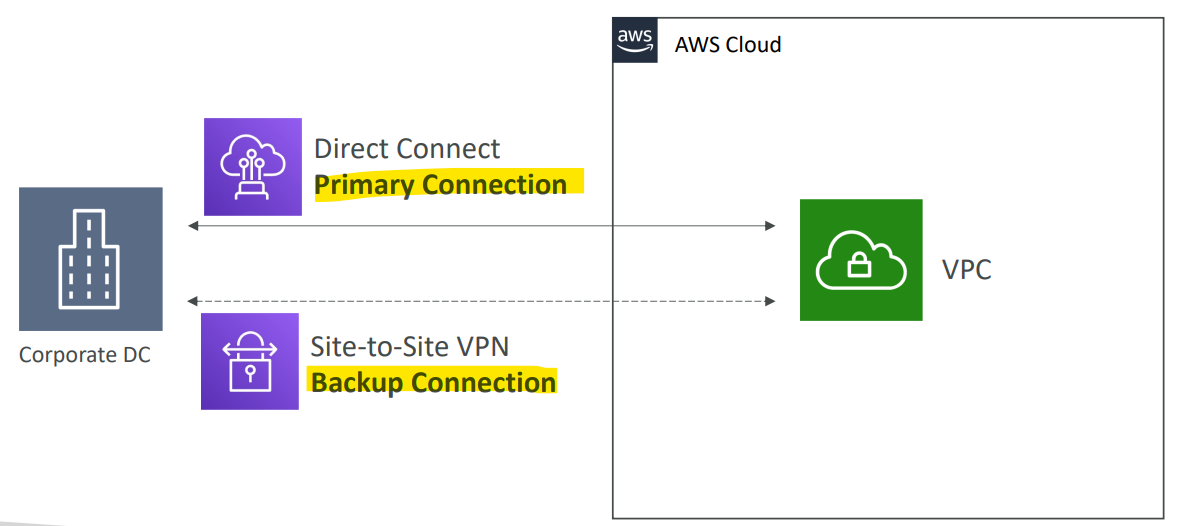

DX backup: DX + Site-to-Site VPN connection

• In case Direct Connect fails, you can set up
  • a backup Direct Connect connection (expensive),
  • or a Site-to-Site VPN connection(reliable due to the use of public internet)

• Sample:
  • A company has set up a Direct Connect connection between their corporate data center to AWS. There is a requirement to prepare a cost-effective secure backup connection in case there are issues with this Direct Connect connection. What is the most cost effective and secure solution you recommend?
    • Site-to-Site VPN

---
