AWS - Network Firewall

Back

• AWS - Network Firewall
  • AWS Network Firewall
    • Network Protection on AWS
    • Fine Grained Controls

---

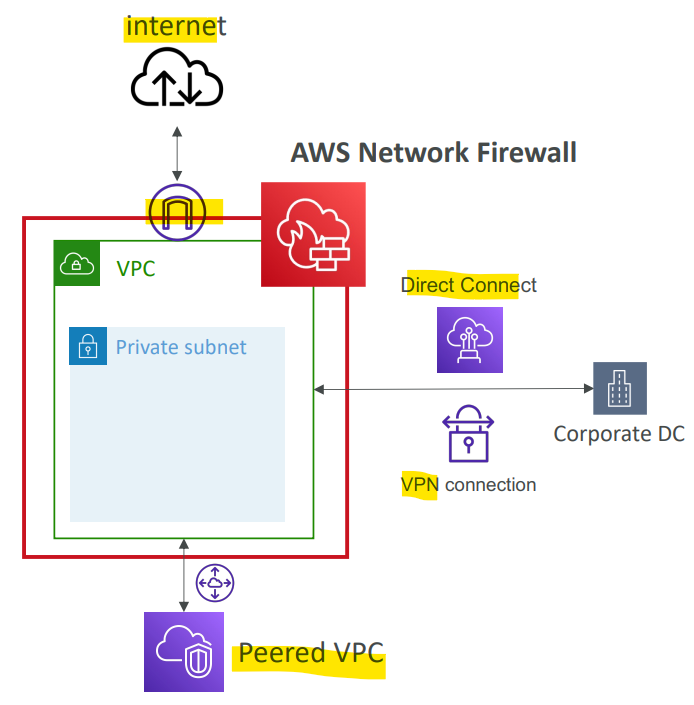

AWS Network Firewall

• Network Firewall

  • Protect your entire Amazon VPC
  • From Layer 3 to Layer 7 protection

• Feature

  • Internally, the AWS Network Firewall uses the AWS Gateway Load Balancer(not 3rd-party app, but aws manage it)
  • Rules can be centrally managed cross-account by AWS Firewall Manager to apply to many VPCs

• Any direction, you can inspect

  • VPC to VPC traffic
  • Outbound to internet
  • Inbound from internet
  • To / from Direct Connect & Site-to-Site VPN

---

Network Protection on AWS

• To protect network on AWS, we’ve seen
  • Network Access Control Lists (NACLs)
  • Amazon VPC security groups
  • AWS WAF (protect against malicious HTTP requests)
  • AWS Shield & AWS Shield Advanced(DDoS)
  • AWS Firewall Manager (to manage them across accounts)
  • AWS Network Firewall(VPC level)

---

Fine Grained Controls

• Supports 1000s of rules

  • IP & port
    • example: 10,000s of IPs filtering
  • Protocol
    • example: block the SMB protocol for outbound communications
  • Stateful domain list rule groups:
    • only allow outbound traffic to *.mycorp.com or third-party software repo
  • General pattern matching using regex
• Traffic filtering:
  • Allow, drop, or alert for the traffic that matches the rules
• Active flow inspection to protect against network threats with intrusionprevention capabilities
  • like Gateway Load Balancer, but all managed by AWS
• Send logs of rule matches to Amazon S3, CloudWatch Logs, Kinesis Data Firehose

---
