AWS - Security

Back

• AWS - Security
  • Summary
  • WAF vs. Firewall Manager vs. Shield
  • AWS Best Practices for DDoS Resiliency
    • Edge Location Mitigation (BP1, BP3)
    • Best pratices for DDoS mitigation
    • Application Layer Defense
    • Attack surface reduction

---

Summary

Services	Features
WAF	ACL rules, HTTP,layer 7, ALB(not NLB)
Shield	DDos, Layer 3/4
Firewall Manager	accounts in Organ,
GuardDuty	Threat discovery, ML
Inspector	Security Assessments, EC2, ECS, Lambda
Macie	sensitive data, ML

---

WAF vs. Firewall Manager vs. Shield

• WAF, Shield and Firewall Manager are used together for comprehensive protection

• WAF

  • Define your Web ACL rules
  • For granular protection of your resources, WAF alone is the correct choice

• WAF + Firewall Manager

  • If you want to use AWS WAF across accounts, accelerate WAF configuration, automate the protection of new resources, use Firewall Manager with AWS WAF

• Shield

  • If you’re prone to frequent DDoS attacks, consider purchasing Shield Advanced
  • Shield Advanced adds additional features on top of AWS WAF, such as dedicated support from the Shield Response Team (SRT) and advanced reporting.

---

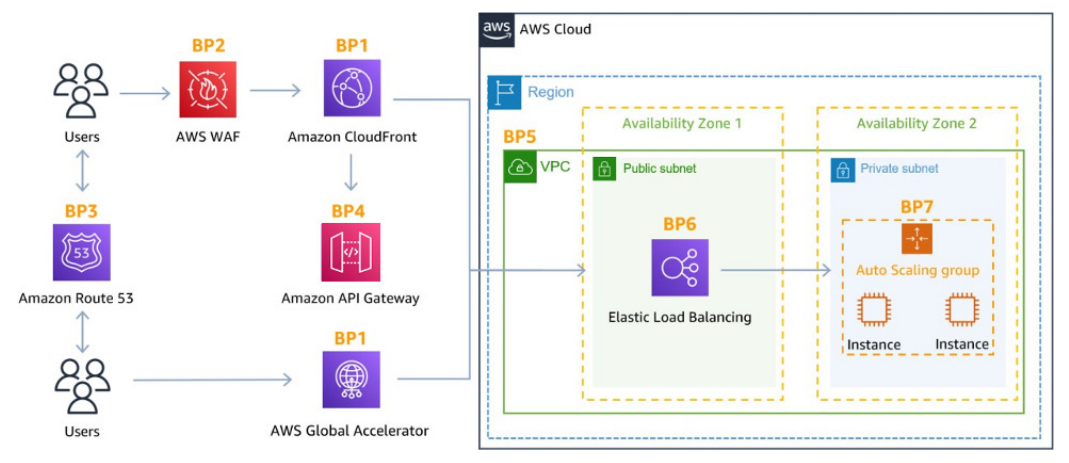

AWS Best Practices for DDoS Resiliency

Edge Location Mitigation (BP1, BP3)

• BP1 – CloudFront

  • Web Application delivery at the edge
  • Protect from DDoS Common Attacks (SYN floods, UDP reflection…)

• BP1 – Global Accelerator

  • Access your application from the edge
  • Integration with Shield for DDoS protection
  • Helpful if your backend is not compatible with CloudFront

• BP3 – Route 53

  • Domain Name Resolution at the edge
  • DDoS Protection mechanism

---

Best pratices for DDoS mitigation

• Infrastructure layer defense (BP1, BP3, BP6)

  • Protect Amazon EC2 against high traffic
  • That includes using Global Accelerator, Route 53, CloudFront, Elastic Load Balancing

• Amazon EC2 with Auto Scaling (BP7)

  • Helps scale in case of sudden traffic surges including a flash crowd or a DDoS attack

• Elastic Load Balancing (BP6)

  • Elastic Load Balancing scales with the traffic increases and will distribute the traffic to many EC2 instance

---

Application Layer Defense

• Detect and filter malicious web requests (BP1, BP2)

  • CloudFront cache static content and serve it from edge locations, protecting your backend
  • CloudFront can block specific geographies
  • AWS WAF is used on top of CloudFront and Application Load Balancer to filter and block requests based on request signatures
  • WAF rate-based rules can automatically block the IPs of bad actors
  • Use managed rules on WAF to block attacks based on IP reputation, or block anonymous Ips

• Shield Advanced (BP1, BP2, BP6)

  • Shield Advanced automatic application layer DDoS mitigation automatically creates, evaluates and deploys AWS WAF rules to mitigate layer 7 attacks

---

Attack surface reduction

• Obfuscating AWS resources (BP1, BP4, BP6)

  • Using CloudFront, API Gateway, Elastic Load Balancing to hide your backend resources (Lambda functions, EC2 instances)

• Security groups and Network ACLs (BP5)

  • Use security groups and NACLs to filter traffic based on specific IP at the subnet or ENI-level
  • Elastic IP are protected by AWS Shield Advanced

• Protecting API endpoints (BP4)

  • API can Hide EC2, Lambda, elsewhere
  • Edge-optimized mode, or CloudFront + regional mode (more control for DDoS)
  • WAF + API Gateway: burst limits, headers filtering, use API keys

---
