AWS - Web Application Firewall(WAF)

Back

• AWS - Web Application Firewall(WAF)
  • AWS WAF – Web Application Firewall
    • Access Control List
  • Use Case: Fixed IP while using WAF with a Load Balancer
  • Hands-on

---

AWS WAF – Web Application Firewall

• Protects your web applications from common web exploits (Layer 7)

• Layer 7 is HTTP

  • Layer 4 is TCP/UDP
• Deploy on 记住
  • CloudFront (Global)
  • Application Load Balancer (Not NLB`)
  • API Gateway
  • AppSync GraphQL API
  • Cognito User Pool
• Sample:
  • You have a website hosted on a fleet of EC2 instances fronted by an Application Load Balancer. What should you use to protect your website from common web application attacks (e.g., SQL Injection)?
    • WAF

---

Access Control List

• Define Web ACL (Web Access Control List) Rules to filter based on:
  • IP Set: up to 10,000 IP addresses
    • use multiple Rules for more IPs
  • HTTP headers, HTTP body, or URI strings Protects from common attack
    • e.g.: SQL injection and Cross-Site Scripting (XSS)
  • Size constraints, geo-match (block countries)
  • Rate-based rules (to count occurrences of events) – for DDoS protection
• Web ACL are Regional
  • except for CloudFront

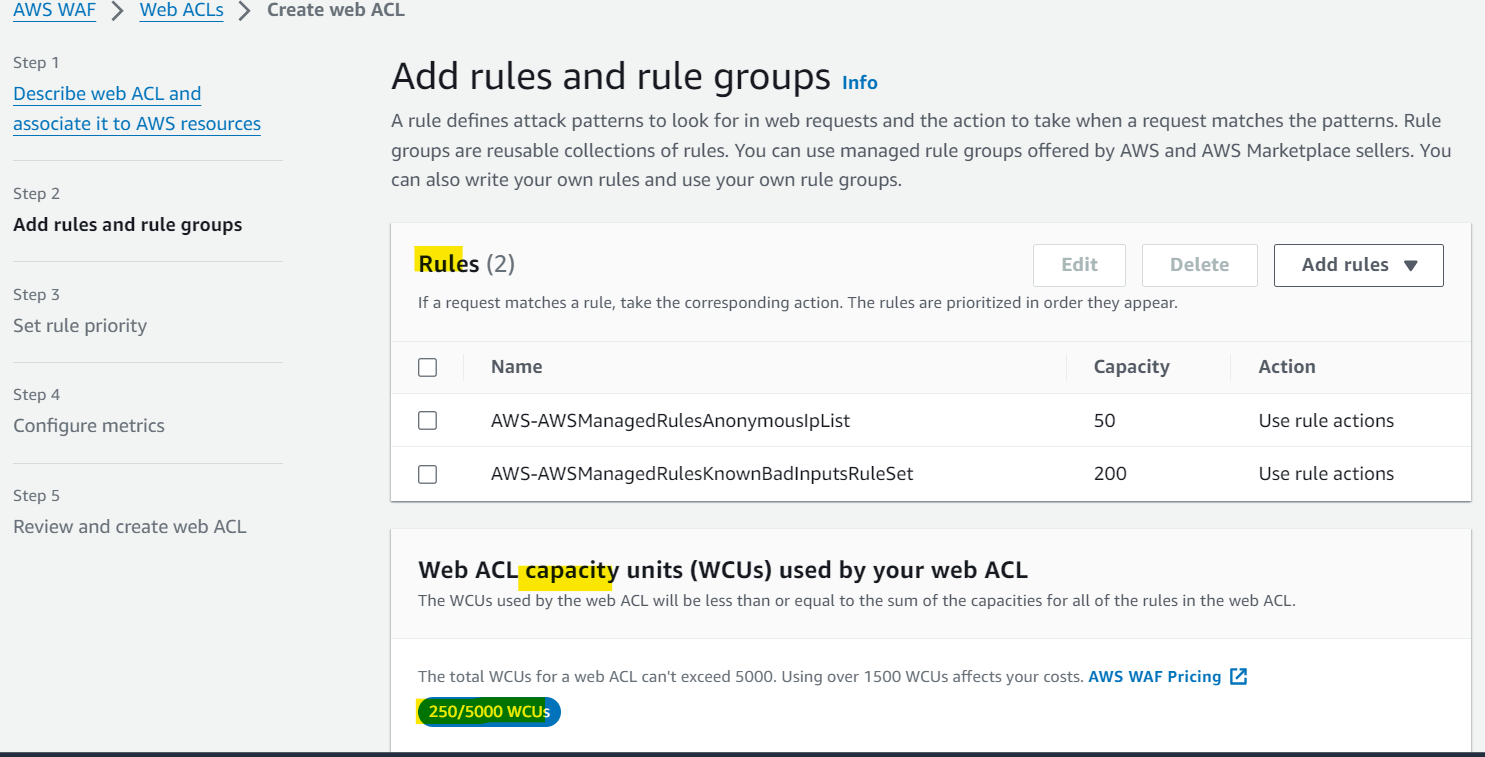

• A rule group
  • a reusable set of rules that you can add to a web ACL

---

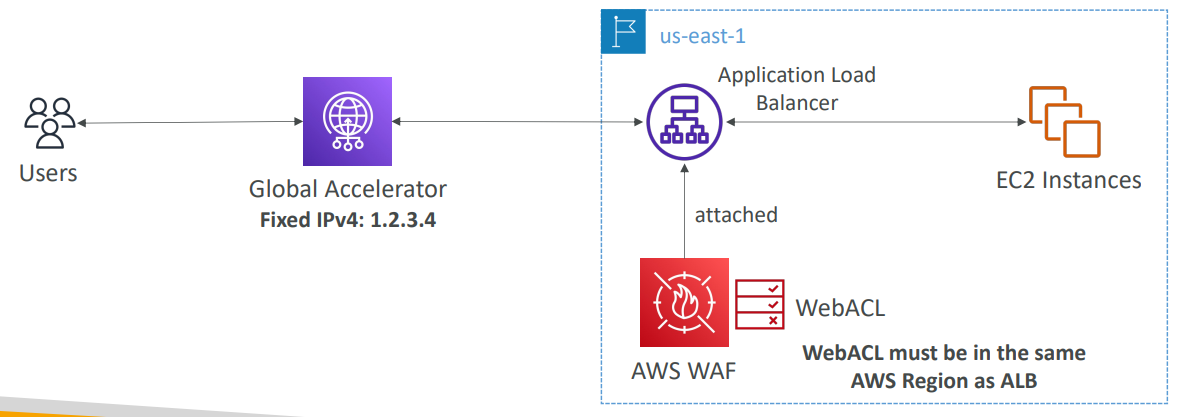

Use Case: Fixed IP while using WAF with a Load Balancer

• WAF does not support the Network Load Balancer (Layer 4)
• ALB does not have fixed IP
• Solution:
  • can use Global Accelerator for fixed IP and WAF on the ALB

---

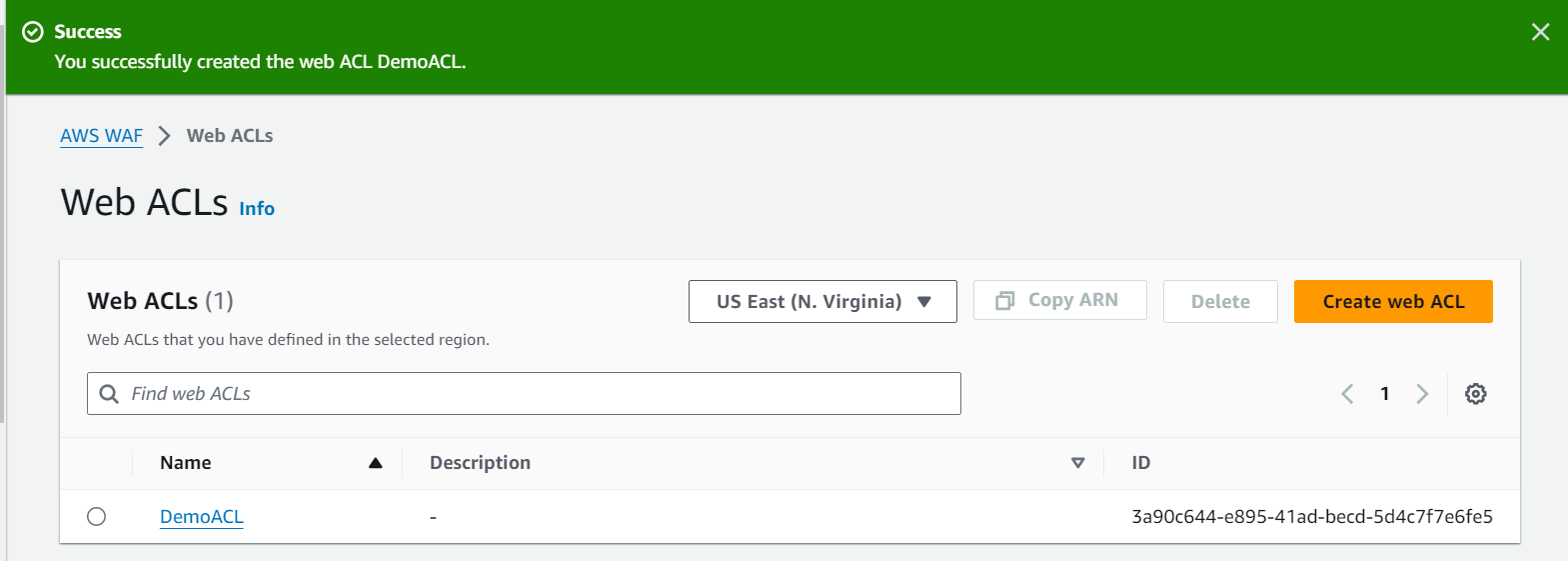

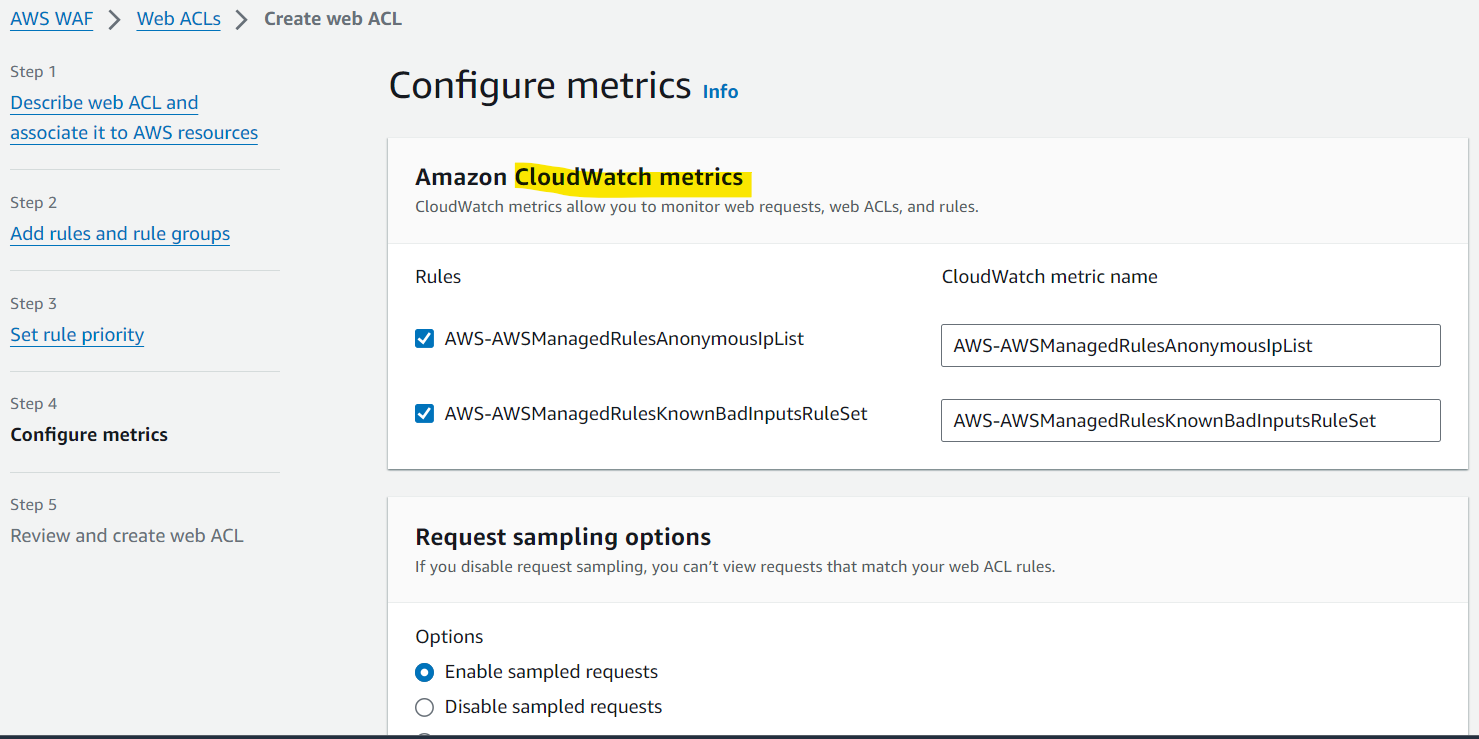

Hands-on

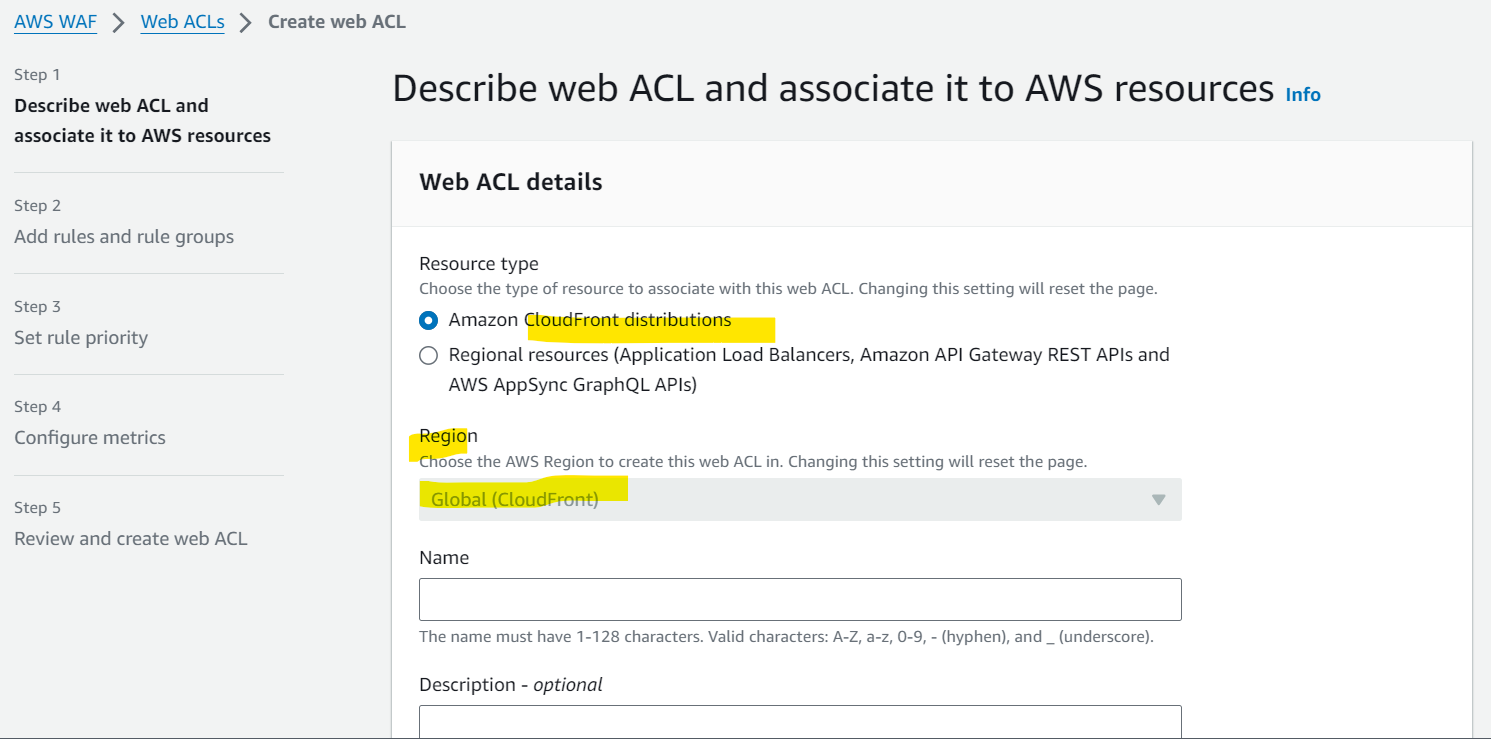

• WAF: CloudFront
  • Region: Global

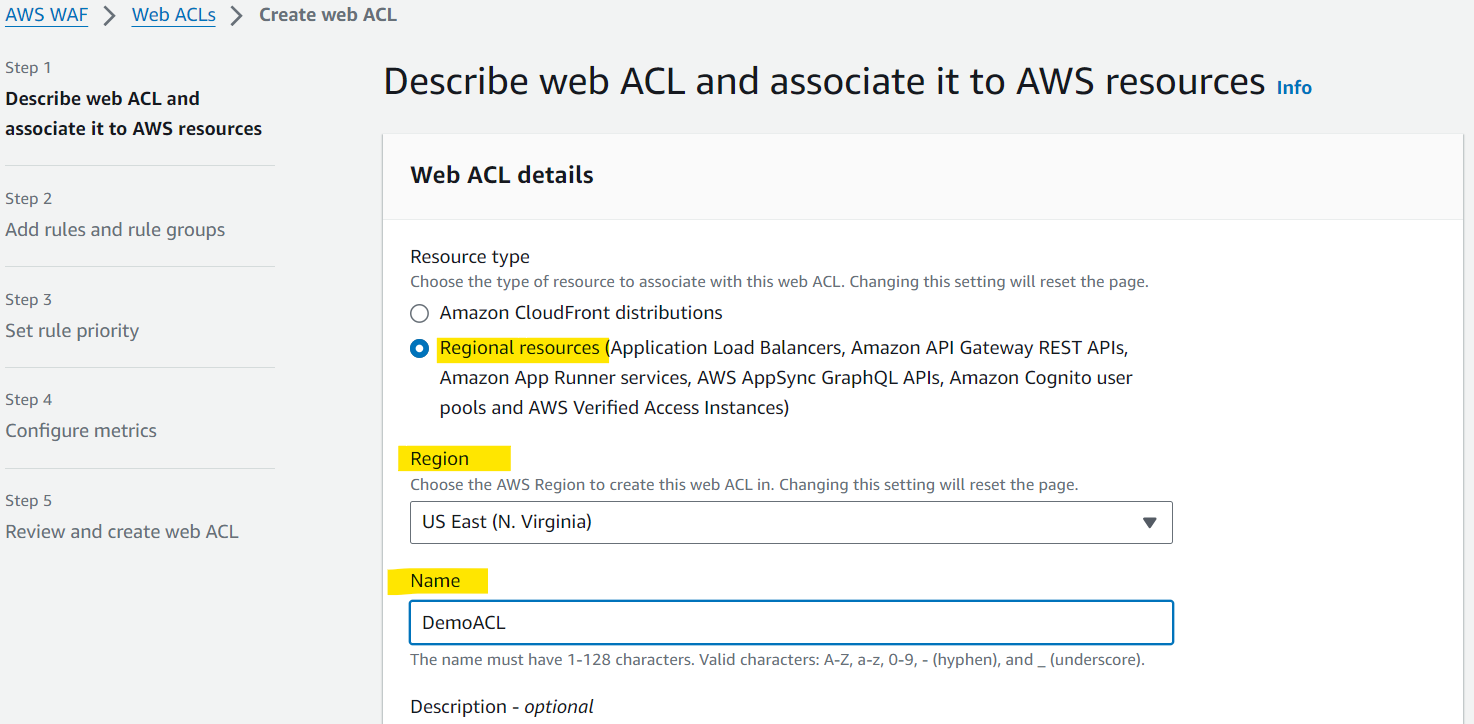

• WAF: Regional resources
  • Application Load Balancers,
  • Amazon API Gateway REST APIs,
  • Amazon App Runner services,
  • AWS AppSync GraphQL APIs,
  • Amazon Cognito user pools,
  • and AWS Verified Access Instances

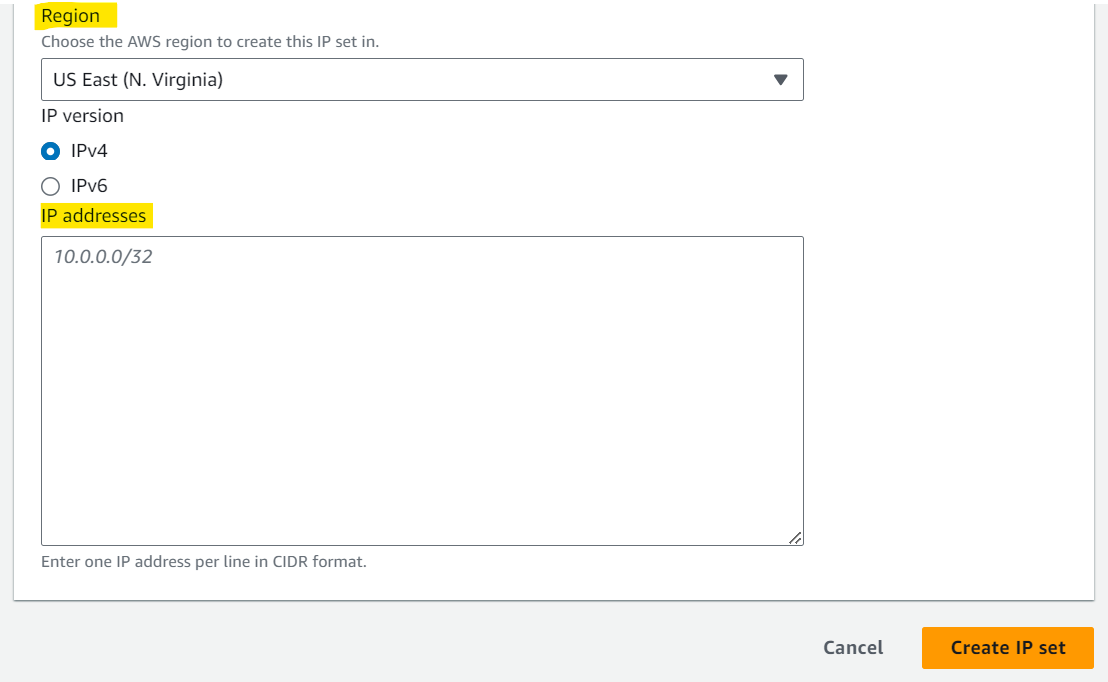

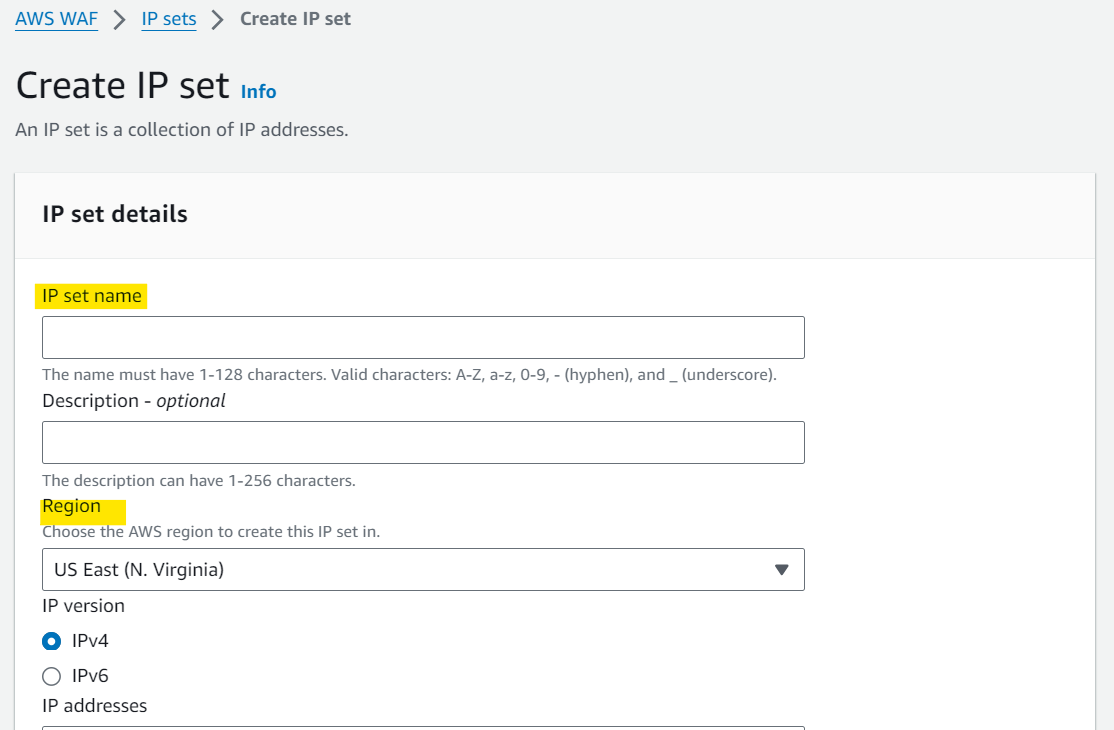

• IP sets

---
