Event processing

Lambda, SNS & SQS

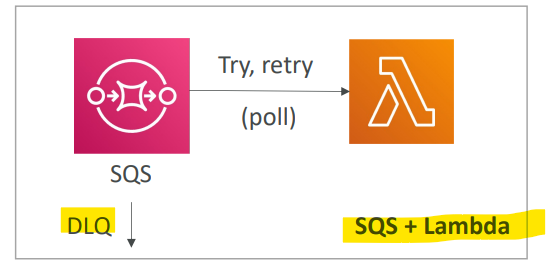

• SQS + Lambda
  • lambda try and retry to poll SQS queue.
  • when there is a big problem with a message, for example five tries, it is sent to a DLQ(dead letter queue).

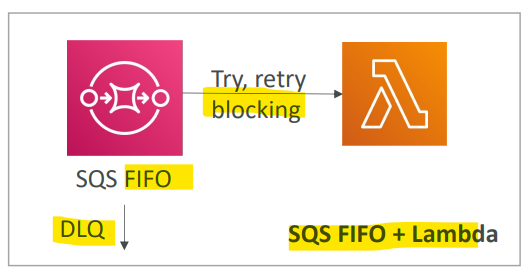

• SQS FIFO + Lambda
  • message processed in order.
  • lambda try and retry to poll SQS queue.
  • Due to processing in order, failure of processing one message creates a blocking.
  • DLQ(dead letter queue) set up on the SQS side to send the failure message off the SQS queue.

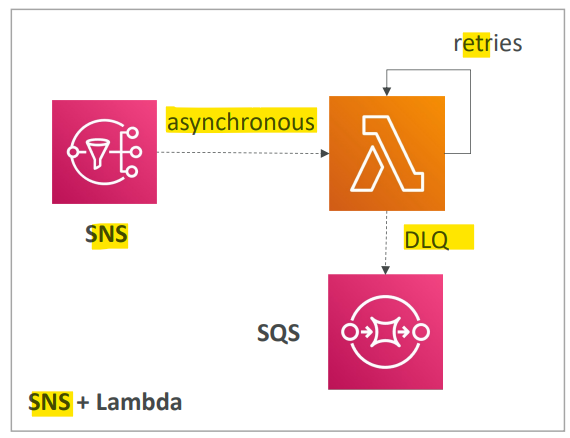

• SNS + Lambda
  • message go through SNS then sent asynchronously to Lambda
  • lambda function retry, e.g., 3 times.
    • if not processed, lambda send the messge into a SQS queue as DLQ for latter processing.
    • DLQ is on the lambda side.

---

Fan Out Pattern: deliver to multiple SQS

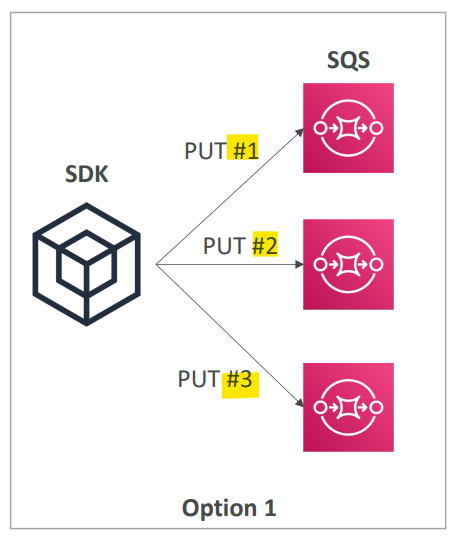

• APP + SQS
  • not reliable
  • each SQS proccess different messages.

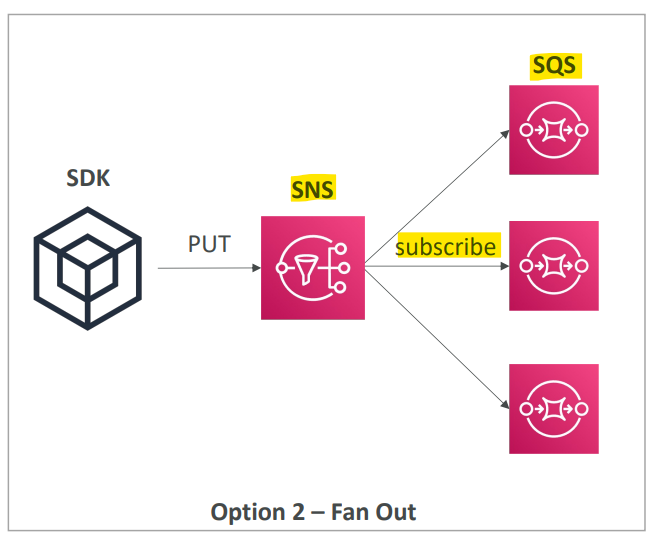

• App + SNS + SQS
  • SQS subscribe to SNS topic
  • messages are sent to all SQS
  • Common design pattern

---

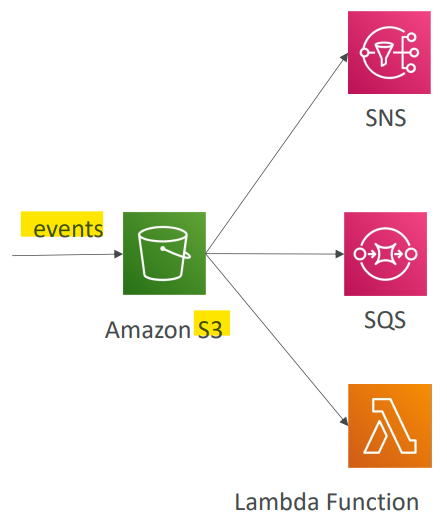

S3 Event Notifications

• S3 events: S3:ObjectCreated, S3:ObjectRemoved, S3:ObjectRestore, S3:Replication…
• Object name filtering possible (*.jpg)
  • filter the event for different types of files.
• Use case:
  • generate thumbnails of images uploaded to S3
• Can create as many “S3 events” as desired
• Can deliver to SNS, SQS, and lambda.
• S3 event notifications typically deliver events in seconds but can sometimes take a minute or longer

• Sample:
  • You are working on a Serverless application where you want to process objects uploaded to an S3 bucket. You have configured S3 Events on your S3 bucket to invoke a Lambda function every time an object has been uploaded. You want to ensure that events that can’t be processed are sent to a Dead Letter Queue (DLQ) for further processing. Which AWS service should you use to set up the DLQ?
    • lambda

---

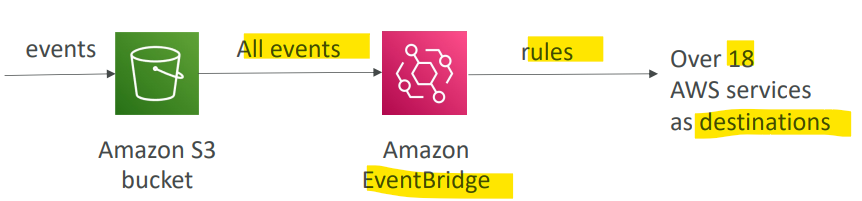

S3 Event Notifications: S3 + EventBridge

• Advanced filtering options with JSON rules (metadata, object size, name…)
• Multiple Destinations
  • ex Step Functions, Kinesis Streams / Firehose…
• EventBridge Capabilities
  • Archive, Replay Events, Reliable delivery

---

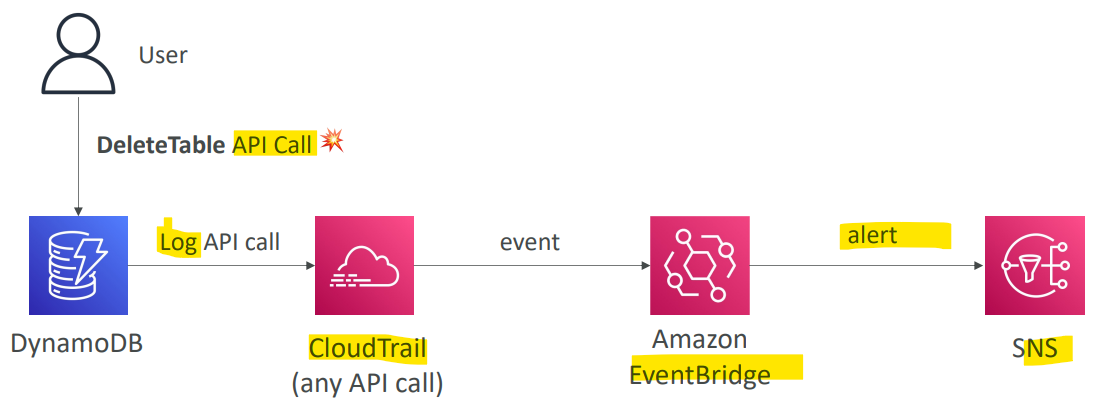

Intercept API Calls: CloudTrail + EventBridge

• Use EventBridge to intercept API Calls

---

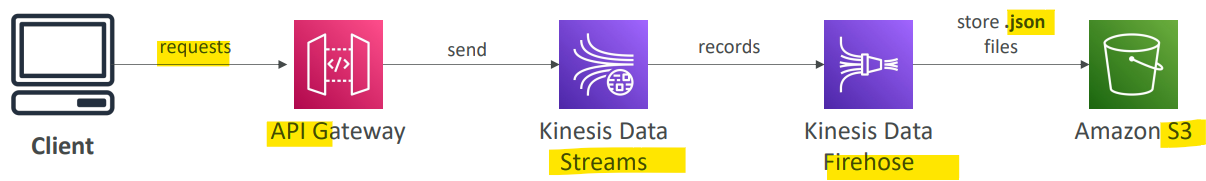

Sent External events to AWS: API Gateway + Kinesis

• use API gateway

---

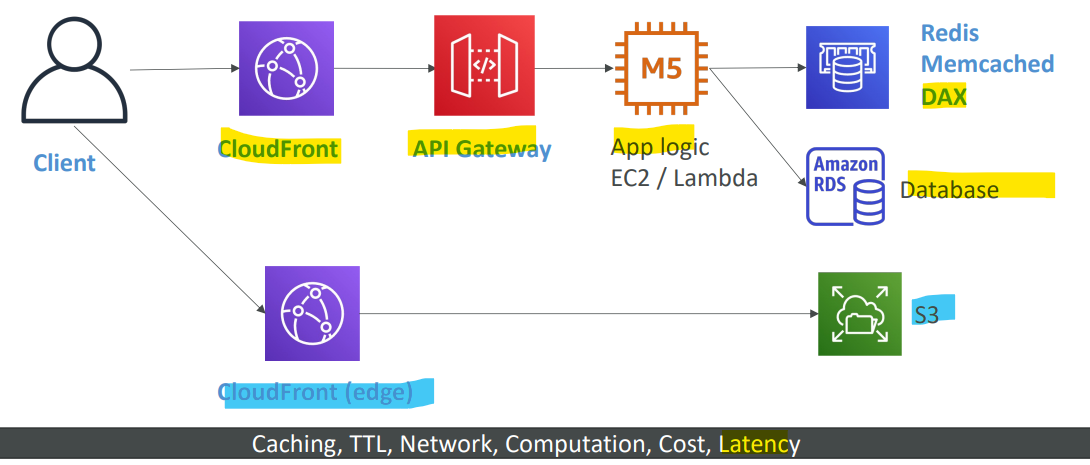

Caching Strategies

• Dynamic route

  • CloudFront
    • caching at the edge(as close as possible to users, very quick)
    • use TTL to make sure the cache is often renewed.
  • API Gateway
    • has caching capabilities.
    • cache in API Gateway is network lying since API Gateway is regional service.不同地区可能有不同缓存.
  • App logic
    • no caching
  • DAX
    • cache the result of frequent queries.
    • saving pressure on DB.
  • DB
    • no caching

• Static Route

  • CloudFront
    • caching at the edge(as close as possible to users, very quick)
    • use TTL to make sure the cache is often renewed.
  • S3
    • no caching

---

Blocking an IP address

Basic

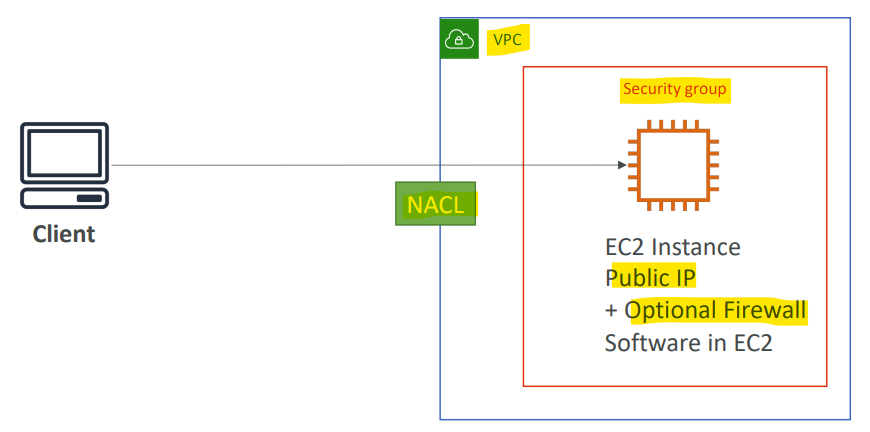

• NACL:
  • Subnet level
  • Deny rule to reject request
• SG
  • only allow a subset of IP
  • not very helpful if app is global(no way to identify the subset of IP), due to no deny rule
• Firewall in EC2
  • optional
  • will be a CPU cost

---

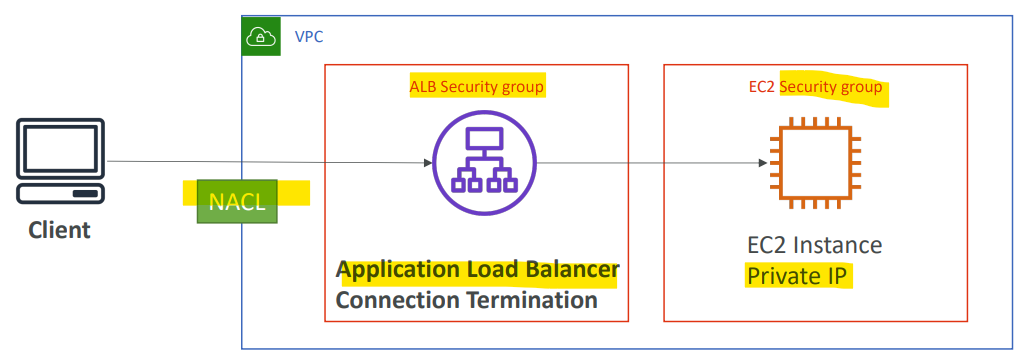

with an ALB

• NACL:
  • Subnet level
  • Deny rule
• ALB
  • between the user and instance
  • Connection termination
  • SG
    • can block only if the range of IP is known
    • helpless if global app, allow everything
• EC2 SG
  • only allow SG of ALB

---

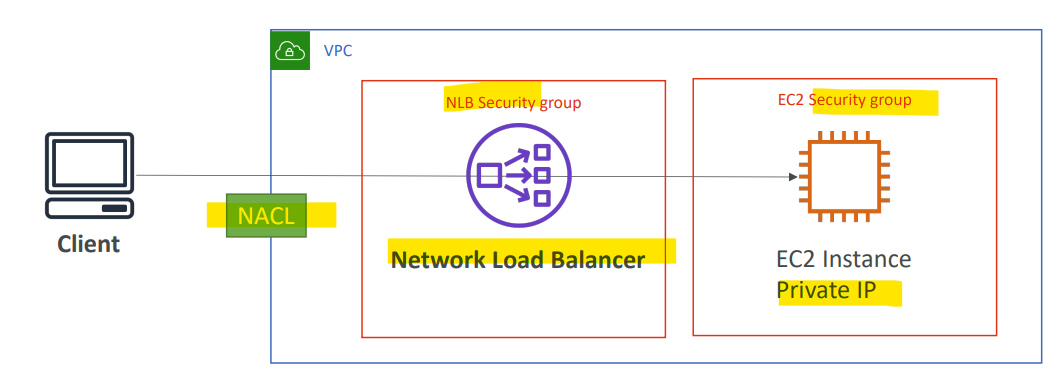

with an NLB

• Same as ALB

---

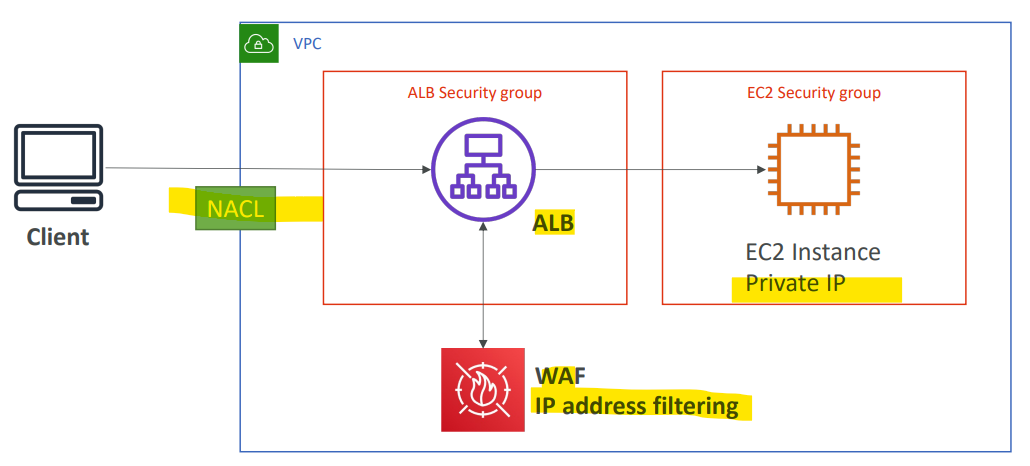

ALB + WAF

• WAF:
  • not a layer between ALB and clients.
  • filter IP address
  • can create rules to count request
  • costly

---

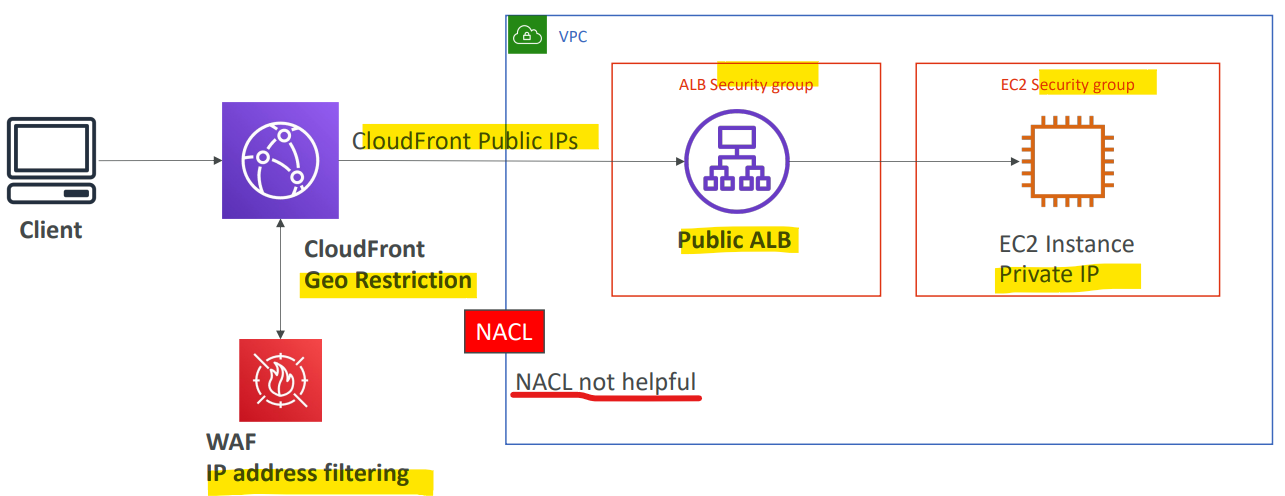

ALB, CloudFront WAF

• CloudFront
  • outside of VPC
  • use Geo Restiction to limit a client from a country
• WAF:
  • filter IP address
  • costly
• NACL:
  • not helpful
  • allow all traffice from CloudFront

• ALB SG

  • not helpful
  • allow all traffice from CloudFront

• Sample:
  • As a Solutions Architect, you have created an architecture for a company that includes the following AWS services: CloudFront, Web Application Firewall (AWS WAF), AWS Shield, Application Load Balancer, and EC2 instances managed by an Auto Scaling Group. Sometimes the company receives malicious requests and wants to block these IP addresses. According to your architecture, Where should you do it?
    • WAF

---

High Performance Computing (HPC)(变得常考)

• The cloud is the perfect place to perform HPC

  • You can create a very high number of resources in no time
  • You can speed up time to results by adding more resources
  • You can pay only for the systems you have used

• Use Case:

  • Perform genomics, computational chemistry, financial risk modeling, weather prediction, machine learning, deep learning, autonomous driving

• Which services help perform HPC? The following sections

---

Data Management & Transfer

• AWS DataSync

  • Move large amount of data between on-premises and S3, EFS, FSx for Windows

• AWS Direct Connect:

  • Move GB/s of data to the cloud, over a private secure network

• Snowball & Snowmobile

  • Move PB of data to the cloud
  • physical route

---

Compute and Networking

• EC2 Instances:

  • CPU optimized, GPU optimized
  • Spot Instances / Spot Fleets for cost savings + Auto Scaling

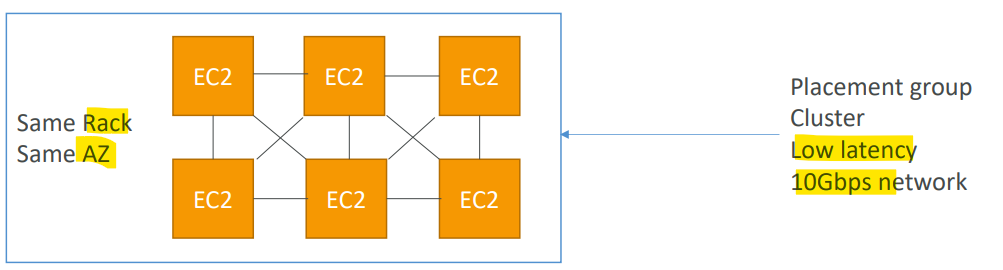

• EC2 Placement Groups:

  • Cluster for good network performance

• EC2 Enhanced Networking (SR-IOV)(考)

  • Higher bandwidth, higher PPS (packet per second), lower latency
  • Option 1:
    • Elastic Network Adapter (ENA) up to 100 Gbps
  • Option 2:
    • Intel 82599 VF up to 10 Gbps – LEGACY

• Elastic Fabric Adapter (EFA) (考)

  • Improved ENA for HPC, only works for Linux
  • Great for inter-node communications, tightly coupled workloads
  • Leverages Message Passing Interface (MPI) standard (distributed computation)
  • Bypasses the underlying Linux OS to provide low-latency, reliable transport

• Sample:

  • Your EC2 instances are deployed in Cluster Placement Group in order to perform High-Performance Computing (HPC). You would like to maximize network performance between your EC2 instances. What should you use?
    • Elastic Fabric Adapter

---

Storage

• Instance-attached storage:

  • EBS: scale up to 256,000 IOPS with io2 Block Express
  • Instance Store: scale to millions of IOPS, linked to EC2 instance, low latency

• Network storage:

  • Amazon S3: large blob, not a file system
  • Amazon EFS: scale IOPS based on total size, or use provisioned IOPS
  • Amazon FSx for Lustre:
    • HPC optimized distributed file system, millions of IOPS
    • Backed by S3

---

Automation and Orchestration

• AWS Batch

  • supports multi-node parallel jobs, which enables you to run single jobs that span multiple EC2 instances.
  • Easily schedule jobs and launch EC2 instances accordingly

• AWS ParallelCluster

  • Open-source cluster management tool to deploy HPC on AWS
  • Configure with text files
  • Automate creation of VPC, Subnet, cluster type and instance types
  • Ability to enable EFA on the cluster (improves network performance)

---

Creating a highly available EC2 instance

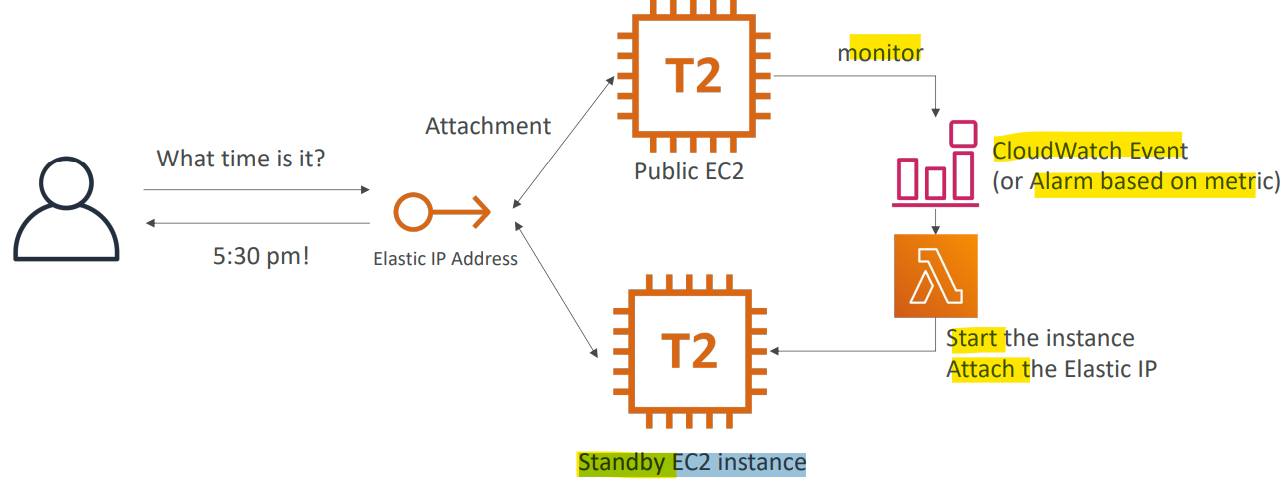

Standby EC2 instance

• CW
  • monitor
  • alarm to trigger lambda
  • lambda launch standby and attech ip.

---

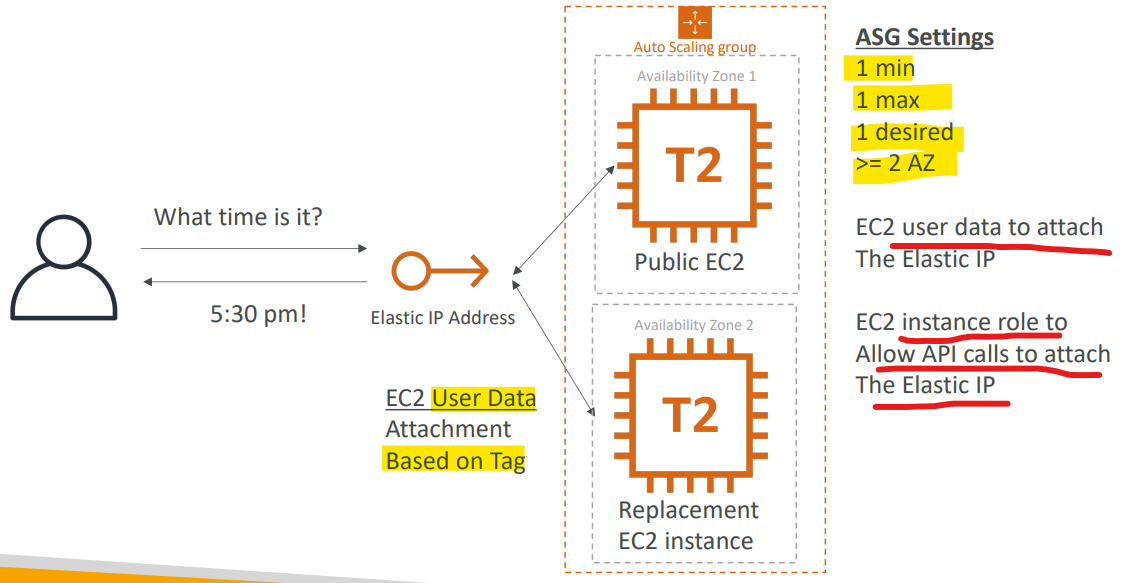

With an Auto Scaling Group

• ASG

  • min 1: when existing down, auto create 1
  • max 1: limit instance number
  • 2 AZ: allow cross-AZ(HA)

• no CW

• To attach Elastic IP:

  • User data to attach
  • instance role to allow to call

---

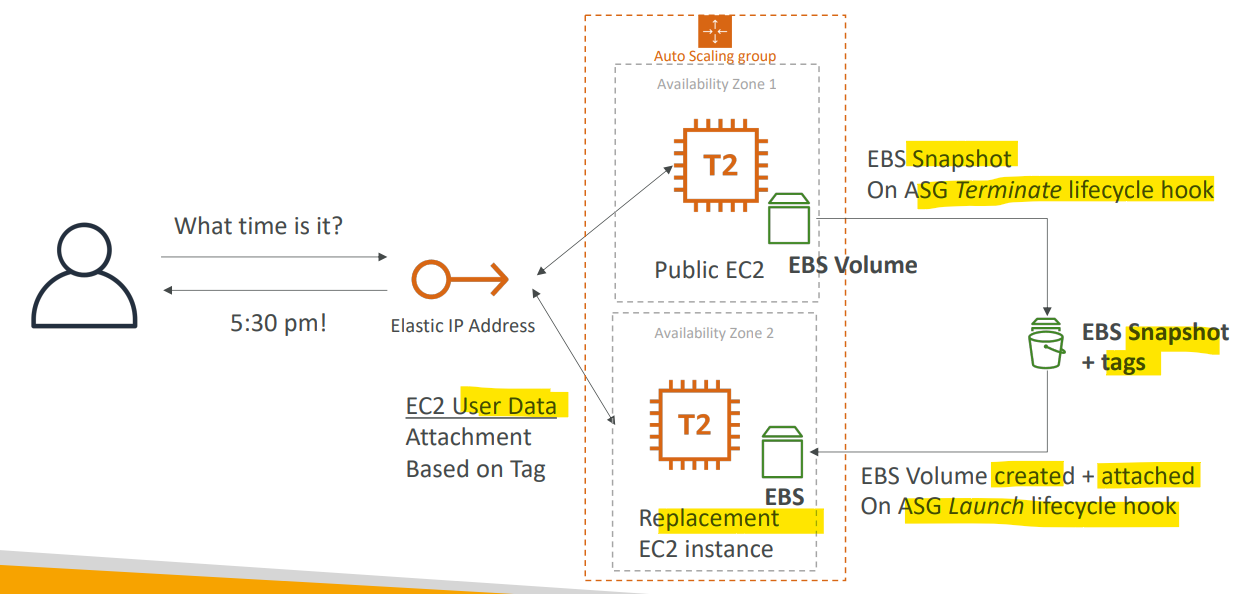

With ASG + EBS

• ASG:
  • when the first instance terminated, use lifecycle hook to run a script to create a EBS snapshot
  • When the new instance launch, use lifecycle hook to craete EBS volume out of EBS Snapshot in a new AZ.

---

More Architecture Examples

• If you want to see more AWS architectures:
  • https://aws.amazon.com/architecture/
  • https://aws.amazon.com/solutions/

---
