SSA - Classic Solution Architecture
-
5 pillars for a well architected application:
- costs,
- performance,
- reliability,
- security,
- operational excellence
-
Considerations:
- Public vs Private IP and EC2 instances
- Elastic IP vs Route 53 vs Load Balancers
- Route 53 TTL, A records and Alias Records
- Maintaining EC2 instances manually vs Auto Scaling Groups
- Multi AZ to survive disasters
- ELB Health Checks
- Security Group Rules

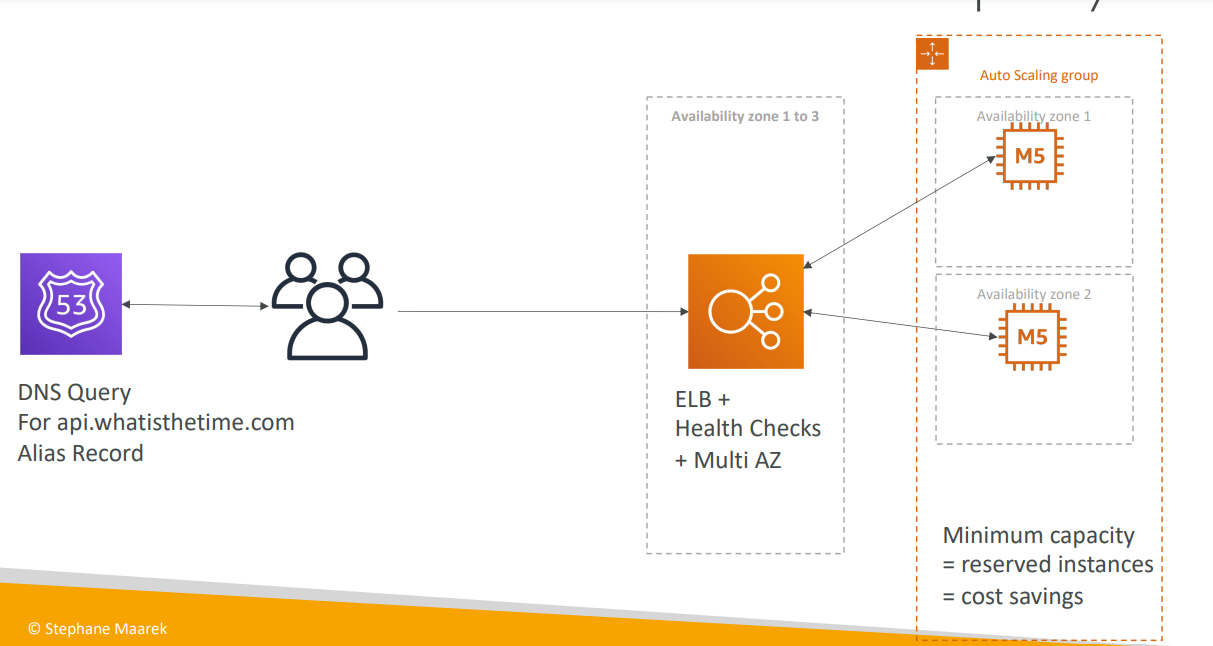

WhatIsTheTime.com
-
Requirements
- allows people to know what time it is
- don’t need a database
- want to fully scale vertically and horizontally, no downtime
- Solution:
- Route53
- provides users a uniform entry to the web application
- Alias Record
- instead of A type record, enable to set AWS resrources as target group
- Load balancer
- instead of Elastic IP, less cost
- Health Checks
- only return the healthy resources
- failover, high availability
- Multi AZ
- failover, high availability
- Auto Scalling Group
- High Elasticity
- Reserve instance
- less cost.
- Security Group
- restrict EC2 traffic to ALB only.
- Route53

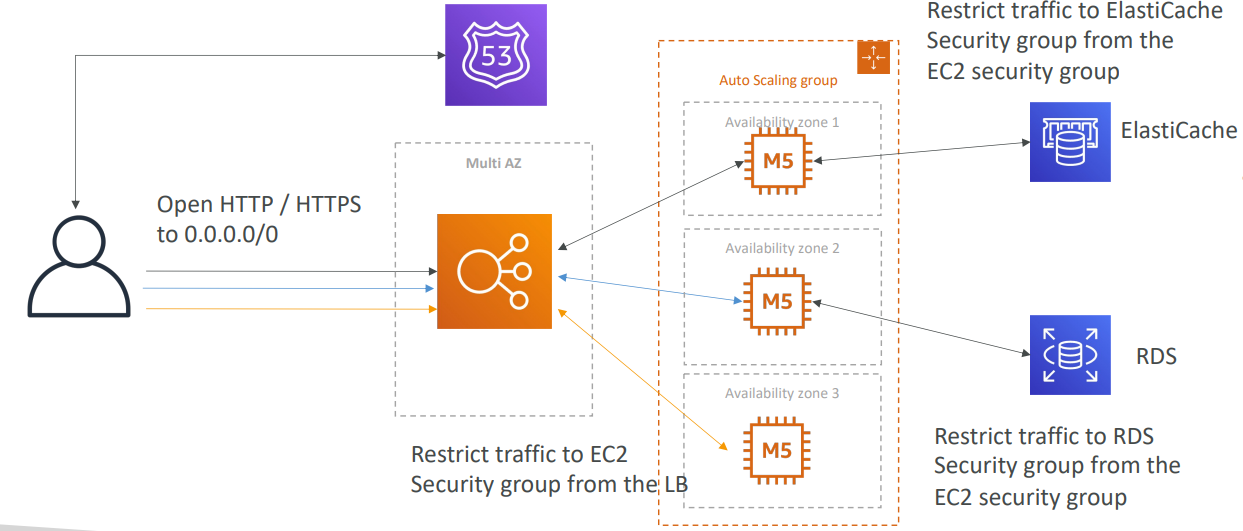

MyClothes.com
- Requirements
- allows people to buy clothes online.
- having hundreds of users at the same time
- need to scale, maintain horizontal scalability and keep our web application as stateless as possible
- When an application is stateless, the server does not store data or other information about the client session.
- not lose their shopping cart
- have their details (address, etc) in a database
-
Application:
- Web clients for storing cookies and making our web app stateless
-
Route 53
- single entry
- Alias Record: top node can target AWS resources
-
Load Balance
- Multi AZ: availability
- Health Checks
-
EC2
- auto scalling group: scalability
- multi AZ: availability
- Security Group: restrict traffic only to ALB
-
ElasticCache:
- store shopping cart data
- store temporary session data, stateless
- low lattency
- cache data from RDS
- instead of sticky session that might cause high demand on specific ec2.
- Security Group: restrict traffic only to EC2
-
RDS:
- store address information
- Read Replica: scalling read
- Security Group: restrict traffic only to EC2
- Multi AZ: disaster revocery
MyWordPress.com
- Requirements:
- create a fully scalable WordPress website
- website to access and correctly display picture uploads
- user data, and the blog content should be stored in a MySQL database.
-
Route53
- singel DNS entry
- Alias Record: target ALB
-
Load Balancer:
- Multi AZ: high availability
- health checks: failover
-
EC2
- Multi AZ: disaster recovery
- Auto Scalling Group: scalibility
-

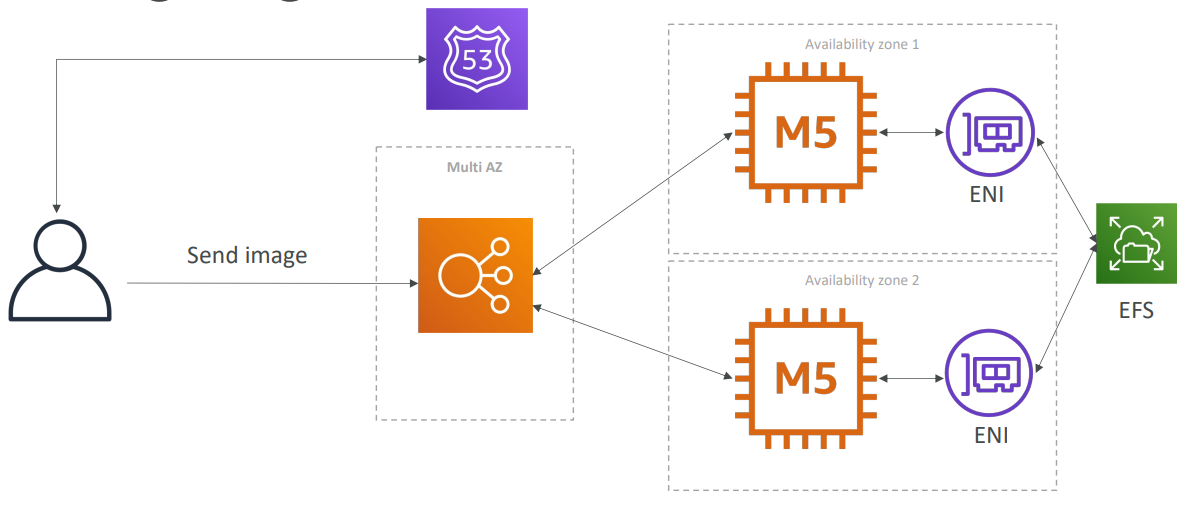

EFS:
- store images
- insteal of EBS, which costly and mount only one ec2
- multiple mount ec2
- cost less
-

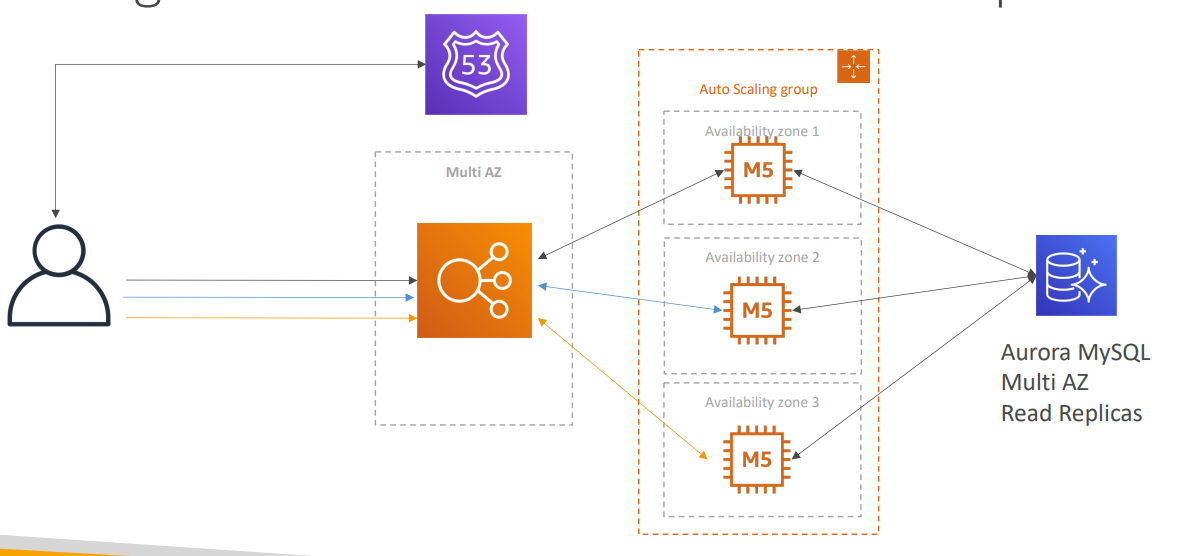

Aurora:
- mysql compatible
- multi AZ: disaster recovery
- read replica: read preformance
Instantiating Applications quickly
-
When launching a full stack (EC2, EBS, RDS), it can take time to:
- Install applications
- Insert initial (or recovery) data
- Configure everything
- Launch the application
-
EC2 Instances:
- Use a Golden AMI:
- Install your applications, OS dependencies etc.. beforehand and launch your EC2 instance from the Golden AMI
- Bootstrap using User Data:
- For dynamic configuration, use User Data scripts
- Hybrid:
- mix Golden AMI and User Data (Elastic Beanstalk)
- Use a Golden AMI:
-
RDS Databases:
- Restore from a snapshot: the database will have schemas and data ready!
-
EBS Volumes:
- Restore from a snapshot: the disk will already be formatted and have data!
