AWS - Messaging and Integration

Back

• AWS - Messaging and Integration
  • Synchronous vs Asynchronous
  • SQS vs SNS vs Kinesis

---

Synchronous vs Asynchronous

• When we start deploying multiple applications, they will inevitably need to communicate with one another

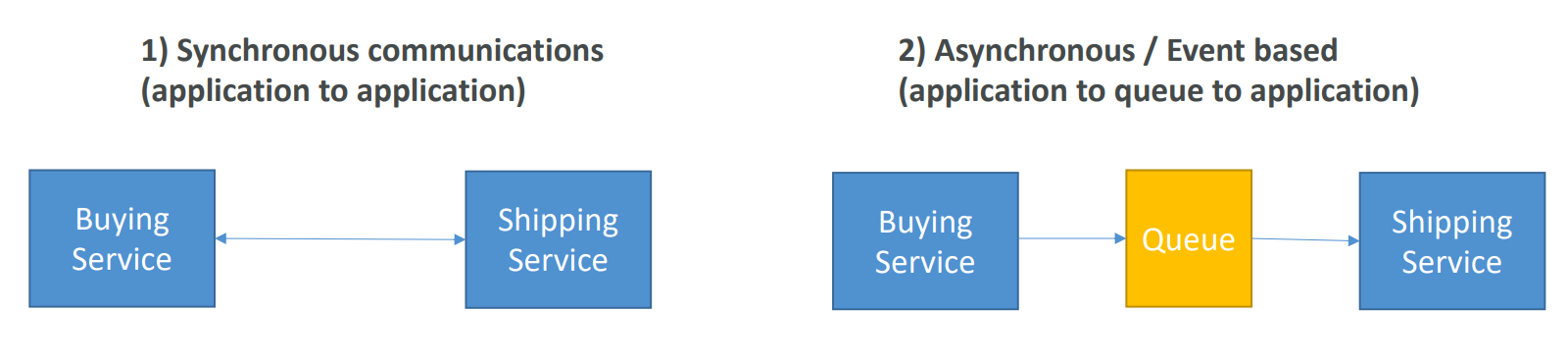

• There are two patterns of application communication

• Synchronous between applications can be problematic if there are sudden spikes of traffic

  • What if you need to suddenly encode 1000 videos but usually it’s 10?

• In that case, it’s better to decouple your applications,

  • using SQS: queue model
  • using SNS: pub/sub model
  • using Kinesis: real-time streaming model

• These services can scale independently from our application!

---

SQS vs SNS vs Kinesis

• SQS:

  • Consumer “pull data”
  • Data is deleted after being consumed
  • Can have as many workers (consumers) as we want
  • No need to provision throughput (unlimited)
  • Ordering guarantees only on FIFO queues
  • Individual message delay capability

---

• SNS:

  • Push data to many subscribers
  • Up to 12,500,000 subscribers
  • Data is not persisted (lost if not delivered)
  • Pub/Sub
  • Up to 100,000 topics
  • No need to provision throughput
  • Integrates with SQS for fan-out architecture pattern
  • FIFO capability for SQS FIFO

---

• Kinesis:
  • Standard: pull data
    • 2 MB per shard
  • Enhanced-fan out: push data
    • 2 MB per shard per consumer
  • Possibility to replay data
  • Meant for real-time big data, analytics and ETL
  • Ordering at the shard level
  • Data expires after X days (Data store)
  • Provisioned mode or ondemand capacity mode

---
