AWS - SNS

Back

• AWS - SNS
  • Amazon SNS
  • How to publish
    • Publishing to SNS: Integrates with a lot of AWS services
    • Publishing to Subscribers
  • Security
  • Message Filtering
  • Hands-On
  • Fan-out Pattern: SNS + SQS
    • Use Case: S3 Events to multiple queues
  • Fan-out Pattern: SNS + FIFO
    • Use Case: SNS FIFO + SQS FIFO
  • Fan-out Pattern: SNS + Kinesis
    • Use Case: SNS to Amazon S3 through Kinesis Data Firehose

---

Amazon SNS

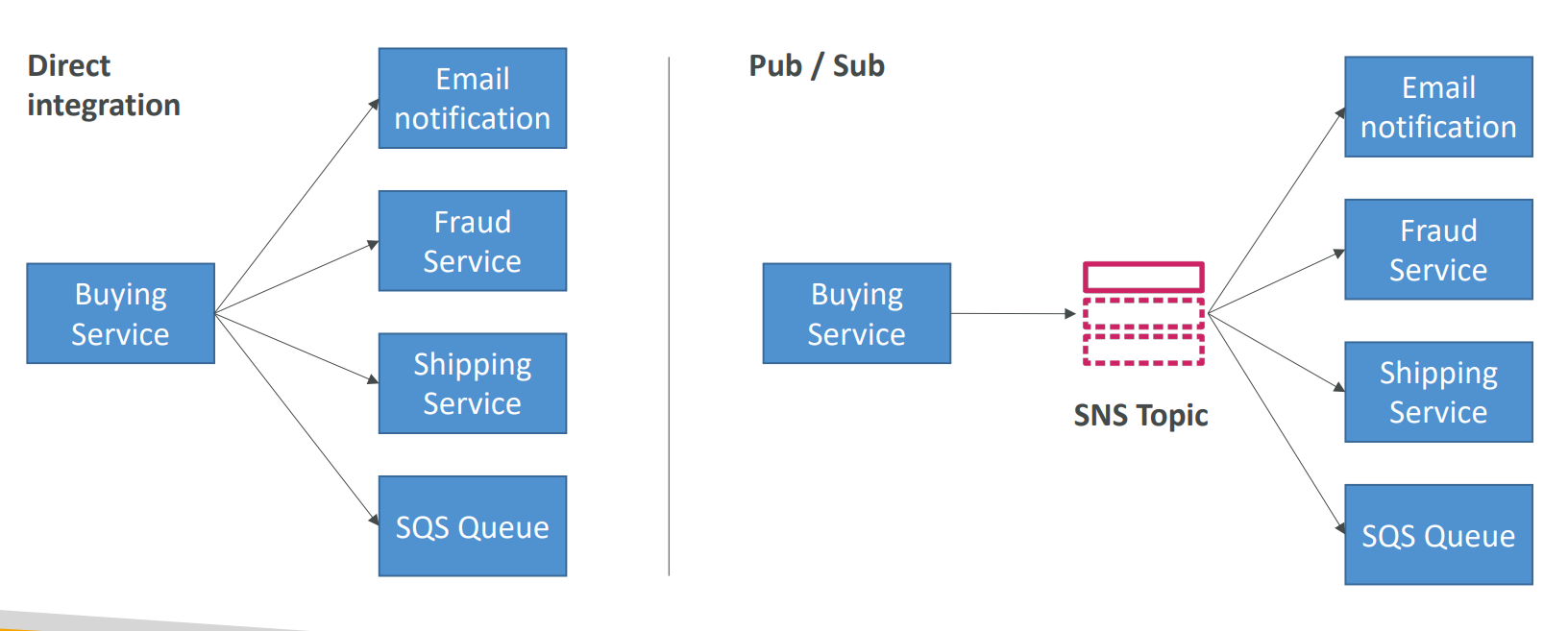

• What if you want to send one message to many receivers?

• Pub/Sub

• Amazon SNS
  • The “event producer” only sends message to one SNS topic
  • As many “event receivers” (subscriptions) as we want to listen to the SNS topic notifications
• Each subscriber to the topic will get all the messages (note: new feature to filter messages)
• Up to 12,500,000 subscriptions per topic
• 100,000 topics limit

---

How to publish

• Topic Publish (using the SDK)

  • Create a topic
  • Create a subscription (or many)
  • Publish to the topic

• Direct Publish (for mobile apps SDK)

  • Create a platform application
  • Create a platform endpoint
  • Publish to the platform endpoint
  • Works with Google GCM(Google Cloud Messaging), Apple APNS(Apple Push Notification service), Amazon ADM(Amazon Device Messaging)…

---

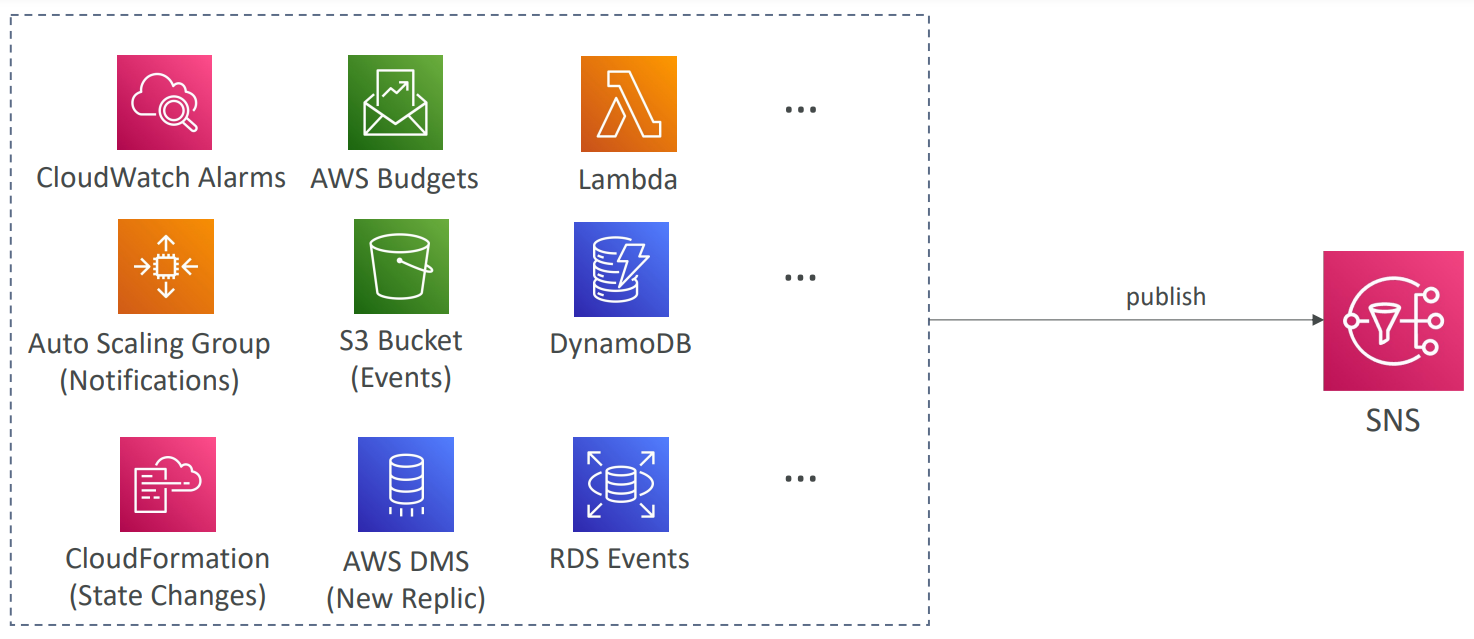

Publishing to SNS: Integrates with a lot of AWS services

---

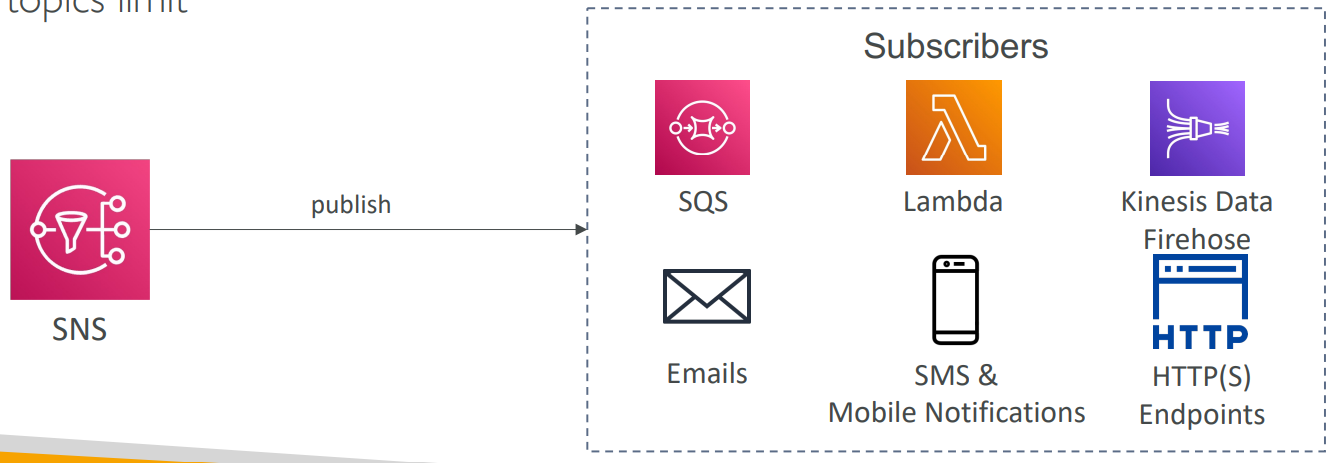

Publishing to Subscribers

• 有例题:Note: Kinesis Data Firehose is now supported, but not Kinesis Data Streams.
• Sample:
  • Which AWS service helps you when you want to send email notifications to your users?
  • SNS

---

Security

• Encryption:

  • In-flight encryption using HTTPS API
  • At-rest encryption using KMS keys
  • Client-side encryption if the client wants to perform encryption/decryption itself

• Access Controls:

  • IAM policies to regulate access to the SNS API

• SNS Access Policies (similar to S3 bucket policies)

  • Useful for cross-account access to SNS topics
  • Useful for allowing other services ( S3…) to write to an SNS topic

---

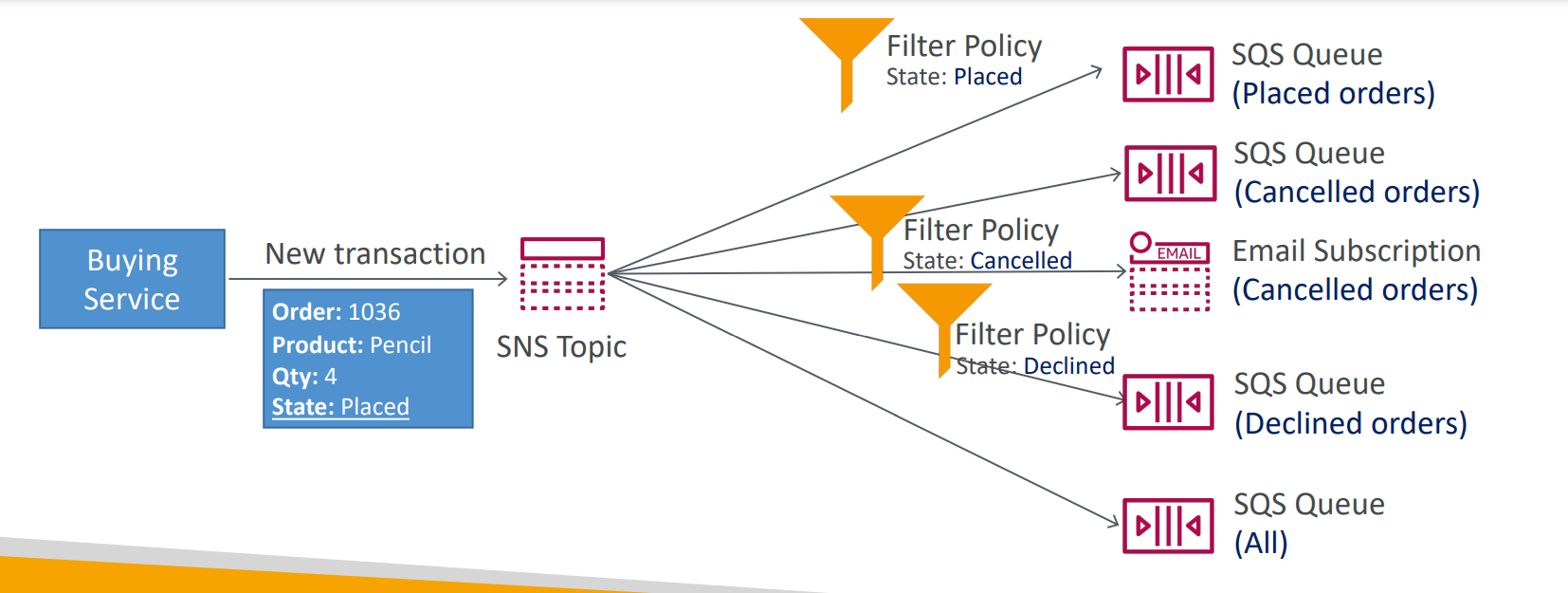

Message Filtering

• JSON policy used to filter messages sent to SNS topic’s subscriptions
  • If a subscription doesn’t have a filter policy, it receives every message

---

Hands-On

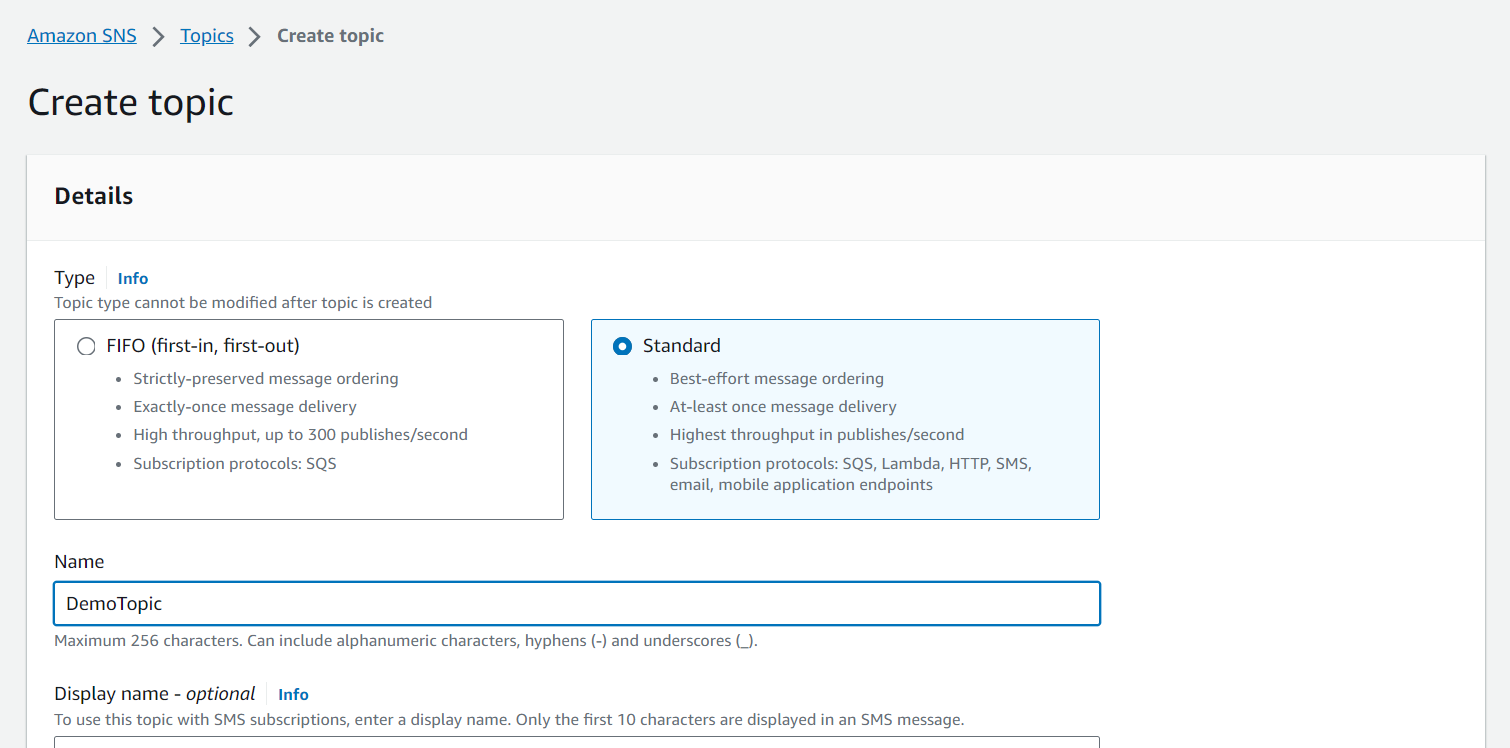

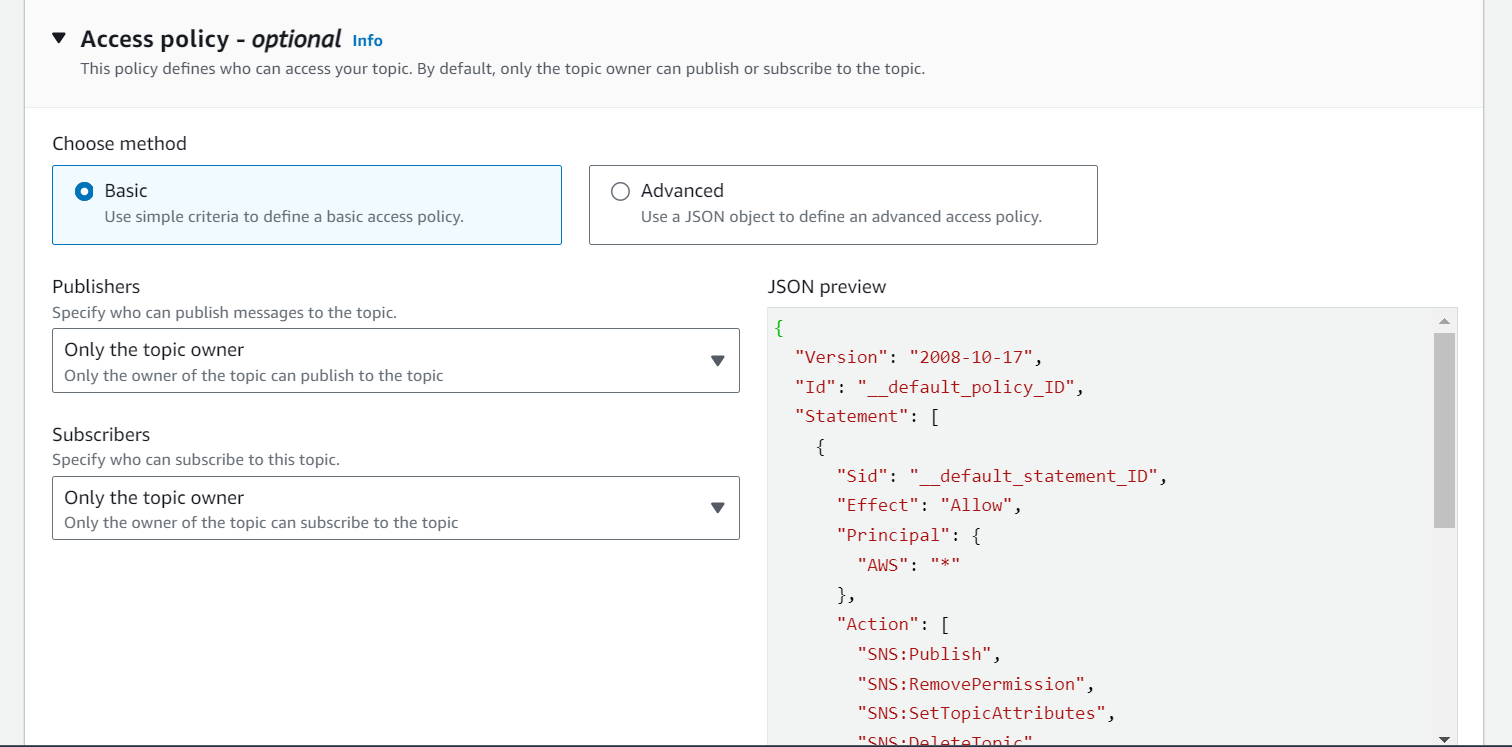

• Create Topic

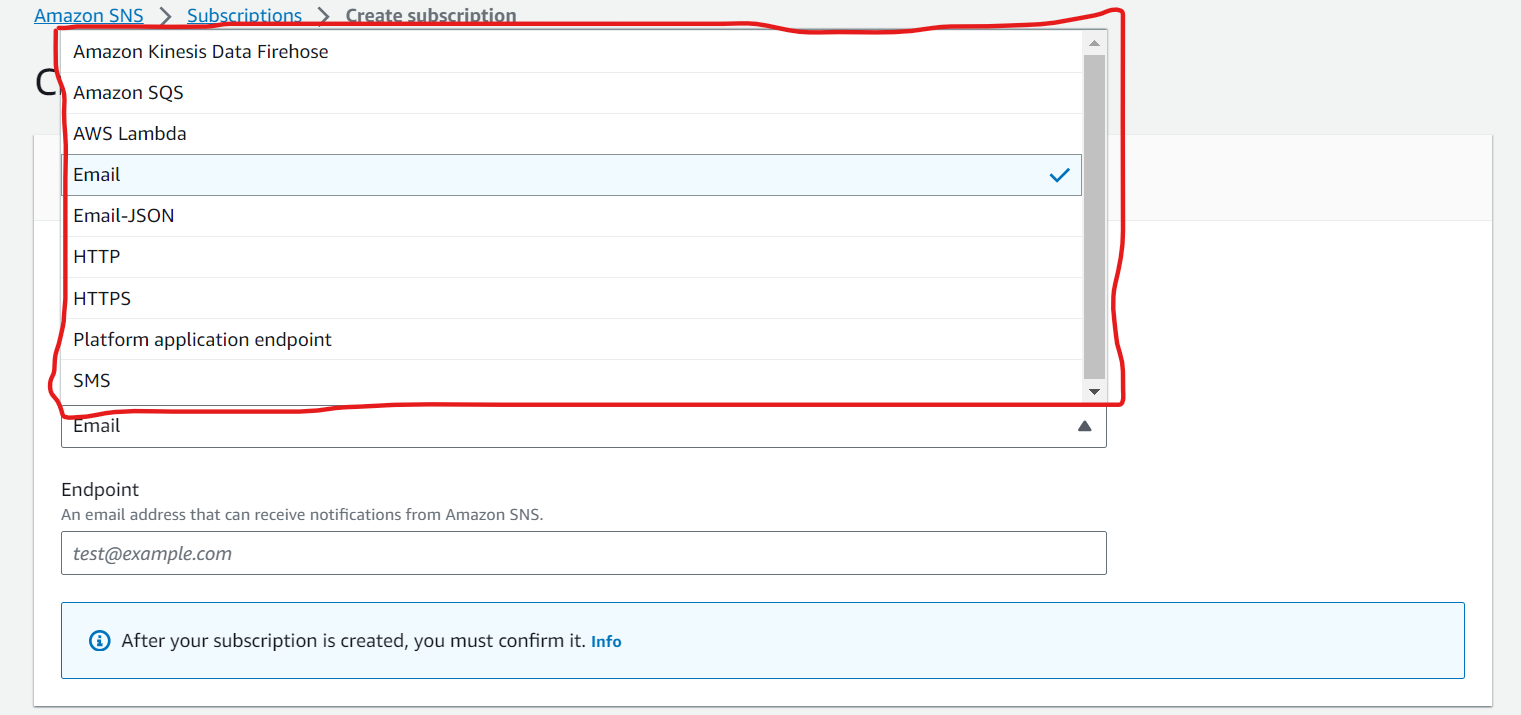

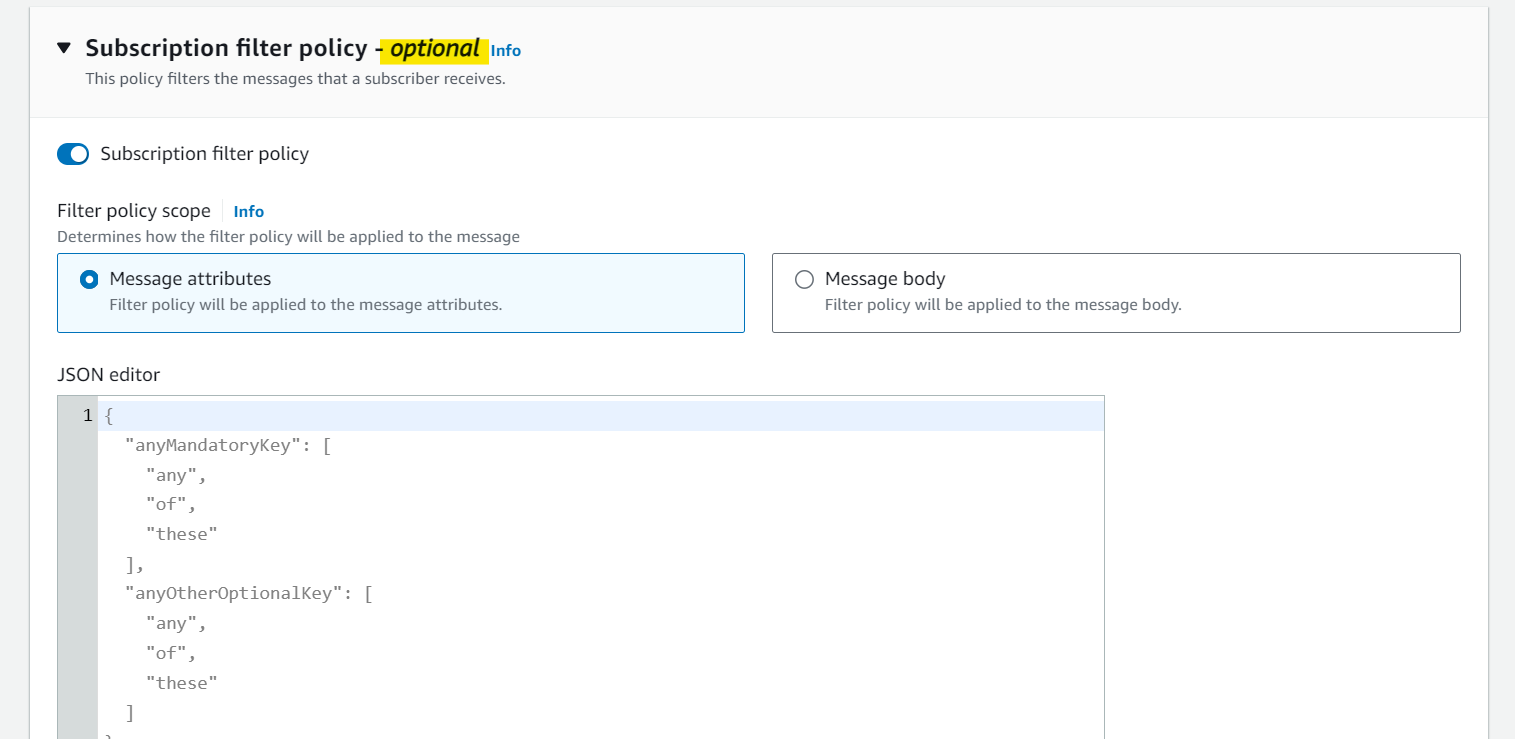

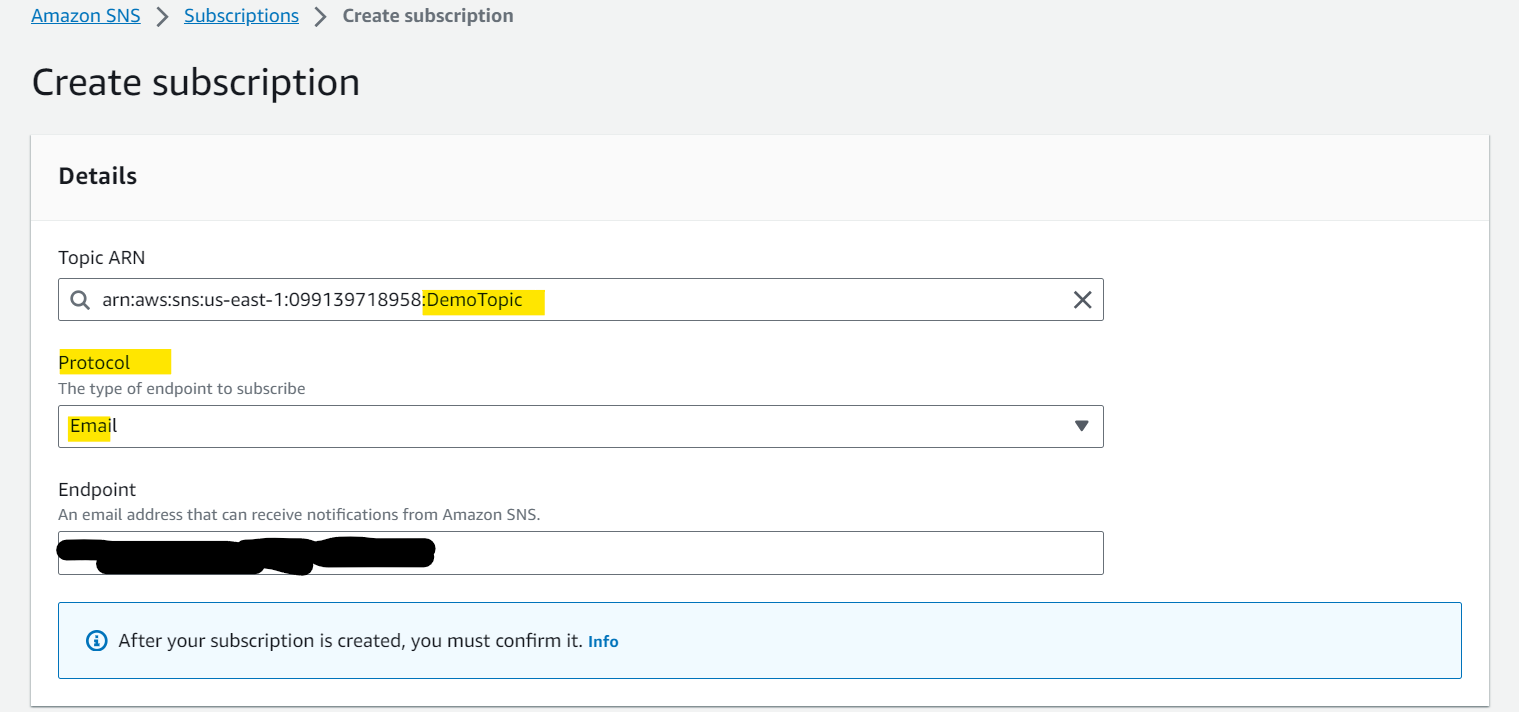

• Create Subscription

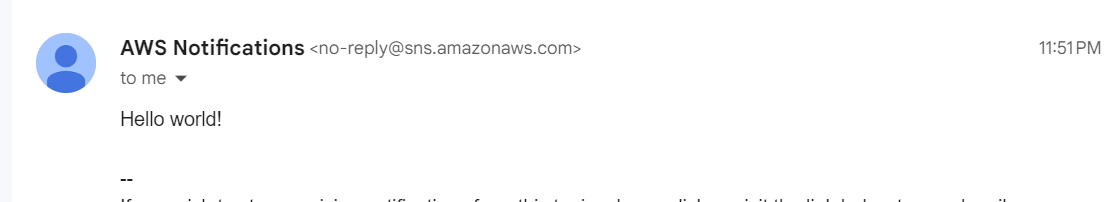

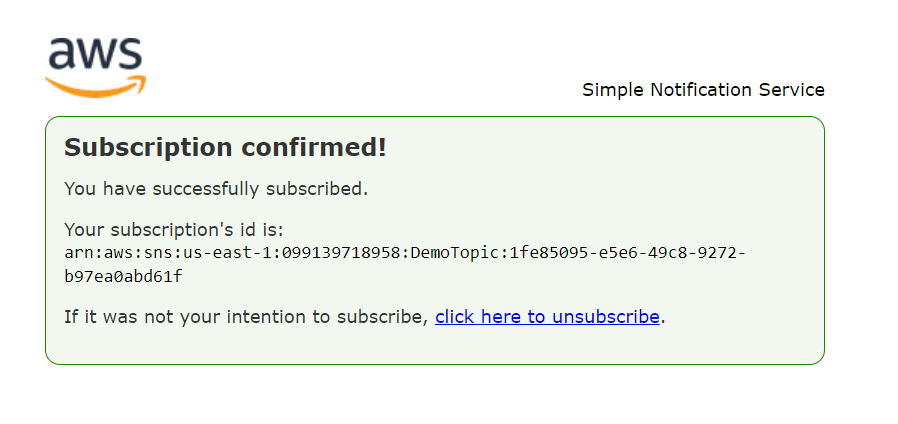

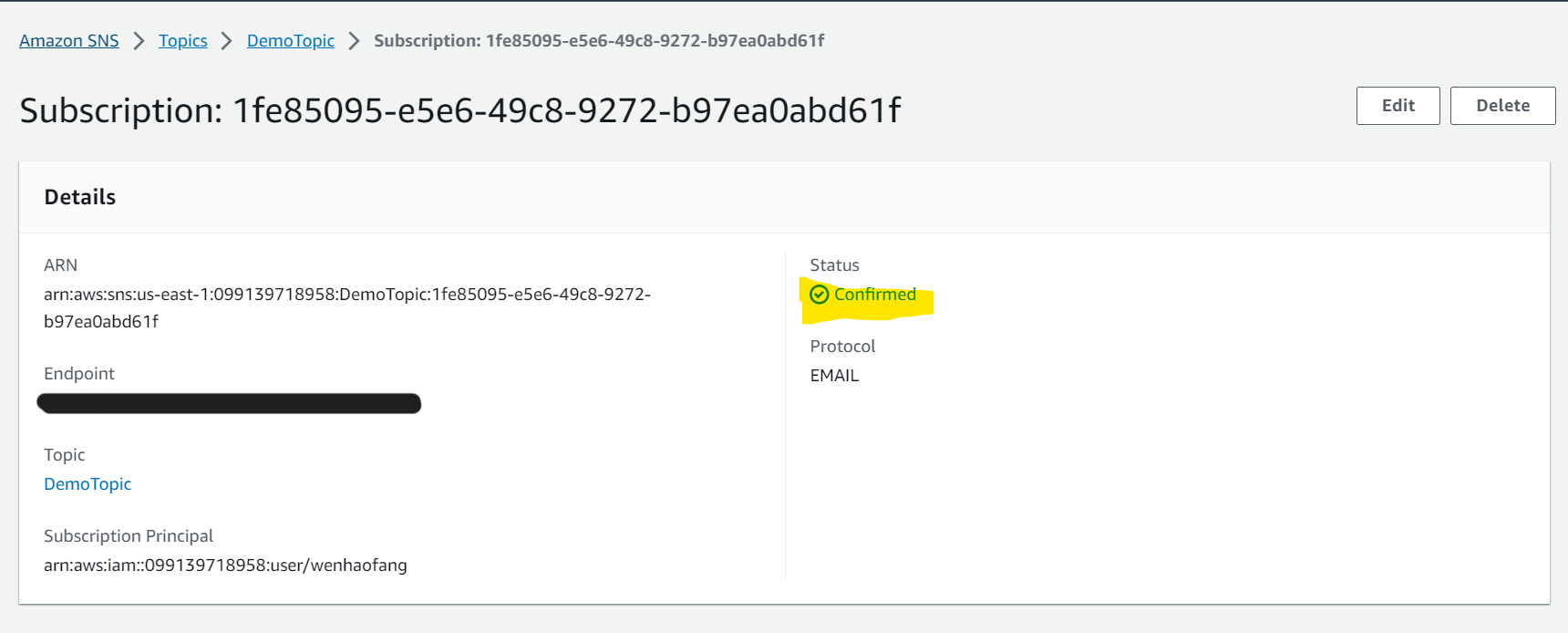

• Validate subscription in email box.

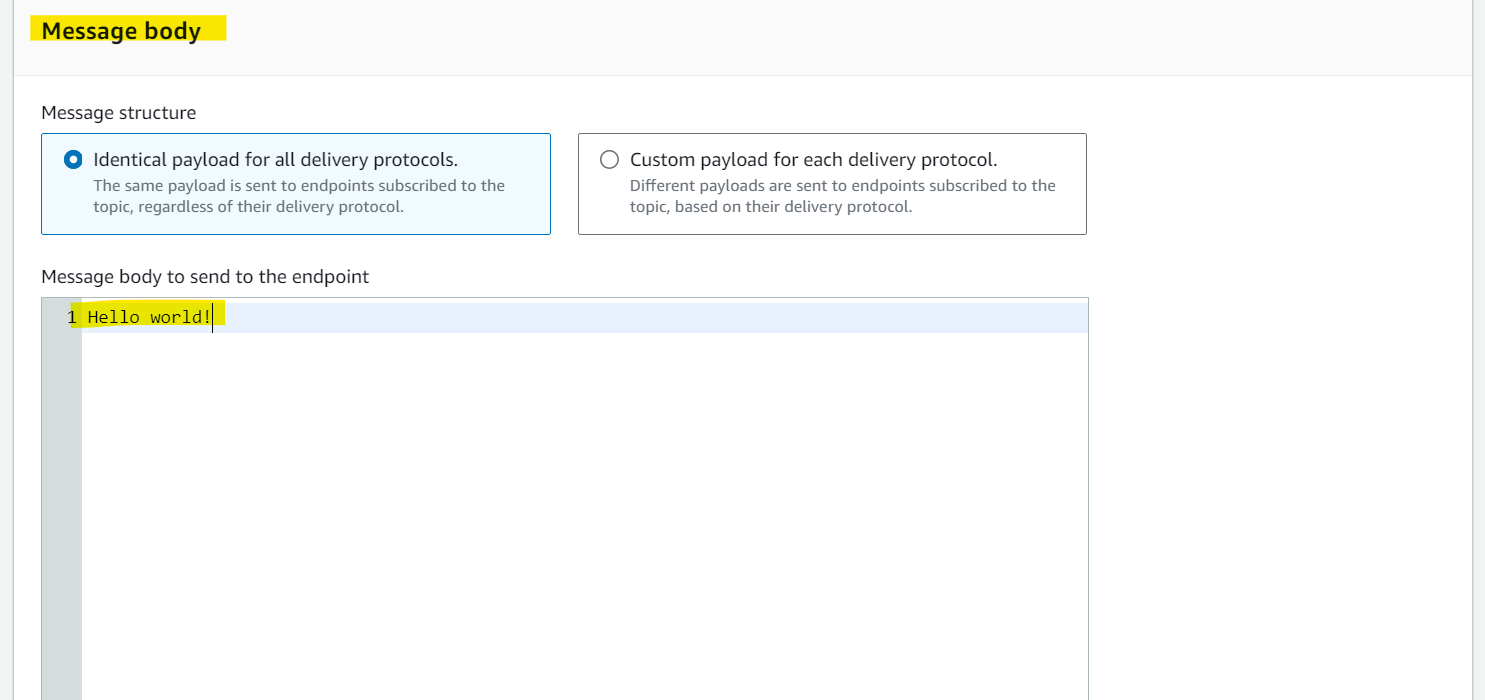

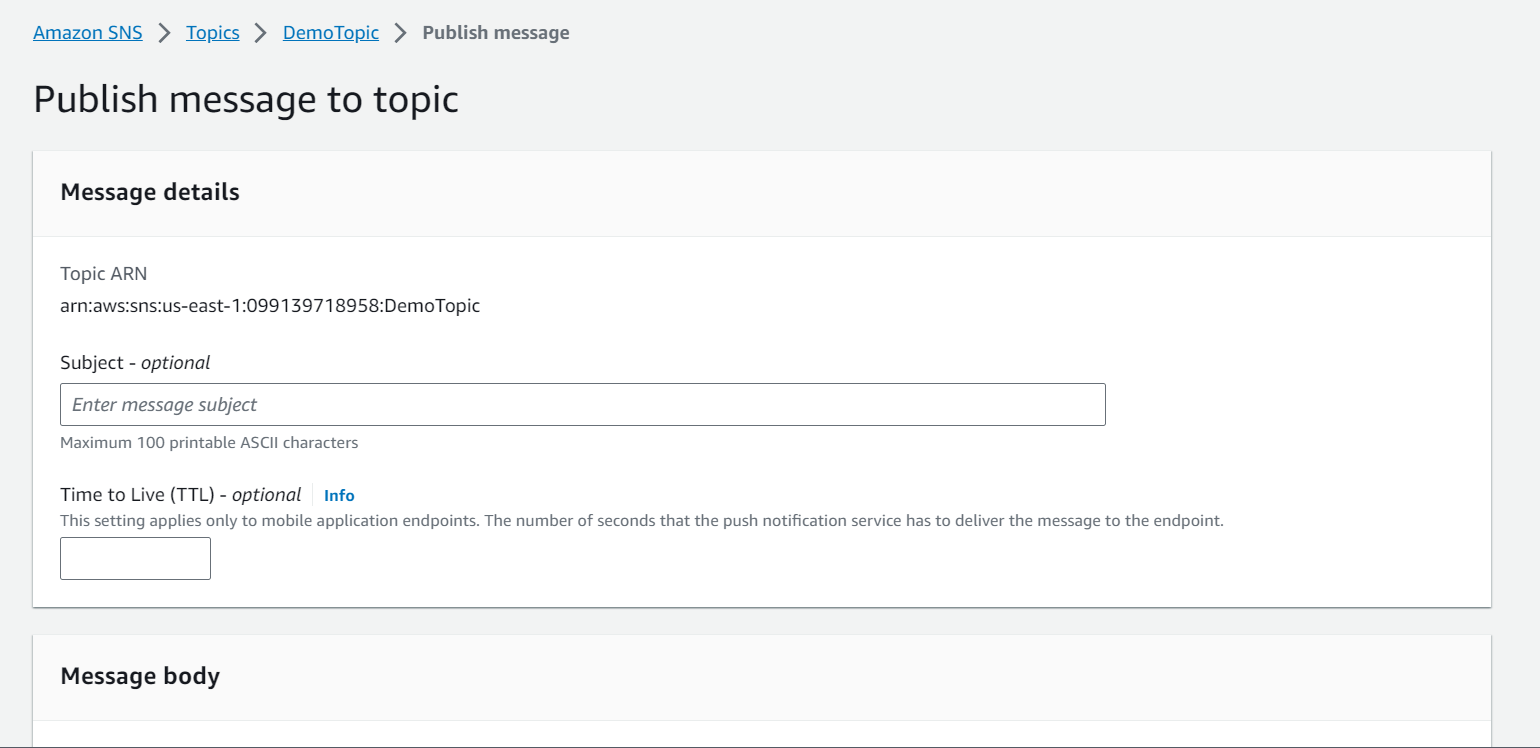

• Publish Message

---

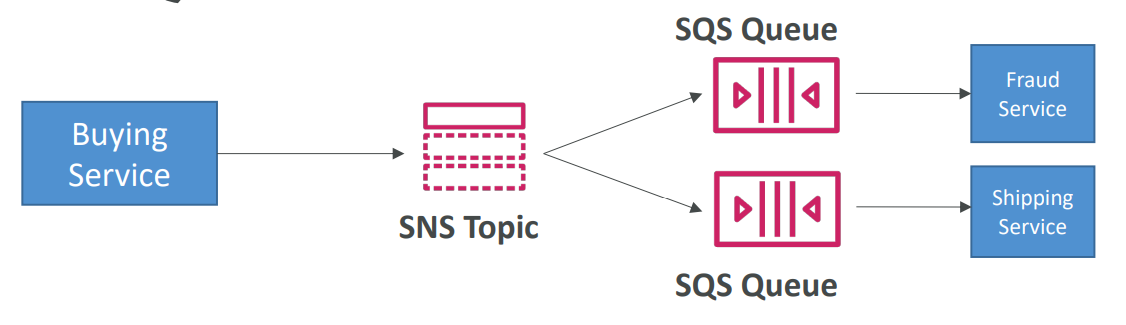

Fan-out Pattern: SNS + SQS

• Push once in SNS, receive in all SQS queues that are subscribers

• Make sure your SQS queue access policy allows for SNS to write

• Benefits:

  • Fully decoupled, no data loss
  • Cross-Region Delivery:
    • works with SQS Queues in other regions
  • Ability to add more SQS subscribers over time
  • SQS allows for:
    • data persistence
    • delayed processing
    • retries of work

• 小结:

  • SNS: 分层, 扩展
  • SQS: 缓冲
    • SQS FIFO: 按序
• This is a common pattern where only one message is sent to the SNS topic and then “fan-out” to multiple SQS queues.
• This approach has the following features:
  • it’s fully decoupled, no data loss, and you have the ability to add more SQS queues (more applications) over time.

---

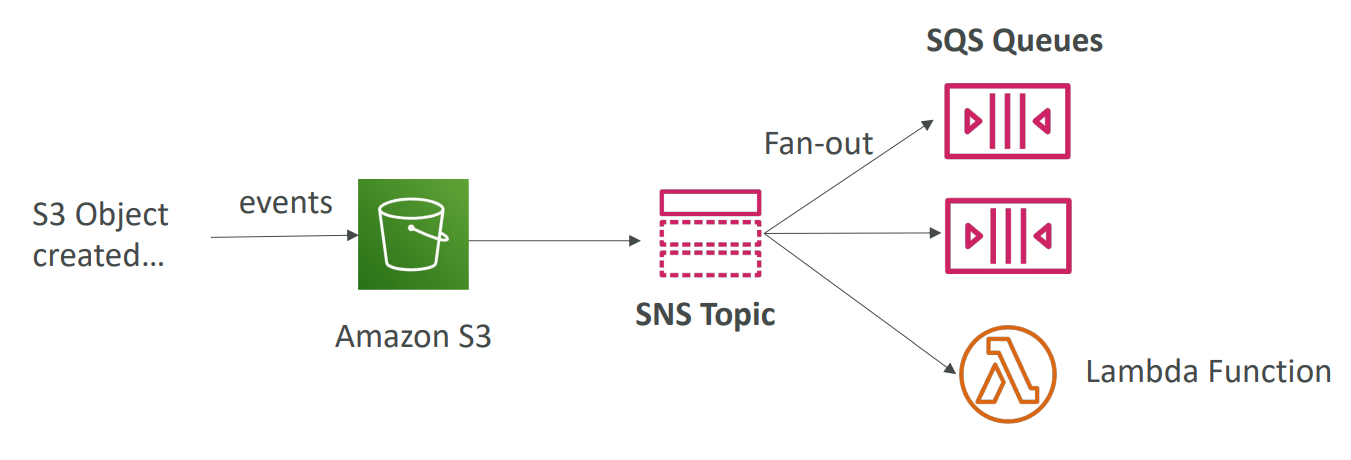

Use Case: S3 Events to multiple queues

• Limitation:

  • For the same combination of: event type (e.g. object create) prefix (e.g. images/) you can only have one S3 Event rule

• Solution:

  • If you want to send the same S3 event to many SQS queues, use fan-out

---

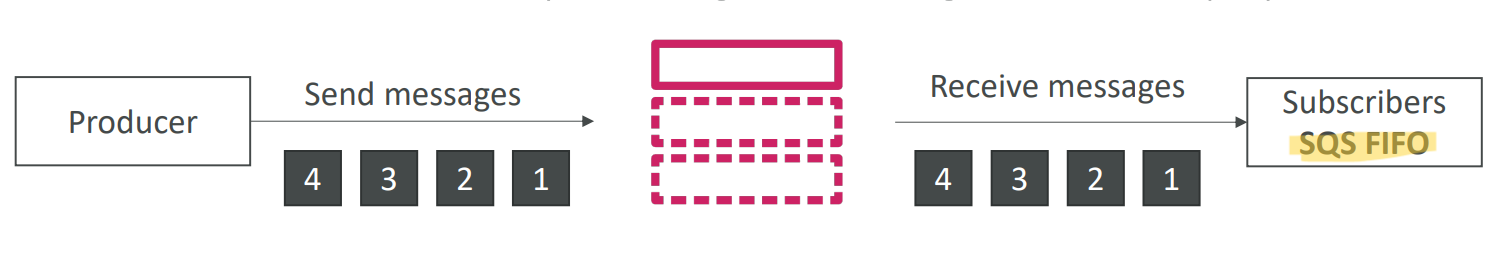

Fan-out Pattern: SNS + FIFO

• Similar features as SQS FIFO:
  • Ordering by Message Group ID (all messages in the same group are ordered)
  • Deduplication using a Deduplication ID or Content Based Deduplication
• Can only have SQS FIFO queues as subscribers 按照订阅者分类且顺序.
• Limited throughput (same throughput as SQS FIFO)

---

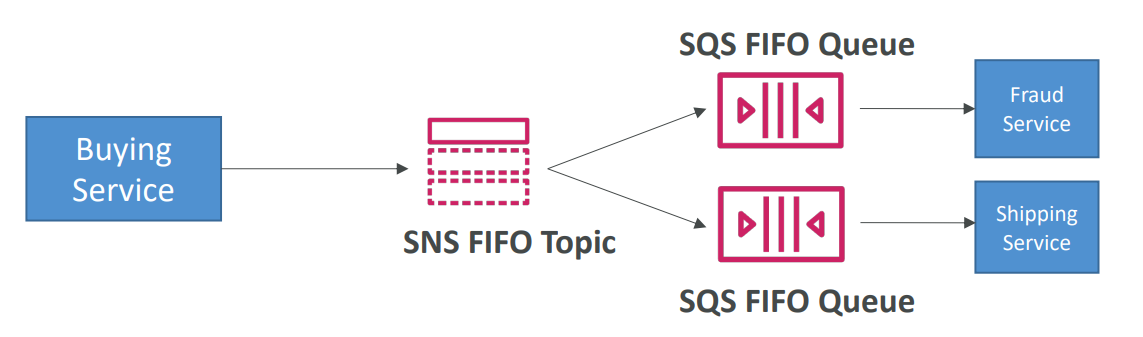

Use Case: SNS FIFO + SQS FIFO

• In case you need fan out + ordering + deduplication

---

Fan-out Pattern: SNS + Kinesis

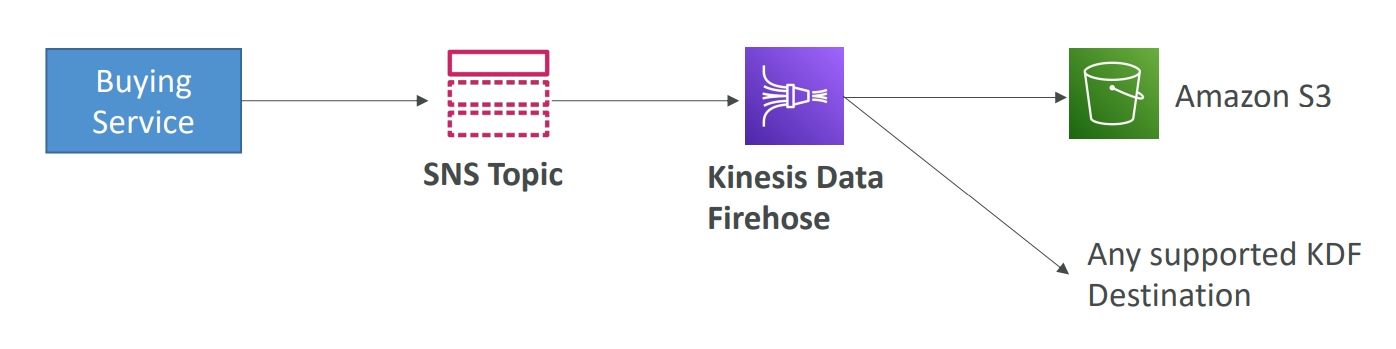

Use Case: SNS to Amazon S3 through Kinesis Data Firehose

• SNS can send to Kinesis and therefore we can have the following solutions architecture:

---
