AWS - SQS

Back

• AWS - SQS
  • Amazon SQS
  • Architecture
    • Producing Messages
    • Consuming Messages
    • Multiple EC2 Instances Consumers
  • Standard Queue
    • Hands-on
  • FIFO Queue
    • Grouping Message
    • Hands-on
  • Security
  • Message Visibility Timeout
  • Long Polling
  • Use Case
    • Integrate with Auto Scaling Group(ASG) 常考
    • SQS as a buffer to database writes
    • Decouple between application tiers 经典应用和题目

---

Amazon SQS

• Amazon SQS(Simple Queue Service)

  • a web service that enables web service applications to quickly and reliably queue messages that one component in the application generates to be consumed by another component where a queue is a temporary repository for messages that are awaiting processing.

• SQS scales automatically.

---

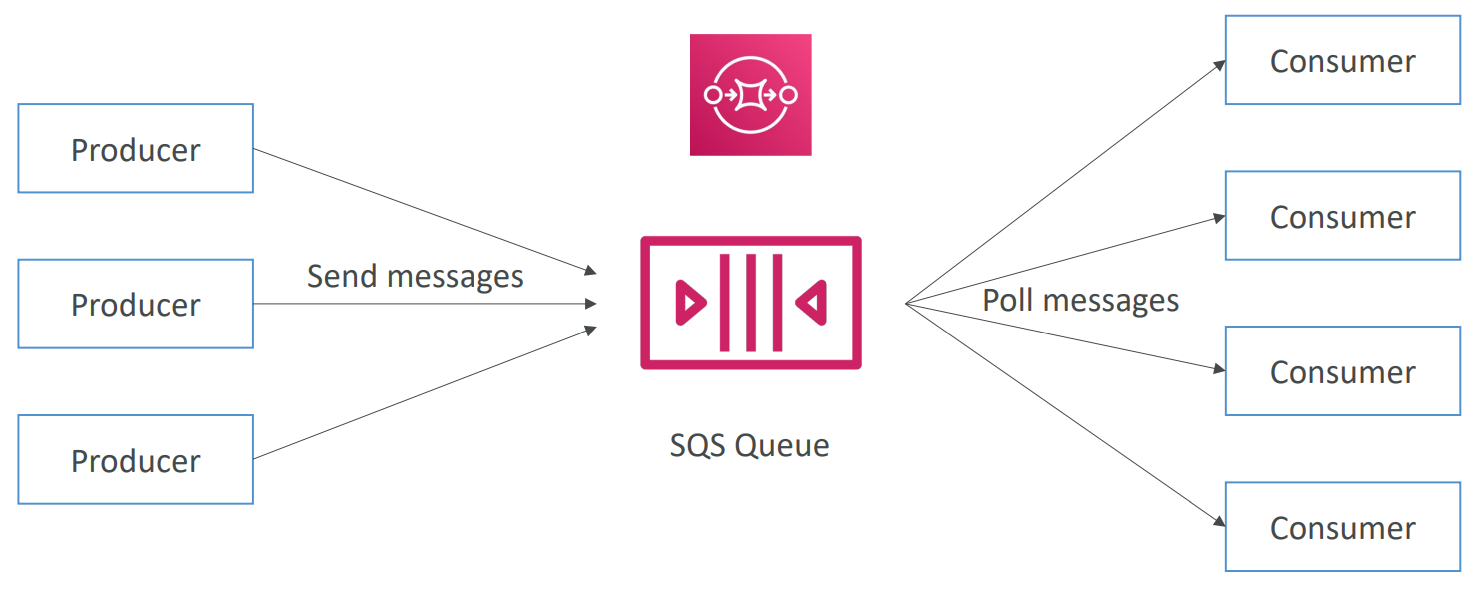

Architecture

---

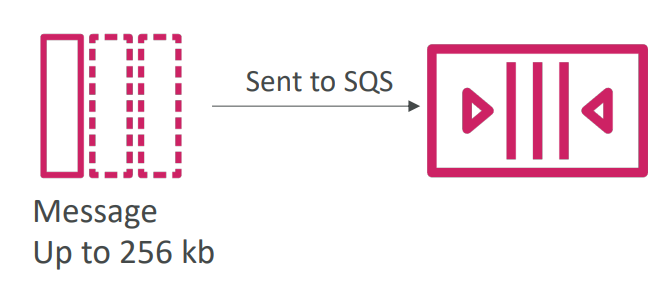

Producing Messages

• Produced to SQS using the SDK (SendMessage API)
• The message is persisted in SQS until a consumer deletes it

• Message retention:

  • default 4 days, up to 14 days

• Example: send an order to be processed

  • Order id
  • Customer id
  • Any attributes you want
• SQS standard: unlimited throughput

---

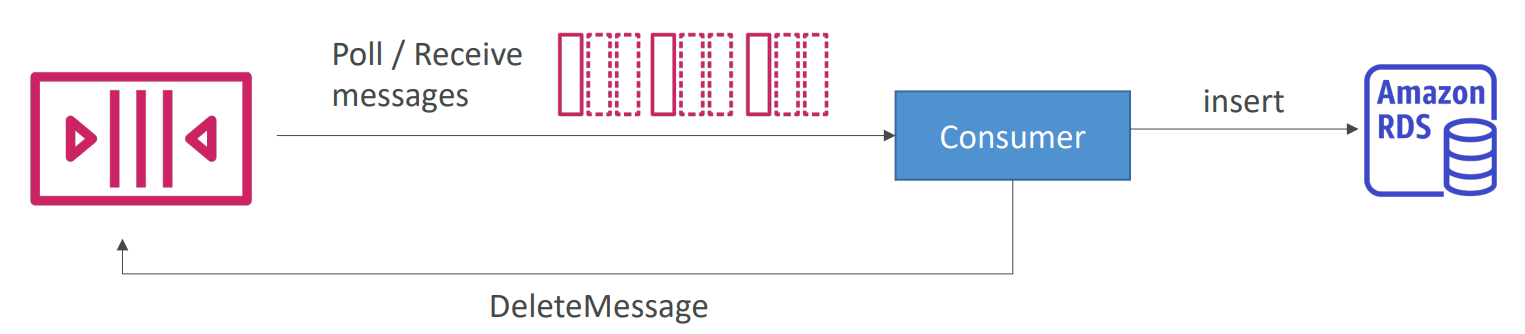

Consuming Messages

• Consumers

  • running on EC2 instances,
  • servers,
  • or AWS Lambda
  • …
• Poll SQS for messages (receive up to 10 messages at a time)

• Process the messages

  • ie: insert the message into an RDS database
• Delete the messages using the DeleteMessage API

---

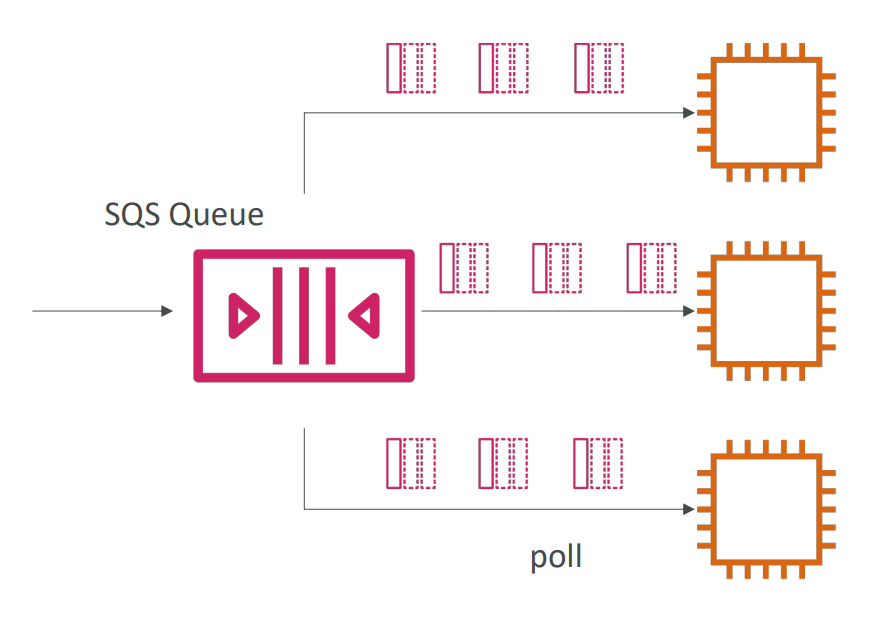

Multiple EC2 Instances Consumers

• Consumers receive and process messages in parallel
• At least once delivery
  • if one of istance does not process fast enough, the message can be processed by other instance.
• Best-effort message ordering
  • 因为多个实例处理, 所以未必是完全按顺序. 较忙的实例会造成处理延迟. 但总体上是按顺序.
• Consumers delete messages after processing them
  • if not delete, other instance will process.
• We can scale consumers horizontally to improve throughput of processing
  • use EC2 ASG

---

Standard Queue

• Oldest offering (over 10 years old)

• Fully managed service, used to decouple applications

• Attributes:

  • Unlimited throughput, unlimited number of messages in queue
  • Default retention of messages:
    • 4 days, maximum of 14 days
  • Low latency (<10 ms on publish and receive)
  • Limitation of 256KB per message sent
• Can have duplicate messages (at least once delivery, occasionally)
• Can have out of order messages (best effort ordering)

---

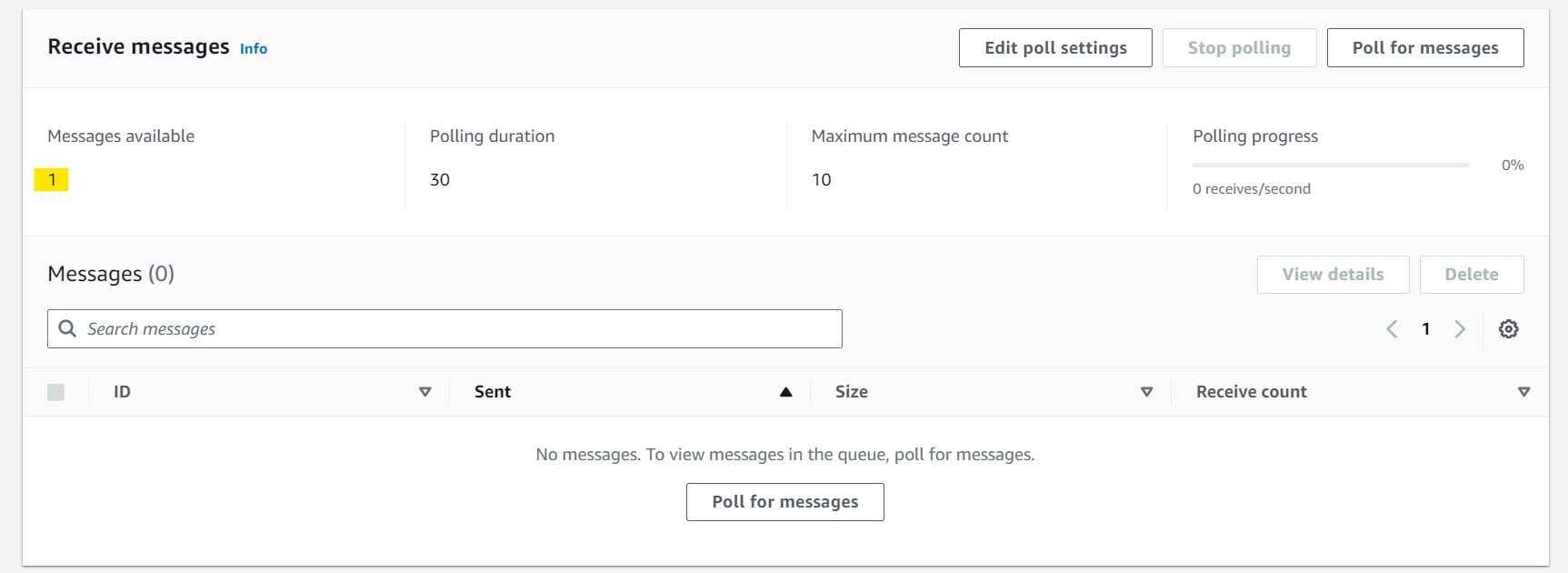

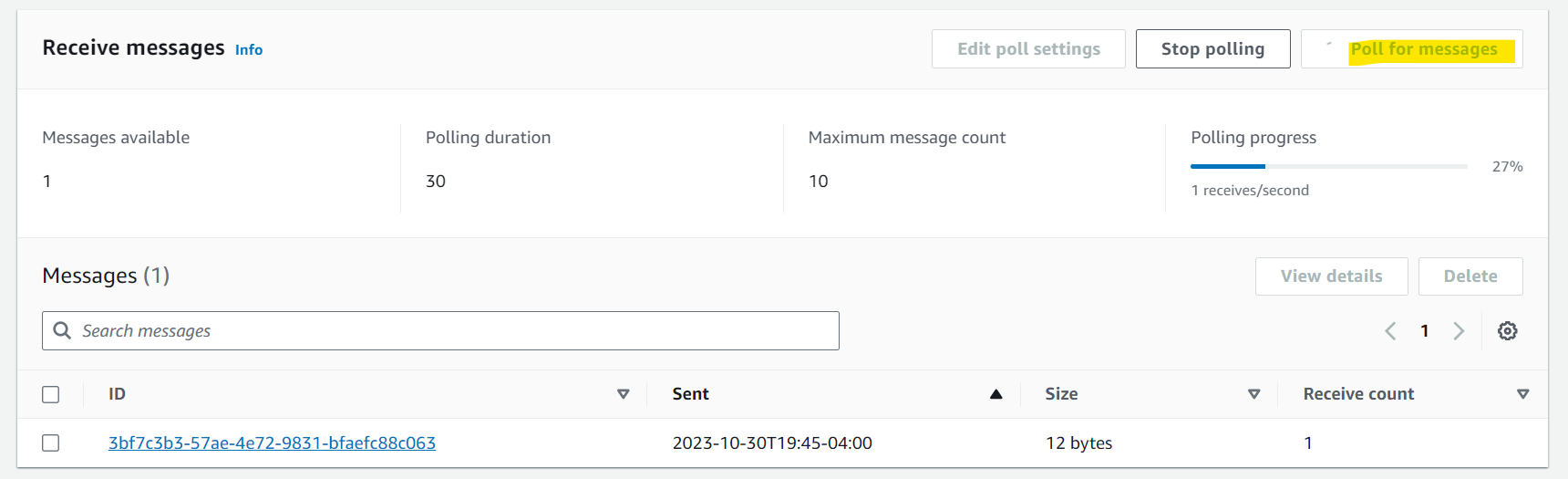

Hands-on

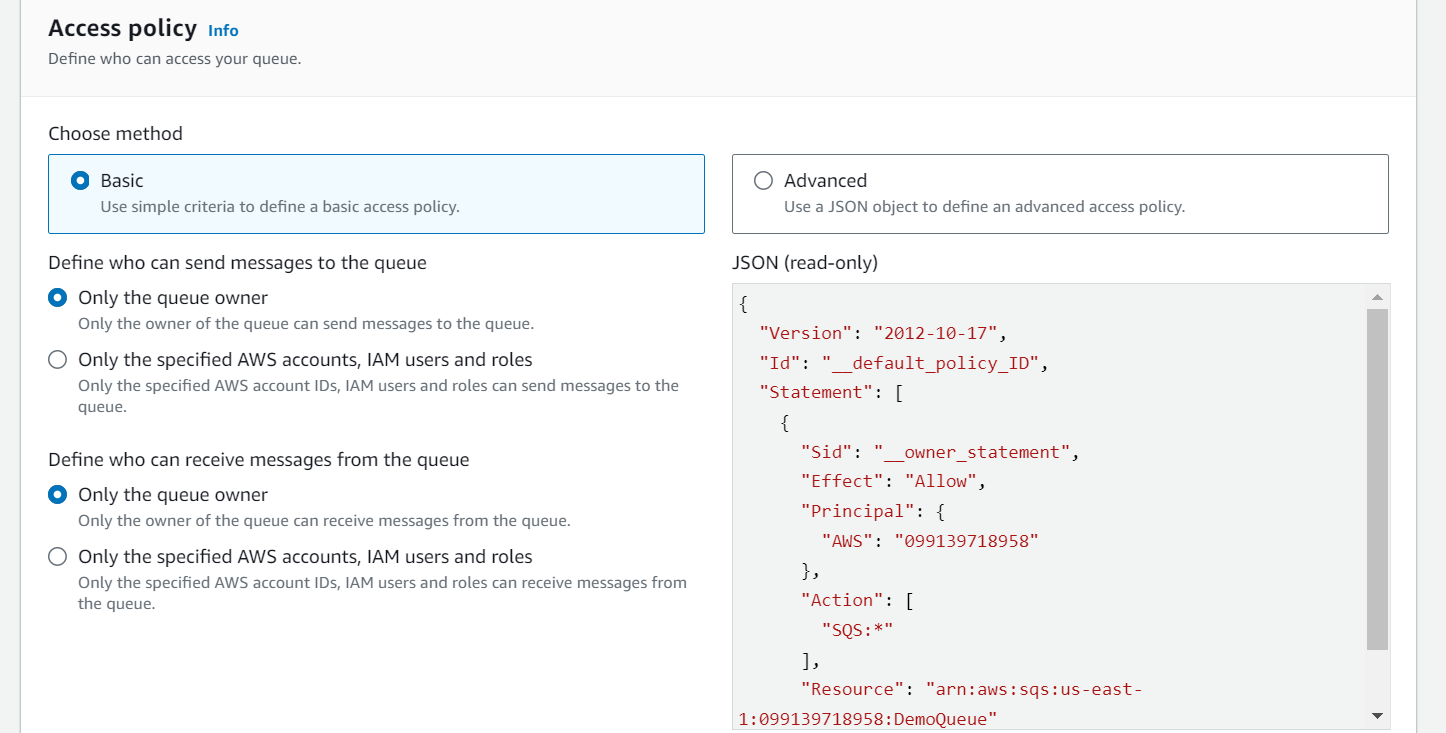

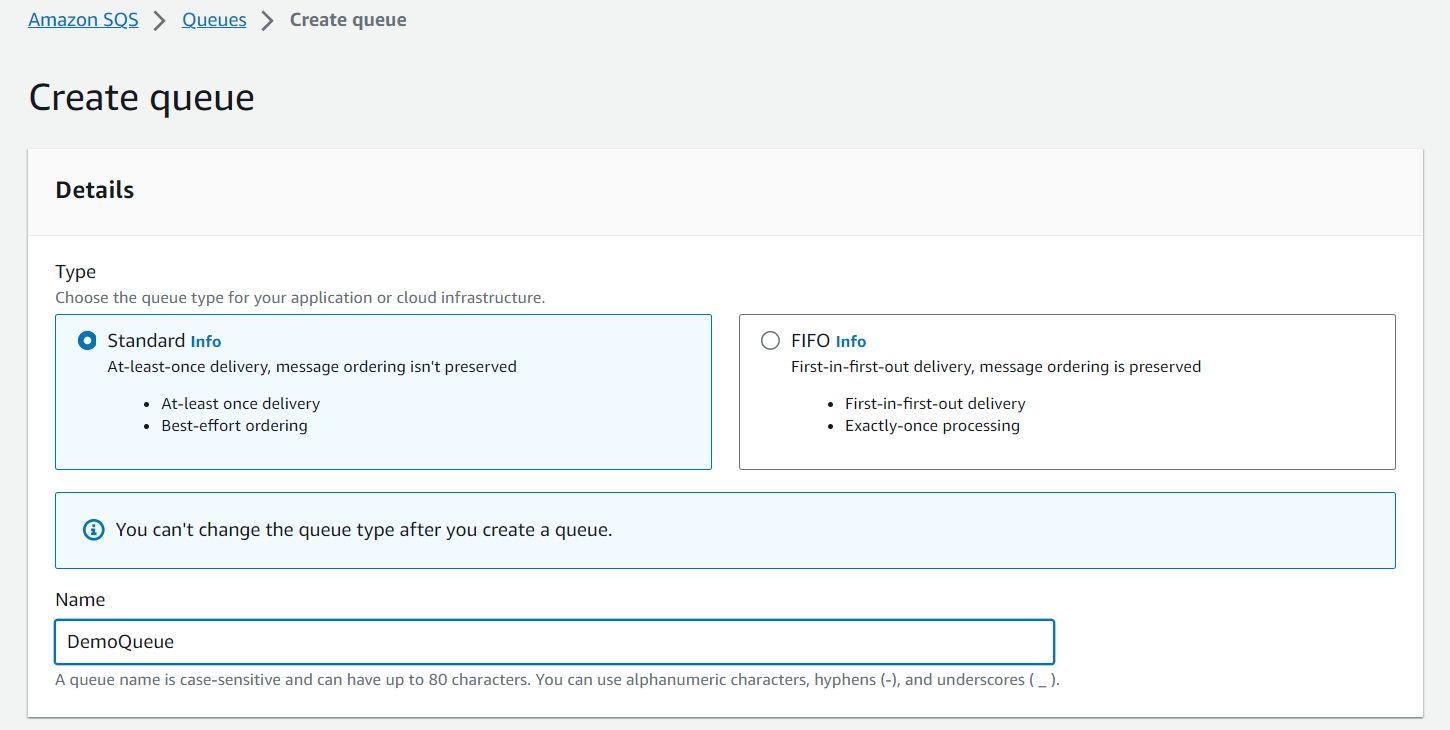

• Create SQS

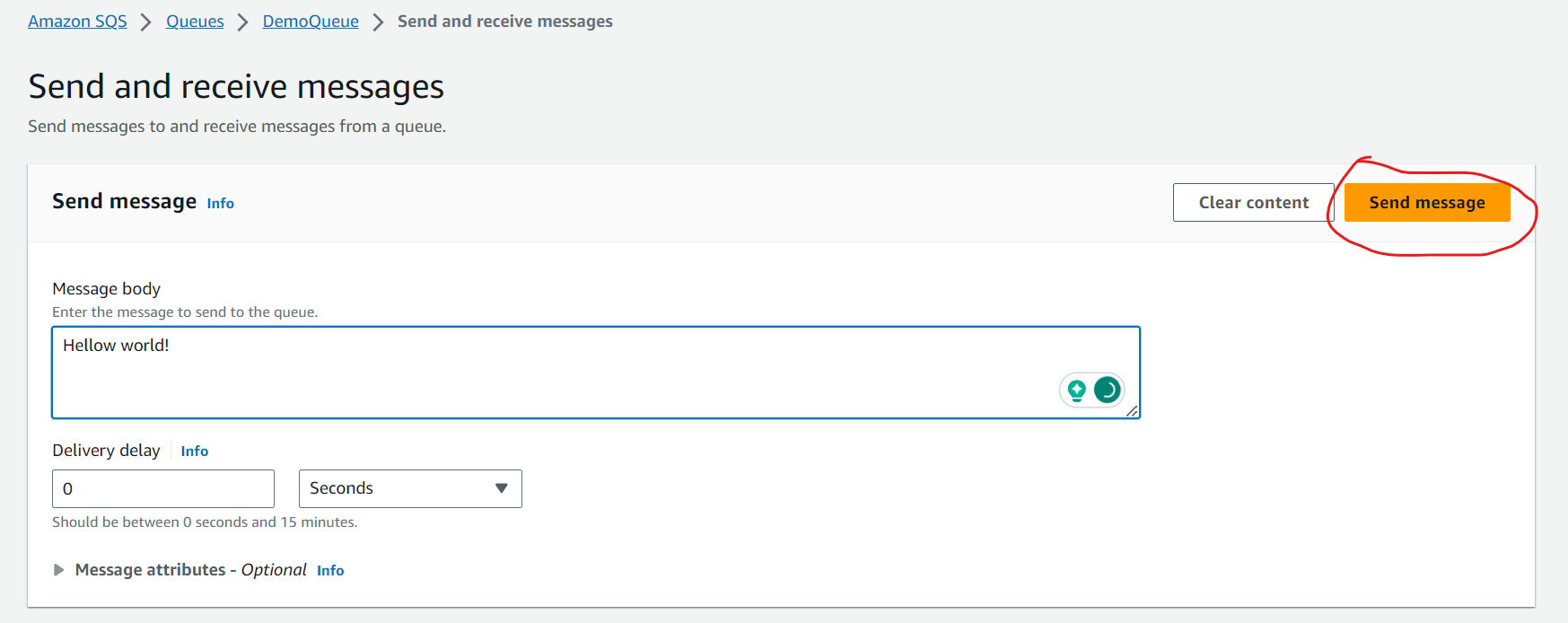

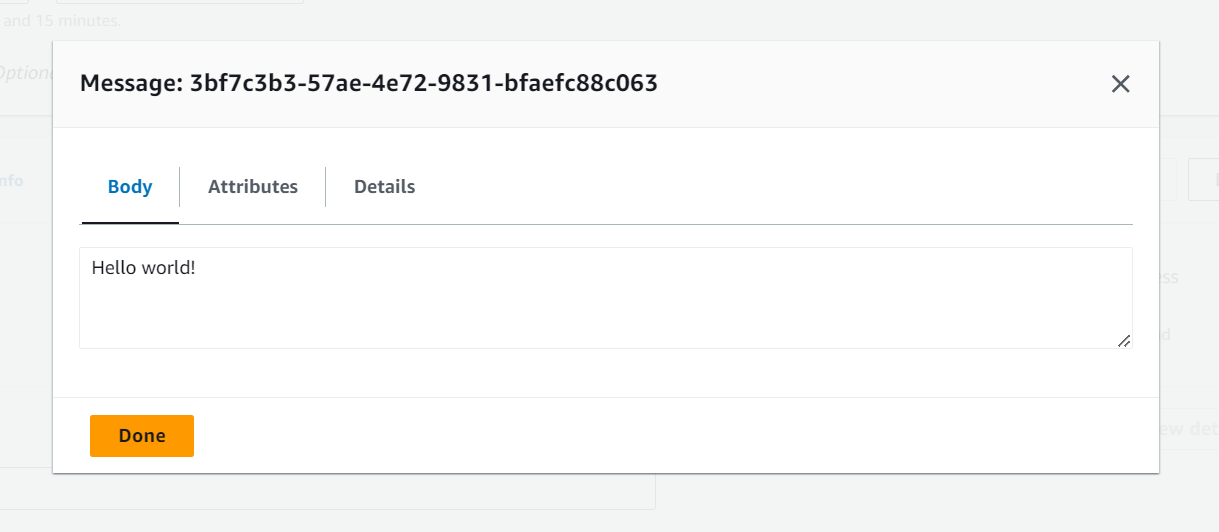

• Send and receive messages

• Poll messages

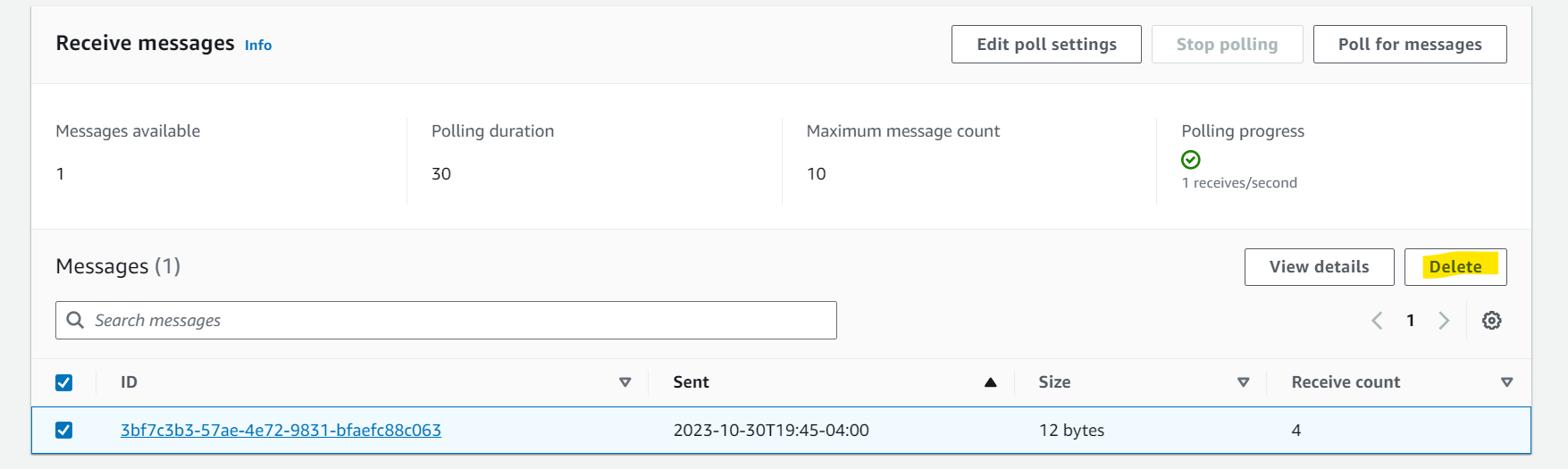

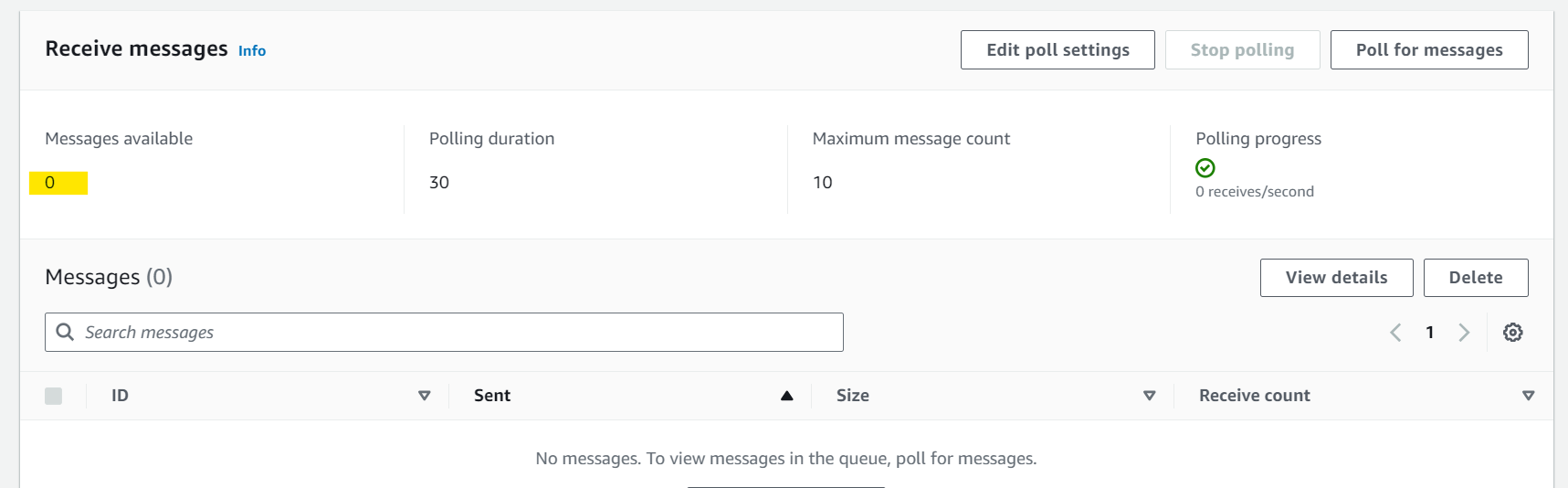

• Delete message

---

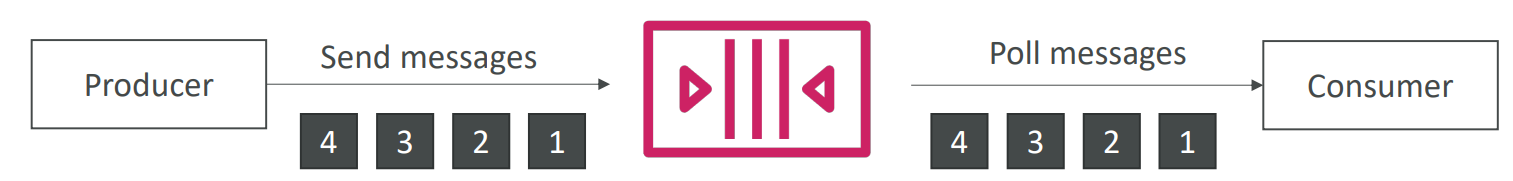

FIFO Queue

• FIFO = First In First Out (ordering of messages in the queue)

• Limited throughput:
  • 300 msg/s without batching, 3000 msg/s with
• Exactly-once send capability (by removing duplicates)
• Messages are processed in order by the consumer

• SQS FIFO (First-In-First-Out) Queues have all the capabilities of the SQS Standard Queue, plus the following two features.
  • First, The order in which messages are sent and received are strictly preserved and a message is delivered once and remains available until a consumer process and deletes it.
  • Second, duplicated messages are not introduced into the queue.

---

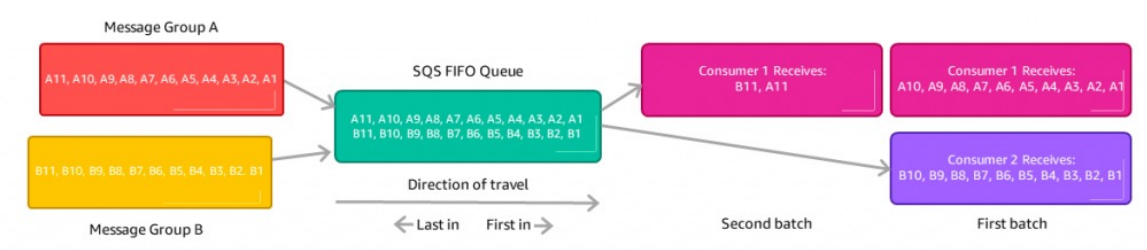

Grouping Message

• For SQS standard, there is no ordering.

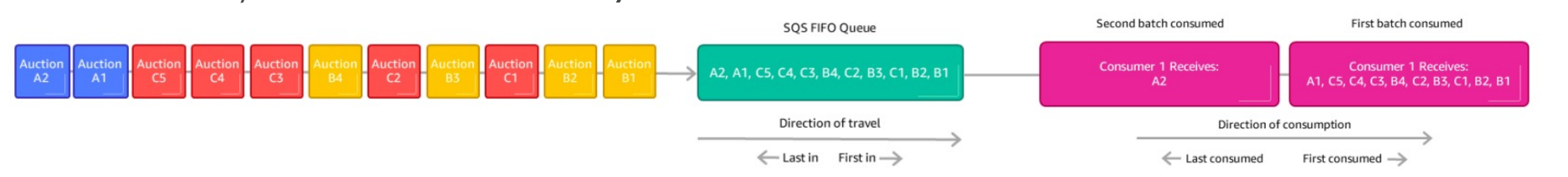

• For SQS FIFO, if you don’t use a Group ID, messages are consumed in the order they are sent, with only one consumer

• You want to scale the number of consumers, but you want messages to be “grouped” when they are related to each other
• Then you use a Group ID (similar to Partition Key in Kinesis)

• Delete the existing standard queue and recreate it as a FIFO (First-In-First-Out) queue

• Make sure that the name of the FIFO (First-In-First-Out) queue ends with the .fifo suffix

• Make sure that the throughput for the target FIFO (First-In-First-Out) queue does not exceed 3,000 messages per second

---

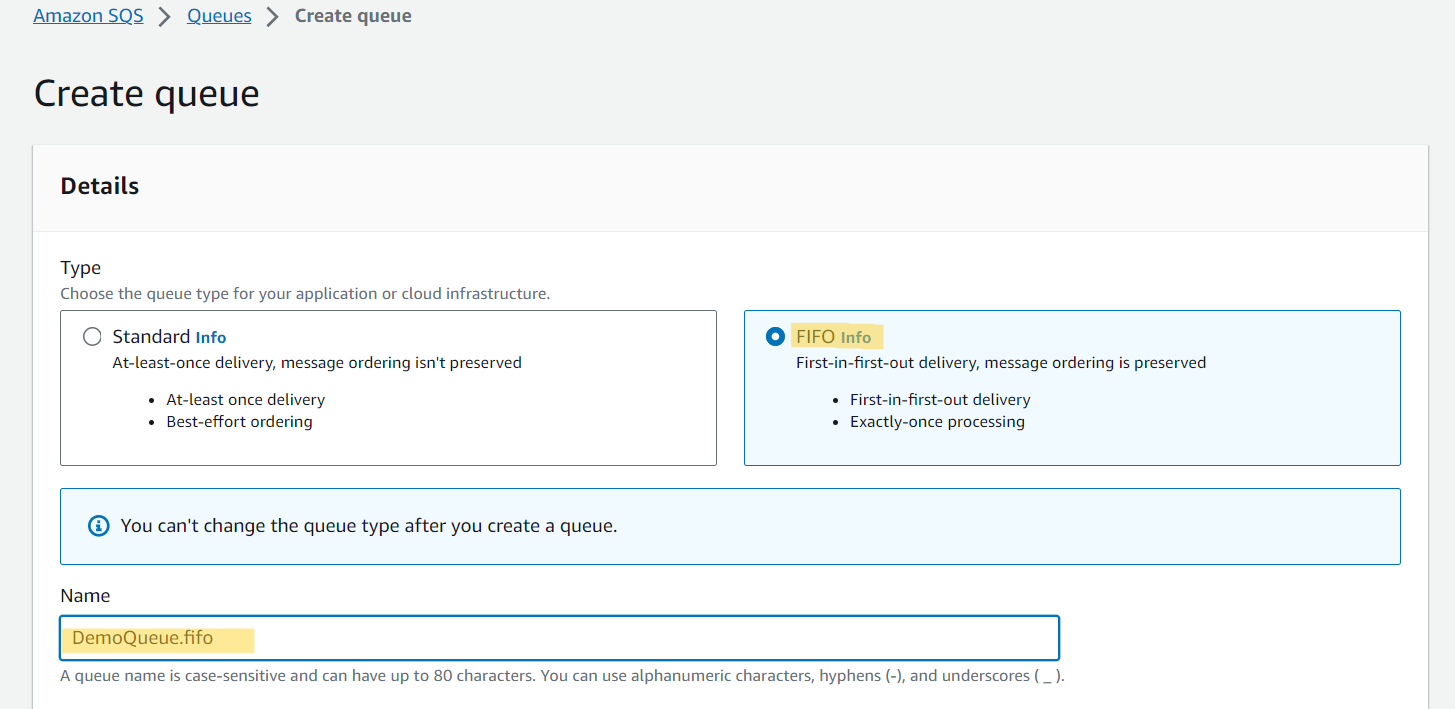

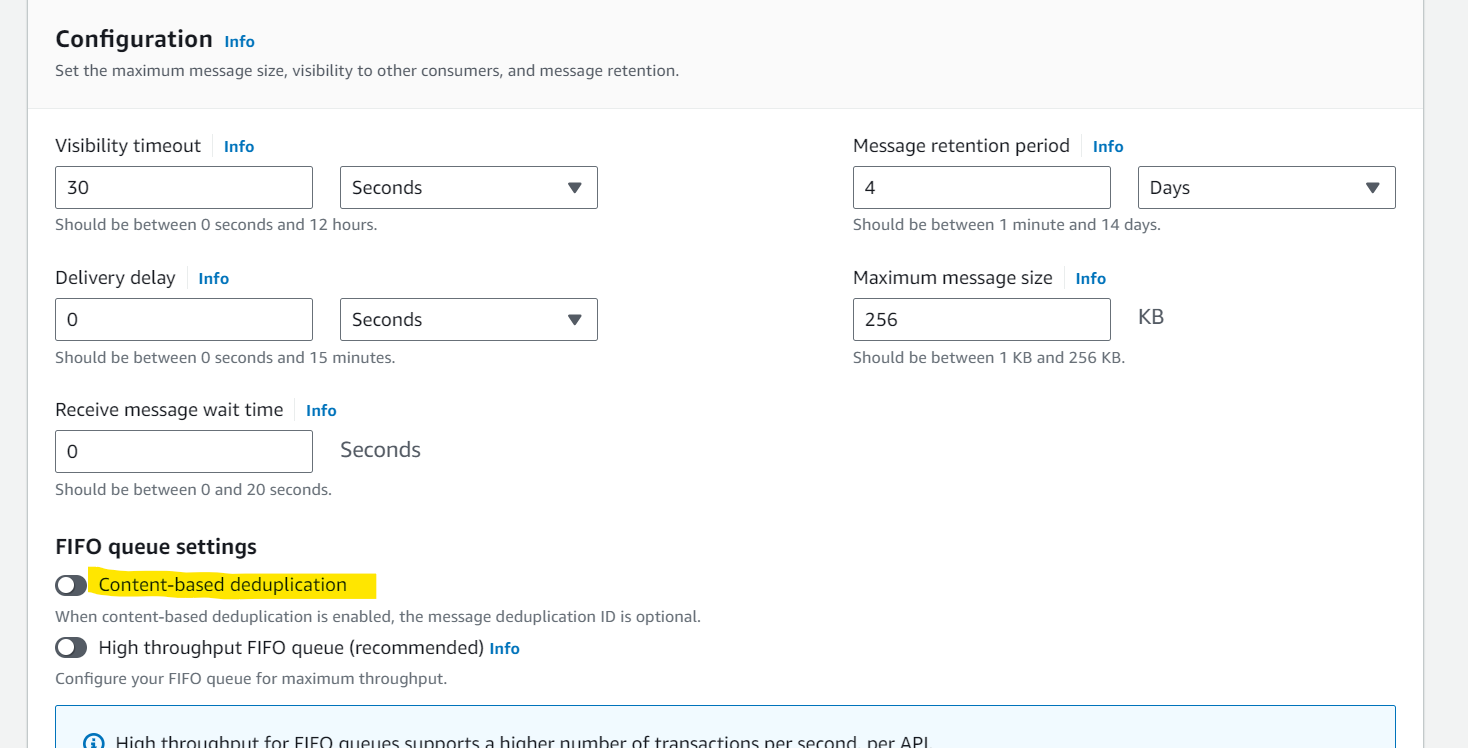

Hands-on

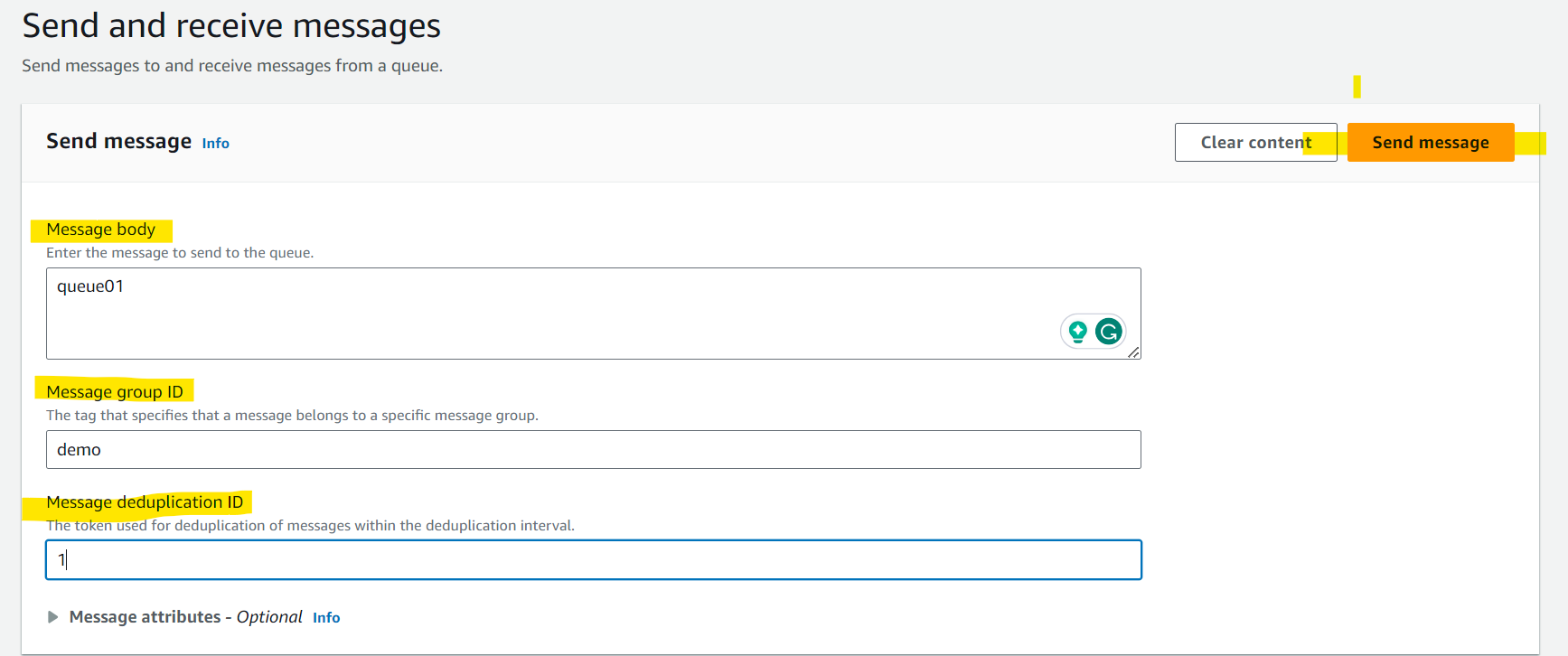

• Create FIFO Queue

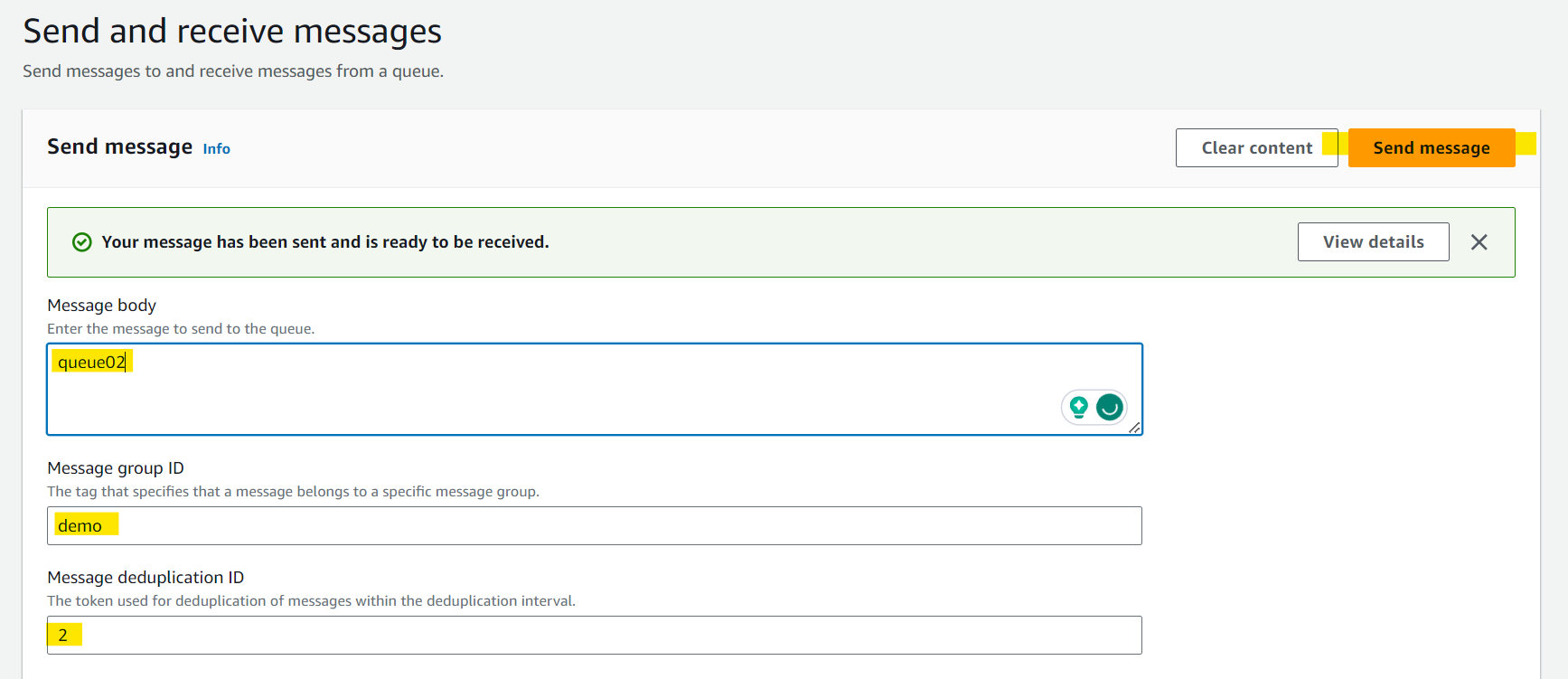

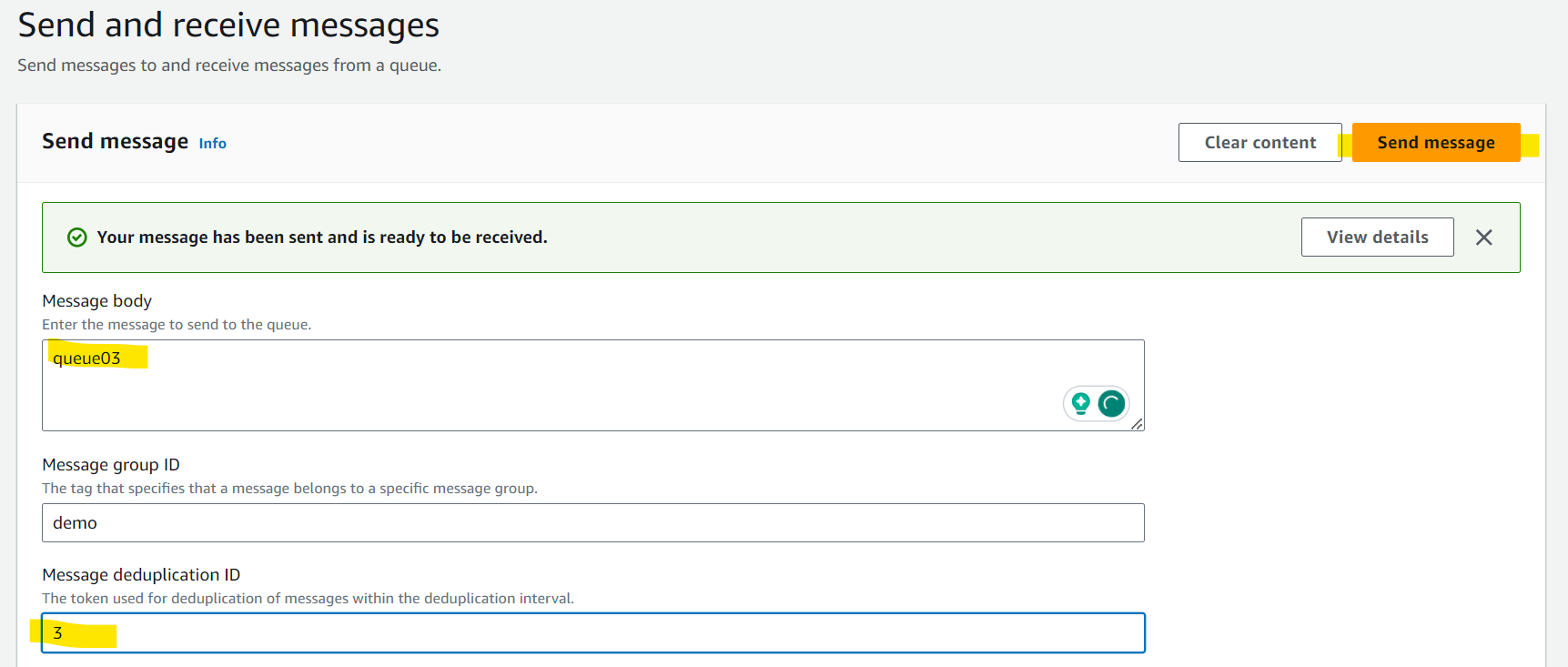

• Send message

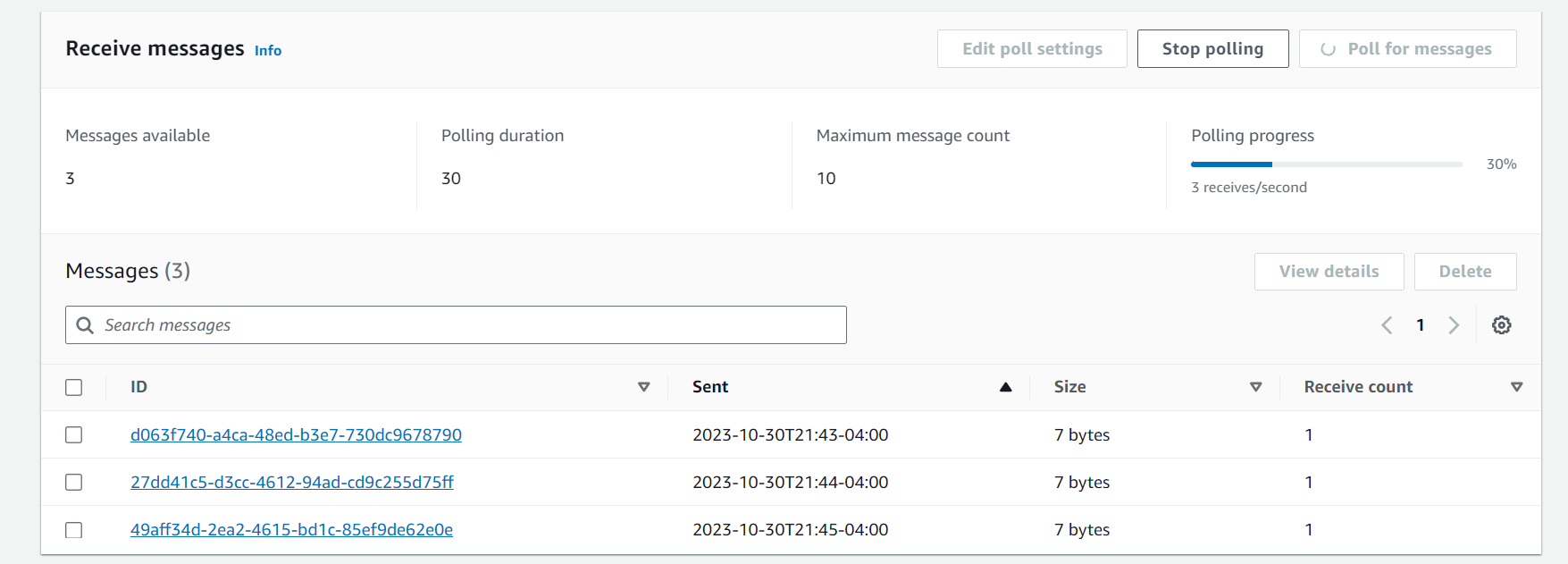

• Process message
  • Messages are in order.

---

Security

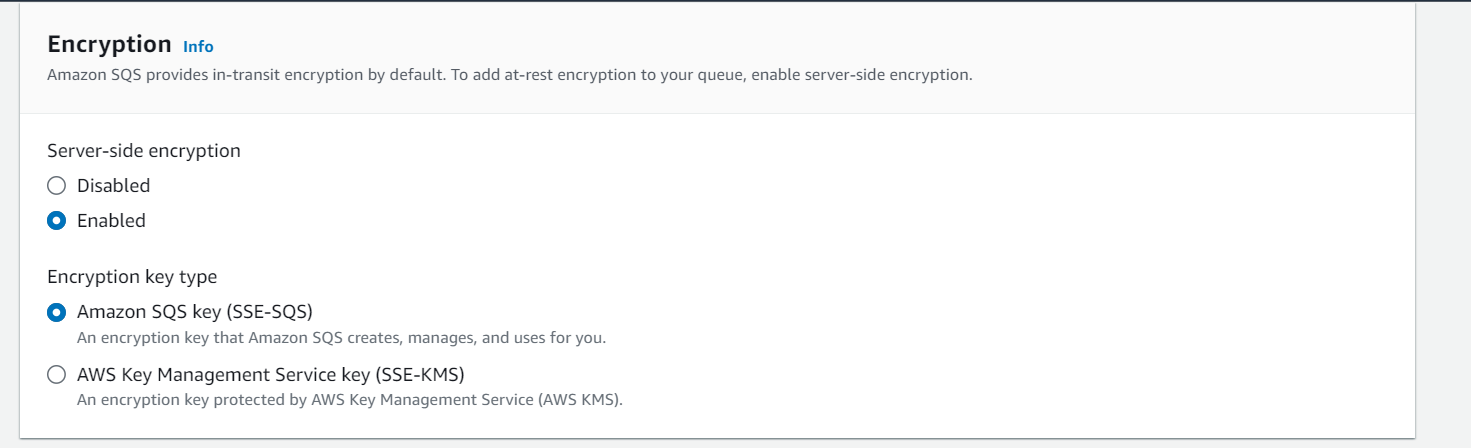

• Encryption:

  • In-flight encryption using HTTPS API
  • At-rest encryption using KMS keys
  • Client-side encryption the client do it themselves, if the client wants to perform encryption/decryption itself

• Access Controls:

  • IAM policies to regulate access to the SQS API

• SQS Access Policies (similar to S3 bucket policies)

  • Useful for cross-account access to SQS queues
  • Useful for allowing other services (SNS, S3…) to write to an SQS queue

---

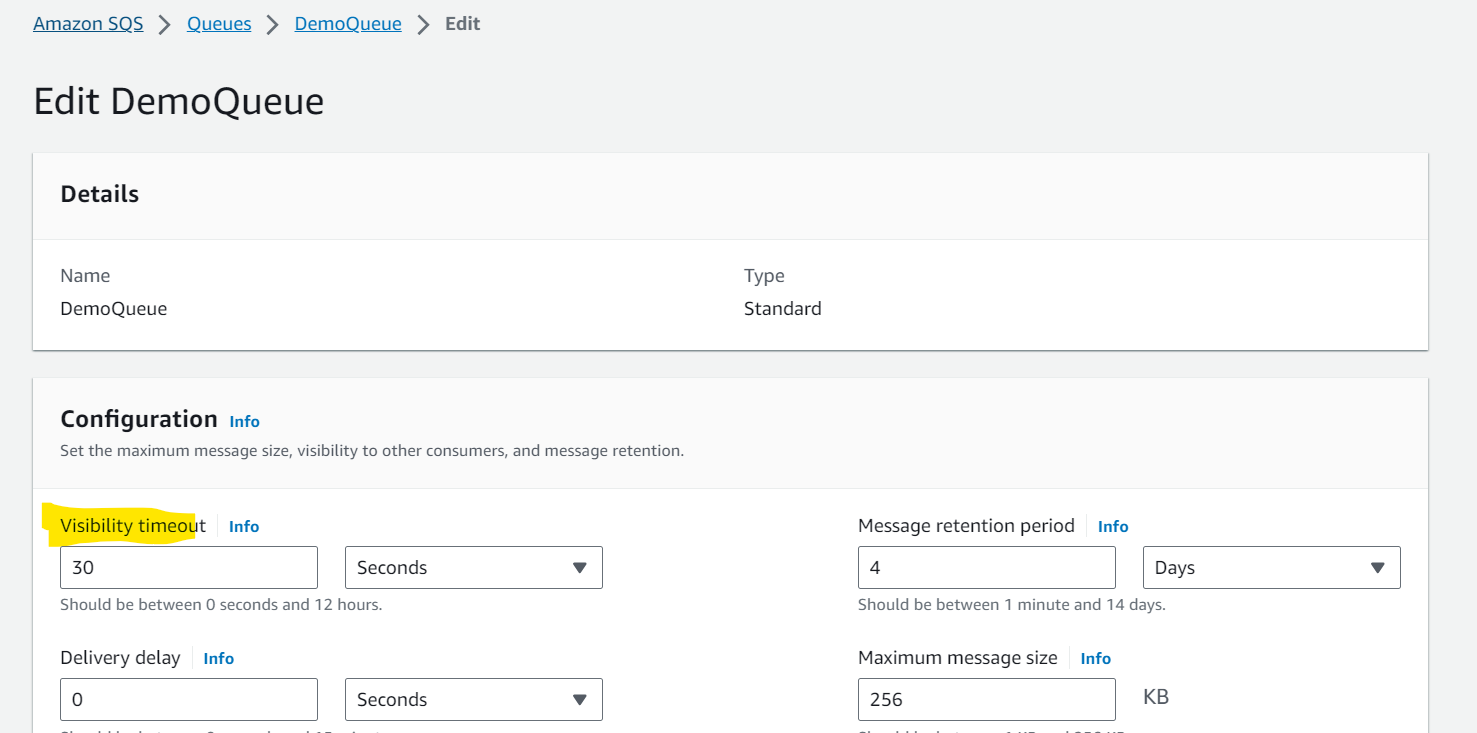

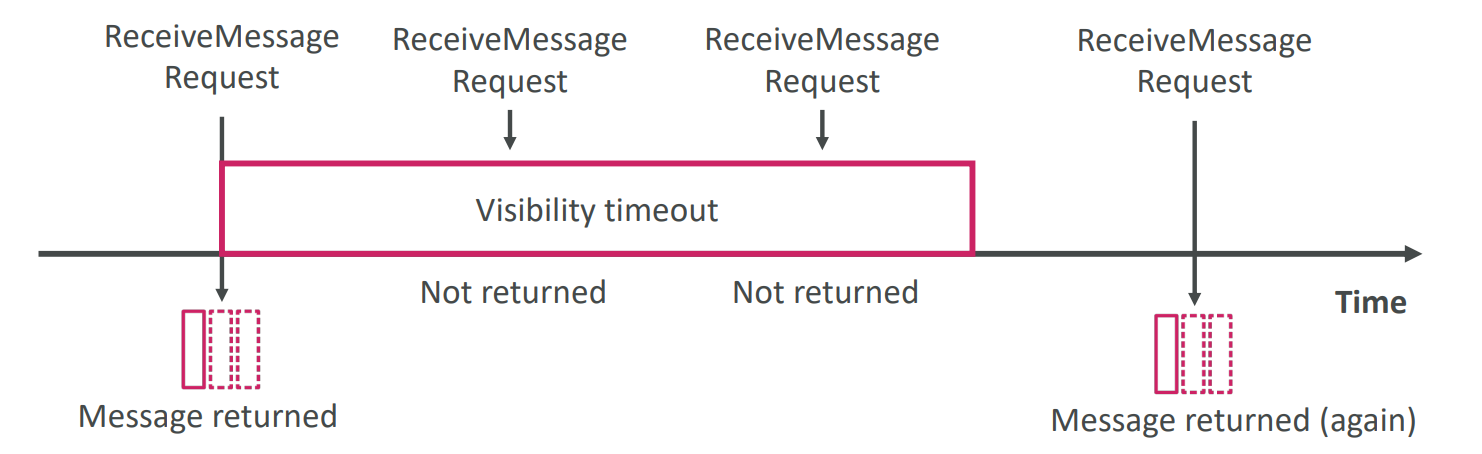

Message Visibility Timeout

• After a message is polled by a consumer, it becomes invisible to other consumers
• By default, the “message visibility timeout” is 30 seconds
• That means the message has 30 seconds to be processed
• After the message visibility timeout is over, the message is “visible” in SQS

• If a message is not processed within the visibility timeout, it will be processed twice
• A consumer could call the ChangeMessageVisibility API to get more time
• If visibility timeout is high (hours), and consumer crashes, re-processing will take time
• If visibility timeout is too low (seconds), we may get duplicates

• 单一 message 多次 process 的原因:

  • process time > Visibility Timeout
  • 解决方法, 延长 Visibility Timeout.

• 考题解析:

  • SQS Visibility Timeout is a period of time during which Amazon SQS prevents other consumers from receiving and processing the message again. In Visibility Timeout, a message is hidden only after it is consumed from the queue. Increasing the Visibility Timeout gives more time to the consumer to process the message and prevent duplicate reading of the message. (default: 30 sec., min.: 0 sec., max.: 12 hours)

---

Long Polling

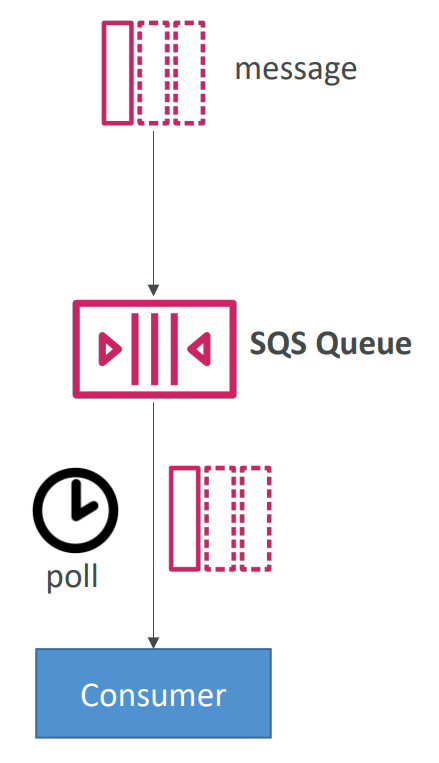

• Long Polling

  • When a consumer requests messages from the queue, it can optionally “wait” for messages to arrive if there are none in the queue
  • decreases the number of API calls made to SQS while increasing the efficiency and reducing latency of your application
• The wait time can be between 1 sec to 20 sec (20 sec preferable)
• Long Polling is preferable to Short Polling
• Long polling can be enabled at the queue level or at the API level using WaitTimeSeconds

---

Use Case

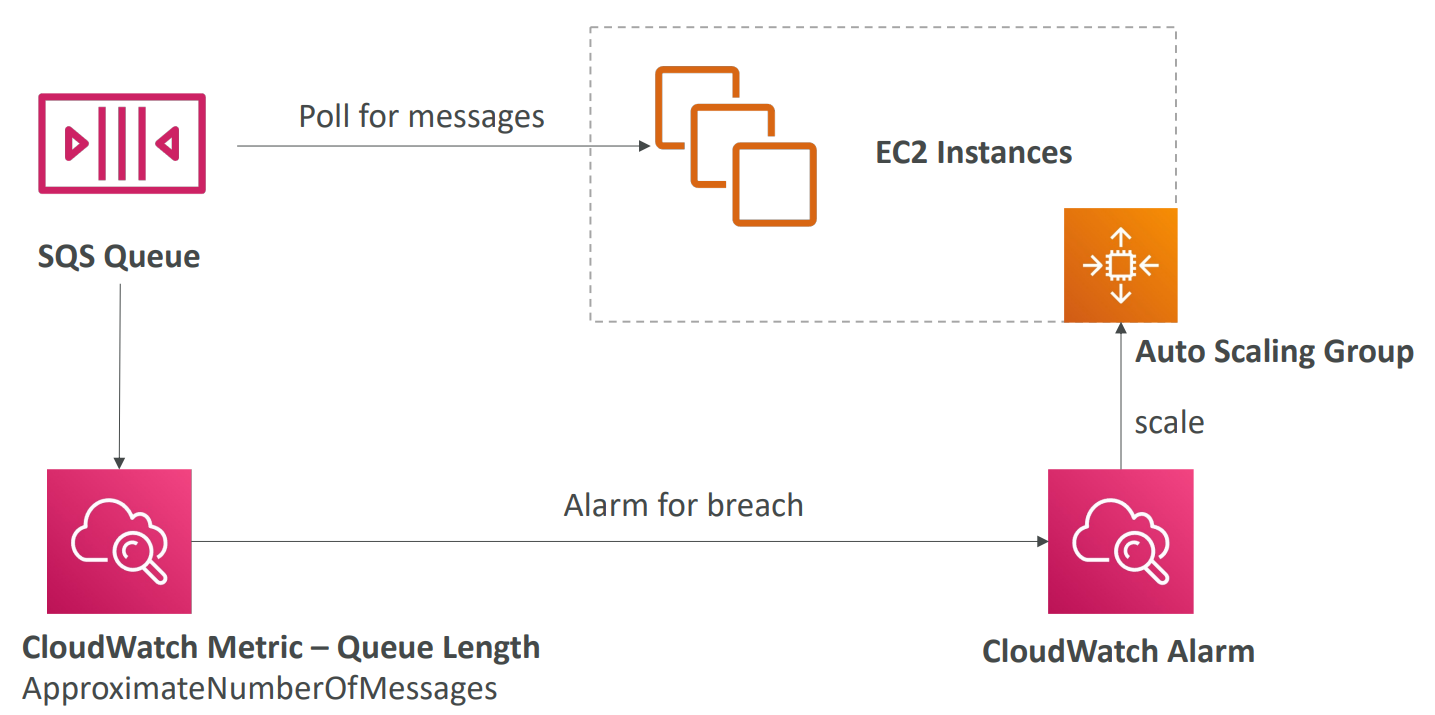

Integrate with Auto Scaling Group(ASG) 常考

• Use CloudWatch Metric – Queue Length(ApproximateNumberOfMessages) to monitor SQS.
  • When reach alarm number, CloudWatch Alarm will trigger ASG.

---

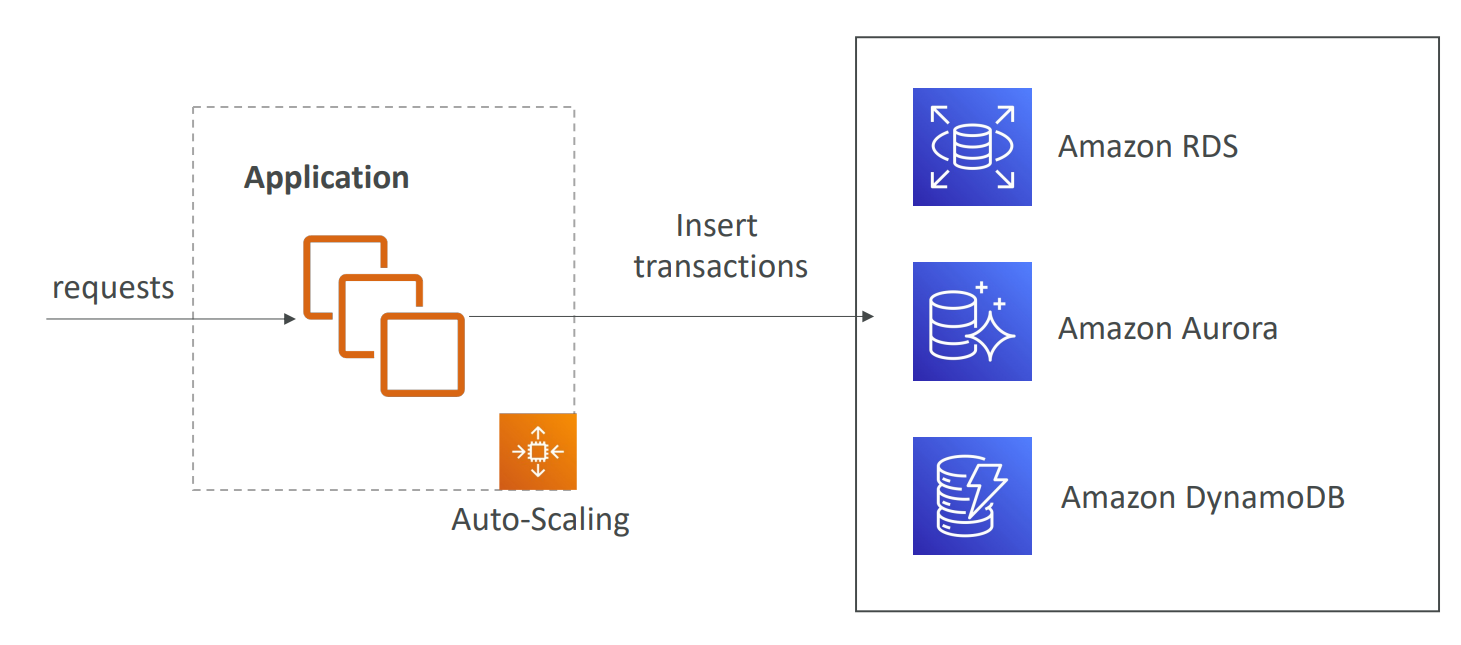

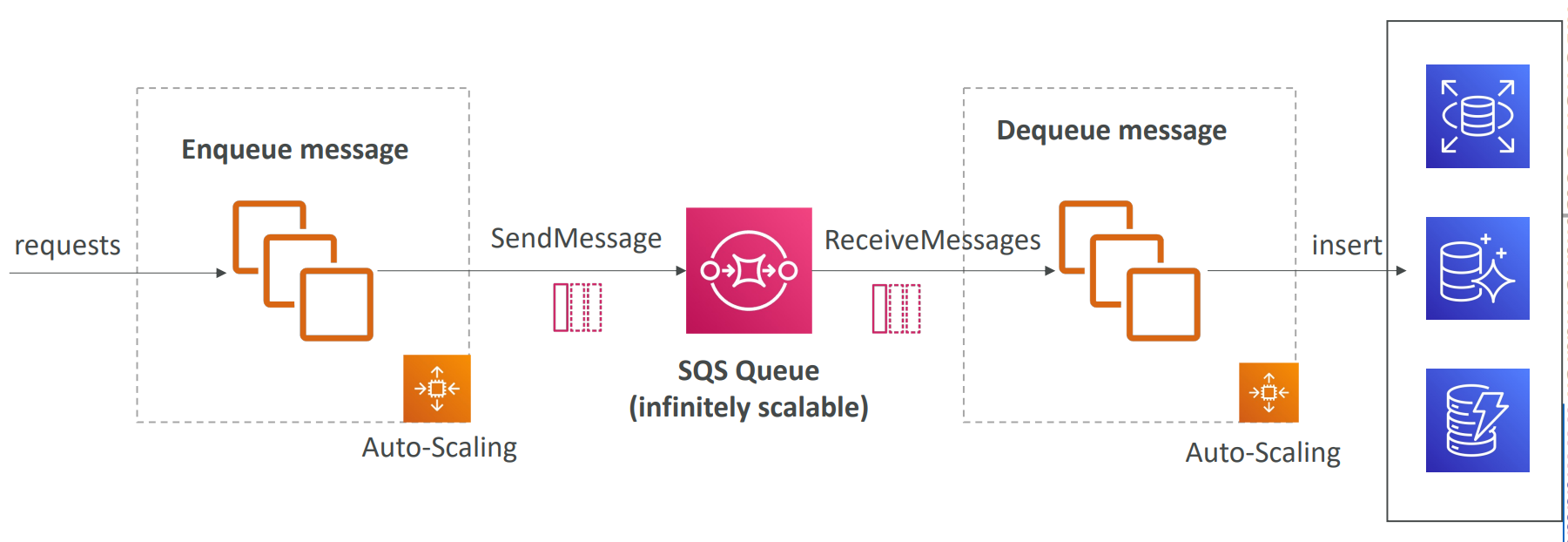

SQS as a buffer to database writes

• Problem:
  • when request burst, transaction data might lose.

• Solution:
  • Transaction data won’t lose, as sqs has unlimited throughput, unlimited number of messages in queue

• Sample:
  • An e-commerce company is preparing for a big marketing promotion that will bring millions of transactions. Their website is hosted on EC2 instances in an Auto Scaling Group and they are using Amazon Aurora as their database. The Aurora database has a bottleneck and a lot of transactions have been failed in the last promotion they have made as they had a lot of transaction and the Aurora database wasn’t prepared to handle these too many transactions. What do you recommend to handle those transactions and prevent any failed transactions?
  • SQS buffer

---

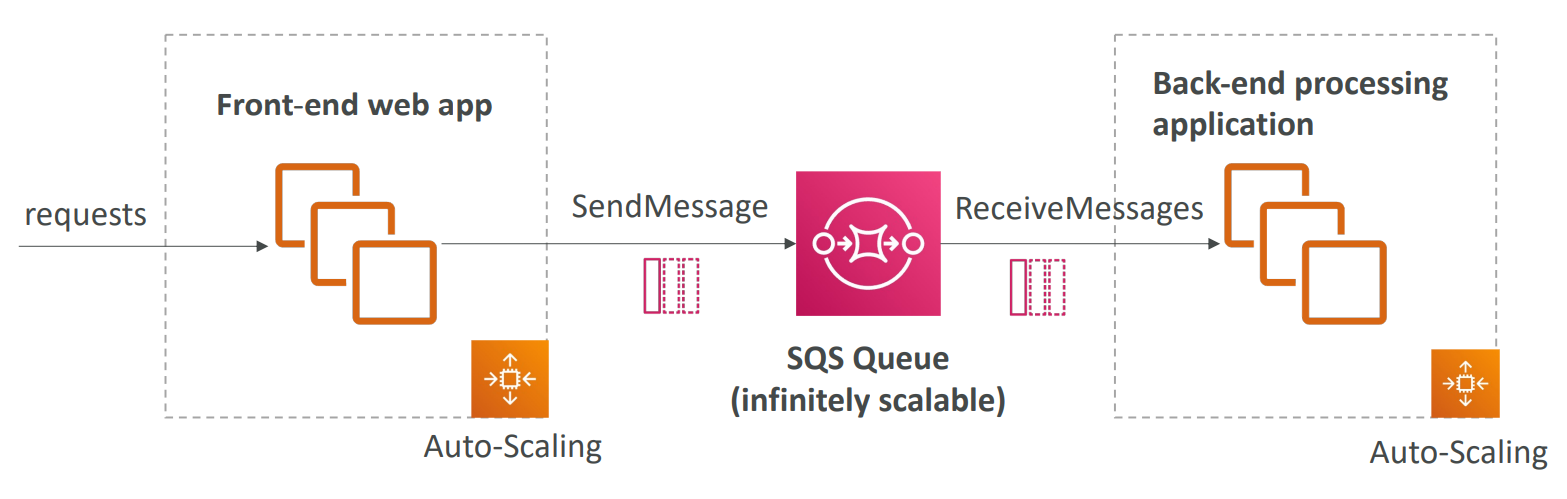

Decouple between application tiers 经典应用和题目

• Front end and Back end scales separately.
  • Useful for decoupling, a sudden spike load, timeout that needs to scale up very fast.

---
