AWS Storage - Amazon FSx

Amazon FSx
- allow to launch 3rd party high-performance file systems on AWS as a fully managed service
File systems:
- FSx for Lustre
- FSx for Windows File Server
- FSx for NetApp ONTAP
- FSx for OpenZFS

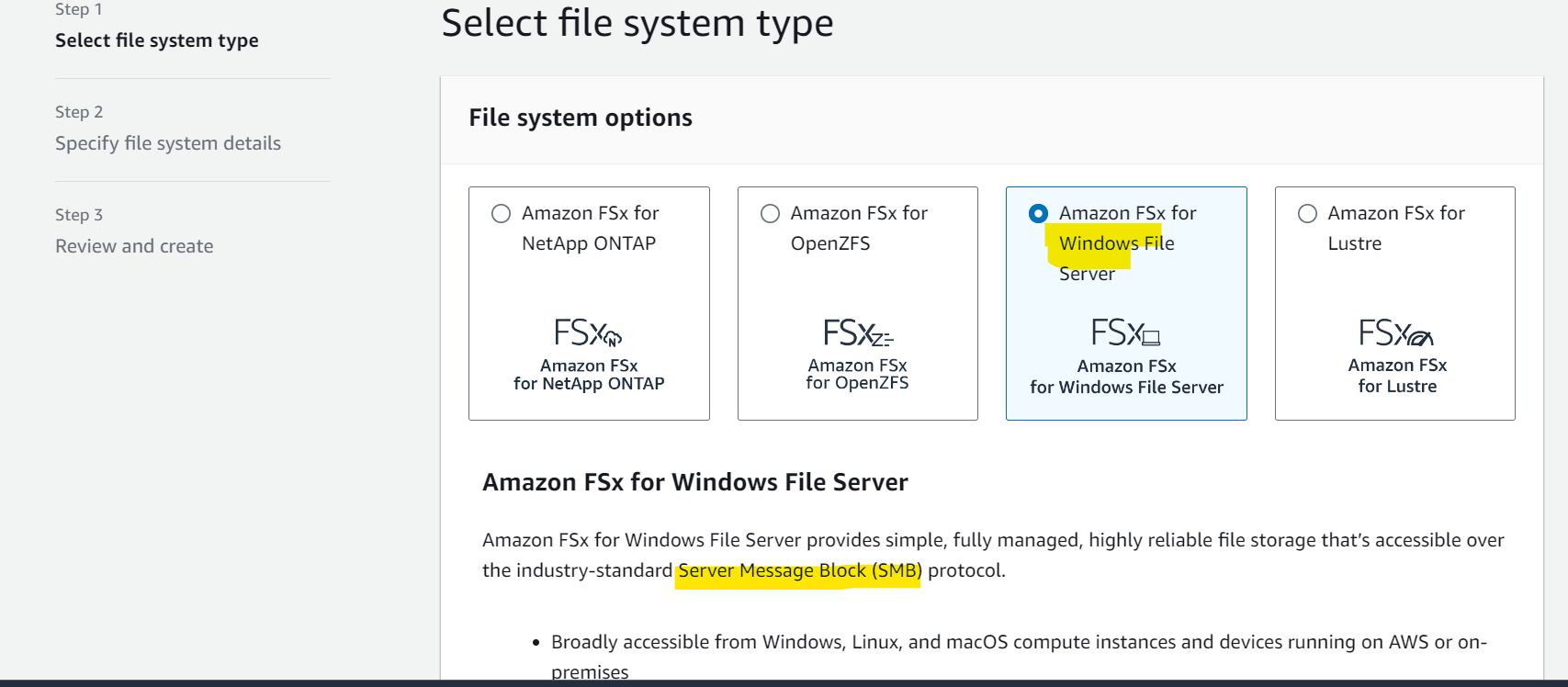

FSx for Windows
- a fully managed Windows file system share drive
Features:
- Supports SMB protocol & Windows NTFS
- Microsoft Active Directory integration, ACLs, user quotas
- Can be mounted on Linux EC2 instances
- Supports Microsoft's Distributed File System (DFS) Namespaces (group files across multiple FS)
- Scale up to 10s of GB/s, millions of IOPS, 100s PB of data

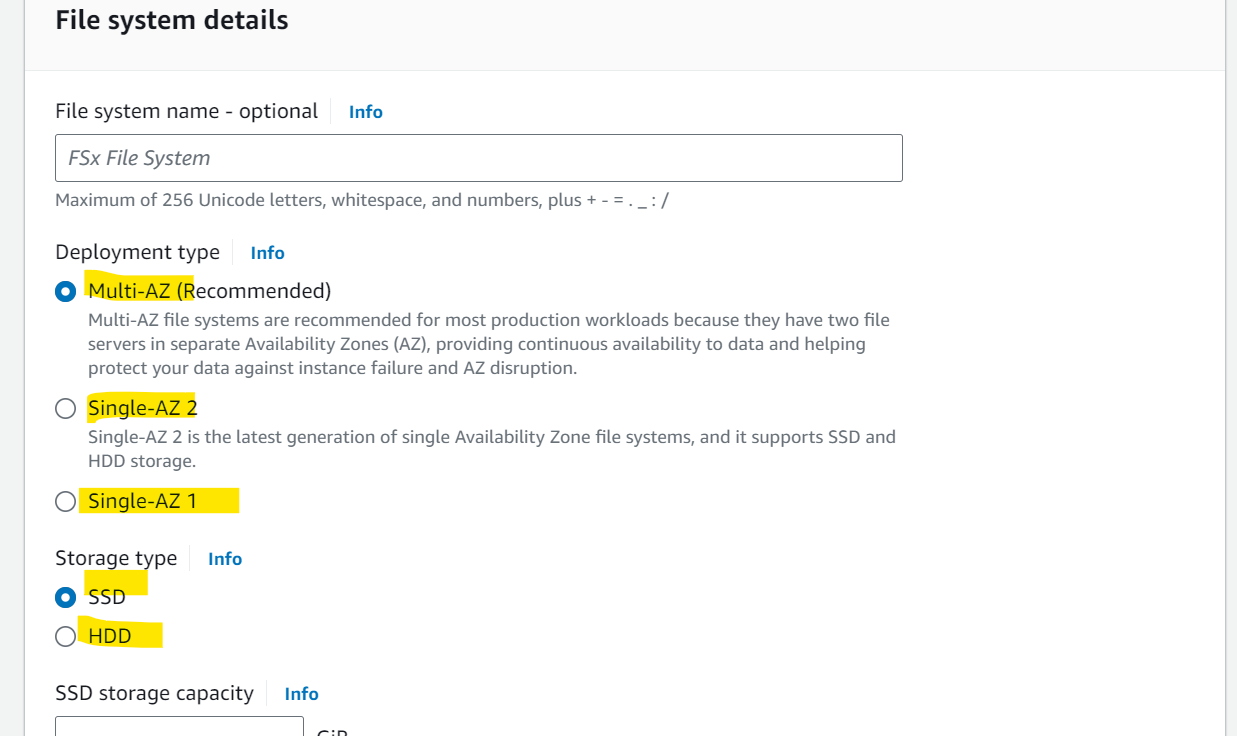

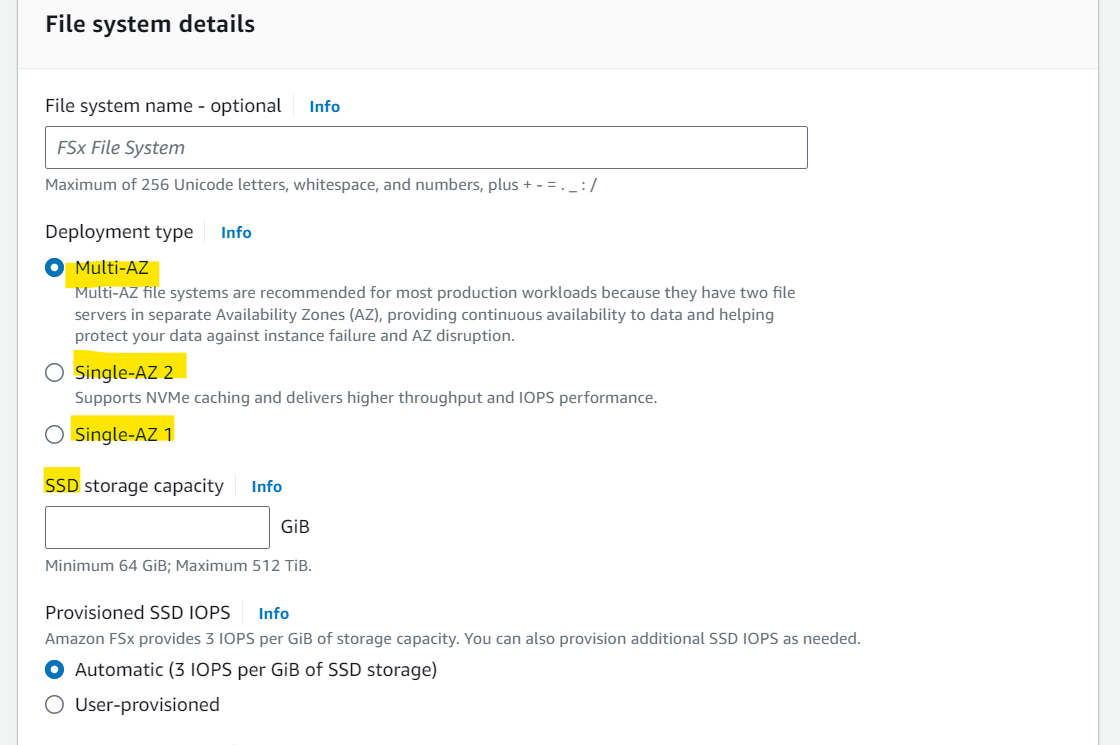

Storage Options:
- SSD
  - latency sensitive workloads (databases, media processing, data analytics, …)
- HDD
  - broad spectrum of workloads (home directory, CMS, …)
Can be accessed from your on-premises infrastructure (VPN or Direct Connect)
Can be configured to be Multi-AZ (high availability)
Data is backed-up daily to S3
Sample:
- You are planning to migrate your company’s infrastructure from on-premises to AWS Cloud. You have an on-premises Microsoft Windows File Server that you want to migrate. What is the most suitable AWS service you can use?
  - FSx for Windows

Lustre
- a type of parallel distributed file system, for large-scale computing
- The name Lustre is derived from “Linux” and “cluster
Use case:
- Machine Learning, High Performance Computing (HPC)
- Video Processing, Financial Modeling, Electronic Design Automation
Scales up to 100s GB/s, millions of IOPS, sub-ms latencies
Storage Options:
- SSD
  - low-latency, IOPS intensive workloads, small & random file operations
- HDD
  - throughput-intensive workloads, large & sequential file operations
Seamless integration with S3
- Can “read S3” as a file system (through FSx)
- Can write the output of the computations back to S3 (through FSx)
Can be used from on-premises servers (VPN or Direct Connect)
Sample:
- You would like to have a distributed POSIX compliant file system that will allow you to maximize the IOPS in order to perform some High-Performance Computing (HPC) and genomics computational research. This file system has to easily scale to millions of IOPS. What do you recommend?
- FSx for Lustre

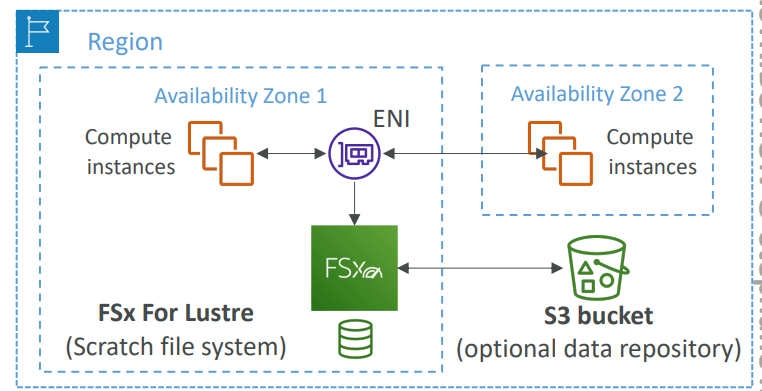

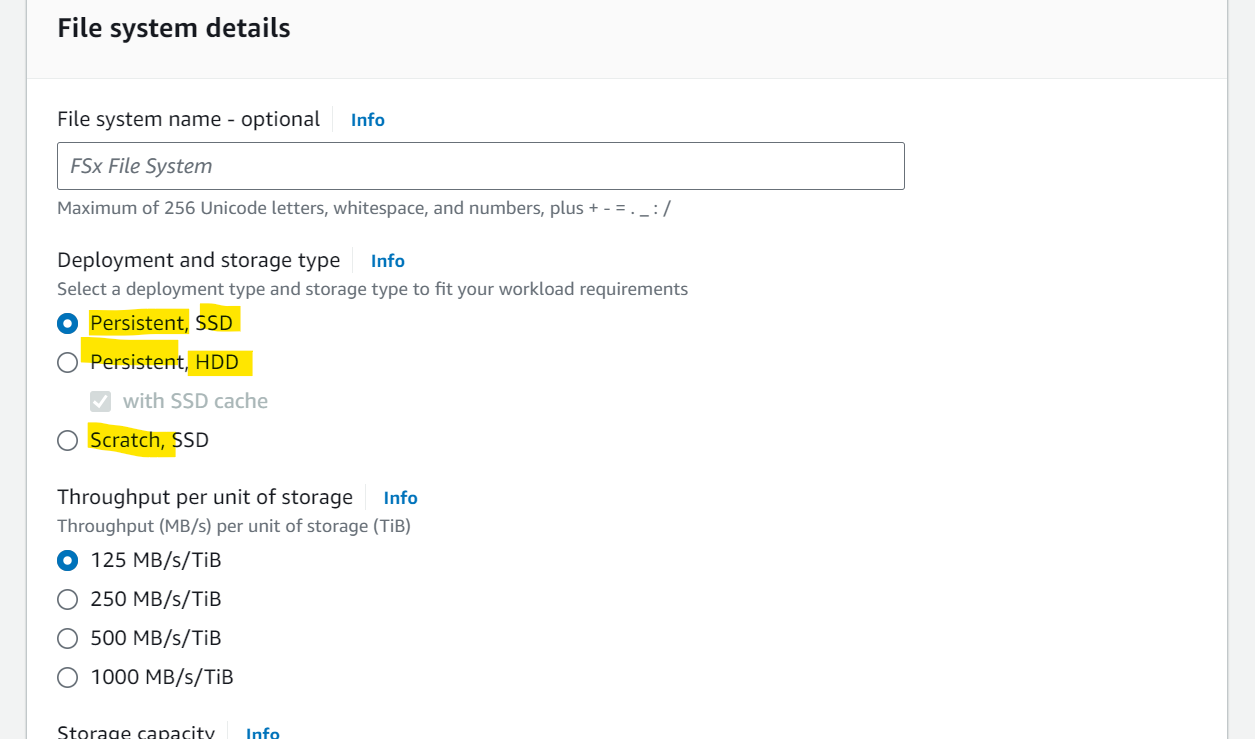

Scratch File System
- Temporary storage
- Data is not replicated (doesn’t persist if file server fails)
- High burst (6x faster, 200MBps per TiB)
- Usage:
  - short-term processing, optimize costs

fsx_lustre_scratch_diagram

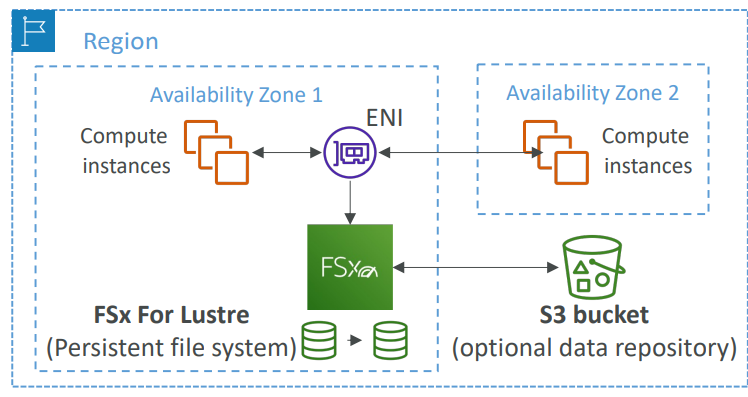

Persistent File System
- Long-term storage
- Data is replicated within same AZ
- Replace failed files within minutes
- Usage:
  - long-term processing, sensitive data
- Sample:
  - Which deployment option in the FSx file system provides you with long-term storage that’s replicated within AZ?

fsx_lustre_persistent_diagram

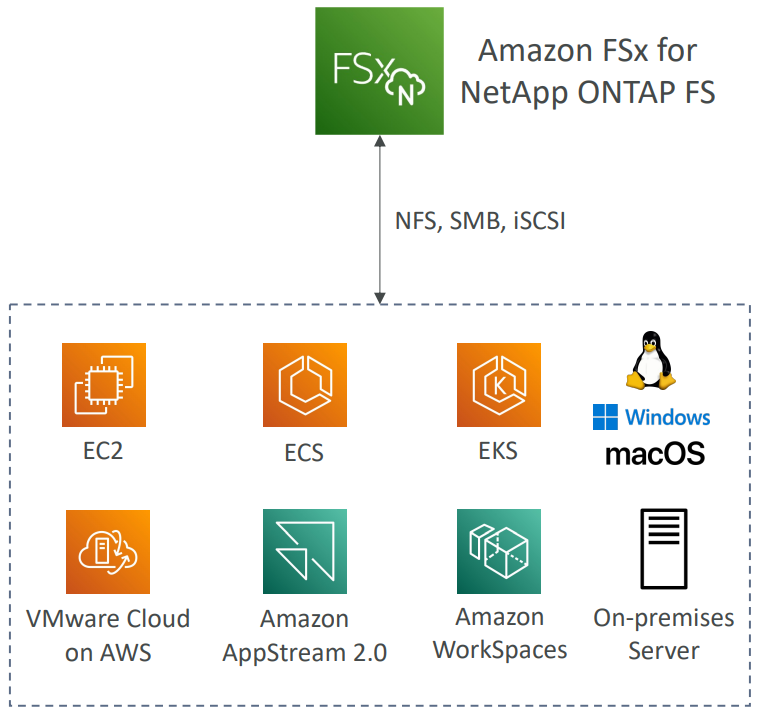

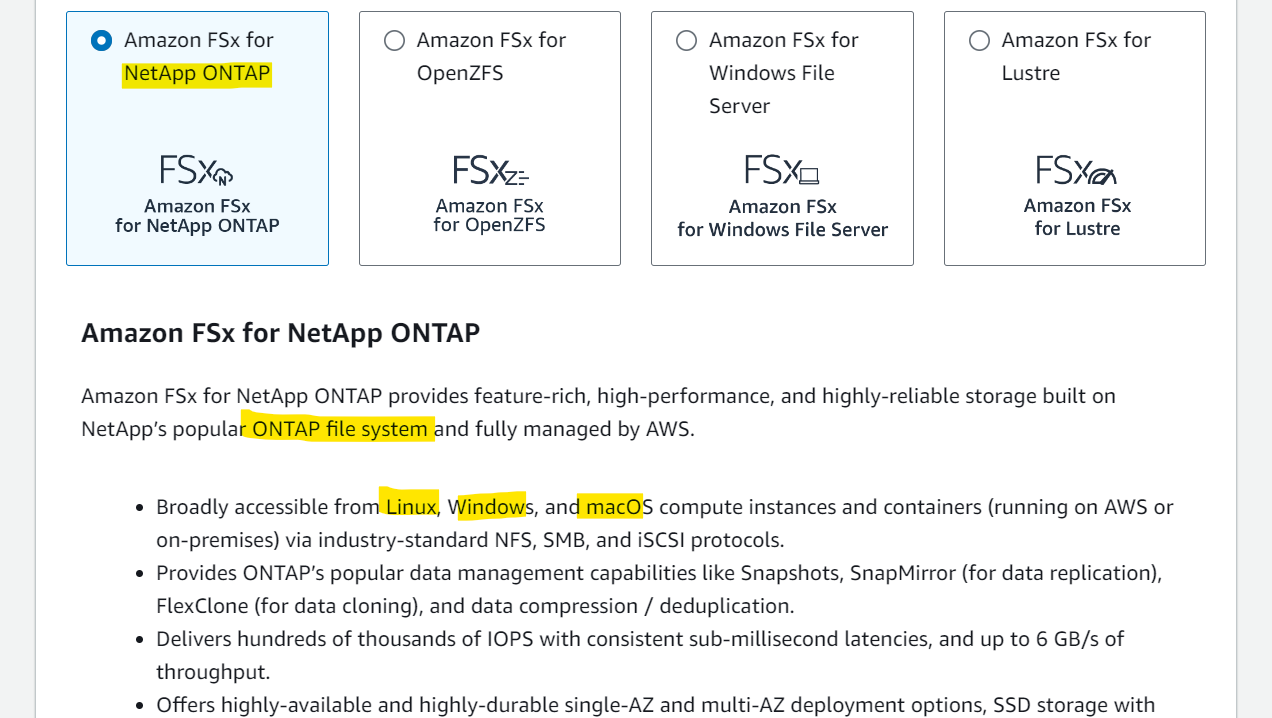

Managed NetApp ONTAP on AWS
File System compatible with NFS, SMB, iSCSI protocol
Move workloads running on ONTAP(Open Network Technology for Appliance Products) or NAS to AWS
Works with:
- Linux
- Windows
- MacOS
- VMware Cloud on AWS
- Amazon Workspaces & AppStream 2.0
- Amazon EC2, ECS and EKS
Storage shrinks or grows automatically
Snapshots, replication, low-cost, compression and data de-duplication
Point-in-time instantaneous cloning (helpful for testing new workloads)

fsx_netapp_ontap_diagram

Sample:
- Amazon FSx for NetApp ONTAP is compatible with the following protocols, EXCEPT FTP

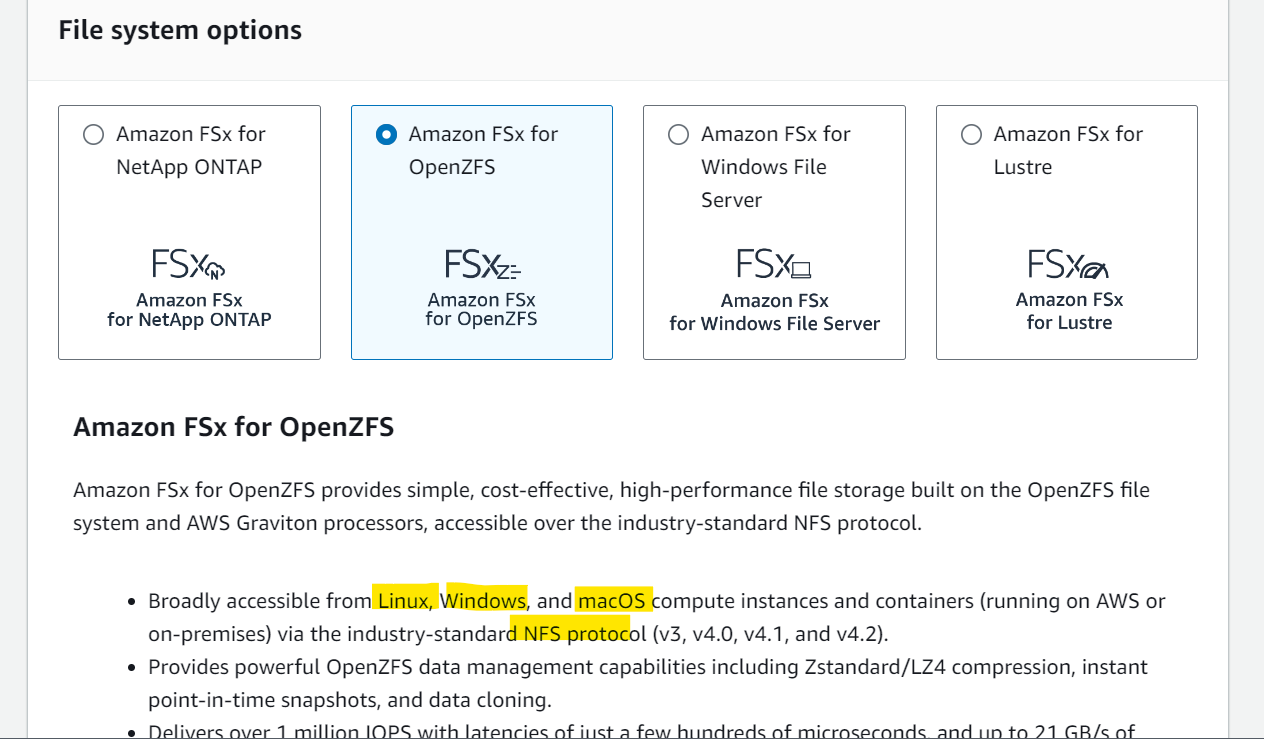

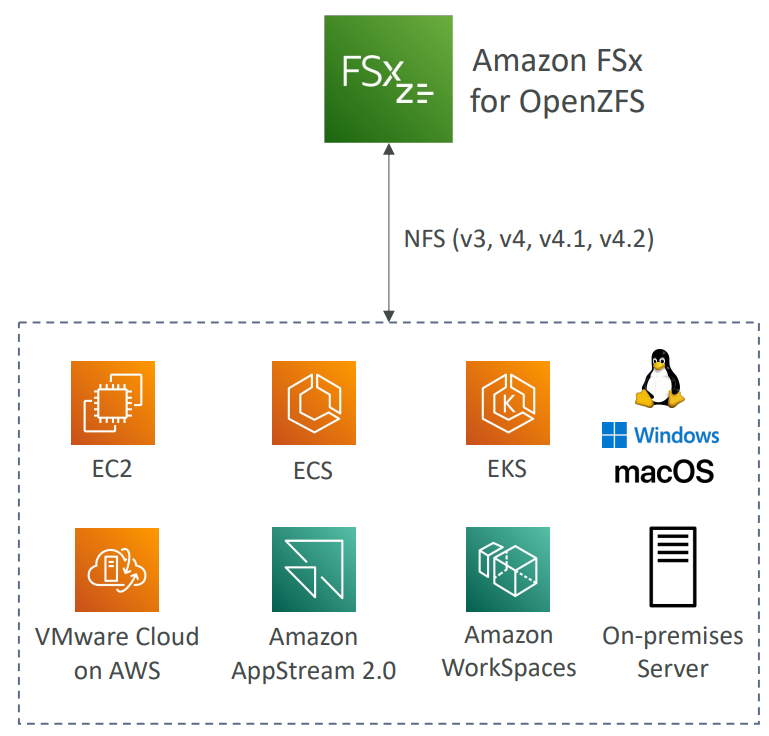

Managed OpenZFS(open-source implementation of the Zettabyte File System) file system on AWS
File System compatible with NFS (v3, v4, v4.1, v4.2)
Move workloads running on ZFS to AWS
Works with:
- Linux
- Windows
- MacOS
- VMware Cloud on AWS
- Amazon Workspaces & AppStream 2.0
- Amazon EC2, ECS and EKS
Up to 1,000,000 IOPS with < 0.5ms latency
Snapshots, compression and low-cost
Point-in-time instantaneous cloning (helpful for testing new workloads)
