DBA - Process Structure

Back

DBA - Process Structure

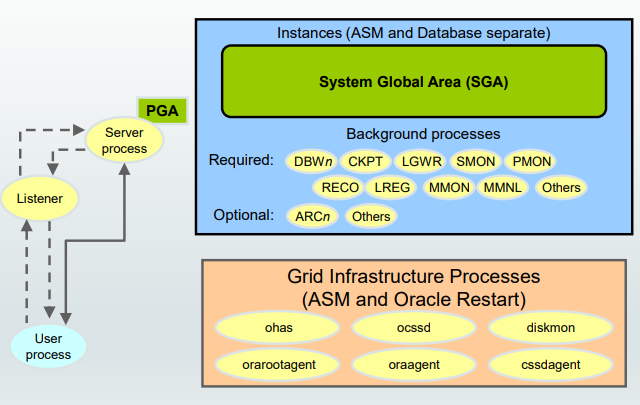

Processes

user process
- The user process represents the application or tool that connects to the Oracle database.
- It may be on the same machine as the Oracle database, or it may exist on a remote client and use a network to reach the Oracle database.
- The user process first communicates with a listener process that creates a server process in a dedicated environment.
server processes
- Oracle Database creates server processes to handle the requests of user processes connected to the instance.
- created on behalf of each user’s application can perform one or more of the following:
  - Parse and run SQL statements issued through the application.
  - Read necessary data blocks from data files on disk into the shared database buffers of the SGA (if the blocks are not already present in the SGA).
  - Return results in such a way that the application can process the information.
Background Processes
- To maximize performance and accommodate many users, a multiprocess Oracle Database system uses some additional Oracle Database processes called background processes.
- An Oracle Database instance can have many background processes.

process_diagram

Background Processes

Database Writer Process (DBWn)

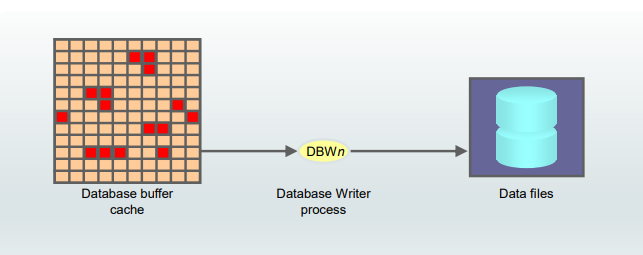

Database Writer process (DBWn)
- writes the contents of buffers to data files.
- responsible for writing modified (dirty) buffers in the database buffer cache to disk.
Although one Database Writer process (DBW0) is adequate for most systems, you can configure additional processes to improve write performance if your system modifies data heavily. 可以设置多个写头
- The additional processes are named DBW1 through DBW9, DBWa through DBWz, and BW36-BW99. 命名
- These additional DBWn processes are not useful on uniprocessor systems. 单处理器系统不适用.
功能:
- Asynchronously while performing other processing 异步写入
  - When a buffer in the database buffer cache is modified, it is marked dirty and added to the head of the checkpoint queue that is kept in system change number (SCN) order. This order, therefore, matches the order of redo that is written to the redo logs for these changed buffers.写入 checkpoint queue, 匹配 redo logs 中的 redo 顺序.
  - When the number of available buffers in the buffer cache falls below an internal threshold (to the extent that server processes find it difficult to obtain available buffers), DBWn writes nonfrequently used buffers to the data files from the tail of the LRU list so that processes can replace buffers when they need them. 可用缓存下降到阙值后, DBWn 写入数据文件, 释放缓存.
- To advance the checkpoint
  - DBWn also writes from the tail of the checkpoint queue to keep the checkpoint advancing.
  - 新的修改写入 checkpoint queue 的头, 从其尾部写入 data file, 从而推动 checkpoint 前进.

Log Writer Process (LGWR)

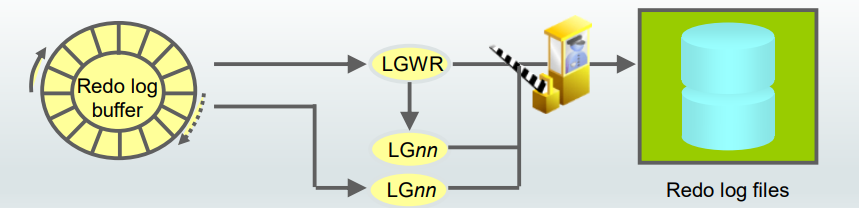

Log Writer process (LGWR)
- responsible for redo log buffer management by writing the redo log buffer entries to a redo log file on disk.
- LGWR writes all redo entries that have been copied into the buffer since the last time it wrote.
Writes the redo log buffer to a redo log file on disk:写入时机
- When a user process commits a transaction
- When an online redo log switch occurs
- When the redo log buffer is one-third full or contains 1 MB of buffered data
- Before a DBWn process writes modified buffers to disk
- When three seconds have passed since the last write
Serves as coordinator of LGnn processes and ensures correct order for operations that must be ordered.功能: 保证 redo 顺序.
- LGWR starts and coordinates multiple helper processes that concurrently perform some of the work.
- LGWR handles the operations that are very fast or must be coordinated and delegates operations to the LGnn that could benefit from concurrent operations, primarily writing the redo from the log buffer to the redo log file and posting the completed write to the foreground process that is waiting. LGnn 是同时 operations
- Because LGnn processes work concurrently and certain operations must be performed in order,LGWR forces ordering so that even if the writes complete out of order, the posting to the foreground processes will be in the correct order.效果保证顺序
The redo log buffer is a circular buffer. 效果: redo log buffer 可以循环
- When LGWR writes redo entries from the redo log buffer to a redo log file, server processes can then copy new entries over the entries in the redo log buffer that have been written to disk.写入后可以被覆盖,从而循环缓存.
- LGWR normally writes fast enough to ensure that space is always available in the buffer for new entries, even when access to the redo log is heavy. LGWR writes one contiguous portion of the buffer to disk. LGWR 写入很快,每次写一片缓存, 以至于能保证缓存有空间.

process_lgwr_diagram

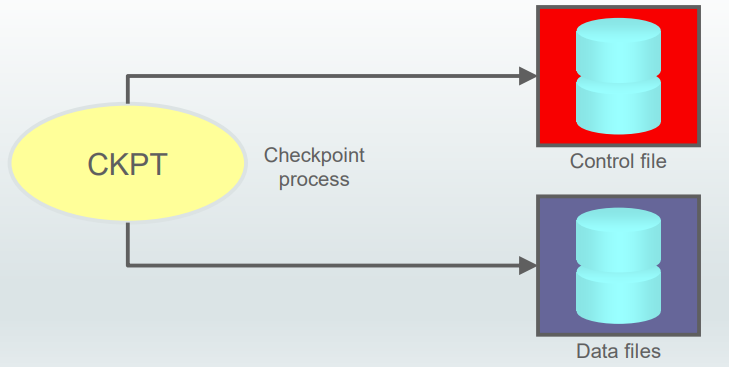

Checkpoint Process (CKPT)

Records checkpoint information in:
- The Control file
- Each data file header
Signals DBWn to write blocks to disk
checkpoint
- a data structure that defines a system change number (SCN) in the redo thread of a database. 定义系统修改码
- Checkpoints are recorded in the control file and in each data file header.
- They are a crucial element of recovery.
CKPT process
- update the headers of all data files to record the details of the checkpoint when a checkpoint occurs. 用于更新数据文件头部来记录所有细节.
CKPT vs DBWn
- The CKPT process does not write blocks to disk; 将 scn 写入文件头部.
- DBWn always performs that work. 写入磁碟
The SCNs recorded in the file headers guarantee that all changes made to database blocks before that SCN have been written to disk. SCN 记录保证所有修改都被写入磁碟.

process_ckpt_diagram

System Monitor Process (SMON)

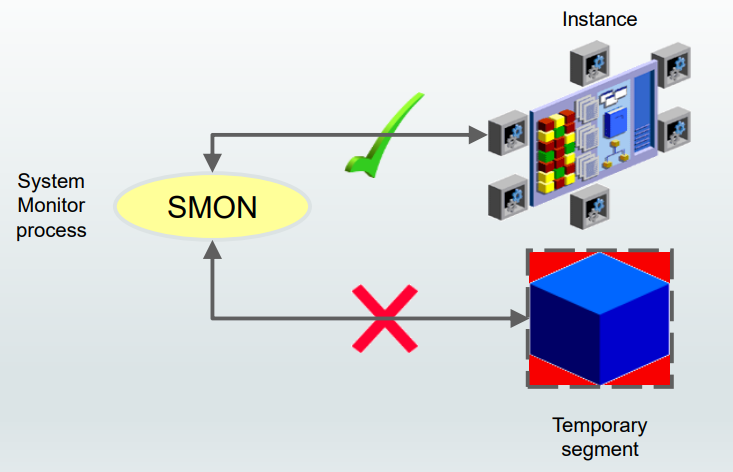

System Monitor process (SMON)
- performs recovery at instance startup if necessary.
- responsible for cleaning up temporary segments that are no longer in use.
  - If any terminated transactions were skipped during instance recovery because of file-read or offline errors, SMON recovers them when the tablespace or file is brought back online.
SMON checks regularly to see whether the process is needed. Other processes can call SMON if they detect a need for it.

process_smon_diagram

Process Monitor Process (PMON)

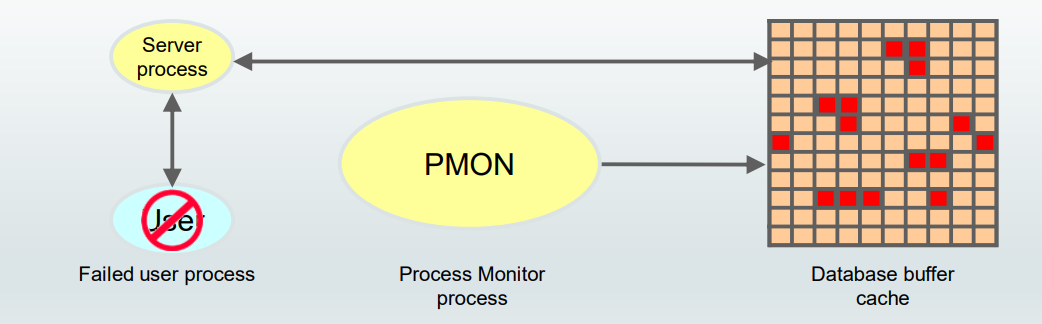

Process Monitor process (PMON)
- performs process recovery when a user process fails.
  - 1. responsible for cleaning up the database buffer cache
  - 1. freeing resources that the user process was using.
      - For example, it resets the status of the active transaction table, releases locks, and removes the process ID from the list of active processes.
Monitors sessions for idle session timeout
- PMON periodically checks the status of dispatcher and server processes and restarts any that have stopped running (but not any that Oracle Database has terminated intentionally).
Like SMON, PMON checks regularly to see whether it is needed; it can be called if another process detects the need for it.

process_pmon_diagram

Recoverer Process (RECO)

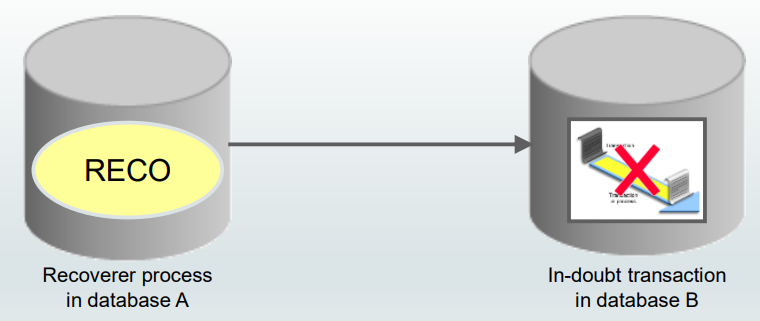

Recoverer process (RECO)
- a background process used with the distributed database configuration that automatically resolves failures involving distributed transactions. 解决分布式可疑事务
The RECO process of an instance automatically connects to other databases involved in an in-doubt distributed transaction.
- When the RECO process reestablishes a connection between involved database servers, it automatically resolves all in-doubt transactions, removing from each database’s pending transaction table any rows that correspond to the resolved in-doubt transactions.
- If the RECO process fails to connect with a remote server, RECO automatically tries to connect again after a timed interval. However, RECO waits an increasing amount of time (growing exponentially) before it attempts another connection.

process_reco_diagram

Listener Registration Process (LREG)

Registers information about the database instance and dispatcher processes with Oracle Net Listener

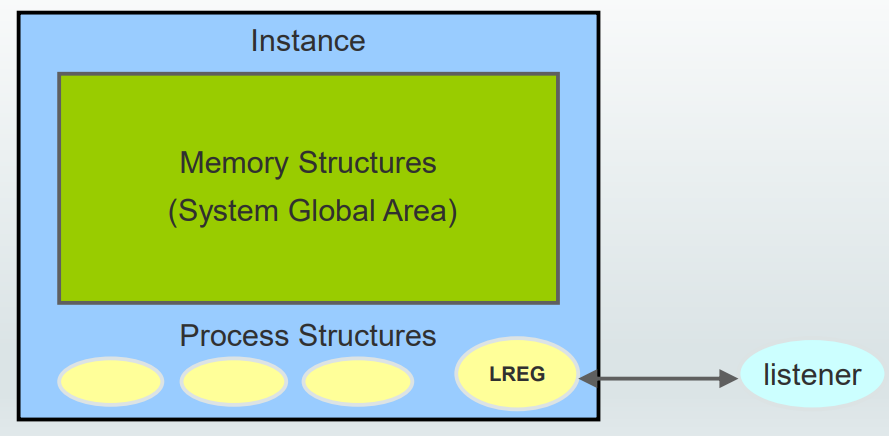

Listener Registration process (LREG)
- registers information about the database instance and dispatcher processes with the Oracle Net Listener.
LREG provides the listener with the following information:
- Database services names
- Database instance name, associated with the services, and its current and maximum load
- Service handlers (dispatchers and dedicated servers) available for the instance, including their type, protocol addresses, and current and maximum load
When the instance starts, LREG attempts to connect to the listener. 当实例启动时, 会将实例信息注册在 lsnr.
- If the listener is running, LREG passes information to it.
- If the listener is not running, LREG periodically attempts to connect to it.
It may take up to 60 seconds for LREG to register the database instance with the listener after the listener has started.
- You can use the ALTER SYSTEM REGISTER command to immediately initiate service registration after starting the listener.

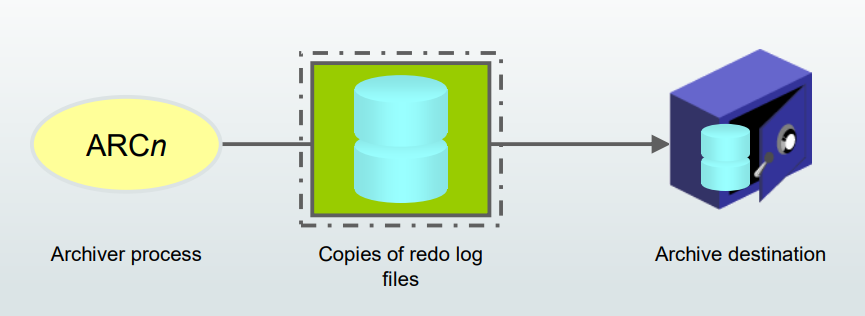

Archiver Processes (ARCn)

Archiver processes (ARCn)
- copy redo log files to a designated storage device after a log switch has occurred.
  - Can collect transaction redo data and transmit that data to standby destinations
设置:
- ARCn processes are present only when the database is in ARCHIVELOG mode and automatic archiving is enabled. 条件: enable
- The default is to have four Archiver processes.
  - If you anticipate a heavy workload for archiving (such as during bulk loading of data), you can increase the maximum number of Archiver processes. 多个 process
- There can also be multiple archive log destinations. 多个储存点
  - It is recommended that there be at least one Archiver process for each destination.

process_arcn_diagram

Summary

Server process
- Each server process and background process has its own PGA.
- PGA is exclusive to the server process
Background process

Process	Memory	Files	Description
`Database Writer Process (DBWn)`	`database buffer cache`		Write to disk
`Log Writer Process (LGWR)`	`redo log buffer`	`redo log file`	Write to file
`Checkpoint Process (CKPT)`		`data file`	Update header
`System Monitor Process (SMON)`			recovery at instance startup
`Process Monitor Process (PMON)`			process recovery
`Recoverer Process (RECO)`			distributed transactions
`Listener Registration Process (LREG)`			Register instance
`Archiver Processes (ARCn)`		`redo log file`	Transmit that data
