DBA - Instance: Parameter

Back

• DBA - Instance: Parameter
  • Initialization Parameters
    • Types of Initialization Parameters
  • V$PARAMETER \& V$PARAMETER2
    • Lab: V$PARAMETER
    • Lab: V$PARAMETER \& V$PARAMETER2
  • V$SYSTEM_PARAMETER vs V$SYSTEM_PARAMETER2
    • Lab: V$SYSTEM_PARAMETER
    • Lab: V$SYSTEM_PARAMETER \& V$SYSTEM_PARAMETER2
    • Lab: V$SYSTEM_PARAMETER vs V$PARAMETER
  • Session-level Paramters
    • Lab: Alter Session Parameter
  • System Parameter
    • SCOPE
    • Default Scope
    • Lab: Alter System parameter with scope of memory
    • Lab: Alter system parameter with scope of spfile
    • Lab: Alter System parameter with scope of Both
    • Lab: Reset the parameter
    • Lab: Defaul Scope for SPFile
    • Lab: Default Scope for pfile
  • Pluggable Paramter
    • Lab: Alter pluggable parameter

---

Initialization Parameters

• Initialization parameters

  • the configuration parameters that affect the basic operation of an instance.
  • The instance reads initialization parameters from a file at startup.

• Only a few of parameters must be explicitly set because the default values are usually adequate.

  • Note: All initialization parameters are optional. Oracle has a default value for each parameter. 所有参数都有默认值.

• initialization parameters are used to optimize performance by adjusting memory structures. 实际上参数作用于内存结构.

---

Types of Initialization Parameters

• Most initialization parameters belong to one of the following groups: 功能上

  • Parameters that name entities such as files or directories

  • Parameters that set limits for a process, database resource, or the database itself

  • variable parameters:

    • Parameters that affect capacity, such as the size of the SGA

---

• Initialization parameters are divided into two groups: basic and advanced.性能上

• Typically, only the approximately 30 basic parameters to obtain reasonable performance.

  • The basic parameters set characteristics such as the database name, locations of the control files, database block size, and undo tablespace.

• modification to the advanced parameters may be required for optimal performance.

---

• Derived parameters:

  • their values are calculated from the values of other parameters.其他参数计算的结果
  • e.g., sessions Derived from processes: sessions = (1.5 \* PROCESSES) + 22

• Operating System-Dependent Parameters

  • e.g., DB_BLOCK_SIZE

---

V$PARAMETER & V$PARAMETER2

• V$PARAMETER:

  • displays information about the initialization parameters that are currently in effect for the session.

• V$PARAMETER2:

  • same as V$PARAMETER, but more readable

• Key Column

  • ISSES_MODIFIABLE
  • ISSYS_MODIFIABLE
  • ISPDB_MODIFIABLE

---

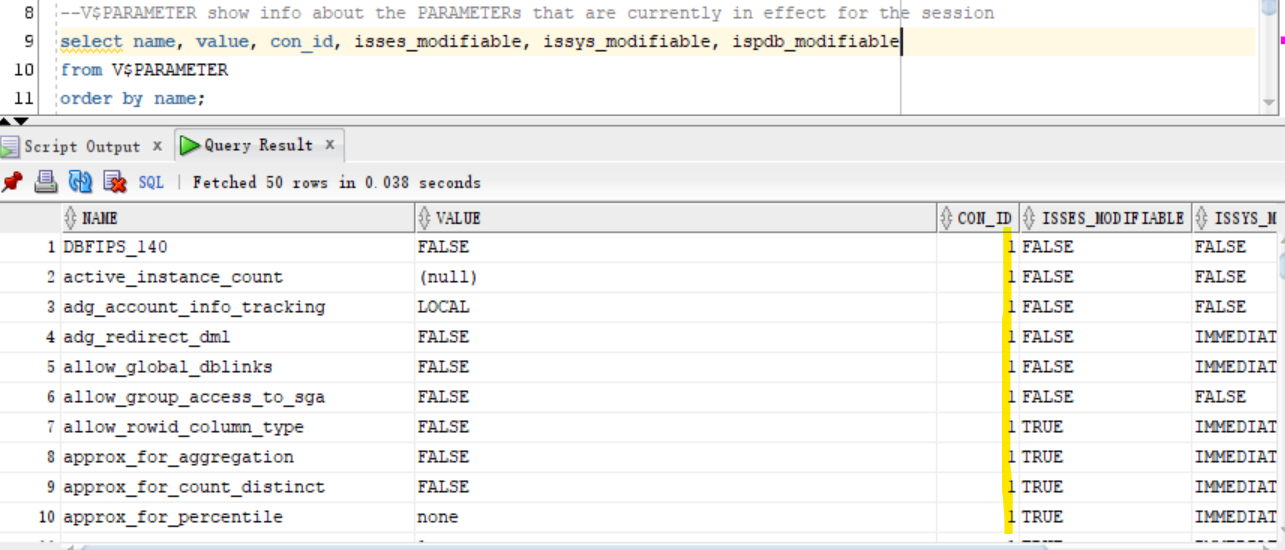

Lab: V$PARAMETER

• Query in root
  • return con_id is 1, because the current session is in root.

# current in root
show con_name

select name, open_mode from v$pdbs;

alter pluggable database all open;

select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,con_id
from V$PARAMETER
order by name;

---

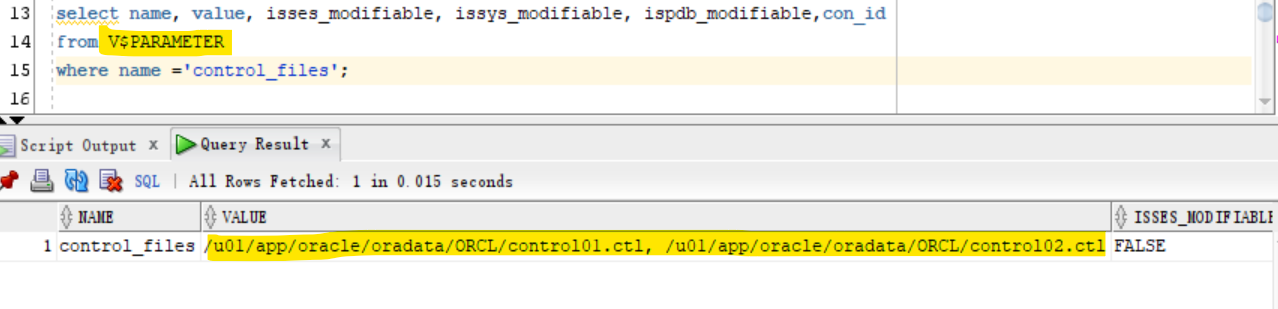

Lab: V$PARAMETER & V$PARAMETER2

select name, value, isses_modifiable, issys_modifiable, ispdb_modifiable,con_id
from V$PARAMETER
where name ='control_files';

---

V$SYSTEM_PARAMETER vs V$SYSTEM_PARAMETER2

• V$SYSTEM_PARAMETER
  • displays the initialization parameters that are currently in effect for the instance.
  • A new session inherits parameter values from the instance-wide values.

• V$SYSTEM_PARAMETER2

  • same as V$SYSTEM_PARAMETER, but more readable
• Key columns:
  • ISDEFAULT:
    • Indicates whether the parameter is set to the default value (TRUE). Otherwise, the parameter value was specified in the parameter file (spfile or pfile) (FALSE)
    • Only a few parameters need to be configured in the parameter file since most of parameters use the default values.

---

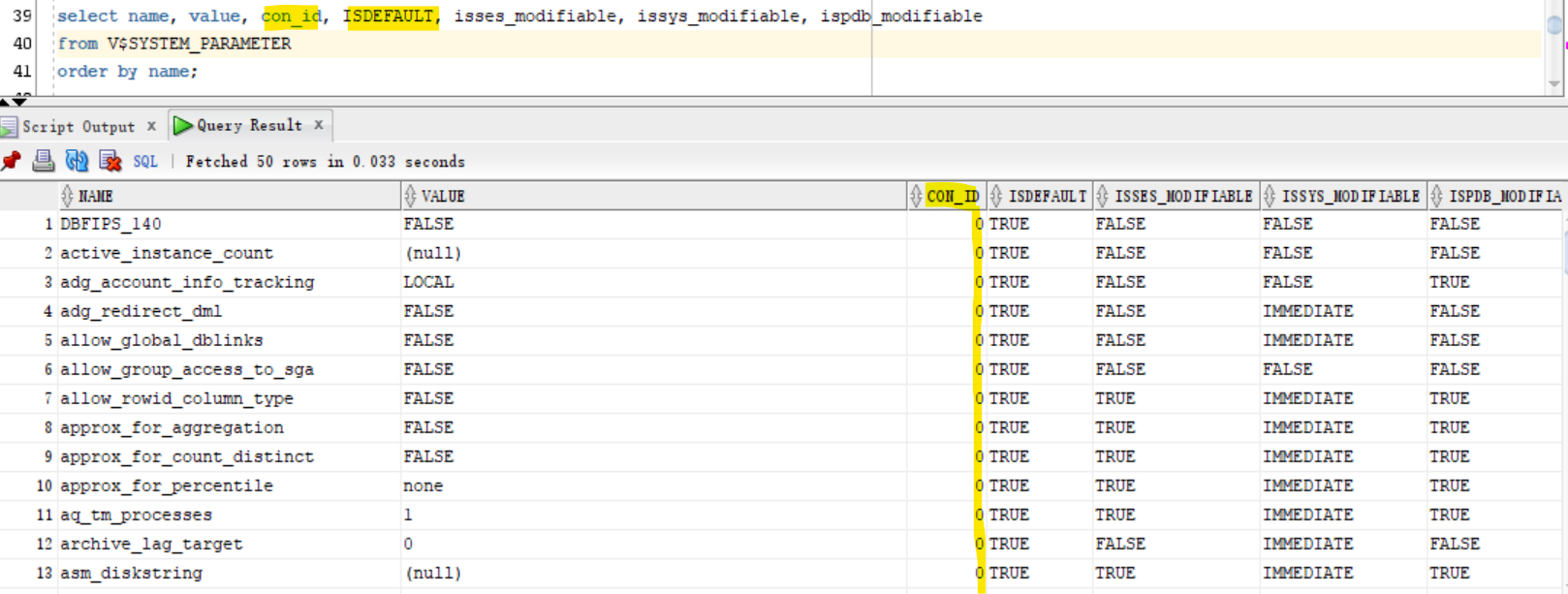

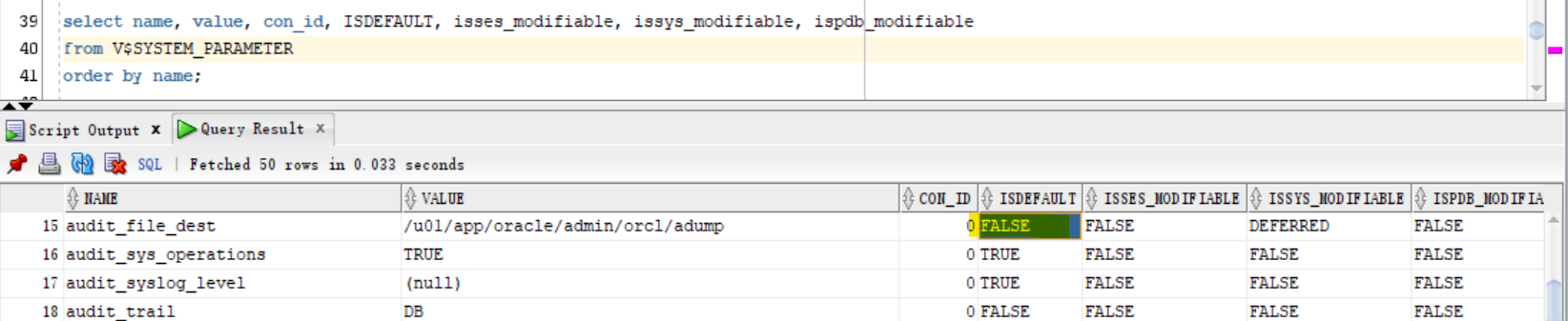

Lab: V$SYSTEM_PARAMETER

• Query
  • con_id is 0, because it is the instance level.

select name, value, con_id, ISDEFAULT, isses_modifiable, issys_modifiable, ispdb_modifiable
from V$SYSTEM_PARAMETER
order by name;

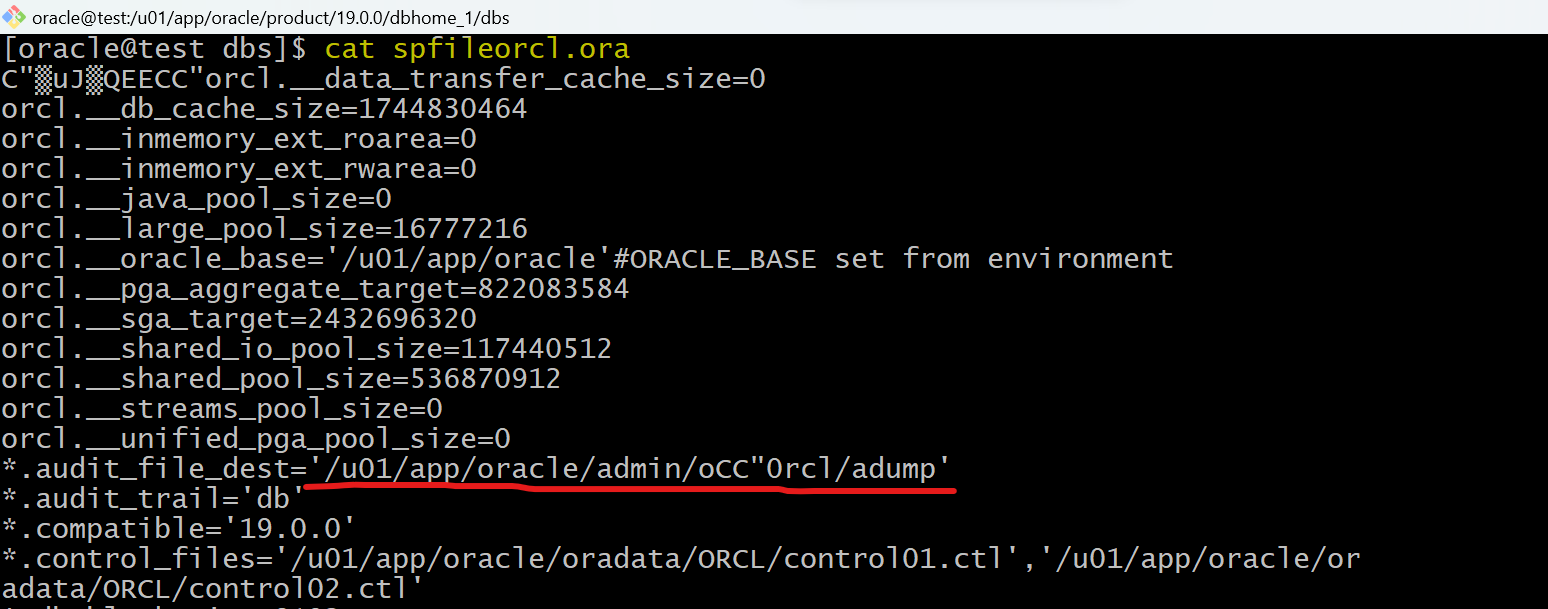

• ISDEFAULT for audit_file_dest is fault
  • its value is not a default value, but use the value defined in the parameter file.

---

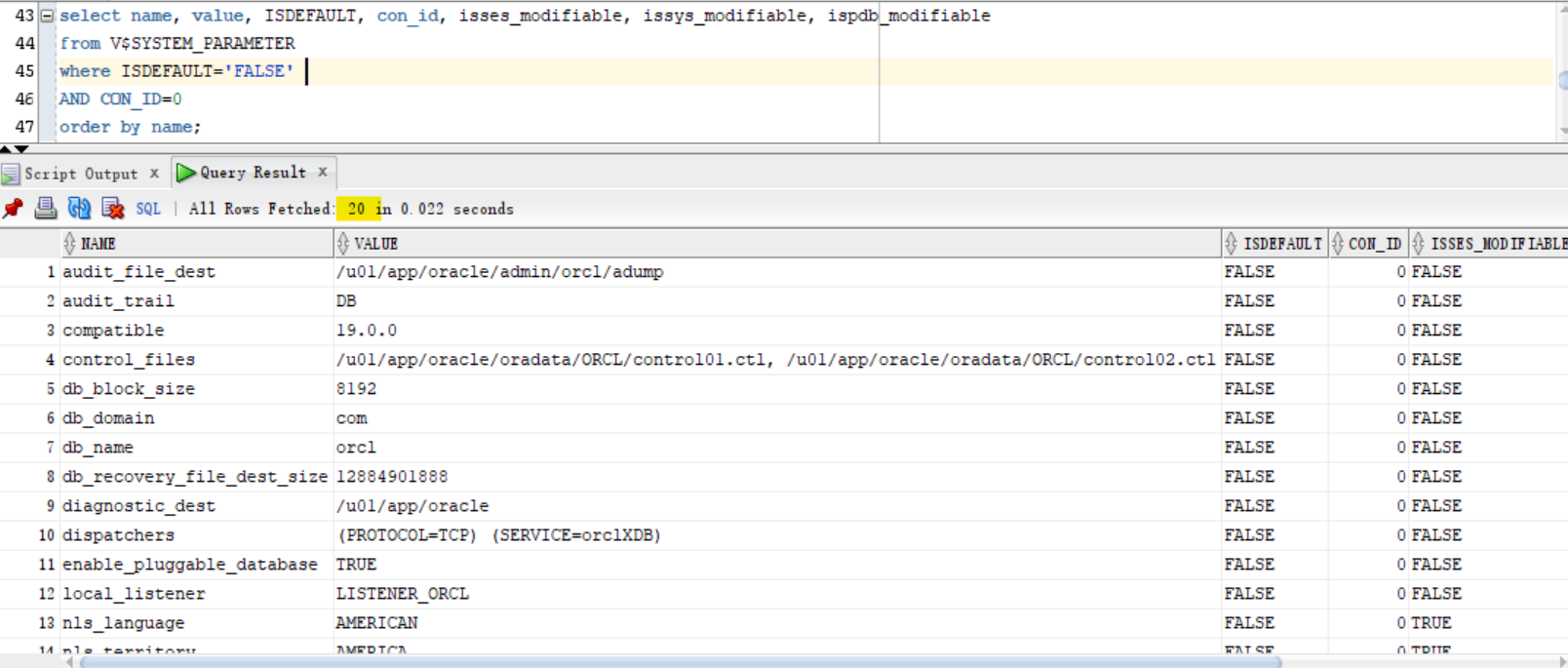

• query all parameter defined in the parameter file.

select name, value, ISDEFAULT, con_id, isses_modifiable, issys_modifiable, ispdb_modifiable
from V$SYSTEM_PARAMETER
where ISDEFAULT='FALSE'
AND CON_ID=0
order by name;

---

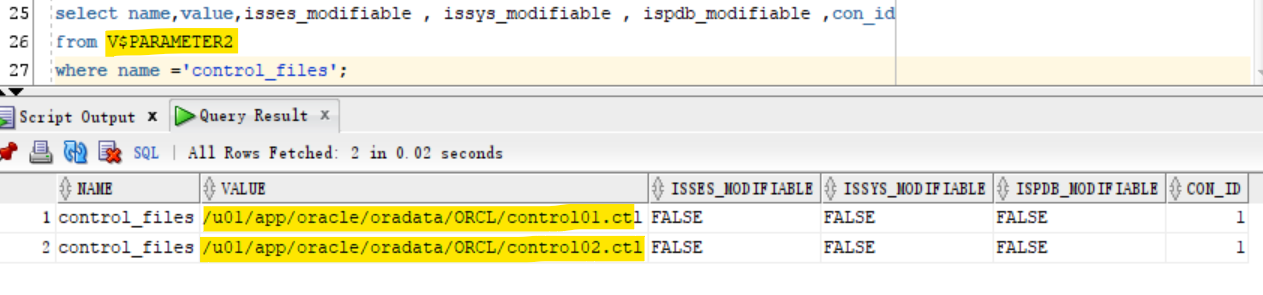

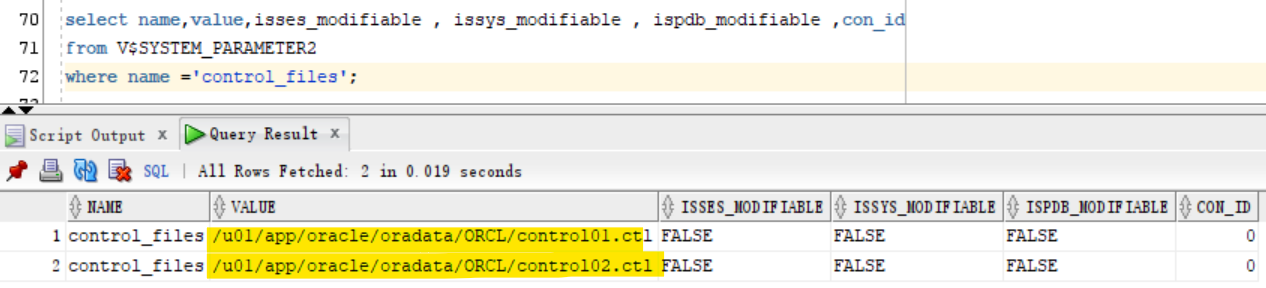

Lab: V$SYSTEM_PARAMETER & V$SYSTEM_PARAMETER2

select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,con_id
from V$SYSTEM_PARAMETER
where name ='control_files';

select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,con_id
from V$SYSTEM_PARAMETER2
where name ='control_files';

---

Lab: V$SYSTEM_PARAMETER vs V$PARAMETER

• Alter session parameter only change the value in the V$PARAMETER, not in the V$SYSTEM_PARAMETER

# Query instance level parameter
select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,ISDEFAULT,con_id
from V$SYSTEM_PARAMETER
where name='nls_date_format';
#nls_date_format		TRUE	FALSE	TRUE	TRUE	0

# alter session parameter
alter session set nls_date_format='dd-mm-yyyy';

# Query instance level parameter
# value not changed, null
select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,con_id
from V$SYSTEM_PARAMETER
where name='nls_date_format';
# nls_date_format		TRUE	FALSE	TRUE	0

# Query session level parameter
# value change
select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,con_id
from V$PARAMETER
where name='nls_date_format';
# nls_date_format	dd-mm-yyyy	TRUE	FALSE	TRUE	1

---

Session-level Paramters

• When the isses_modifiable=True, this session parameter can be changed in the session; Otherwise, it cannnot be changed.

• When the current session is terminated, the setting will not be available for the new session.

• Alter:

ALTER SESSION SET parameter=value;

• Shortcut:
  • return all session level parameters

--can you query all the para that we can change it on session level
select name,value, isses_modifiable, issys_modifiable, ispdb_modifiable
from V$PARAMETER
where isses_modifiable='TRUE'

---

Lab: Alter Session Parameter

# query parameters
select name,value from V$PARAMETER
order by name;

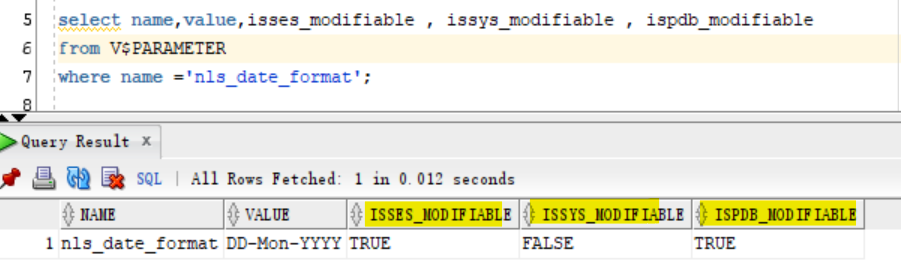

# query a parameter with modifiable details
select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable
from V$PARAMETER
where name ='nls_date_format';

• Alter session parameter

# query before alter
select sysdate from dual;
#28-Feb-2024

# alter parameter
alter session set nls_date_format='dd-mm-yyyy';

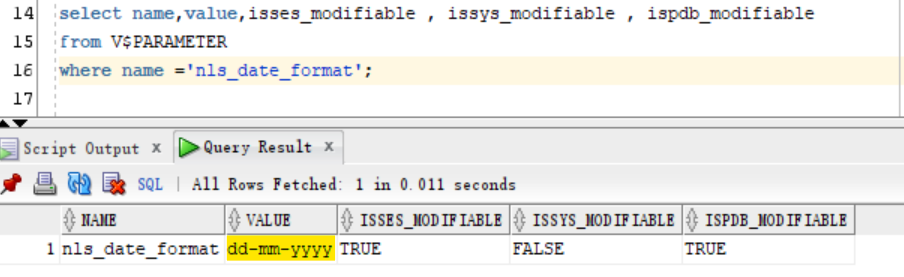

# confirm new value of parameter
select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable
from V$PARAMETER
where name ='nls_date_format';

# confirm after alter
select sysdate from dual;
#28-02-2024

---

System Parameter

• values in issys_modifiable:

issys_modifiable	Description
FALSE	could be changed, in Spfile only, need restart
IMMEDIATE	changes can take effect IMMEDIATE
DEFERRED	take effect for future sessions

• Syntax:

ALTER SYSTEM SET parameter=value;

• Shortcut:
  • query all parameter defined in the parameter file.

select name, value, ISDEFAULT, con_id, isses_modifiable, issys_modifiable, ispdb_modifiable
from V$SYSTEM_PARAMETER
where ISDEFAULT='FALSE'
AND CON_ID=0
order by name;

---

SCOPE

value of scope	current session	restart	future session
MEMORY	Yes	-	No
SPFILE	No	required	Yes
BOTH	Yes	-	Yes
DEFERRED	No	-	Yes

---

Default Scope

• Default scope of Alter system set parameter=value

Startup with	Defautl	Equivalent
spfile	BOTH	Alter system set parameter=value scope=both
pfile	MEMORY	Alter system set parameter=value scope=memory

DB can read but cannot write a pfile.

---

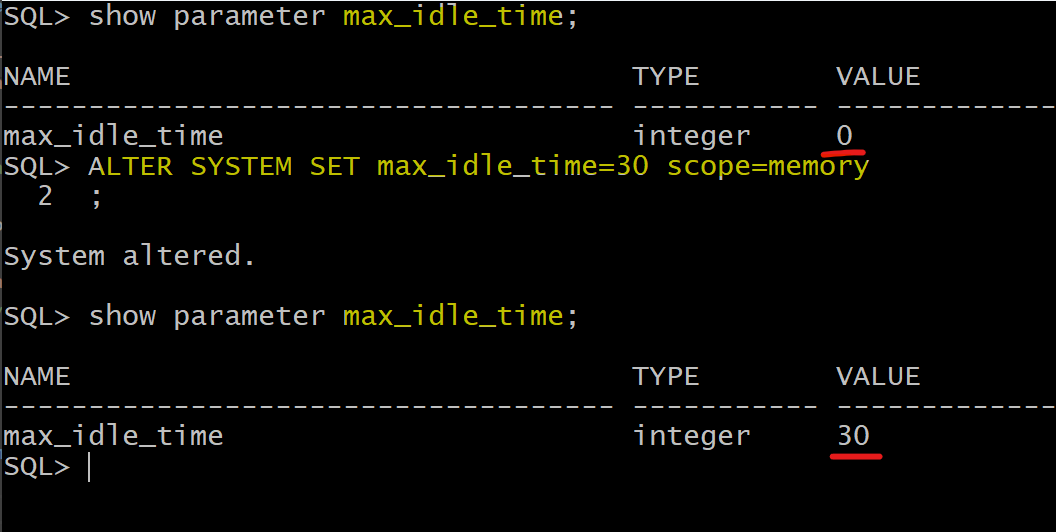

Lab: Alter System parameter with scope of memory

• scope=memory: changes only effects the instance, not the spfile.

show parameter max_idle_time;
# 0

ALTER SYSTEM SET max_idle_time=30 scope=memory;

show parameter max_idle_time;
# 30

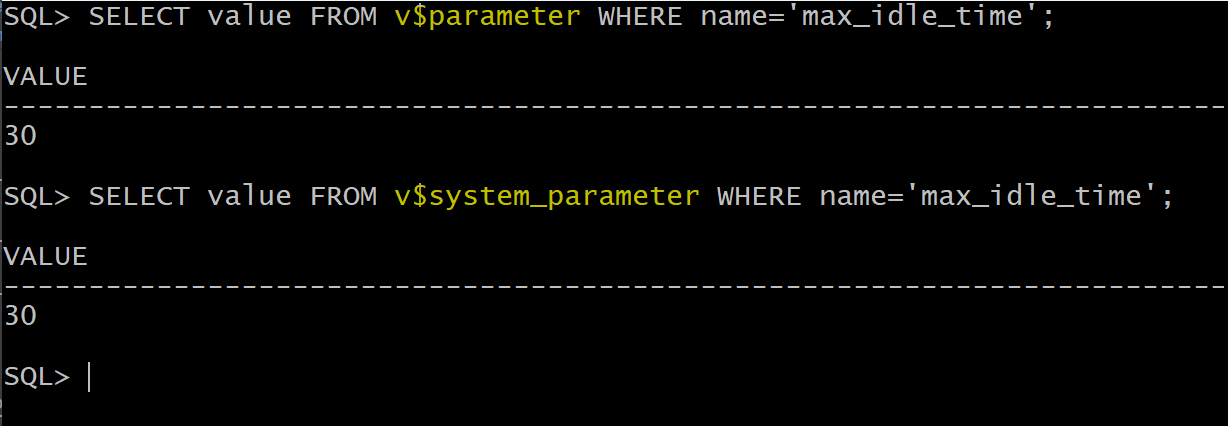

• Query from v$parameter and v$system_parameter
  • Both 30
  • means new value is in effiect for the current session and for the new session.

SELECT value FROM v$parameter WHERE name='max_idle_time';
# 30
SELECT value FROM v$system_parameter WHERE name='max_idle_time';
# 30

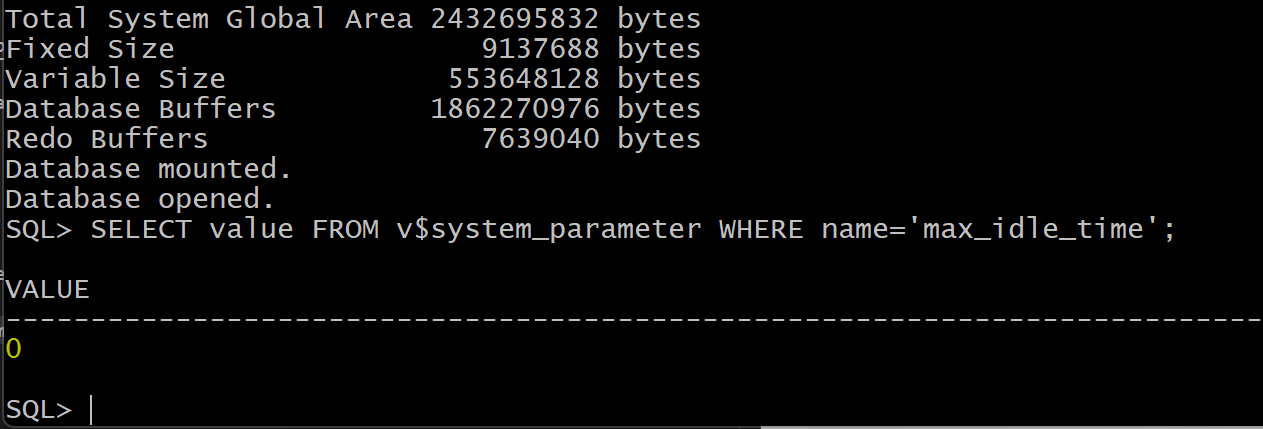

• Shutdown
• startup without specific pfile
• query parameter
  • value is 0, means that value only effect in memory, not spfile.

---

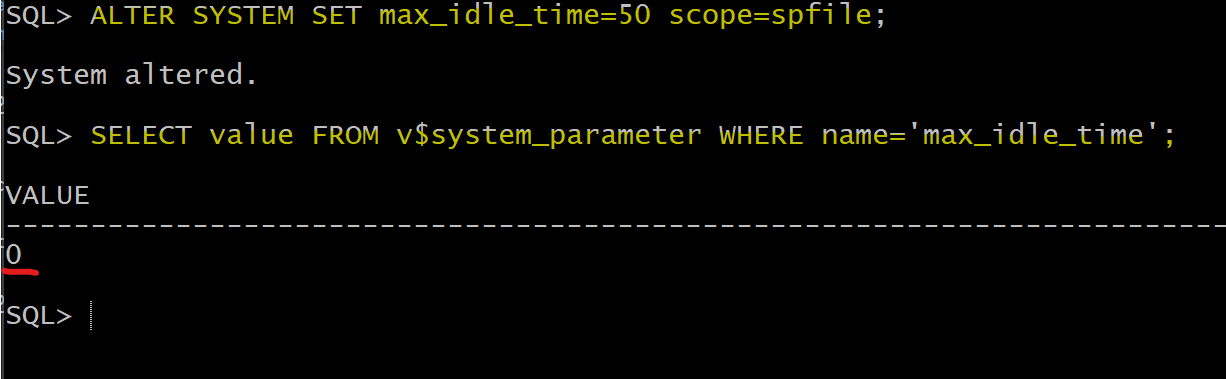

Lab: Alter system parameter with scope of spfile

• alter parameter only for spfile
  • value will not be in effect for the current session
  • only for the next startup
• query system parameter
  • value not change, means value not effect in the memory.

ALTER SYSTEM SET max_idle_time=50 scope=spfile;

SELECT value FROM v$system_parameter WHERE name='max_idle_time';
# 0

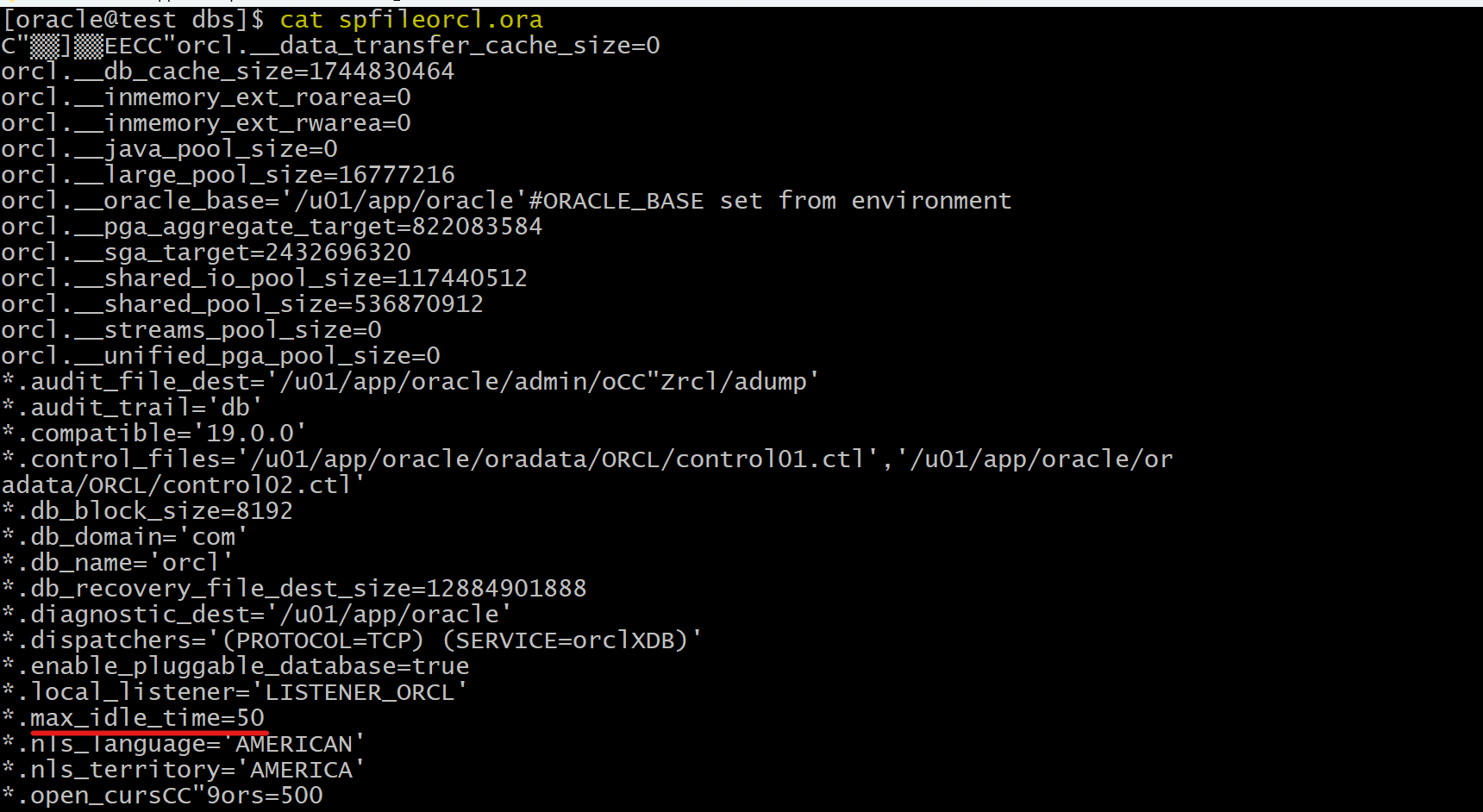

• Check spfile
  • new value was written to spfile

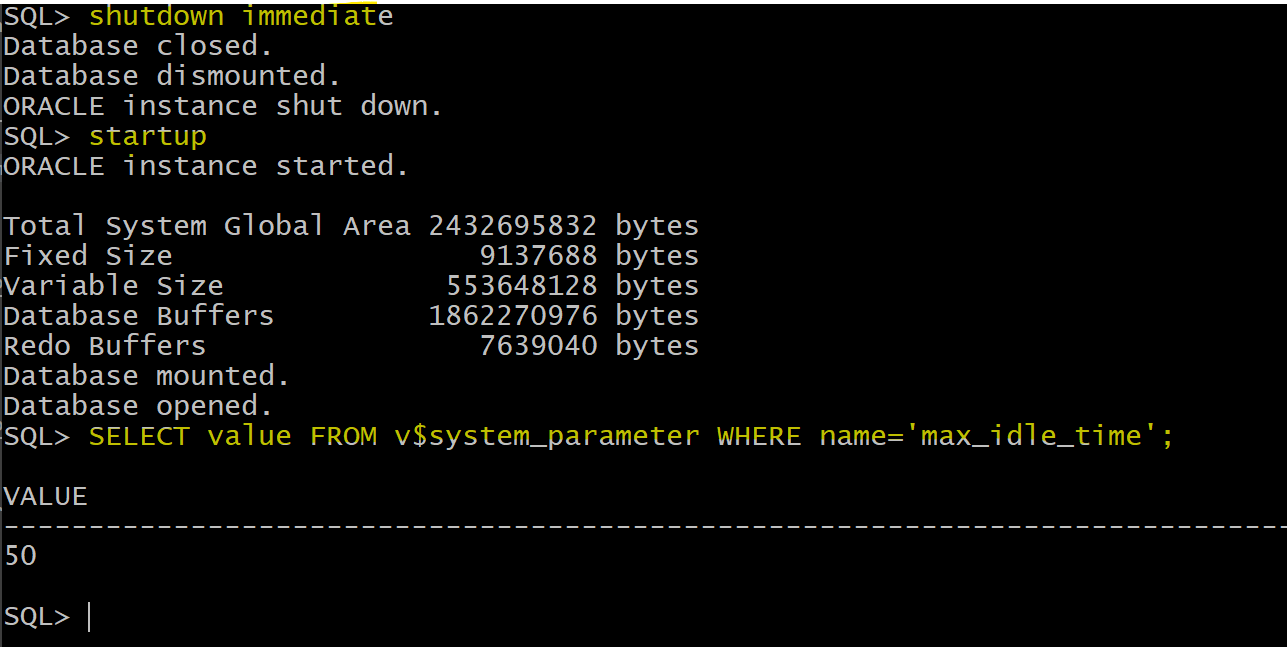

• Shutdown and startup
• query instance level parameter
  • the new value will be inherit in the new session.

---

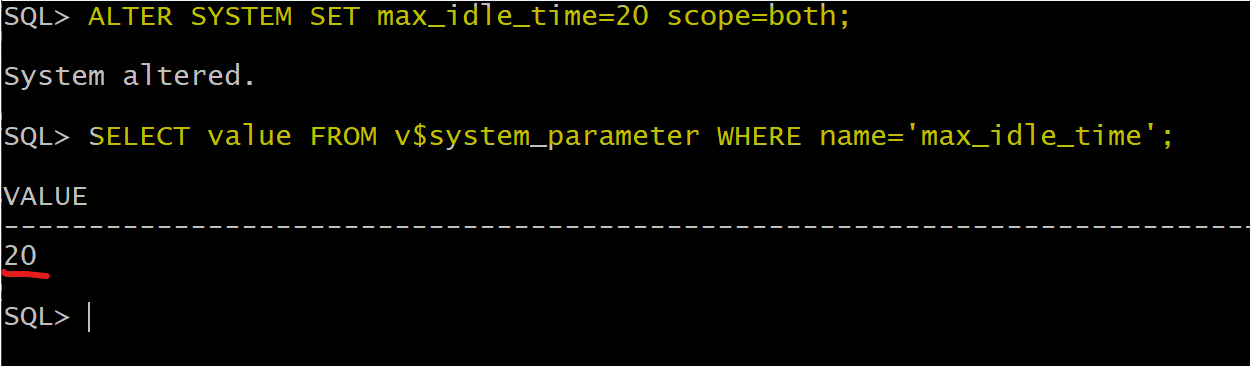

Lab: Alter System parameter with scope of Both

• Alter parameter both in memory and spfile

ALTER SYSTEM SET max_idle_time=20 scope=both;

SELECT value FROM v$system_parameter WHERE name='max_idle_time';

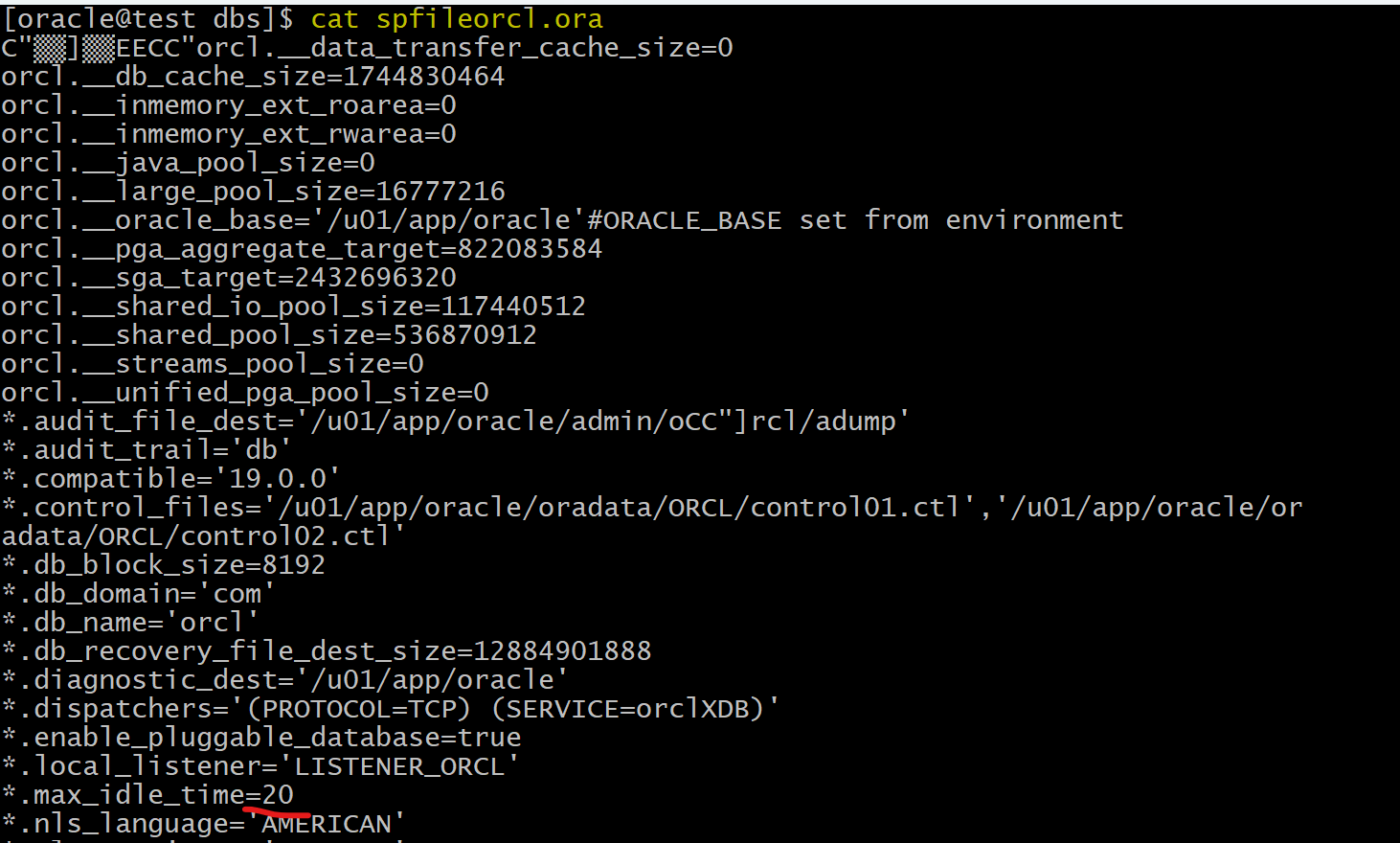

• The value in spfile is updated.

---

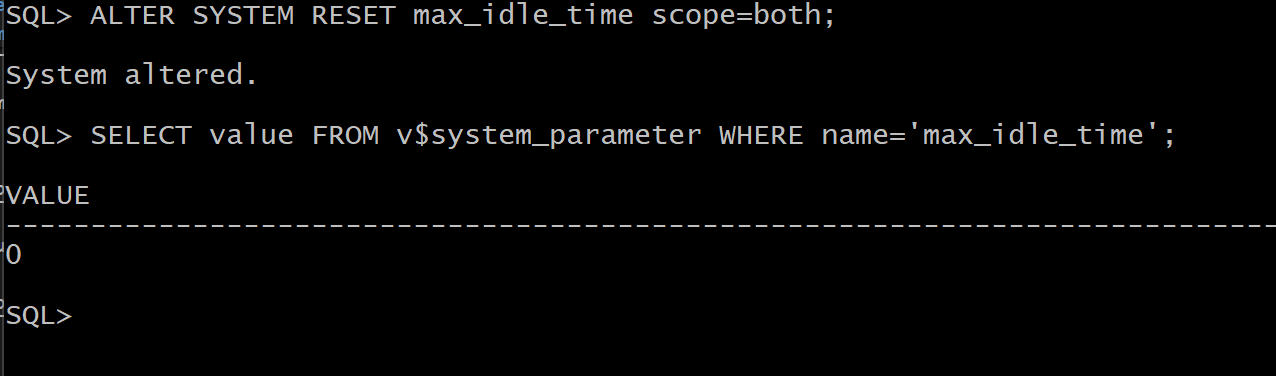

Lab: Reset the parameter

ALTER SYSTEM RESET max_idle_time scope=both;

SELECT value FROM v$system_parameter WHERE name='max_idle_time';

• parameter will be removed from the spfile.

---

Lab: Defaul Scope for SPFile

• Query v$parameter

  • issys_modifiable is IMMEDIATE
  • this system parameter can be changed in the memory level and effect immediagtely.

• Query v$system_PARAMETER

  • ISDEFAULT shows FALSE
  • this parameter is given in the spfile.

• Query spfile

  • confirm the instance was started using a spfile.

show con_name;
# CON_NAME
# ------------------------------
# CDB$ROOT

select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,con_id
from V$PARAMETER
where name='open_cursors';
# open_cursors	300	FALSE	IMMEDIATE	TRUE	1

select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,ISDEFAULT,con_id
from V$system_PARAMETER
where name='open_cursors';
# open_cursors	300	FALSE	IMMEDIATE	TRUE	FALSE	0

show parameter spfile;
# NAME   TYPE VALUE
# ------ ------ ----------------------------------------------------------
# spfile string /u01/app/oracle/product/19.0.0/dbhome_1/dbs/spfileorcl.ora

• Alter system using default scope

  • because a spfile is used, defualt scope is BOTH.

• Query confirm the value in the memory has been changed.

alter system set open_cursors=301;

select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,ISDEFAULT,con_id
from V$system_PARAMETER
where name='open_cursors';
# open_cursors	301	FALSE	IMMEDIATE	TRUE	FALSE	0

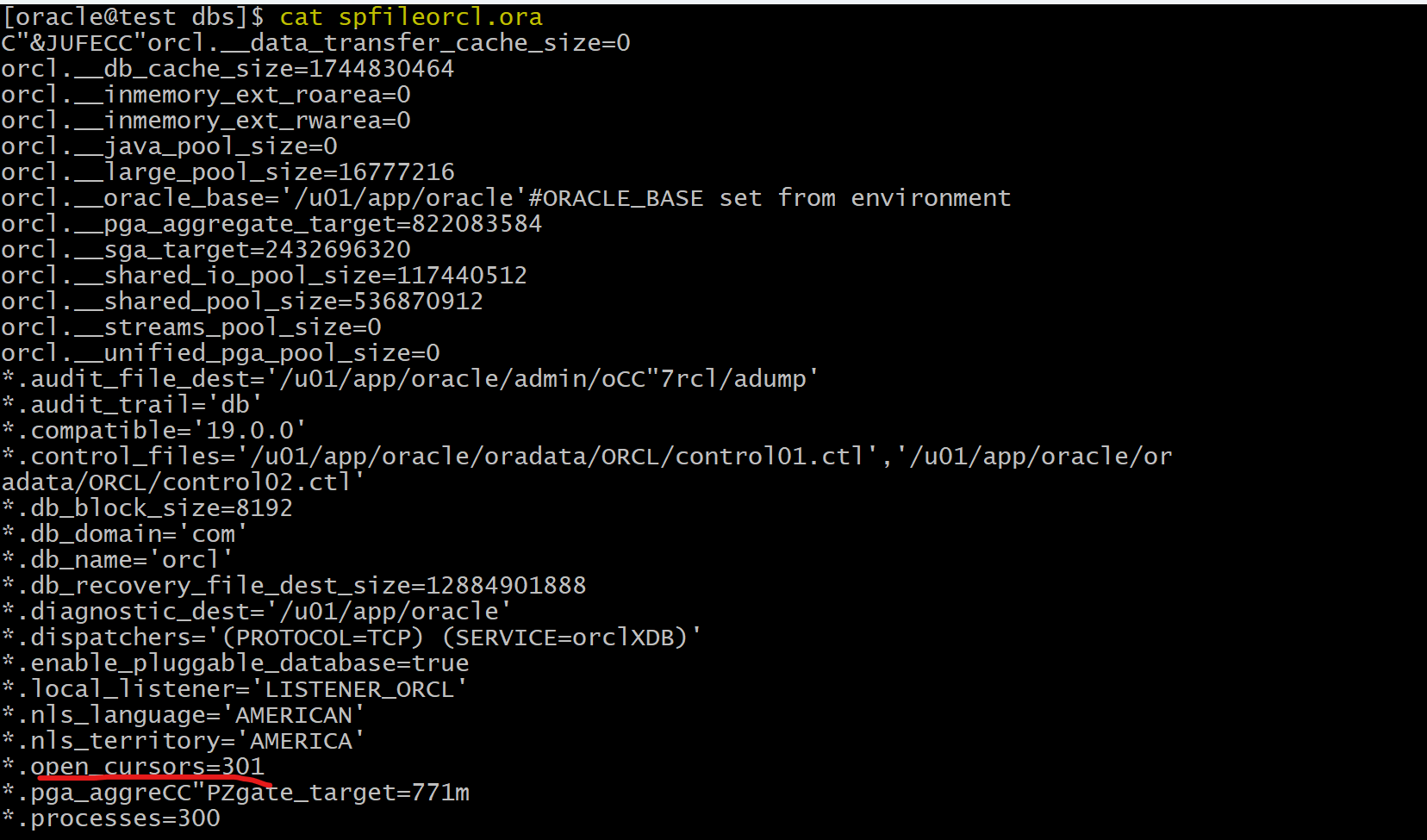

• Confirm the spfile is changed.

---

Lab: Default Scope for pfile

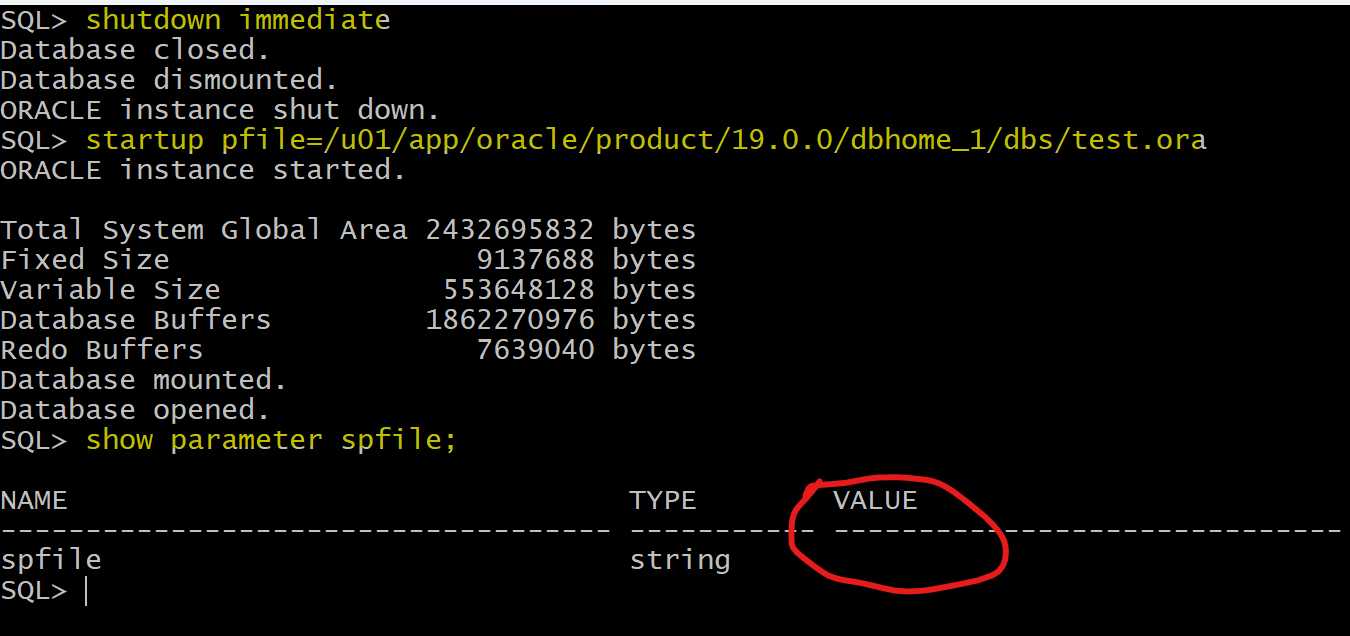

• shutdown the instance
• restart instance using pfile
• Query parameter to confirm starting instance with pfile.

startup pfile=/u01/app/oracle/product/19.0.0/dbhome_1/dbs/test.ora

show parameter spfile;

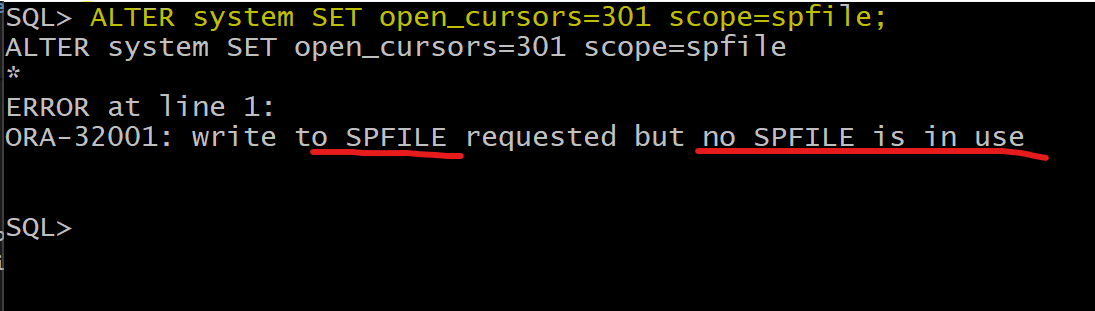

• Try to alter system with scope of spfile
  • error: because DB can read but cannot write a pfile.

ALTER system SET open_cursors=301 scope=spfile;

---

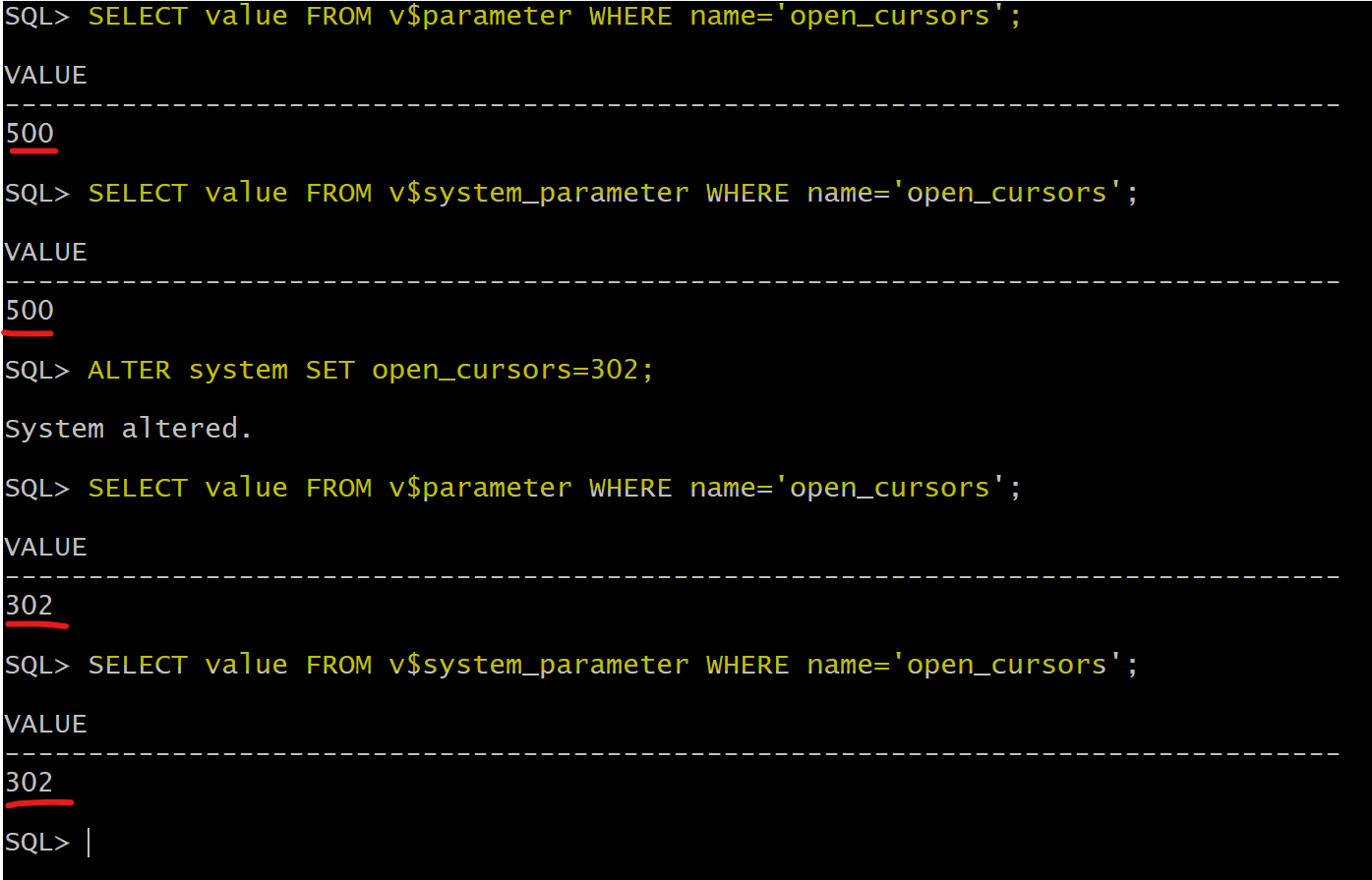

• query before altering
• alter with default scope
• query after altering

SELECT value FROM v$parameter WHERE name='open_cursors';

SELECT value FROM v$system_parameter WHERE name='open_cursors';

ALTER system SET open_cursors=302;

SELECT value FROM v$parameter WHERE name='open_cursors';

SELECT value FROM v$system_parameter WHERE name='open_cursors';

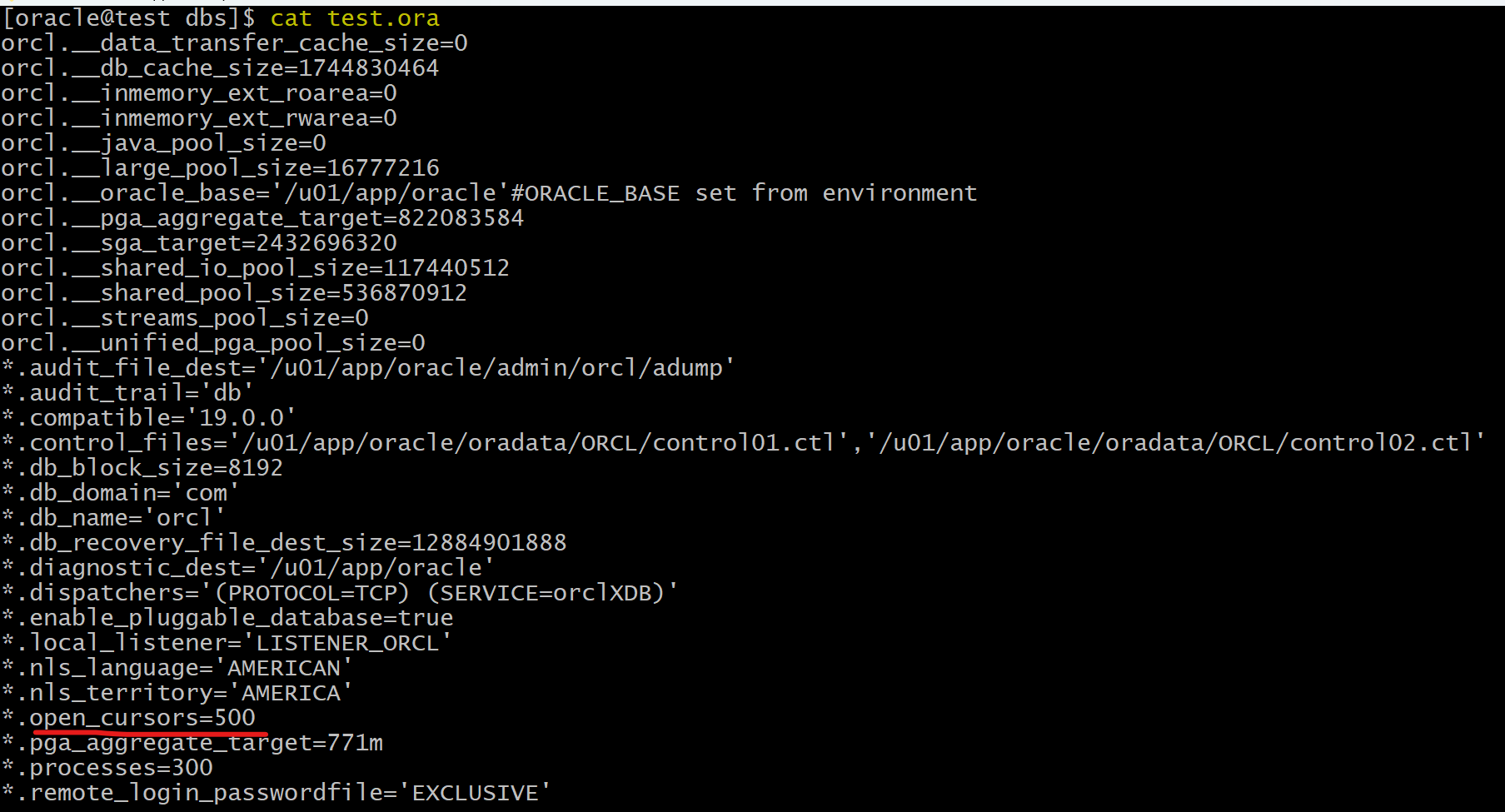

• check pfile
  • no change

---

Pluggable Paramter

• When the ispdb_modifiable=FALSE, this session parameter cannot be changed in PDB.

• Inheritance

  • PDBs inherit initialization parameter values from the root.
  • When the value of a parameter is changed in the root level, the values of parameters in pluggable databases will be affected.

• A PDB can override the root’s setting for the parameters whoseISPDB_MODIFIABLE is TRUE.

  • when the PDB override the root’s setting , a new record will be added to V$system_PARAMETER

• Override:

  • By default, CONTAINER = CURRENT

current	CONTAINER	apply to	Description
root	CONTAINER=ALL	root + pdb	includ pdb’s customized value
root	CONTAINER=CURRENT	root + pdb	except pdb’s customized value
pdb	CONTAINER=CURRENT	pdb

---

Lab: Alter pluggable parameter

• Confirm instance start by a spfile
• confirm in the root
• query open_cursors parameter
  • it is a parameter inherited from the root in PDB.

alter system register;    # register service in listener.

show con_name;
# CON_NAME
# ------------------------------
# CDB$ROOT

select name, value, isses_modifiable, issys_modifiable, ispdb_modifiable,ISDEFAULT, con_id
from V$system_PARAMETER
where name='open_cursors';
# open_cursors	301	FALSE	IMMEDIATE	TRUE	FALSE	0

• Alter parameter in the root
  • it will override both in root and in pdb, even its container is current.
  • it will be overriden in pdb, because it has not been overriden in the pdb before.

alter system set open_cursors=400 container=current;

# Query in the root
select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,ISDEFAULT,con_id
from V$system_PARAMETER
where name='open_cursors';
# open_cursors	400	FALSE	IMMEDIATE	TRUE	FALSE	0

---

• Move to PDB
• confirm container
• query parameter in the pdb.
• Try to make change, container = all
  • error
• Make change, container = current
• Query to confirm

alter session set container=orclpdb;
show con_name
# CON_NAME
# ------------------------------
# ORCLPDB


select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,ISDEFAULT,con_id
from V$system_PARAMETER
where name='open_cursors';
# open_cursors	400	FALSE	IMMEDIATE	TRUE	FALSE	0

alter system set open_cursors=500 container=all;
# Error report -
# ORA-65050: Common DDLs only allowed in root.
# 65050. 00000 -  "Common DDLs only allowed in root."
# *Cause:    An attempt was made to issue a common DDL in a pluggable database.
# *Action:   Switch to CDB$ROOT or application root and issue the common DDL.

alter system set open_cursors=500 container=current;
select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,ISDEFAULT,con_id
from V$system_PARAMETER
where name='open_cursors';
# open_cursors	500	FALSE	IMMEDIATE	TRUE	FALSE	3

---

• move to root
• query parameter
  • 2 paramters with different con_id.

alter session set container=cdb$root;

select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,ISDEFAULT,con_id
from V$system_PARAMETER
where name='open_cursors';
# open_cursors	400	FALSE	IMMEDIATE	TRUE	FALSE	0
# open_cursors	500	FALSE	IMMEDIATE	TRUE	FALSE	3

---

• Alter parameter in the root, container = current
• Query parameter
  • the costomized value stay untouched
  • all the rest will be changed.

alter system set open_cursors=410 container=current;

select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,ISDEFAULT,con_id
from V$system_PARAMETER
where name='open_cursors';
# open_cursors	410	FALSE	IMMEDIATE	TRUE	FALSE	0
# open_cursors	500	FALSE	IMMEDIATE	TRUE	FALSE	3

• stay in root
• alter parameter, container=all
• query parameter
  • only one record
  • customized parameter is reset

alter system set open_cursors=410 container=all;

select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,ISDEFAULT,con_id
from V$system_PARAMETER
where name='open_cursors';
# open_cursors	410	FALSE	IMMEDIATE	TRUE	FALSE	0

---

TOP
