DBA - Instance: Parameter File

Back

• DBA - Instance: Parameter File
  • Parameter File
    • Server Parameter Files
    • Text Initialization Parameter Files
  • V$SPPARAMETER
    • Lab: V$SPPARAMETER
  • Lab: Explore PFile and SPFile
  • Lab: Startup without parameter file
  • Lab: Create PFile from SPFile
  • Lab: Startup with PFile
  • Lab: Whether instance start with PFile or SPfile
  • Lab: Startup with a specific pfile

---

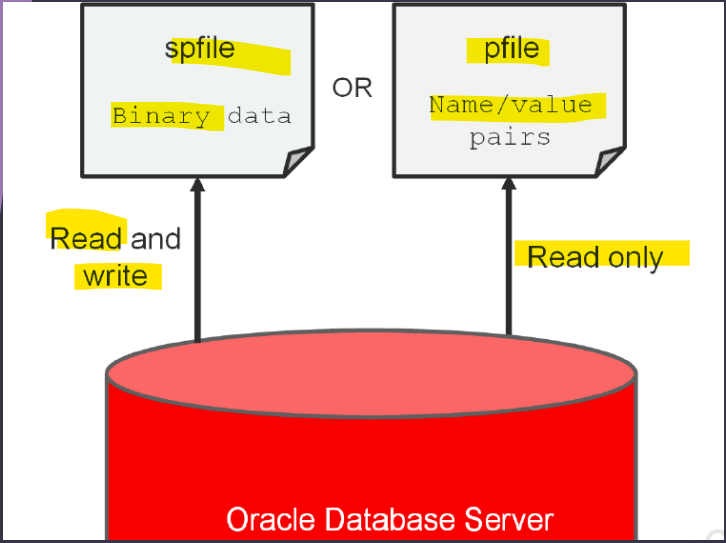

Parameter File

• To start a database instance, Oracle Database must read:二选一

  • either a server parameter file, which is recommended,
  • or a text initialization parameter file, which is a legacy implementation.

• Without theses file, instance cannot start.

• parameter file:

  • the files contain a list of configuration parameters.

• files location: $ORACLE_HOME/dbs

• Automatically search order for a paramter file when an instance is started up: 自动寻找顺序

  • 1. spfile<sid>.ora
  • 1. spfile.ora
  • 1. init<sid>.ora

• can create pfile from spfile but you should name it Init<sid>.ora in order the instance can use it automatically incase the spfile not available.自动寻找时, 需要命名.

• If you name it another name, then you have to specify it during startup: Startup pfile=pfilename否则必须使用参数 pfile

---

Server Parameter Files

• server parameter file

  • a repository for initialization parameters.

• characteristics:

  • the preferred choice
  • Only Oracle Database reads and writes to the server parameter file.只能由 DB 读写
  • Only one server parameter file exists for a database. This file must reside on the database host.必须在 DB 服务器上
  • The server parameter file is binary and cannot be modified by a text editor.二进制文件
  • Initialization parameters stored in the server parameter file are persistent. Any changes made to the parameters while a database instance is running can persist across instance shutdown and startup.改变将持续有效
  • can use alter system command for changing Parameters

• Creation:

  • initially built from a text initialization parameter file using the CREATE SPFILE statement.
  • can also be created directly by the Database Configuration Assistant.
    • automatically created by DBCA when you create CDB.

• Default name for spfile: spfile<sid>.ora

  • e.g., spfileorcl.ora

---

Text Initialization Parameter Files

• text initialization parameter file

  • a text file that contains a list of initialization parameters.
  • contains a series of key=value pairs, one per line.

• characteristics:

  • When starting up or shutting down a database, the text initialization parameter file must reside on the same host as the client application that connects to the database.在连接 db 的客户端上.
  • text-based, not binary.
  • Oracle Database can read but not write to the text initialization parameter file. DB 只能读取, 不能改写
    • To change the parameter values you must manually alter the file with a text editor.只能通过文本编辑器改写, 再由 DB 读取.
  • Changes to initialization parameter values by ALTER SYSTEM are only in effect for the current instance.
    • must manually update the text initialization parameter file and restart the instance for the changes to be known.手动修改并重启实例

• Sample pfile name : init.ora

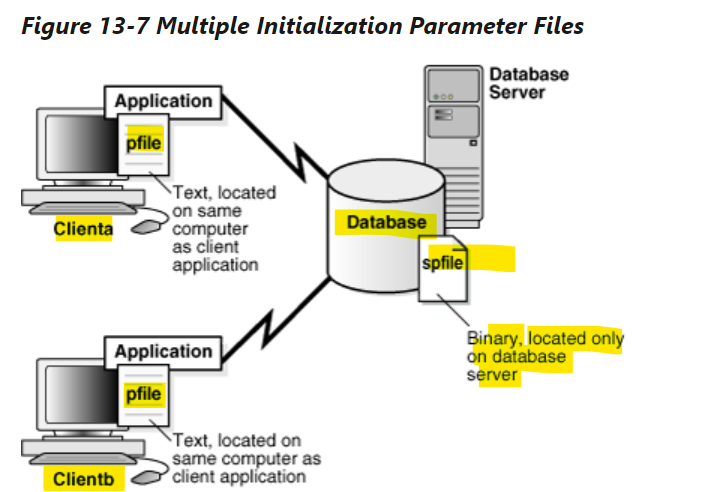

注意 pfile 是在连接 DB 的客户端上, spfile 是在 DB 服务器上.

---

V$SPPARAMETER

• V$SPPARAMETER:

  • displays information about the contents of the server parameter file.

• If a server parameter file was not used to start the instance, then each row of the view will contain FALSE in the ISSPECIFIED column.

• Used to view the parameters in the spfile within the Oracle.无需退出 oracle, 即可查阅 spfile.

• • Shortcut:
  • list all parameters in the spfile

SELECT *
FROM v$spparameter
WHERE isspecified='TRUE';

---

Lab: V$SPPARAMETER

• Shutdown and restartup instance with spfile

show con_name;
# CON_NAME
# ------------------------------
# CDB$ROOT

select name,value,isses_modifiable , issys_modifiable , ispdb_modifiable ,ISDEFAULT,con_id
from V$system_PARAMETER
where name='open_cursors';
# open_cursors	410	FALSE	IMMEDIATE	TRUE	FALSE	0
# ISDEFAULT indicates the value is coming from the spfile.

alter system set open_cursors=310 container=all scope=memory;
# open_cursors	310	FALSE	IMMEDIATE	TRUE	FALSE	0
# only in memory, not in the spfile

select * from V$SPPARAMETER
where name='open_cursors';
# *	open_cursors	integer	410	410	TRUE	1		1
# ISSPECIFIED is true, indicating the 410 is specified in the spfile.

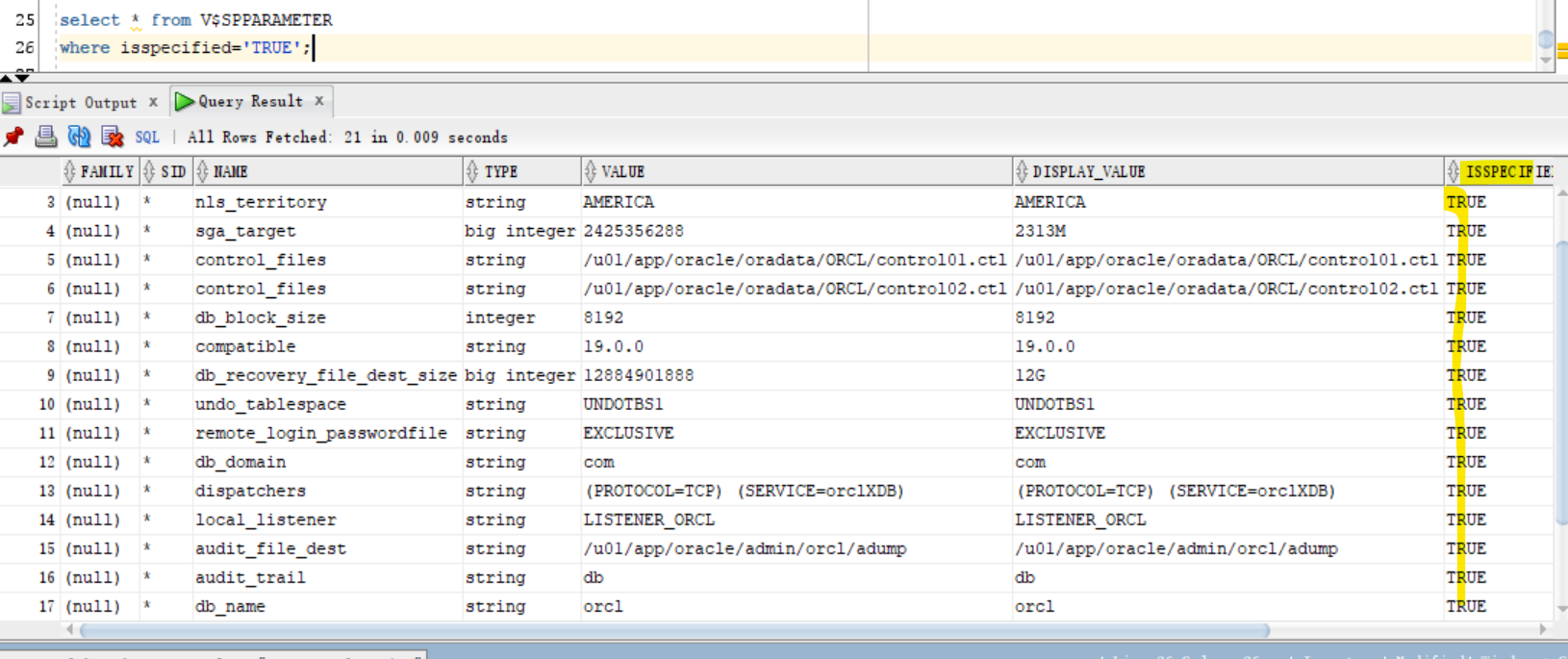

• Shortcut:
  • list all parameters in the spfile

SELECT *
FROM v$spparameter
WHERE isspecified='TRUE';

---

Lab: Explore PFile and SPFile

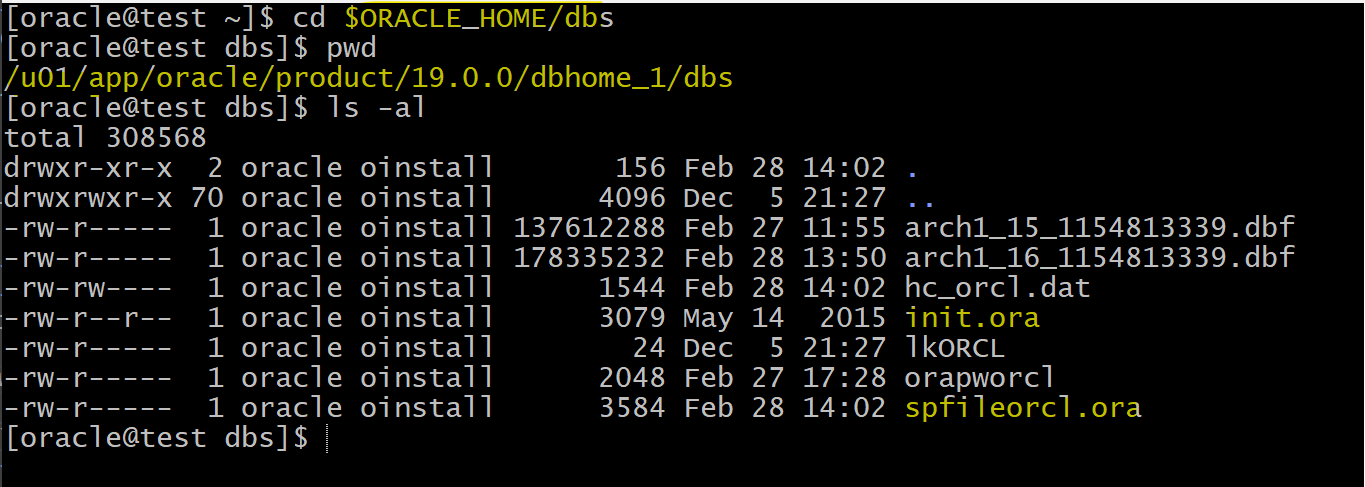

• path to PFile

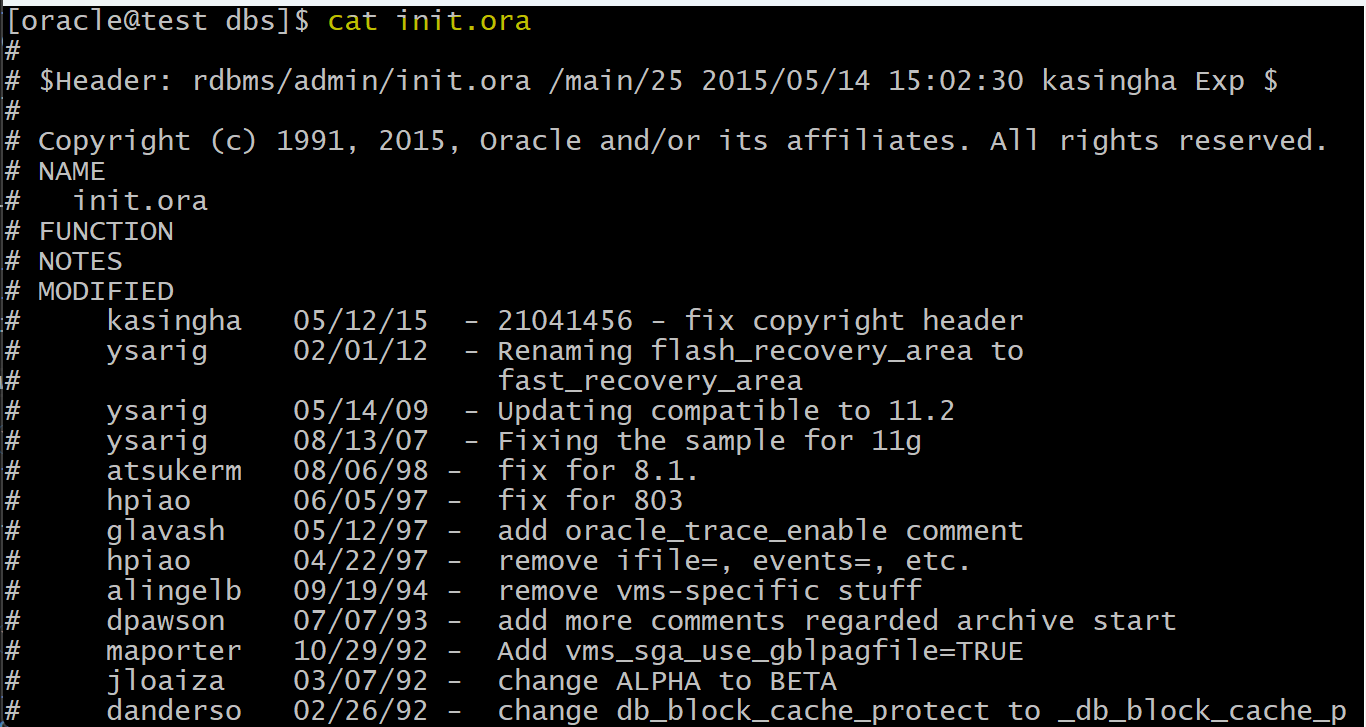

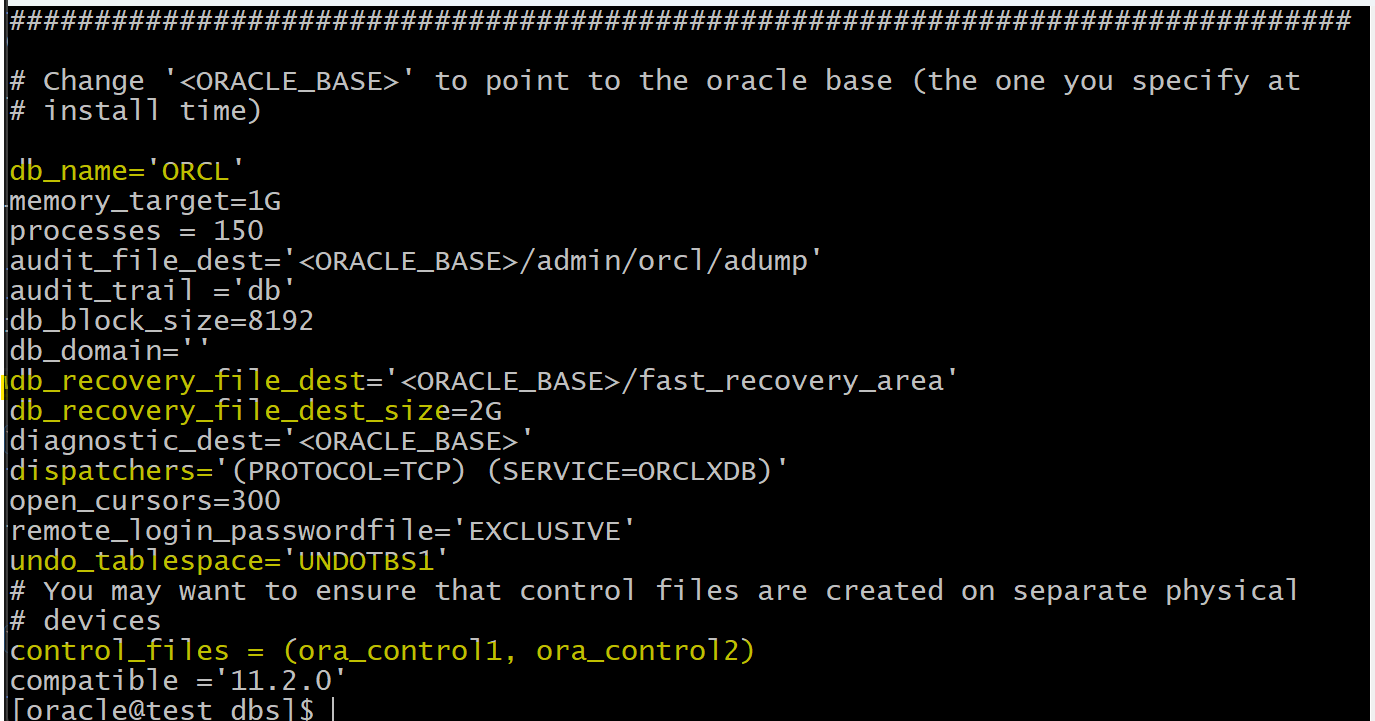

• PFile: key-value pair

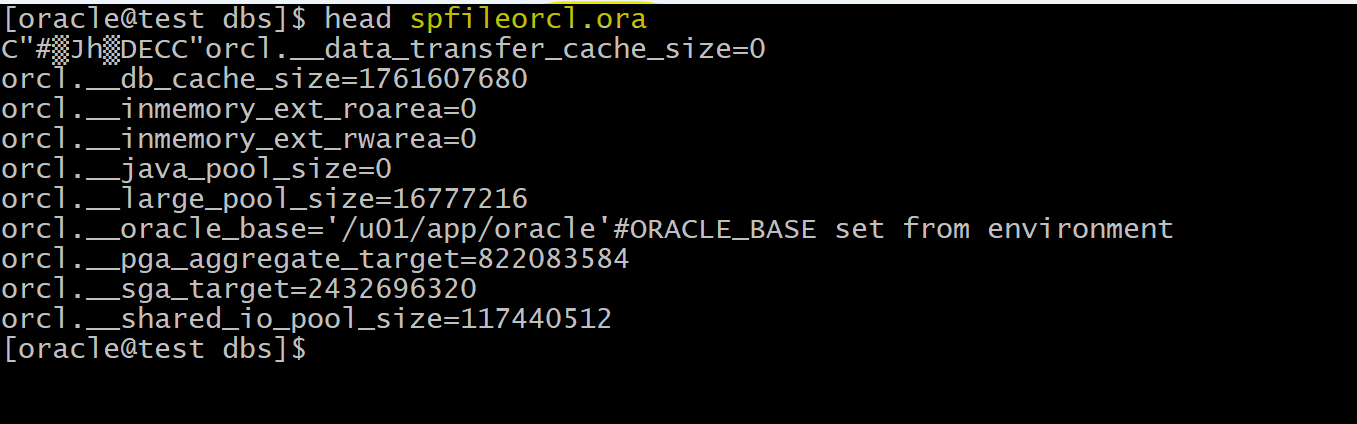

• SPFile:

---

Lab: Startup without parameter file

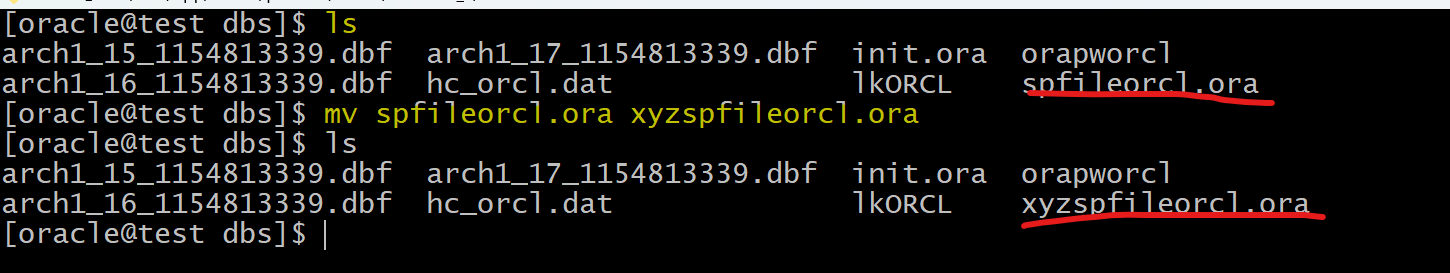

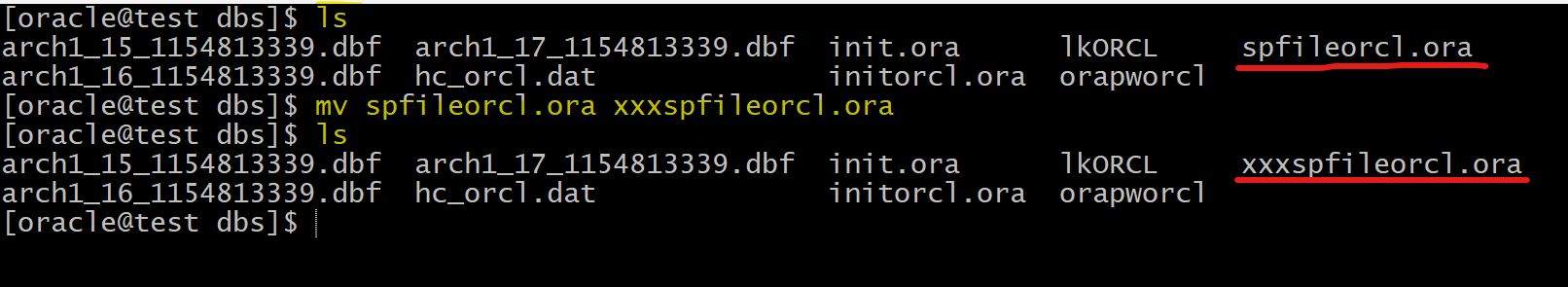

• Rename the spfile

• If the instance is running, shutdown.
• Try to startup instance

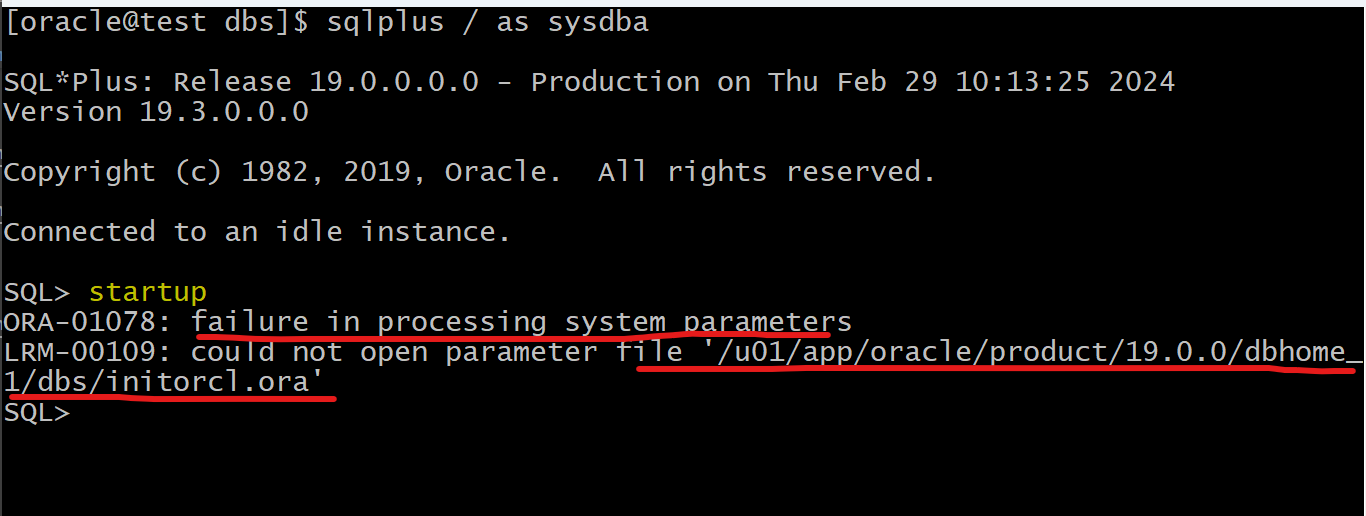

  • error:
    • ORA-01078: failure in processing system parameters
    • LRM-00109: could not open parameter file '/u01/app/oracle/product/19.0.0/dbhome_1/dbs/initorcl.ora'

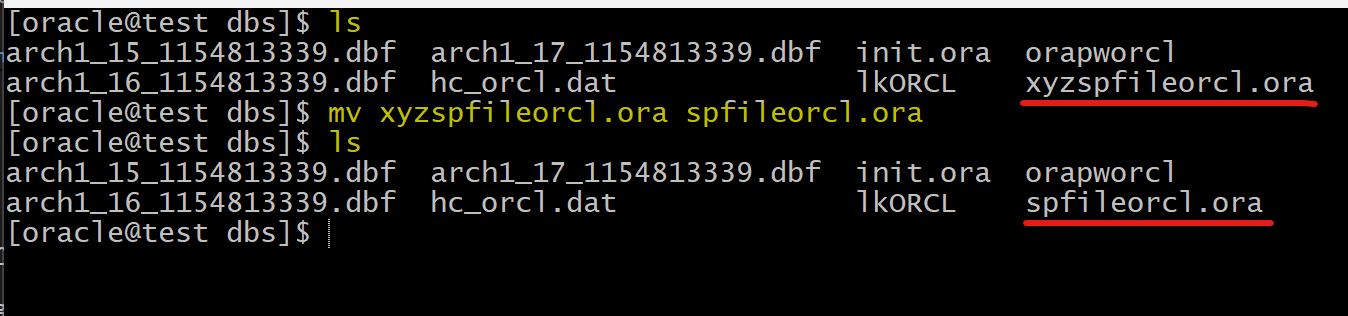

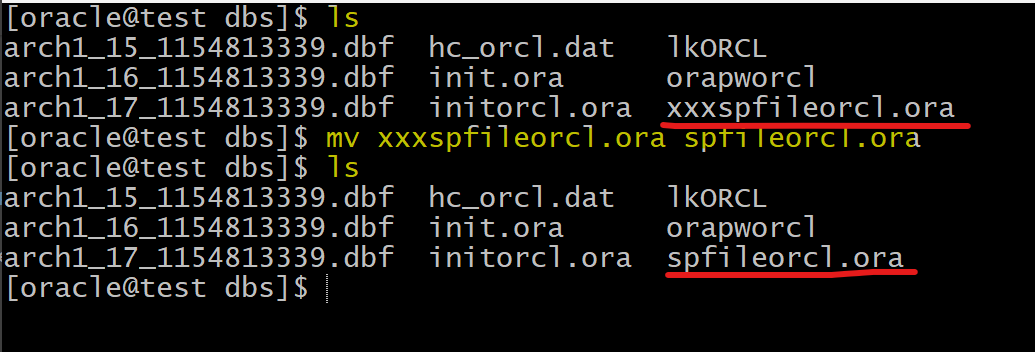

• Rename spfile

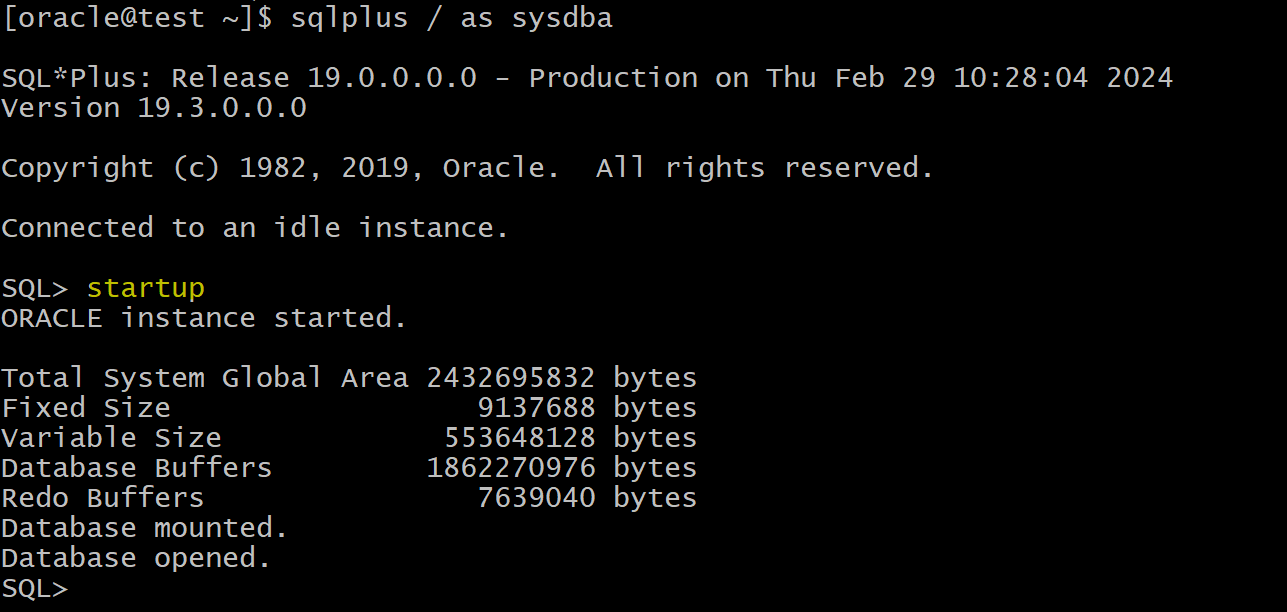

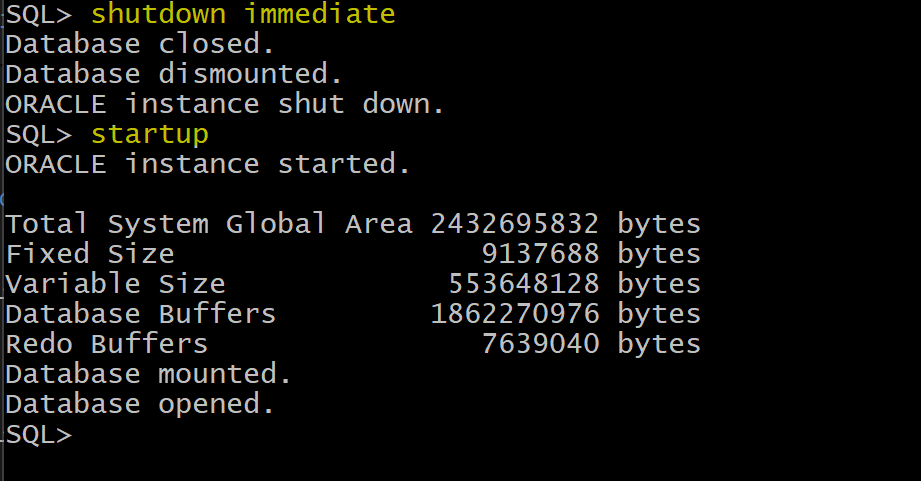

• Startup
  • instance is started as usual.

---

Lab: Create PFile from SPFile

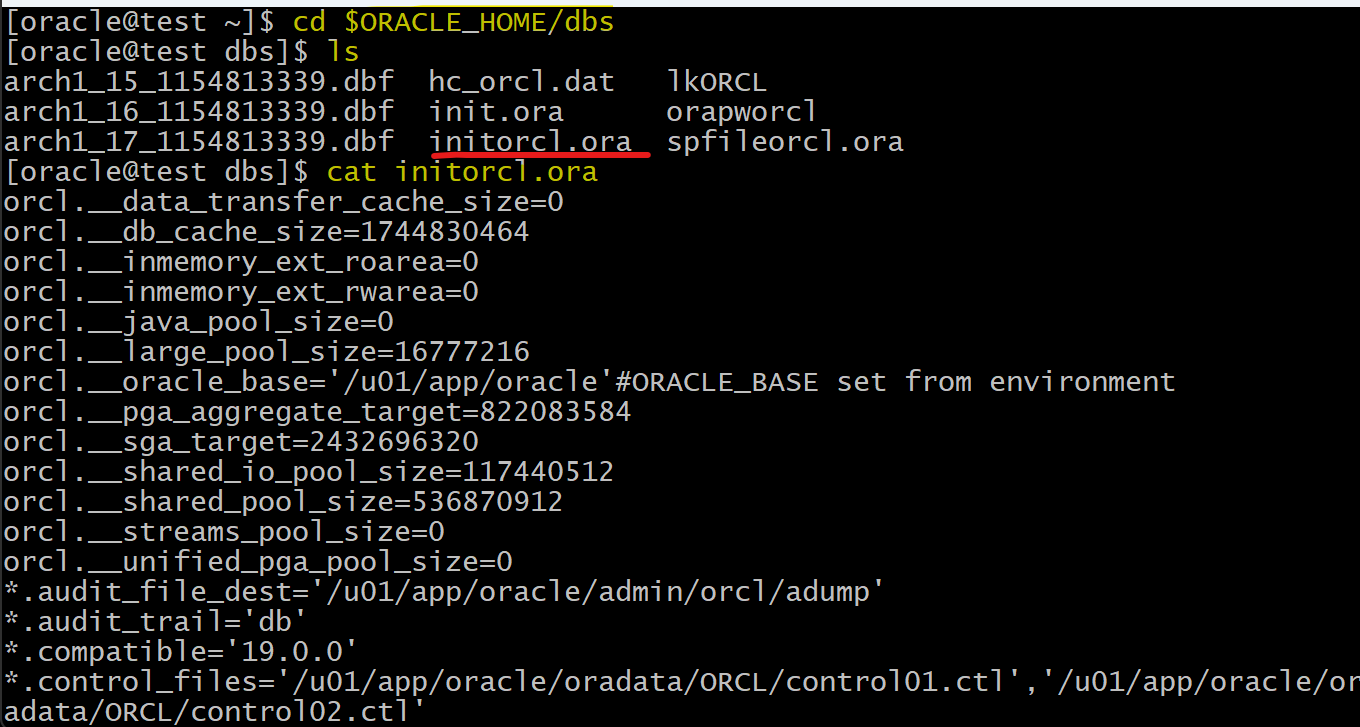

• Create PFile

CREATE PFILE='initorcl.ora' FROM SPFILE;

• A file is created in the dir $ORACLE_HOME/dbs

---

Lab: Startup with PFile

• rename the spfile
• shutdown and startup instance
  • DB search for the spfileorcl.ora, then spfile.ora, then initorcl.ora.
  • instance starts as usual

---

Lab: Whether instance start with PFile or SPfile

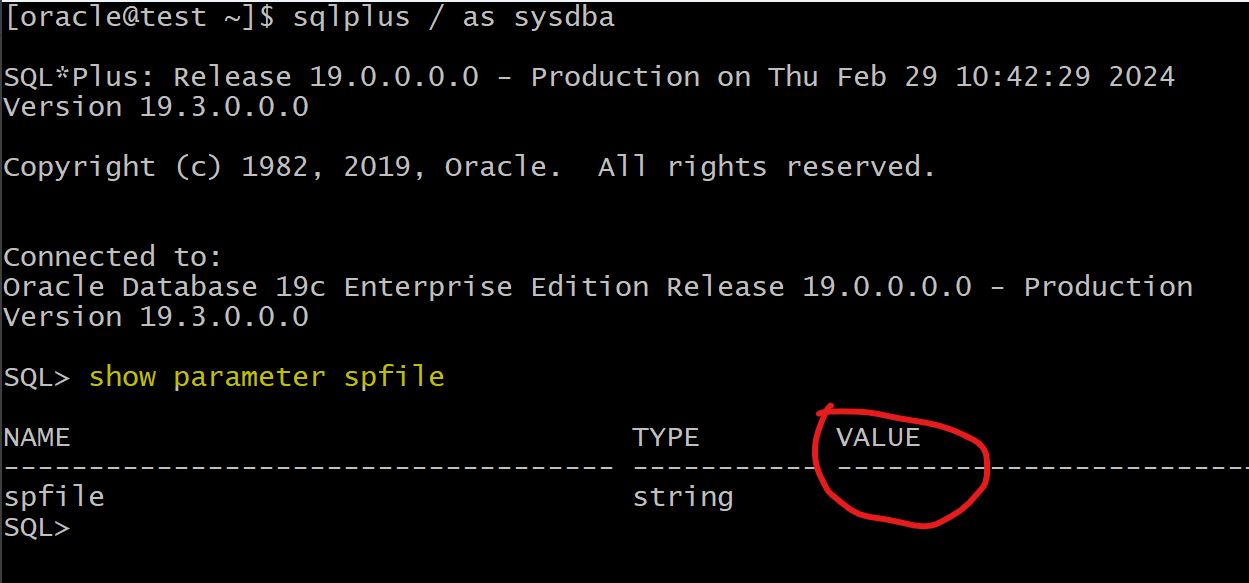

• if parameter spfile is empty, it means the current instance starts with PFile.

show parameter spfile;

• rename spfile

• restart instance
• Query parameter

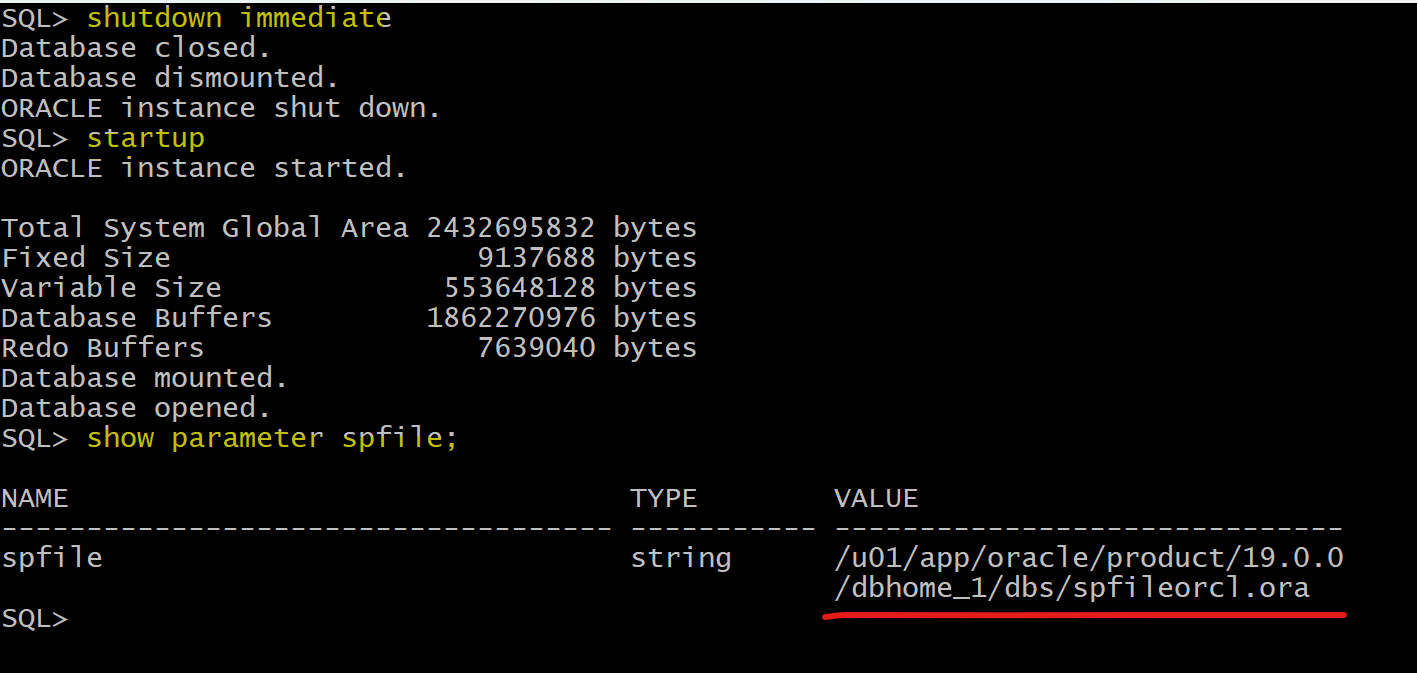

  • When both spfile and pfile exist, instance search for spfile first and use it to start.

---

Lab: Startup with a specific pfile

• create a pfile from spfile
  • A file is created in the dir $ORACLE_HOME/dbs

CREATE PFILE='test.ora' FROM SPFILE;

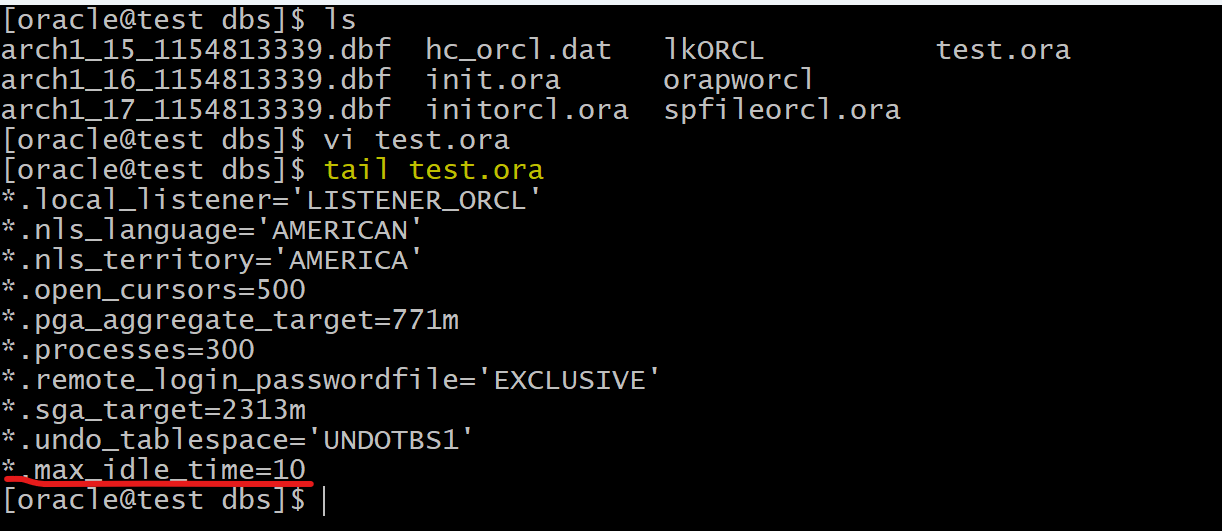

• Edit pfile
  • add parameter

*.max_idle_time=10

• Shutdown the instance

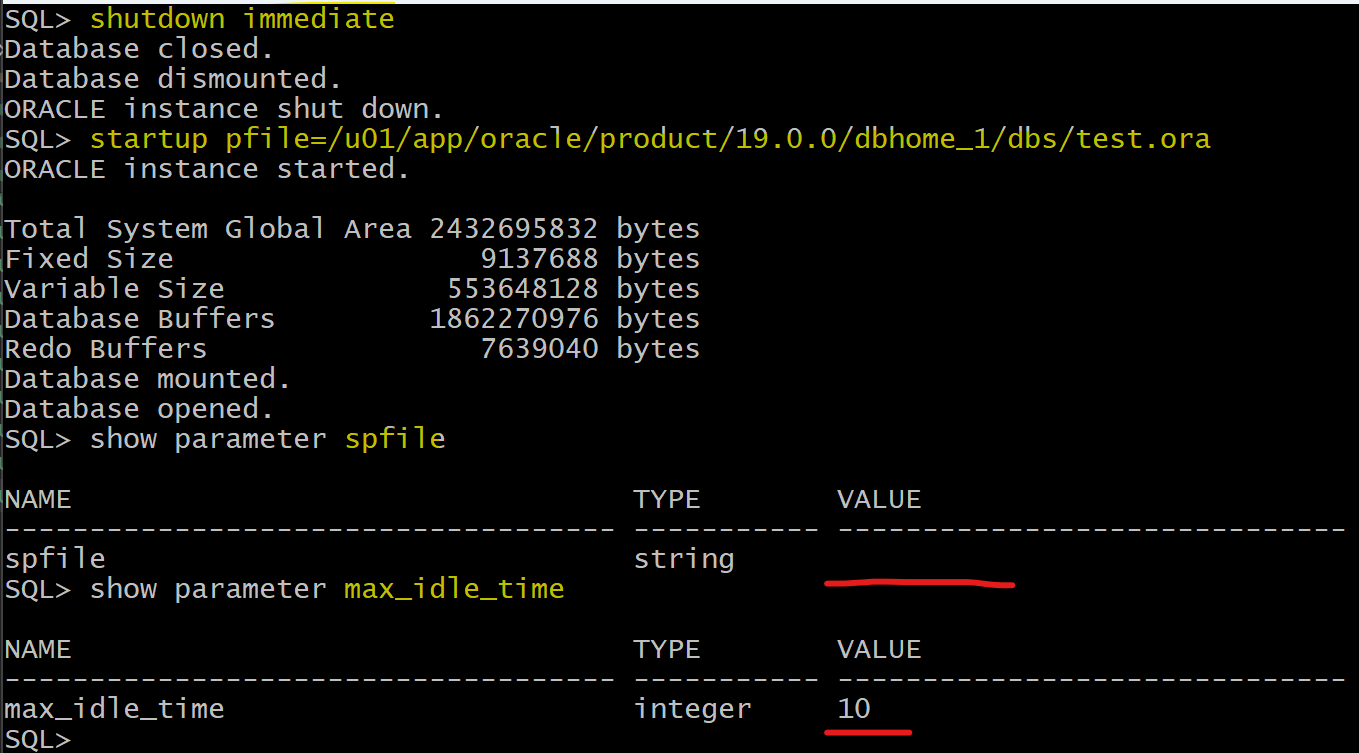

• Startup instance with this pfile
  • path is required, otherwise, error.
• Query parameter spfile
  • value is empty, meaning that instance is started without the spfile.
• Query parameter max_idle_time
  • instance acquires value from pfile.

startup pfile=/u01/app/oracle/product/19.0.0/dbhome_1/dbs/test.ora

show parameter spfile

show parameter max_idle_time

---
