DBA Lab: Shutdown

Back

• DBA Lab: Shutdown
  • Lab: SHUTDOWN NORMAL
  • Lab: SHUTDOWN TRANSACTIONAL
  • Lab: SHUTDOWN IMMEDIATE

---

Lab: SHUTDOWN NORMAL

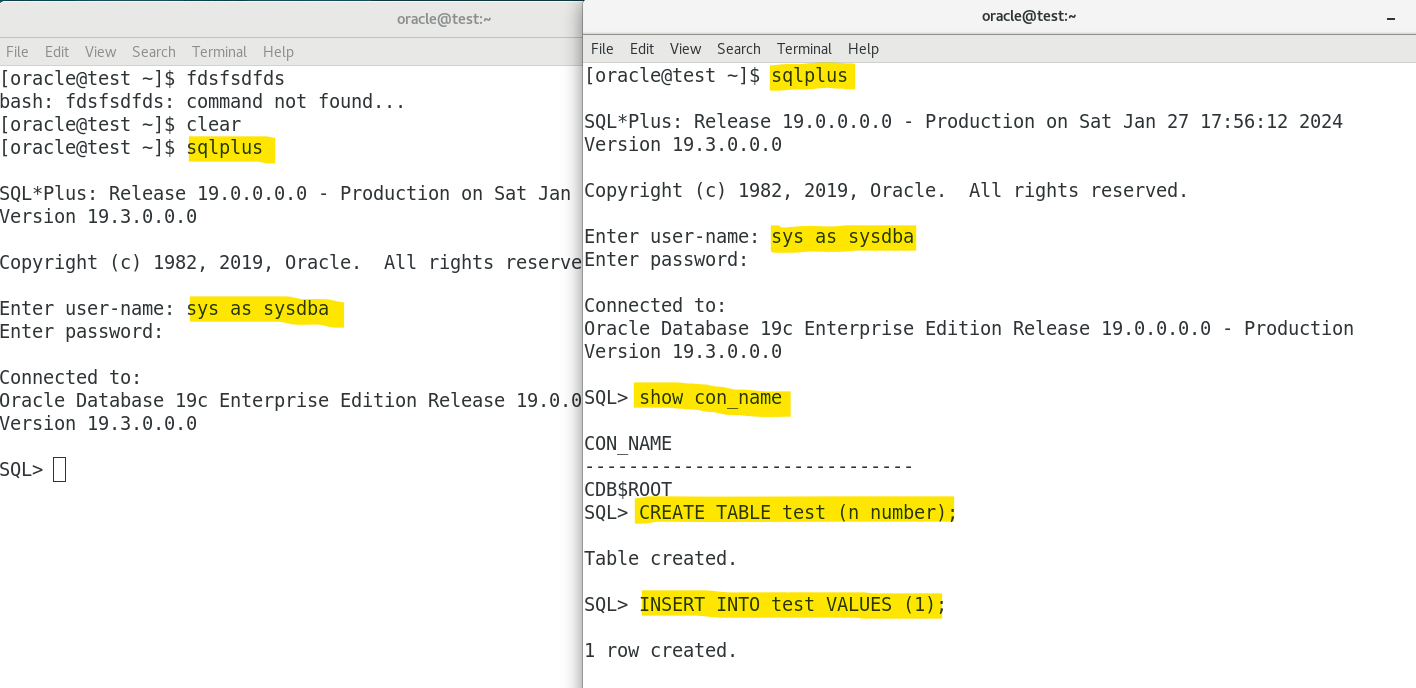

• Terminal A:

sqlplus
/* login as sys as sysdba */

• Create another terminal B while the terminal A is running.

sqlplus
/* login as sys as sysdba */

# Sho container name
show con_name
# CDB$ROOT

# for practise, create a table within the root databse.
CREATE TABLE test (n number);

# insert into test value
INSERT INTO test VALUE (1);

---

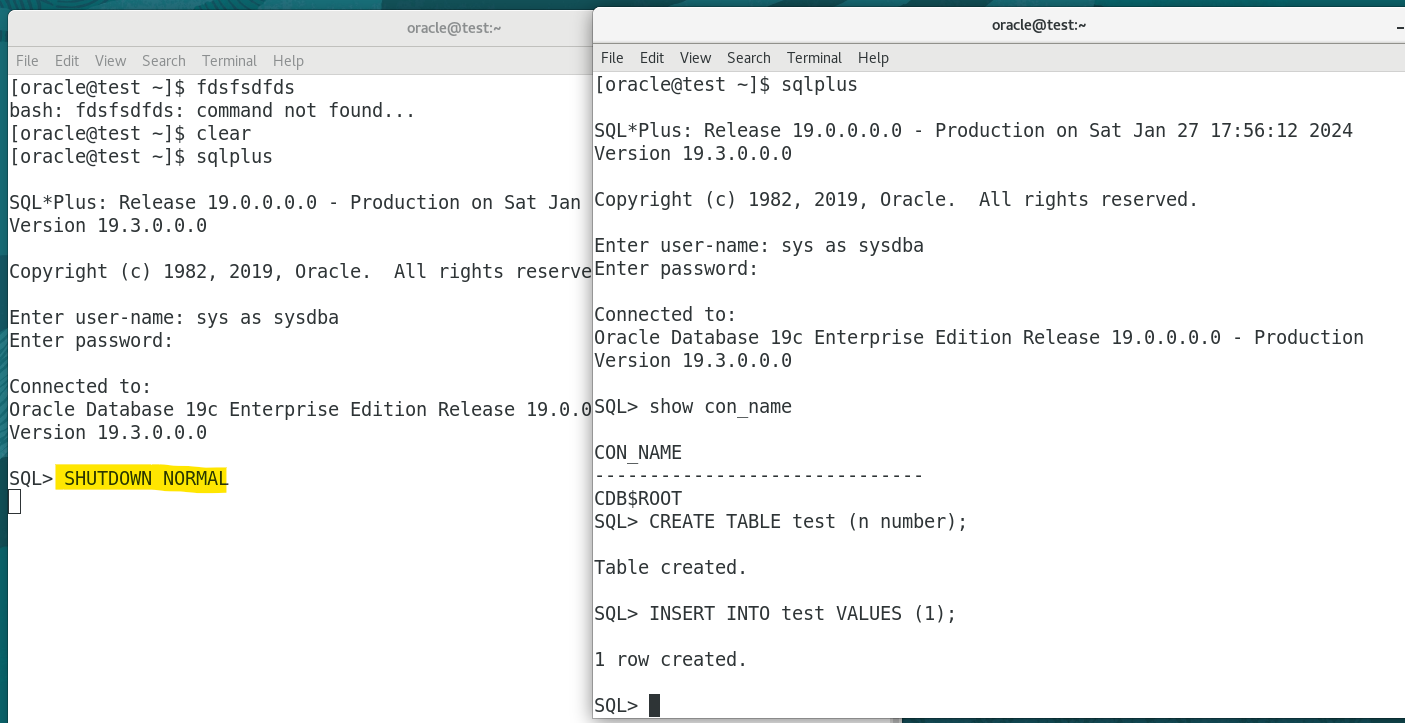

• Try to shutdown normal in the terminal A
  • nothing happen because normal mode will wait for the current session to be closed

# Terminal A
shutdown normal

---

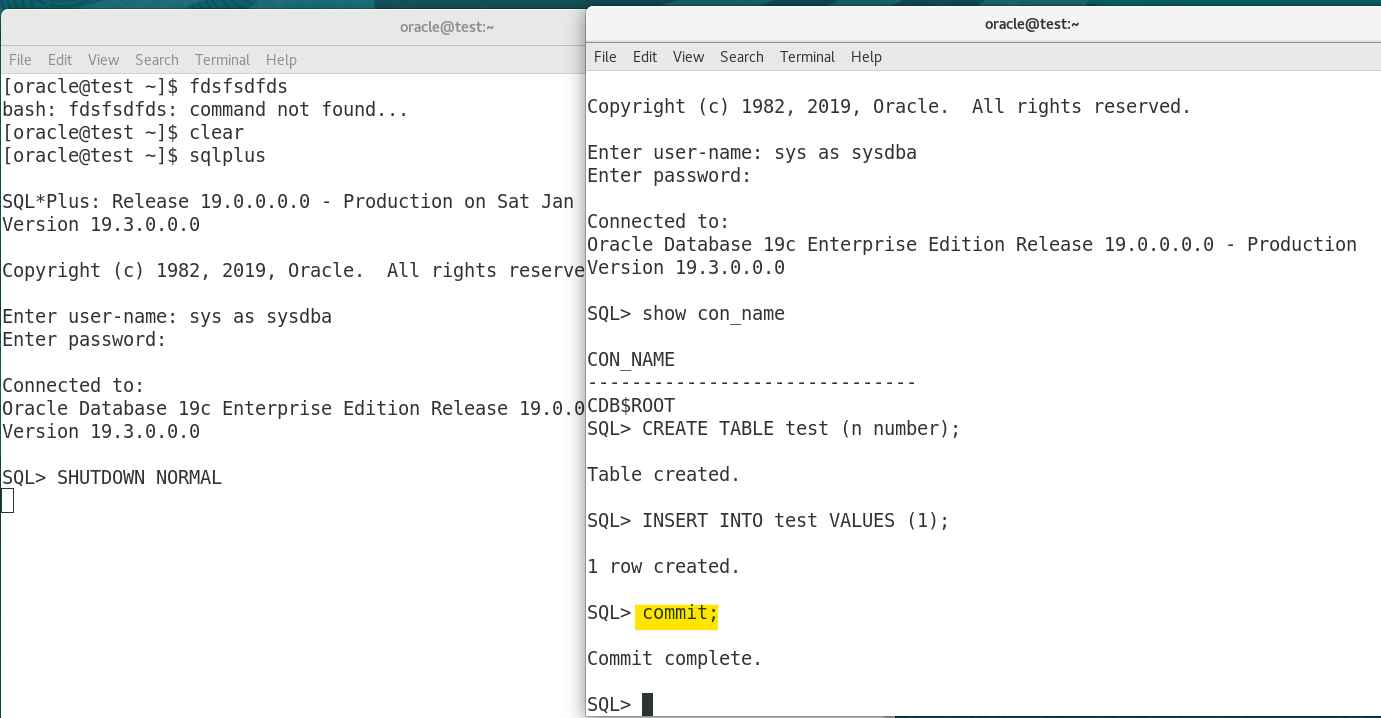

• Terminal B commmit transaction.
  • The transaction finishes.
• The shutdown command in Terminal A will be not executed.
  • Because it waits until the session closed.

---

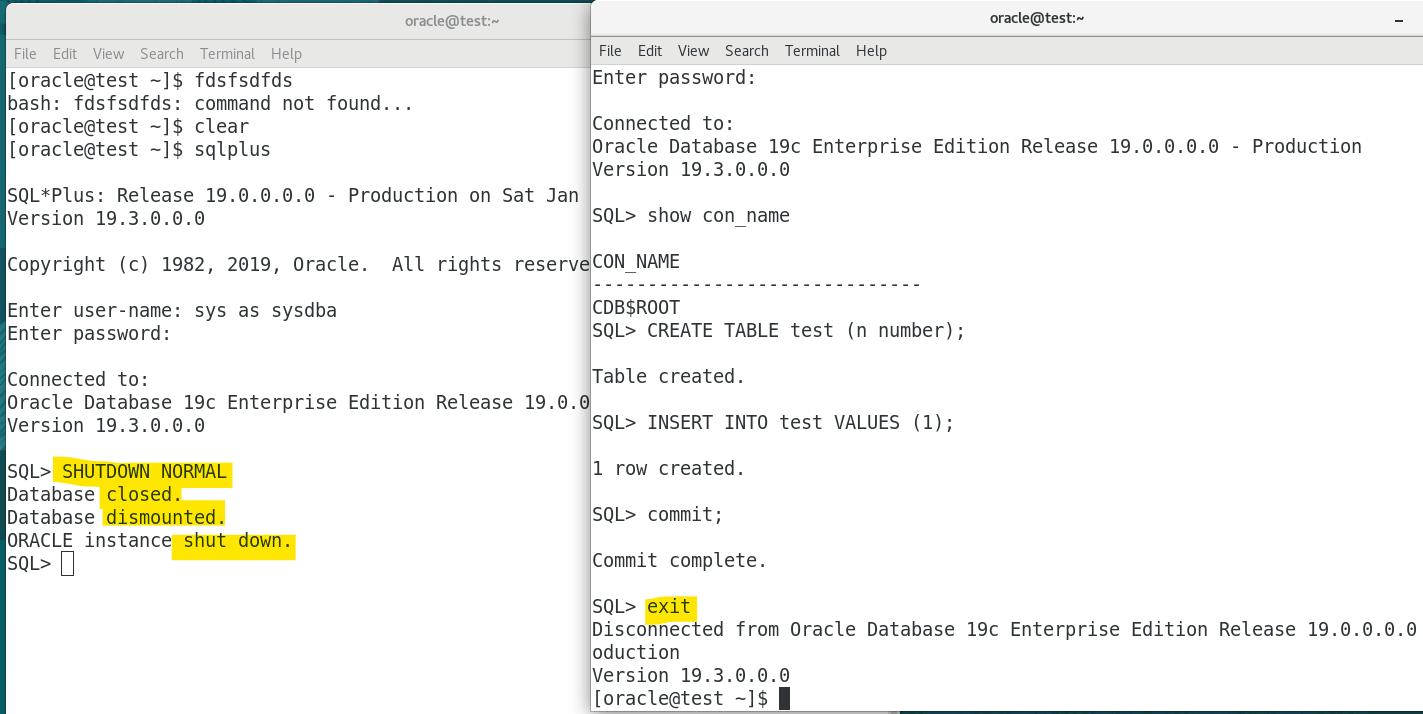

• Terminal B exits.
  • The session is closed.
• Terminal A shutdown command executes.
  • It will take some time.
    • DB Close.
    • DB dismounted.
    • instance shut down.

---

Lab: SHUTDOWN TRANSACTIONAL

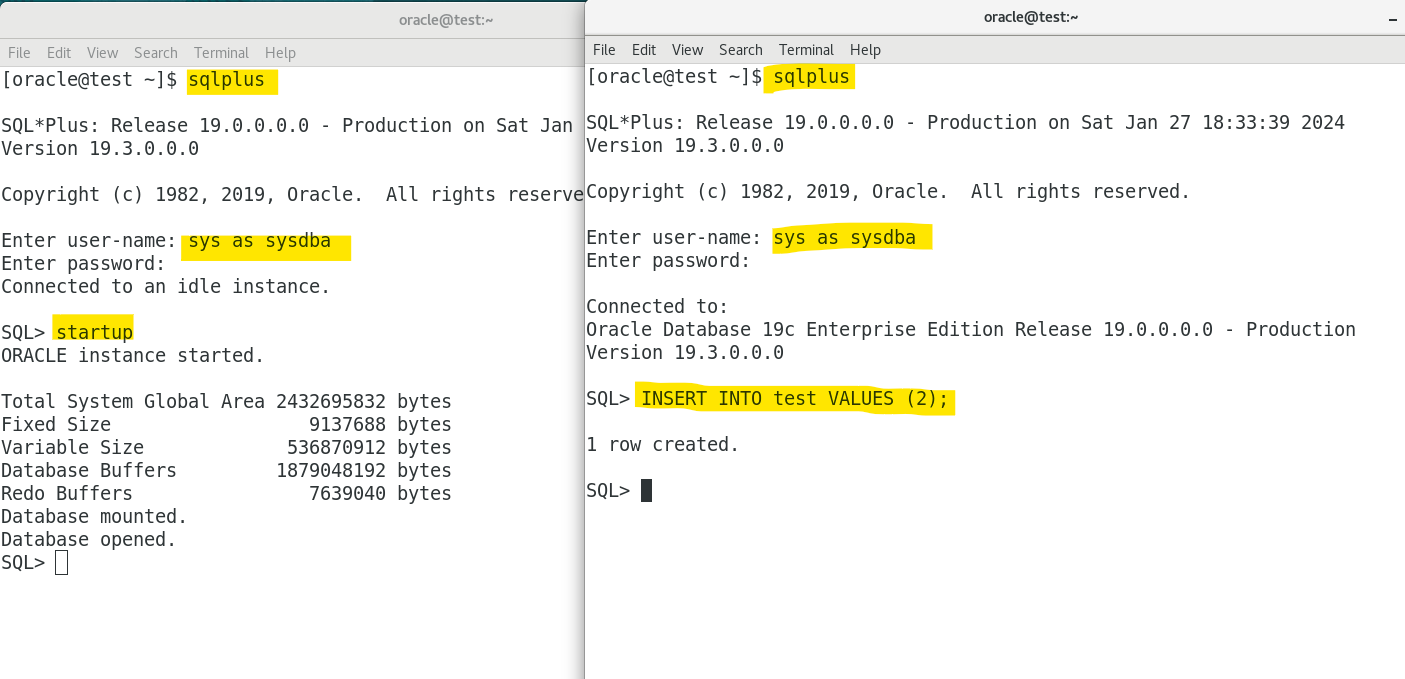

• Terminal A:

  • log in using sys as sysdba;
  • Startup instance

• Terminal B:

  • log in using sys as sysdba;
  • insert row

# Terminal A
sqlplus
sys as sysdba
startup

# Terminal B
sqlplus
sys as sysdba

INSERT INTO test VALUES (3);

---

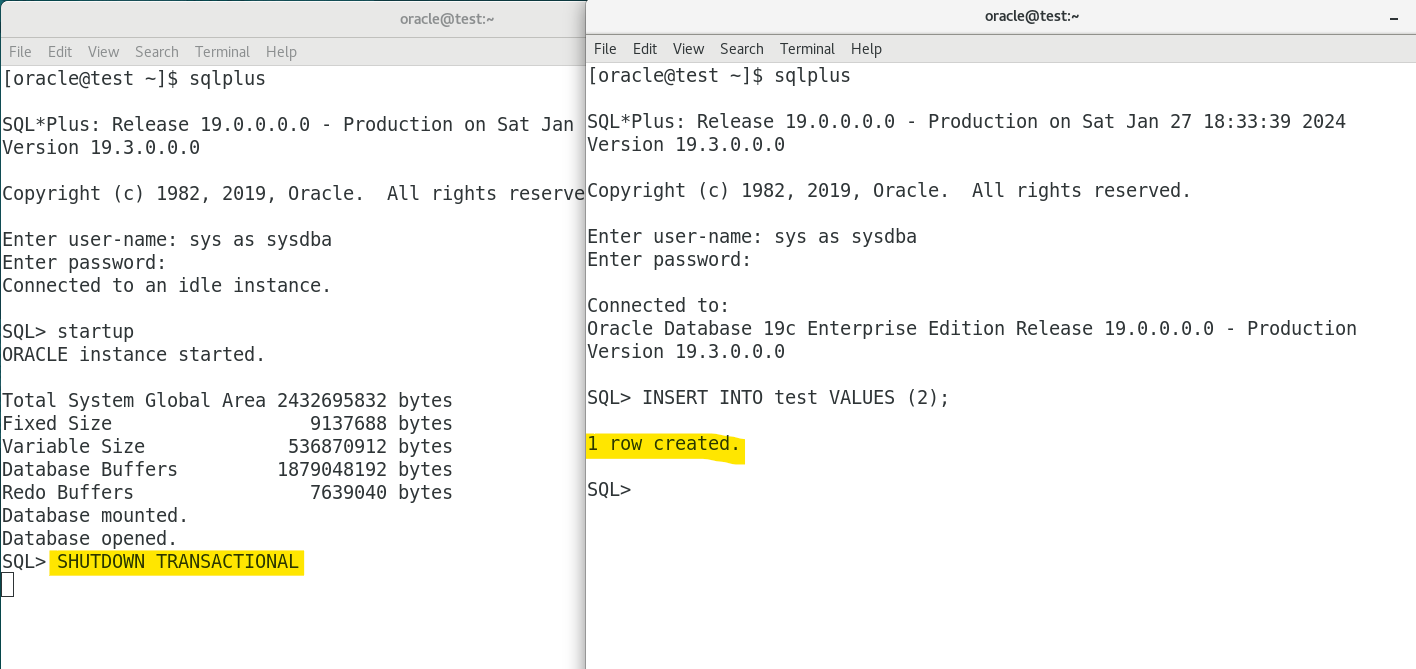

• Terminal A input transactional shutdown
  • Command will execute because SHUTDOWN TRANSACTIONAL will wait until the transaction finish.
  • Terminal B insert a row, but not commit or roll back.

# Terminal A
SHUTDOWN TRANSACTIONAL

---

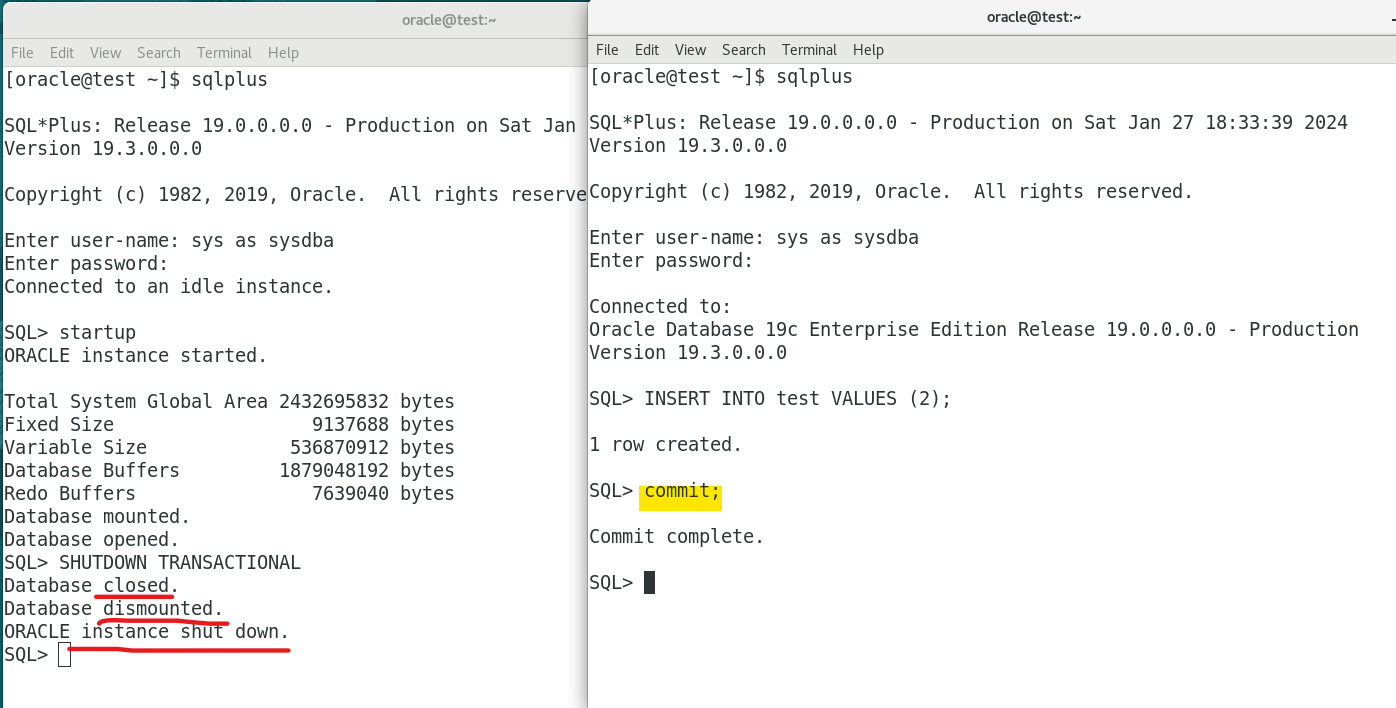

• Terminal B commit
• Terminal A’s command execute
  • because SHUTDOWN TRANSACTIONAL waits the transaction to finish, not waits the session to exit.

# Terminal B
commit;

---

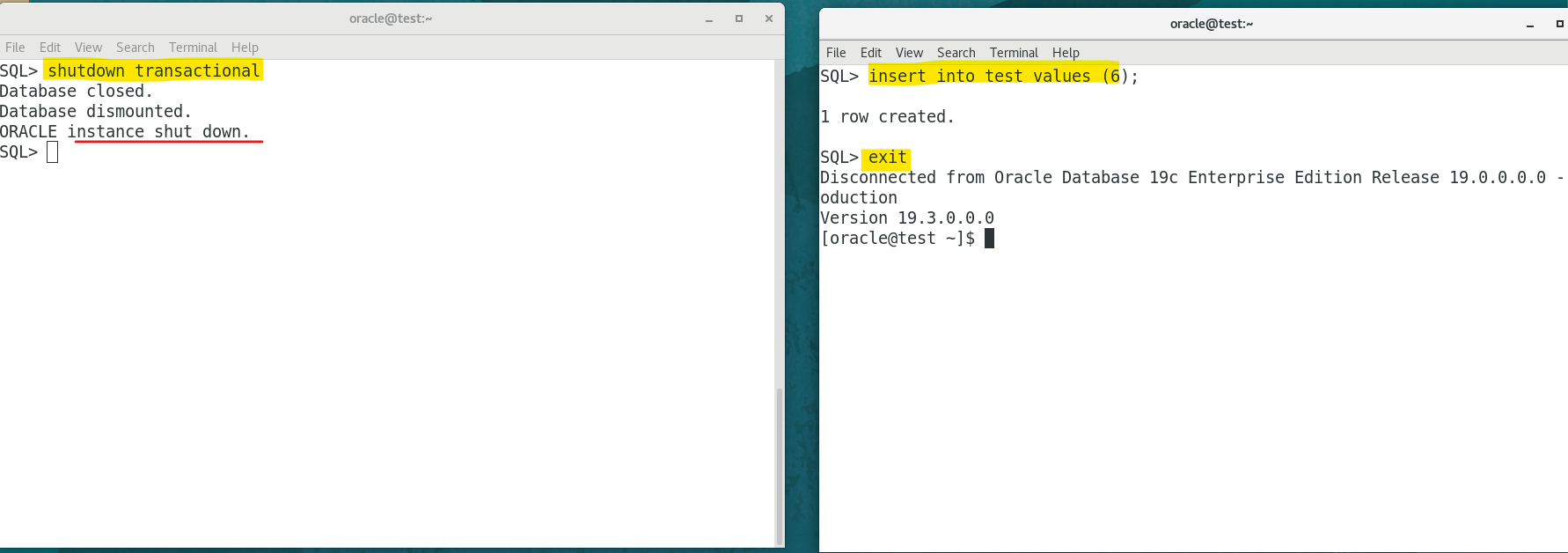

• Terminal B insert a new row
• Terminal A shutdown transactional
  • shutdown will not be executed.

• Terminal B close session

  • shutdown will be executed.

• => close session == transaction automaticall commit;

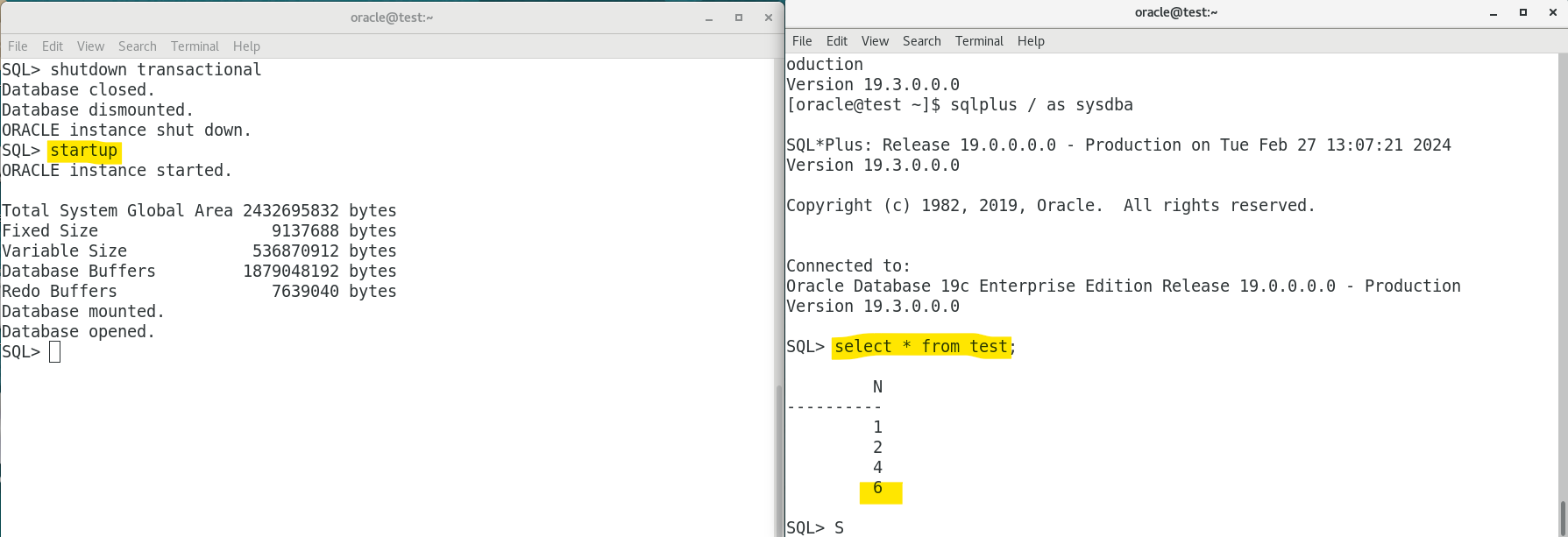

  • new value is available when re-open the database.
• Different from the SHUTDOWN IMMEDIATE
  • SHUTDOWN IMMEDIATE: uncommitted transaction will roll back.

• ---

Lab: SHUTDOWN IMMEDIATE

• Terminal A:
  • startup isntance
  • connect using sys as sysdba
• Terminal B:
  • connect using sys as sysdba

# Terminal A
sqlplus
sys as sysdba


# Terminal B
sys as sysdba

---

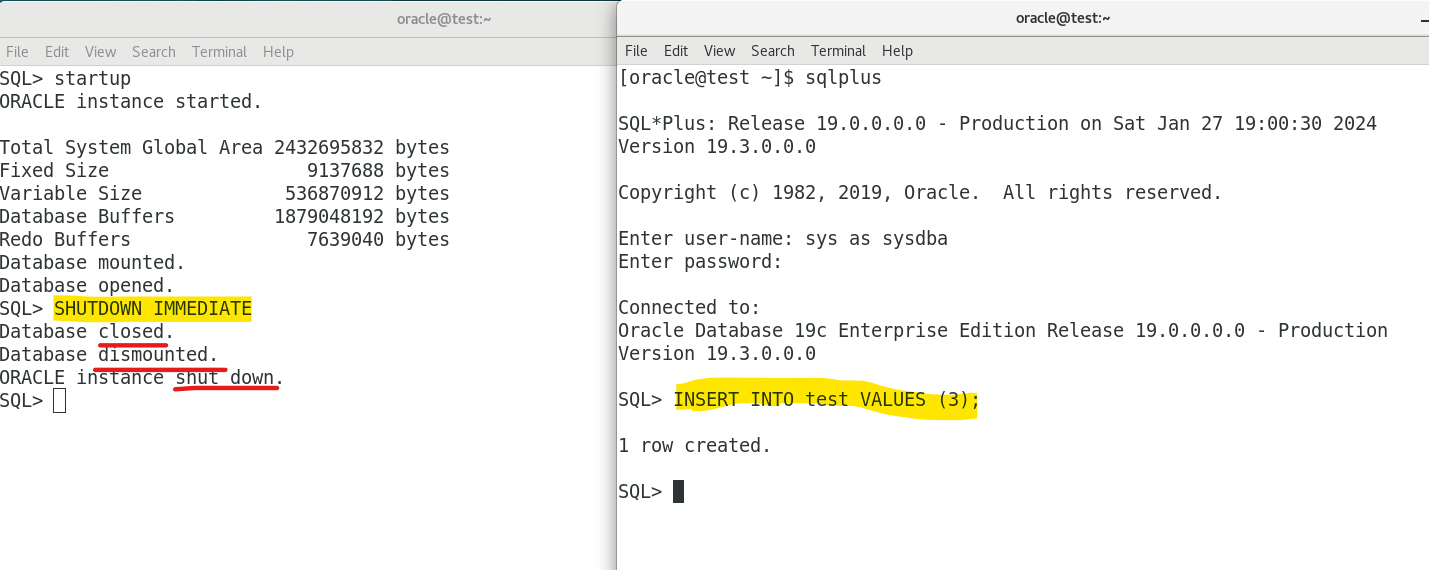

• Terminal B:
  • insert a row without commit
• Terminal A:
  • SHUTDOWN IMMEDIATE
    • Command execute without waiting
    • because IMMEDIATE mode close session and transaction.

# Terminal B
INSERT INTO test VALUES (3);

# Terminal A
SHUTDOWN IMMEDIATE

---

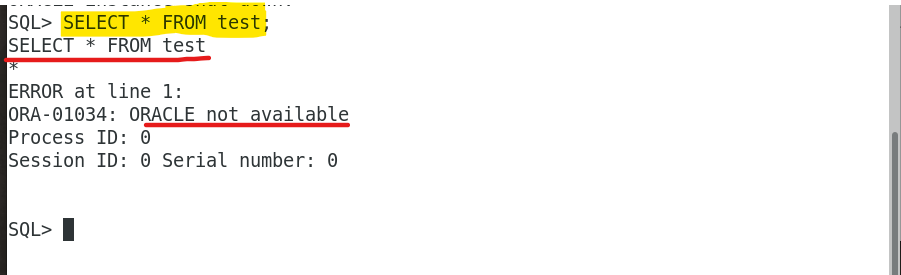

• Terminal A:
  • try to query the test tb
  • wil have error due to closure of DB

# Terminal A
SELECT * FROM test;
# ORA-01034: ORACLE not available

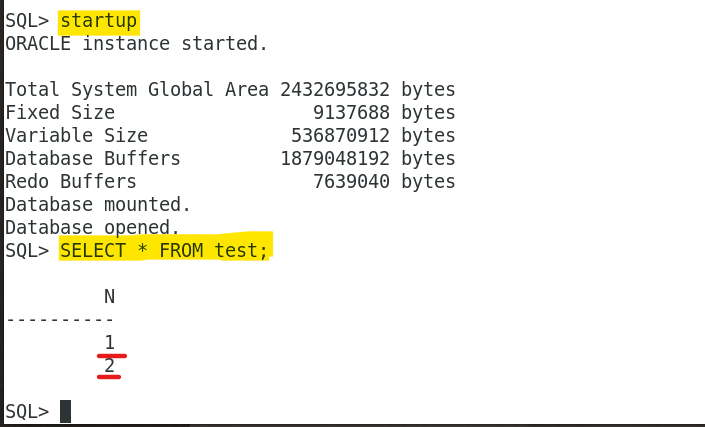

• Terminal A:
  • startup instance
  • query the test tb
    • the last insert not change the tb
    • In IMMEDIATE mode, all uncommited transaction will roll back.

---
