DBA: Instance - Shutdown

Back

• DBA: Instance - Shutdown
  • Instance and Database Shutdown
  • Phase
    • Close
    • Unmounted
    • Shut Down
  • Shutdown Modes
    • SHUTDOWN ABORT
      • Save Shutdown - IMMEDIATE, TRANSACTIONAL, NORMAL,
      • Abnormal Shutdown - ABORT + STARTUP FORCE
    • SHUTDOWN IMMEDIATE: force a checkpoint
    • SHUTDOWN TRANSACTIONAL: wait for current transaction
    • SHUTDOWN NORMAL / SHUTDOWN: wait for current session
  • Unusual circumstances of shutdown

---

Instance and Database Shutdown

• Tools:

  • SQL*Plus SHUTDOWN command
  • Enterprise Manager

• Required privileges of connection:

  • SYSDBA
  • SYSOPER

• Use Case:

  • Change a static parameter
  • Patch the database server
  • perform maintenance or other adminstrative tasks.

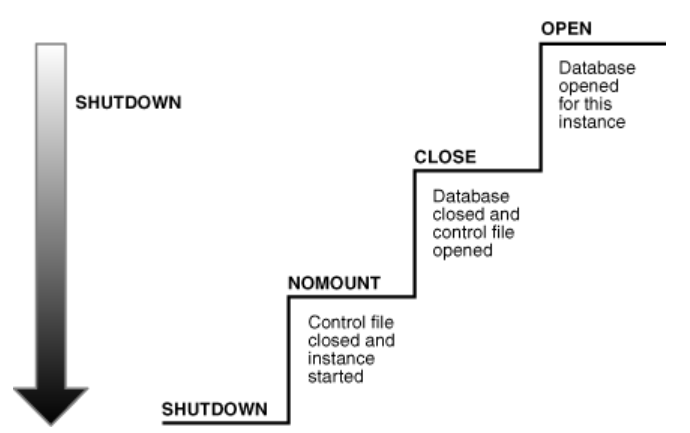

• Steps in instance shutdown

Phase	Database / Instance	Files to close
1	CLOSE: mounted	online data files, redo log files
2	NOMOUNT: unmounted	control file
3	SHUTDOWN: instance close

---

Phase

Close

• The database close operation is implicit in a database shutdown. The nature of the operation depends on whether the database shutdown is normal or abnormal.

---

Unmounted

• perform:

  • unmounted database: disassociate database from the instance, after the database is closed.
  • closes the control files of the database.

• At this point, the database instance remains in memory.

---

Shut Down

• Perform:

  • the SGA ceases to occupy memory
  • terminate the background processes.

---

Shutdown Modes

Database Behavior	new user	Waits sessions end	Waits transactions end	checkpoint and closes open files
ABORT	-	-	-	-
IMMEDIATE	-	-	-	Y
TRANSACTIONAL	-	-	Y	Y
NORMAL	-	Y	Y	Y

---

SHUTDOWN ABORT

• the fastest shutdown mode

• does not checkpoint the open data files

  • a subsequent open of this database may take substantially longer
  • instance recovery must be performed to make the data files consistent before the database can reopen.
  • Could lose data.

• Use Case:

  • emergency situations
    • when no other form of shutdown is successful.
• In a CDB, issuing SHUTDOWN ABORT on a PDB == issuing SHUTDOWN IMMEDIATE on a non-CDB.

---

	ABORT+STARTUP FORCE	Other mode
Checkpoint	not	yes
Databsae	inconsistent	stay consistent
subsequent startup Recover	Required	not required
shutdown speed	Fast	IMMEDIATE < TRANSACTIONAL < NORMAL

---

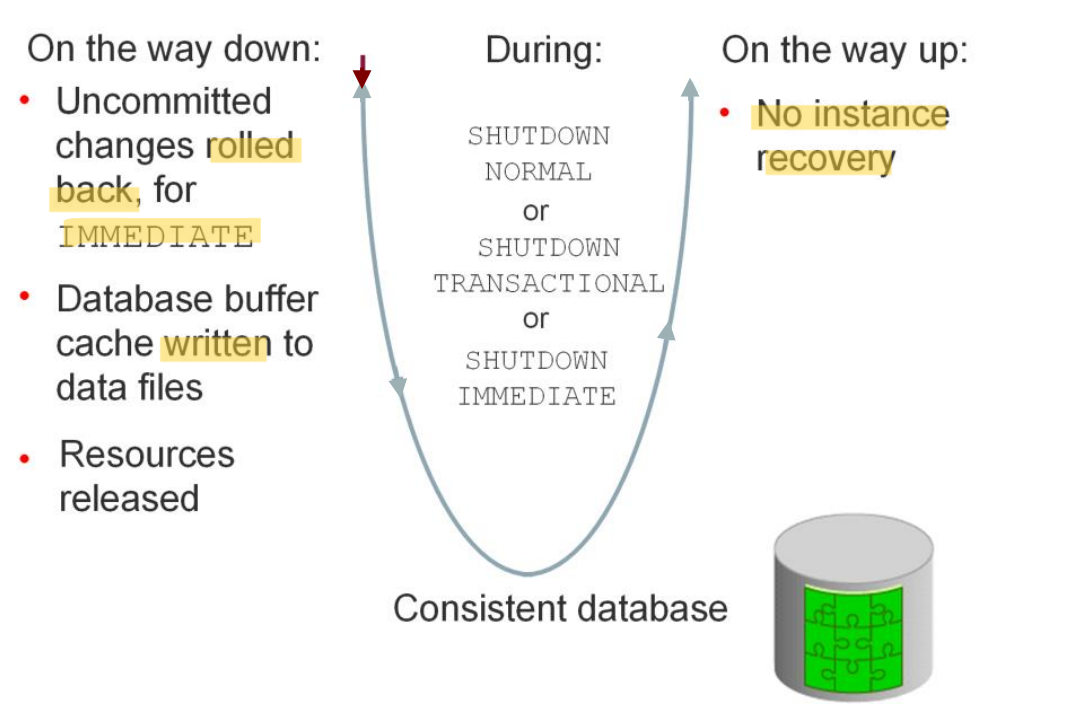

Save Shutdown - IMMEDIATE, TRANSACTIONAL, NORMAL,

• other than ABORT mode

• Oracle Database:

  • writes data in the SGA to
    • online data files
    • online redo log files.
  • closes
    • online data files
    • online redo log files.
• At this stage, the database is closed and inaccessible for normal operations.

• The control files remain open after a database is closed.

• offline tablespaces
  • Any offline data files of offline tablespaces have been closed already.
  • When the database reopens, any tablespace that was offline remains offline.

---

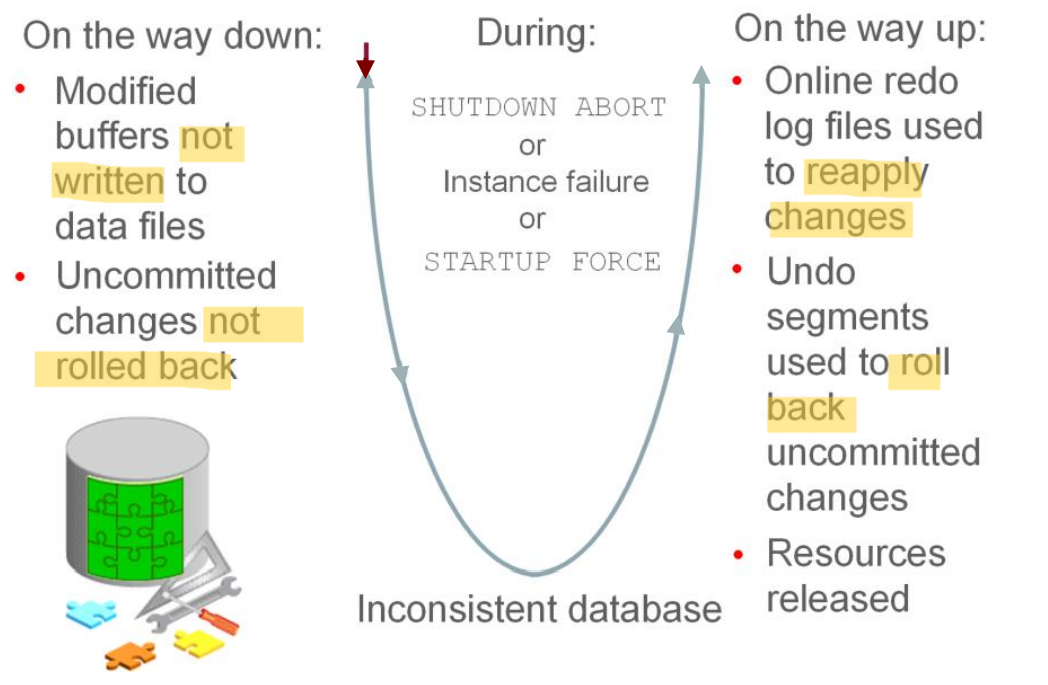

Abnormal Shutdown - ABORT + STARTUP FORCE

• the instance of an open database closes and shuts down the database instantaneously, if

  • a SHUTDOWN ABORT
  • abnormal termination

• Oracle Database does not write data in the buffers of the SGA, the modified buffer, to

  • data files
  • redo log files.

• Uncommited changes not rolled back.

• Auto instance recovery is required during the subsequent reopening of the database.

---

SHUTDOWN IMMEDIATE: force a checkpoint

• the fastest mode next to SHUTDOWN ABORT.
• force a checkpoint and terminates any executing SQL statements
  • Active transactions are terminated
  • uncommitted changes are rolled back
  • close files
• disconnects users.

---

SHUTDOWN TRANSACTIONAL: wait for current transaction

• take a significant amount of time depending on the nature of the current transactions.
• prevents users from starting new transactions,
• waits for all current transactions to complete before shutting down.

---

SHUTDOWN NORMAL / SHUTDOWN: wait for current session

• default mode of shutdown.
• The database waits for all connected users to disconnect before shutting down.

---

Unusual circumstances of shutdown

• unusual circumstances: shutdown of a database instance may not occur cleanly.

  • Memory structures may not be removed from memory
  • one of the background processes may not be terminated

• a subsequent instance startup may fail because remnants of a previous instance exist.

  • Solution:
    • force the new instance to start by removing the remnants of the previous instance and then starting a new instance,
    • by issuing a SHUTDOWN ABORT statement.

---

• In some cases, process cleanup itself can encounter errors, which can result in the termination of process monitor (PMON) or the instance.
  • The dynamic initialization parameter INSTANCE_ABORT_DELAY_TIME specifies how many seconds to delay an internally generated instance failure. This delay gives you a chance to respond.
  • The database writes a message to the alert log when the delayed termination is initiated.
• In some circumstances, by allowing certain database resources to be quarantined, the instance can avoid termination.

---
