Oracle DBA - Intro

Back

Oracle DBA - Intro

Terminology

Data
- facts or figures ,Pieces of information. (Unprocessed , Unorganized)
Database
- an organized collection of information.
Application
- interface between users and DB
DBMS / Database management system
- a system to store and retrieve and modify data in the database.
Relational database
- a database stores data in a set of simple relations.
RDBMS / Relational database management system
- Oracle is relational database
- It is a system to manage data in the relational database.
- The purpose of Oracle Database is to store , organize, and retrieve data for your applications
Table
- the basic storage unit of an RDBMS ( it is logical unit , not physical )
- The table consists of rows and columns
SQL
- structure query language used to access database
Types of SQL statement
- DML / Data manipulation language
  - SELECT, INSERT,UPDATE,DELETE,MERGE
- DDL / Data definition language
  - CREATE, ALTER,DROP,RENAME,TRUNCATE,COMMENT
- DCL / Data control language
  - GRANT, REVOKE
- TCL / Transaction control language
  - COMMIT, ROLLBACK,SAVEPOINT
PL/SQL
- the procedural extension to SQL with design features of programming languages.
- DML and DQL are included within procedural units of code.
Normalization
- a database design technique which organizes tables in a manner that reduces redundancy and dependency of data.
- It divides larger tables to smaller tables and links them using relationships.
Problems Without Normalization
- Extra memory space
- Difficult to handle and update the database
- Data Inconsistency

Editions

Oracle Database Personal Edition (PE)
- supports single-user development, includes all of the components that are included with Enterprise Edition ,
- no Oracle RAC , no Oracle Management Packs
Oracle Database Standard Edition 2 (SE2) starting from Release 1 (12.1.0.2).
- includes all the features necessary to develop workgroup and Web applications.
- Support RAC, no parallel execution, no Data guard, no management pack, no cloud control , only one pluggable database allowed
- Note: before SE2, we have SE and SE1 and both no RAC option
Oracle Database Enterprise Edition (EE)
- Oracle Database Enterprise Edition provides performance, availability, scalability, and security for developing applications such as high-volume online transaction processing (OLTP) applications, queryintensive data warehouses, and demanding Internet applications. Oracle Database Enterprise Edition contains all of the components of Oracle Database
Oracle Database Express Edition ( XE)
- Free but limited , use 1 CPU, 1 GB memory

Lab: Check the version of Oracle Database

SELECT * FROM v$version;
# BANNER
# BANNER_FULL
# BANNER_LEGACY
# CON_ID
# ----------------------------------------------------------------------
# Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
# Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
# Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
# 0
# Version 19.3.0.0.
# 0

Database VS Database Instance

Oracle DB consists of 2 major components
- The Database storage
- The Oracle Instance

Database

Database:
- Organized collection of information.
- It contains collection of database files stored in disk storage. (physical)
Database files:
- Datafiles
- control files
- Redo Log Files
- Databae Backups
- Archived Redo Logs
- Parameter File
- Password file
- Alter Log File
- Trace Files

Database Instance

database instance
- a set of memory structures and processes that manage database files
- The Oracle program, or binary, loaded into the server RAM
  - Note: A database instance exists only in memory
- created by Oracle every time you start up your database
- reading from memory is a lot faster compared to reading from disk
Every running Oracle database is associated with at least one Oracle database instance.
An instance can exist without a database and a database can exist without an instance
- Because an instance exists in memory and a database exists on disk,
- Losing instance no issue
- losing data files for example = losing the database

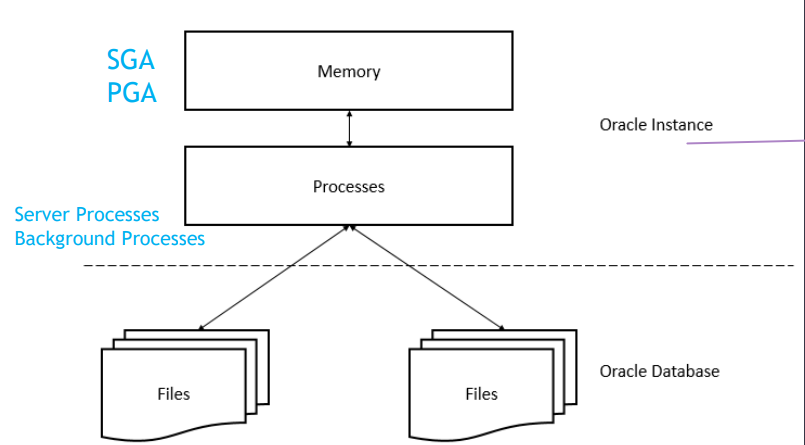

Another simple way to understand DB and instance:
- Microsoft word: instance
- Microsoft document: database

database_instance_diagram

Oracle DB Server architecture

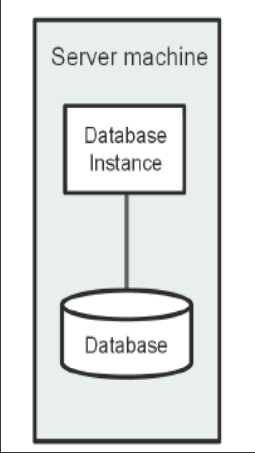

Single-instance DB

architecture_single_instance_diagram

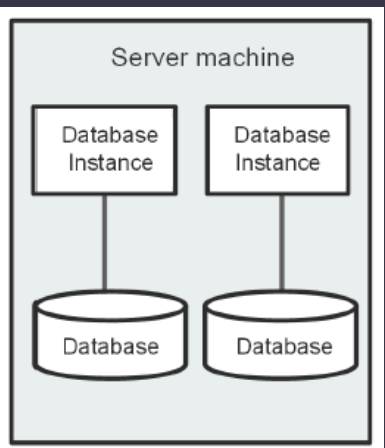

Multi Single-instance DBs On same server

architecture_multiple_single_instance_diagram

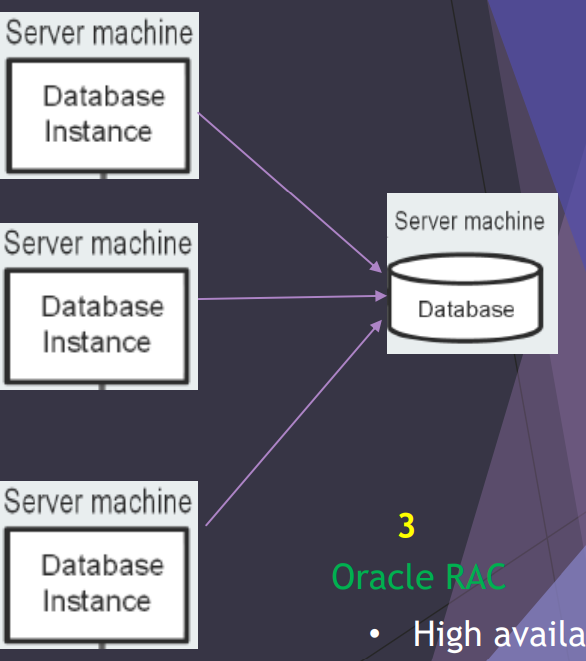

Oracle Real Application Clusters (RAC)
- High availability
- Scalability
- High performance

architecture_oracle_rac_diagram

Common Oracle DBA Tasks

Installing Oracle software
Creating Oracle databases
Performing upgrades of the database and software to new release levels
Starting and shutting down the database instance
Managing the storage structures of the database
Managing users and security
Managing database objects, such as tables, indexes, and views
Backing up the database and performing recovery operations when necessary
Monitoring the state of the database
Monitoring and tuning database performance
reporting critical errors to Oracle Support Services

Tools for Administering the Database

Oracle Universal Installer
- is a utility that installs your Oracle software and options. It can automatically start Oracle Database Configuration
- Assistant to install a database.
Oracle Database Configuration Assistant
- (DBCA) is a utility that creates a database from templates that are supplied by Oracle
Database Upgrade Assistant
- (DBUA) is a tool that guides you through the upgrade of your existing database to a new Oracle Database release
Net Configuration Assistant
- is a utility that enables you to configure listeners and naming methods, which are critical components of the Oracle
- Database network.
Oracle Enterprise Manager Database Express
- The primary product for managing your database, a Web-based interface
- EM Express used to manage your database in very simple ways like simple wizard
Oracle SQL Developer
- SQL Developer provides another GUI for accessing your Oracle database. SQL Developer supports development in both the SQL and PL/SQL languages
